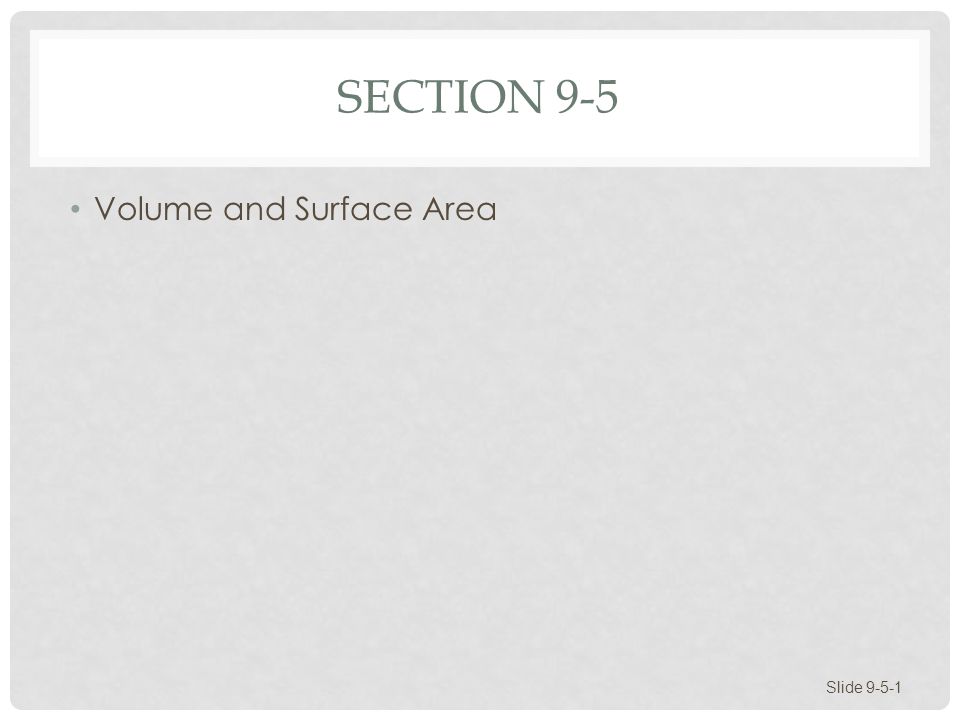

SECTION 9-5 Volume and Surface Area Slide 9-5-1

2
VOLUME AND SURFACE AREA Space Figures Volume and Surface Area of Space Figures Slide 9-5-2

3
SPACE FIGURES Slide 9-5-3 Space figures take three dimensions of space to represent the figure. One important group of space figures is a group called polyhedra. The faces of these figures are made only of polygons.

4
REGULAR POLYHEDRA (PLATONIC SOLIDS) Slide 9-5-4 NameDescription Tetrahedron4 equilateral triangles Hexahedron6 squares (cube) OctahedronGroups of 4 regular triangles DodecahedronGroups of 3 regular pentagons IcosahedronGroups of 5 regular triangles See pictures on the next slide.

5

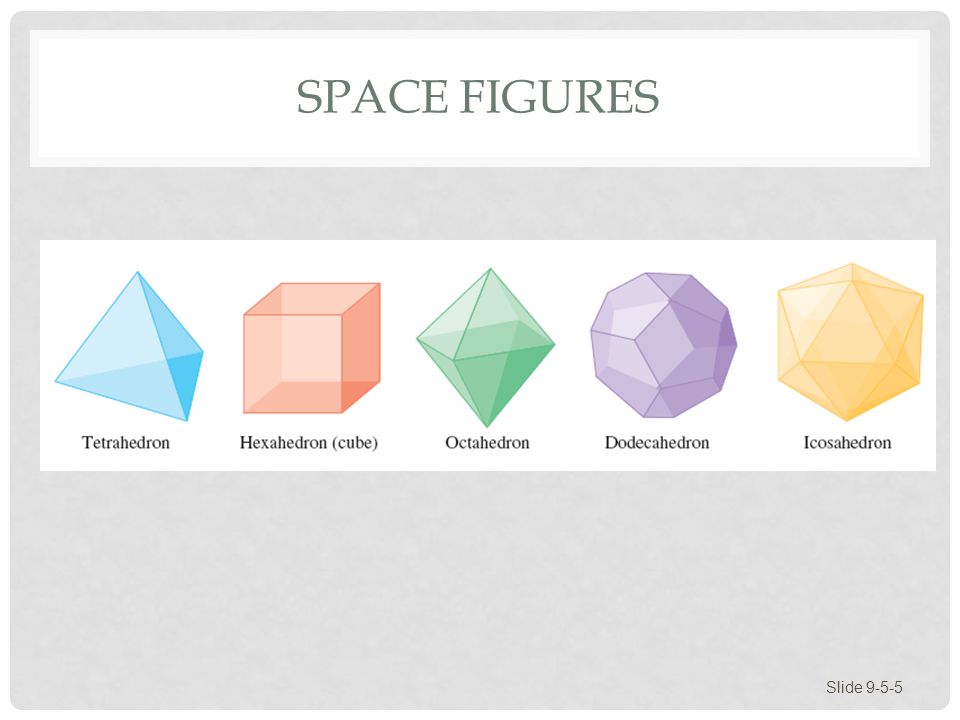

SPACE FIGURES Slide 9-5-5

6
SPACE FIGURES Slide 9-5-6 The next slide shows space includes two other polyhedra: pyramids and prisms. Pyramids are made of triangular sides and a polygonal base. Prisms have two faces in parallel planes; these faces are congruent polygons. The next slide also shows a torus which is a doughnut-shaped solid and figures made up in part of circles including right circular cones and right circular cylinders.

7
SPACE FIGURES Slide 9-5-7

8
VOLUME AND SURFACE AREA Slide 9-5-8 Volume is a measure of capacity of a space figure. Volume is measured in cubic units. Surface Area is the total area that would be covered if the space figure were “peeled” and the peel laid flat. Surface area is measured in square units.

9

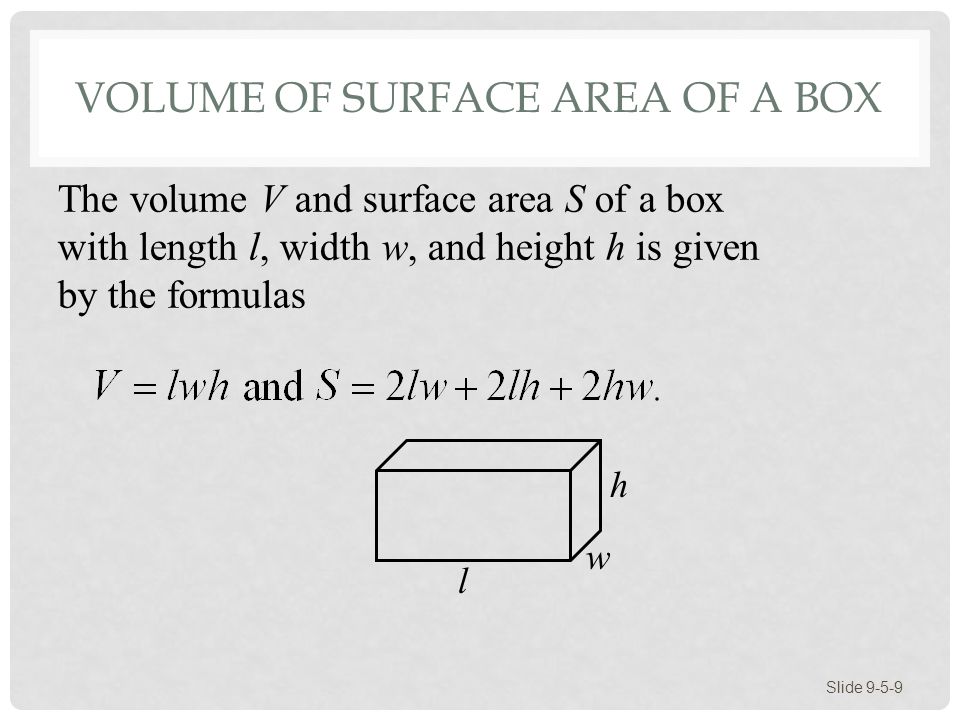

VOLUME OF SURFACE AREA OF A BOX Slide 9-5-9 w h l The volume V and surface area S of a box with length l, width w, and height h is given by the formulas

10

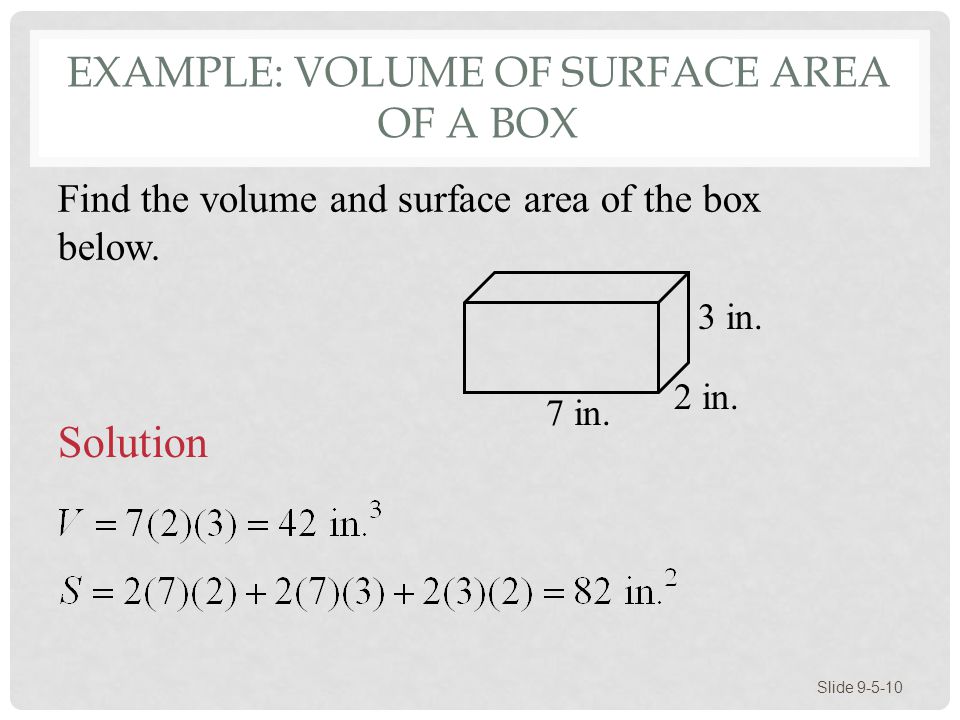

EXAMPLE: VOLUME OF SURFACE AREA OF A BOX Slide 9-5-10 2 in. 3 in. 7 in. Find the volume and surface area of the box below. Solution

11
VOLUME OF SURFACE AREA OF A CUBE Slide 9-5-11 s s s The volume V and surface area S of a cube with edge of length s is given by the formulas

12
EXAMPLE: VOLUME OF SURFACE AREA OF A CUBE Slide 9-5-12 5 ft. Find the volume and surface area of the cube below. Solution

13
VOLUME OF SURFACE AREA OF A RIGHT CIRCULAR CYLINDER Slide 9-5-13 h r The volume V and surface area S of a right circular cylinder with base radius r and height h is given by the formulas

14
EXAMPLE: VOLUME OF SURFACE AREA OF A RIGHT CIRCULAR CYLINDER Slide 9-5-14 10 m Find the volume and surface area of the cylinder below. Solution 2 m

15
VOLUME OF SURFACE AREA OF A SPHERE Slide 9-5-15 r The volume V and surface area S of a sphere radius r is given by the formulas

16
EXAMPLE: VOLUME OF SURFACE AREA OF A SPHERE Slide 9-5-16 9 in. Find the volume and surface area of the sphere below. Solution

17
VOLUME OF SURFACE AREA OF A RIGHT CIRCULAR CONE Slide 9-5-17 h r The volume V and surface area S of a right circular cone with base radius r and height h is given by the formulas

18
EXAMPLE: VOLUME OF SURFACE AREA OF A RIGHT CIRCULAR CONE Slide 9-5-18 4 m 3 m Find the volume and surface area of the cone below. Solution

19
VOLUME OF A PYRAMID Slide 9-5-19 h The volume V of a pyramid with height h and base of area B is given by the formulas

20
EXAMPLE: VOLUME OF A PYRAMID Slide 9-5-20 7 cm Find the volume and surface area of the pyramid (rectangular base) below. Solution 6 cm 3 cm
