1. Glenpool South Tank Farm Glenpool, Oklahoma April 7, 2003 Storage Tank Explosion and Fire ConocoPhillips.

Similar presentations

Presentation on theme: "1. Glenpool South Tank Farm Glenpool, Oklahoma April 7, 2003 Storage Tank Explosion and Fire ConocoPhillips."— Presentation transcript:

1 1

2 Glenpool South Tank Farm Glenpool, Oklahoma April 7, 2003 Storage Tank Explosion and Fire ConocoPhillips

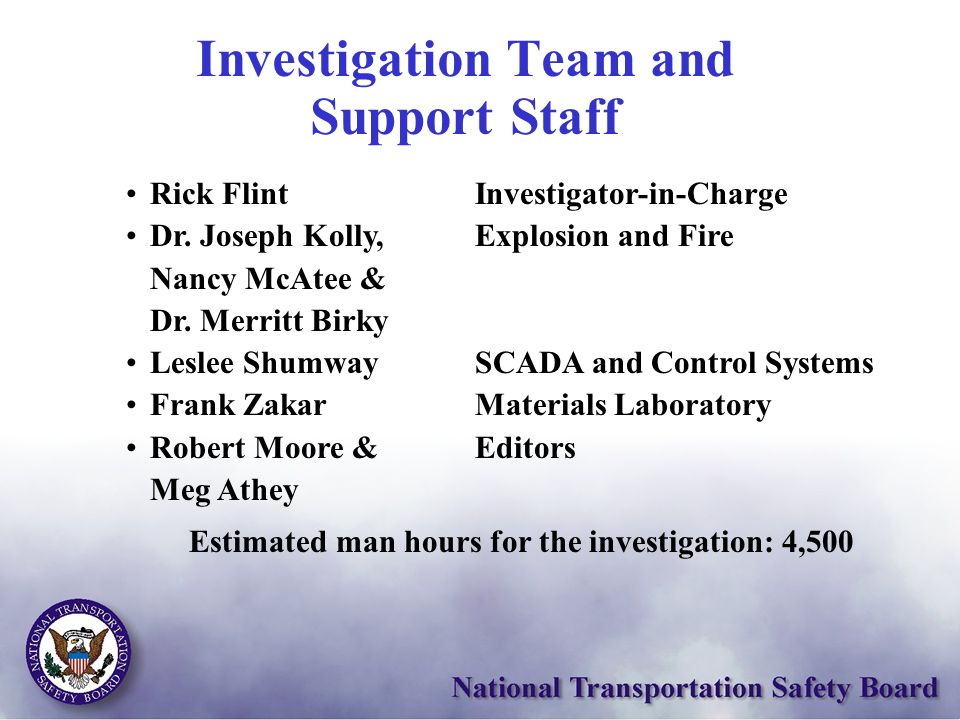

3 Rick Flint Investigator-in-Charge Dr. Joseph Kolly, Explosion and Fire Nancy McAtee & Dr. Merritt Birky Leslee ShumwaySCADA and Control Systems Frank ZakarMaterials Laboratory Robert Moore &Editors Meg Athey Estimated man hours for the investigation: 4,500 Investigation Team and Support Staff

4 Parties to the Investigation ConocoPhillips Explorer Pipeline Office of Pipeline Safety Glenpool Fire Department

5 12 7 8 9 Tank 11 North

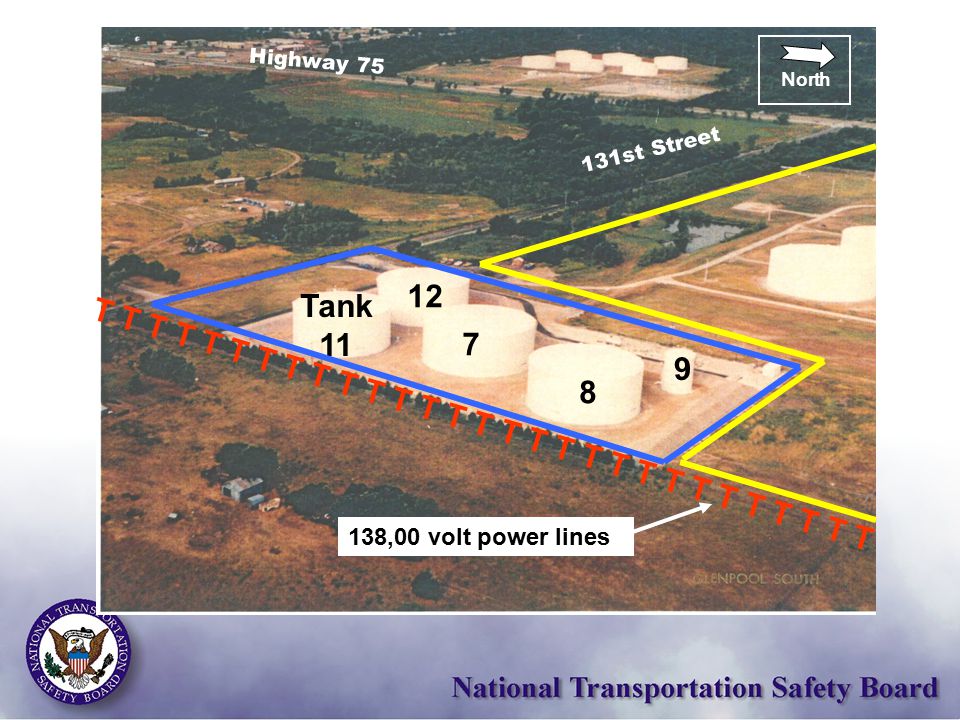

6 131st Street Highway 75 North Tank 11 9 12 8 7 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T 138,00 volt power lines

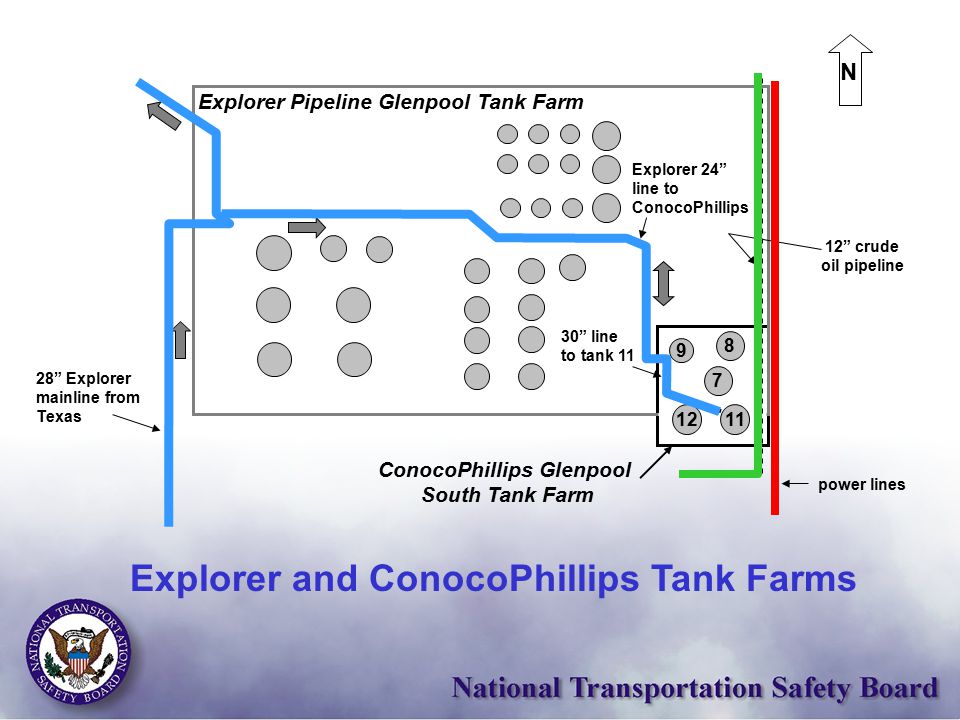

7 Explorer and ConocoPhillips Tank Farms 7 1112 8 9 N 28” Explorer mainline from Texas Explorer 24” line to ConocoPhillips 30” line to tank 11 Explorer Pipeline Glenpool Tank Farm ConocoPhillips Glenpool South Tank Farm 12” crude oil pipeline power lines

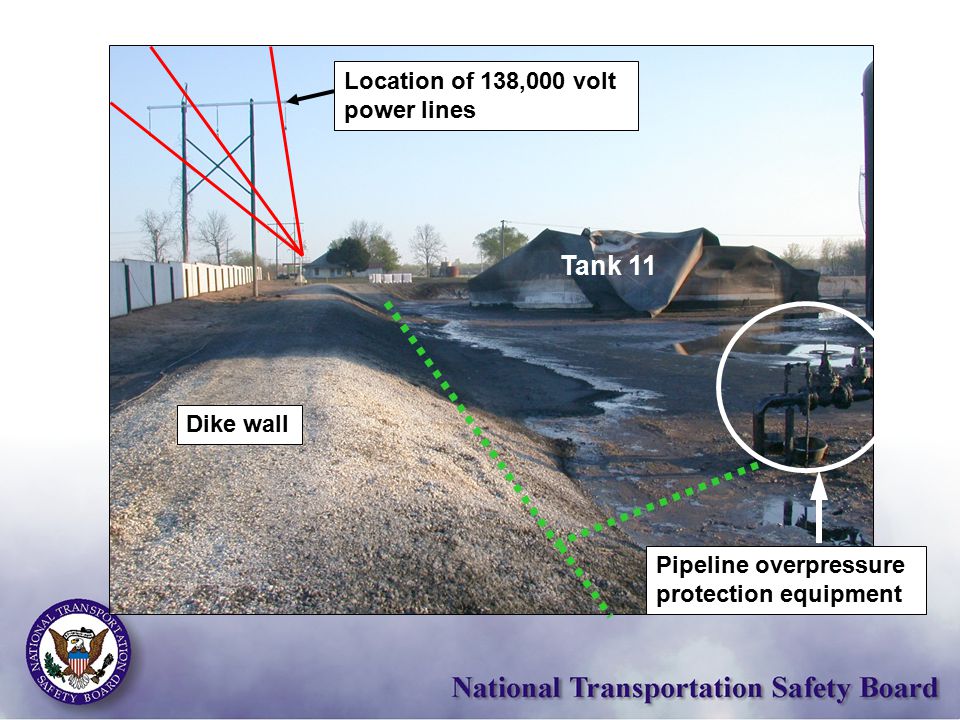

8 Tank 11 Dike wall Location of 138,000 volt power lines Pipeline overpressure protection equipment

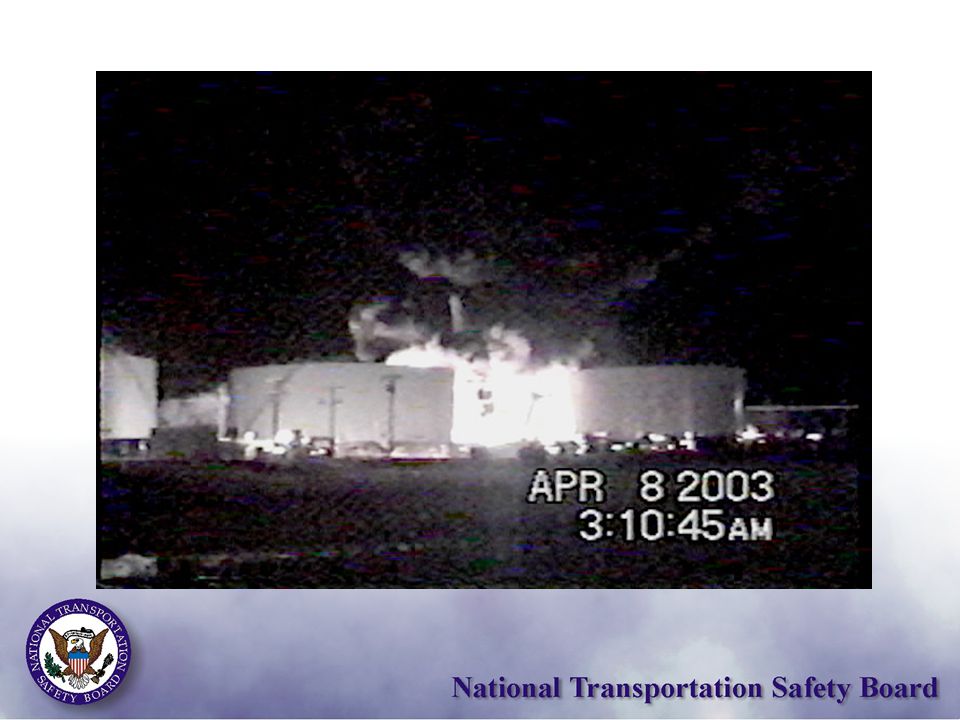

9 Fire picture here

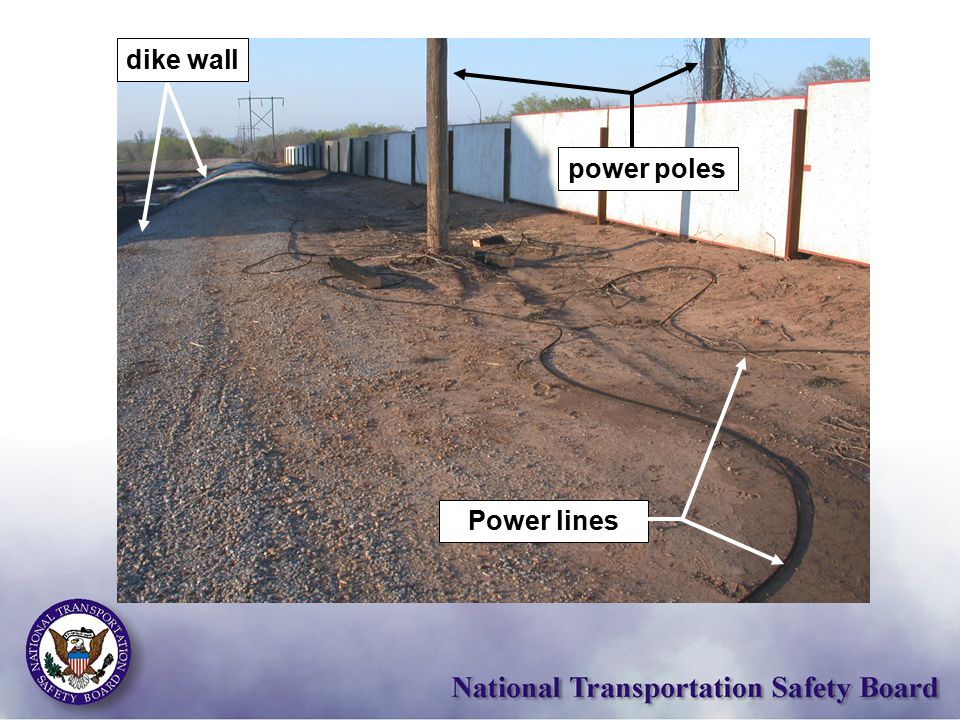

10 power poles Power lines dike wall

11 Tank 11 Tank 7 Pipeline overpressure protection equipment


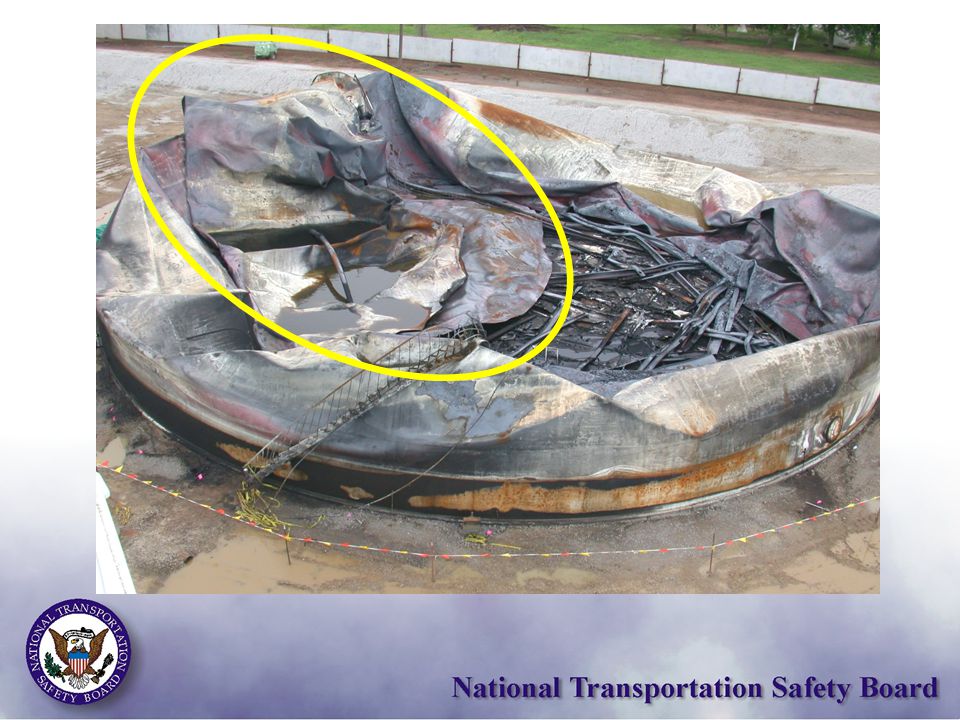

13 Tank 7 Tank 11

14 Tank 8: damage from internal fire

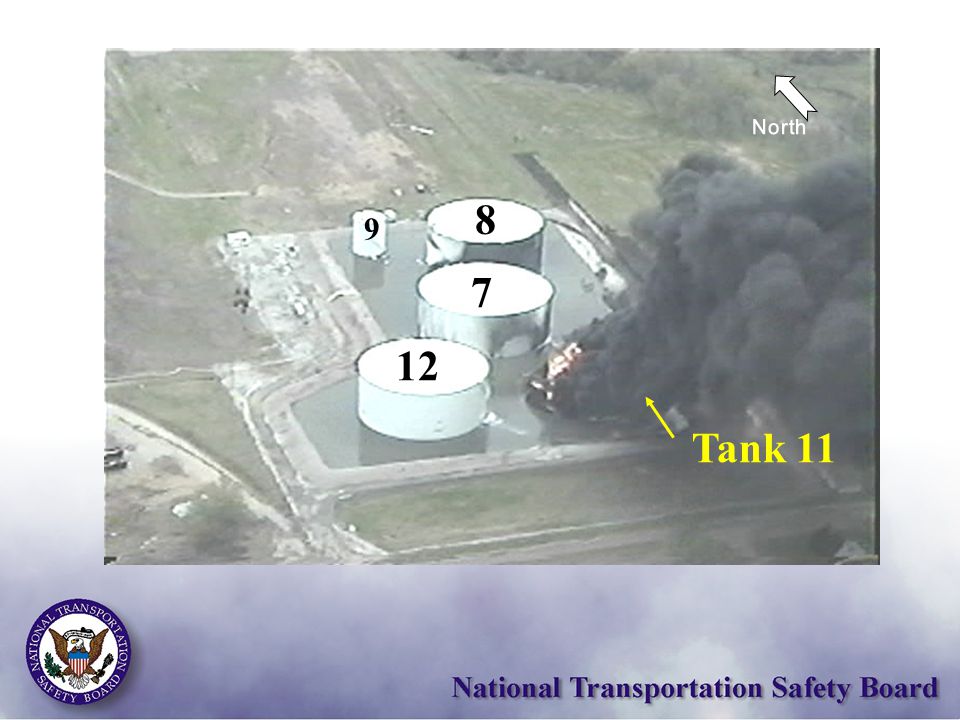

15 12 7 8 9 Tank 11 North

16 16

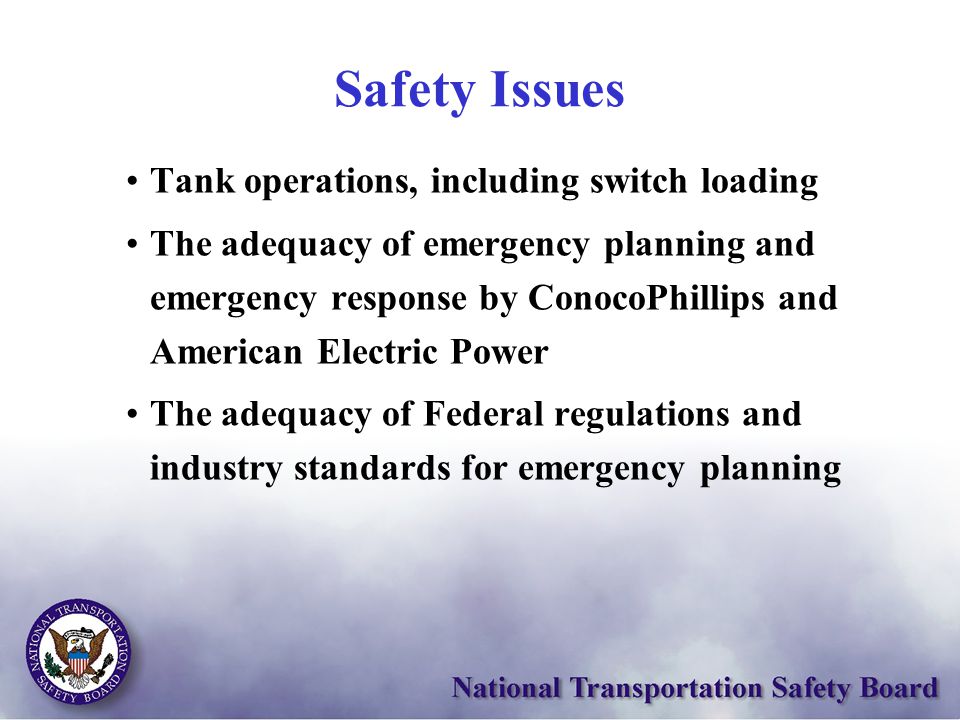

17 Safety Issues Tank operations, including switch loading The adequacy of emergency planning and emergency response by ConocoPhillips and American Electric Power The adequacy of Federal regulations and industry standards for emergency planning

18 Tank operations, including switch loading, at the ConocoPhillips tank farm Safety Issue #1

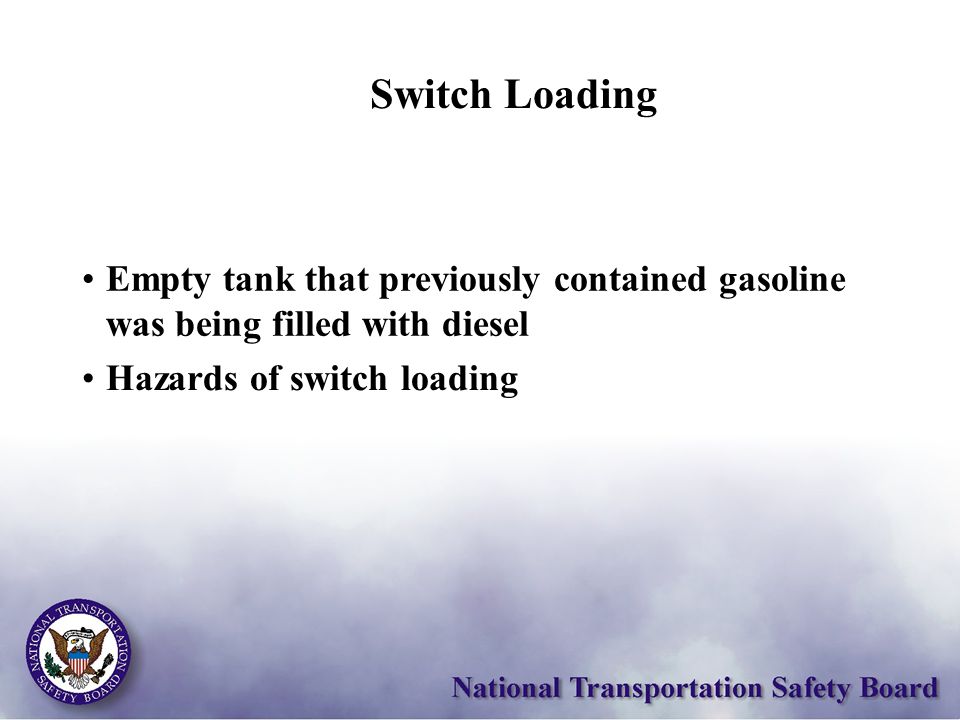

19 Switch Loading Hazards of switch loading Empty tank that previously contained gasoline was being filled with diesel

20 Flow Tank 11 with the floating roof landed roof support legs 10" diameter pontoons gasoline sump 30” fill & drain pipe bond wires internal floating roof pressure/vacuum vents in floating roof vent openings in fixed roof and shell

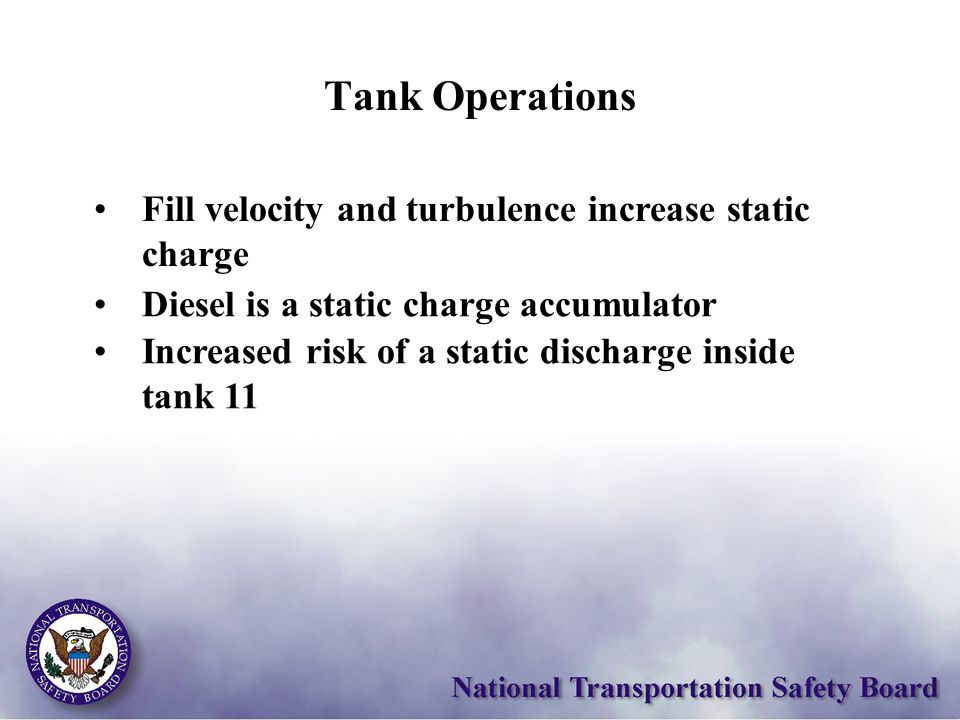

21 Tank Operations Diesel is a static charge accumulator Increased risk of a static discharge inside tank 11 Fill velocity and turbulence increase static charge

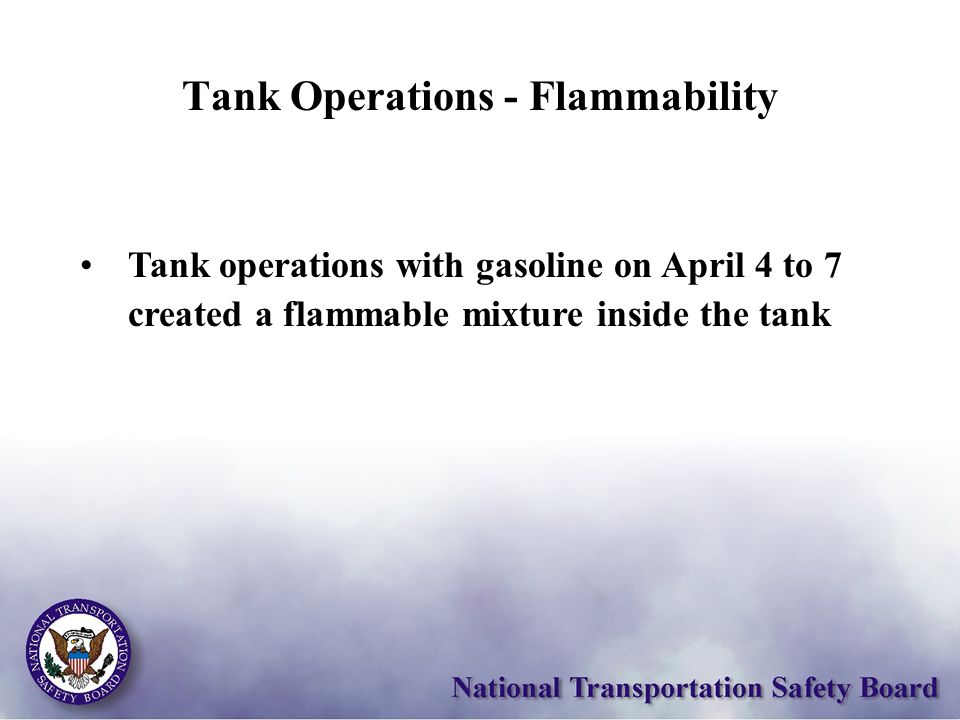

22 Tank Operations - Flammability Tank operations with gasoline on April 4 to 7 created a flammable mixture inside the tank

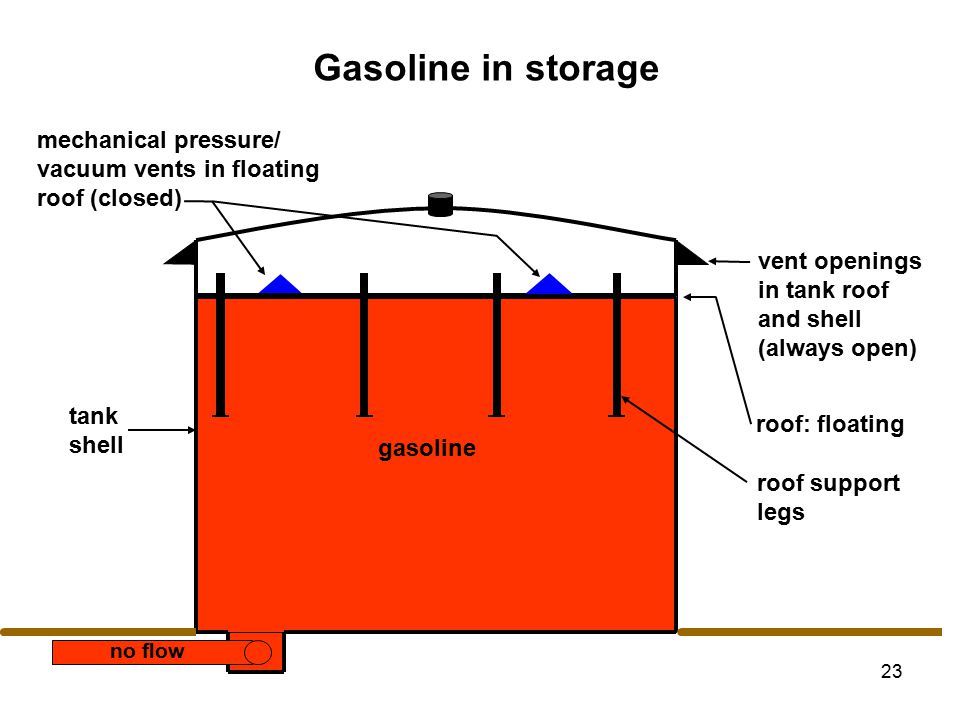

23 23 vent openings in tank roof and shell (always open) no flow Gasoline in storage gasoline roof: floating roof support legs mechanical pressure/ vacuum vents in floating roof (closed) tank shell

24 24 closed Flow Gasoline removed (roof floating) gasoline roof: floating

25 25 Flow Gasoline removed (roof landed) roof: landed gasoline open gasoline

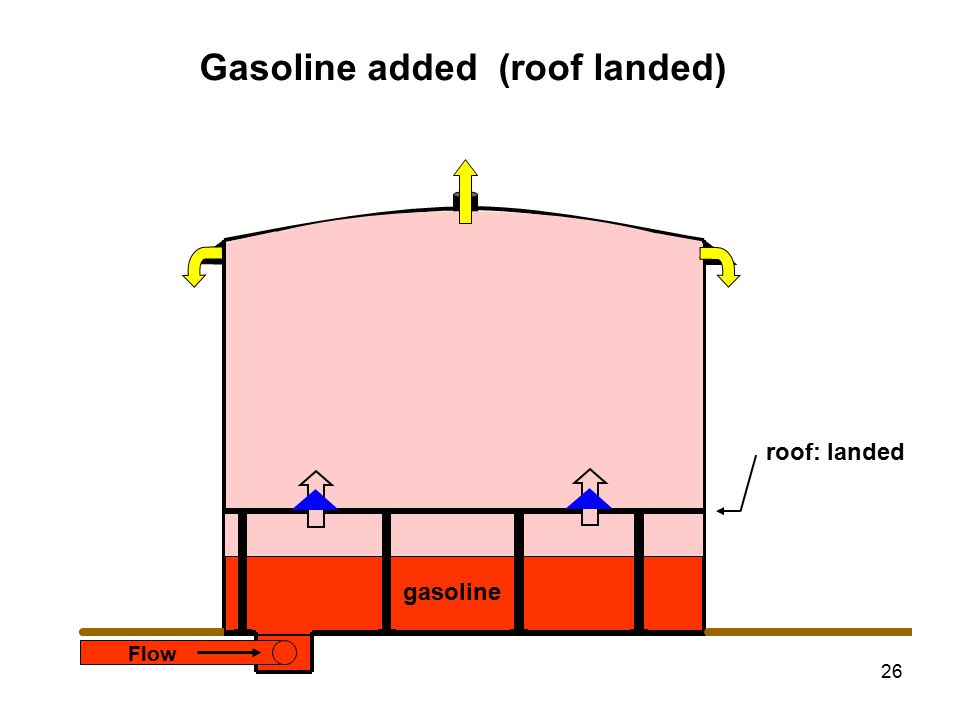

26 26 Flow Gasoline added (roof landed) roof: landed gasoline

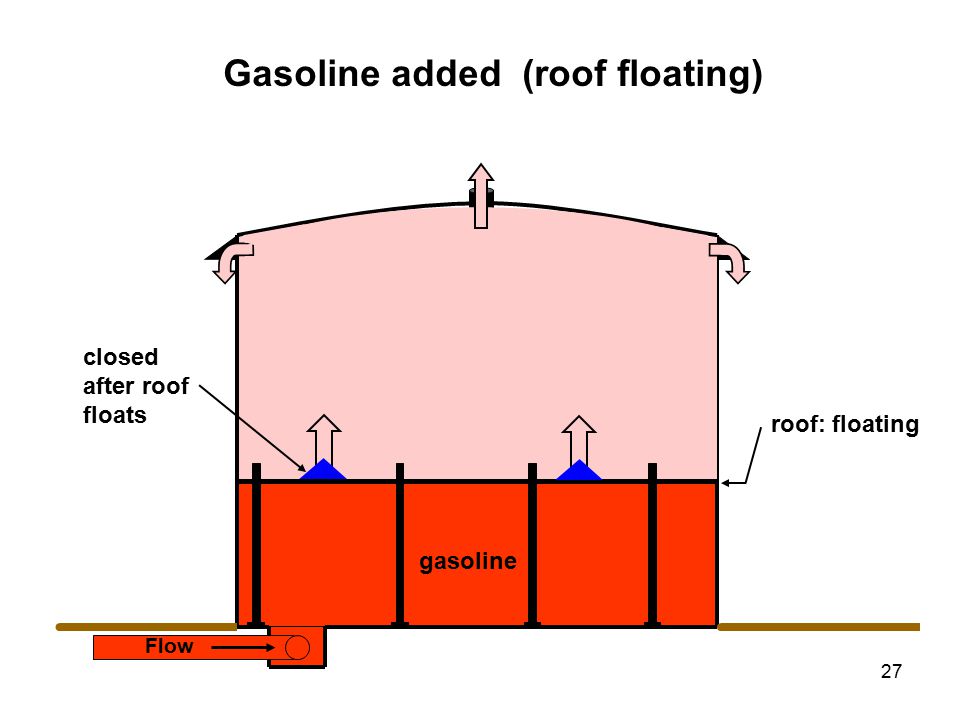

27 27 roof: floating closed after roof floats Flow Gasoline added (roof floating) gasoline

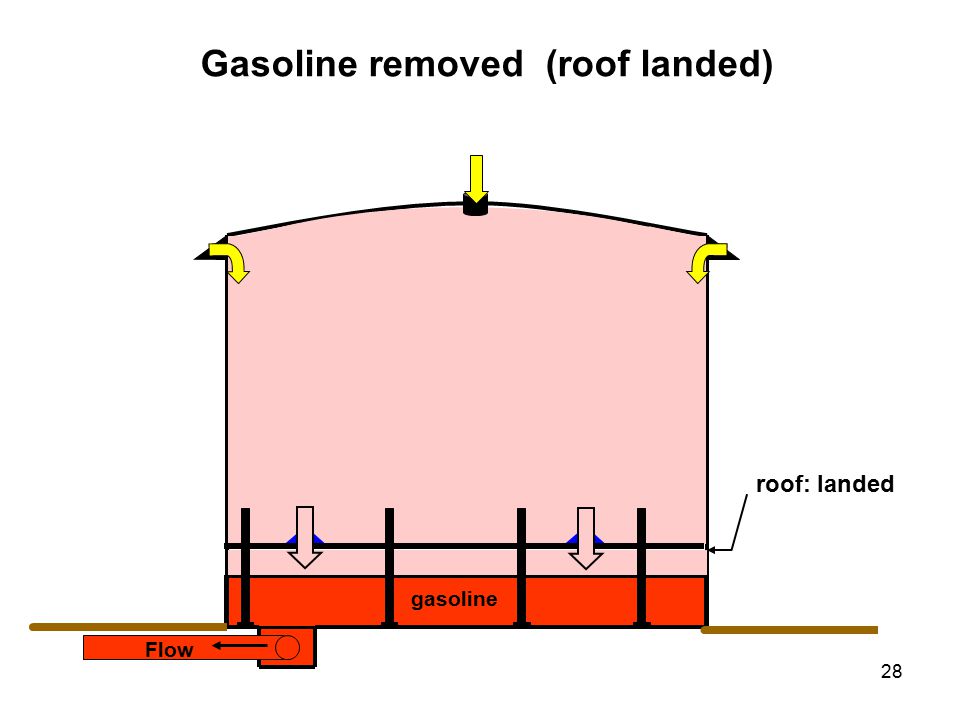

28 28 Flow Gasoline removed (roof landed) roof: landed gasoline

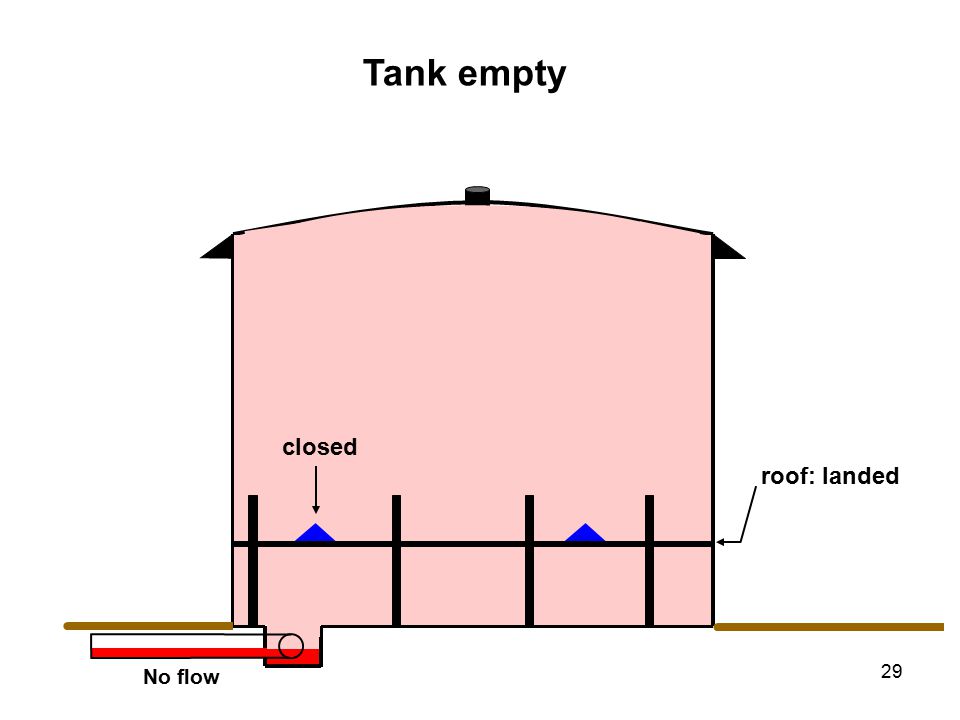

29 29 No flow Tank empty roof: landed closed

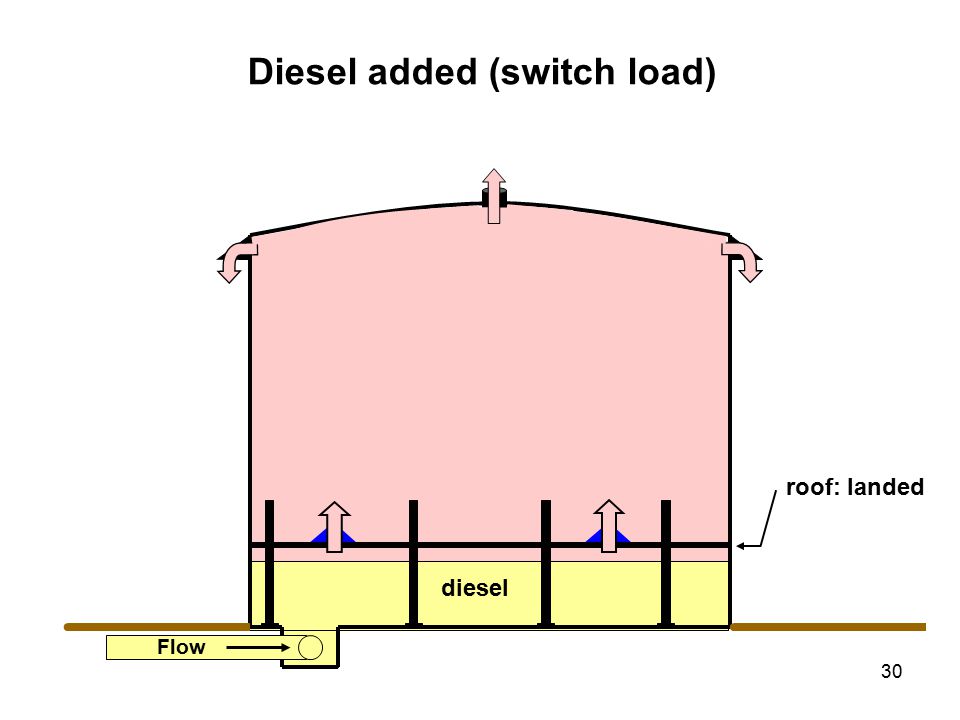

30 30 roof: landed Flow Diesel added (switch load) diesel

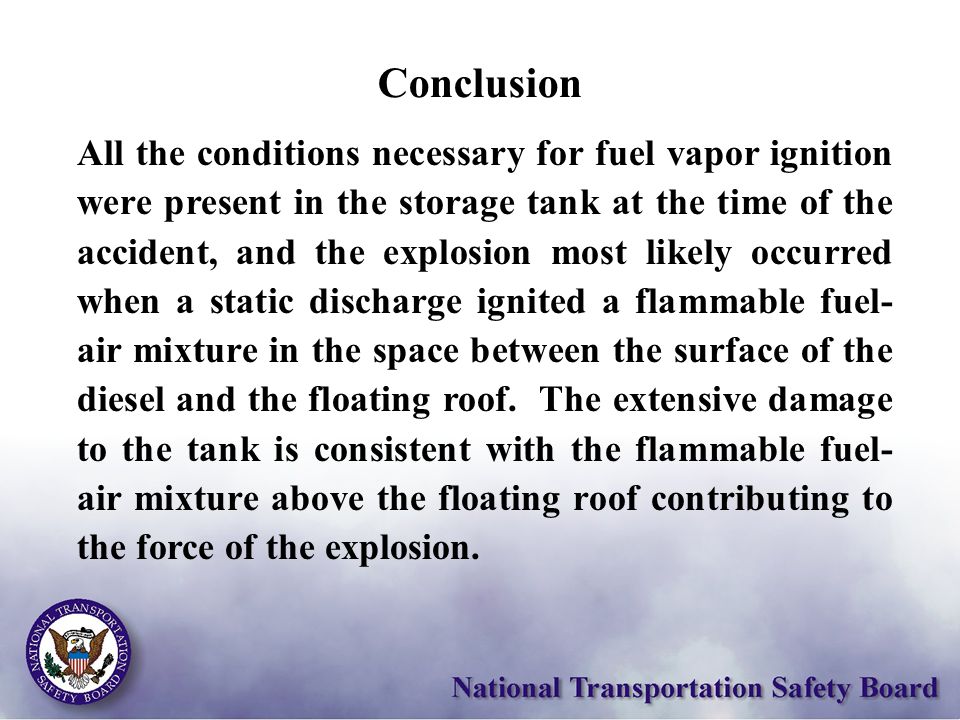

31 Conclusion All the conditions necessary for fuel vapor ignition were present in the storage tank at the time of the accident, and the explosion most likely occurred when a static discharge ignited a flammable fuel- air mixture in the space between the surface of the diesel and the floating roof. The extensive damage to the tank is consistent with the flammable fuel- air mixture above the floating roof contributing to the force of the explosion.

32 32

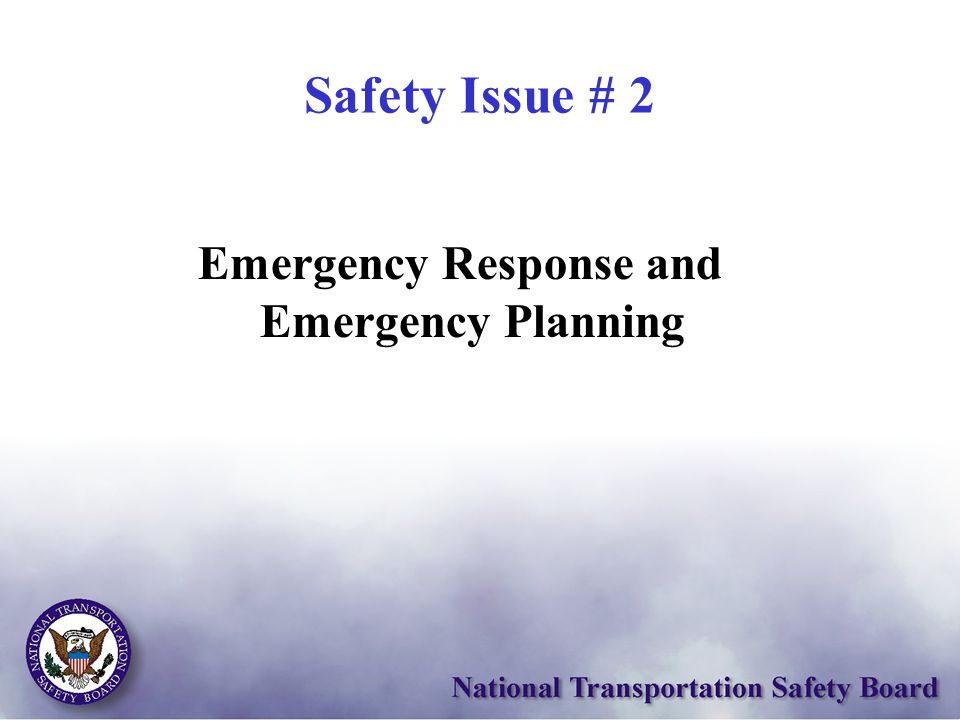

33 Safety Issue # 2 Emergency Response and Emergency Planning

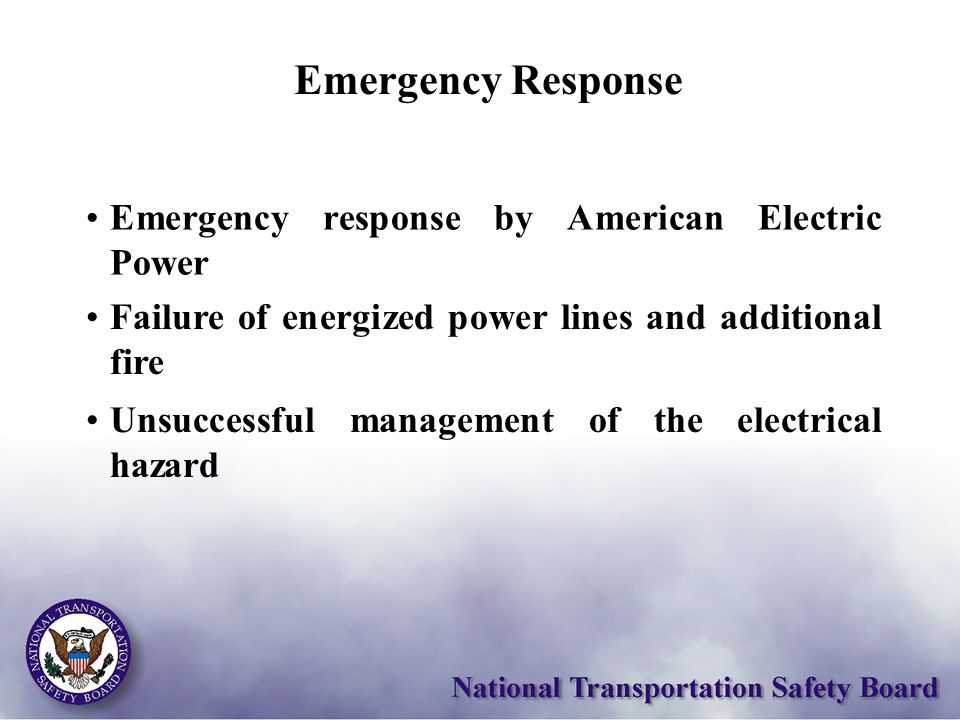

34 Failure of energized power lines and additional fire Unsuccessful management of the electrical hazard Emergency Response Emergency response by American Electric Power

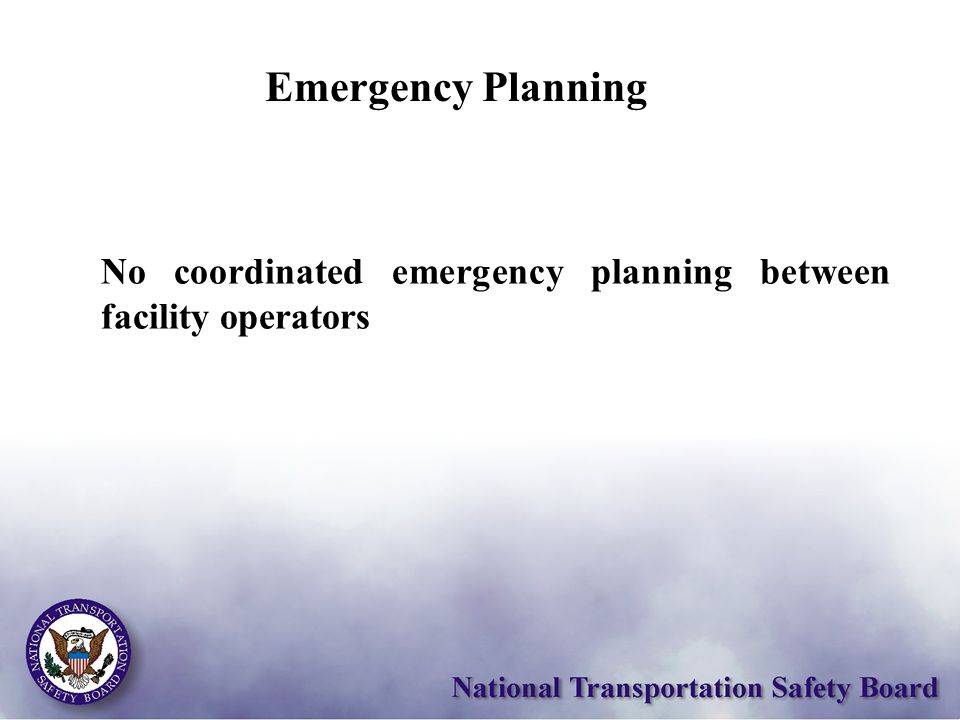

35 No coordinated emergency planning between facility operators Emergency Planning

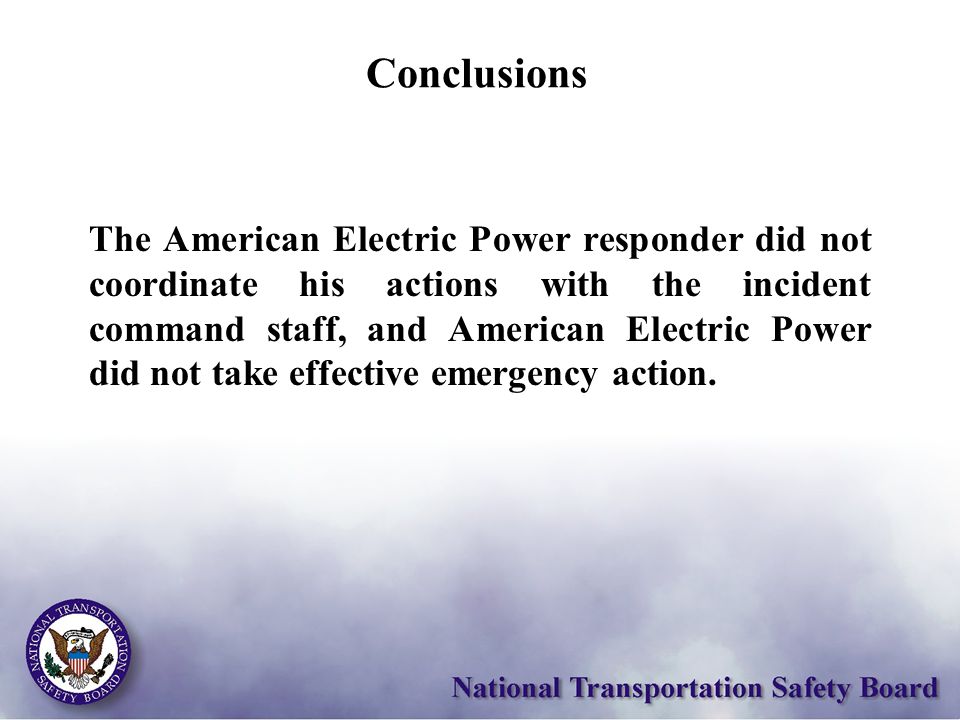

36 Conclusions The American Electric Power responder did not coordinate his actions with the incident command staff, and American Electric Power did not take effective emergency action.

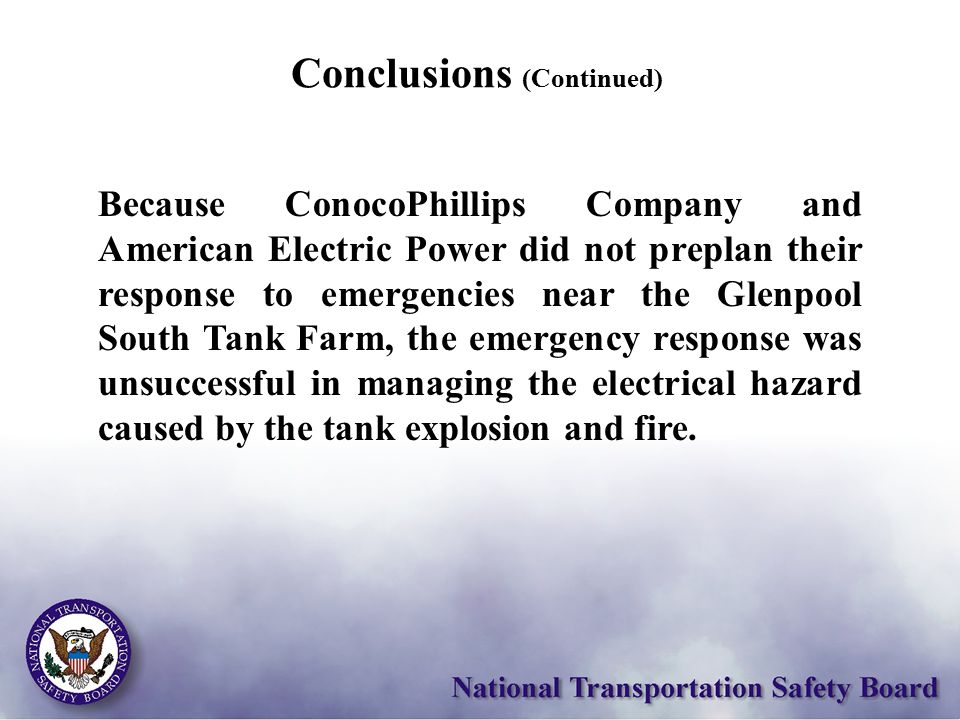

37 Conclusions (Continued) Because ConocoPhillips Company and American Electric Power did not preplan their response to emergencies near the Glenpool South Tank Farm, the emergency response was unsuccessful in managing the electrical hazard caused by the tank explosion and fire.

38 38

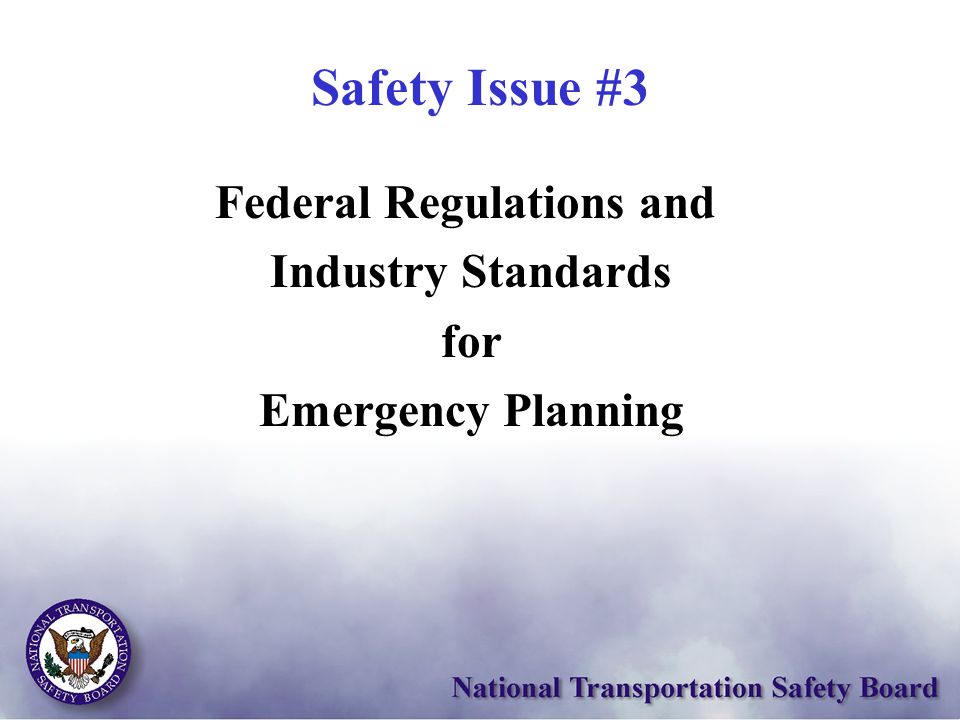

39 Safety Issue #3 Federal Regulations and Industry Standards for Emergency Planning

40 Federal Pipeline Regulations Require operators to prepare an emergency plan Emergency plan must include procedures for notifying appropriate fire, police and other public officials No requirements to coordinate with electric utilities

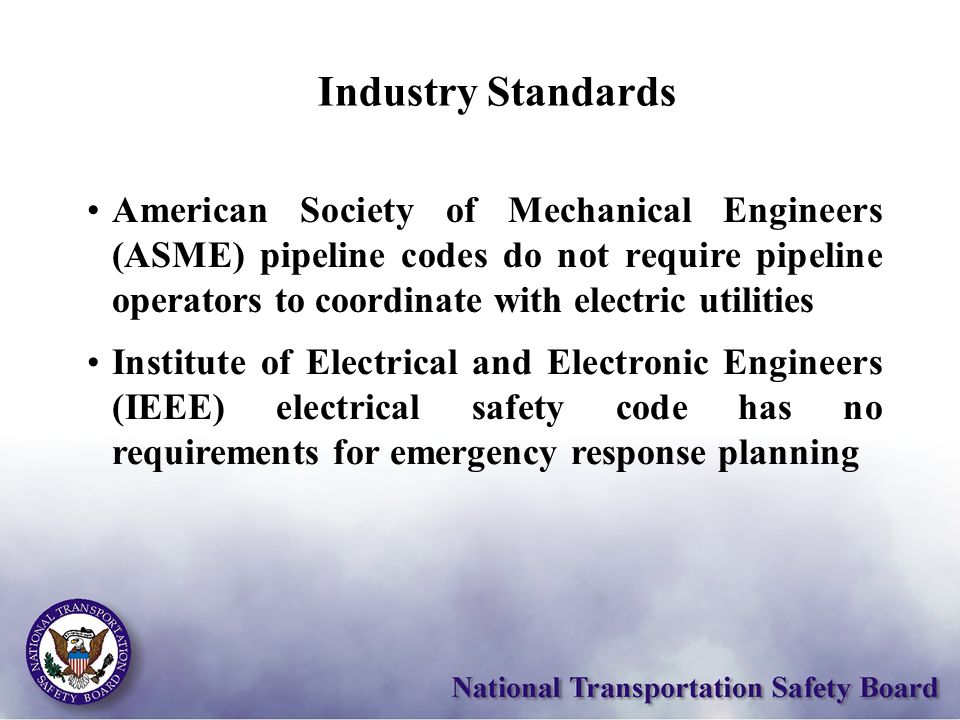

41 Industry Standards American Society of Mechanical Engineers (ASME) pipeline codes do not require pipeline operators to coordinate with electric utilities Institute of Electrical and Electronic Engineers (IEEE) electrical safety code has no requirements for emergency response planning

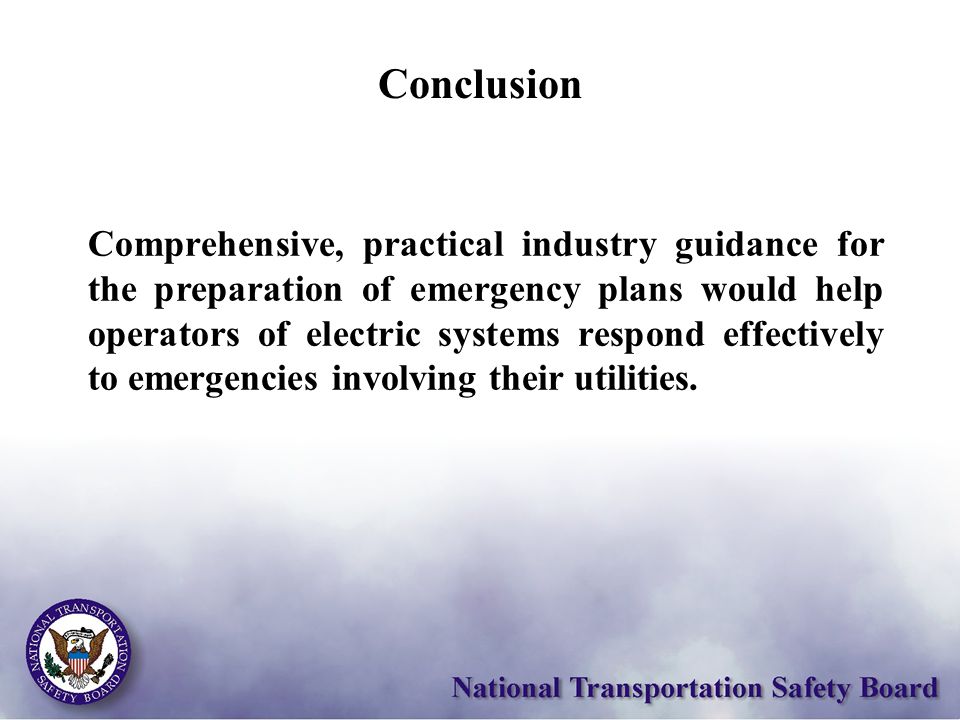

42 Conclusion Comprehensive, practical industry guidance for the preparation of emergency plans would help operators of electric systems respond effectively to emergencies involving their utilities.

43 43
