1 FAST Radar System Engineering Overview

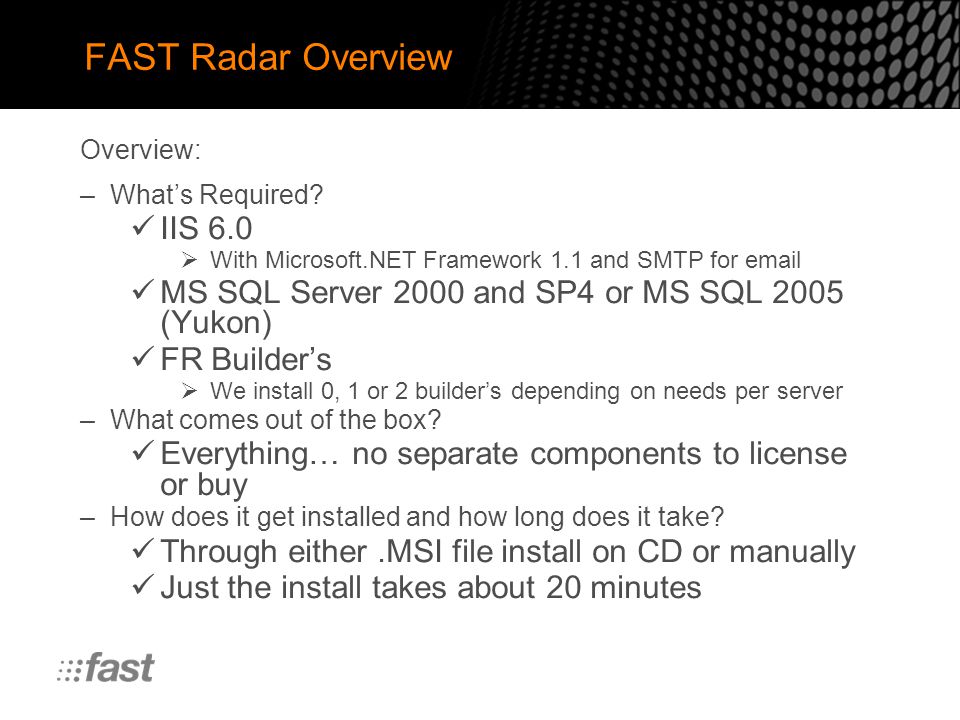

2 FAST Radar Overview –What’s Required? IIS 6.0  With Microsoft.NET Framework 1.1 and SMTP for MS SQL Server 2000 and SP4 or MS SQL 2005 (Yukon) FR Builder’s  We install 0, 1 or 2 builder’s depending on needs per server –What comes out of the box? Everything… no separate components to license or buy –How does it get installed and how long does it take? Through either.MSI file install on CD or manually Just the install takes about 20 minutes Overview:

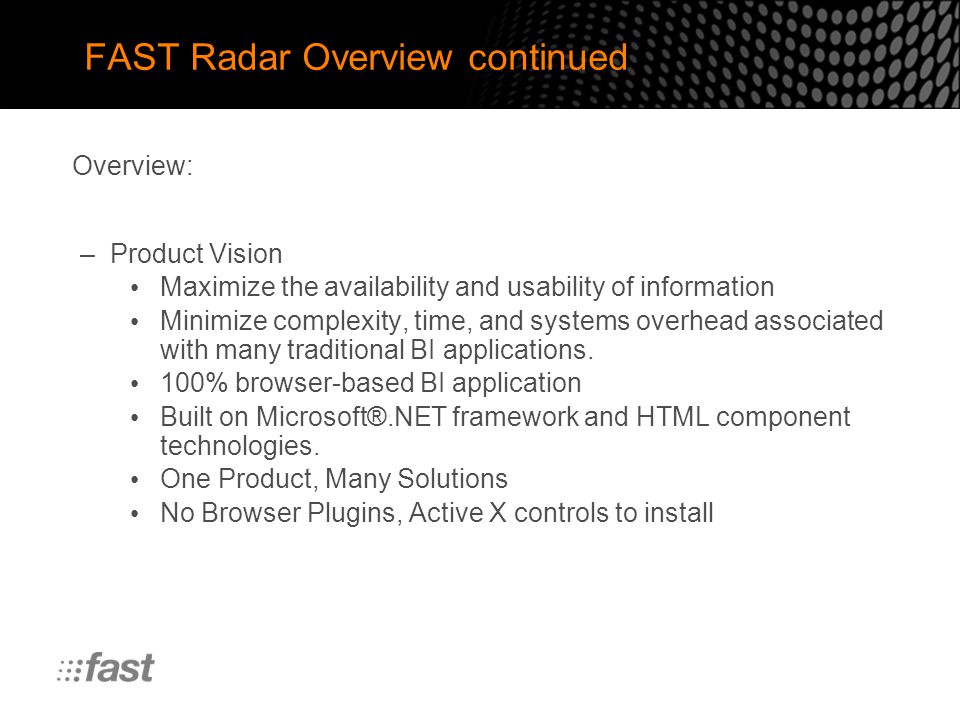

3 FAST Radar Overview continued –Product Vision Maximize the availability and usability of information Minimize complexity, time, and systems overhead associated with many traditional BI applications. 100% browser-based BI application Built on Microsoft®.NET framework and HTML component technologies. One Product, Many Solutions No Browser Plugins, Active X controls to install Overview:

4 –Application Components Microsoft.NET Framework –C# –VB.NET –HTML –JavaScript –FAST Radar is a member of the MS Partner Advisory Council “FAST Radar has been able to prove the real-world scalability and performance gains for applications leveraging Windows Server 2003 and the.NET platform” -Vic Gundotra, Platform General Manager at Microsoft Application Development Platform Architecture:

5 Functional Architecture Overview Presentation Browser (HTML), Intranet, Portal, , Cell Phone, Text Pager Analysis & Reporting Multi-dimensional pyramids, reports, automated alerts, charts, dashboard gauges, writeback Data Warehouse ETL (Extraction, Transformation, Loading), metadata, pyramid repository Connectivity Relational databases, non-relational databases, ERP, unstructured content Data Sources Security LDAP, SSL, User/Portal authentication, Data Source/Table/Pyramid security Administration User/group maintenance, personalization, application customization, scheduling

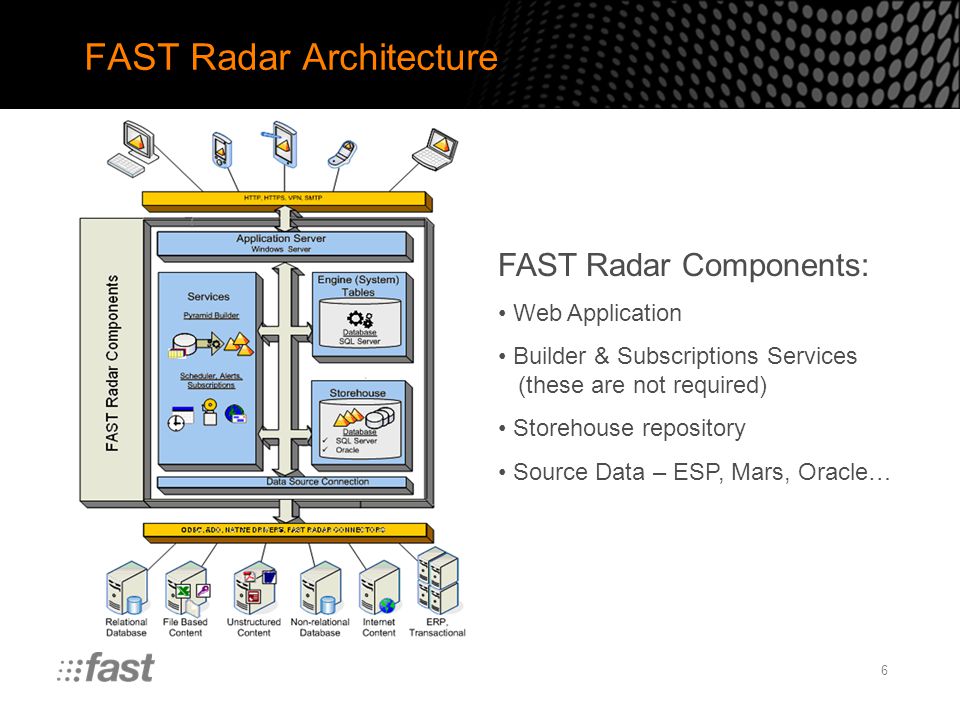

6 6 FAST Radar Architecture FAST Radar Components: Web Application Builder & Subscriptions Services (these are not required) Storehouse repository Source Data – ESP, Mars, Oracle…

7 DataSource Connectivity Architecture –DataSource Connections Provide a business logic layer to determine the connection properties to source data. Customize to specify connection, provider, security, and data access read methods. Import the DataSource schema to provide all the metadata required for FAST Radar application to use that source. Maintain additional metadata for data within the FAST Radar Environment Support ODBC, ADO, OLE DB, or native drivers to connect to virtually any structured data. Support for Web Services and FAST ESP Provides tools to connect to flat files and other unstructured content. –Data Sources MS SQL Server, Oracle, DB2/UDB, Access, Sybase, SAS, etc., JDE, ESP, Web Services

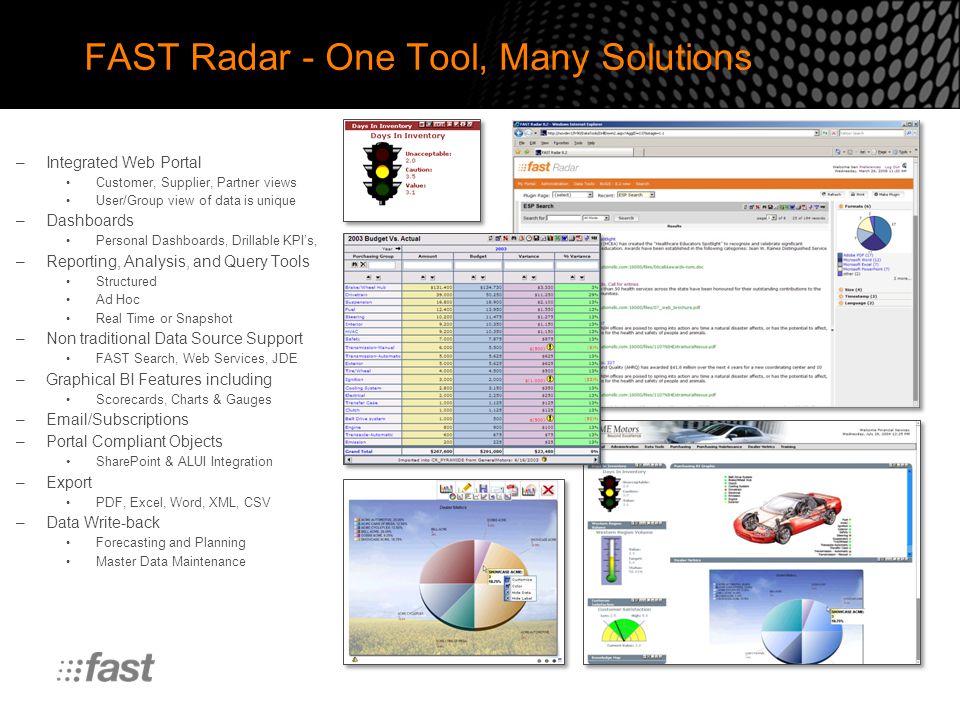

8 FAST Radar - One Tool, Many Solutions –Integrated Web Portal Customer, Supplier, Partner views User/Group view of data is unique –Dashboards Personal Dashboards, Drillable KPI’s, –Reporting, Analysis, and Query Tools Structured Ad Hoc Real Time or Snapshot –Non traditional Data Source Support FAST Search, Web Services, JDE –Graphical BI Features including Scorecards, Charts & Gauges – /Subscriptions –Portal Compliant Objects SharePoint & ALUI Integration –Export PDF, Excel, Word, XML, CSV –Data Write-back Forecasting and Planning Master Data Maintenance

9 The Pyramid Foundation –What is a Pyramid? A pyramid is pre-defined table structure for storage of pre- aggregated data –Why are Pyramids cool? A cube stores all dimensions of data (X*Y*Z) that is sometimes larger in size than the base data and can take a long time to calculate. Most “reporting” is done using only a fraction of that capability. The pyramid allows for small, quick, solution-oriented reports that can be refreshed on demand or scheduled while keeping a drill-down or drill- through ability to pass criteria dynamically. “Power of the Pyramid” means that the customer no longer has to store every possible combination of data to generate useful, actionable, and timely responses to information that is being reported on.

10 The Pyramid Foundation

11 Pyramid Reporting Environment

12 Deployment & Scalability Functional Deployment Options

13 Deployment & Scalability –Scenario 1 – All in One

14 Deployment & Scalability –Scenario 2 – Dedicated Application Server

15 Deployment & Scalability –Scenario 3 – Dedicated Storehouse

16 Deployment & Scalability –Scenario 4 – Web Farm

17 Deployment & Scalability FR = FAST Radar Application ET = Engine Tables ET FR Data ET FR Data ET FR Data ET CR Data FR

18 Question & Answers
