1 STOCKPILE MAINTENANCE PROCEDURES

2 2 Preparation Plant Overview  Annual Processing Capacity  12 Million Raw Tons (2,000 Raw Tons / Hour)  7.3 Million Clean Stockpile Maintenance Procedures Clean Coal Stockpile & Reclaim Loadout CSX Train  Clean Coal Storage Capacity  100,000 Tons, 3 Stackers  Full Length Reclaim Tunnel (4000 TPH Capacity)  17 Variable Rate Feeders  Vibrating Pile Dischargers Stockpile & Reclaim Raw Coal  Raw Coal Storage Capacity  80,000 Tons, 3 Stackers  Full Length Reclaim Tunnel With 15 Variable Rate Feeders  Vibrating Pile Dischargers

3 3 Safety Precautions on Coal Stockpiles  Due to the relatively small stockpiles, dozers are continuously required to store and reclaim both raw and clean coal. Stockpile Maintenance Procedures  Where people are required to operate equipment or travel on foot on a stockpile equipped with a reclaim belt and draw-off feeders, West Virginia Code requires an approved plan.  The Approved Plan Has Proven to be a Good Practice  The Plan Consists of Three Basic Elements  Equipment Requirements  Entrapment Rescue Procedures  General Rules and Safe Procedures Required for Working on Stockpiles

4 4 Safety Precautions on Coal Stockpiles  Equipment operated on stockpiles will be equipped with the following; Stockpile Maintenance Procedures  At least two separate means of two way communication (with independent power sources). Company FM Radio CB Radio Hand Held Radio (Pictured Later)

5 5 Safety Precautions on Coal Stockpiles  Equipment operated on stockpiles will be equipped with the following; Stockpile Maintenance Procedures  Enclosed cab with 40 psi tempered glass and window support system Window Support Grating

6 6 Safety Precautions on Coal Stockpiles  Equipment operated on stockpiles will be equipped with the following; Stockpile Maintenance Procedures  Remote control stop device capable of shutting off reclaim feeders and belt conveyors.  Emergency lighting (chemical light sticks).  Body harness / safety belt.  Two self-contained self-rescuers

7 7 Safety Precautions on Coal Stockpiles  Equipment operated on stockpiles will be equipped with the following additional non-regulatory safety features; Stockpile Maintenance Procedures  Anti-glare paint treatment.  Operator activated fire suppression system.

8 8 Safety Precautions on Coal Stockpiles  In the event equipment becomes entrapped; Stockpile Maintenance Procedures  On-shift supervisor in charge will be notified immediately.  Emergency Notification Plan will be implemented.  Equipment on site will begin recovery / rescue procedure as needed.

9 9 Safety Precautions on Coal Stockpiles  In the event equipment becomes entrapped; Stockpile Maintenance Procedures  Additional equipment will be brought on site as necessary.  Any additional equipment will be provided with two SCSR’s and two way communication.

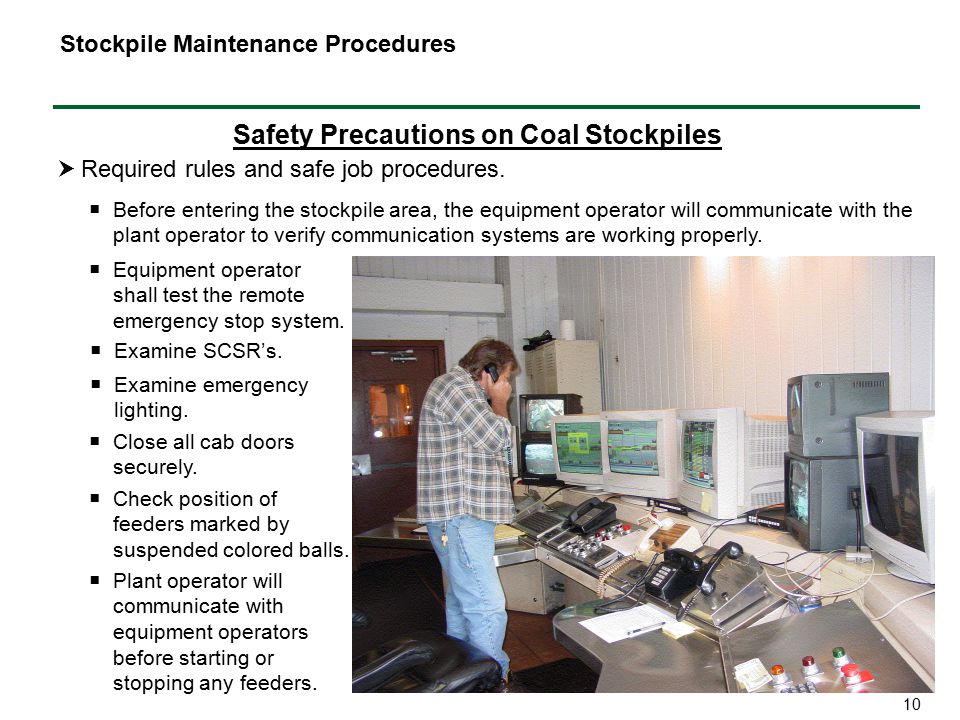

10 10 Safety Precautions on Coal Stockpiles  Required rules and safe job procedures. Stockpile Maintenance Procedures  Before entering the stockpile area, the equipment operator will communicate with the plant operator to verify communication systems are working properly.  Equipment operator shall test the remote emergency stop system.  Examine SCSR’s.  Examine emergency lighting.  Close all cab doors securely.  Check position of feeders marked by suspended colored balls.  Plant operator will communicate with equipment operators before starting or stopping any feeders.

11 11 Safety Precautions on Coal Stockpiles  Required rules and safe job procedures. Stockpile Maintenance Procedures  Warning signs will be posted at all entrances to live stockpile areas.  No person shall travel on foot over feeders without a secured overhead life line and feeders locked and tagged out.  In the event of an emergency on any stockpile, all feeders shall be turned off by the plant operator until the entire situation has been accessed by the on-shift supervisor in charge.  If equipment communications or remote stop device fail, then the effected piece of equipment will be removed from stockpile operation until repaired.  When a cavity is suspected, the equipment operator will fill the cavity by side cutting along the bottom of the stockpile area until the cavity is filled.  Water sprayed from inside the reclaim tunnel up through a feeder may also be used to attempt to collapse the cavity until the cavity is filled.  A copy of the approved plan shall be posted at the mine and persons performing such work shall be properly instructed on the plan contents prior to any work being performed.
