1 ROCKS Types of Rocks and How they Change

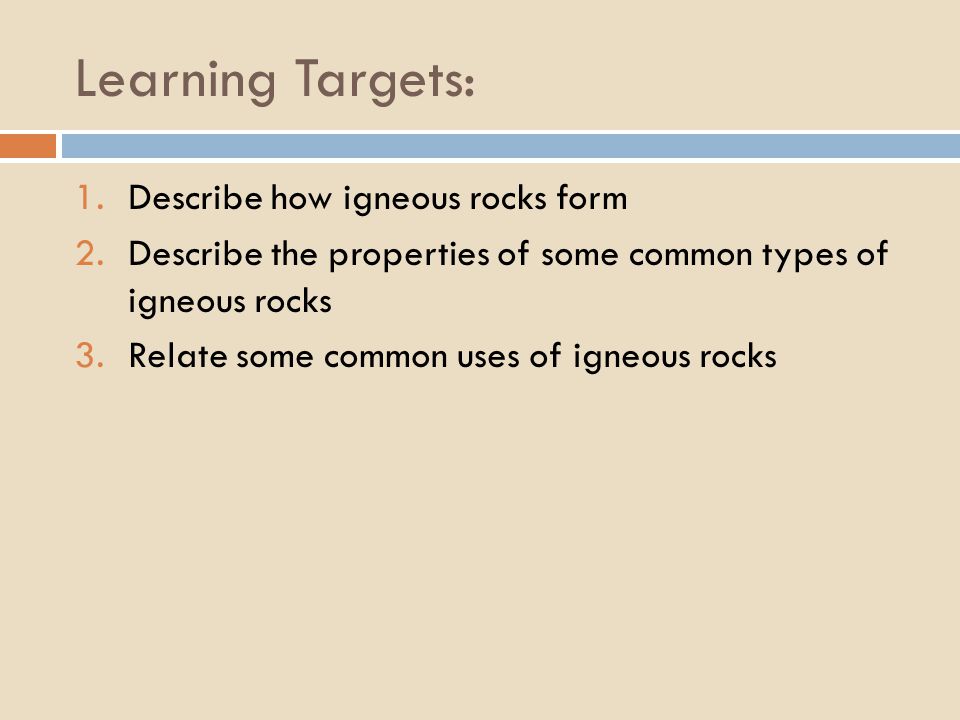

2 Learning Targets: 1.Describe how igneous rocks form 2.Describe the properties of some common types of igneous rocks 3.Relate some common uses of igneous rocks

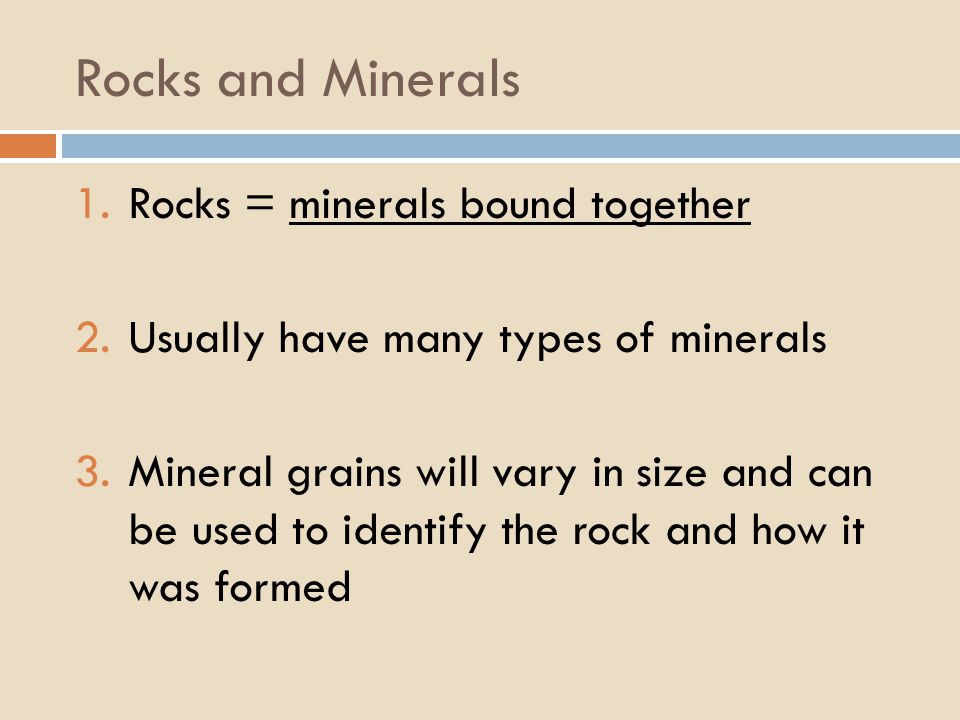

3 Rocks and Minerals 1.Rocks = minerals bound together 2.Usually have many types of minerals 3.Mineral grains will vary in size and can be used to identify the rock and how it was formed

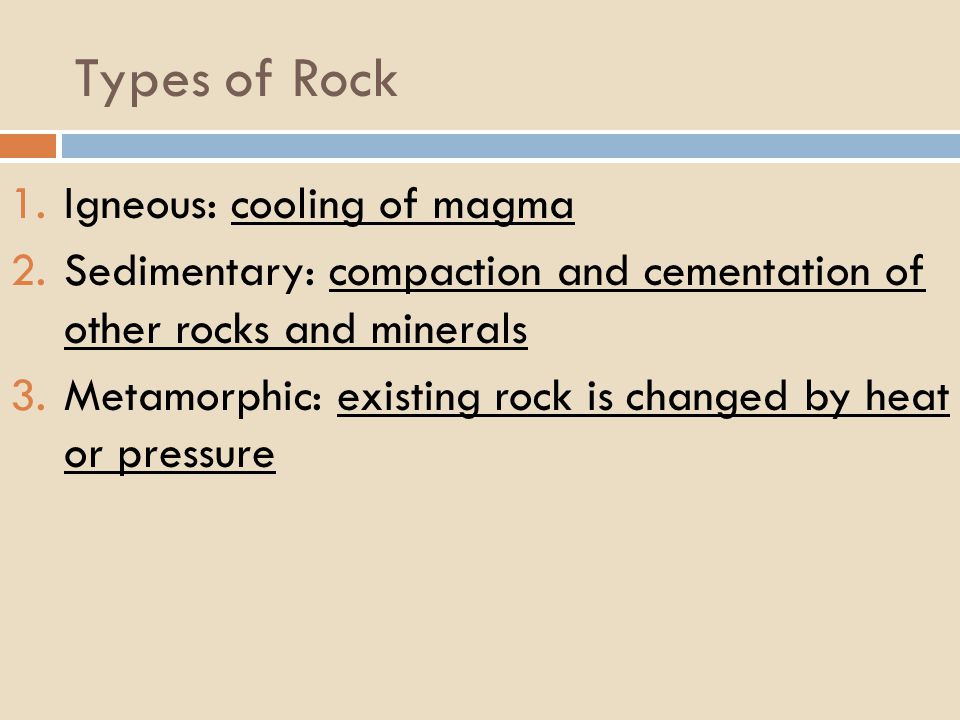

4 Types of Rock 1.Igneous: cooling of magma 2.Sedimentary: compaction and cementation of other rocks and minerals 3.Metamorphic: existing rock is changed by heat or pressure

5 IGNEOUS ROCK: GRANITE

6 SEDIMENTARY ROCK: SANDSTONE

7 METAMORPHIC ROCK

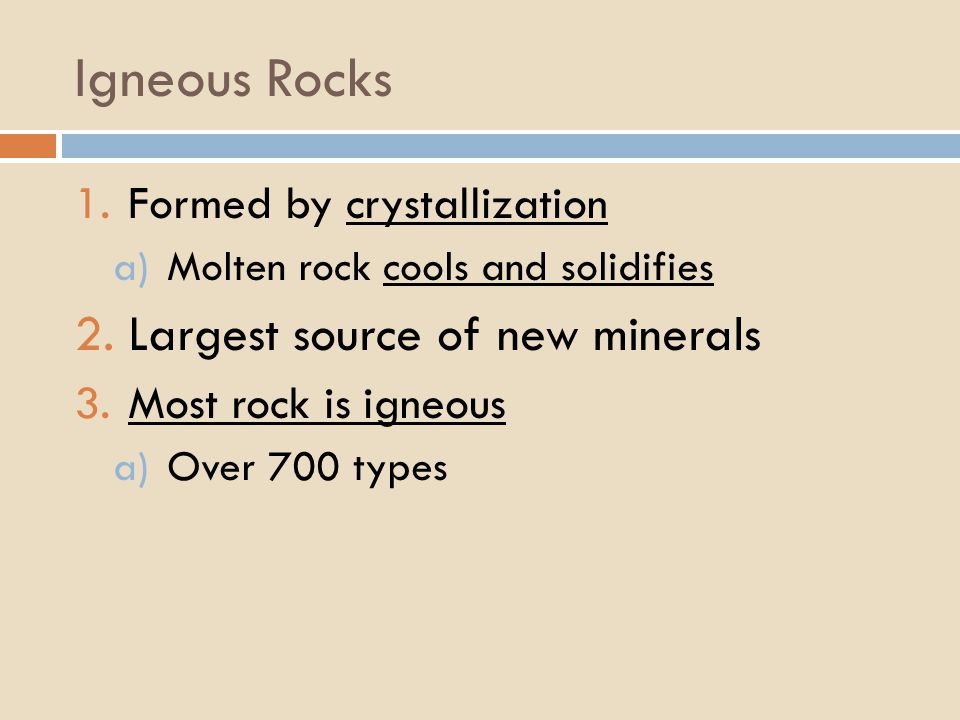

8 Igneous Rocks 1.Formed by crystallization a)Molten rock cools and solidifies 2.Largest source of new minerals 3.Most rock is igneous a)Over 700 types

9 Crystallization 1.Intrusive: cools, solidifies and forms minerals below the surface a)Intrusive = Interior 2.Extrusive: cools, solidifies and forms minerals on or above the surface a)Extrusive = Exterior

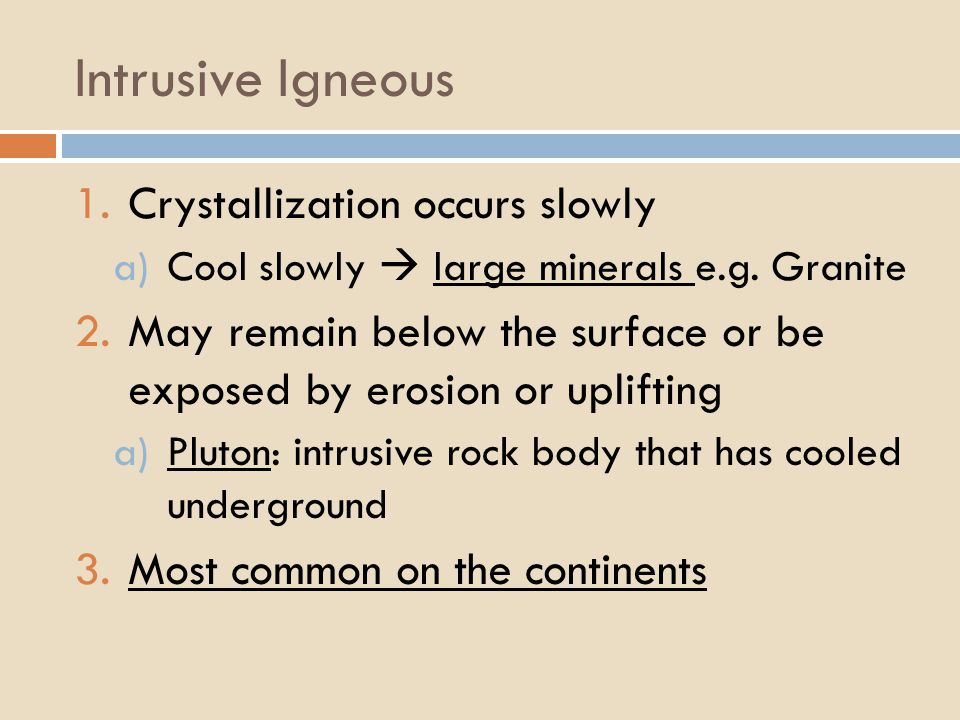

10 Intrusive Igneous 1.Crystallization occurs slowly a)Cool slowly  large minerals e.g. Granite 2.May remain below the surface or be exposed by erosion or uplifting a)Pluton: intrusive rock body that has cooled underground 3.Most common on the continents

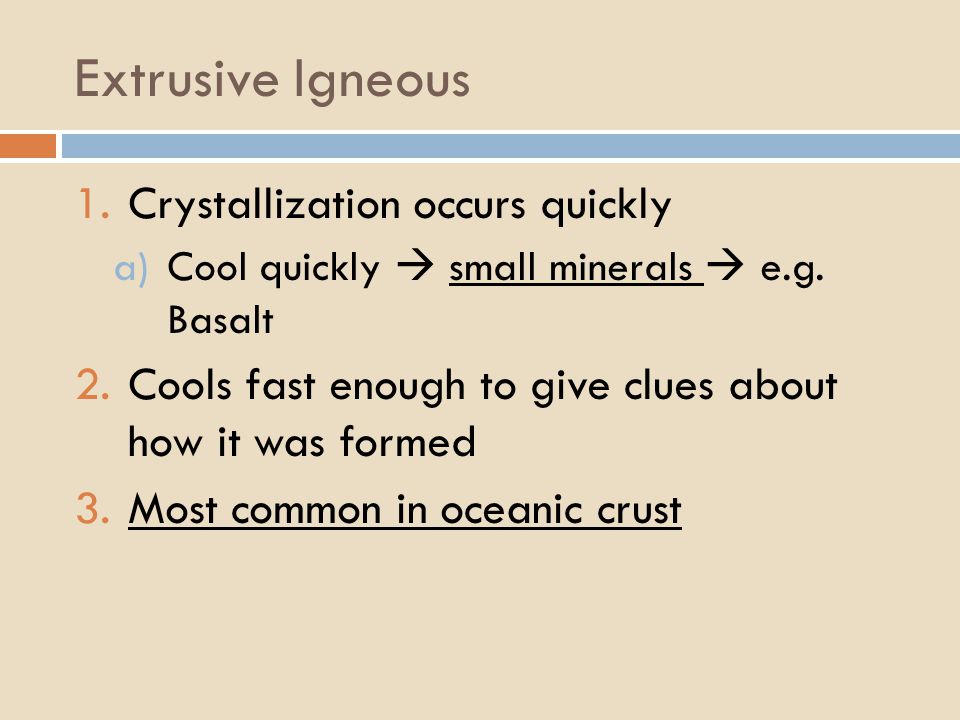

11 Extrusive Igneous 1.Crystallization occurs quickly a)Cool quickly  small minerals  e.g. Basalt 2.Cools fast enough to give clues about how it was formed 3.Most common in oceanic crust

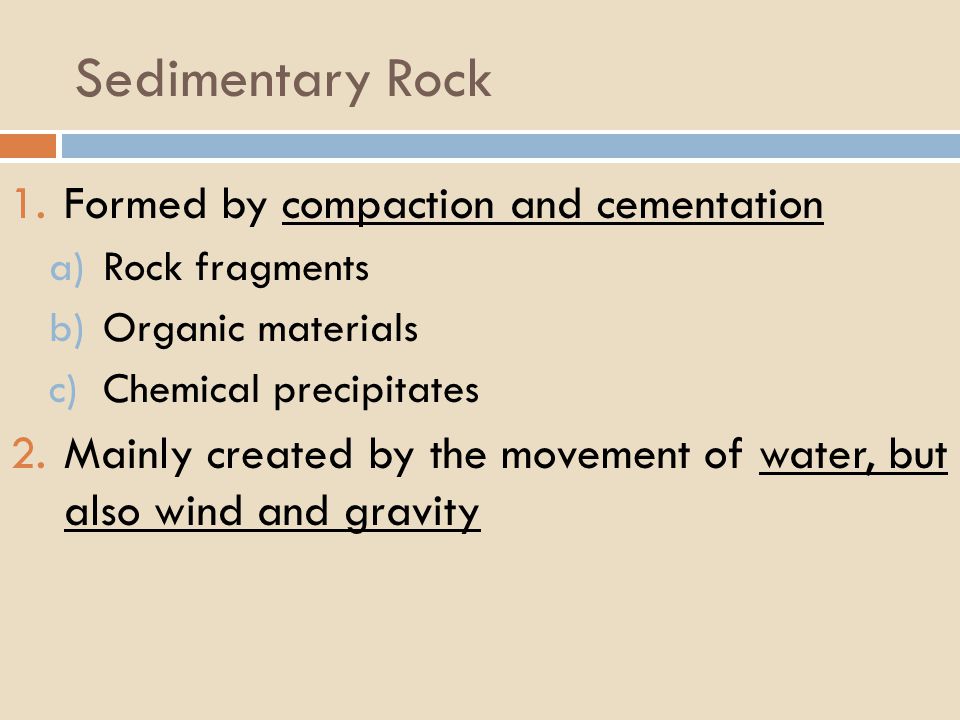

12 Sedimentary Rock 1.Formed by compaction and cementation a)Rock fragments b)Organic materials c)Chemical precipitates 2.Mainly created by the movement of water, but also wind and gravity

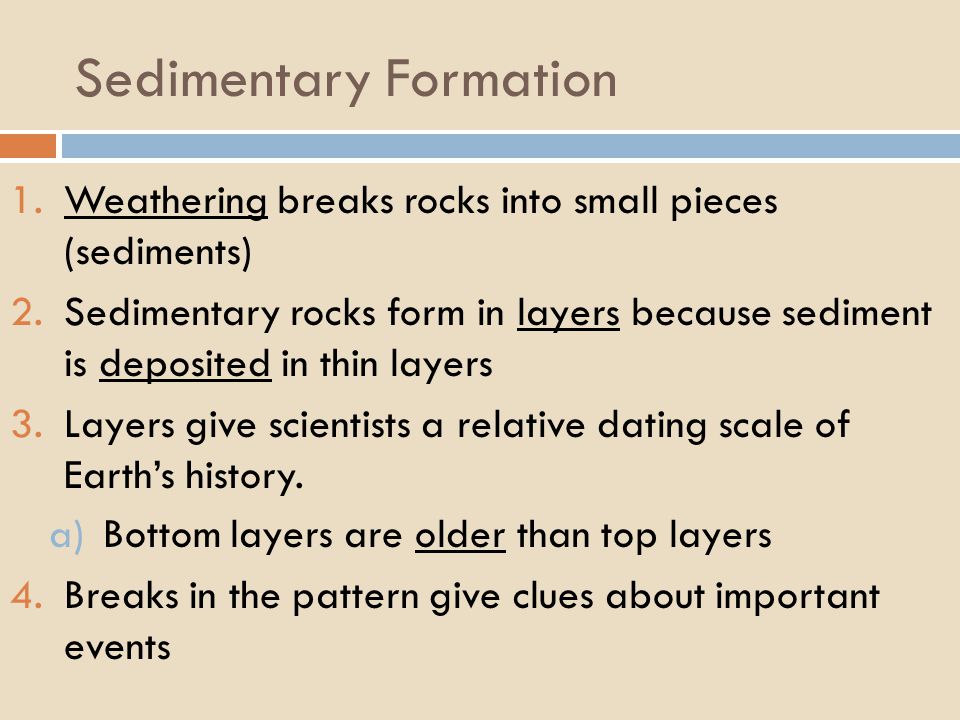

13 Sedimentary Formation 1.Weathering breaks rocks into small pieces (sediments) 2.Sedimentary rocks form in layers because sediment is deposited in thin layers 3.Layers give scientists a relative dating scale of Earth’s history. a)Bottom layers are older than top layers 4.Breaks in the pattern give clues about important events

14

15

16

17

18

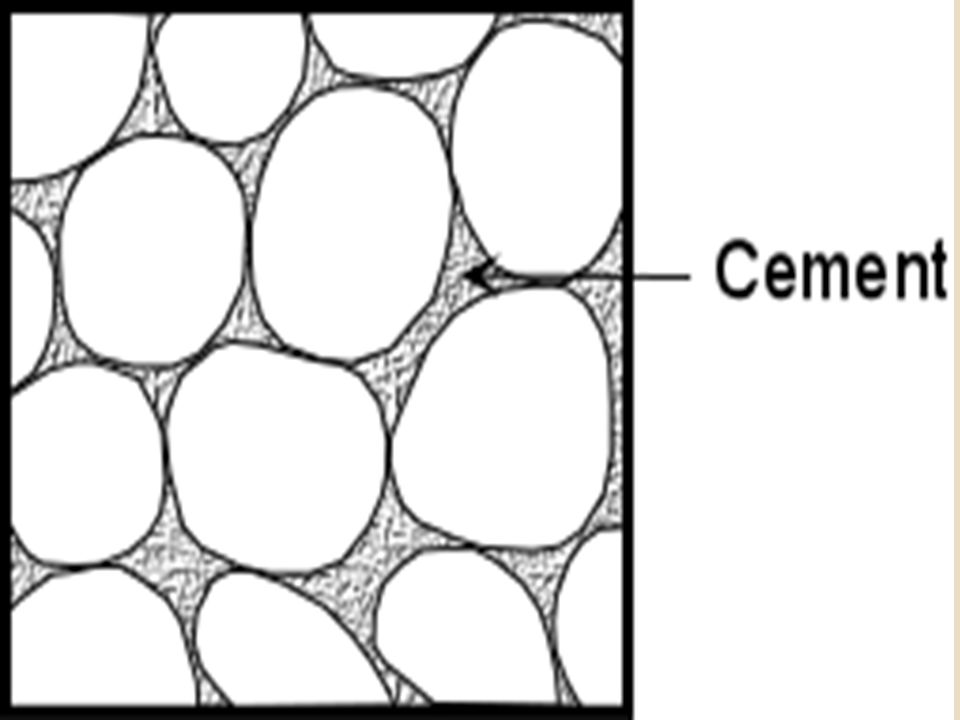

19 Sedimentary Rock Formation 1.Lithification: accumulated sediments harden into rock a)Compaction: Crystals join due to pressure i.Driven by pressure b)Cementation: Fluids fill in the spaces between loose sediments and crystallize i.Driven by the flow of water

20

21

22 Metamorphic Rock 1.Igneous or sedimentary that have been changed by heat and pressure 2.Heat and pressure allow molecules to reconfigure themselves a)High heat  more motion b)Not hot enough to fully melt

23 Metamorphic Rocks 1.Metamorphism can change igneous, sedimentary, or metamorphic rocks into new rocks

24 Foliation 1.Different minerals react differently to heat and pressure 2.As minerals partially melt and recrystallize they often form bands of minerals in the rock called foliation a)Folio = book, leaves

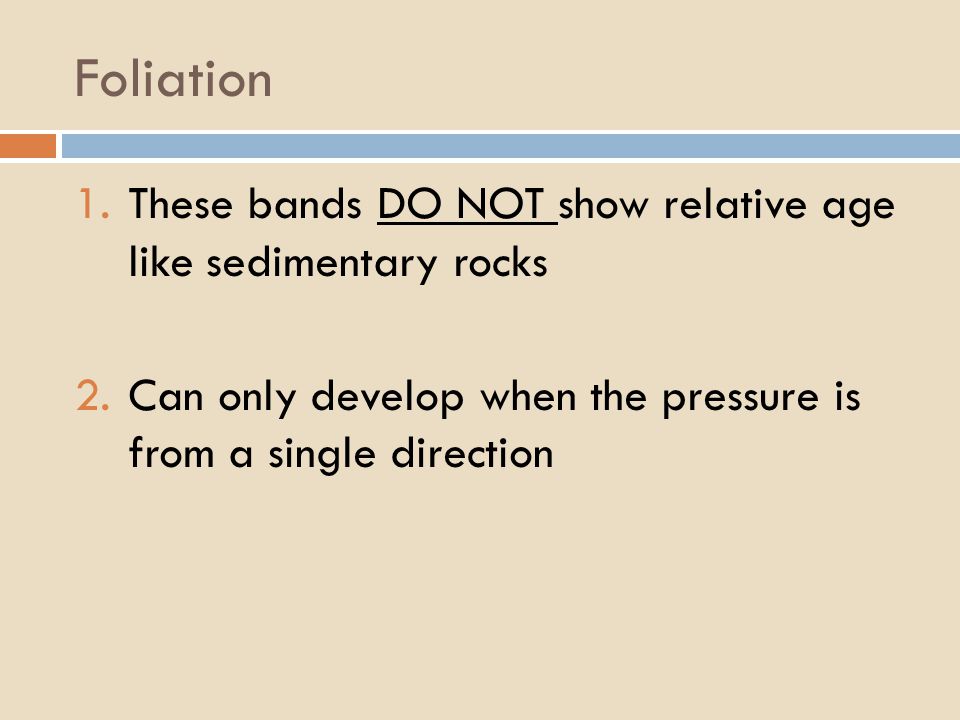

25 Foliation 1.These bands DO NOT show relative age like sedimentary rocks 2.Can only develop when the pressure is from a single direction

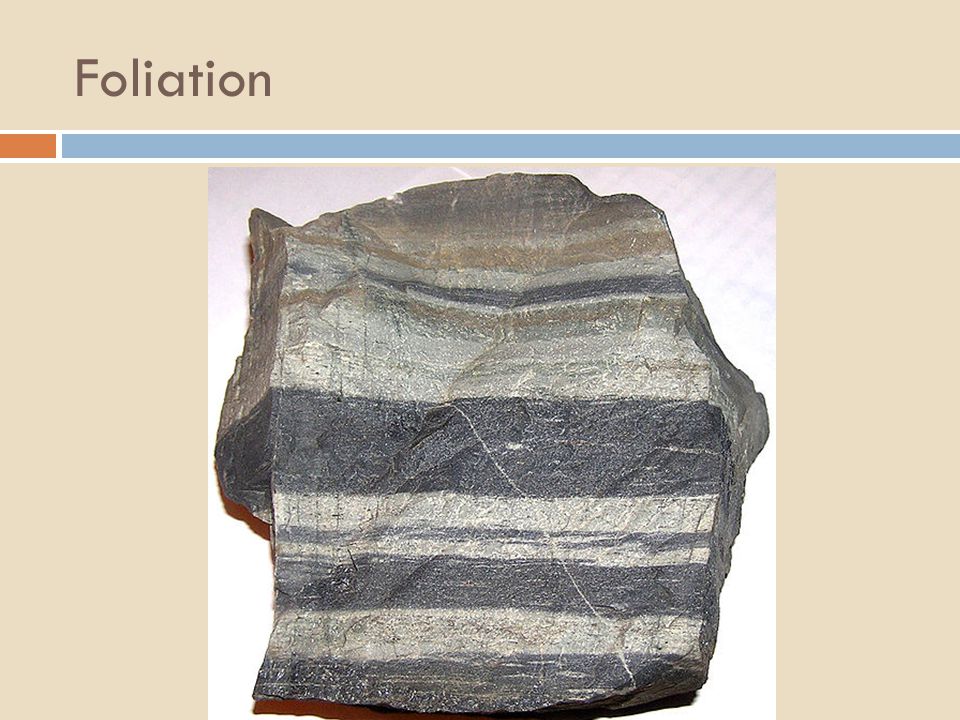

26 Foliation

27

28 Metamorphic rocks often show banding

29 Types of Metamorphism 1.Regional metamorphism: changes caused by the application of extreme pressure over a large area 2.Contact metamorphism: changes caused by rocks coming into contact with extremely hot magma a)Does not completely melt the rock

30 Regional Metamorphism

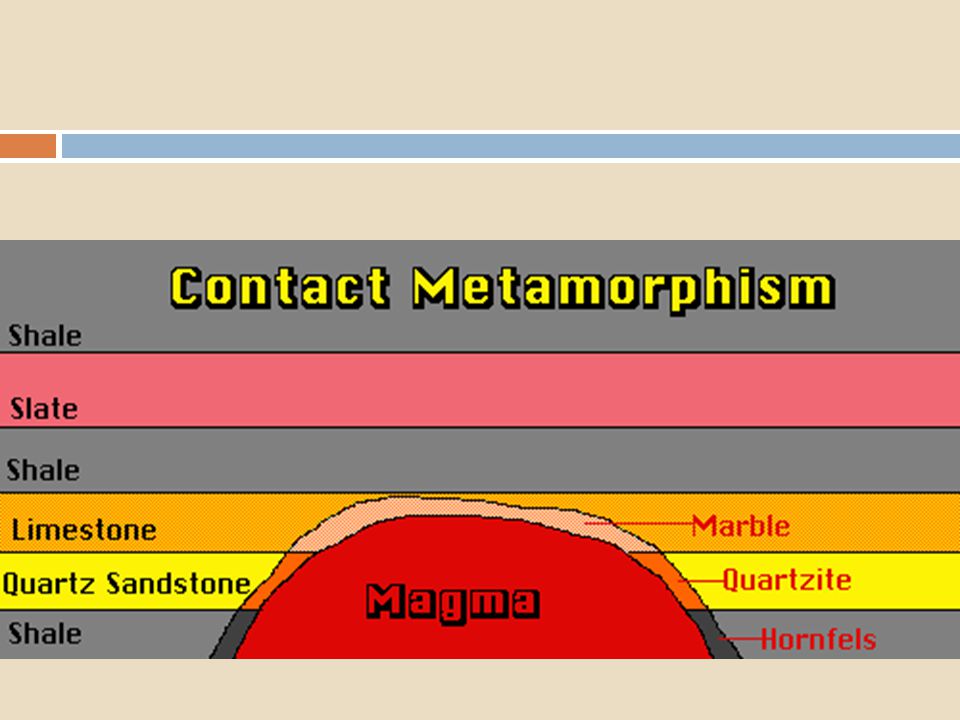

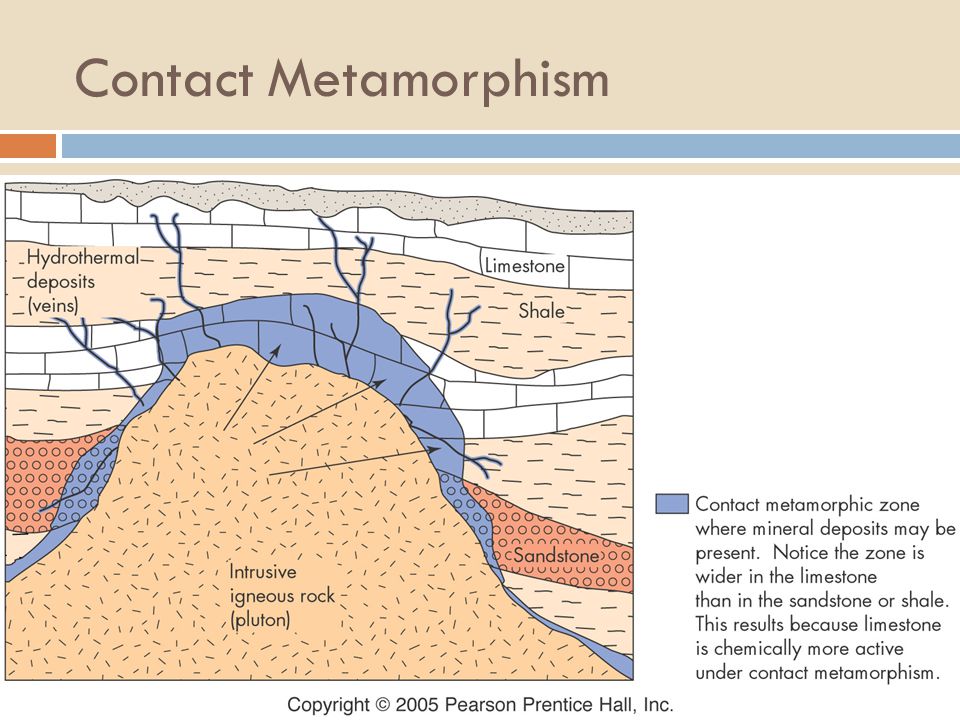

31 Contact Metamorphism

32

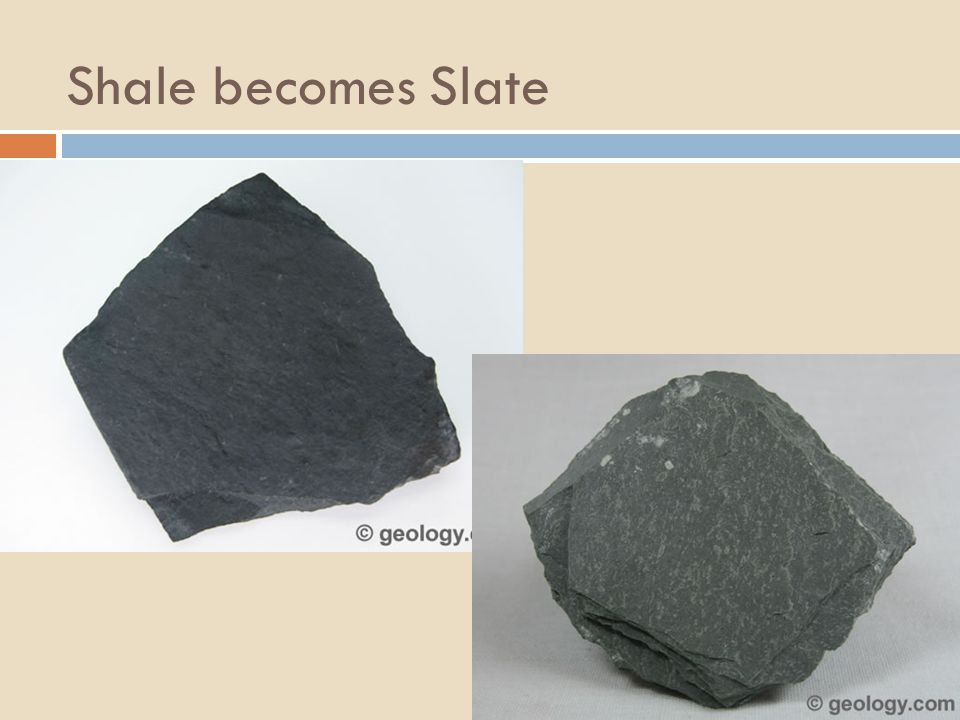

33 Shale becomes Slate

34 Granite becomes Gneiss

35 Limestone become Marble

36 Sandstone becomes Quartzite

37 Layers of siltstone and mudstone become Hornfels
