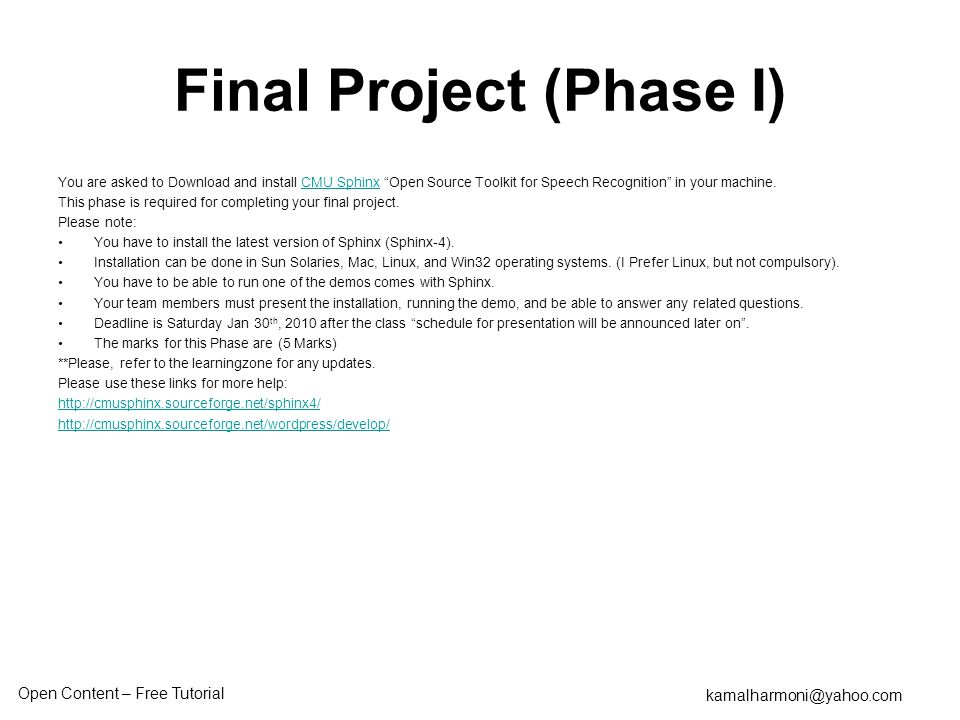

1. Open Content – Free Tutorial kamalharmoni@yahoo.com Final Project (Phase I) You are asked to Download and install CMU Sphinx “Open Source Toolkit for Speech Recognition” in your machine.CMU Sphinx This phase is required for completing your final project. Please note: You have to install the latest version of Sphinx (Sphinx-4). Installation can be done in Sun Solaries, Mac, Linux, and Win32 operating systems. (I Prefer Linux, but not compulsory). You have to be able to run one of the demos comes with Sphinx. Your team members must present the installation, running the demo, and be able to answer any related questions. Deadline is Saturday Jan 30 th, 2010 after the class “schedule for presentation will be announced later on”. The marks for this Phase are (5 Marks) **Please, refer to the learningzone for any updates. Please use these links for more help: http://cmusphinx.sourceforge.net/sphinx4/ http://cmusphinx.sourceforge.net/wordpress/develop/

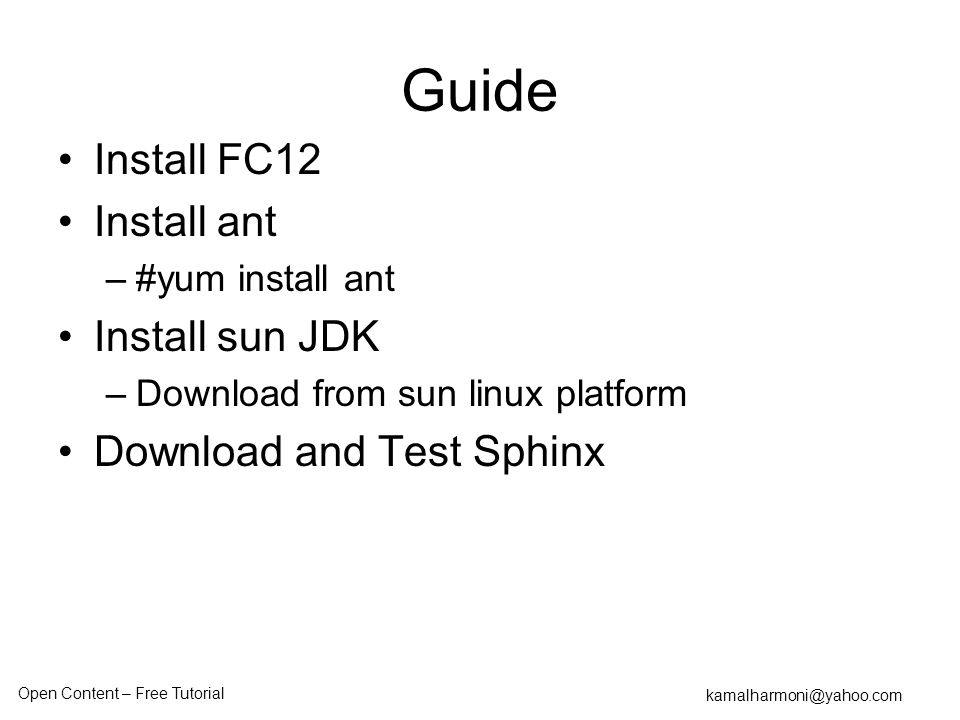

2. Open Content – Free Tutorial kamalharmoni@yahoo.com Guide Install FC12 Install ant –#yum install ant Install sun JDK –Download from sun linux platform Download and Test Sphinx

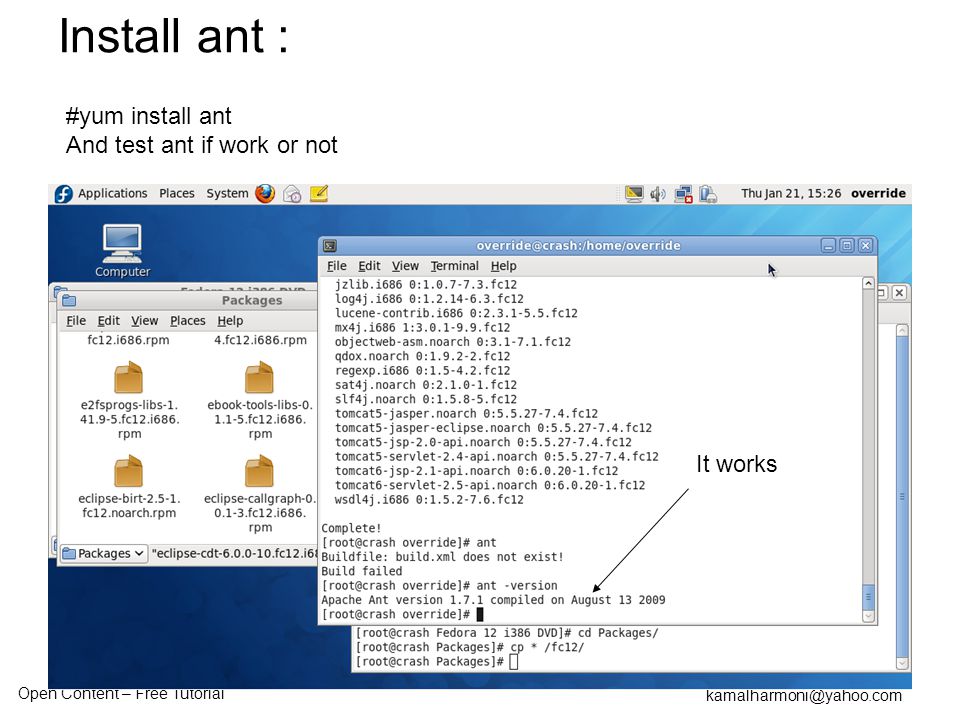

3. Open Content – Free Tutorial kamalharmoni@yahoo.com #yum install ant And test ant if work or not It works Install ant :

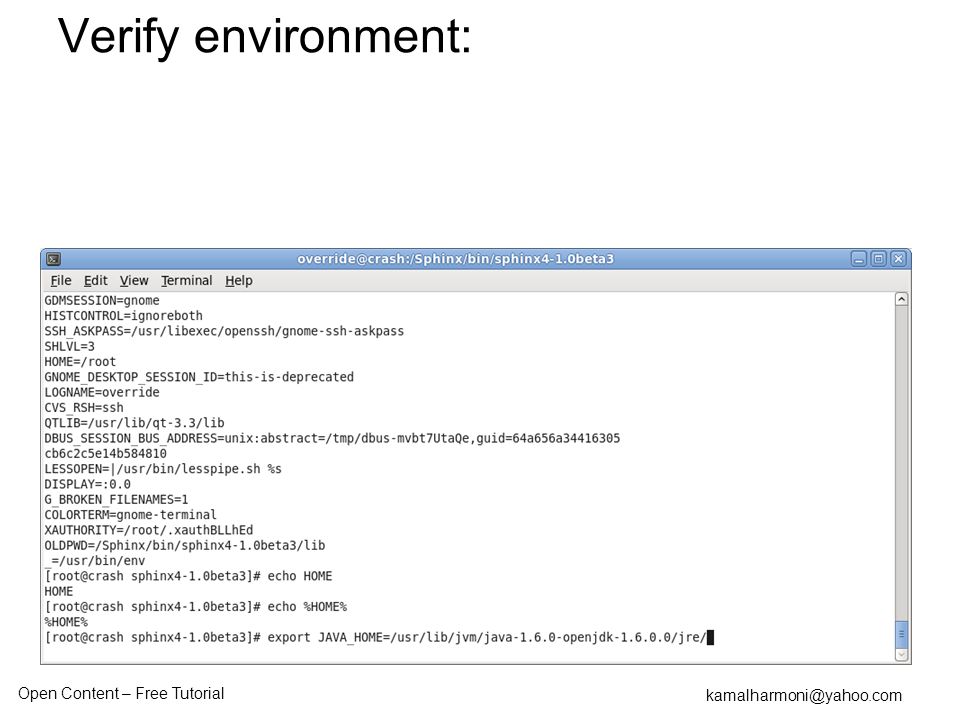

4. Open Content – Free Tutorial kamalharmoni@yahoo.com Verify environment:

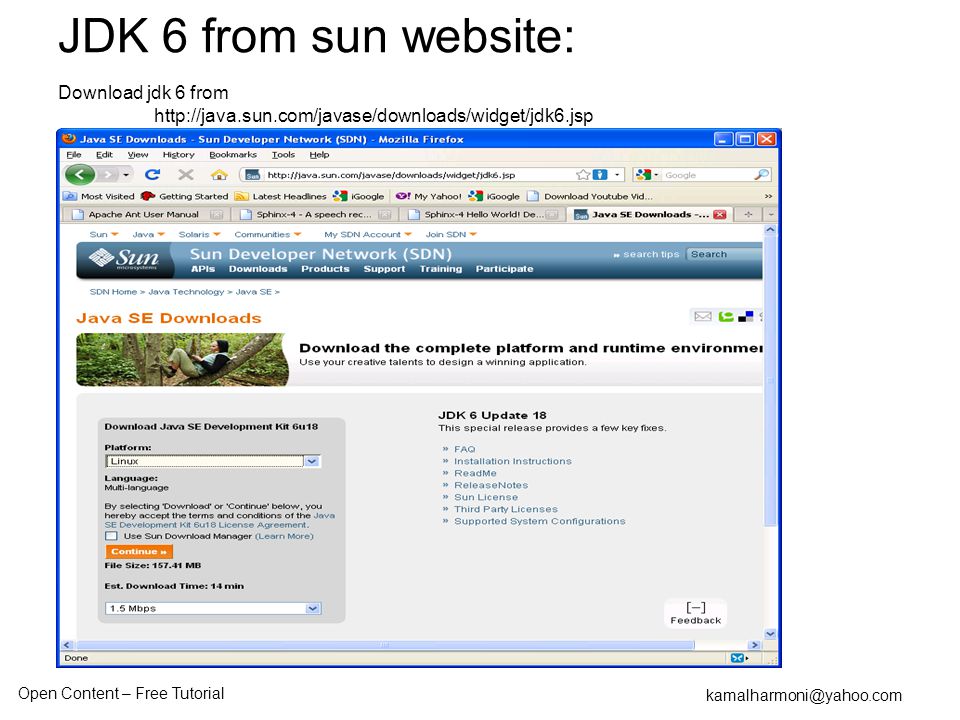

5. Open Content – Free Tutorial kamalharmoni@yahoo.com JDK 6 from sun website: Download jdk 6 from http://java.sun.com/javase/downloads/widget/jdk6.jsp

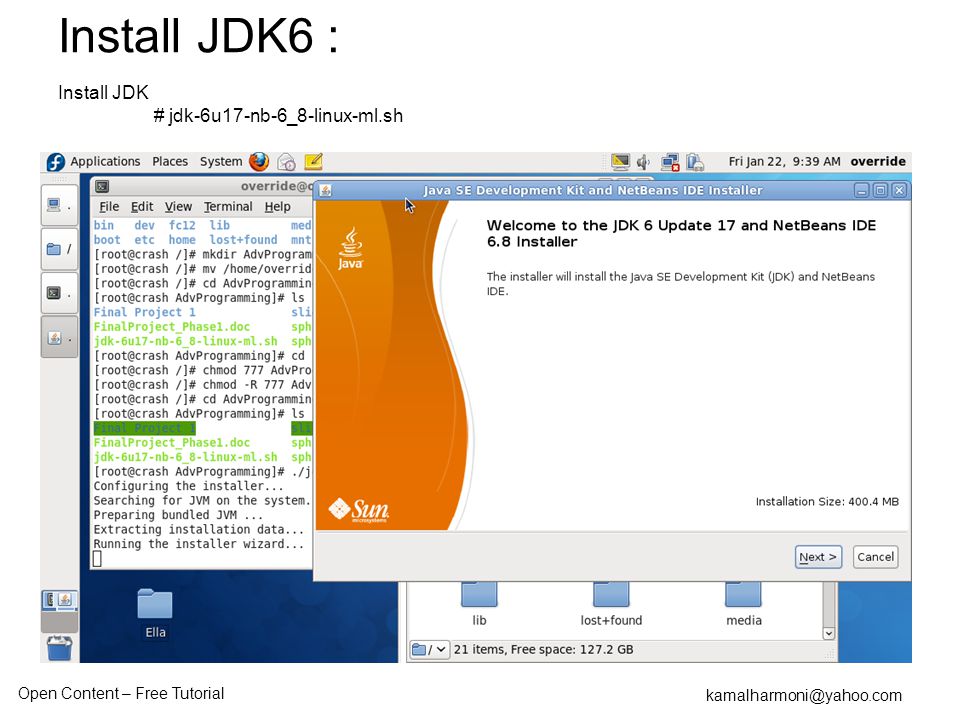

6. Open Content – Free Tutorial kamalharmoni@yahoo.com Install JDK # jdk-6u17-nb-6_8-linux-ml.sh Install JDK6 :

7. Open Content – Free Tutorial kamalharmoni@yahoo.com Default installation, We didn't change anything and please remember JDK and netbeans path. Install JDK6 :

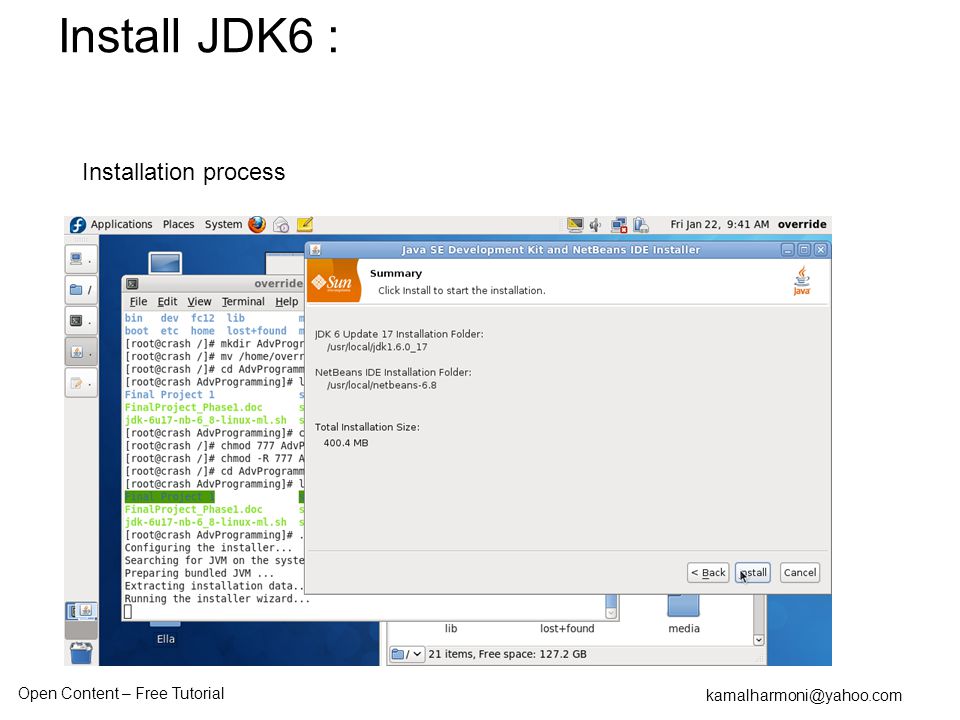

8. Open Content – Free Tutorial kamalharmoni@yahoo.com Installation process Install JDK6 :

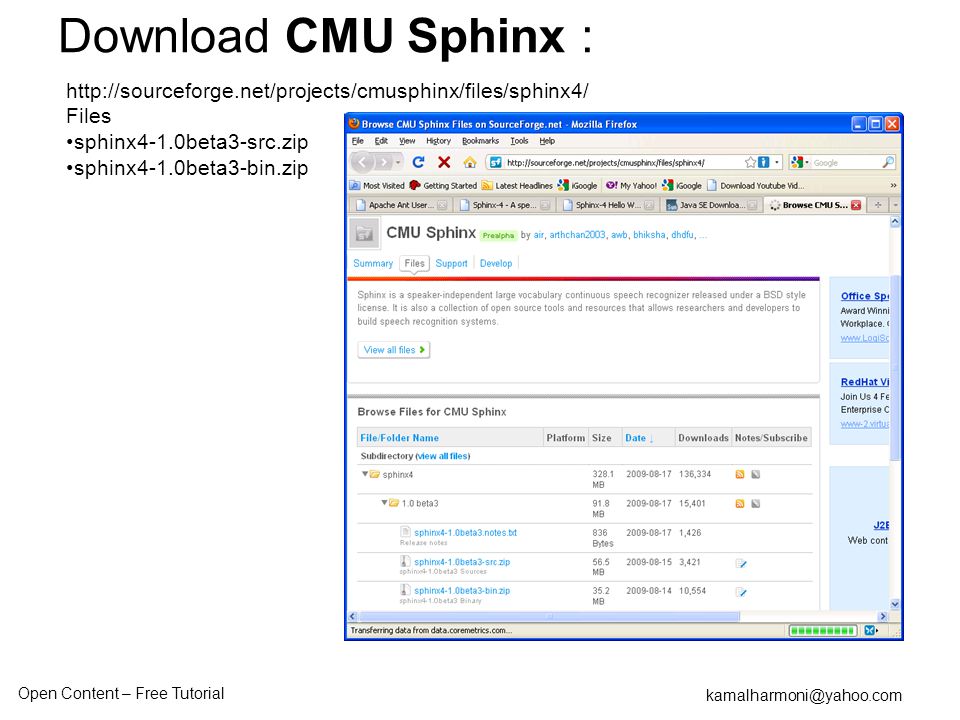

9. Open Content – Free Tutorial kamalharmoni@yahoo.com http://sourceforge.net/projects/cmusphinx/files/sphinx4/ Files sphinx4-1.0beta3-src.zip sphinx4-1.0beta3-bin.zip Download CMU Sphinx :

10. Open Content – Free Tutorial kamalharmoni@yahoo.com Files sphinx4-1.0beta3-bin.zip Extract Files:

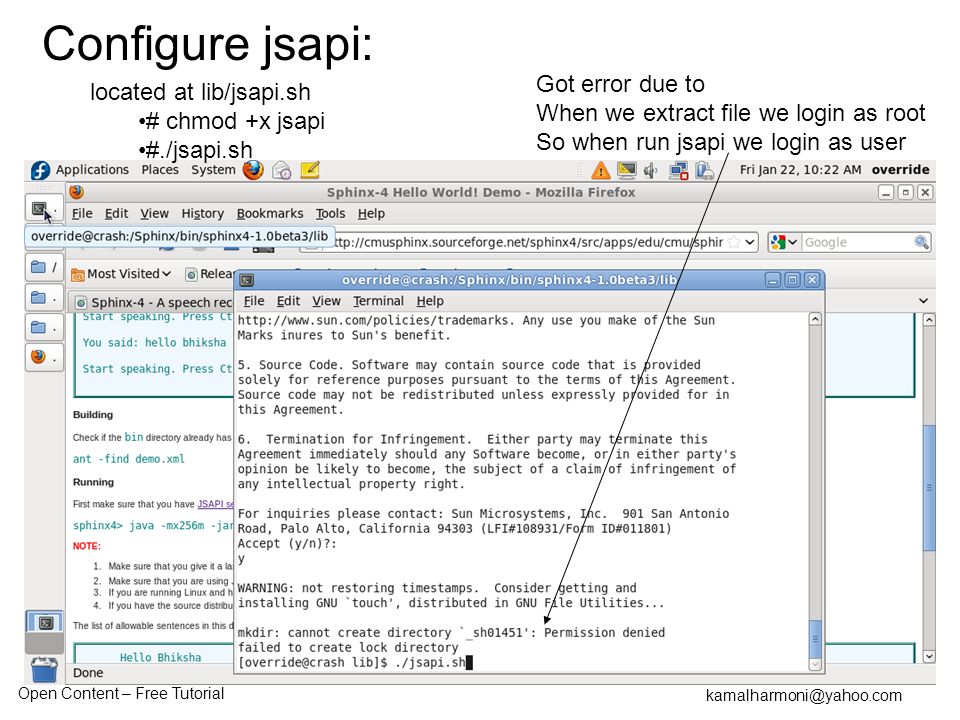

11. Open Content – Free Tutorial kamalharmoni@yahoo.com located at lib/jsapi.sh # chmod +x jsapi #./jsapi.sh Got error due to When we extract file we login as root So when run jsapi we login as user Configure jsapi:

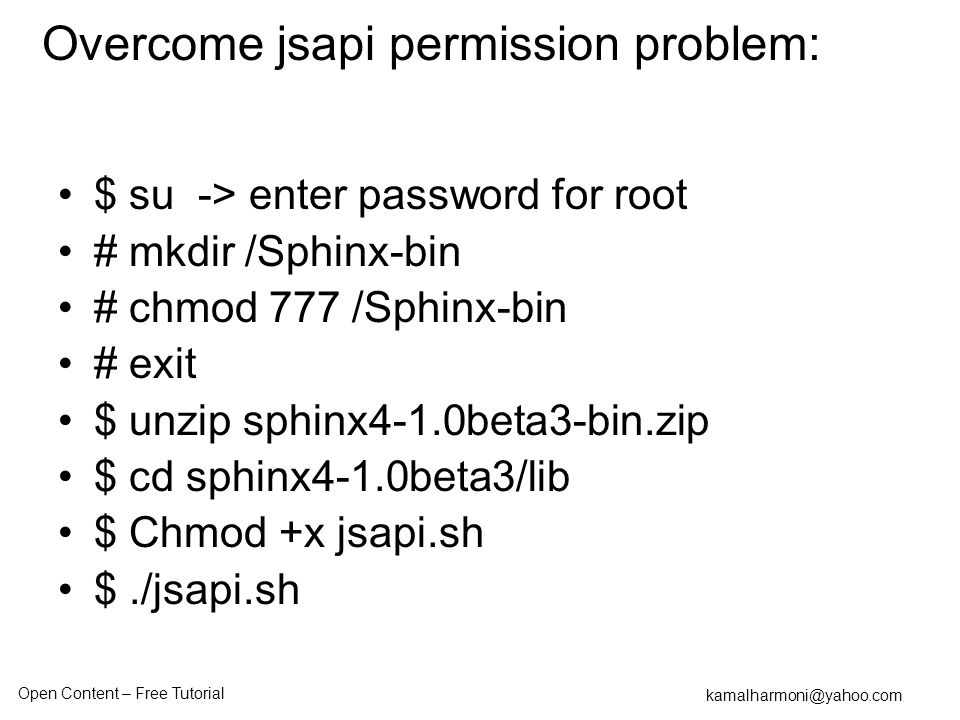

12. Open Content – Free Tutorial kamalharmoni@yahoo.com $ su -> enter password for root # mkdir /Sphinx-bin # chmod 777 /Sphinx-bin # exit $ unzip sphinx4-1.0beta3-bin.zip $ cd sphinx4-1.0beta3/lib $ Chmod +x jsapi.sh $./jsapi.sh Overcome jsapi permission problem:

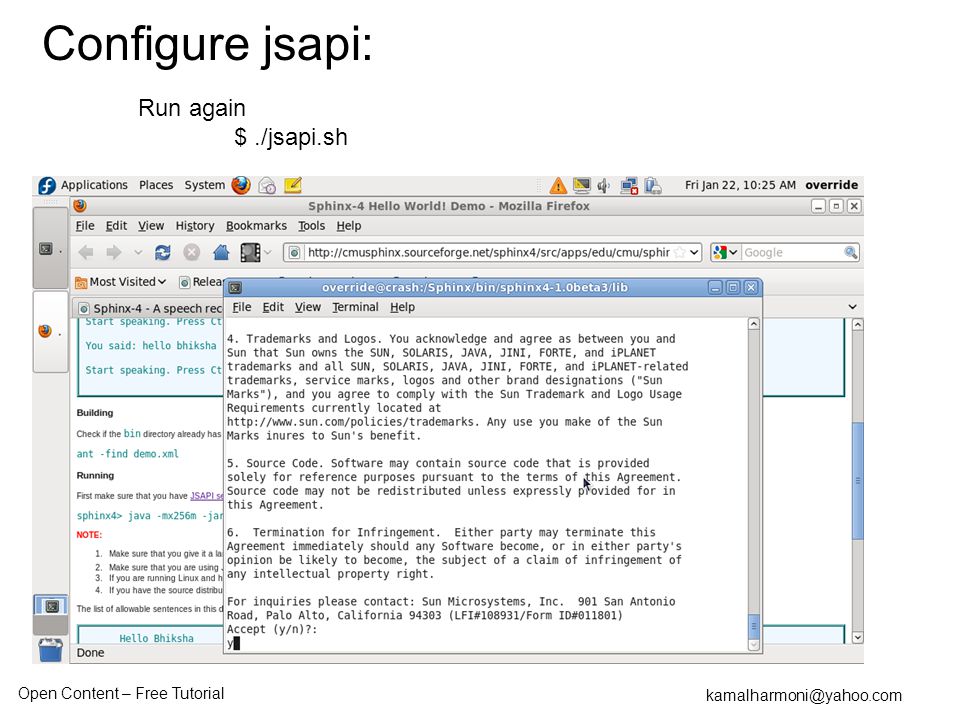

13. Open Content – Free Tutorial kamalharmoni@yahoo.com Run again $./jsapi.sh Configure jsapi:

14. Open Content – Free Tutorial kamalharmoni@yahoo.com Uudecode not install Configure jsapi located at lib/jsapi.sh # chmod +x jsapi #./jsapi.sh Configure jsapi:

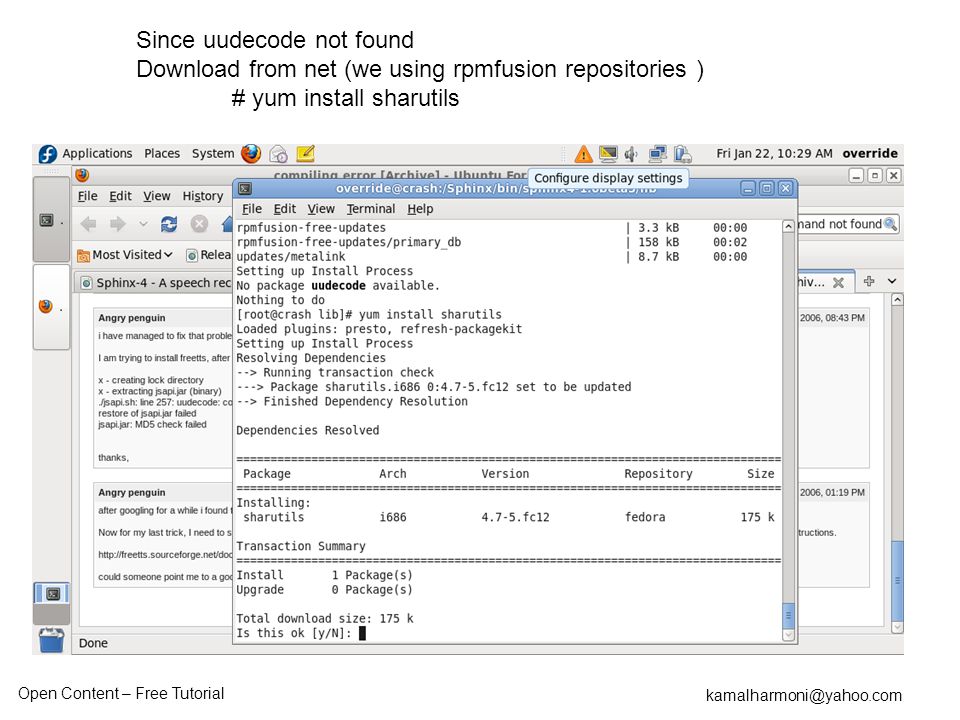

15. Open Content – Free Tutorial kamalharmoni@yahoo.com Since uudecode not found Download from net (we using rpmfusion repositories ) # yum install sharutils

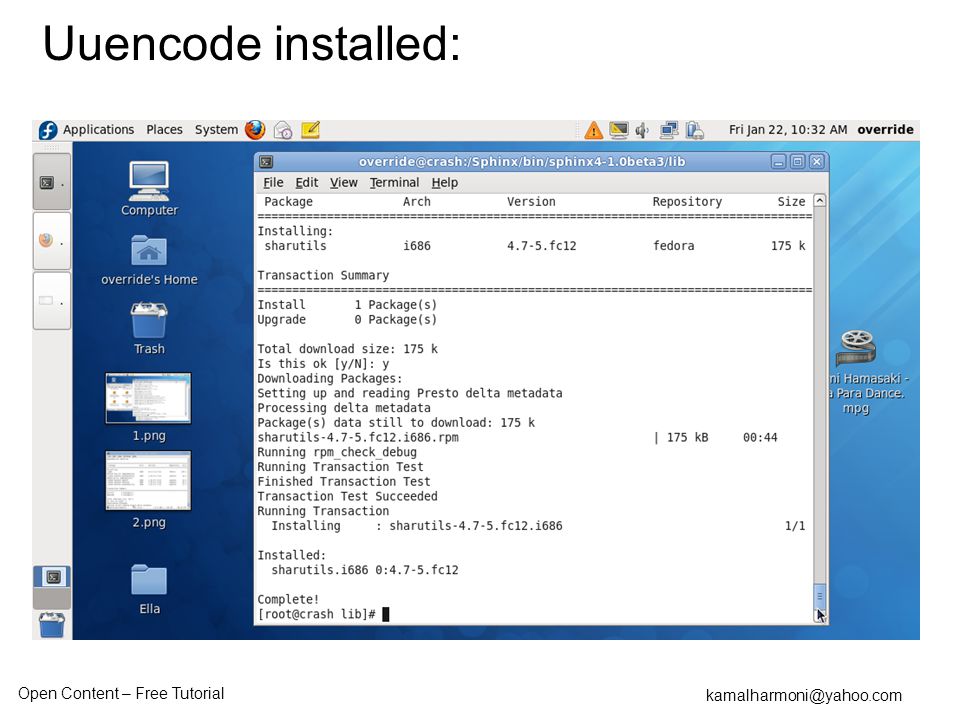

16. Open Content – Free Tutorial kamalharmoni@yahoo.com Uuencode installed:

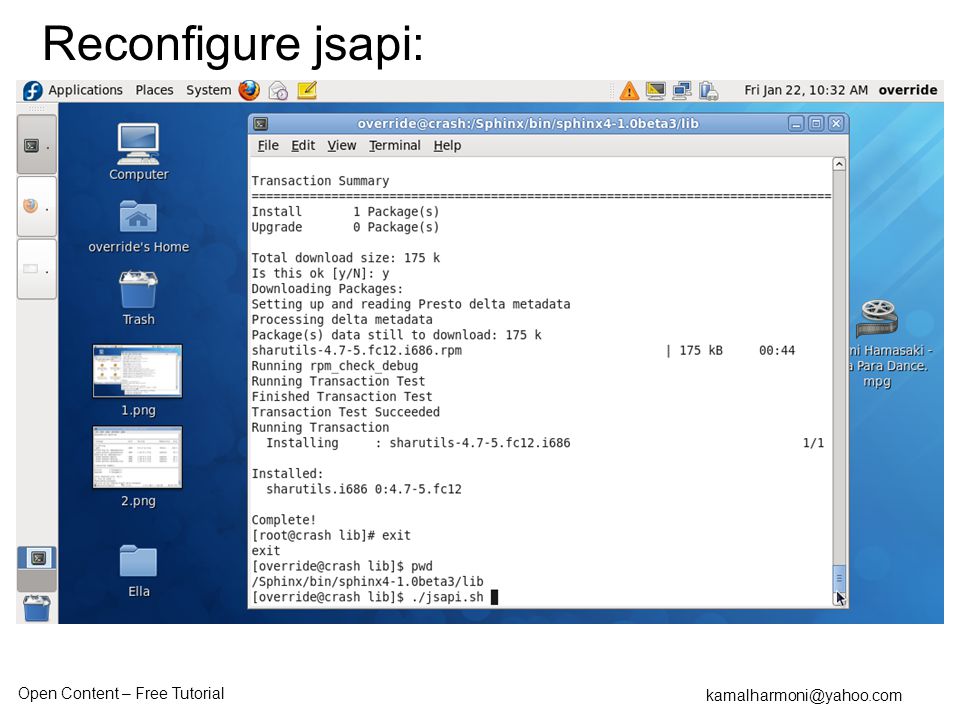

17. Open Content – Free Tutorial kamalharmoni@yahoo.com Reconfigure jsapi:

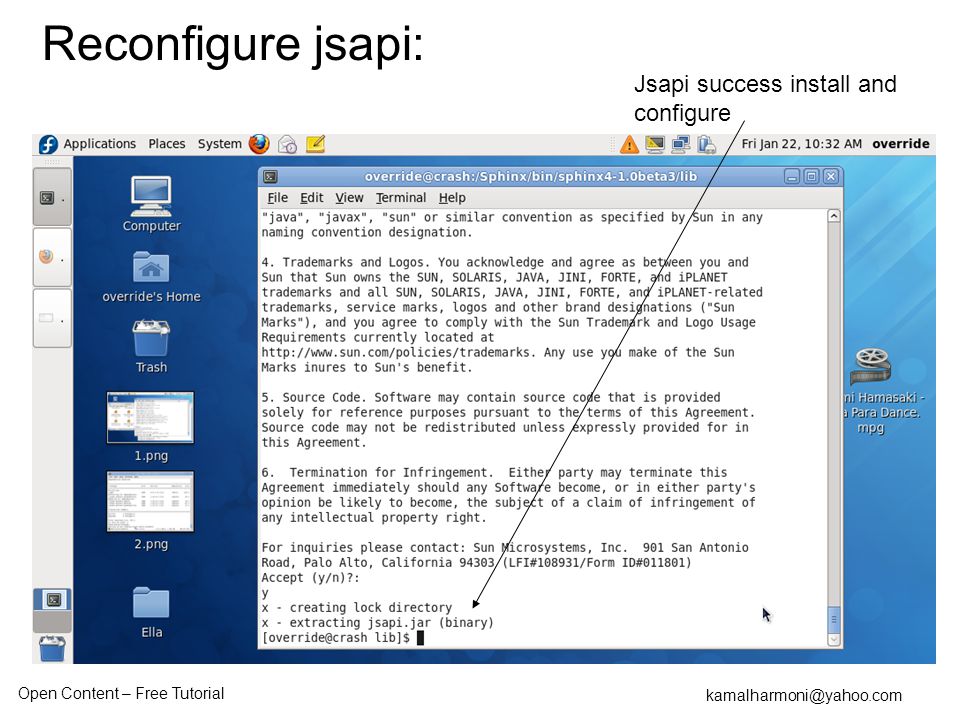

18. Open Content – Free Tutorial kamalharmoni@yahoo.com Jsapi success install and configure Reconfigure jsapi:

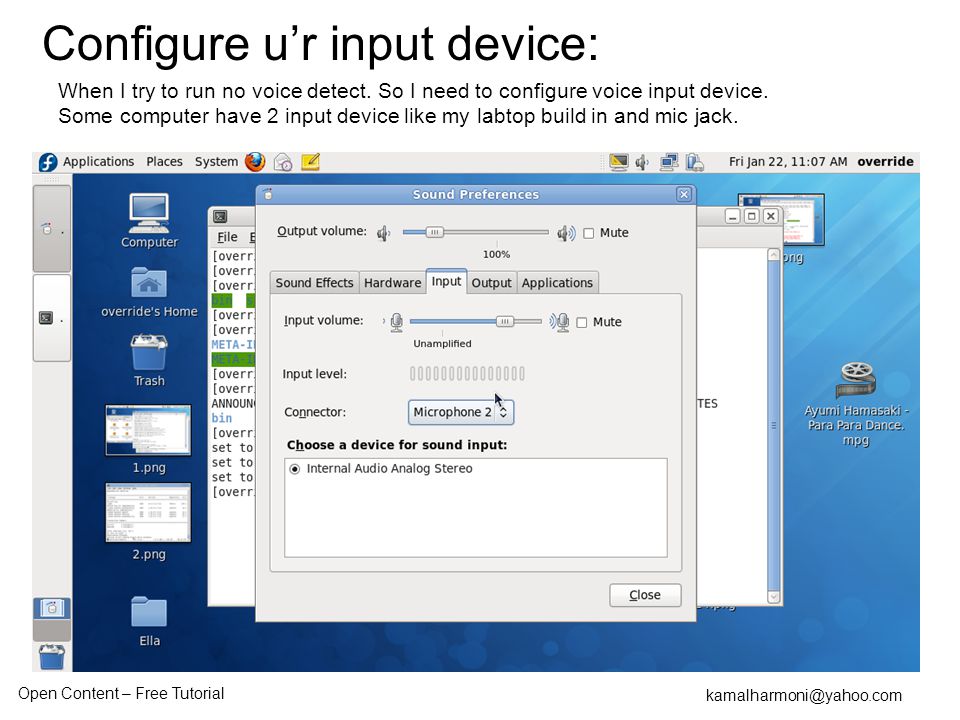

19. Open Content – Free Tutorial kamalharmoni@yahoo.com Configure u’r input device: When I try to run no voice detect. So I need to configure voice input device. Some computer have 2 input device like my labtop build in and mic jack.

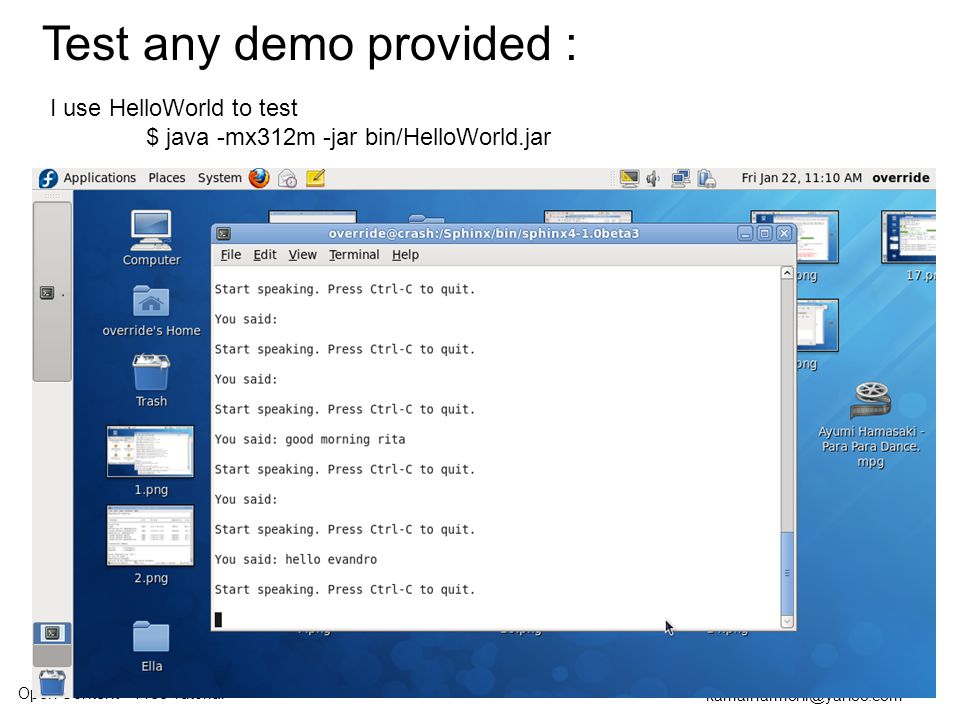

20. Open Content – Free Tutorial kamalharmoni@yahoo.com Test any demo provided : I use HelloWorld to test $ java -mx312m -jar bin/HelloWorld.jar

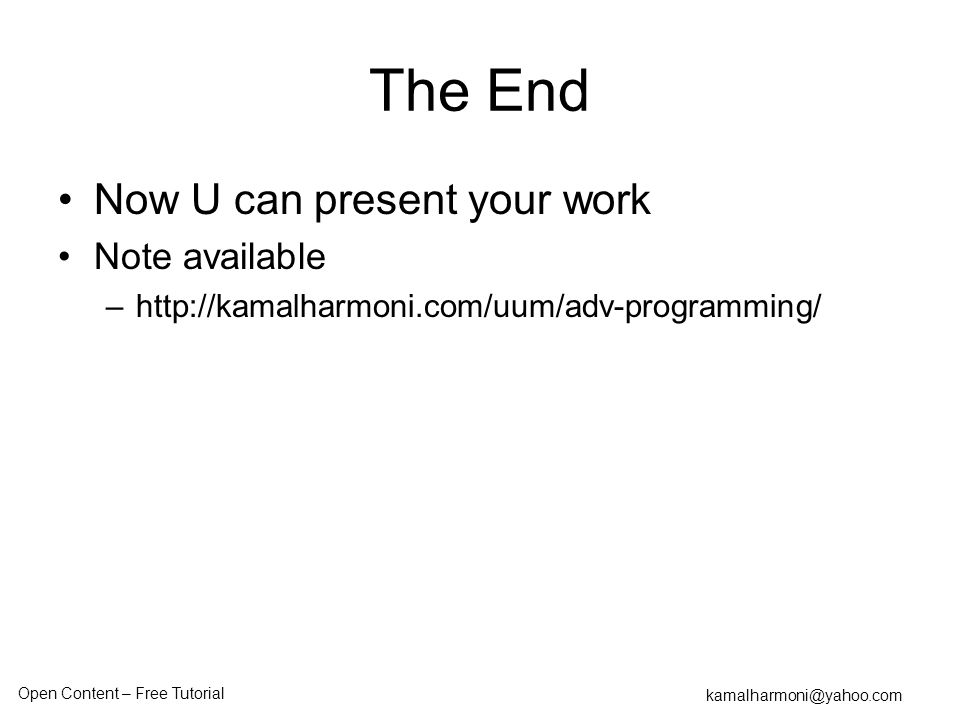

21. Open Content – Free Tutorial kamalharmoni@yahoo.com The End Now U can present your work Note available –http://kamalharmoni.com/uum/adv-programming/
