1 1 Reconfigurable Hardware Thomas Polzer

2 2 Overview Definition Definition Methods Methods Devices Devices Applications Applications Problems Problems Hardware or Software? Hardware or Software?

3 3 Definition Configurable Hardware Configurable Hardware  Already seen in previous talk  A piece of hardware which can change its functionality according to a configuration.  Configuration only changed by developer Reconfigurable Hardware Reconfigurable Hardware  Special kind of configurable hardware  Configuration can be changed while device is operational

4 4 FPGA Layout Source: [4]

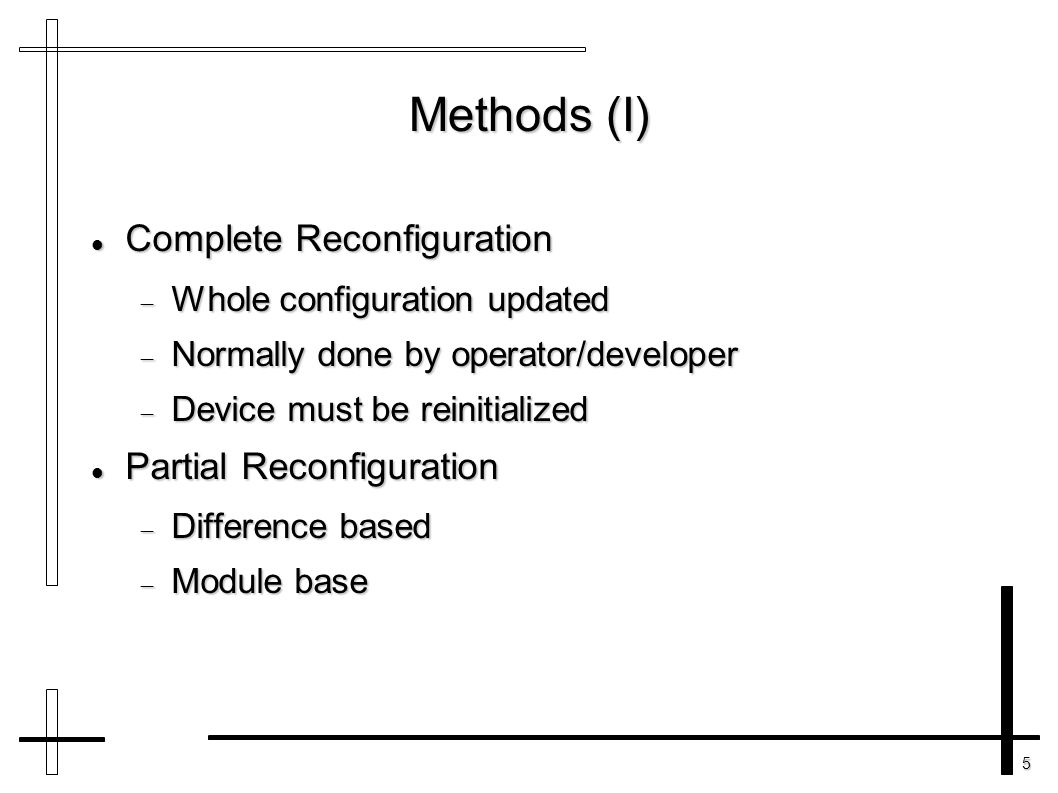

5 5 Methods (I) Complete Reconfiguration Complete Reconfiguration  Whole configuration updated  Normally done by operator/developer  Device must be reinitialized Partial Reconfiguration Partial Reconfiguration  Difference based  Module base

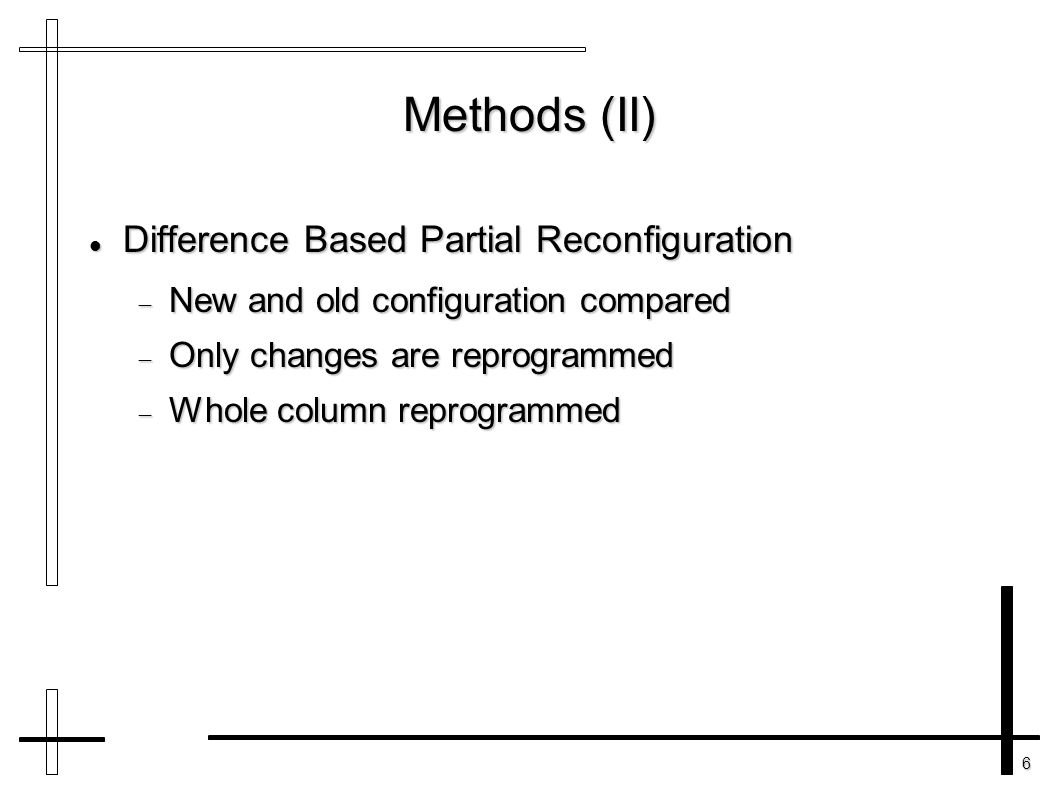

6 6 Methods (II) Difference Based Partial Reconfiguration Difference Based Partial Reconfiguration  New and old configuration compared  Only changes are reprogrammed  Whole column reprogrammed

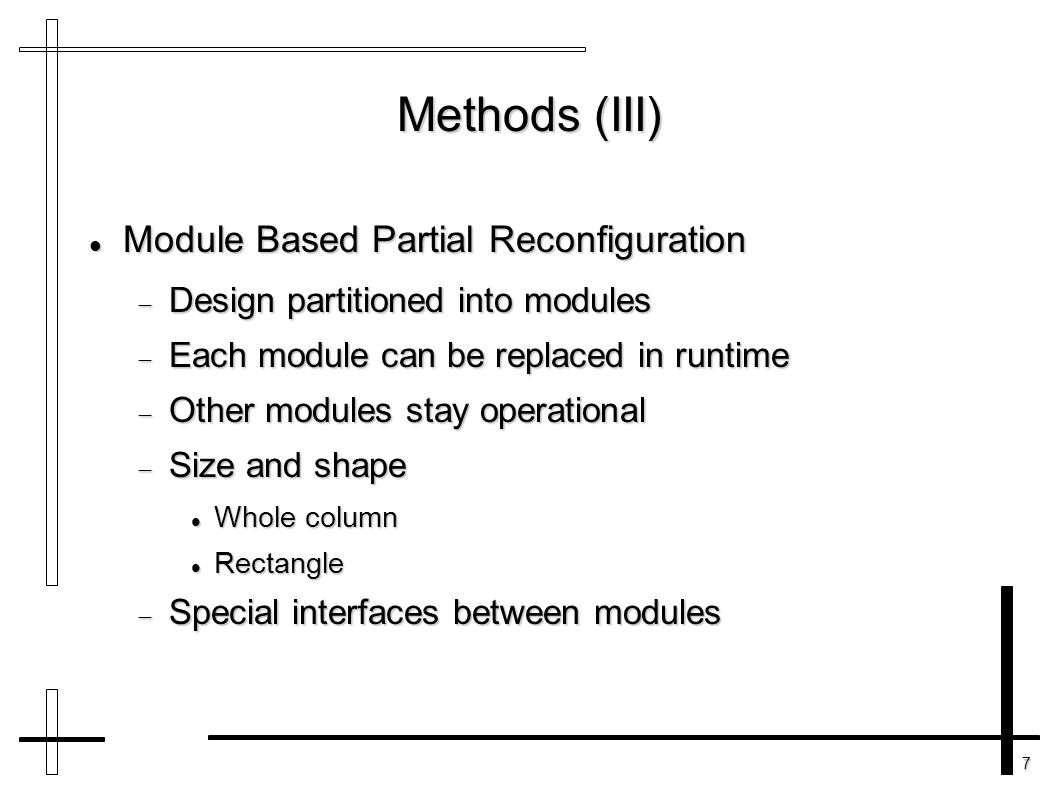

7 7 Methods (III) Module Based Partial Reconfiguration Module Based Partial Reconfiguration  Design partitioned into modules  Each module can be replaced in runtime  Other modules stay operational  Size and shape Whole column Whole column Rectangle Rectangle  Special interfaces between modules

8 8 Methods (IV) Source: [1]

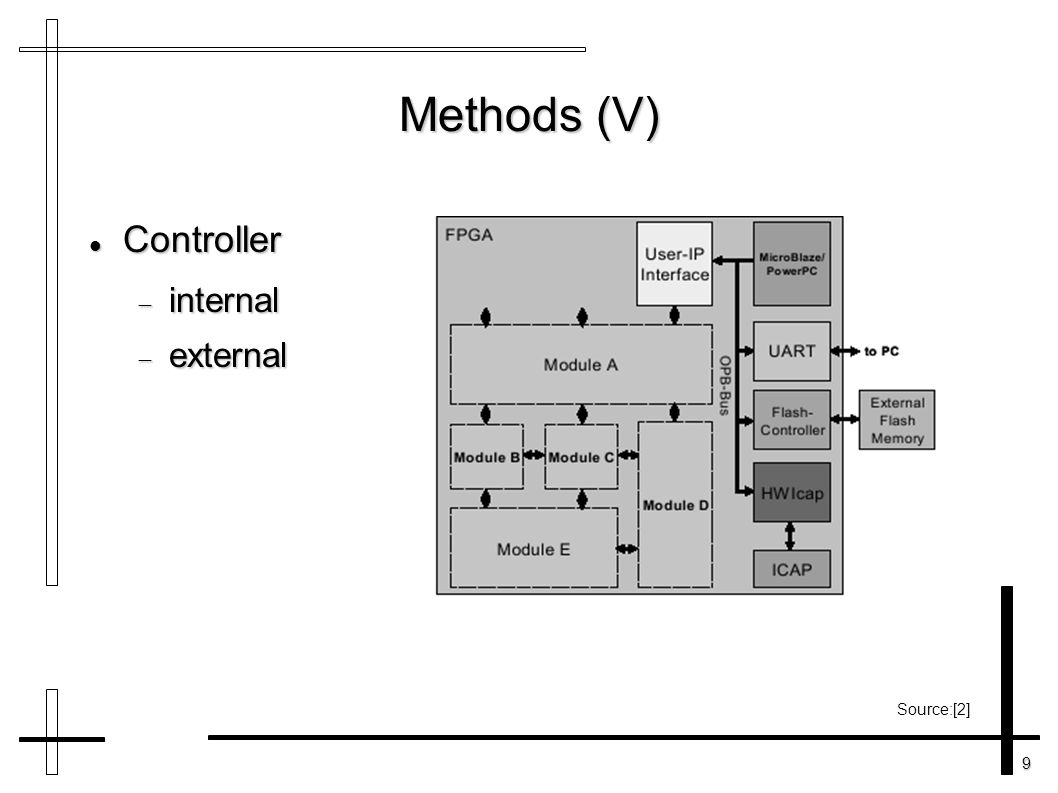

9 9 Methods (V) Controller Controller  internal  external Source:[2]

10 Devices (I) Xilinx Xilinx  Spartan-3 series Complete reconfiguration (only A and E series) Complete reconfiguration (only A and E series) Difference based partial reconfiguration Difference based partial reconfiguration  Virtex series Complete reconfiguration Complete reconfiguration Difference based partial reconfiguration Difference based partial reconfiguration Module based partial reconfiguration Module based partial reconfiguration

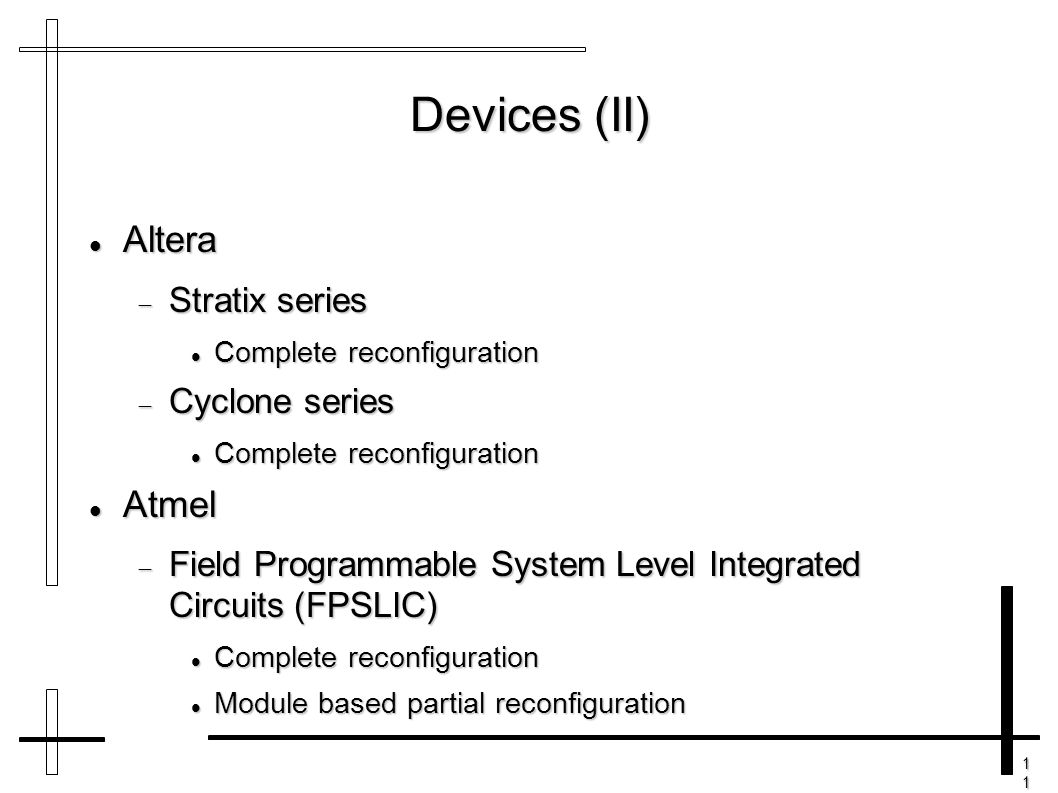

11 Devices (II) Altera Altera  Stratix series Complete reconfiguration Complete reconfiguration  Cyclone series Complete reconfiguration Complete reconfiguration Atmel Atmel  Field Programmable System Level Integrated Circuits (FPSLIC) Complete reconfiguration Complete reconfiguration Module based partial reconfiguration Module based partial reconfiguration

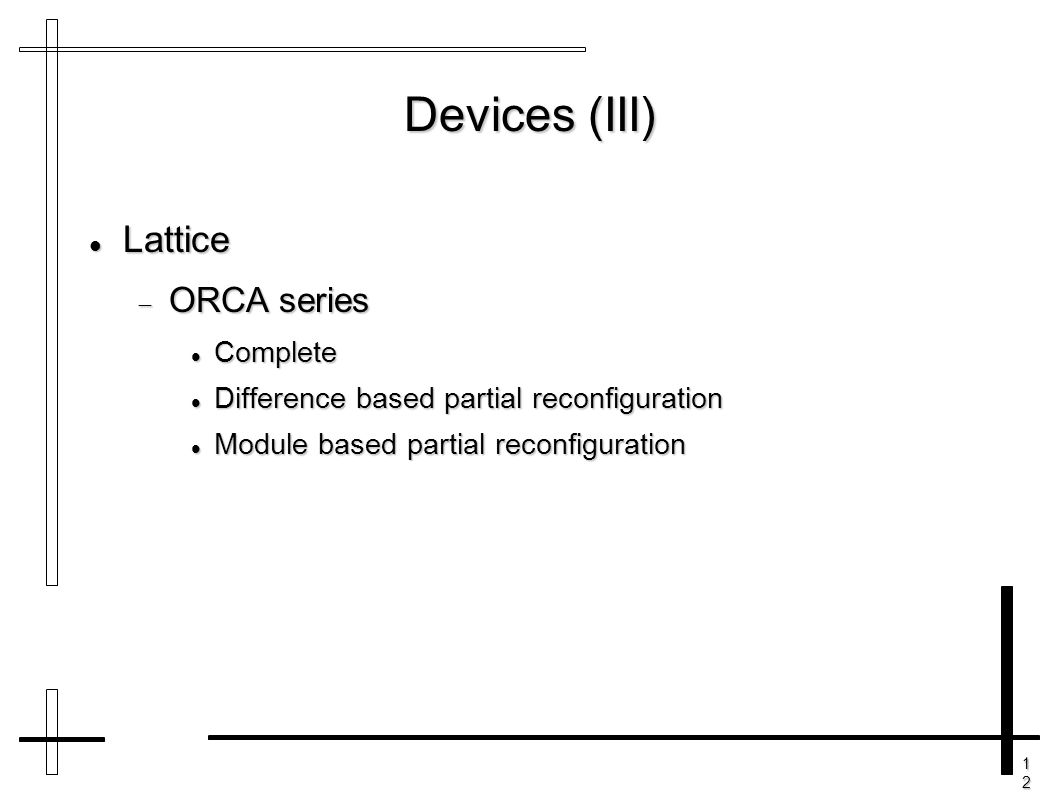

12 Devices (III) Lattice Lattice  ORCA series Complete Complete Difference based partial reconfiguration Difference based partial reconfiguration Module based partial reconfiguration Module based partial reconfiguration

13 Applications (I) Increased Fault Tolerance Increased Fault Tolerance  Monitoring of functional units  In case of failure -> reconfigure empty space to replace it Increased Capacity Increased Capacity  Not all functional units deployed simultaneously Remote Update Remote Update  Download a new configuration via serial line or network

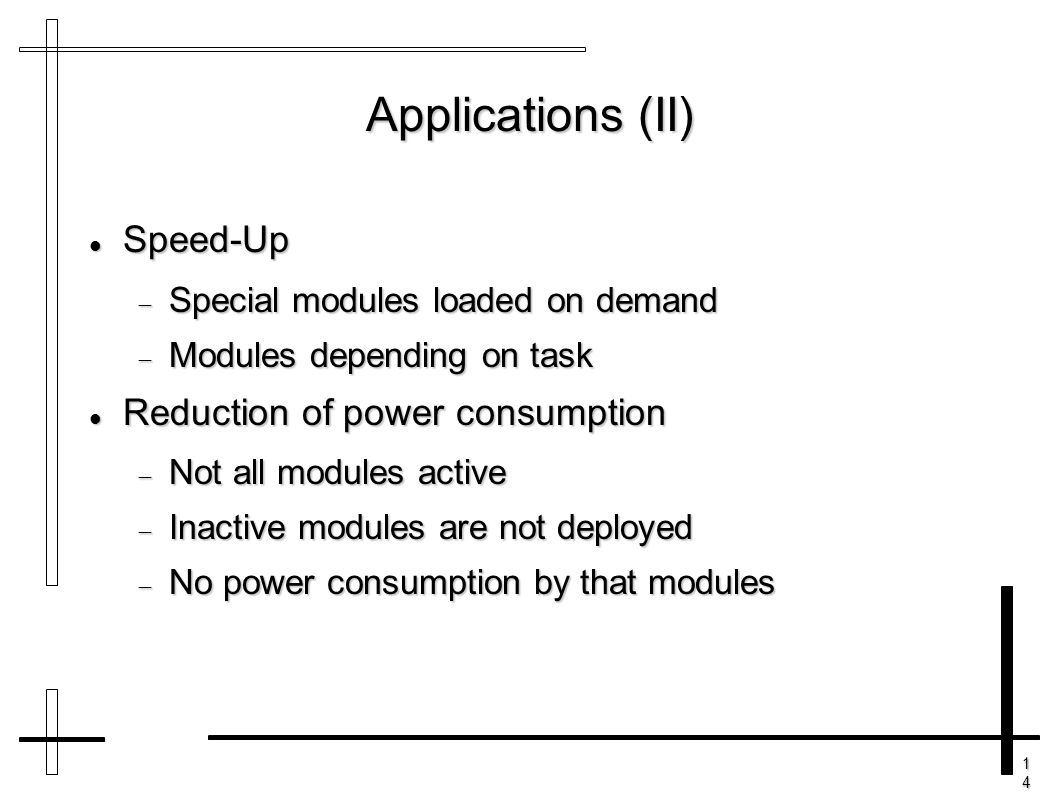

14 Applications (II) Speed-Up Speed-Up  Special modules loaded on demand  Modules depending on task Reduction of power consumption Reduction of power consumption  Not all modules active  Inactive modules are not deployed  No power consumption by that modules

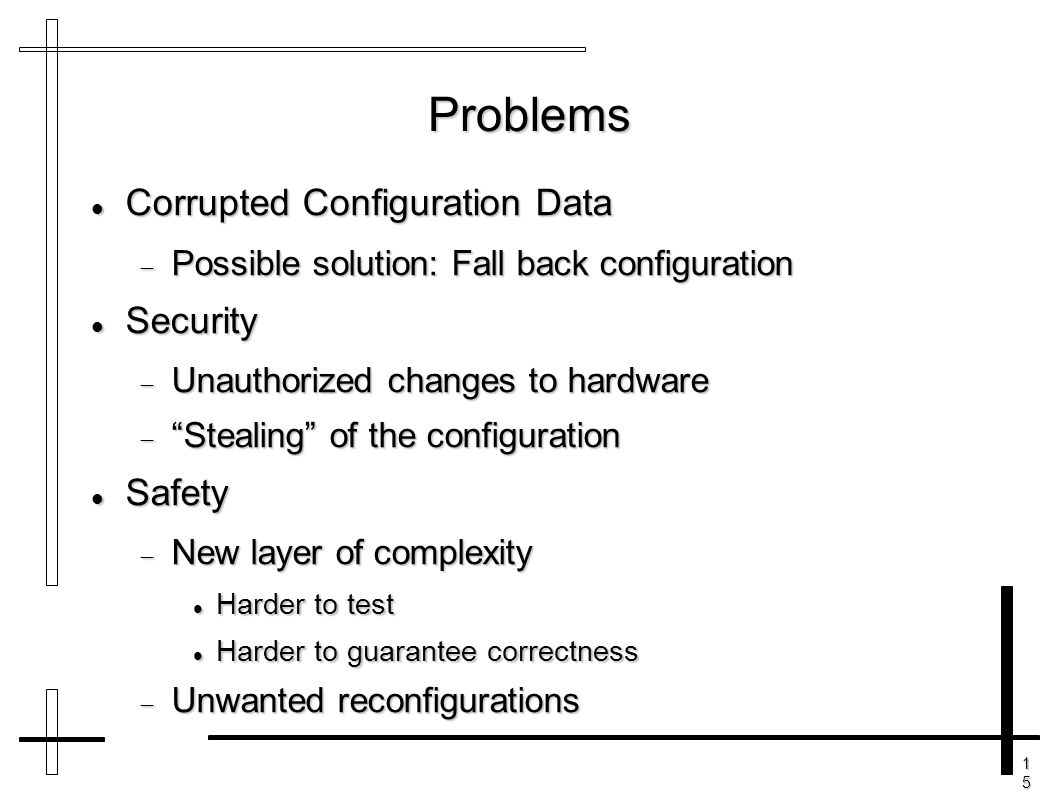

15 Problems Corrupted Configuration Data Corrupted Configuration Data  Possible solution: Fall back configuration Security Security  Unauthorized changes to hardware  “Stealing” of the configuration Safety Safety  New layer of complexity Harder to test Harder to test Harder to guarantee correctness Harder to guarantee correctness  Unwanted reconfigurations

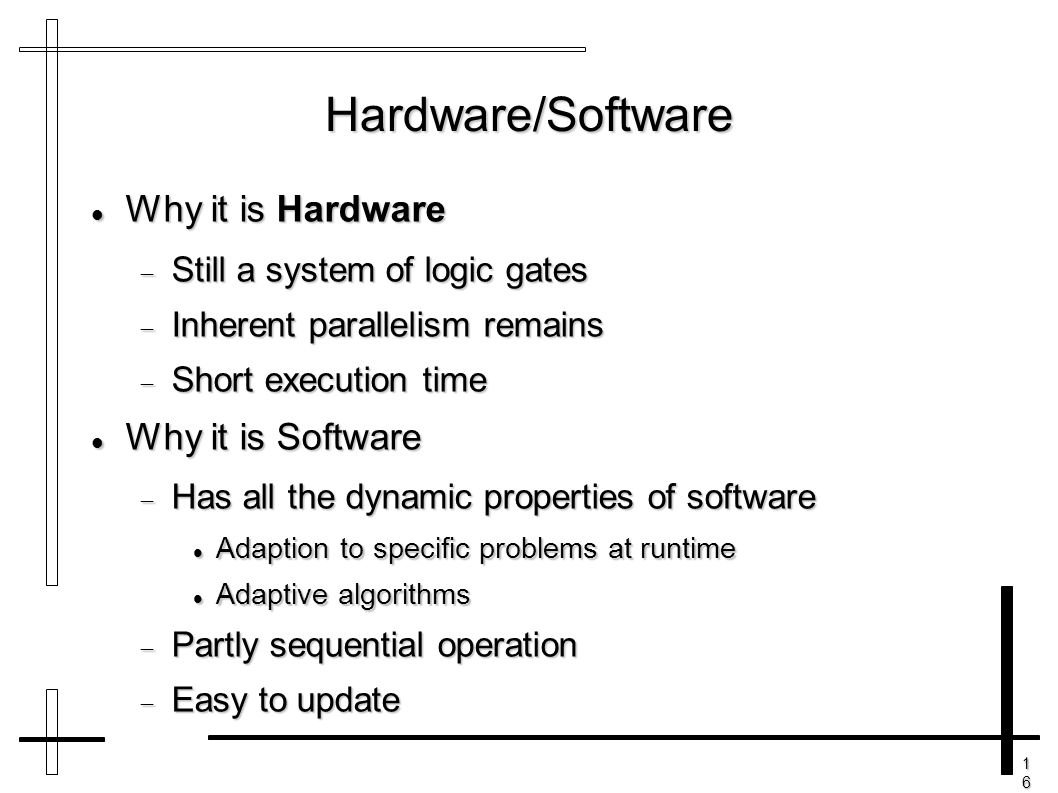

16 Hardware/Software Why it is Hardware Why it is Hardware  Still a system of logic gates  Inherent parallelism remains  Short execution time Why it is Software Why it is Software  Has all the dynamic properties of software Adaption to specific problems at runtime Adaption to specific problems at runtime Adaptive algorithms Adaptive algorithms  Partly sequential operation  Easy to update

17 End Thank you for your attention!

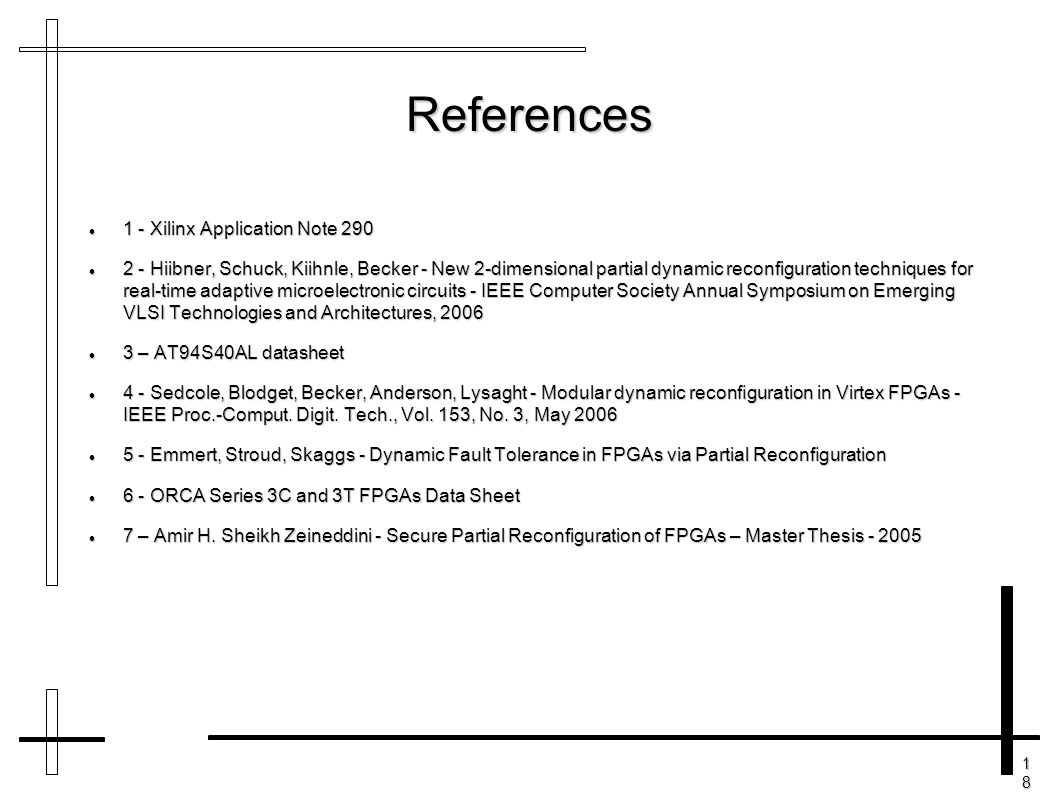

18 References 1 - Xilinx Application Note Xilinx Application Note Hiibner, Schuck, Kiihnle, Becker - New 2-dimensional partial dynamic reconfiguration techniques for real-time adaptive microelectronic circuits - IEEE Computer Society Annual Symposium on Emerging VLSI Technologies and Architectures, Hiibner, Schuck, Kiihnle, Becker - New 2-dimensional partial dynamic reconfiguration techniques for real-time adaptive microelectronic circuits - IEEE Computer Society Annual Symposium on Emerging VLSI Technologies and Architectures, – AT94S40AL datasheet 3 – AT94S40AL datasheet 4 - Sedcole, Blodget, Becker, Anderson, Lysaght - Modular dynamic reconfiguration in Virtex FPGAs - IEEE Proc.-Comput. Digit. Tech., Vol. 153, No. 3, May Sedcole, Blodget, Becker, Anderson, Lysaght - Modular dynamic reconfiguration in Virtex FPGAs - IEEE Proc.-Comput. Digit. Tech., Vol. 153, No. 3, May Emmert, Stroud, Skaggs - Dynamic Fault Tolerance in FPGAs via Partial Reconfiguration 5 - Emmert, Stroud, Skaggs - Dynamic Fault Tolerance in FPGAs via Partial Reconfiguration 6 - ORCA Series 3C and 3T FPGAs Data Sheet 6 - ORCA Series 3C and 3T FPGAs Data Sheet 7 – Amir H. Sheikh Zeineddini - Secure Partial Reconfiguration of FPGAs – Master Thesis – Amir H. Sheikh Zeineddini - Secure Partial Reconfiguration of FPGAs – Master Thesis
