1 Not for noobs…

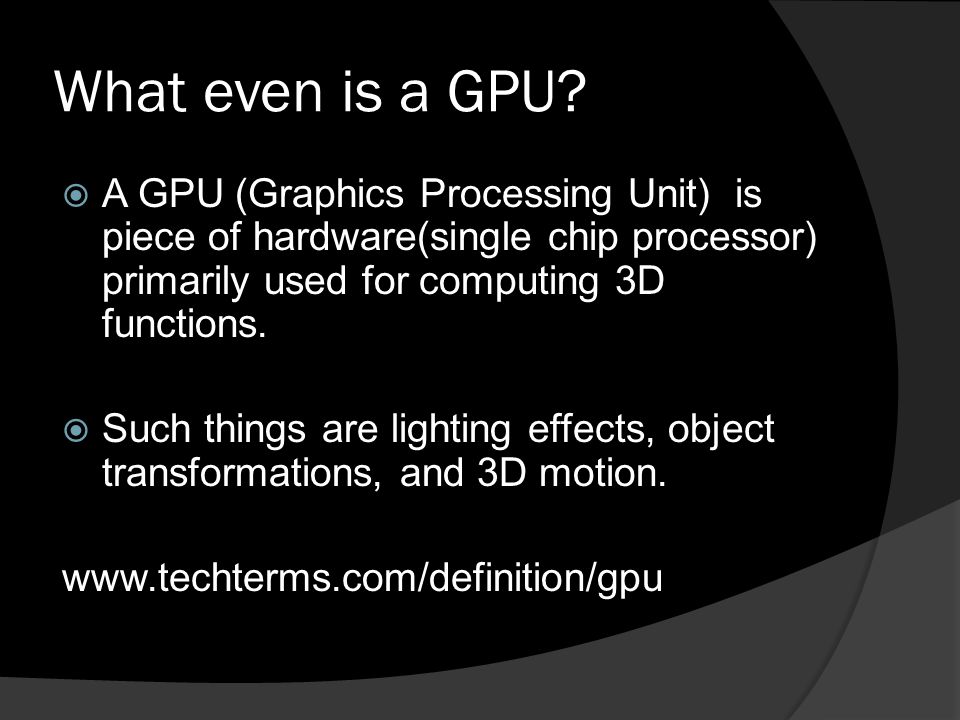

2 What even is a GPU?  A GPU (Graphics Processing Unit) is piece of hardware(single chip processor) primarily used for computing 3D functions.  Such things are lighting effects, object transformations, and 3D motion.

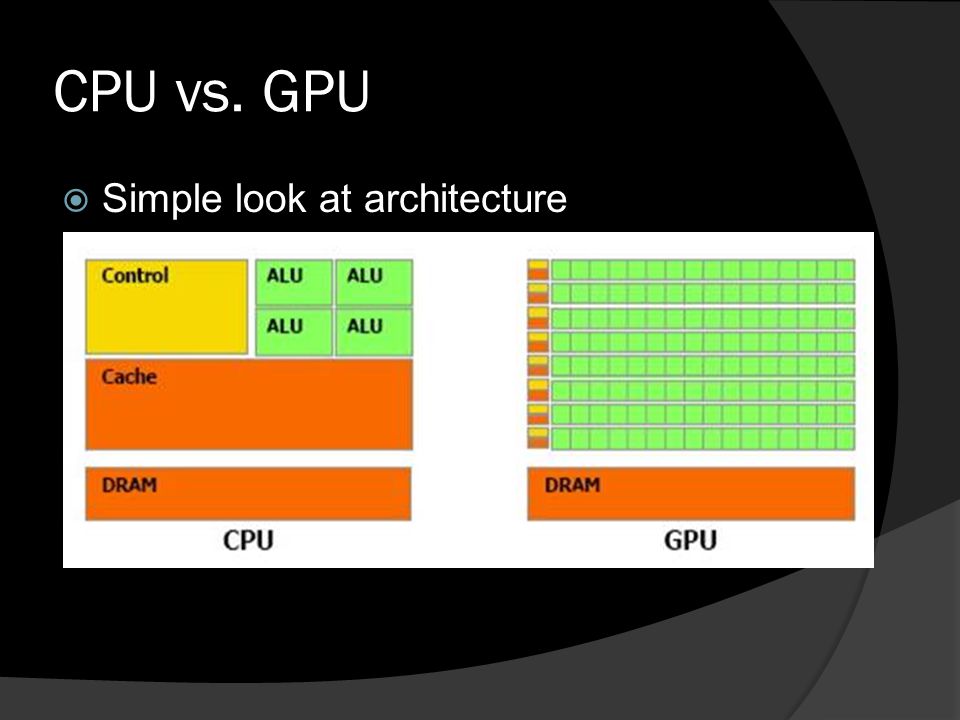

3 CPU vs. GPU  Simple look at architecture

4 CPU Vs. GPU speeds

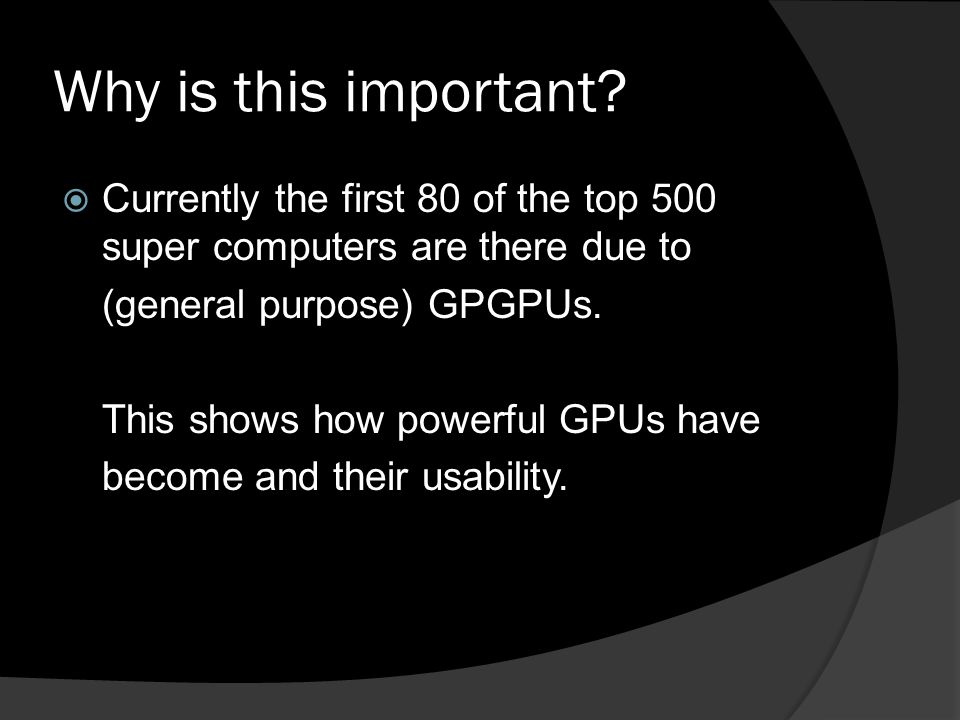

5 Why is this important?  Currently the first 80 of the top 500 super computers are there due to (general purpose) GPGPUs. This shows how powerful GPUs have become and their usability.

6 What choices do we have?

7 Nvidia  These are slightly more expensive graphics cards.  Nvidia is required if your attempting to get on the top 500 supercomputers list. (this is due to CUDA)  Higher clock shader clock speeds, along with more complex ALUs

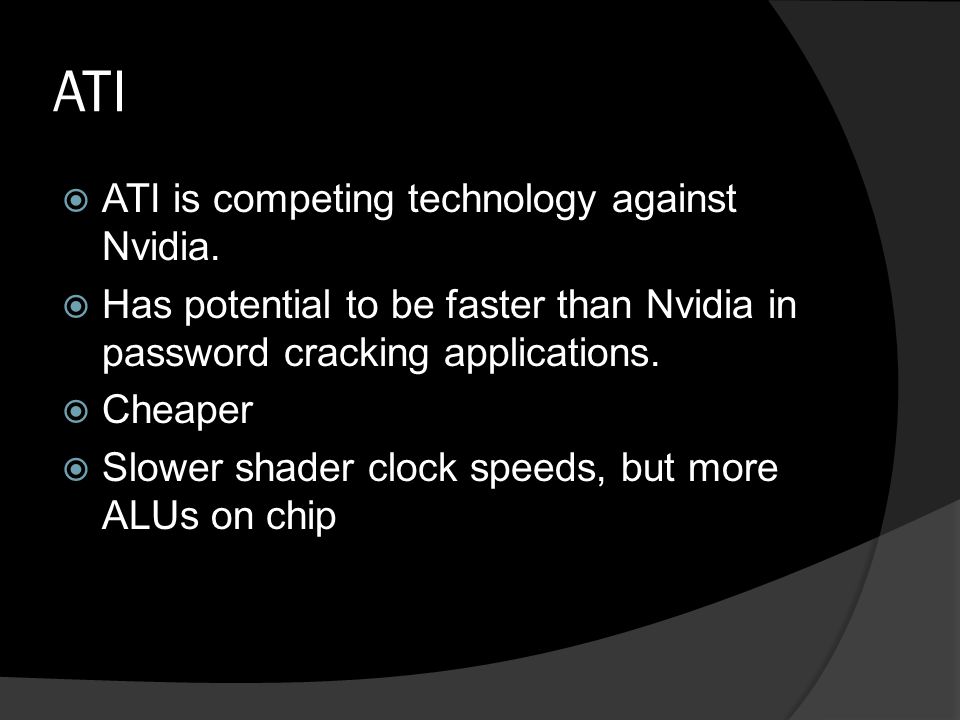

8 ATI  ATI is competing technology against Nvidia.  Has potential to be faster than Nvidia in password cracking applications.  Cheaper  Slower shader clock speeds, but more ALUs on chip

9 Cloud Based and Distributed Networks  On solution is to pay for time on cloud based services. Ex. (Amazon AWC/ EC2, Nimbix, Peer1, Penguin)  Join a Distributed network Distributed.net Boinc (freerainbowtables.net)

10 What is feasible?  The cost of running a cloud based service is more for those with deeper pockets.  Instead a locally hosted machine is more affordable

11 That leaves us with Nvida Vs. ATI  The most common question…. WHICH IS BETTER?!

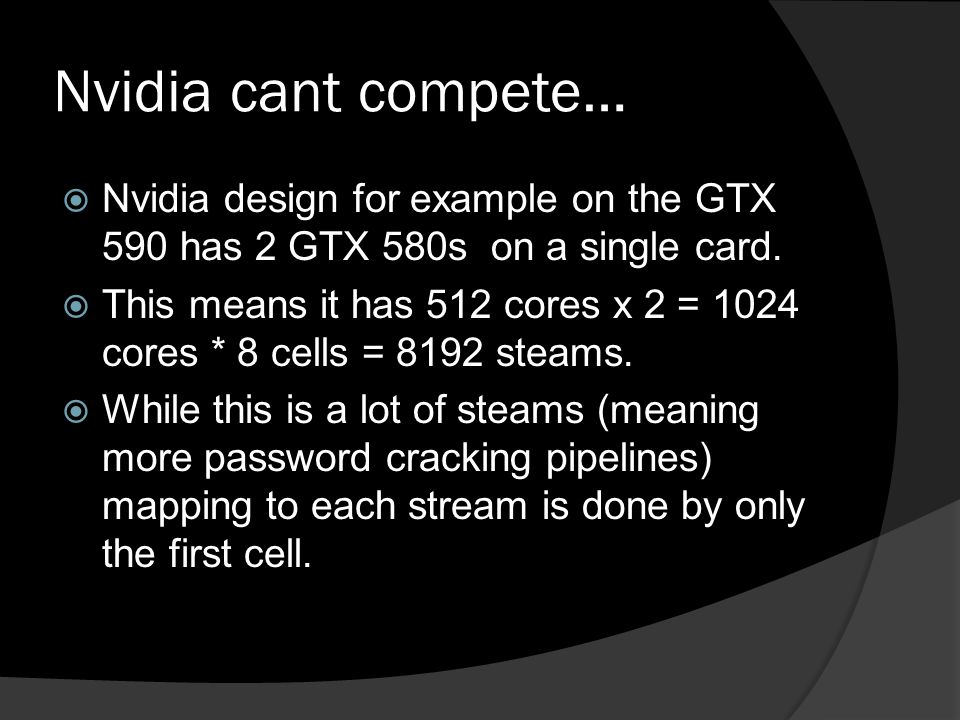

12 Nvidia cant compete…  Nvidia design for example on the GTX 590 has 2 GTX 580s on a single card.  This means it has 512 cores x 2 = 1024 cores * 8 cells = 8192 steams.  While this is a lot of steams (meaning more password cracking pipelines) mapping to each stream is done by only the first cell.

13  This does not utilize the GPU as much as it can be.  Another blow is that the BIT_ALIGN_INT operator must be emulated on Nvidia cards requiring 2 shifts + 1 add  This means Nvidia cards must use 3 instructions instead of 1 for some hashing functions as compared to ATI cards.

14 Comparisons  ATI Radeon HD ALUs x 830 MHz = 2550 billion 32-bit instructions per second  Nvidia GTX ALUs x 1214 MHz = 1243 billion 32-bit instructions per second

15 Winner?  As seen in the previous slide ATI takes the cake for password cracking applications.  Due to BIT_ALIGN_INT, more ALUs, and cost to power efficiency, ATI has approximately 3x-5x performance boost. en.bitcoin.it

16 What even is?  The differences between the card architecture translates into a direct increase in password cracking speed for ATI cards.  Simpler ALUs at lower clocks == less energy consumption.

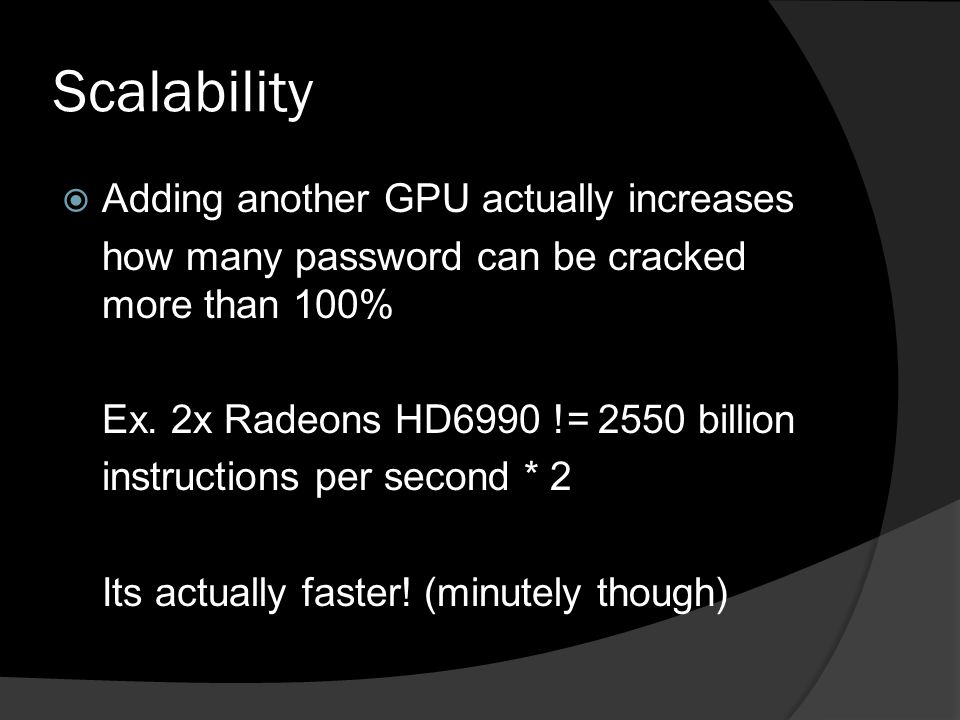

17 Scalability  Adding another GPU actually increases how many password can be cracked more than 100% Ex. 2x Radeons HD6990 != 2550 billion instructions per second * 2 Its actually faster! (minutely though)

18 Password Cracking Software  GPU cracking Oclhashcat IghashGPU WhitePixel Extreme GPU Bruteforcer CUDA – MULTIFORCER Lightning hash cracker

19  Distributed solutions LastBit Elecomsoft Durandural

20 Password cracker of choice  OclHashcat Advanced mask processing ○ Character per position attacks (using **clues**) Rule engine ○ Manipulate wordlists based on rules on the fly Hybrid dictionary + mask attacks ○ Use wordlists and masks together to hit more passwords Finger Printing attack ○ Psychology of humans based attack

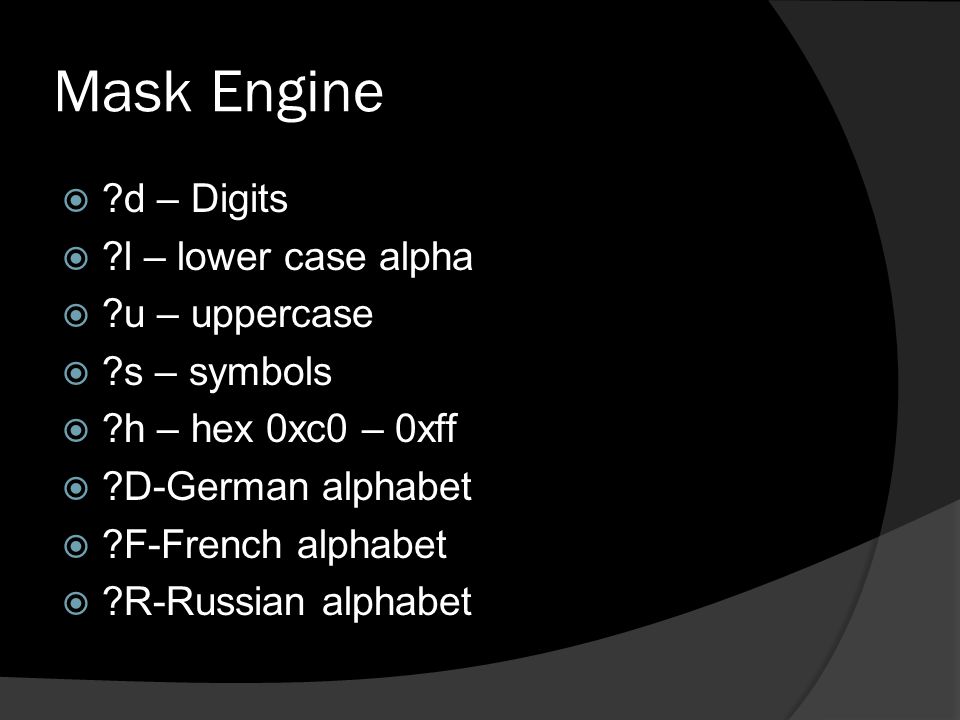

21 Mask Engine  ?d – Digits  ?l – lower case alpha  ?u – uppercase  ?s – symbols  ?h – hex 0xc0 – 0xff  ?D-German alphabet  ?F-French alphabet  ?R-Russian alphabet

22 Lets try it out.  We will manipulate the string and use a mask to hit our hashes ichidor Command: echo ichidor | expander | sort -u > outfile

23  Common human convention is to append numbers within the string  Some examples of wordlist + ‘?d?d’ Chido06 Dori09 hido30 chidori15 ichi91 hidori24
