1 Complete, Modular, Ready Today 1 History of ISA SP76 NeSSI Current Standards ANSI/ISA (2002) IEC ( ) reference IEC :2006(E) design

2 Complete, Modular, Ready Today 2 NeSSI / SP76 History/Standards  Initially Semiconductor Industry Concept  Center for Process Analytical Chemistry (CPAC)  University of Washington at Seattle  New Sampling / Sensor Initiative (NeSSI)  Ad Hoc group of manufacturers, end users, integrators worked together to improve technology and achieve ‘Smart’ systems   US Standard: ANSI / ISA – ( 2002 )  World Standard: IEC : 2006(E) (listed 2007)

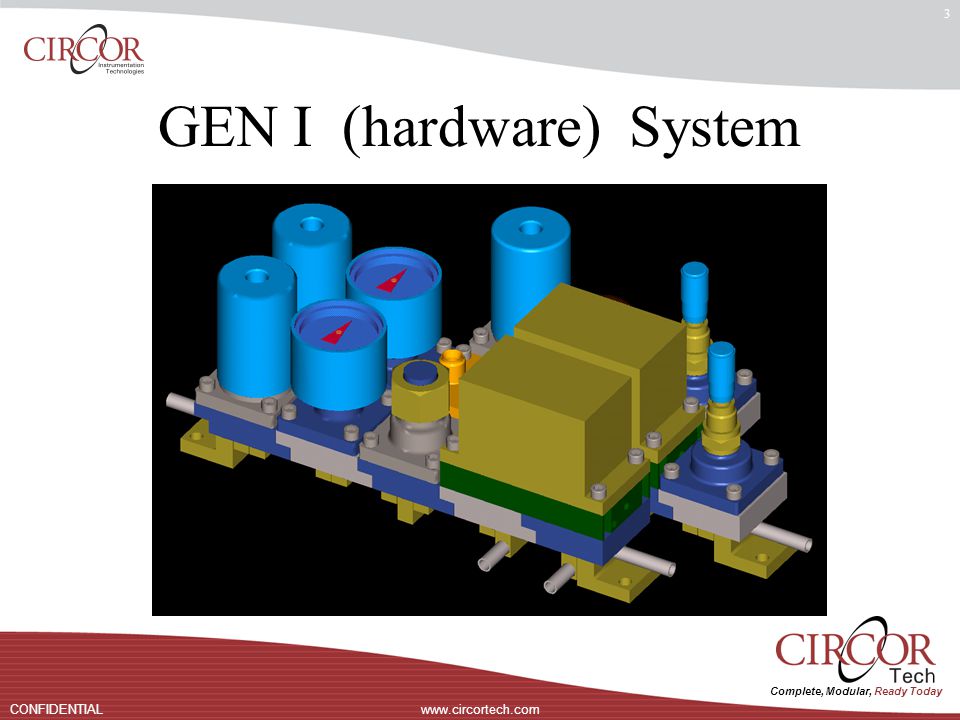

3 Complete, Modular, Ready Today 3 GEN I (hardware) System

4 Complete, Modular, Ready Today 4 Roots in Semiconductor Industry First Sprouts in HPI/CPI 1998 Vision and Patents –Don Mayeaux A+ Corporation –09DEC1998 New Orleans, LA “Industry Forum on Modular Sample Systems (MSS)”

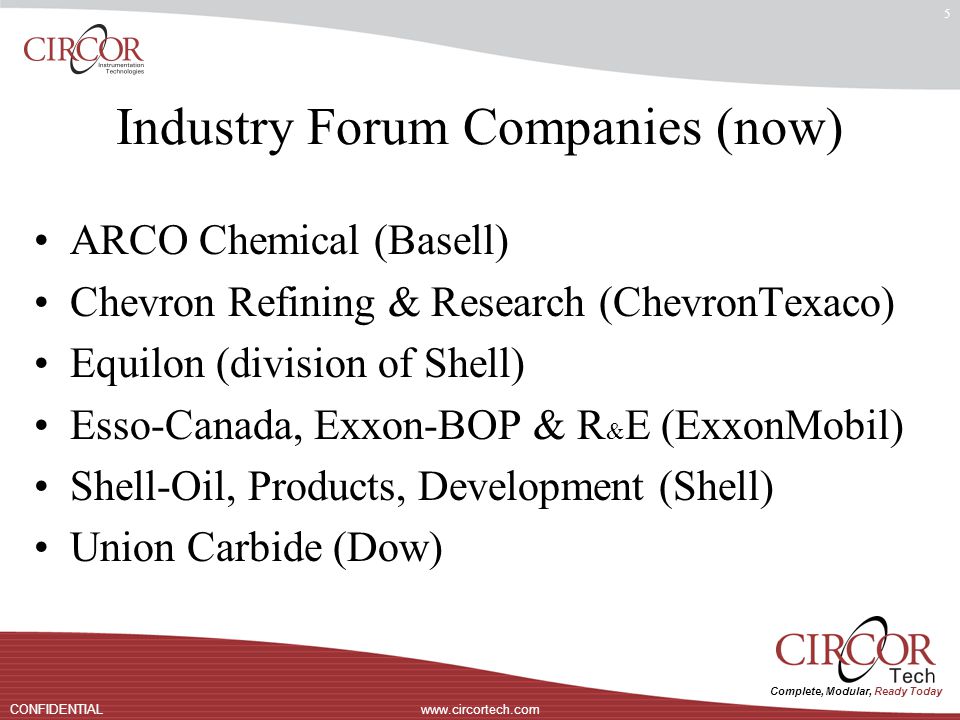

5 Complete, Modular, Ready Today 5 Industry Forum Companies (now) ARCO Chemical (Basell) Chevron Refining & Research (ChevronTexaco) Equilon (division of Shell) Esso-Canada, Exxon-BOP & R & E (ExxonMobil) Shell-Oil, Products, Development (Shell) Union Carbide (Dow)

6 Complete, Modular, Ready Today 6 Seeds in Refining Industry 1998 ISA EXPO1998 Houston, TX Paul Otteman –Displays Autoflow unit Dan Podkulski –Borrows Autoflow unit –Demonstrates to Chevron Best Practices Process Analyzer Meeting Attendees

7 Complete, Modular, Ready Today 7 Growth in Refining Industry 1999 ISA SP76 Working Group Dan Podkulski, Chair, OCT1999 Initial Writing/Ballot –ANSI / ISA Standard –“Modular Sample Conditioning Component Interface”

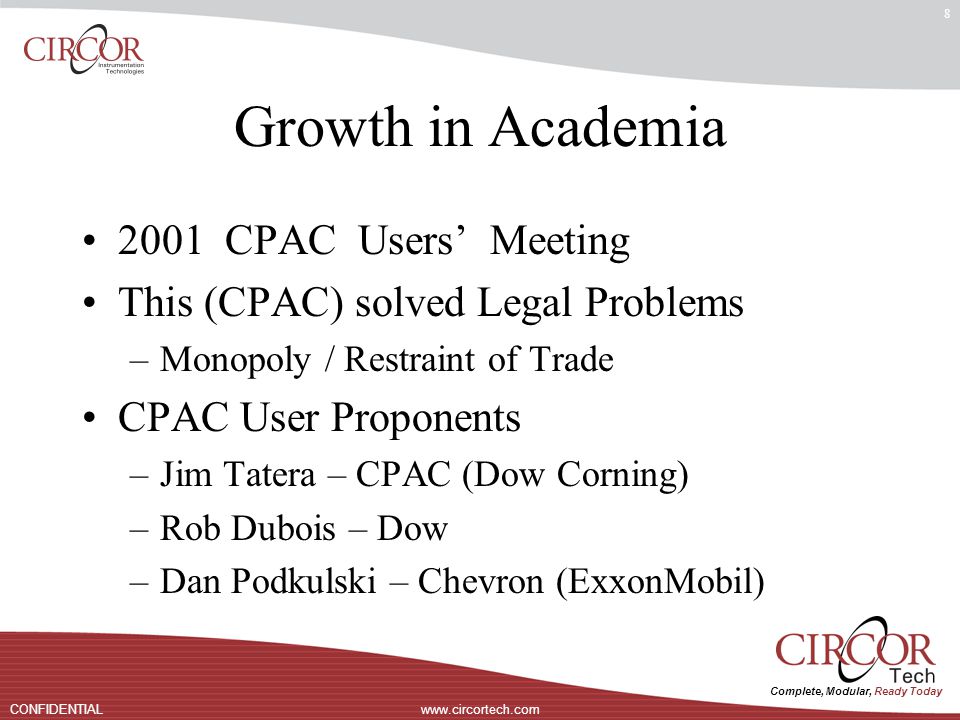

8 Complete, Modular, Ready Today 8 Growth in Academia 2001 CPAC Users’ Meeting This (CPAC) solved Legal Problems –Monopoly / Restraint of Trade CPAC User Proponents –Jim Tatera – CPAC (Dow Corning) –Rob Dubois – Dow –Dan Podkulski – Chevron (ExxonMobil)

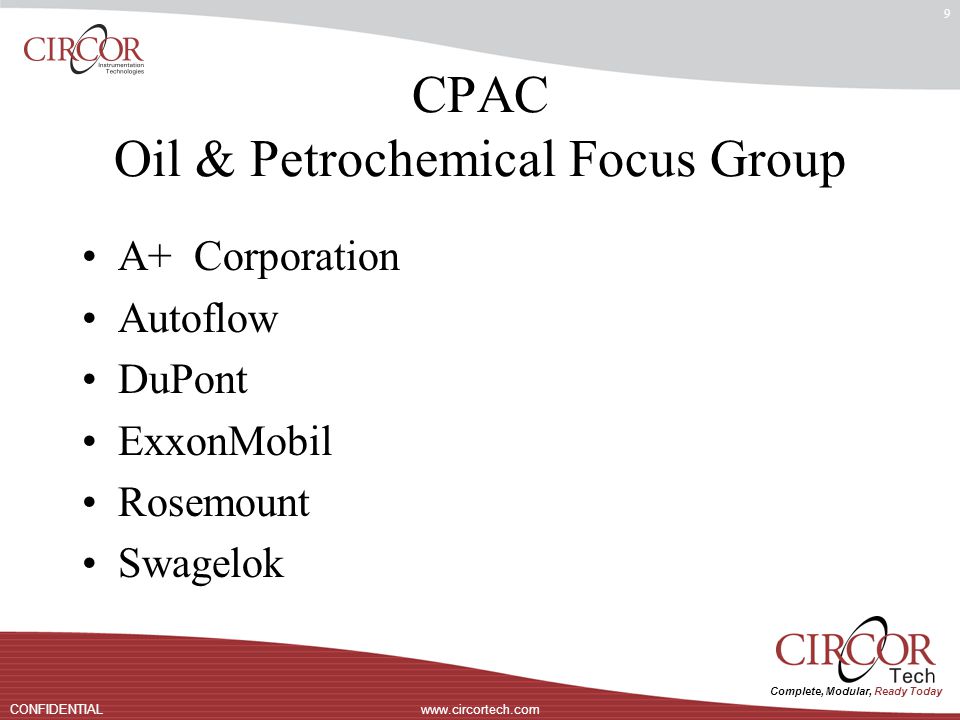

9 Complete, Modular, Ready Today 9 CPAC Oil & Petrochemical Focus Group A+ Corporation Autoflow DuPont ExxonMobil Rosemount Swagelok

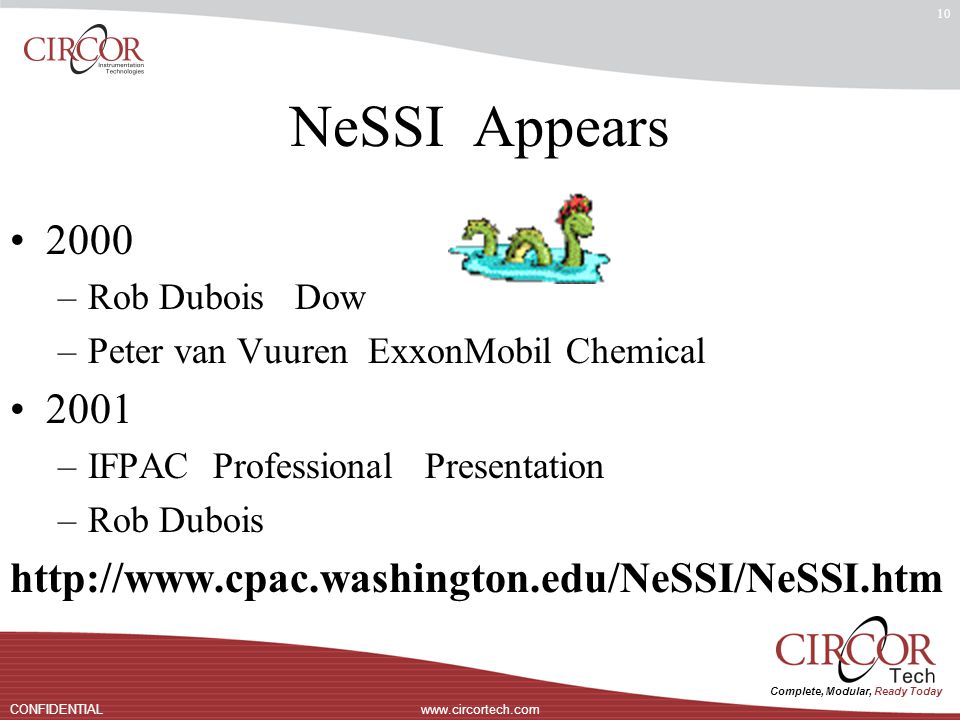

10 Complete, Modular, Ready Today 10 NeSSI Appears 2000 –Rob Dubois Dow –Peter van Vuuren ExxonMobil Chemical 2001 –IFPAC Professional Presentation –Rob Dubois

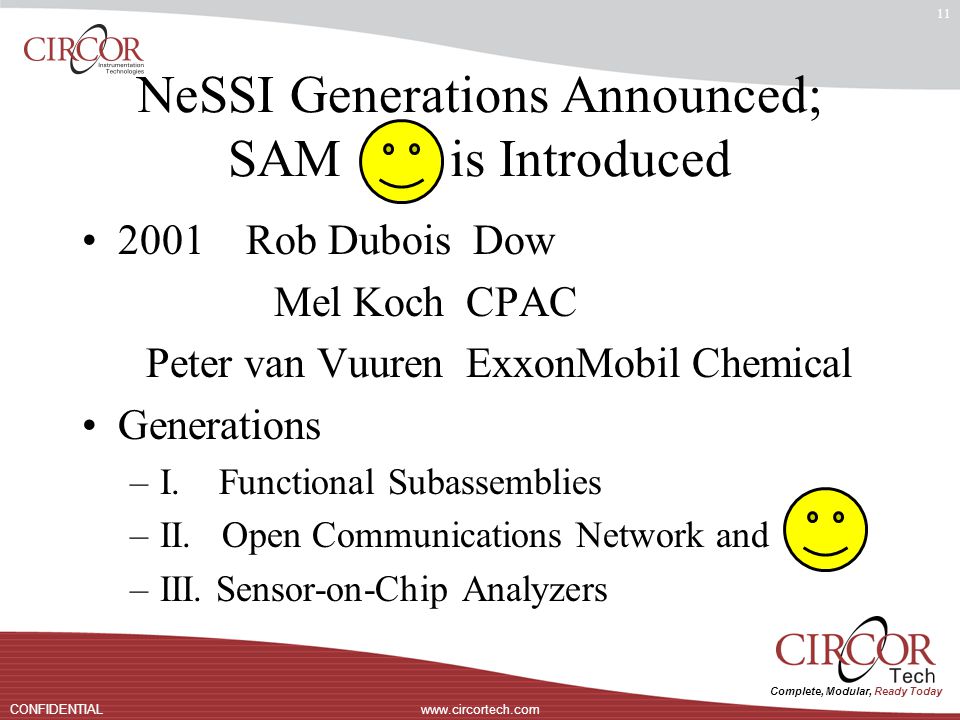

11 Complete, Modular, Ready Today 11 NeSSI Generations Announced; SAM is Introduced 2001 Rob Dubois Dow Mel KochCPAC Peter van VuurenExxonMobil Chemical Generations –I. Functional Subassemblies –II. Open Communications Network and –III. Sensor-on-Chip Analyzers

12 Complete, Modular, Ready Today 12 Initial NeSSI Roadmap SAM: Gen II Sensor Actuator Manager

13 Complete, Modular, Ready Today 13 Technology Roadmap Current NeSSI™ Roadmap NeSSI™ is a trademark of the Center for Process Analytical Chemistry, U of WA Initiative started 1999 True Gen 2 devices in Lab and Field Test applications since FEB2007; Commercial availability since OCT2007 (except SAM)

14 Complete, Modular, Ready Today 14 Gen II “NeSSI-Bus” Devices

15 Complete, Modular, Ready Today 15 Gen II Future Developments  Example of CANbus IS Network (courtesy of CiA CANbus IS Work Group) Future development and certification Current development

16 Complete, Modular, Ready Today 16 End User Value Gain from Gen I to Gen II using ANSI/ISA-76 Devices Lower device wiring cost –40% less Real estate benefits –Multiple outputs from single devices Resource optimization –Does more with less hardware Remote troubleshooting and diagnostics Sample system uptime increased –Preventive vs. reactive maintenance operations

17 Complete, Modular, Ready Today 17 Initial Physical System Proposals 2000 CPAC RFP - Six Common Designs Responses –Substrate Designs by Autoflow, Parker, Swagelok (Rosemount) –Surface Mount Components by CIRCOR and Tescom –Constructive Criticism by ABB and Siemens Applied Automation Inc.

18 Complete, Modular, Ready Today 18 Life Cycle Considerations (LCC) 1998 John Sablatura ExxonMobil –Key Performance Indicators (KPI) 2000 Jeff Gunnell / Peter van Vuuren –Today’s Cost of Build –Today’s Cost of Ownership –Hidden LCC Costs in Process Analyzer Systems

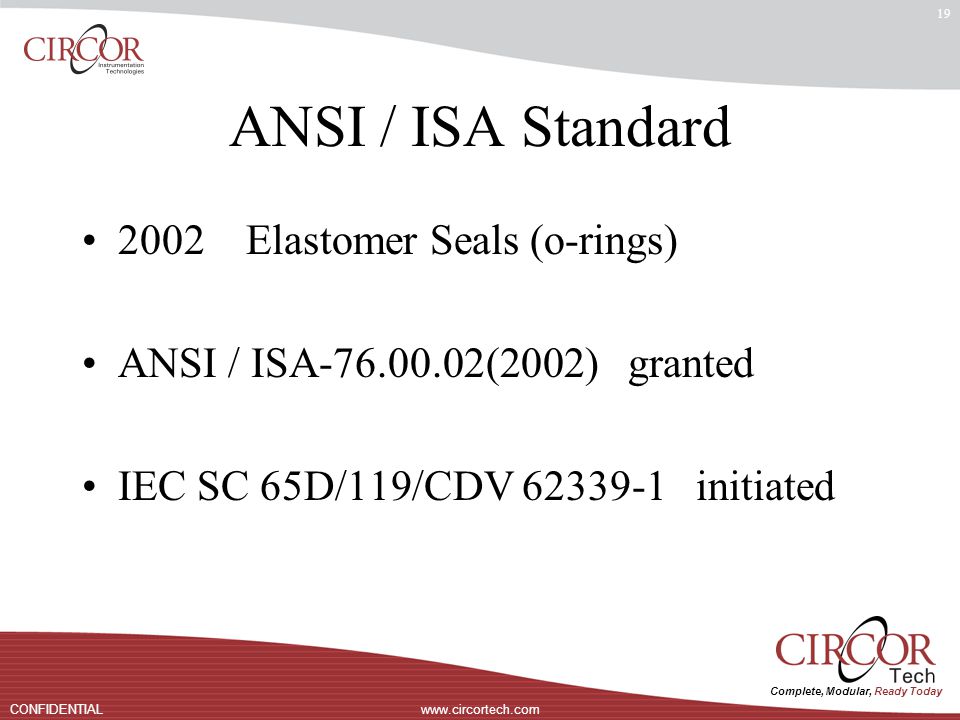

19 Complete, Modular, Ready Today 19 ANSI / ISA Standard 2002 Elastomer Seals (o-rings) ANSI / ISA (2002) granted IEC SC 65D/119/CDV initiated

20 Complete, Modular, Ready Today 20 ISA 48 th Annual AD Meeting 2003 Responses to Dow RFQ In-depth Review by Bac Vu (Dow) Four System Responses –CIRCOR Tech –Fujikin –Parker –Swagelok

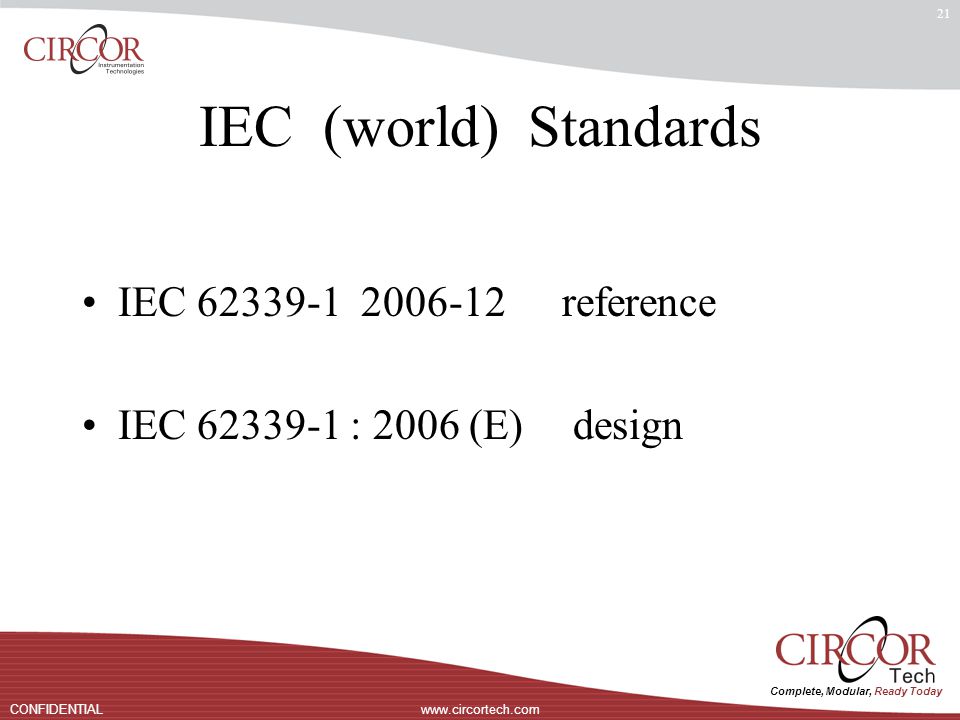

21 Complete, Modular, Ready Today 21 IEC (world) Standards IEC reference IEC : 2006 (E) design

22 Complete, Modular, Ready Today 22 Q1 and Q Developments Smart Sampling Connectivity Bus Closed bus –Siemens i 2 C Open bus –CIRCOR iCAN –IS CAN bus Product –ISO CANOpen Basis

23 Complete, Modular, Ready Today 23 ISA EXPO2007 Smart Sampling / Bus Components –Digital Multivariable Transmitter (P, T, Q) –Digital Flow Transmitter –Digital Pressure Transmitter –Digital Temperature Transmitter –Digital Combi (pilot) Valve All i 2 C Siemens & iCAN CIRCOR Tech compatible

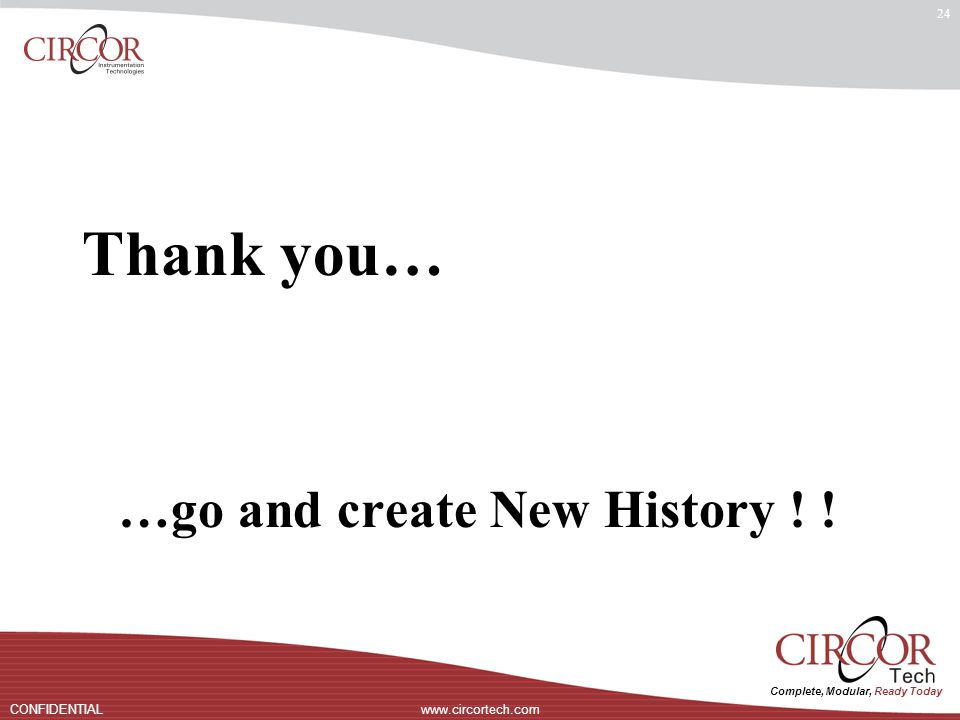

24 Complete, Modular, Ready Today 24 Thank you… …go and create New History ! !
