1 VARIODYN D1 Webinar – Product training Michael Köhler International Business Development

2 Honeywell Proprietary Honeywell.com  2 Document control number Your Contact: Michael Köhler Business Development International VA/PA Novar GmbH a Honeywell Company Dieselstr Neuss, Germany Mobile:

3 Honeywell Proprietary Honeywell.com  3 Document control number Welcome! CoModerator today: The Presentation will be available as download later Axel Hillmann (Lead Sales Support Administration)

4 Honeywell Proprietary Honeywell.com  4 Document control number Please ask your question in the chat window: Your questions will be not forwarded to others

5 Honeywell Proprietary Honeywell.com  5 Document control number Please answer the question

6 VARIODYN D1 Webinar – Product training Michael Köhler International Business Development

7 Honeywell Proprietary Honeywell.com  7 Document control number Components

8 Honeywell Proprietary Honeywell.com  8 Document control number VARIODYN D1 - Components Digital Output Module with 8 loudspeaker linesDOM4-8 Digital Output Module with 24 loudspeaker lines DOM4-24 Digital Call station DCS15 Universal Interface Module UIM System Communication Unit SCU Digital Power Amplifier 2x250W (Class D)2XD250 2x400W (Class D)2XD400 Analog Power 2x200W to 2x500W

9 Honeywell Proprietary Honeywell.com  9 Document control number DOM

10 Honeywell Proprietary Honeywell.com  10 Document control number DOM4-8 DOM4-24 For connection to max. 4 amplifier channels, 2 lines each For connection to max. 4 amplifier channels, 6 lines each Digital Output Module

11 Honeywell Proprietary Honeywell.com  11 Document control number Digital Output Module DAL-Bus

12 Honeywell Proprietary Honeywell.com  12 Document control number Digital Output Module DOM 4-24 PA 1PA 2 DAL-Bus

13 Honeywell Proprietary Honeywell.com  13 Document control number Digital Output Module DOM 4-8 PA 1PA 2 DAL-Bus

14 Honeywell Proprietary Honeywell.com  14 Document control number DAL-Bus Digital Output Module DOM 4-24 PA 1 PA 2 Backup amplifier

15 Honeywell Proprietary Honeywell.com  15 Document control number Modular concept Rack 1 Rack 3 Rack 2

16 Honeywell Proprietary Honeywell.com  16 Document control number Backup Organization (DOM 4-8) one DOM one Backup Amp = Backup for 2 other‘s DOMs

17 Honeywell Proprietary Honeywell.com  17 Document control number Backup Org. (DOM 4-24) – Dynamic! one DOM one Backup Amp = Backup for 6 other‘s DOM

18 Honeywell Proprietary Honeywell.com  18 Document control number Backup Organization backup working

19 Honeywell Proprietary Honeywell.com  19 Document control number Ethernet(*) Back up organization Ethernet Backup RC22 Backup RC V cable (e.g.: 300 m distance (total cable length)  2x 2x4 mm 2 for 250 W amp!) Ethernet Backup RC22 Ethernet Backup RC22 (*) This mean a complex infrastructure, not a single copper cable; or a fiber ~ 300 Meter Backup

20 Honeywell Proprietary Honeywell.com  20 Document control number Call Station

21 Honeywell Proprietary Honeywell.com  21 Document control number Call stations DCS

22 Honeywell Proprietary Honeywell.com  22 Document control number Intercom between call stations OCC Gate A Gate B Gate C

23 Honeywell Proprietary Honeywell.com  23 Document control number  For one DCSF 12 or DCSF 1 ( ) or  For two DCSF 12 or DCSF 1  Or one DCSF and one DKM18 ( ) New Call Station Housing /62

24 Honeywell Proprietary Honeywell.com  24 Document control number Simple call station DIGIM1 and DIGIM4

25 Honeywell Proprietary Honeywell.com  25 Document control number Simple call station DIGIM1 and DIGIM Max 40

26 Honeywell Proprietary Honeywell.com  26 Document control number Simple call station DIGIM1 and DIGIM4 - 1 or 4 button call station - max. 4 different zone’s each UIM Input - up to 40 call stations in total each UIM Input - One call in the same time / UIM input - No call stacker function - Daisy chain or star cabling possible

27 Honeywell Proprietary Honeywell.com  27 Document control number AMP’s

28 Honeywell Proprietary Honeywell.com  28 Document control number Digital Power Amplifier: 2x250W (Class D)2XD250 2x400W (Class D)2XD400 Power Amplifier

29 Honeywell Proprietary Honeywell.com  29 Document control number 2XD250 and 2XD400 More stable design (low thermal factors) Higher reliability (no or low ventilation) Less maintains (less dust inside) Low BTU (heating) Low power consumption > For the amp it self and for rack cooling! Honeywell developed

30 Honeywell Proprietary Honeywell.com  30 Document control number Network and other Features

31 Honeywell Proprietary Honeywell.com  31 Document control number Ethernet Ethernet is THE world wide standard for Network Components can be installed anywhere Using Ethernet vs. proprietary cabling(*) means reducing : – design cost – cabling cost – training efforts – using existing cables – lower the cable length of loudspeaker lines (*) Including also CobraNet, which is a small Standard

32 Honeywell Proprietary Honeywell.com  32 Document control number Ethernet the number of announcements is limited by the available bandwidth (0,5 MBit per announcement) In a 100Mbit Network < 100 channels the network is permanently monitored Up to 250 DOMs in one network

33 Honeywell Proprietary Honeywell.com  33 Document control number UIM, audio inputs Analogue audio inputs - via UIM (2x Line) - via DCS15 (1x Line) Configuration LAN TCP-IP CD-Player Analogue audio outputs - via UIM (2x) - via DCS15 (1x) Audio in- and outputs

34 Honeywell Proprietary Honeywell.com  34 Document control number Digital I/O Contacts Control contacts UIM - 48 contacts LAN TCP-IP BMZ oder z.B. VARIODYN 3000 System Control outputs DOM - 8 configurable outputs - Usable as In- or Outputs 8x Control contacts CIM - 8 contacts - Usable as In- or Outputs UIM/CIM DOM

35 Honeywell Proprietary Honeywell.com  35 Document control number - 16 memory places - overall 260 sec. per DOM Audio memory SCU - More than 60 channels simultaneously playable - Storage capacity of approx. 120 min for alarm messages memory spaces - Storage capacity of approx hours for less critical messages like commercial messages Audio memory LAN TCP-IP Audio memory DOM Audio Memory

36 Honeywell Proprietary Honeywell.com  36 Document control number DAL, audio signal processing Audio signal processing CD-Player Per audio stream on DAL-Bus - Volume - Configurable limiter for microphones (DCS, DCSF) Configuration LAN TCP-IP Audio Signal Processing

37 Honeywell Proprietary Honeywell.com  37 Document control number PA, audio signal processing CD-Player Per power amplifier channel - Volume - High-pass 2 nd, 4 th, 6 th order (Frequency response: -20Hz-20kHz) - Low-pass 2 th, 4 th, 6 th order (Frequency response: -20Hz-20kHz) - Delay (0-2000msec) - Parametric Equalizer, 8 Bands Configuration LAN TCP-IP Audio Signal Processing

38 Honeywell Proprietary Honeywell.com  38 Document control number Volume control, AVC CD-Player Audio memory - via buttons, contacts - time-controlled, e.g. lower volume at tram stations during nighttime - Control commands via PC - Automatic (AVC) by using sensor microphones also background music Configuration LAN TCP-IP Volume Control

39 Honeywell Proprietary Honeywell.com  39 Document control number BMZ oder z.B. VARIODYN 3000 System - Serial to Notifier - Serial to Esser Fire Panels - Serial to BacNet via Multiprotokoll Gateway - Via LAN to any other System (VARIODYN PA-Protokoll) LAN TCP-IP ? Interfaces

40 Honeywell Proprietary Honeywell.com  40 Document control number VARIODYN D1 - Redundant Power Supply

41 Honeywell Proprietary Honeywell.com  41 Document control number Just two U heigh VARIODYN D1 Design Up to 210A(!) power on 24 Volt 3 single protected 24V outputs for 3 DOM‘s 6 single protected 24V outputs for 6 amp‘s EN54-4 certified VARIODYN D1 - UPS

42 Honeywell Proprietary Honeywell.com  42 Document control number Configuration

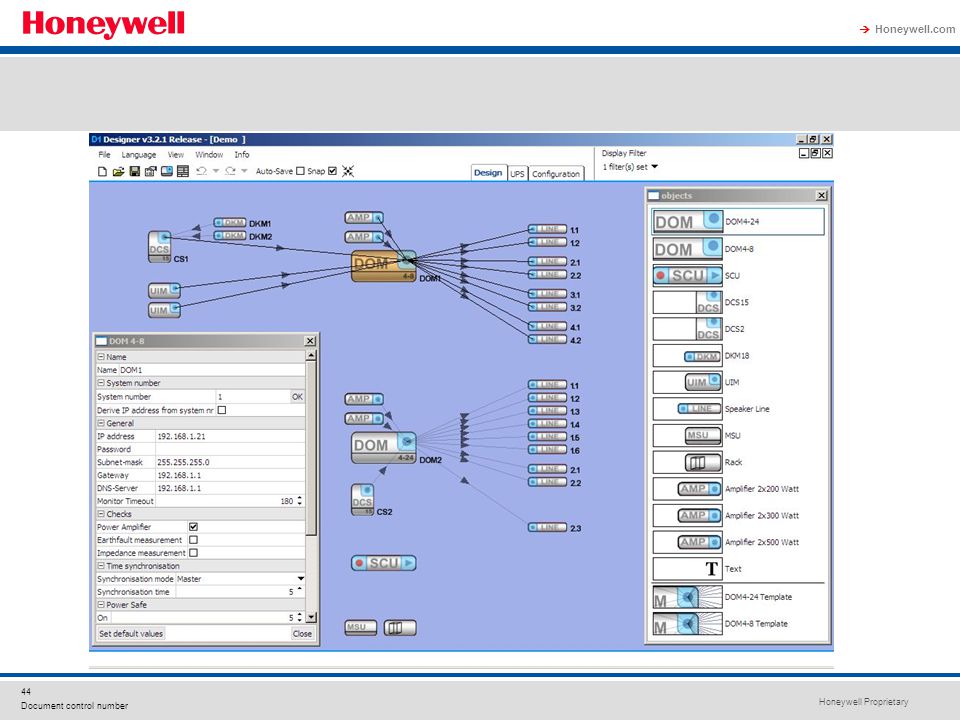

43 Honeywell Proprietary Honeywell.com  43 Document control number Graphical programming platform Easy, intuitive handling Programming of In- and Outputs Time triggers Contact closures etc D1 Designer

44 Honeywell Proprietary Honeywell.com  44 Document control number

45 Honeywell Proprietary Honeywell.com  45 Document control number VARIODYN D1 PIDS Alarm System Alarm System Communi- cation System Communi- cation System 3rd party PA Systems 3rd party PA Systems ETH Configuration ETH DAL ETH DAL ETH DAL CD Player DAL Graphical User Interface PAMMI DCS15 ETH DAL other Systems other Systems ETH DCS15 Digital audio storage LAN TCP-Transport LAN TCP-Transport

46 Honeywell Proprietary Honeywell.com  46 Document control number Cable

47 Honeywell Proprietary Honeywell.com  47 Document control number Easy and fast!

48 Honeywell Proprietary Honeywell.com  48 Document control number DOM AMP Backup AMP UIM amplifier cable amplifier output cable RC 22 backup cable DOM AMP Meter CAT 5 network cable (or /88 = 2/3 Meter) Meter CAT 5 DAL Bus cable (or /83 = 2/3 Meter) D1 Cabling

49 Honeywell Proprietary Honeywell.com  49 Document control number Cabling for the DOM

50 Honeywell Proprietary Honeywell.com  50 Document control number Summary

51 Honeywell Proprietary Honeywell.com  51 Document control number VARIODYN D1 - Key Features Minimum number of components Easy to design Fully monitored in real time Interface to fire panels Network based and scalable High quality audio GUI including DVA

52 Honeywell Proprietary Honeywell.com  52 Document control number VARIODYN D1 - Key Features More than 50 simultaneous channels Intercom (full duplex) between call stations Time triggered internal events Quick cabling and installing EN compliant EN certified

53 Honeywell Proprietary Honeywell.com  53 Document control number Check Out! Our Webinar’s about acoustics basics I + II and PAMMI and others Frequency (logarithmic scale) Level 20Hz200Hz2kHz20kHz 160Hz10kHz

54 Honeywell Proprietary Honeywell.com  54 Document control number Please answer the question

55 Thank you for your attention
