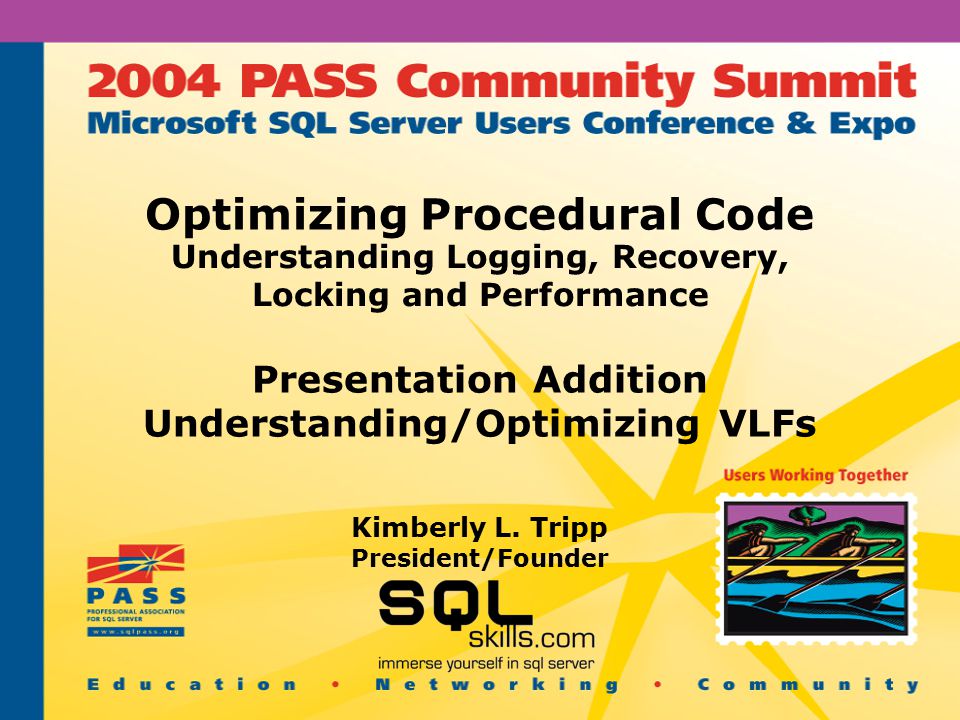

1. Optimizing Procedural Code Understanding Logging, Recovery, Locking and Performance Presentation Addition Understanding/Optimizing VLFs Kimberly L. Tripp President/Founder

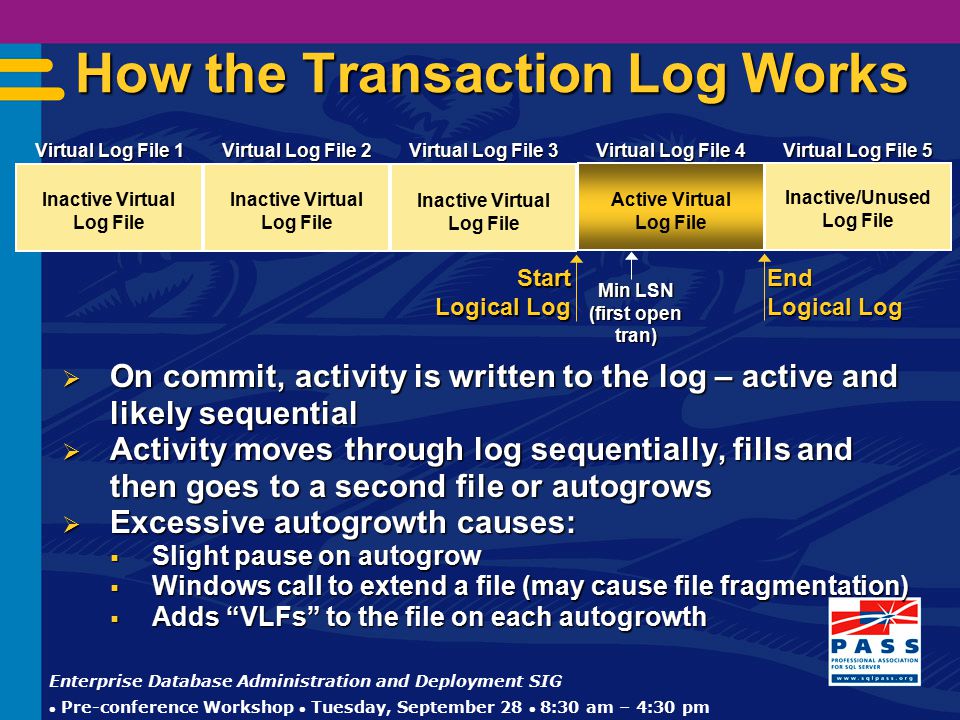

2. Enterprise Database Administration and Deployment SIG  Pre-conference Workshop  Tuesday, September 28  8:30 am – 4:30 pm How the Transaction Log Works  On commit, activity is written to the log – active and likely sequential  Activity moves through log sequentially, fills and then goes to a second file or autogrows  Excessive autogrowth causes:  Slight pause on autogrow  Windows call to extend a file (may cause file fragmentation)  Adds “VLFs” to the file on each autogrowth Virtual Log File 4 Virtual Log File 5 Virtual Log File 1 Virtual Log File 2 Inactive Virtual Log File Min LSN (first open tran) Active Virtual Log File Inactive/Unused Log File Start Logical Log End Virtual Log File 3 Inactive Virtual Log File

3. Enterprise Database Administration and Deployment SIG  Pre-conference Workshop  Tuesday, September 28  8:30 am – 4:30 pm Transaction Log Optimization  Pre-allocate the log to the appropriate size  Minimize autogrowths  Log might NOT show 0 Percent Log Used after backup for example - the % Log Used will be ~6%  Disk Bound Systems might experience some performance degradation at log backup  Consider RAID 1+0 instead of RAID 1, RAID 5 generally is not recommended  Optimize existing file – minimize VLFs

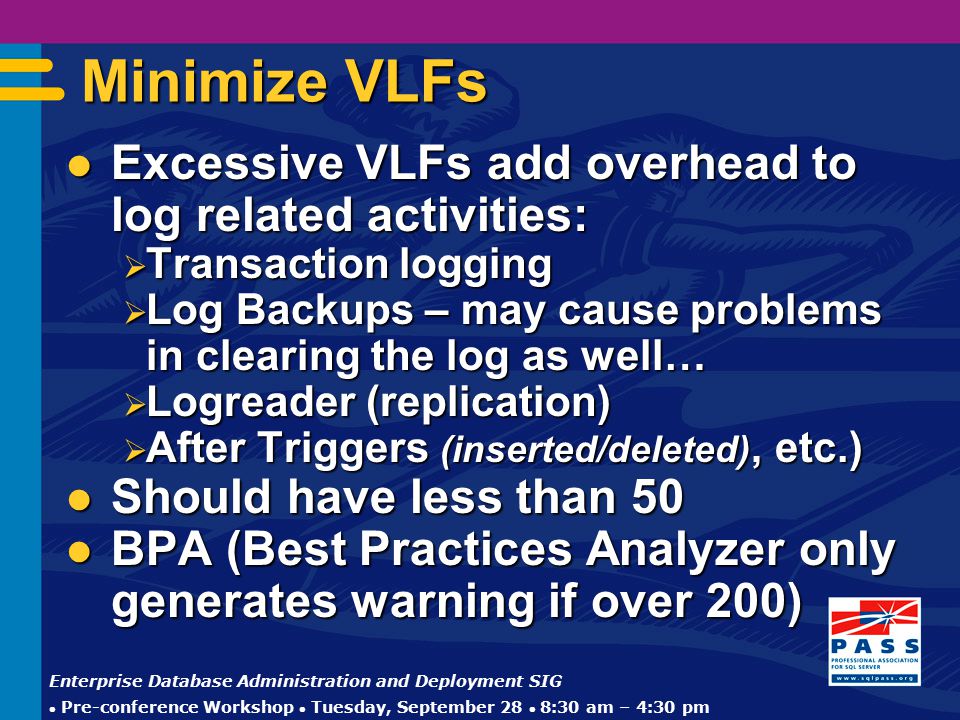

4. Enterprise Database Administration and Deployment SIG  Pre-conference Workshop  Tuesday, September 28  8:30 am – 4:30 pm Minimize VLFs Excessive VLFs add overhead to log related activities: Excessive VLFs add overhead to log related activities:  Transaction logging  Log Backups – may cause problems in clearing the log as well…  Logreader (replication)  After Triggers (inserted/deleted), etc.) Should have less than 50 Should have less than 50 BPA (Best Practices Analyzer only generates warning if over 200) BPA (Best Practices Analyzer only generates warning if over 200)

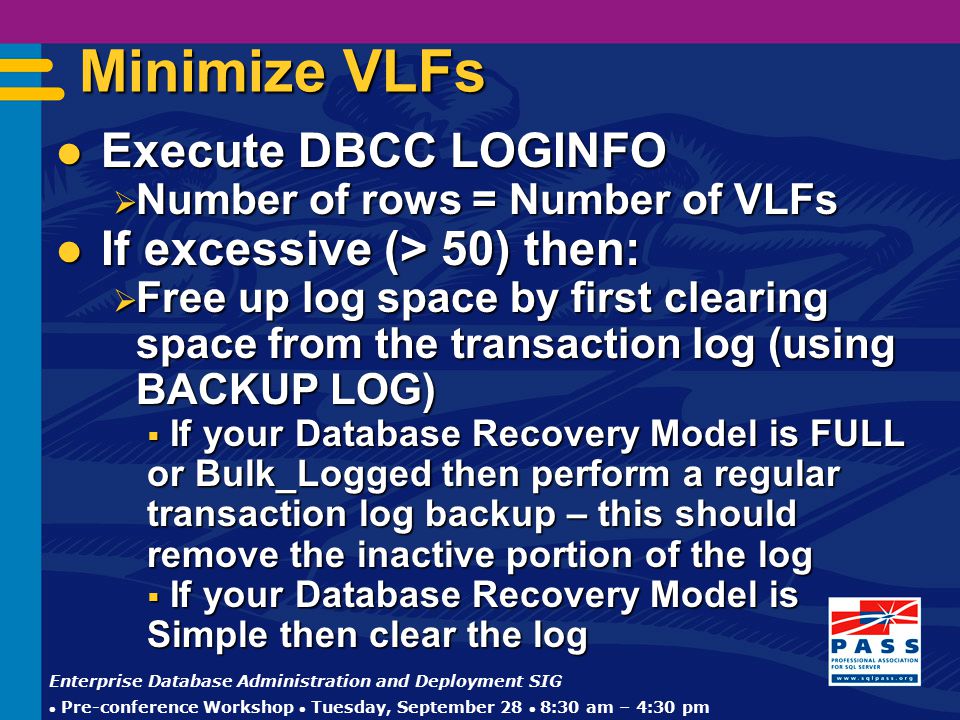

5. Enterprise Database Administration and Deployment SIG  Pre-conference Workshop  Tuesday, September 28  8:30 am – 4:30 pm Minimize VLFs Execute DBCC LOGINFO Execute DBCC LOGINFO  Number of rows = Number of VLFs If excessive (> 50) then: If excessive (> 50) then:  Free up log space by first clearing space from the transaction log (using BACKUP LOG)  If your Database Recovery Model is FULL or Bulk_Logged then perform a regular transaction log backup – this should remove the inactive portion of the log  If your Database Recovery Model is Simple then clear the log

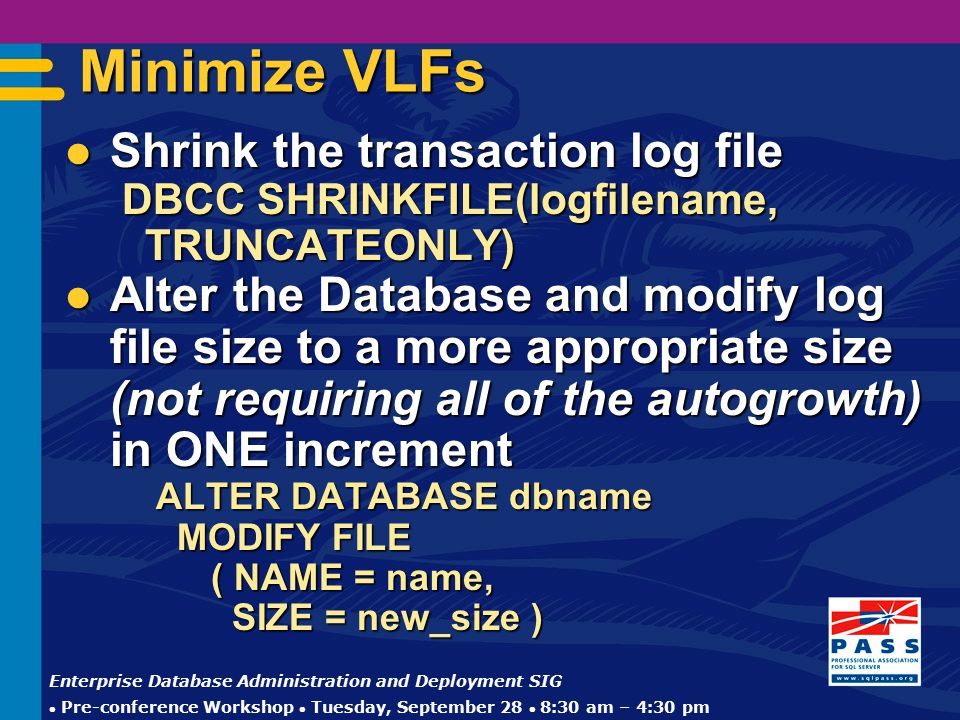

6. Enterprise Database Administration and Deployment SIG  Pre-conference Workshop  Tuesday, September 28  8:30 am – 4:30 pm Minimize VLFs Shrink the transaction log file Shrink the transaction log file DBCC SHRINKFILE(logfilename, TRUNCATEONLY) Alter the Database and modify log file size to a more appropriate size (not requiring all of the autogrowth) in ONE increment Alter the Database and modify log file size to a more appropriate size (not requiring all of the autogrowth) in ONE increment ALTER DATABASE dbname MODIFY FILE ( NAME = name, SIZE = new_size ) MODIFY FILE ( NAME = name, SIZE = new_size )
