1 The leading pioneer in GPS technology Copyright © 2007 NavCom Technology, Inc.Confidential A New Anti-Jamming Method for GNSS Receivers Jerry Knight, Charles Cahn and Sidharth Nair

2 Confidential - Copyright © 2007 NavCom Technology, Inc. 2Goals  Provide protection from jamming of types commonly seen by commercial GNSS receivers such as specified in the DO-229 requirements for airborne equipment -Out of band signals -In band CW-interference -Pulse broadcast  Low cost, small size

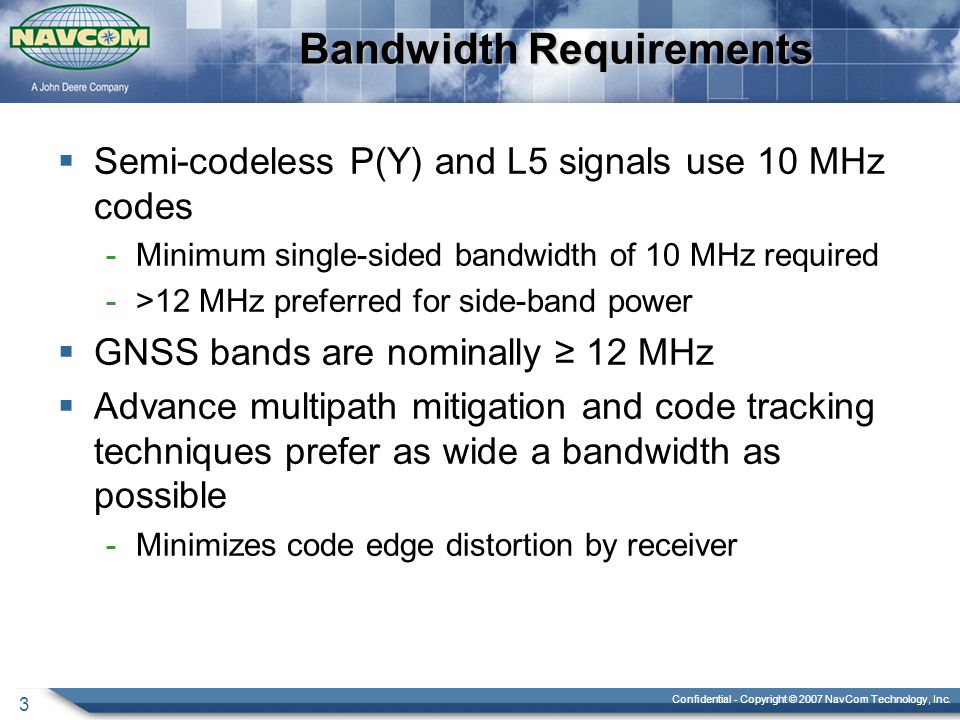

3 Confidential - Copyright © 2007 NavCom Technology, Inc. 3 Bandwidth Requirements  Semi-codeless P(Y) and L5 signals use 10 MHz codes -Minimum single-sided bandwidth of 10 MHz required ->12 MHz preferred for side-band power  GNSS bands are nominally ≥ 12 MHz  Advance multipath mitigation and code tracking techniques prefer as wide a bandwidth as possible -Minimizes code edge distortion by receiver

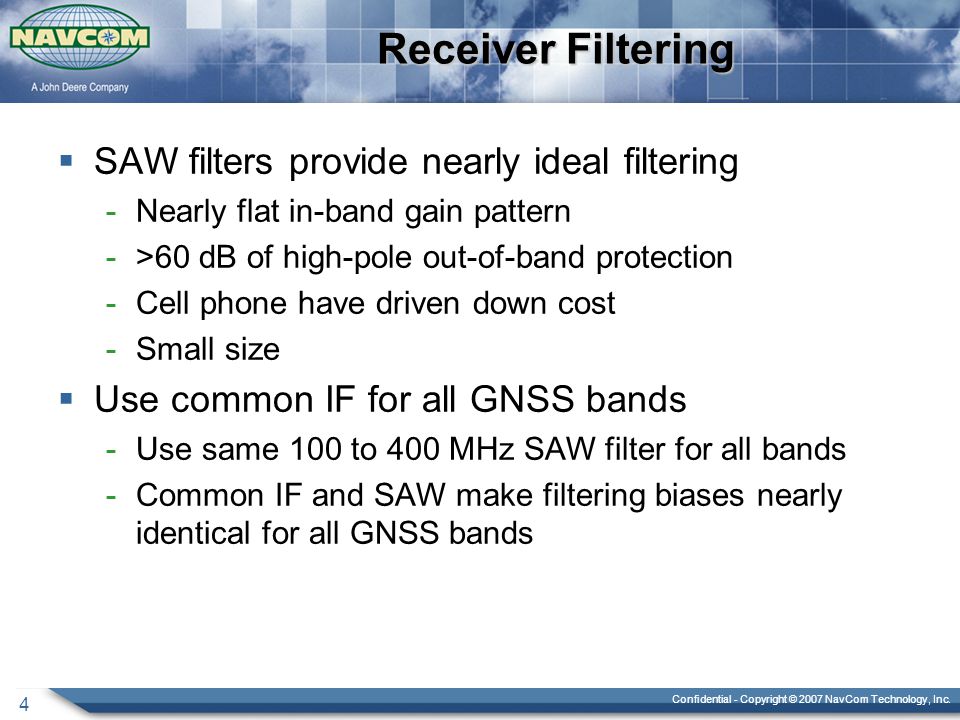

4 Confidential - Copyright © 2007 NavCom Technology, Inc. 4 Receiver Filtering  SAW filters provide nearly ideal filtering -Nearly flat in-band gain pattern ->60 dB of high-pole out-of-band protection -Cell phone have driven down cost -Small size  Use common IF for all GNSS bands -Use same 100 to 400 MHz SAW filter for all bands -Common IF and SAW make filtering biases nearly identical for all GNSS bands

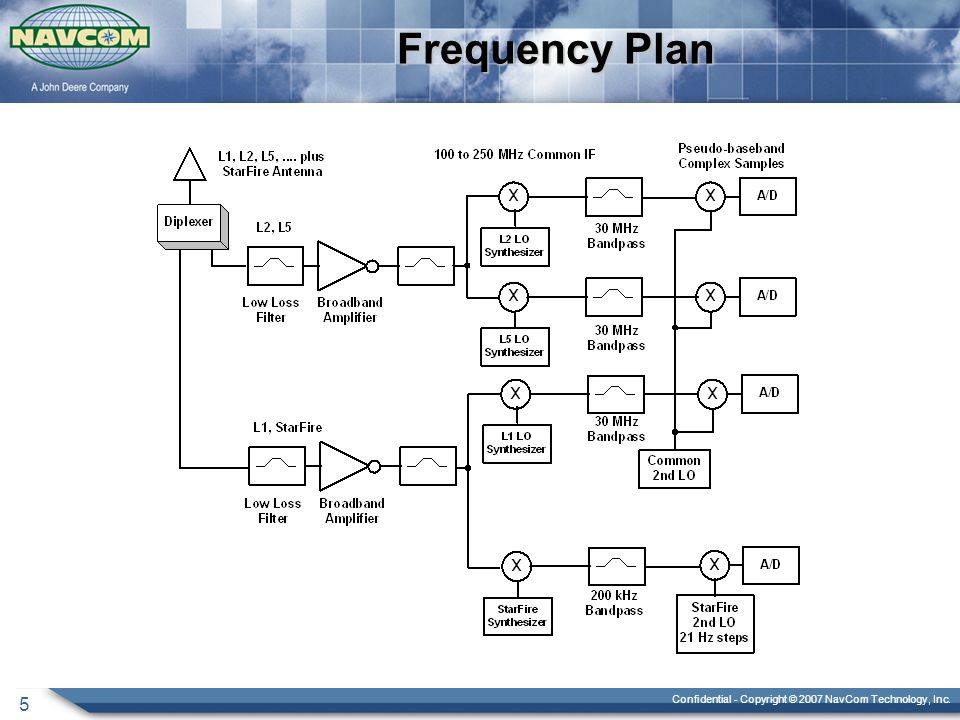

5 Confidential - Copyright © 2007 NavCom Technology, Inc. 5 Frequency Plan

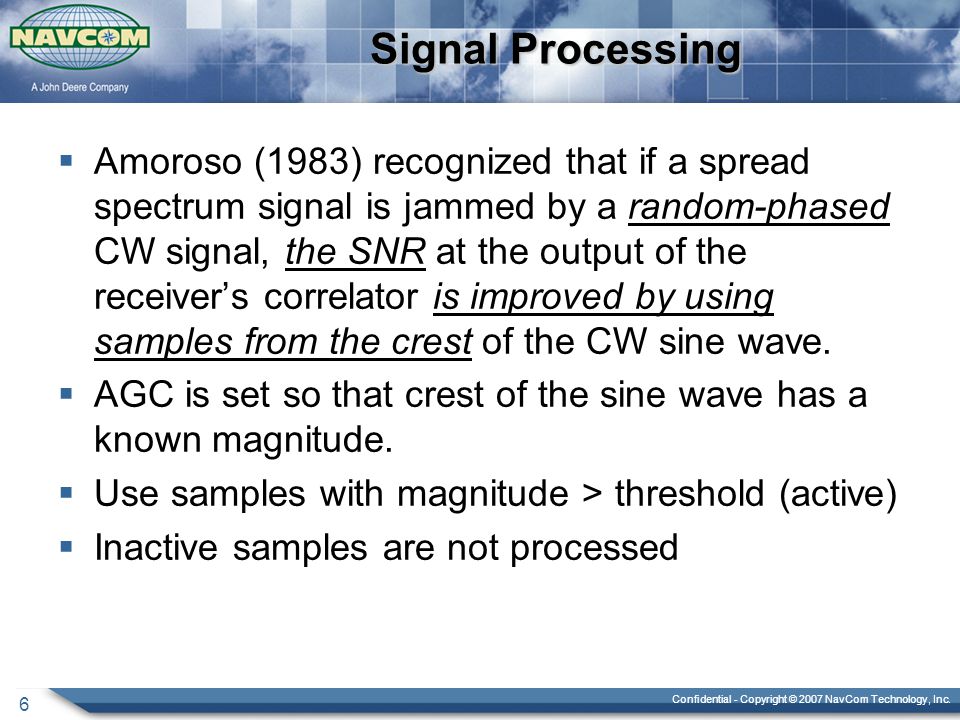

6 Confidential - Copyright © 2007 NavCom Technology, Inc. 6 Signal Processing  Amoroso (1983) recognized that if a spread spectrum signal is jammed by a random-phased CW signal, the SNR at the output of the receiver’s correlator is improved by using samples from the crest of the CW sine wave.  AGC is set so that crest of the sine wave has a known magnitude.  Use samples with magnitude > threshold (active)  Inactive samples are not processed

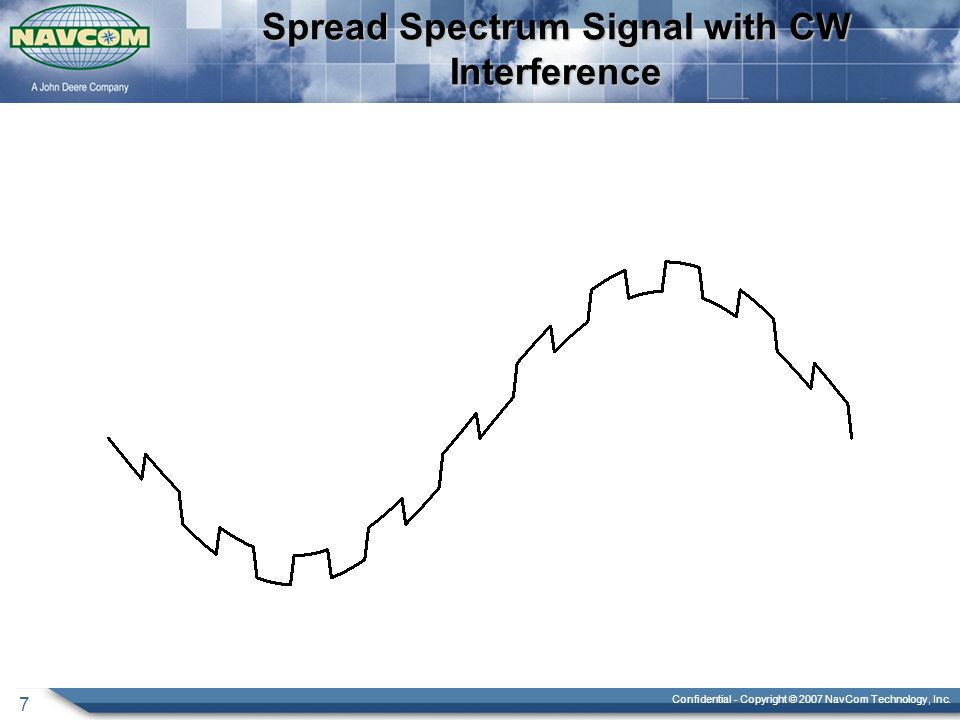

7 Confidential - Copyright © 2007 NavCom Technology, Inc. 7 Spread Spectrum Signal with CW Interference

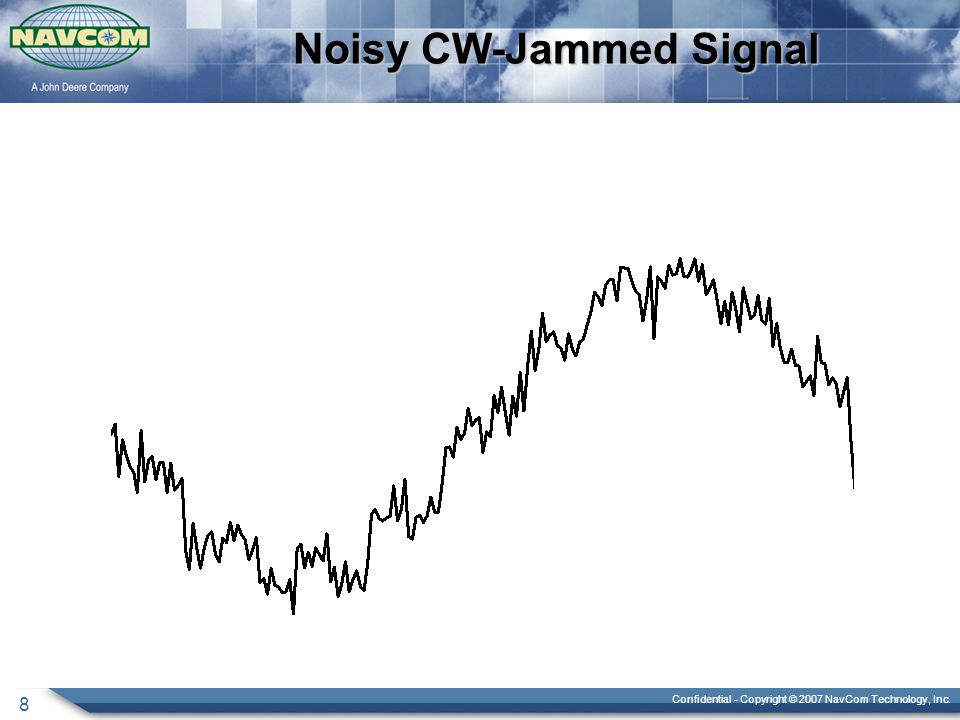

8 Confidential - Copyright © 2007 NavCom Technology, Inc. 8 Noisy CW-Jammed Signal

9 Confidential - Copyright © 2007 NavCom Technology, Inc. 9 Amaroso Sampling of Jammed Signal

10 Confidential - Copyright © 2007 NavCom Technology, Inc. 10 Theoretical Degradation from CW Jamming

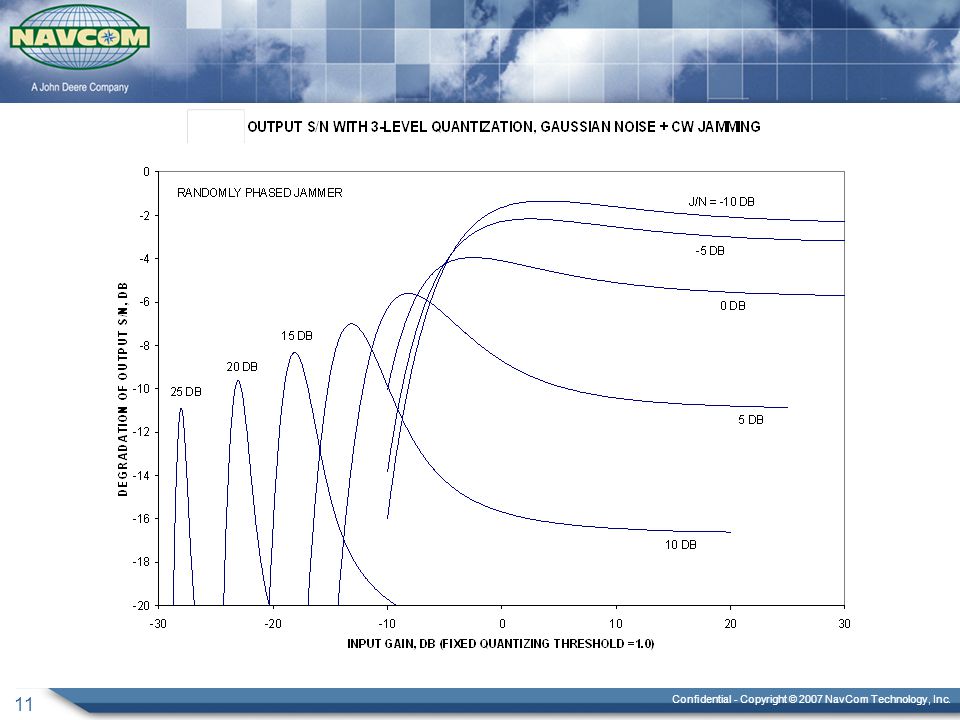

11 Confidential - Copyright © 2007 NavCom Technology, Inc. 11

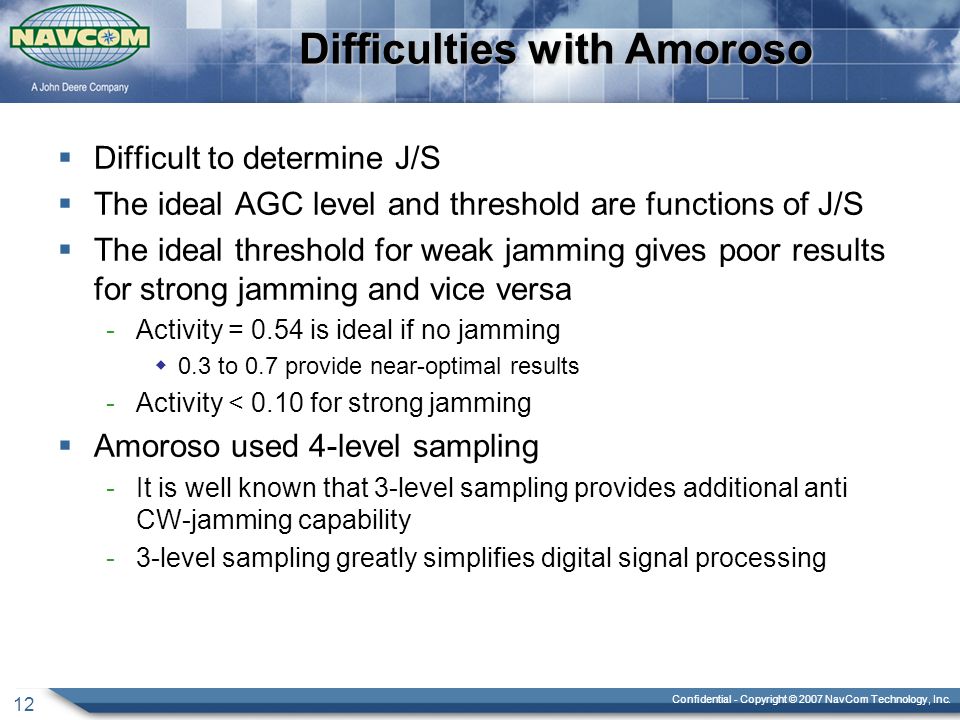

12 Confidential - Copyright © 2007 NavCom Technology, Inc. 12 Difficulties with Amoroso  Difficult to determine J/S  The ideal AGC level and threshold are functions of J/S  The ideal threshold for weak jamming gives poor results for strong jamming and vice versa -Activity = 0.54 is ideal if no jamming  0.3 to 0.7 provide near-optimal results -Activity < 0.10 for strong jamming  Amoroso used 4-level sampling -It is well known that 3-level sampling provides additional anti CW-jamming capability -3-level sampling greatly simplifies digital signal processing

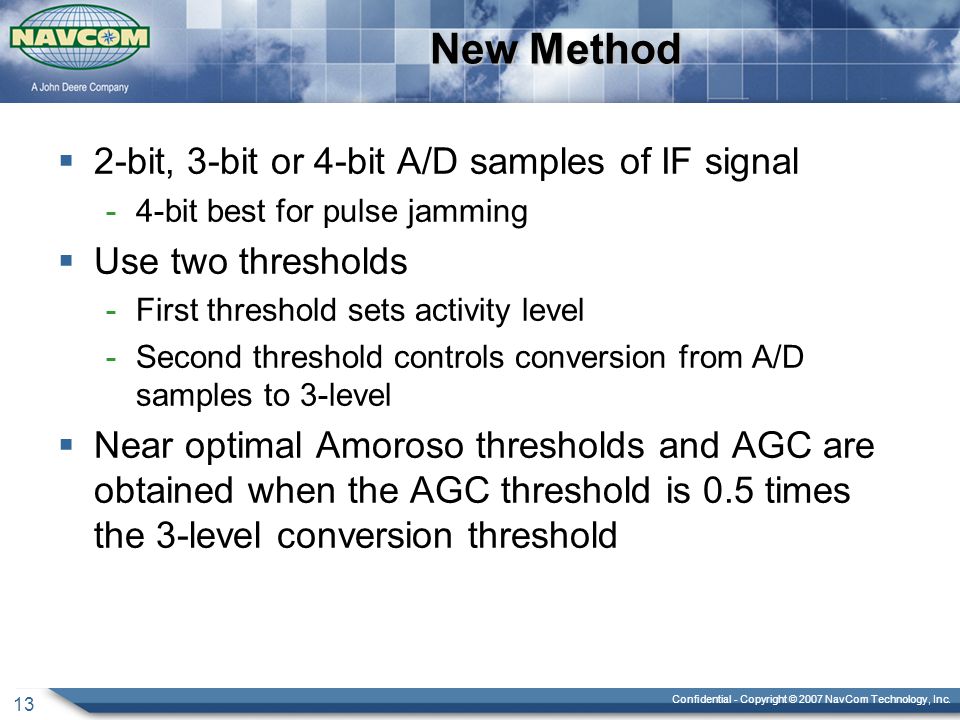

13 Confidential - Copyright © 2007 NavCom Technology, Inc. 13 New Method  2-bit, 3-bit or 4-bit A/D samples of IF signal -4-bit best for pulse jamming  Use two thresholds -First threshold sets activity level -Second threshold controls conversion from A/D samples to 3-level  Near optimal Amoroso thresholds and AGC are obtained when the AGC threshold is 0.5 times the 3-level conversion threshold

14 Confidential - Copyright © 2007 NavCom Technology, Inc. 14 Theory of 3-Level Quantized Correlation p(x) = probability density of jamming + noise  = standard deviation of noise V = magnitude quantizing threshold Denominator = “Activity

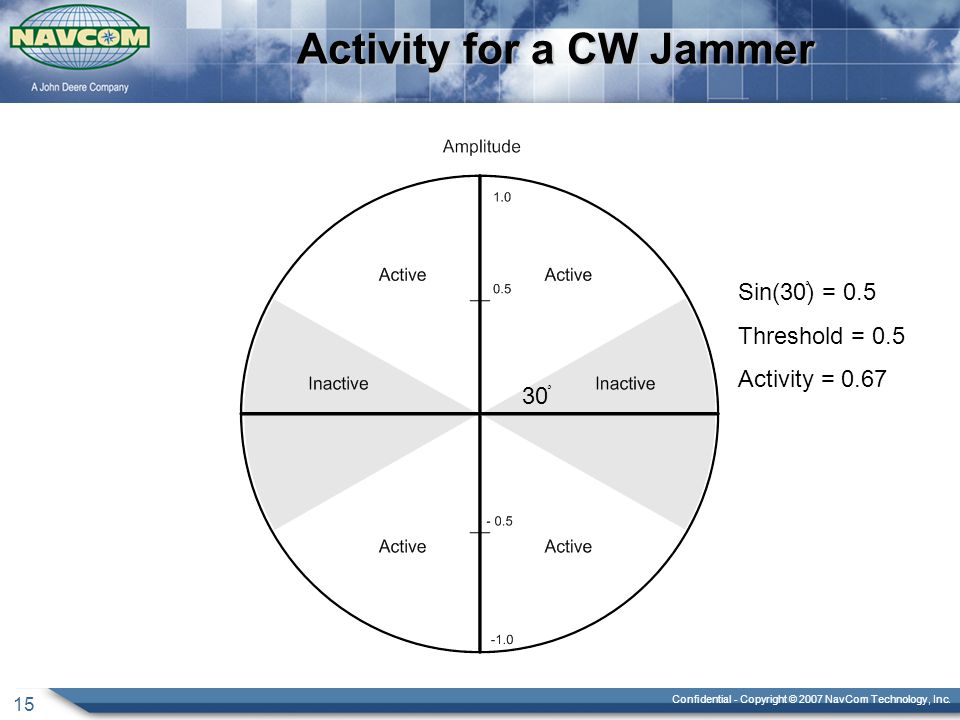

15 Confidential - Copyright © 2007 NavCom Technology, Inc. 15 Activity for a CW Jammer Sin(30ْ) = 0.5 Threshold = 0.5 Activity = ْ

16 Confidential - Copyright © 2007 NavCom Technology, Inc. 16 Population Distribution for AGC

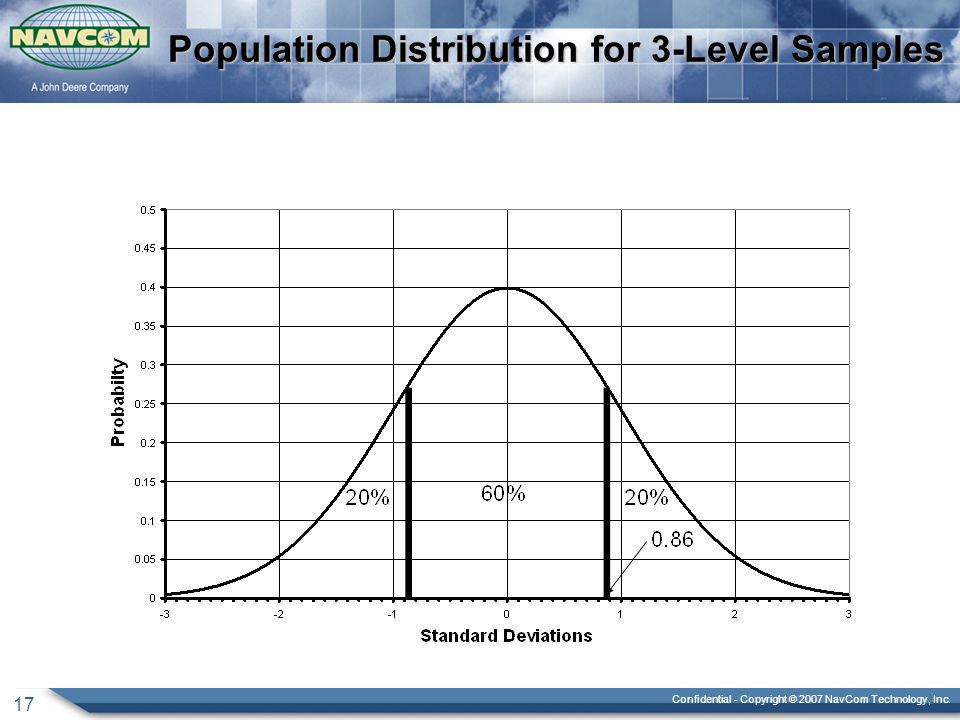

17 Confidential - Copyright © 2007 NavCom Technology, Inc. 17 Population Distribution for 3-Level Samples

18 Confidential - Copyright © 2007 NavCom Technology, Inc. 18 A/D to AGC and 3-Level Sample Conversion A/D (Binary) Sign - MagnitudeAGC3-Level Active Active Active Active Active Active Active Inactive Inactive0 0110Active Active Active Active Active Active Active

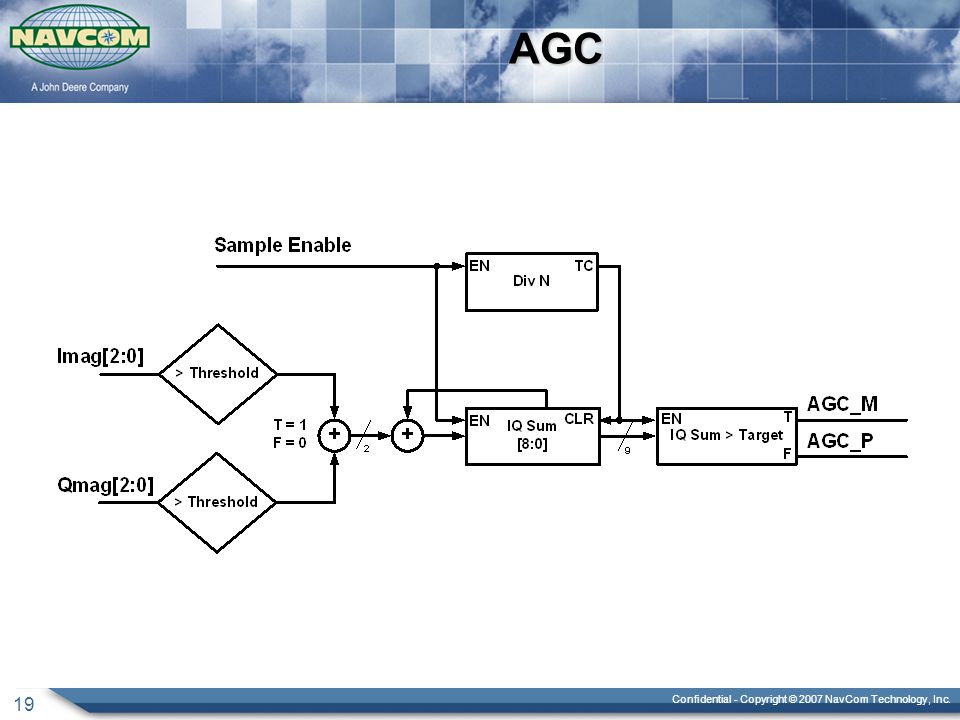

19 Confidential - Copyright © 2007 NavCom Technology, Inc. 19AGC

20 Confidential - Copyright © 2007 NavCom Technology, Inc. 20 Proposed and Optimum CW Jamming Performance

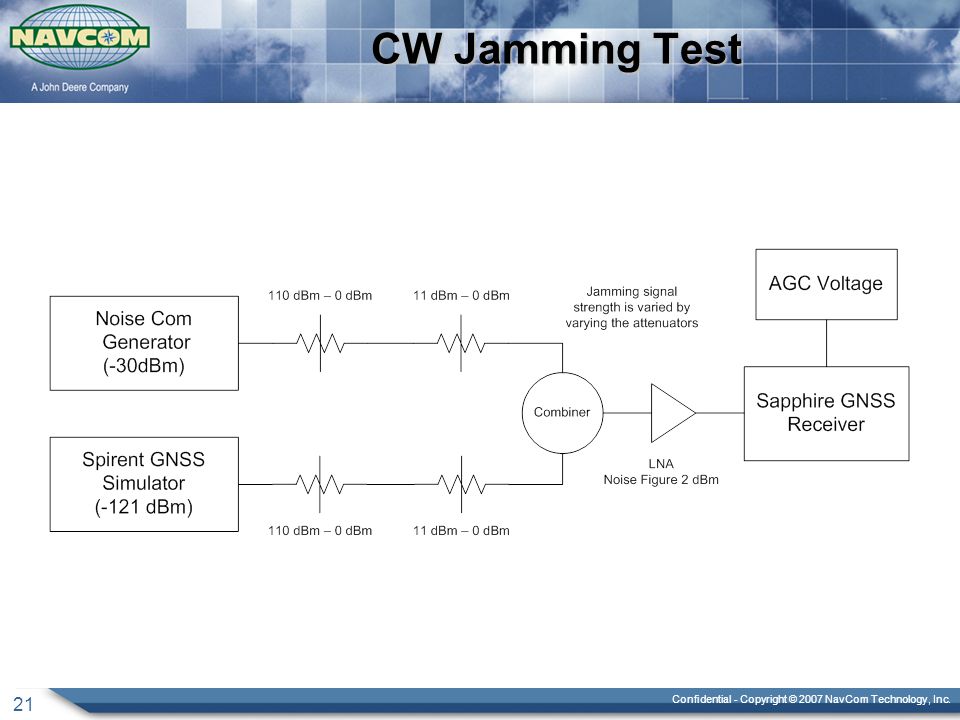

21 Confidential - Copyright © 2007 NavCom Technology, Inc. 21 CW Jamming Test

22 Confidential - Copyright © 2007 NavCom Technology, Inc. 22 C/N0 vs. CW Jamming

23 Confidential - Copyright © 2007 NavCom Technology, Inc. 23 I/Q vs. J/S - Varying GPS Signal Strength

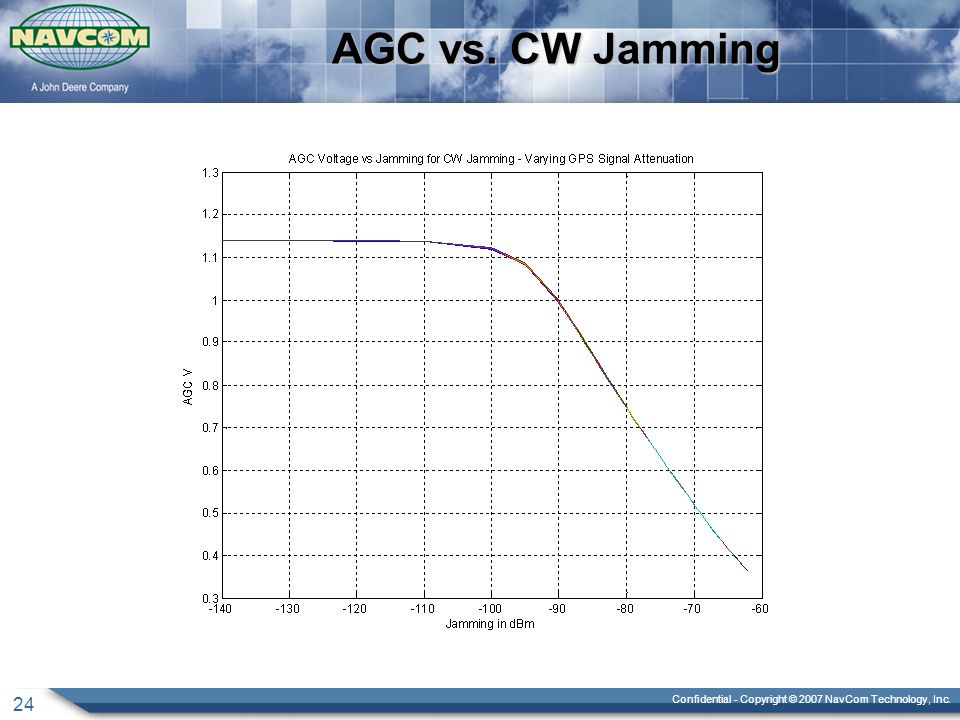

24 Confidential - Copyright © 2007 NavCom Technology, Inc. 24 AGC vs. CW Jamming

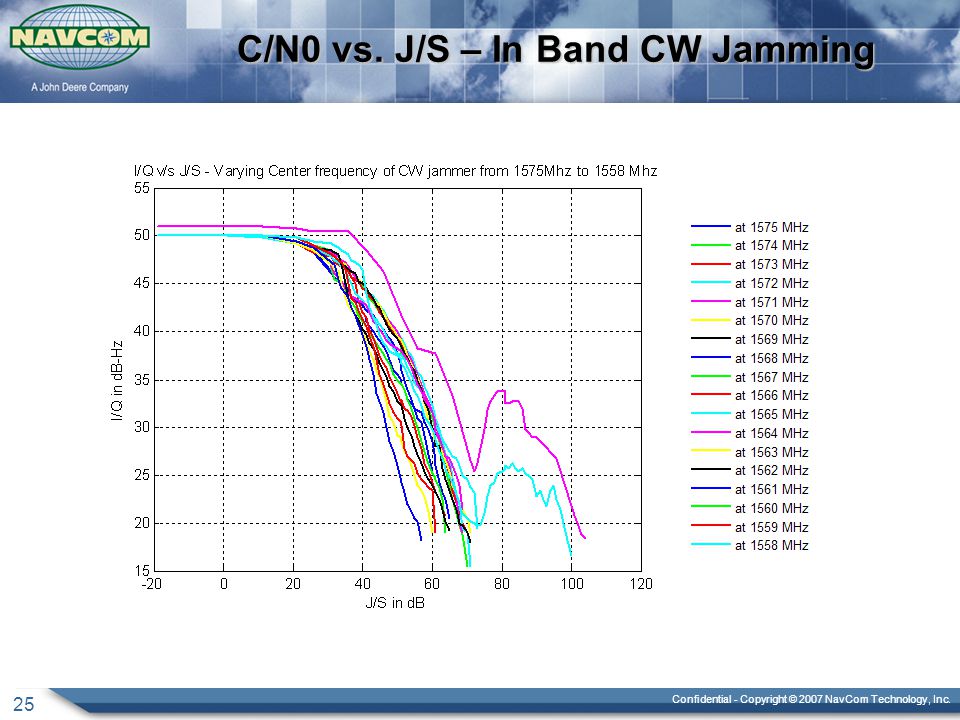

25 Confidential - Copyright © 2007 NavCom Technology, Inc. 25 C/N0 vs. J/S – In Band CW Jamming

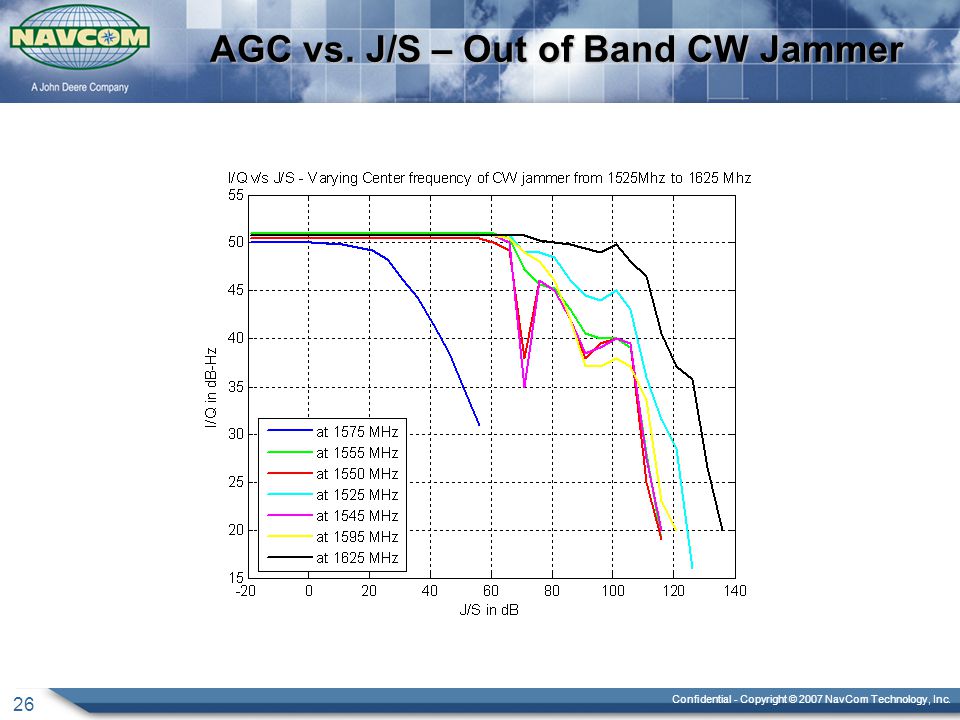

26 Confidential - Copyright © 2007 NavCom Technology, Inc. 26 AGC vs. J/S – Out of Band CW Jammer

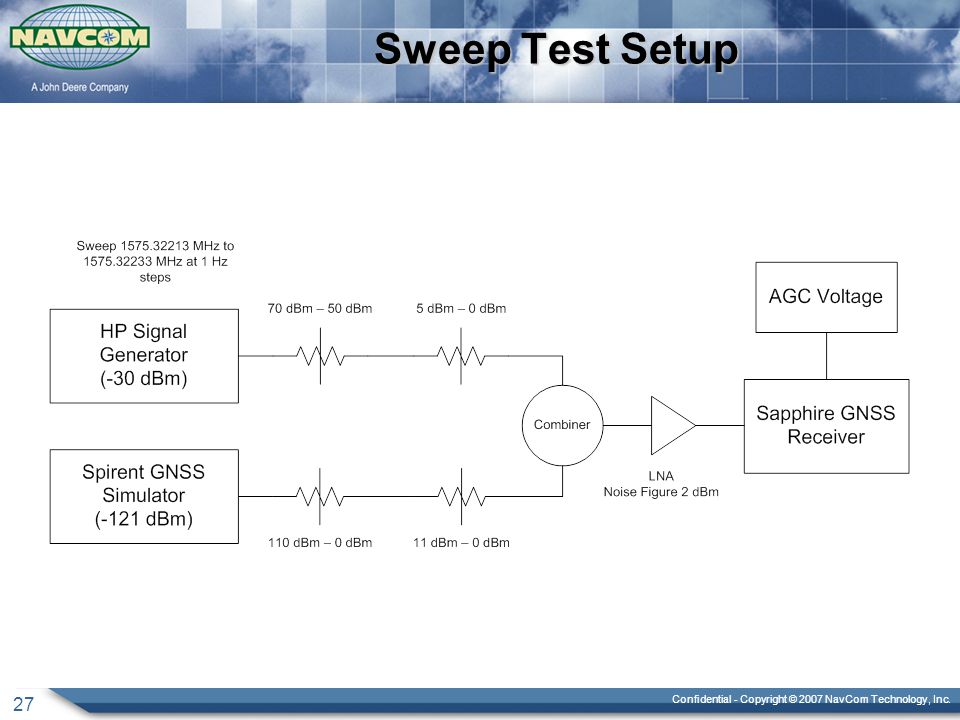

27 Confidential - Copyright © 2007 NavCom Technology, Inc. 27 Sweep Test Setup

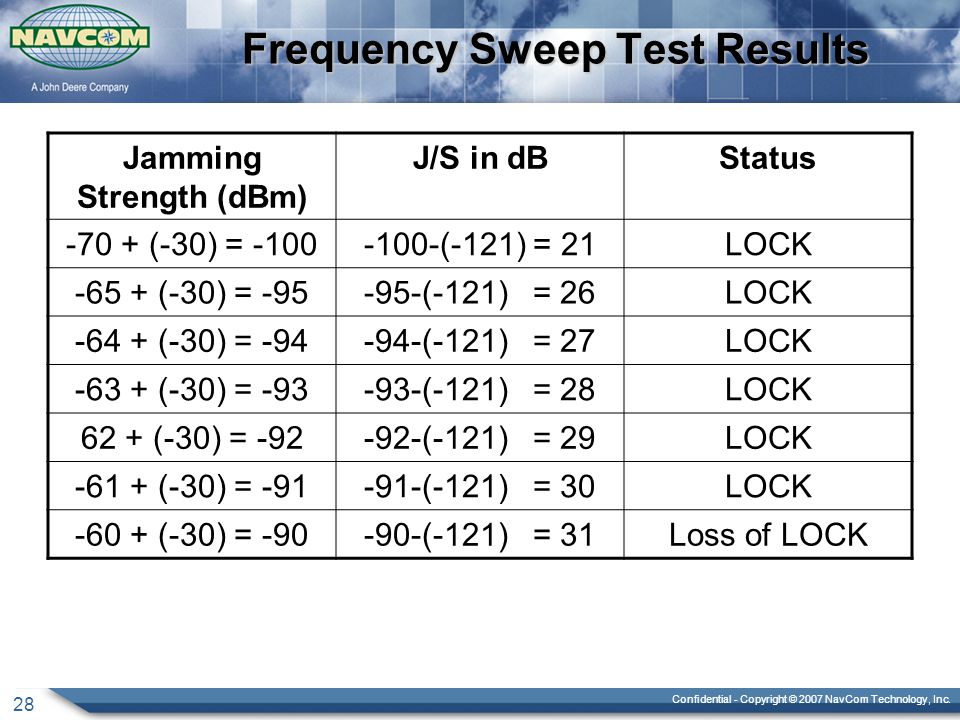

28 Confidential - Copyright © 2007 NavCom Technology, Inc. 28 Frequency Sweep Test Results Jamming Strength (dBm) J/S in dBStatus (-30) = (-121) = 21LOCK (-30) = (-121) = 26LOCK (-30) = (-121) = 27LOCK (-30) = (-121) = 28LOCK 62 + (-30) = (-121) = 29LOCK (-30) = (-121) = 30LOCK (-30) = (-121) = 31Loss of LOCK

29 Confidential - Copyright © 2007 NavCom Technology, Inc. 29 Frequency Sweep J/S 30 dB

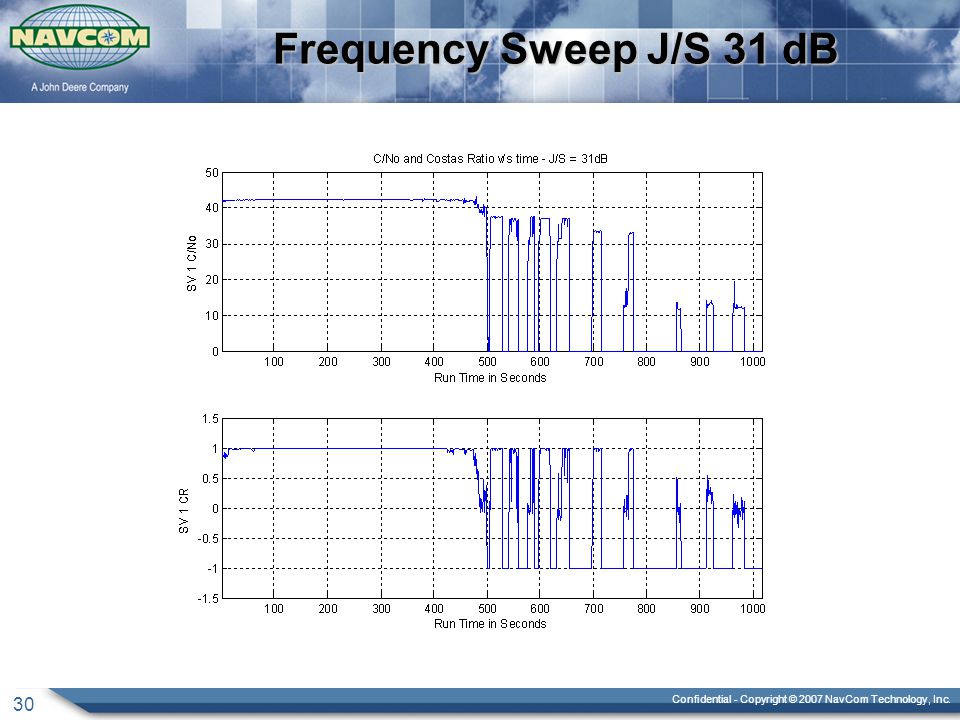

30 Confidential - Copyright © 2007 NavCom Technology, Inc. 30 Frequency Sweep J/S 31 dB

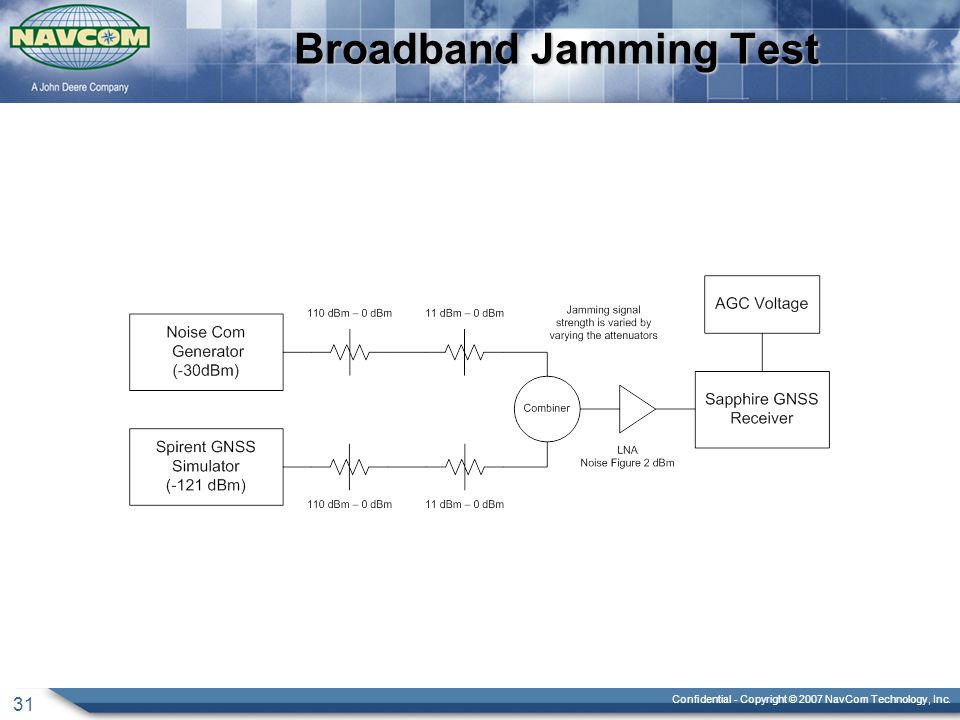

31 Confidential - Copyright © 2007 NavCom Technology, Inc. 31 Broadband Jamming Test

32 Confidential - Copyright © 2007 NavCom Technology, Inc MHz Broadband Jamming

33 Confidential - Copyright © 2007 NavCom Technology, Inc MHz Broadband Jamming

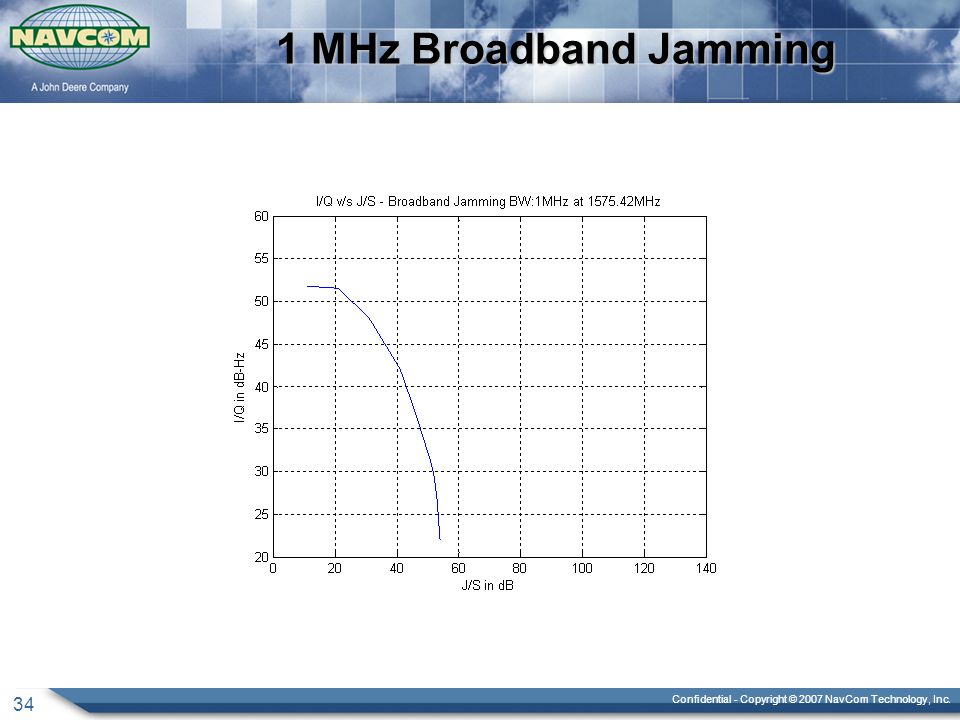

34 Confidential - Copyright © 2007 NavCom Technology, Inc MHz Broadband Jamming

35 Confidential - Copyright © 2007 NavCom Technology, Inc. 35 Pulse Jamming  Near by radios or pseudolites sometimes create brief interference with very great power  4-bit A/D samples allow automatic detection of a pulsed jammer -Blanking on when > X of 16 samples > Threshold 1 -Blanking off when Threshold 2  During the pulse, AGC feedback and digital signal processing must be disabled (samples are blanked by setting them all inactive) -The strength of the un-blanked signal is inversely proportional to the pulse duty cycle  The receiver’s front end must quickly recover from the pulse

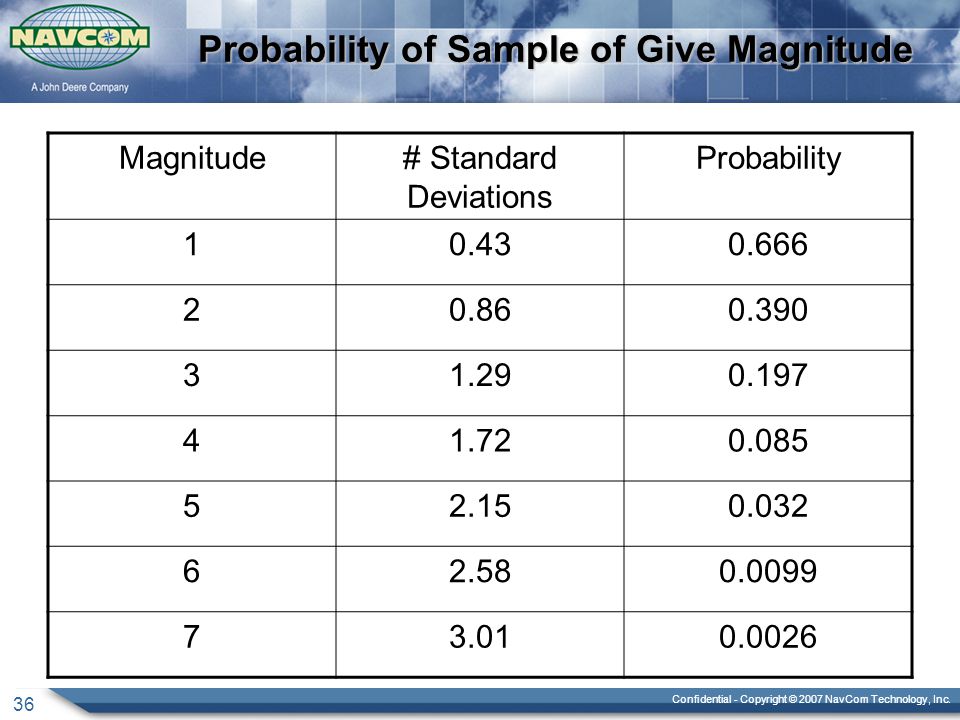

36 Confidential - Copyright © 2007 NavCom Technology, Inc. 36 Probability of Sample of Give Magnitude Magnitude# Standard Deviations Probability

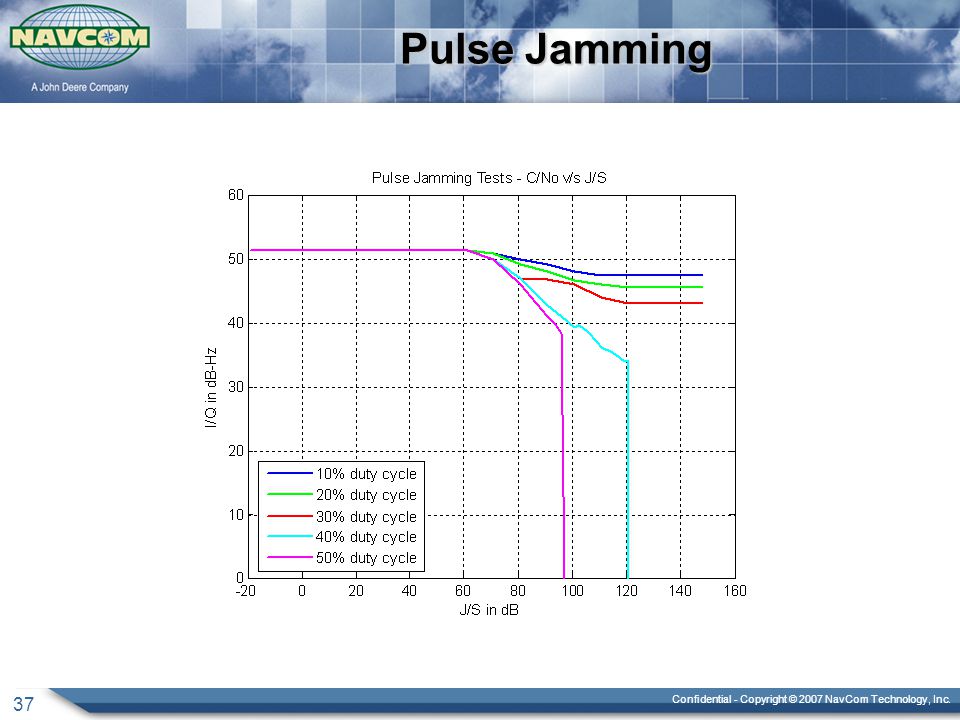

37 Confidential - Copyright © 2007 NavCom Technology, Inc. 37 Pulse Jamming

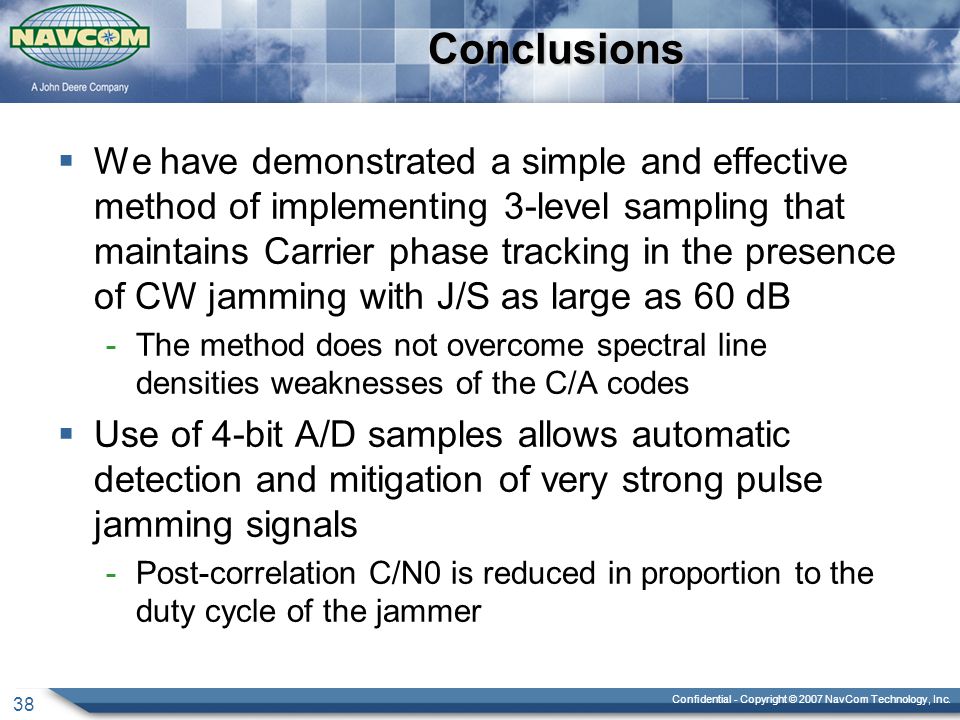

38 Confidential - Copyright © 2007 NavCom Technology, Inc. 38Conclusions  We have demonstrated a simple and effective method of implementing 3-level sampling that maintains Carrier phase tracking in the presence of CW jamming with J/S as large as 60 dB -The method does not overcome spectral line densities weaknesses of the C/A codes  Use of 4-bit A/D samples allows automatic detection and mitigation of very strong pulse jamming signals -Post-correlation C/N0 is reduced in proportion to the duty cycle of the jammer
