Research Techniques Seminar Advances in CCD Applications with Sub Electron Noise Techniques Juan Estrada, Gustavo Cancelo 07/19/2011.

Similar presentations

Presentation on theme: "Research Techniques Seminar Advances in CCD Applications with Sub Electron Noise Techniques Juan Estrada, Gustavo Cancelo 07/19/2011."— Presentation transcript:

1 Research Techniques Seminar Advances in CCD Applications with Sub Electron Noise Techniques Juan Estrada, Gustavo Cancelo 07/19/2011

2 R&D Projects General CCD R&D will benefit the following projects: DAMIC. Neutrino coherent scattering experiment (νCCD). Neutron imaging. Spectroscopy for astronomy. CCD fast readout.

3 Recent papers 1. arXiv:1107.0925 [pdf] Title: Deep sub electron noise readout in CCD systems using digital filtering techniquesarXiv:1107.0925pdf Authors: Gustavo Cancelo, Juan Estrada, Guillermo Fernandez Moroni, Ken Treptow, Ted Zmuda, Tom Diehl ), to be submitted to Experimental Astronomy.Gustavo CanceloJuan EstradaGuillermo Fernandez MoroniKen TreptowTed ZmudaTom Diehl 2. arXiv:1106.1839 [pdf, ps, other] Title: Achieving sub-electron readout noise in Skipper CCDsarXiv:1106.1839pdfpsother Authors: Guillermo Fernandez Moroni, Juan Estrada, Eduardo E. Paolini, Gustavo Cancelo, Stephen E. Holland, H. Thomas Diehl ), to be submitted to Experimental Astronomy.Guillermo Fernandez MoroniJuan EstradaEduardo E. PaoliniGustavo CanceloStephen E. HollandH. Thomas Diehl 3. arXiv:1105.5191 [pdf, other] Title: Direct Search for Low Mass Dark Matter Particles with CCDsarXiv:1105.5191pdfother Authors: J. Barreto, H. Cease, H.T. Diehl, J. Estrada, B. Flaugher, N. Harrison, J. Jones, B. Kilminster, J. Molina, J. Smith, T. Shwarz, A. SonnenscheinJ. BarretoH. CeaseH.T. DiehlJ. EstradaB. FlaugherN. HarrisonJ. JonesB. KilminsterJ. MolinaJ. Smith T. ShwarzA. Sonnenschein 4. arXiv:1105.3229 [pdf, other] Title: Plasma effect in Silicon Charge Coupled Devices (CCDs)arXiv:1105.3229pdfother Authors: Juan Estrada (Fermilab, USA), Jorge Molina (FIUNA, Paraguay), J. Blostein (CAB, Argentina), G. Fernandez (UNS, Argentina), submitted to NIM.Juan EstradaJorge MolinaJ. BlosteinG. Fernandez 5. arXiv:0911.2668 [pdf] Title: Direct Dark Matter Search using CCDsarXiv:0911.2668pdf Authors: Juan EstradaJuan Estrada In preparation: 12 channel readout results. Full well problem in DECam CCDs results Many conference presentations.

4 Collaborators Fermilab: J. Estrada, T. Diehl, H. Cease, D. Kubik, G. Derilo, K. Kuk, K. Schultz, A. ?, W. Struemer T. Shaw (PPD team) G. Cancelo, T. Zmuda, K. Treptow, N. Wilcer, J. Chramowicz, (CD team) Vic Scarpine (AD) B. Kilminster, J. Smith, T. Schwarz, A. Sonnenschein (DAMIC) J. Molina Facultad de Ingeniería, Universidad Nacional de Asunción, Asunción, Paraguay J. Blostein, others Centro Atómico Bariloche and Instituto Balseiro, Comisión Nacional de Energía Atómica, Universidad Nacional de Cuyo, Bariloche, Argentina G. Fernández, E. Paolini Universidad Nacional del Sur, Bahía Blanca, Argentina. Javier Castilla, CIEMAT, Madrid Spain. N. Harrison: Naperville North High school, now freshman at University of Chicago S. Wagner: Naperville North High school. J. Jones: Batavia High School, now at Purdue. Jacob Johansen University of Chicago Possible collaborators: Juan Carlos D’Olivo, Alexis Aguiler (UNAM, Mexico) – interest in reactor experiment with CCDs in Mexico Helio da Motta, Carla Bonifazi, Martin Makler (CBPF, UFRJ) interest in reactor experiment with CCDs in Angra. Requested a grant to CONICET, Argentina (Mayosky, Cancelo)

5 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

6 Potential well Charge Coupled Devices (CCD) Characteristics: – Properly biased CCDs store charge in a potential well. – Very low noise detectors => high dynamic range. 1e- of noise RMS => 3.6eV ionization energy. – High spatial resolution: 15 x 15 micron pitch for DeCam CCDs. – High density: 8Mpix for DeCam CCDs.

7 Photon Transfer Curve: – Full well – Readout gain – Pixel and dark current non uniformity – more... Photon Transfer Curve (PTC) Optical characteristics of LBNL CCDs used for DES DECam: High resistivity, 250µ thick. Fully depleted! High QE in near infrared. Z>1 1g of mass, good for direct DM search. p-channel, better than n-channel for space telescopes Low resistivity CCDs

8 Hexapod Optical Lenses CCD Readout Filters Shutter Mechanical Interface of DECam Project to the Blanco Dark Energy Camera (DECam) Blanco 4m Telescope Cerro Tololo, Chile New wide field imager for the Blanco telescope (largest focal plane in the southern hemisphere) Largest CCD project at FNAL. DECam is being built at FNAL including CCD packaging, full characterization, readout electronics. CCD facilities at SiDet and 5+ years of experience positions FNAL as a leader for this task. Focal plane with 74 CCDs (~600 Mpix). All the scientific detectors in hand, packaged and characterized at FNAL.

9 Low noise is critical in spectroscopy DECam estimates redshift from the colors of the objects. DeCam used 4 filters 4 DES filters colors change as galaxy moves in z X000 fibers several spectrographs DeSPEC spectrograph proposal: Lower signal to noise ratio.

10 Low noise CCD readout A low noise CCD based readout system will greatly benefit projects such as: – Direct search for Dark Matter – Neutrino coherent scattering. – Spectroscopy. Two Low noise reduction techniques: Reduction of Pixel to pixel correlated noise using fast sampling, precision A/D conversion and digital filtering. Skipper CCDs.

11 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

12 CCD Images FITS image: Each pixel is a n-bit digital representation of the pixel charge. HORIZONTAL REGISTER H1 H2 H3 e-e- e-e- e-e- e-e- e-e- e-e- HORIZONTAL REGISTER VERTICAL CLOCKS VIDEO AMPLIFIER VIDEO AMPLIFIER 3-PHASE ARRAY CCD CsCs Load Resistor Video Out. Output JFET Reset C GS e-e- V REF V DD Summing Well Transfer Gate Pixel period Pixel charge Pedestal Reset pulses are ~ 50,000 e -

13 CCD noise: single video transistor and system noise Red trace: CCD noise measured by the LBNL designers using a test board. – 1/f noise larger than WGN up to 50 KHz. – WGN about 10nV/√Hz. Black trace: FNAL 24 bit ADC based system. – x3 lower noise than the Monsoon system used for DeCam (DES). – Despite power supply and EMI noise reduction the system still shows some 60Hz and high frequency resonances.

14 Correlated Double Sampling (CDS) For the white and Gaussian noise w ~ N(0,σ²), the CDS is the optimum estimator. It actually grows for longer T because the 1/f noise grows exponentially as f->0. but Integration intervals: t 4 -t 3 = t 2 -t 1 = T Video fragment: N pix pixels and N pix pedestals long. Pedestal i Pixel i Pedestal i+1 Pixel i+1 s(n) pedestals and pixels n(n) correlated noise (LFN) w(n) white Gaussian noise x(n) = s(n) + n(n) + w(n)

15 CDS transfer function T pix is a “free” parameter. In the analog CDS we adjust T pix for the minimum noise where the 1/f contribution is small. But short T pix limit WGN reduction. The CDS filters very low frequency noise close to DC. Minimum noise rejection at f~0.4/T Pix. Nulls at f=k/T Pix, where k=1,2,3,… Better filtering for higher frequencies. Transfer function maximums follow a |sin(x)/x| decay. So far analog CDS techniques achieve ~2e- of noise at T pix of ~20useconds.

16 Estimator and digital CDS Digital sample the video signal. Estimate the correlated noise of a string of pixels. Subtract the correlated noise from the original video. Perform the digital CDS of the filtered signal. χ 2 estimator, because it does not assume a particular noise model: – Inversion of a large matrix. Only one time and can be done off-line. – Linear model is not orthogonal. Ill-posed problem. Goal: – Implement the estimator and the digital CDS in an FPGA. Create FITS image. We can eliminate the pedestal and pixel values s i from the estimation problem. where is the average signal+noise value in each pixel (step function) New linear model: where θ is a px1 vector x(n) y(n)

17 How many modes? 200 modes account for ~85% of the low frequency correlated noise. If parameter estimation could be done with zero error. Noise spectrum weighted by the CDS transfer function Cumulative noise spectrum weighted by the CDS transfer function

18 Estimator and digital CDS Results (DeCam CCD) 0.5e- of noise achieved (consistently) for T pix of 70useconds.

19 Estimator and digital CDS Results (LBNL 12 channel CCD) The plot displays the average noise of 100 data sets and 1-σ error bars. 0.4e- at 120 μs. It is also interesting that the 1-σ error bars of the estimator processed data are 4 times smaller than the ones for the unprocessed data.

20 Noise spectrum comparison Compares the noise power spectrum of the unfiltered signal and the filtered signal after the low frequency estimation of 200 modes has been subtracted. On average, the LFC noise has been reduced by almost an order of magnitude on average.

21 FPGA implementation of the estimator and digital CDS CCD OverscanX-ray image using a 55 FE source The implementation of the estimator in the FPGA is on going. In this image the FPGA is performing the digital CDS with noise results very similar to the off-line results.

22 Skipper CCD skipper CCD mounted on one of our testing dewars.

23 Skipper CCD these type of detectors allow multiple readout of the charge in each pixel, with a noise reduction 1/sqrt(N). I was invented in 1990, but not really used much because it takes more time to readout. in a recent R&D run LBNL produced thick detectors like this, and sent them to us for testing. They are very interesting for low threshold experiments...

24 Skipper CCD Frequency response for: T ʃ = 110 µs and N = 5 (a), N = 10 (c) and N = 20 (d), T ʃ = 160 µs, and N = 10 (b). Left axis: CCD noise PSD (a). Standard CDS T ʃ = 110 µs (b) Skipper CDS T ʃ = 110 µs and N = 10 (c).

25 what have we done with the skipper: > built the cables to readout the skipper > programmed the controller to operate this new CCD > started tests > this is the main topic of the work that Jacob Johansen is doing as part of his graduate class at UC Skipper CCD e − RMS as a function of the number of averaged samples N. Continuous line: e − RMS measured from images. Dashed line: theoretical 1/√N decay of WGN. x-ray exposure CCD x-ray hits look like small horizontal bars in the image because the same pixel is readout many times.

26 Low-energy X-ray detection experiment with the Skipper CCD. Fe55 X-ray source and a teflon target A shielding is placed between the source and the CCD for stopping direct X-rays. The Fe55 X-ray source produces two different energy rays from Mn: 5832 eV (K α ) and 6412 eV (K β ). Both X-rays hit the teflon with carbon and fluorine, which emits lower energy X-ray by fluorescence. Each atom has a precise energy pattern of emitting photons, the most probable emitted X-rays are at energies of 277 eV and 677 eV, respectively. These low-energy X-rays are detected by the CCD together with some high energy X-rays coming directly from the source that get to cross the shielding. First time this peak is seen with a CCD

27 Skipper paper: what is next with skipper: 1. Optimization of readout for operation with extremely low readout noise 2. We need to get more detectors packaged with low background package and start DM run at minos.

28 Summary and future work for CCD low noise readout The estimator and digital CDS reduce the CCD noise deep into the sub- electron region. New avenues for HEP experiments and telescopes are open: – The price to pay for lower noise is a more sophisticated readout system. – The estimator and digital CDS is being implemented in an FPGA with good success.

29 6 12 channel LBNL CCD This CCD would be a good candidate for telescopes that require high pixel bandwidth such as LSST.

30 12 channel CCD detector arrived on October 3 from LBNL stage 1: readout the CCD using the DECam electronics with minimal modifications. Show that we can do it and use results to motivate FNAL management to support this R&D effort. Done on Octber 13! stage 2: make necessary modifications to readout the 12 channels with DECam performance (250 kpix/sec and 8 e- of noise). Use the DECam 12 channel monsoon board and a new cable for the 12 channel CCD (with 12 JFETs and 12 preamps). Required design of preamp board and flex cable. Completed in January 2011. stage 3: works towards more aggressive performance thinking in LSST requirement. Study the high readout rate limitations of the devices. Readout rate could be increase by digitizing during the horizontal clocking. Started in mid-January. Javier Castilla, from CIEMAT (DECam collaborator) expert on monsoon system came to FNAL work on this for two months. FNAL R&D effort support this now. Javier Castilla will return to Fermilab in December using funds from his home institution. 12 channel LBNL CCD

31 Installation of 12-channel CCD in Cube. Simple flat ribbon cable used to connect to the CCD. No JFET installed. stage 1:

32 Results stage 1: first readout. 12 channels connected to the DECam 12 channel readout board without any conditioning for the signal. For DECam we use JFET next to the CCDs and preamps inside the dewar. We got 11 out of the 12 channels to work. Very noisy readout low gain. second readout. 2 channels connected to the DECam 8 channel prototype readout board with preamps outside the dewar. The readout worked and got ~20e of noise at 250 kpix/sec.

33 flatfield of 2 channel readout using prototype decam boards. nice cosmetics!

34 photon transfer: we obtain a gain of 0.47ADU/e. (typical gain for DECam CCDs with JFET and preamp is 0.8 ADU/e). fullwell at 89,361e-. (consistent with area reduction with respect to DECam pixels) channel 1 (left)

35 35 Setup in SiDet Lab A

36 Images taken with a 12 channel Monsoon system

37 Pixel cycle: 1.848 us INTEG_WIDTH = 2*500 ns Noise : 10.7 e- 12-channel :Pixel cycle time 1.85us

38 At slow readout the noise performance is comparable with DeCam CCDs

39 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

40 Neutron imager why neutrons? Key tool for Basic Energy Science. Potential SRF accelerator application? Hydrides may be a major player in Rres and Q0. (A. Romanenko, FNAL)

41 Example of a beam of collimated low energy (thermal) neutrons (NIST CNR facility). The image resolution is a function of many parameters, some of which are improved by the 10 B-CCD detector. We need high quality beams to make full use of high resolution detectors. The plasma experiment (a slide coming next) shows that 1um resolution is achievable.

42 state of the art 10 B-CCD the CCDs would allow us to achieve micron level resolution and at the same time 1 frame per second....

43 CCD our scheme... Motivated by conversations with neutron physics group in argentina during ICFA 10. Thanks to the R&D funding we were able to do the preliminary test at FNAL inviting Dr. Jeronimo Blostein.

44 First test with Am-241 source. The CCDs are really nice alpha detectors alphas big circles x-rays small dots Image taken with neutron 252 Cf source, 5um film of 10 Boron and CCD alphas big circles

45 good separation from gammas

46 Borated film (3mm from CCD) Cd target (8mm from CCD) borated film deposited in laboratory in argentina 1 st test, December 2010

47 lines in borated film Cross in Cd

48 Plasma effect measurement Best current measurement 2008 Our data Plasma effect in Silicon Charge Coupled Devices (CCDs), J. Estrada, J. Molina, J. Blostein, G. Fernández. Energy dependence of the cluster size for α particles in both regions of energy. Red points are for the exposition of the CCD to the 241 Am source, while black points are for α particles coming from the (n,α) reaction

49 2nd test, July 2011 (work by Sebastian Wagner, sophomore student at Naperville North high school) A factor of 4 better resolution Bottom half of open cross 2 nd exposed surface 1 st exposed surface

50 Last minute result July-19-9am

51 Next for the Neutron Imager: Current limitation is the neutron beam. Until now tests with CF-252 source and this week we are trying with Am-Be with x100 higher neutrons flux. (Thanks to the people in Site 40!) plans for new beam: starting in September we have been invited to try our detector in a neutron imaging facility in Argentina (Bariloche). One of our collaborators works in this facility. Vic Scarpine is trying to set us up with a real beam. He is doing some simulations to understand what we need in order to be able to use the beam at the neutron therapy facility at FNAL. Also considering other US facilities. plans for detector: the next step with the detector is to learn how to deposit the layer of Boron-10 directly on the surface of the CCD. This could get us micron resolution.

52 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

53 DAMIC (Dark Matter in CCDs) 7.2 eV noise ➪ low threshod (~0.036 keVee) 250 μm thick ➪ reasonable mass (a few grams detector) muons, electrons and diffusion limited hits. nuclear recoils will produce diffusion limited hits

54 Good news... we finally got our result out

55 self shielding calibration to nuclear recoils still missing

56 thanks to our low threshold of 40eV we are competitive with 107 g- day exposure.

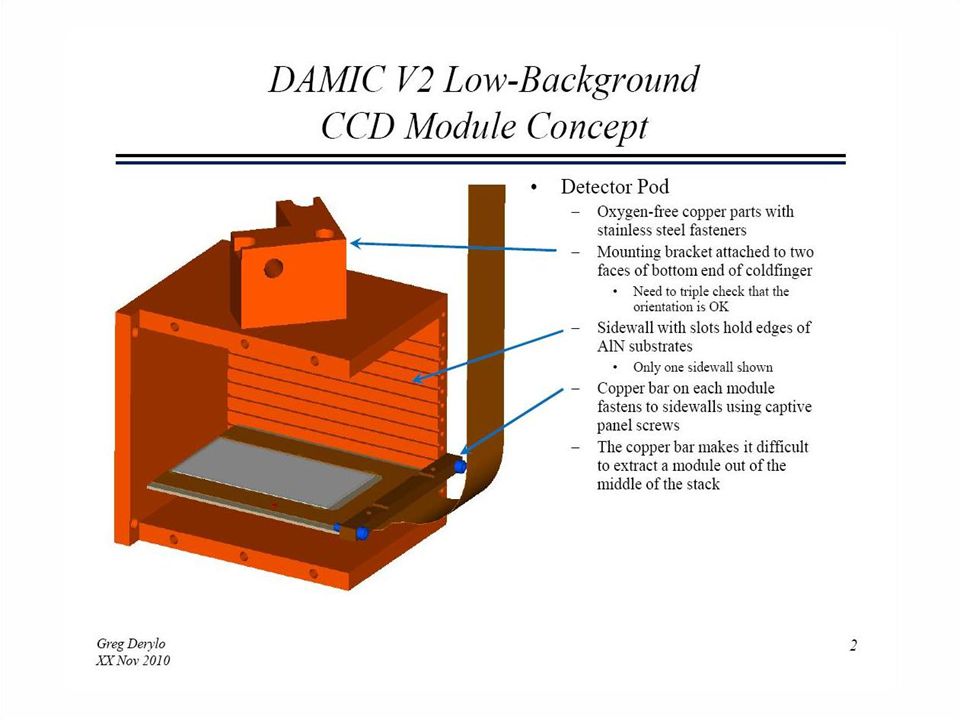

57 Next for DAMIC: We will continue running DAMIC at NuMI near detector for a few more months to understand the stability of the background. Move to SNOLAB: We are trying to move to SNOLAB in April 2012. Writing the proposal these days. We should be able to reduce our background by x10 if we eliminate the cosmogenic neutrons. At NuMI we have no muon veto. Plan to increase the mass by a factor of 8. By using a few thicker detectors. We have developed a new package that would allow us to use more CCDs in the same dewar. If things go well, we should be able to also reduce threshold by using either skipper CCD or digital filtering of 1/f.

58 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

59 Detection of Neutrino Coherent Scattering with CCDs Texono arXiv:0511001

60 measured antineutrino spectrum at ILL ν/fission/MeV Expected recoil spectrum at 30m of 3GW reactor (Texono) Two groups are interested on trying this at different reactors. One group is from Mexico (UNAM) and the other Group is from Brazil(Rio). Proposal to CNPQ in August (Helio da Motta, Martin Makler, Carla Bonifazi). The idea is to install something very similar to DAMIC with a skipper CCD. CD is going to get the equipment (vacuum vessel, cryocooler, pump). We hope to start measuring backgrounds in Rio this year.

61 Mexican group is starting to design a 100CCD system for a neutrino/dark matter experiment. Juan Carlos D’Olivo Alexis Aguilar-Arevalo UNAM We will collaborate on this very ambitious project. They also want to have this ready for a large CCD DM search in the ANDES underground lab. 4500-4800 mwe

62 Outline Introduction to CCDs. Sub electron noise results. Fast readout results. Applications: Neutron imager. DAMIC. Neutrino coherent scattering. Spectroscopy for astronomy.

63 What is the next detector technology We believe that the detectors that will replace the CCDs in astronomy are the MKIDS. Magnetic Kinetic Inductance Detectors: highly multiplexed readout photon counting UV-VIS-IR 100 usec timing for each photon spectroscopy with R=400 should be possible (now R~20) pixel size ~100 um first implementation of a 32x32 pix array on sky in August (Ben Mazin UCSB) Ben would like to collaborate with FNAL in building the next prototype x10 larger future plan : giga-Z to follow up LSST object the only problem is that they work at mK temperatures

64 Thank you

65 Spare slides

66 DM

67 One good reason to look for low mass dark matter : The DAMA/LIBRA result Bernabei et al, 2008 >8 σ detection of annual modulation consistent with the phase and period expected for a low mass dark matter particle (~7 GeV) consistent with recent COGENT results.

68 1 gram of Si DAMA w/o chan DAMA w chan. DAMIC Low noise limited: thanks to our low noise we have the best result in the world and we are reaching the DAMA region COGENT CRESST Number of recoils exponentially increase al low energies. DAMIC experiment at FNAL Mass limited: Need bigger detector.

69 muons, electrons and diffusion limited hits. nuclear recoils will produce diffusion limited hits Particle detection with CCDs

70 Neutrino coherent scattering SM cross section is relatively large, the challenges are detector sensitivity and background control. SM and new physics. Help understand how to study supernovae neutrinos. Monitoring of nuclear reactors. ☚ we are here ~100 cpd/keV/kg @ 100eV recoil energy (keV) event rate ( cpd/keV/kg) lower noise in this case means that we can still see the recoils in a larger background. Expected rate for nuclear recoils ~30m from the center of a 3GW reactor. (From the Texono collaboration) noise reduction ☚ goal ~ 10 3 to 10 4 cpd/keV/kg @ 1 to 5eV Toward Coherent Neutrino Detection Using Low-Background Micropattern Gas Detectors P. S. Barbeau, J. I. Collar, J. Miyamoto, and I. Shipsey, IEEE TRANSACTIONS ON NUCLEAR SCIENCE, VOL. 50, NO. 5, OCTOBER 2003 Abstract: The detection of low energy neutrinos (few tens of MeV) via coherent nuclear scattering remains a holy grail of sorts in neutrino physics. This uncontroversial mode of interaction is expected to profit from a sizeable increase in cross section proportional to neutron number squared in the target nucleus, an advantageous feature in view of the small probability of interaction via all other channels in this energy region. A coherent neutrino detector would open the door to many new applications, ranging from the study of fundamental neutrino properties to true “neutrino technology.” Unfortunately, present-day radiation detectors of sufficiently large mass (~1 kg) are not sensitive to sub keV nuclear recoils like those expected from this channel.

71 Neutrino coherent scattering plan Juan here

72 Thank you!

73 channel 2 (right)

74 12 channel flex circuit by CD group preamp board developed by PPD group (T.Shaw et al)

75 sharp edge into the serial overscan, good transfer efficiency using DECam clock rails. zoom into overscan



78 DECam has allowed us to build at FNAL a powerful CCD lab closely monitoring production of dies for more than 2 years, giving quick feedback on performance developed CCD package for focal plane that meets scientific requirements produced/tested 240+ CCDs like an efficient factory the experience building silicon trackers transferred nicely to this project. The work in this talk has been possible thanks to this CCD lab. designed and build readout electronics for a large focal plane

79 Thin Al “window” for dewar Cf-252 source with moderator to produce a lot of thermal muons

80 Next for the neutron imager: Detector: The 10 B-CCD detector is being characterized with a high intensity source at FNAL site 40. We will need more detectors packed in this way or with some improvements that we will learn from this experiment. Beam: We are considering going to a good beam facility. Maybe a reactor, or a spallation source. We are working in simulations to design a moderator. Independently the group in Argentina is trying to get funds to buy get a system (CCD/dewar/electronics) of their own to do this in their experimental reactor.
