DIARTHROTIC ARTICULATIONS Synovial Joints

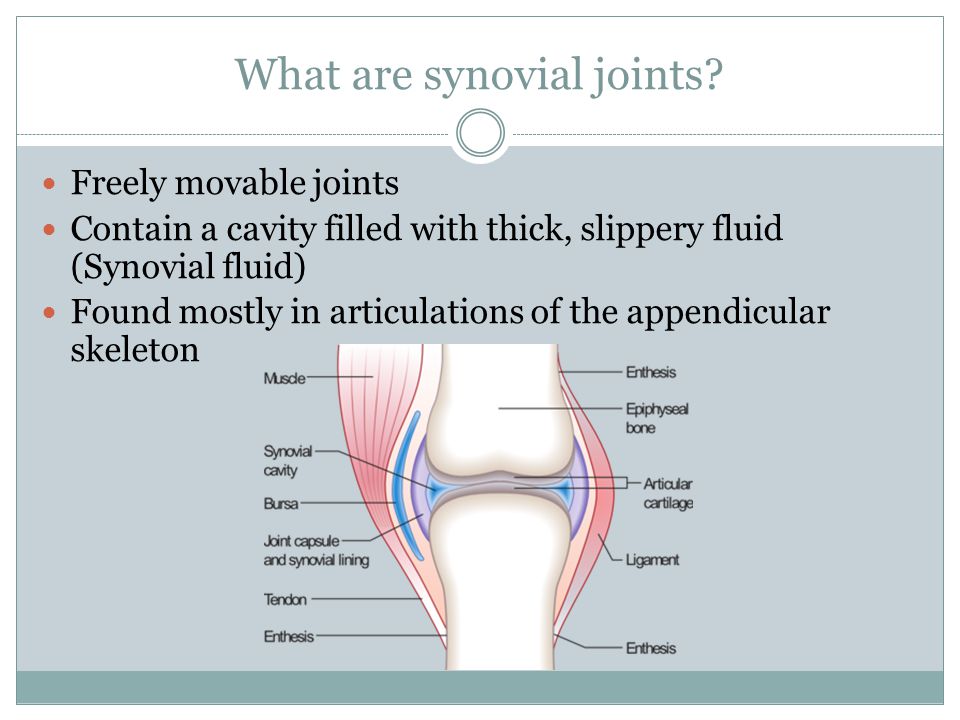

What are synovial joints? Freely movable joints Contain a cavity filled with thick, slippery fluid (Synovial fluid) Found mostly in articulations of the appendicular skeleton
Articular Cartilage Covers the ends of bones Made of hyaline cartilage Reduces friction between bones Cartilage wearing away causes pain and restricted motion
Types of synovial joints: Gliding (plane) Pivot Hinge Ball and socket Elipsoid (Condyloid) Saddle

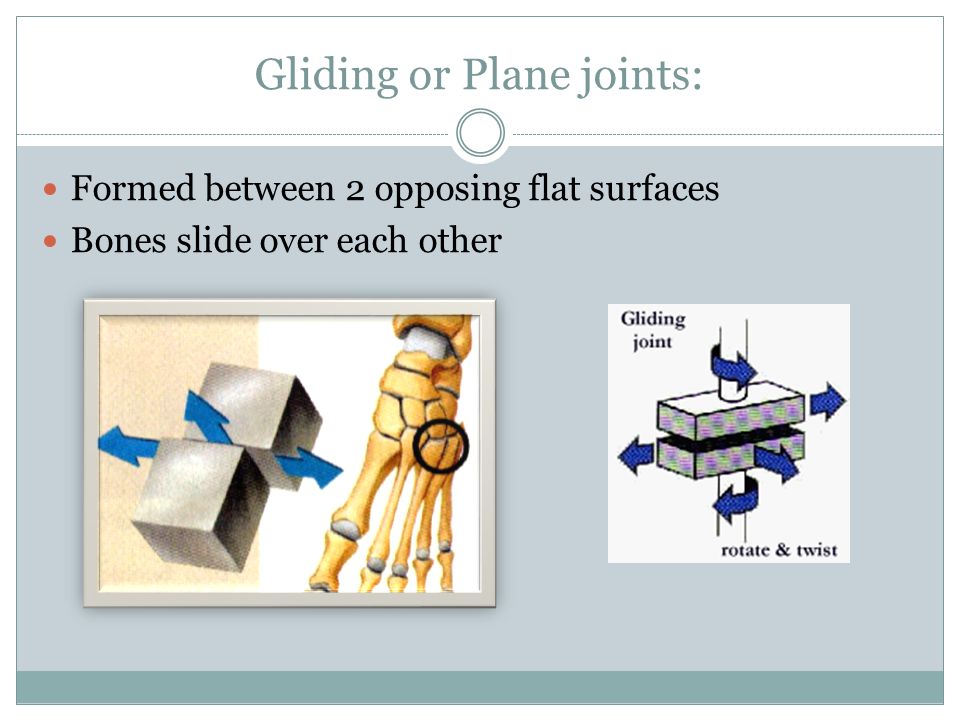

Gliding or Plane joints: Formed between 2 opposing flat surfaces Bones slide over each other

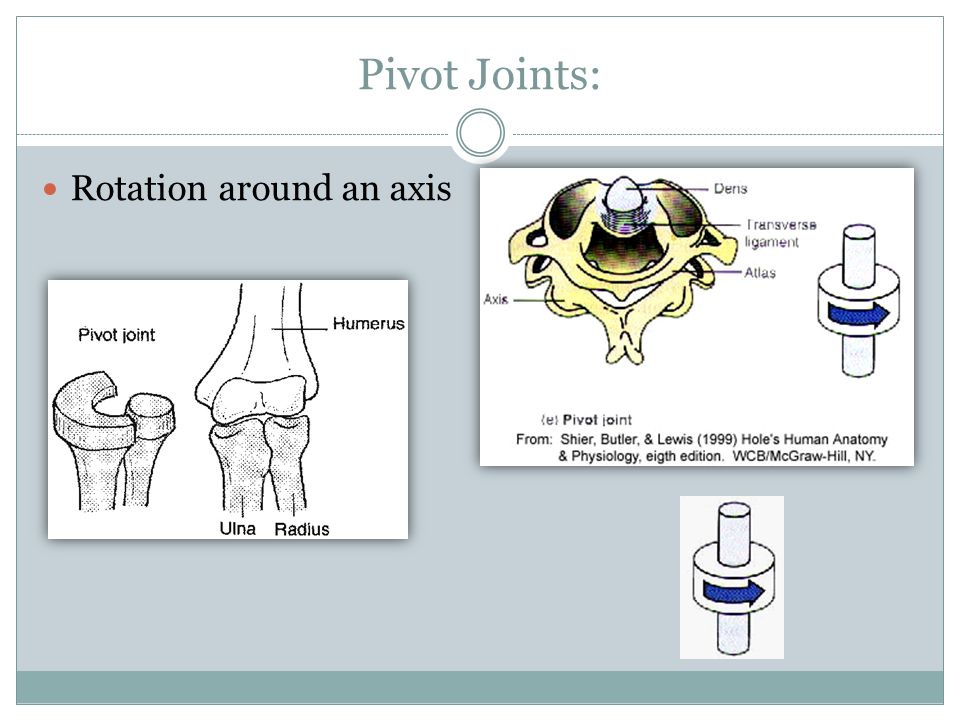

Pivot Joints: Rotation around an axis

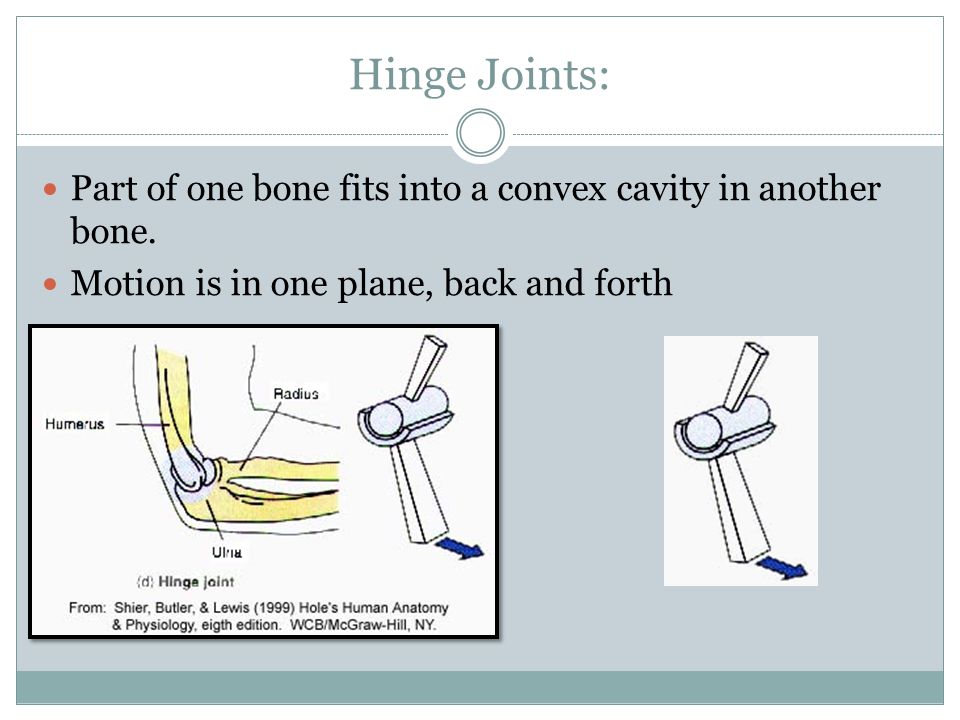

Hinge Joints: Part of one bone fits into a convex cavity in another bone. Motion is in one plane, back and forth

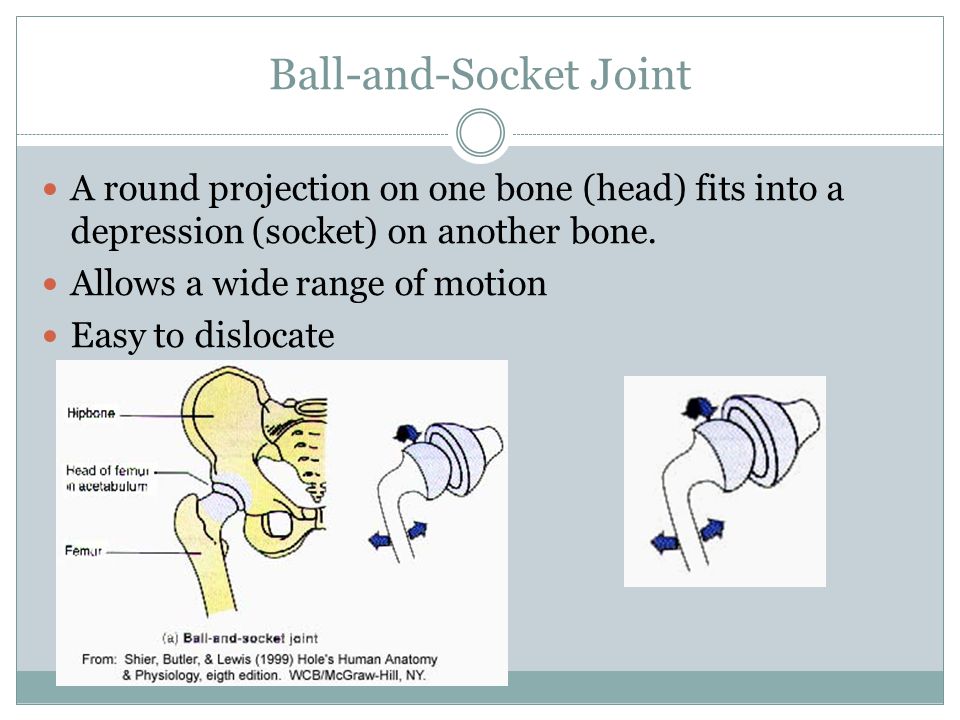

Ball-and-Socket Joint A round projection on one bone (head) fits into a depression (socket) on another bone. Allows a wide range of motion Easy to dislocate
Ellipsoid (Condyloid) Joints: Modified ball and socket joints in which the head of a bone is similar in shape to a football Moves in two axes, but restricts rotational motion

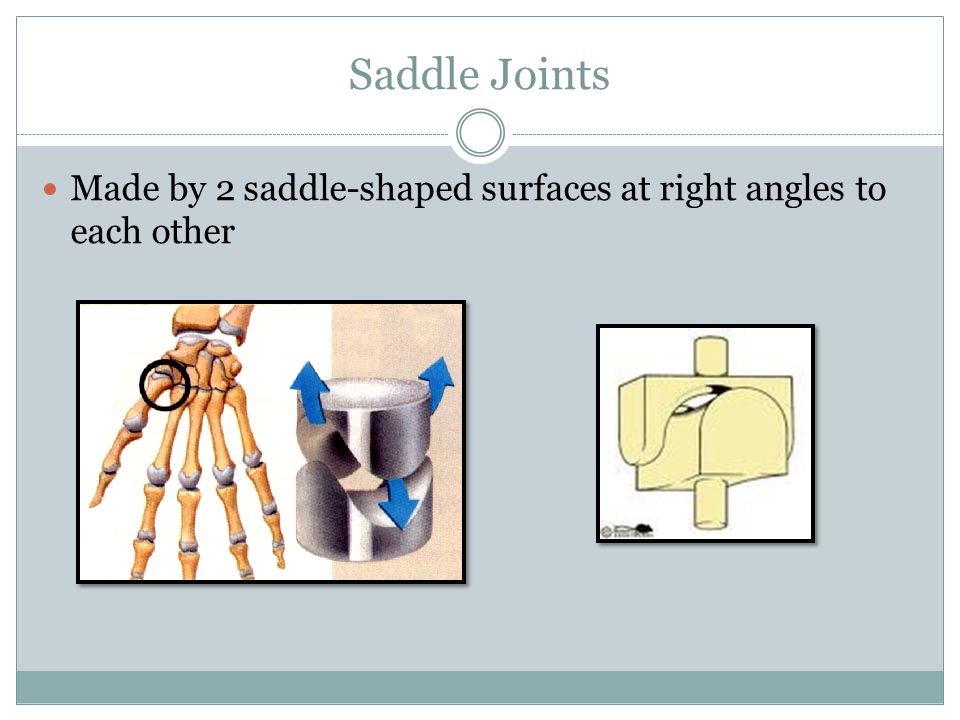

Saddle Joints Made by 2 saddle-shaped surfaces at right angles to each other

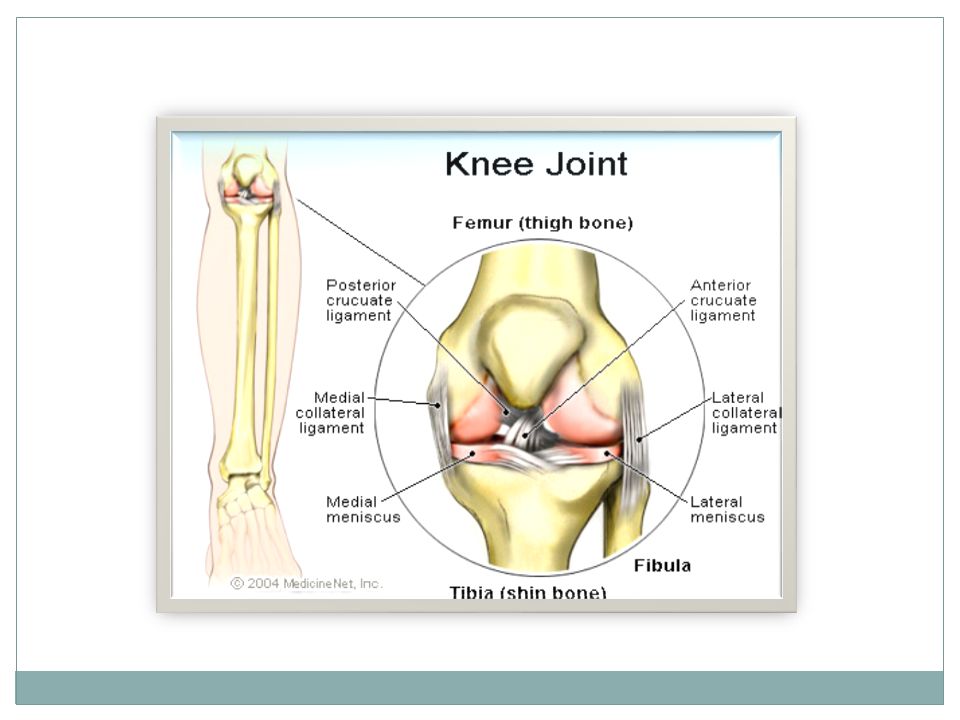

THE ARTICULATION OF 3 BONES The Knee Joint

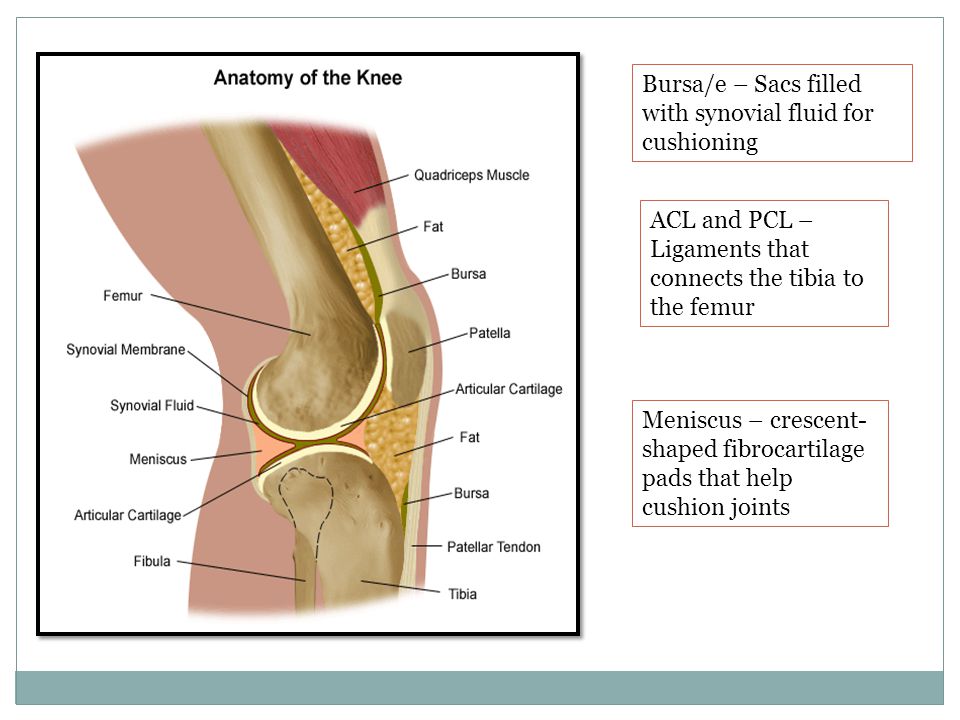

Bursa/e – Sacs filled with synovial fluid for cushioning ACL and PCL – Ligaments that connects the tibia to the femur Meniscus – crescent- shaped fibrocartilage pads that help cushion joints

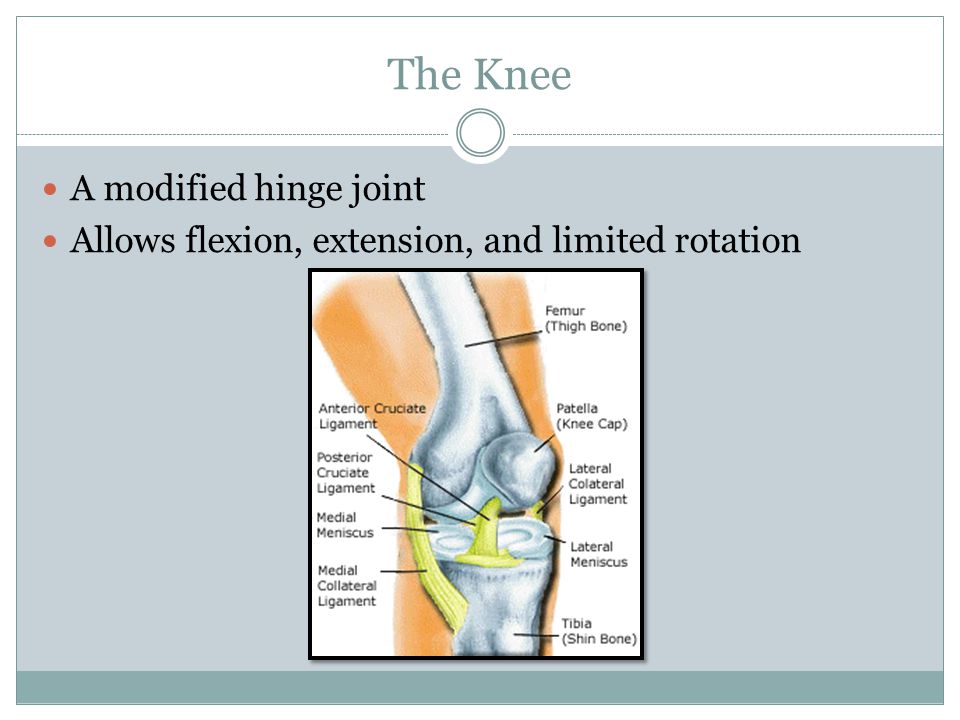

The Knee A modified hinge joint Allows flexion, extension, and limited rotation
Knee dislocation – owww!

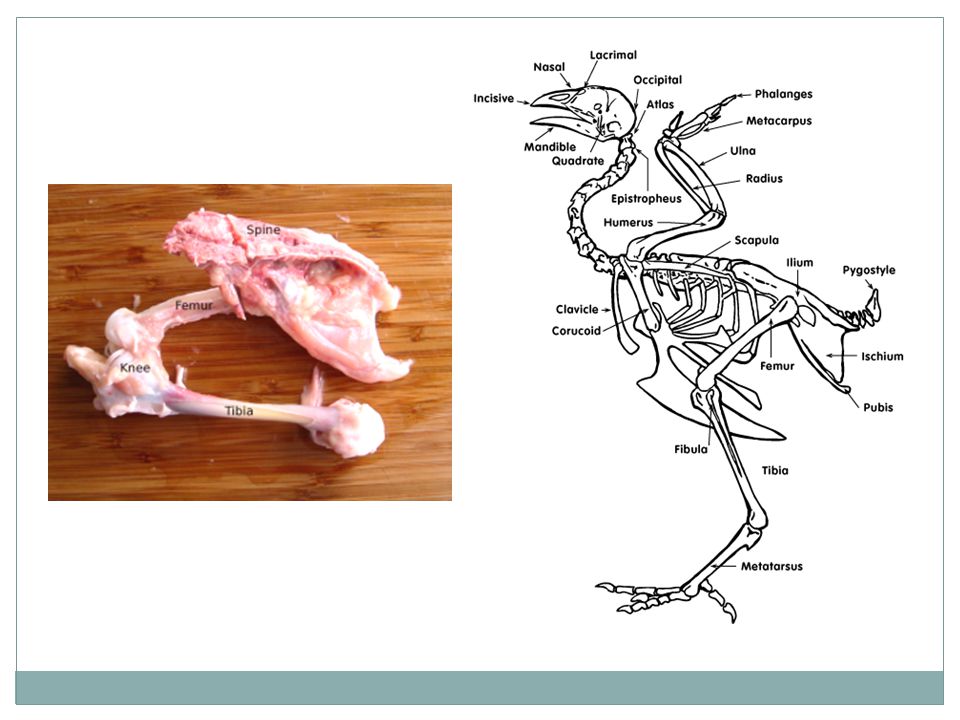

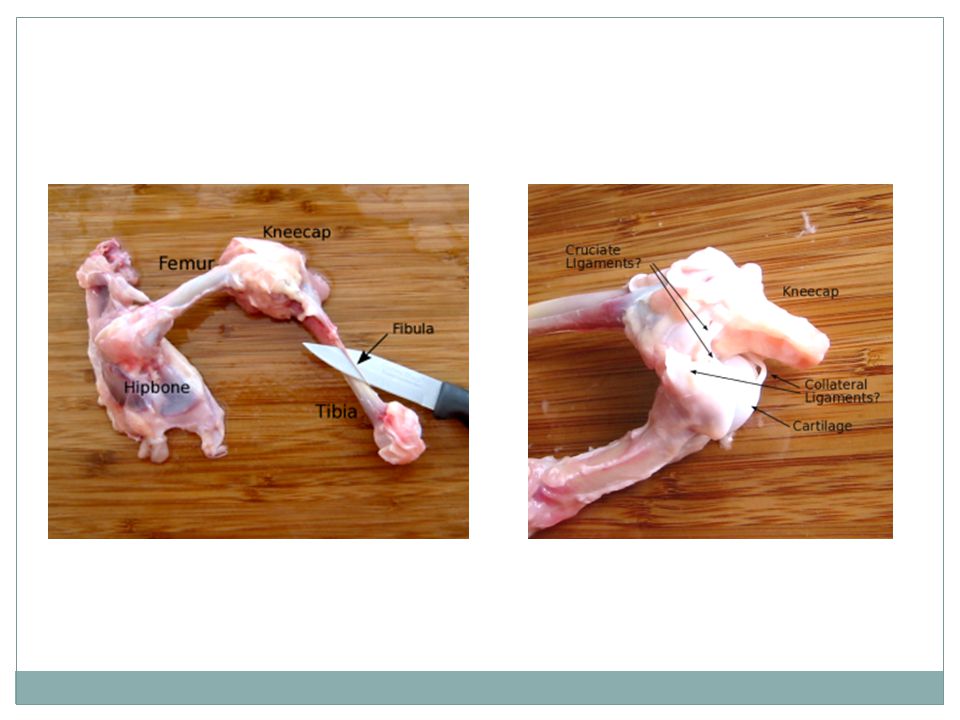

EXAMINATION OF THE KNEE JOINT Chicken Leg Dissection
