1 Carbon Nanotubes What is that? Siegmar Roth Max Planck Institut f. Festkörperforschung and SINEUROP Nanotech GmbH Stuttgart

2 Carbon Nano Tubes

3 Carbon~

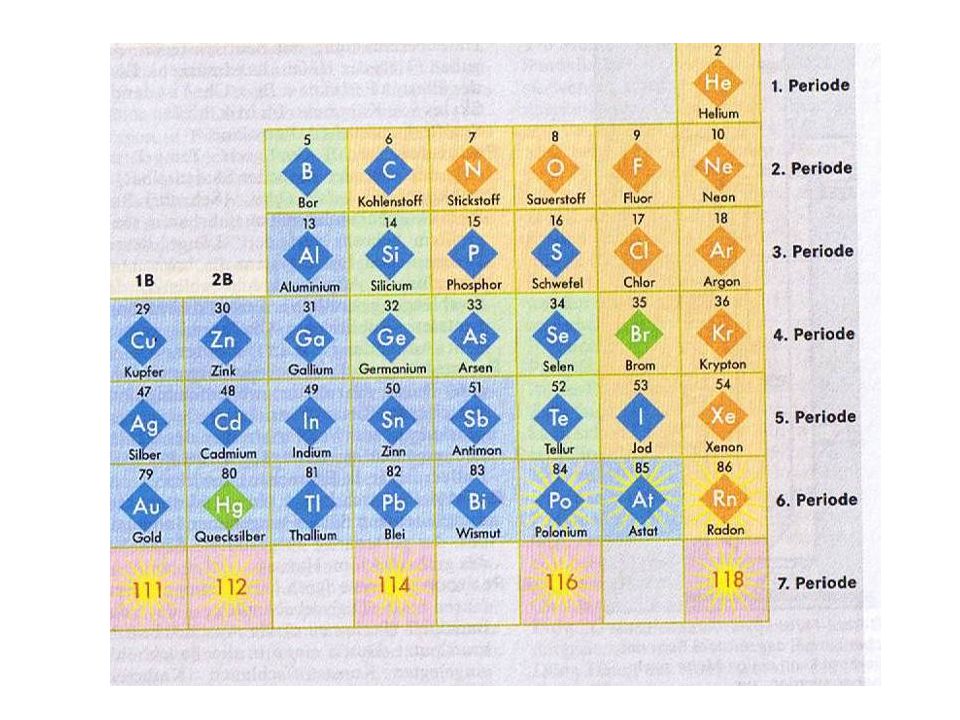

4

5 Snake Oil cures all deseases converts straw into gold burns permanently in lamp Solid State Version: Philosopher’s Stone (arcanum)

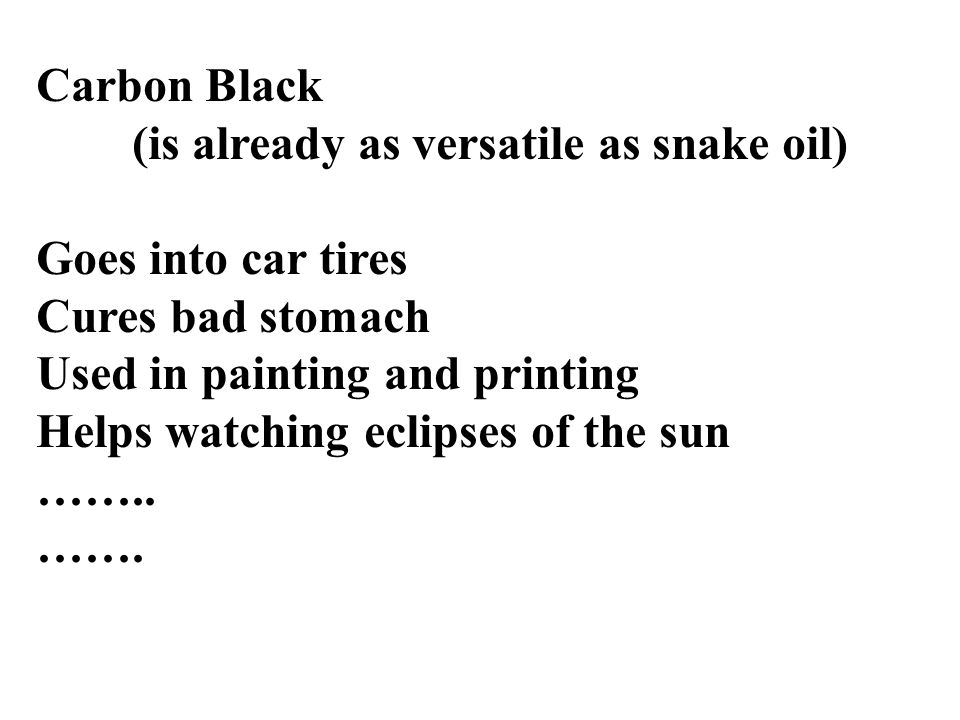

6 Carbon Black (is already as versatile as snake oil) Goes into car tires Cures bad stomach Used in painting and printing Helps watching eclipses of the sun …….. …….

7 ~nano~

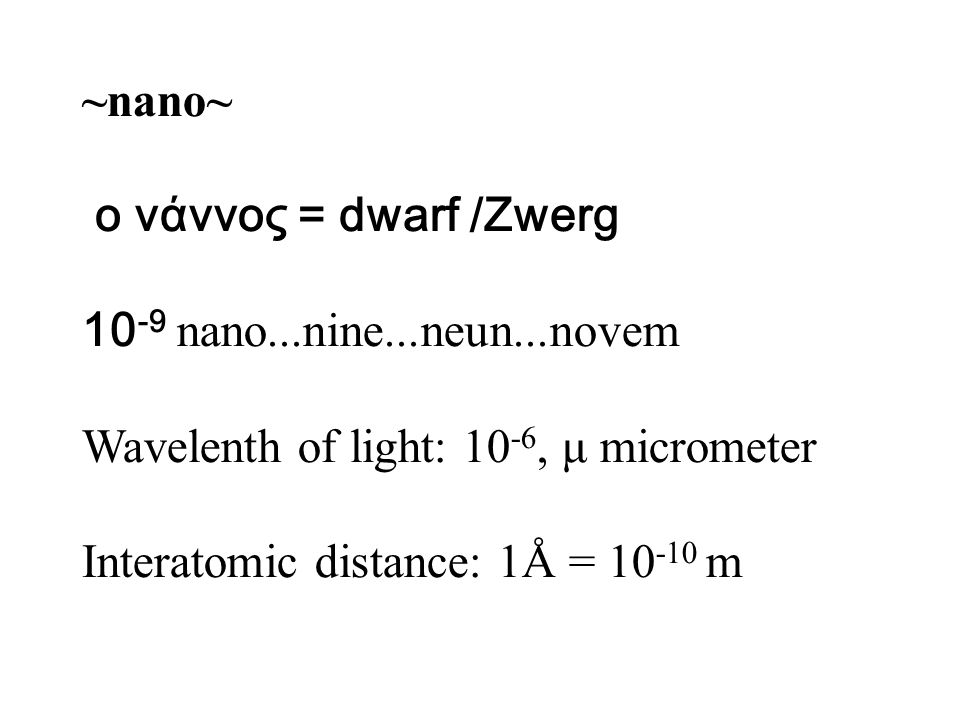

8 ο νάννος = dwarf /Zwerg nano...nine...neun...novem Wavelenth of light: 10 -6, μ micrometer Interatomic distance: 1Å = m

9 ~tube

10

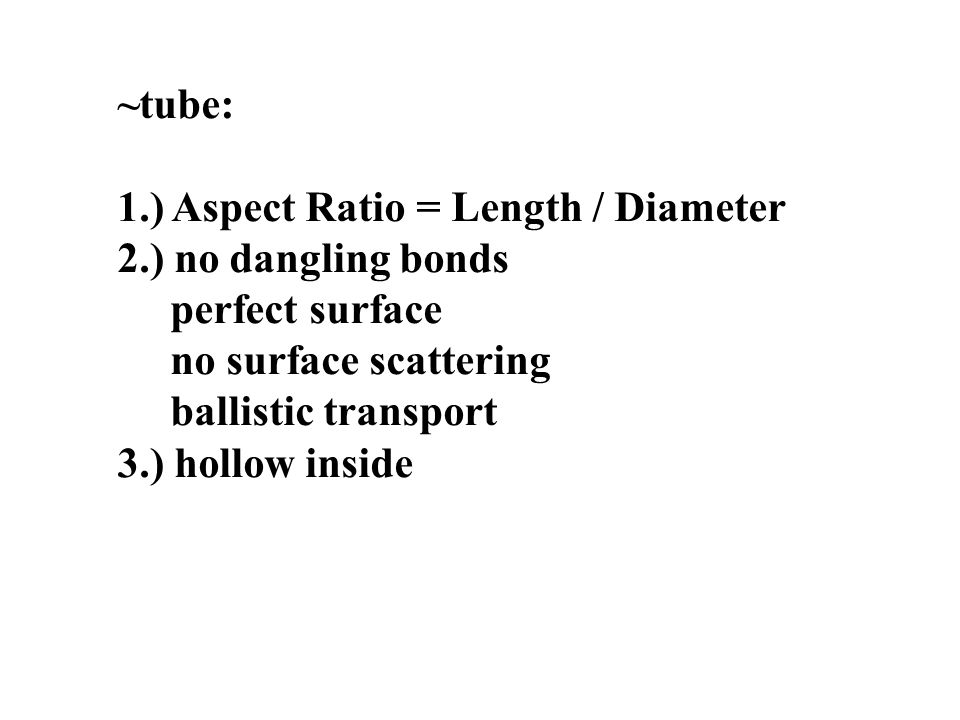

11 ~tube: 1.) Aspect Ratio = Length / Diameter 2.) no dangling bonds perfect surface no surface scattering ballistic transport 3.) hollow inside

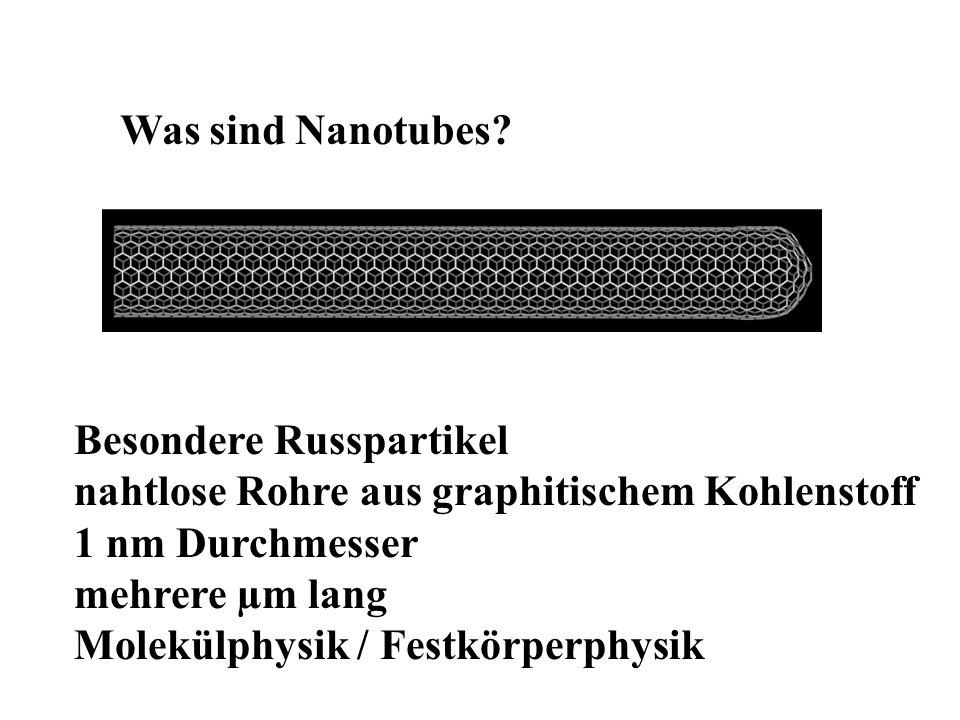

12 Was sind Nanotubes? Besondere Russpartikel nahtlose Rohre aus graphitischem Kohlenstoff 1 nm Durchmesser mehrere µm lang Molekülphysik / Festkörperphysik

13 Mindestwissen: Single-Walled Multi-Walled Semiconducting Metallic Was sind Nanotubes?

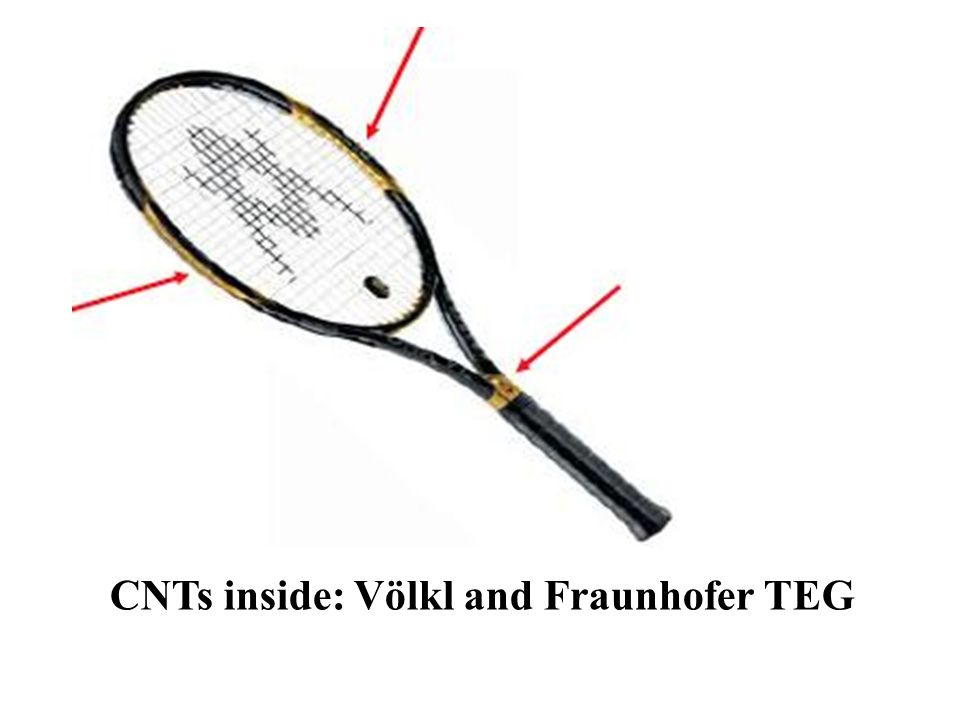

14 CNTs inside: Völkl and Fraunhofer TEG

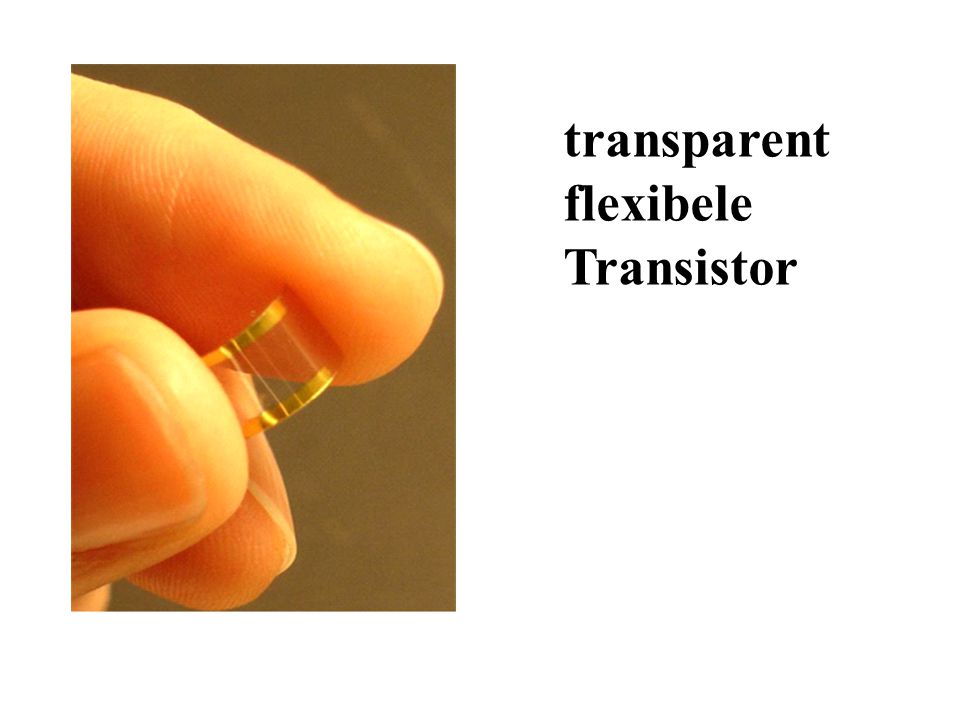

15 transparent flexibele Transistor

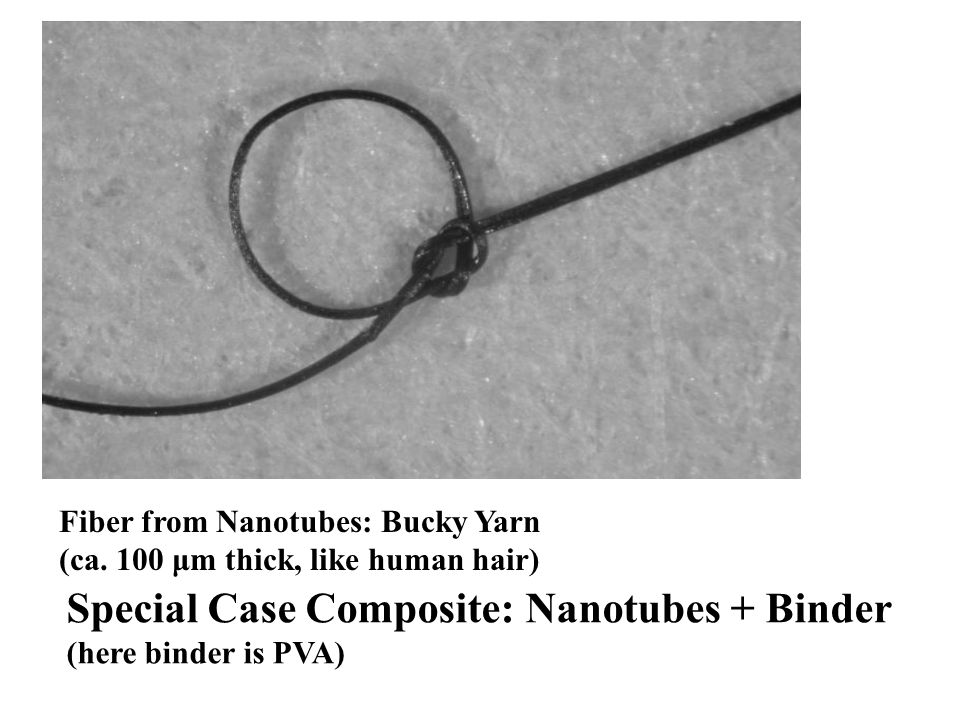

16 Fiber from Nanotubes: Bucky Yarn (ca. 100 μm thick, like human hair) Special Case Composite: Nanotubes + Binder (here binder is PVA)

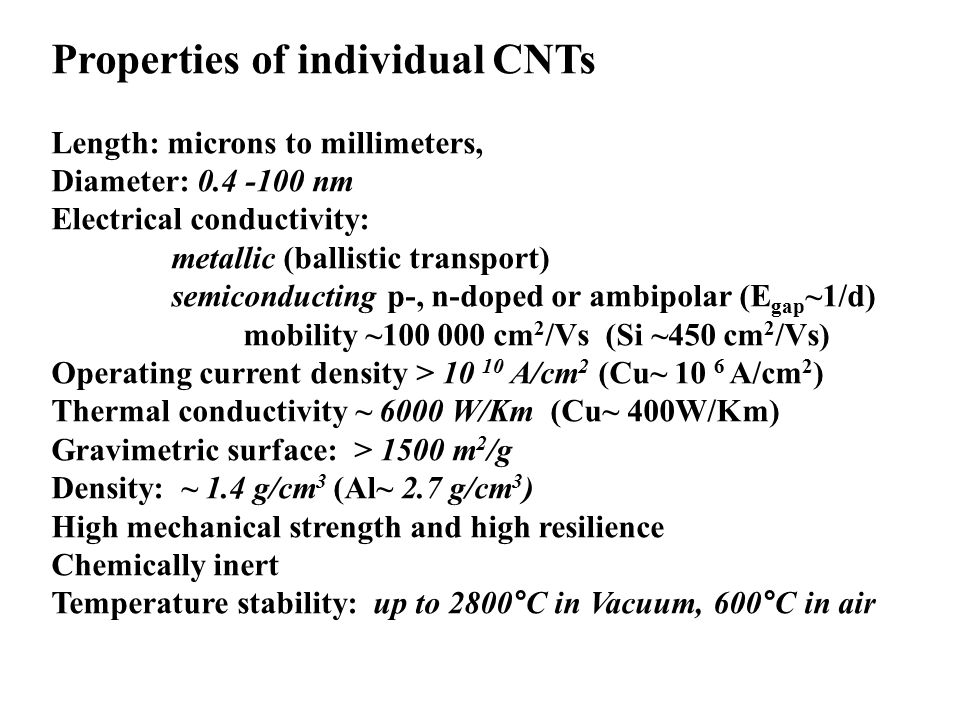

17 Properties of individual CNTs Length: microns to millimeters, Diameter: nm Electrical conductivity: metallic (ballistic transport) semiconducting p-, n-doped or ambipolar (E gap ~1/d) mobility ~ cm 2 /Vs (Si ~450 cm 2 /Vs) Operating current density > A/cm 2 (Cu~ 10 6 A/cm 2 ) Thermal conductivity ~ 6000 W/Km (Cu~ 400W/Km) Gravimetric surface: > 1500 m 2 /g Density: ~ 1.4 g/cm 3 (Al~ 2.7 g/cm 3 ) High mechanical strength and high resilience Chemically inert Temperature stability: up to 2800°C in Vacuum, 600°C in air

18 The Price of 1 Nanotube: 1 tube contains about 10**5 atoms 12g **23 atoms **18 tubes 1g --- 1k € **17 tubes 1 tube costs about 10 f€

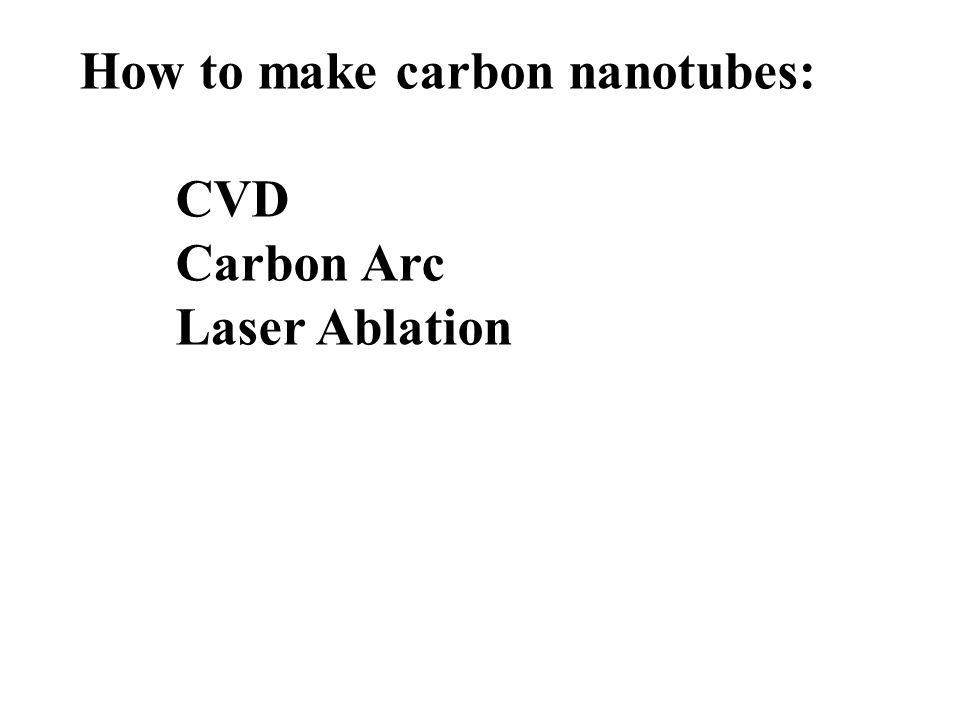

19 How to make carbon nanotubes: CVD Carbon Arc Laser Ablation

20

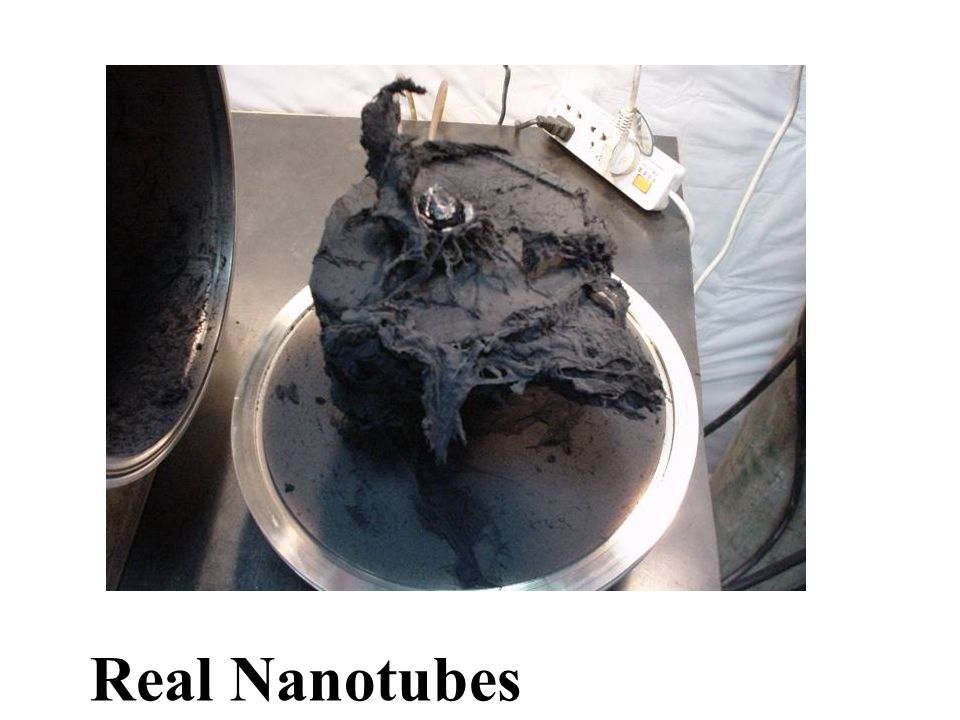

21 Real Nanotubes

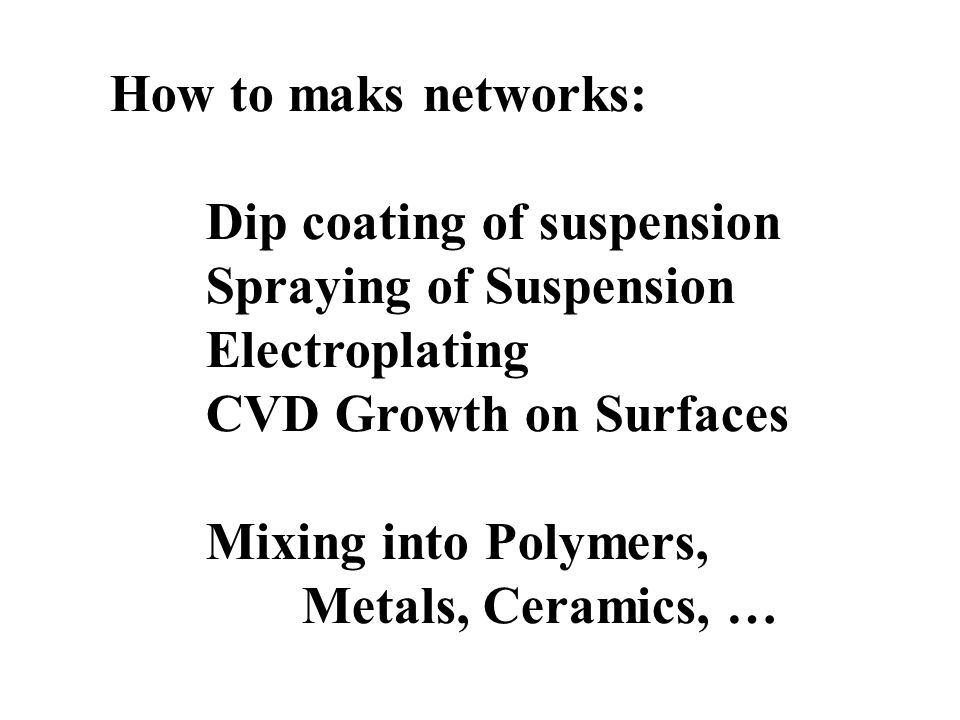

22 How to maks networks: Dip coating of suspension Spraying of Suspension Electroplating CVD Growth on Surfaces Mixing into Polymers, Metals, Ceramics, …

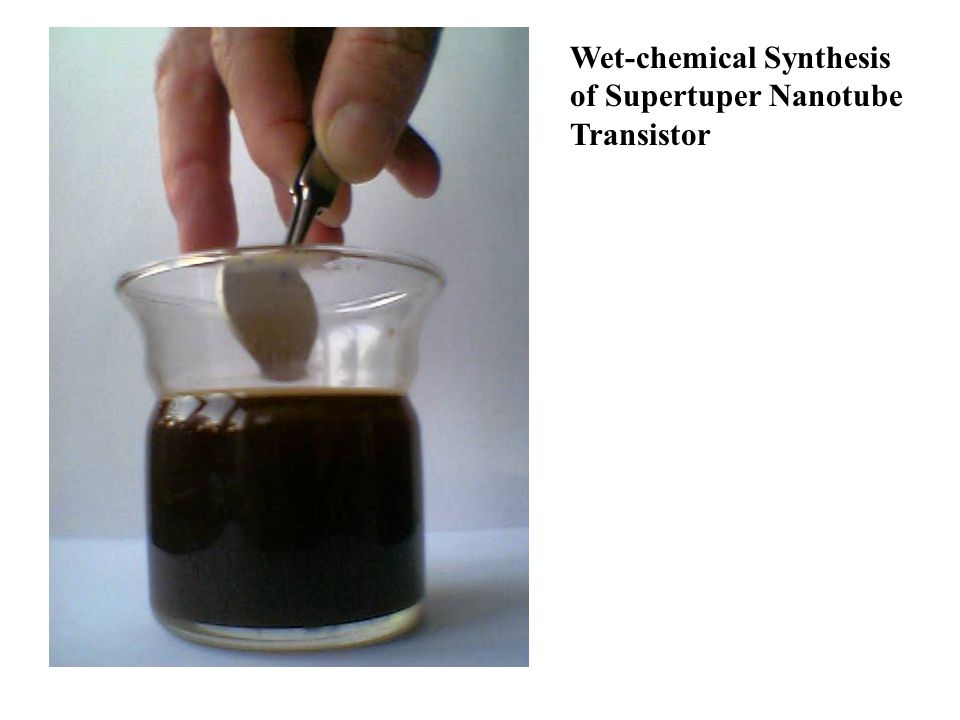

23 Wet-chemical Synthesis of Supertuper Nanotube Transistor

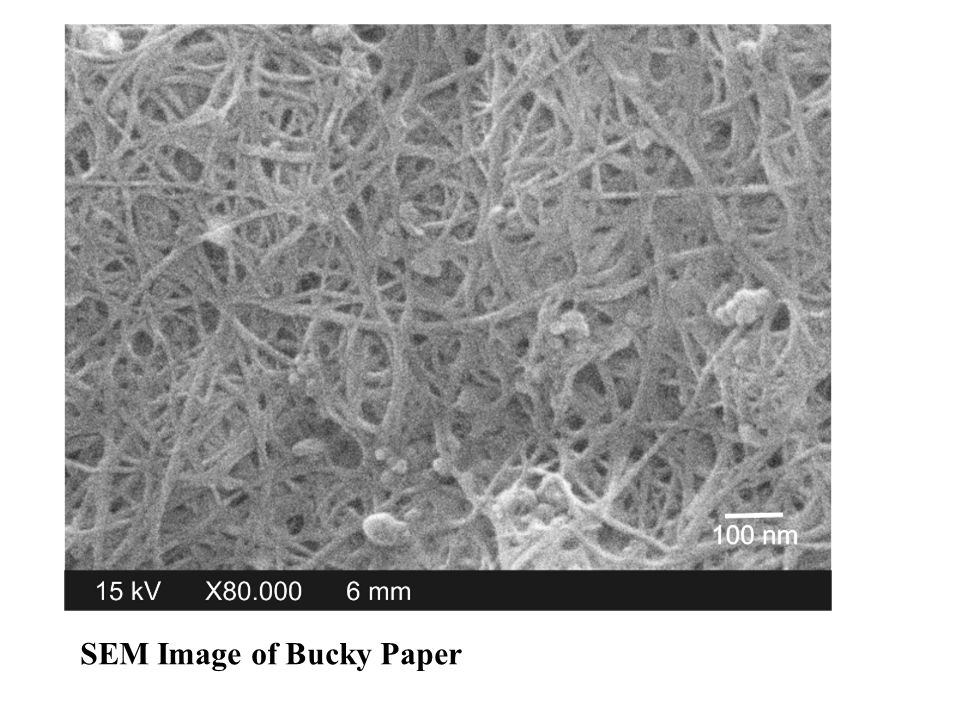

24 SEM Image of Bucky Paper

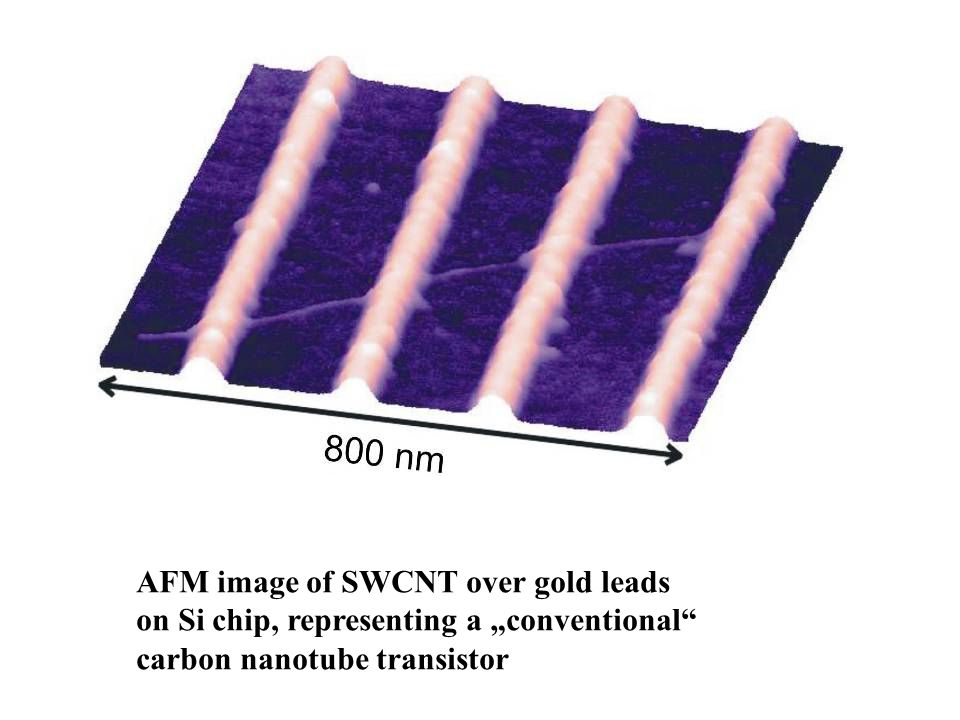

25 AFM image of SWCNT over gold leads on Si chip, representing a „conventional“ carbon nanotube transistor

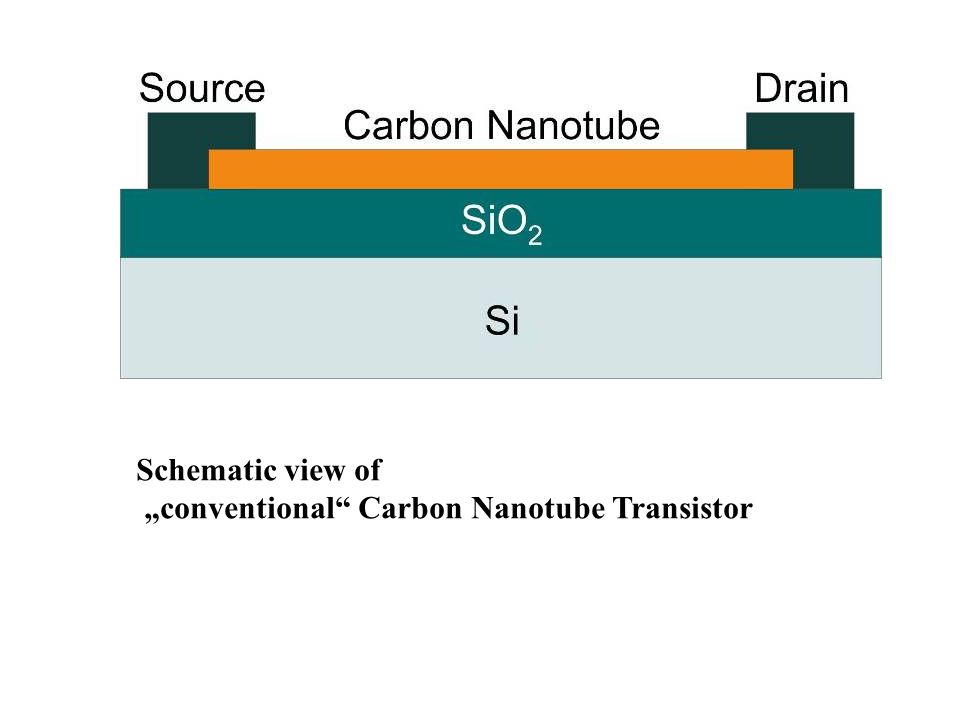

26 Schematic view of „conventional“ Carbon Nanotube Transistor

27 Vertical Nanotube Transistor (Patented by Infineon -and by Samsung ?!)

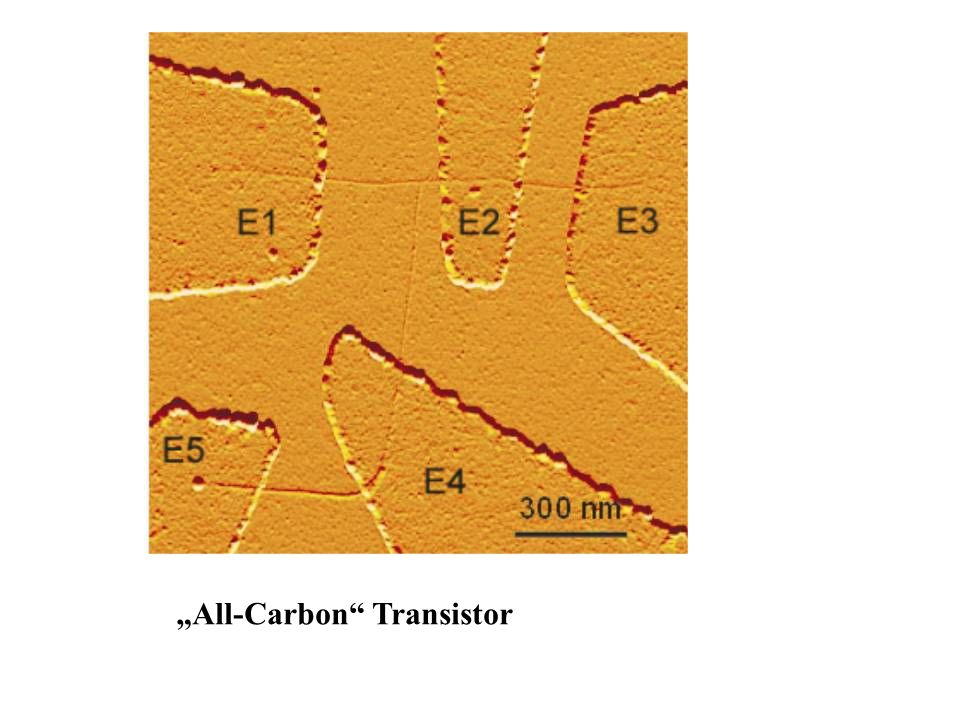

28 „All-Carbon“ Transistor

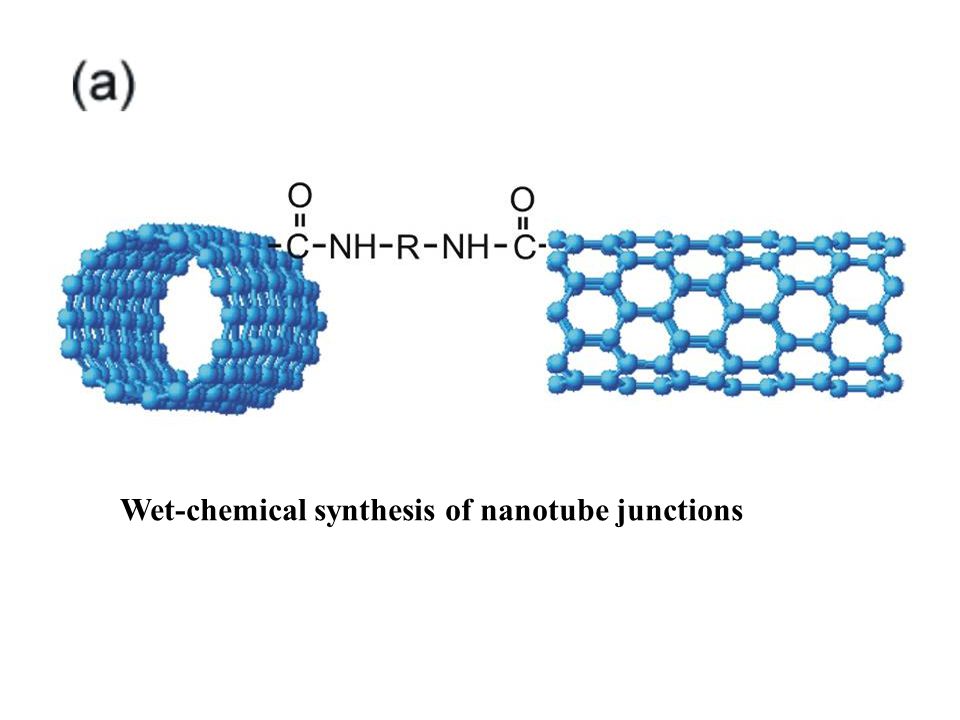

29 Wet-chemical synthesis of nanotube junctions

30 ) Dy atom Metallofullerene Peapod

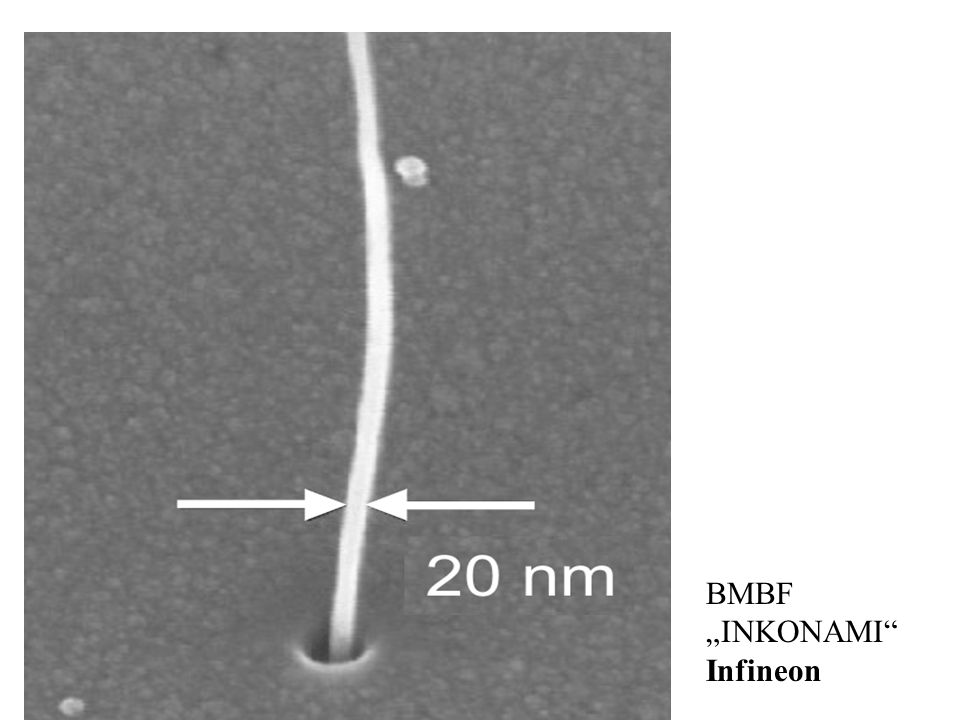

31 BMBF „INKONAMI“ Infineon

32

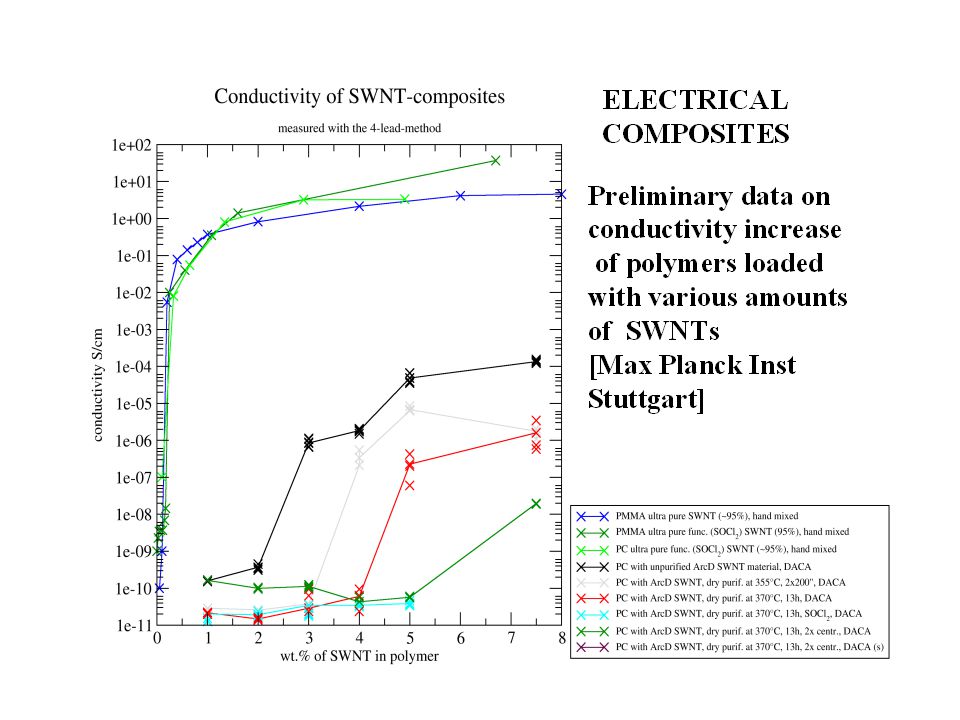

33

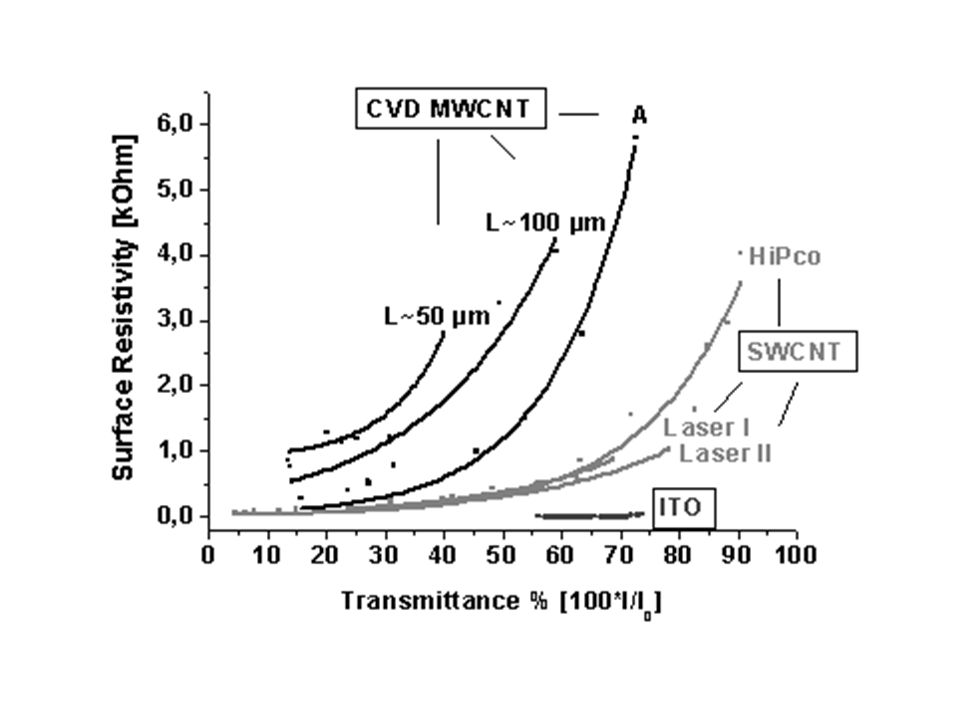

34

35 Summary Transistors, Sensors Vias and Interconnects Composites Transparent Conducting Films Supercapacitors Membranes for Fuel Cells Biocompatible Materials
