Jon linthicum Classwork:

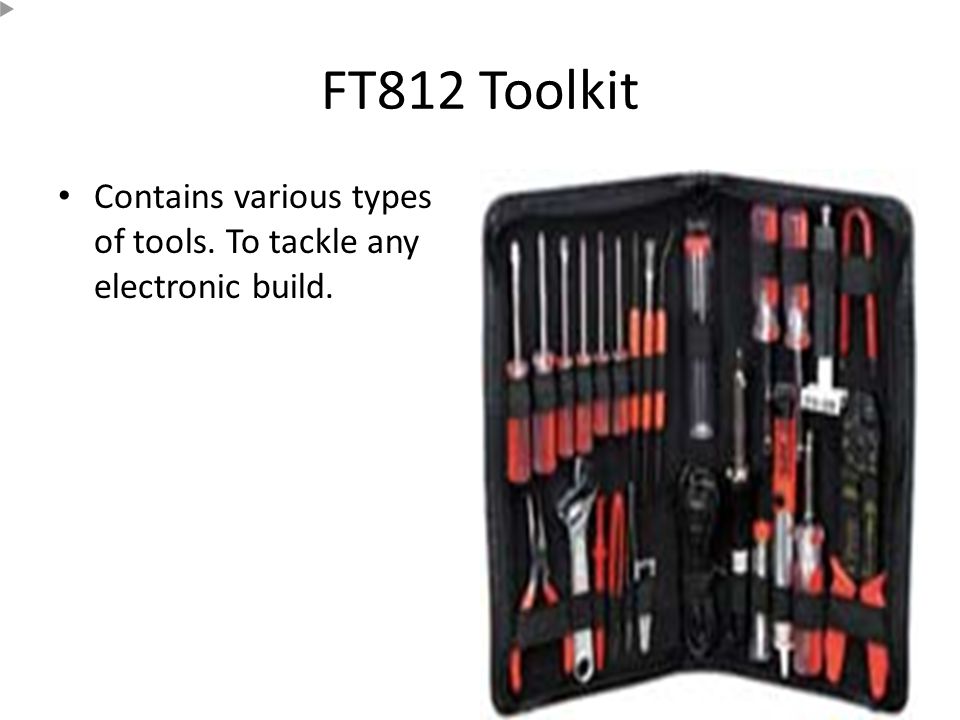

FT812 Toolkit Contains various types of tools. To tackle any electronic build.

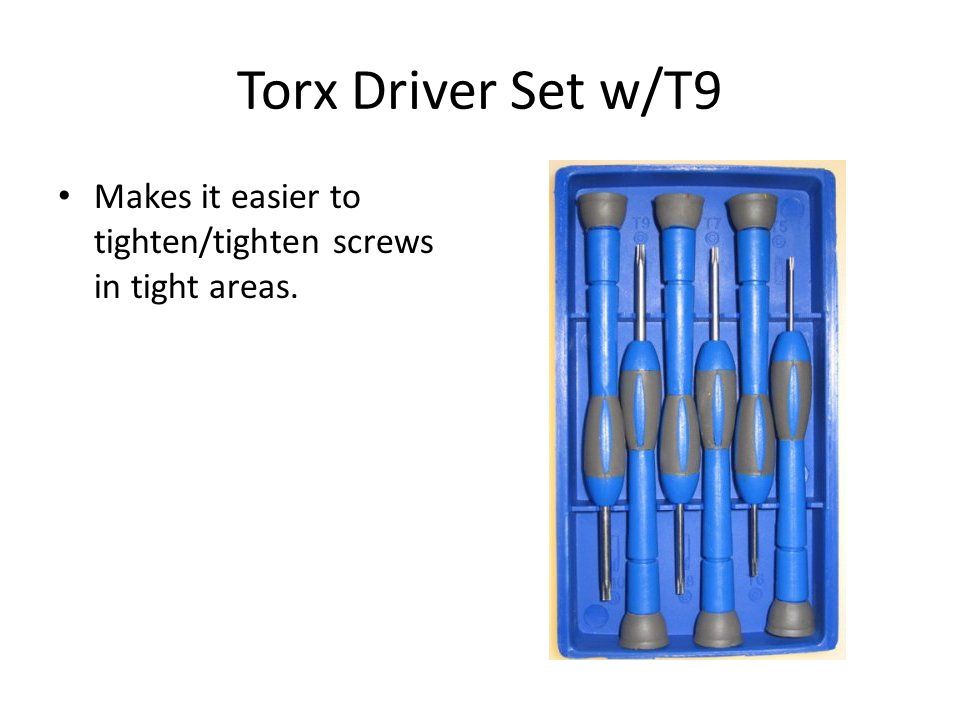

Torx Driver Set w/T9 Makes it easier to tighten/tighten screws in tight areas.

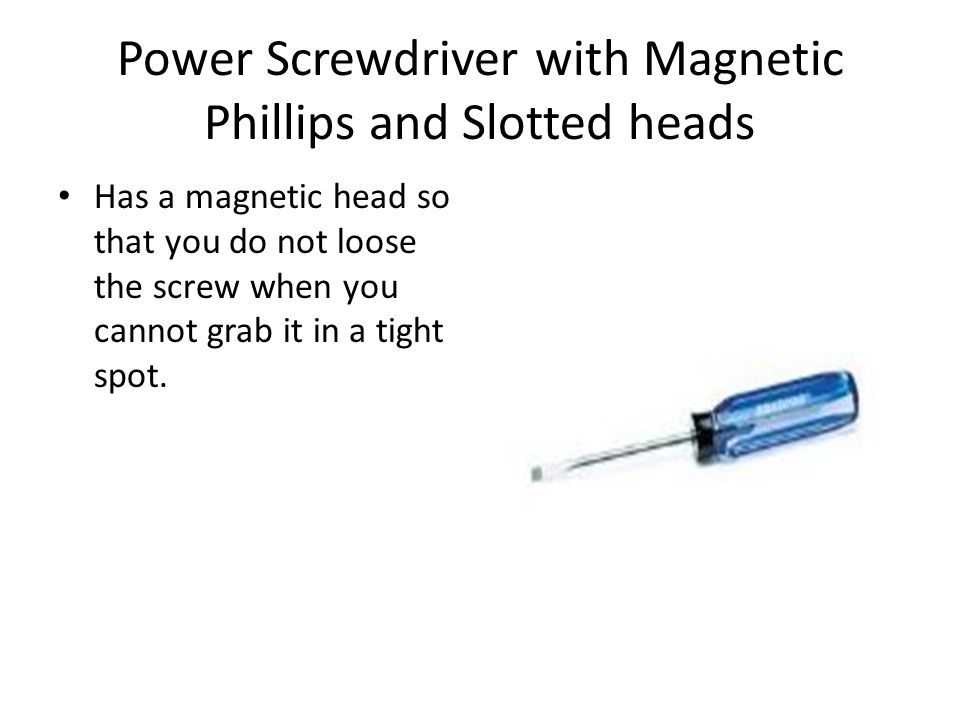

Power Screwdriver with Magnetic Phillips and Slotted heads Has a magnetic head so that you do not loose the screw when you cannot grab it in a tight spot.
Small Flashlight Easy use to get in tight areas. Light for the convinces.
Either net cable tester Test the connection going form the source to the display system.
Network/Phone Crimper Strips the rubber protective cover so you do not damage the wire of shock yourself.

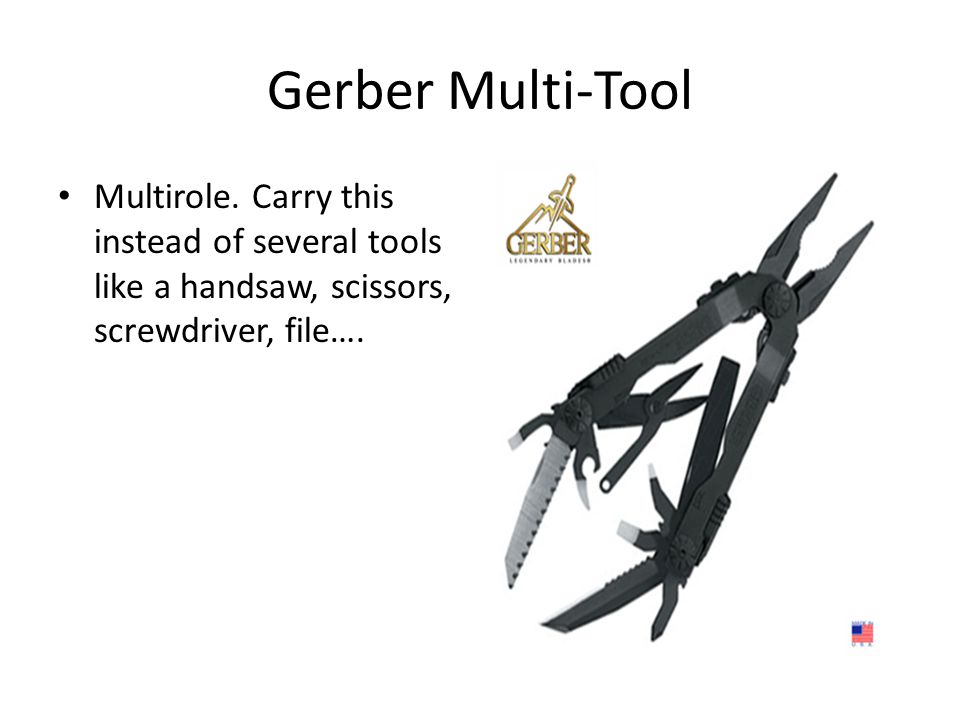

Gerber Multi-Tool Multirole. Carry this instead of several tools like a handsaw, scissors, screwdriver, file….
Cheap Digital multi-meter to test DC Voltage and Continuity Reads the volt coming throw the line.
Hand Tools By: Kyle Powley. Torx Driver Set This is a driver set that are like hex keys.
Hand Tools By Tynedra Murphy. Torx Driver Set Set of screwdrivers varying in sizes.
Technician Hand Tools By:Dillan Hyatt. FT812 Toolkit A variety of tools used to help complete a task.
