1
Lecture 15 Rotational Dynamics

2
**Moment of Inertia The moment of inertia I:**

The total kinetic energy of a rolling object is the sum of its linear and rotational kinetic energies:

3
Torque We know that the same force will be much more effective at rotating an object such as a nut or a door if our hand is not too close to the axis. This is why we have long- handled wrenches, and why doorknobs are not next to hinges.

4
**The torque increases as the force increases, and also as the distance increases.**

5
**Only the tangential component of force causes a torque**

6
**A more general definition of torque:**

Fsinθ Fcosθ You can think of this as either: - the projection of force on to the tangential direction OR - the perpendicular distance from the axis of rotation to line of the force

7
Torque If the torque causes a counterclockwise angular acceleration, it is positive; if it causes a clockwise angular acceleration, it is negative.

8
**e) all are equally effective**

Using a Wrench a c d b You are using a wrench to tighten a rusty nut. Which arrangement will be the most effective in tightening the nut? e) all are equally effective

9
**e) all are equally effective**

Using a Wrench a c d b You are using a wrench to tighten a rusty nut. Which arrangement will be the most effective in tightening the nut? Because the forces are all the same, the only difference is the lever arm. The arrangement with the largest lever arm (case b) will provide the largest torque. e) all are equally effective

10
**The gardening tool shown is used to pull weeds. If a 1**

The gardening tool shown is used to pull weeds. If a 1.23 N-m torque is required to pull a given weed, what force did the weed exert on the tool? What force was used on the tool?

11
**Force and Angular Acceleration**

Consider a mass m rotating around an axis a distance r away. Newton’s second law: a = r α Or equivalently,

12
**Torque and Angular Acceleration**

Once again, we have analogies between linear and angular motion:

13
The L-shaped object shown below consists of three masses connected by light rods. What torque must be applied to this object to give it an angular acceleration of 1.2 rad/s2 if it is rotated about (a) the x axis, (b) the y axis (c) the z axis (through the origin and perpendicular to the page) (a) (b) (c)

14
The L-shaped object shown below consists of three masses connected by light rods. What torque must be applied to this object to give it an angular acceleration of 1.2 rad/s2 if it is rotated about an axis parallel to the y axis, and through the 2.5kg mass?

15
Dumbbell I a) case (a) b) case (b) c) no difference d) it depends on the rotational inertia of the dumbbell A force is applied to a dumbbell for a certain period of time, first as in (a) and then as in (b). In which case does the dumbbell acquire the greater center-of-mass speed ? Answer: c

16
Dumbbell I a) case (a) b) case (b) c) no difference d) it depends on the rotational inertia of the dumbbell A force is applied to a dumbbell for a certain period of time, first as in (a) and then as in (b). In which case does the dumbbell acquire the greater center-of-mass speed ? Because the same force acts for the same time interval in both cases, the change in momentum must be the same, thus the CM velocity must be the same.

17
Static Equilibrium Static equilibrium describes an object at rest – neither rotating nor translating. If the net torque is zero, it doesn’t matter which axis we consider rotation to be around; you choose the axis of rotation This can greatly simplify a problem X

18
**Center of Mass and Gravitational Force on an Extended Object**

xj mj m1 Fj = mj g ... X axis of rotation center of mass mj m1 xj ... xcm F = Mg X axis of rotation So, forget about the weight of all the individual pieces. The net torque will be equivalent to the total weight of the object, pulling from the center of mass of the object

19
Balance If an extended object is to be balanced, it must be supported through its center of mass.

20
**Center of Mass and Balance**

This fact can be used to find the center of mass of an object – suspend it from different axes and trace a vertical line. The center of mass is where the lines meet.

21
**Balancing Rod 1m 1kg a) ¼ kg**

b) ½ kg c) 1 kg d) 2 kg e) 4 kg A 1-kg ball is hung at the end of a rod 1-m long. If the system balances at a point on the rod 0.25 m from the end holding the mass, what is the mass of the rod? Answer: c 1kg 1m

22
Balancing Rod a) ¼ kg b) ½ kg c) 1 kg d) 2 kg e) 4 kg A 1-kg ball is hung at the end of a rod 1-m long. If the system balances at a point on the rod 0.25 m from the end holding the mass, what is the mass of the rod? The total torque about the pivot must be zero !! The CM of the rod is at its center, 0.25 m to the right of the pivot. Because this must balance the ball, which is the same distance to the left of the pivot, the masses must be the same !! 1 kg X CM of rod same distance mROD = 1 kg

23
When you arrive at Duke’s Dude Ranch, you are greeted by the large wooden sign shown below. The left end of the sign is held in place by a bolt, the right end is tied to a rope that makes an angle of 20.0° with the horizontal. If the sign is uniform, 3.20 m long, and has a mass of 16.0 kg, what is (a) the tension in the rope, and (b) the horizontal and vertical components of the force, exerted by the bolt?

24
**(a) the tension in the rope, and **

When you arrive at Duke’s Dude Ranch, you are greeted by the large wooden sign shown below. The left end of the sign is held in place by a bolt, the right end is tied to a rope that makes an angle of 20.0° with the horizontal. If the sign is uniform, 3.20 m long, and has a mass of 16.0 kg, what is (a) the tension in the rope, and (b) the horizontal and vertical components of the force exerted by the bolt? Torque, vertical force, and horizontal force are all zero But I don’t know two of the forces! I can get rid of one of them, by choosing my axis of rotation where the force is applied. Choose the bolt as the axis of rotation, then: (b)

25
**F = ma implies Newton’s first law:**

without a force, there is no acceleration Now we have spinning chair with spinning wheel Linear momentum was the concept that tied together Newton’s Laws, is there something similar for rotational motion?

26

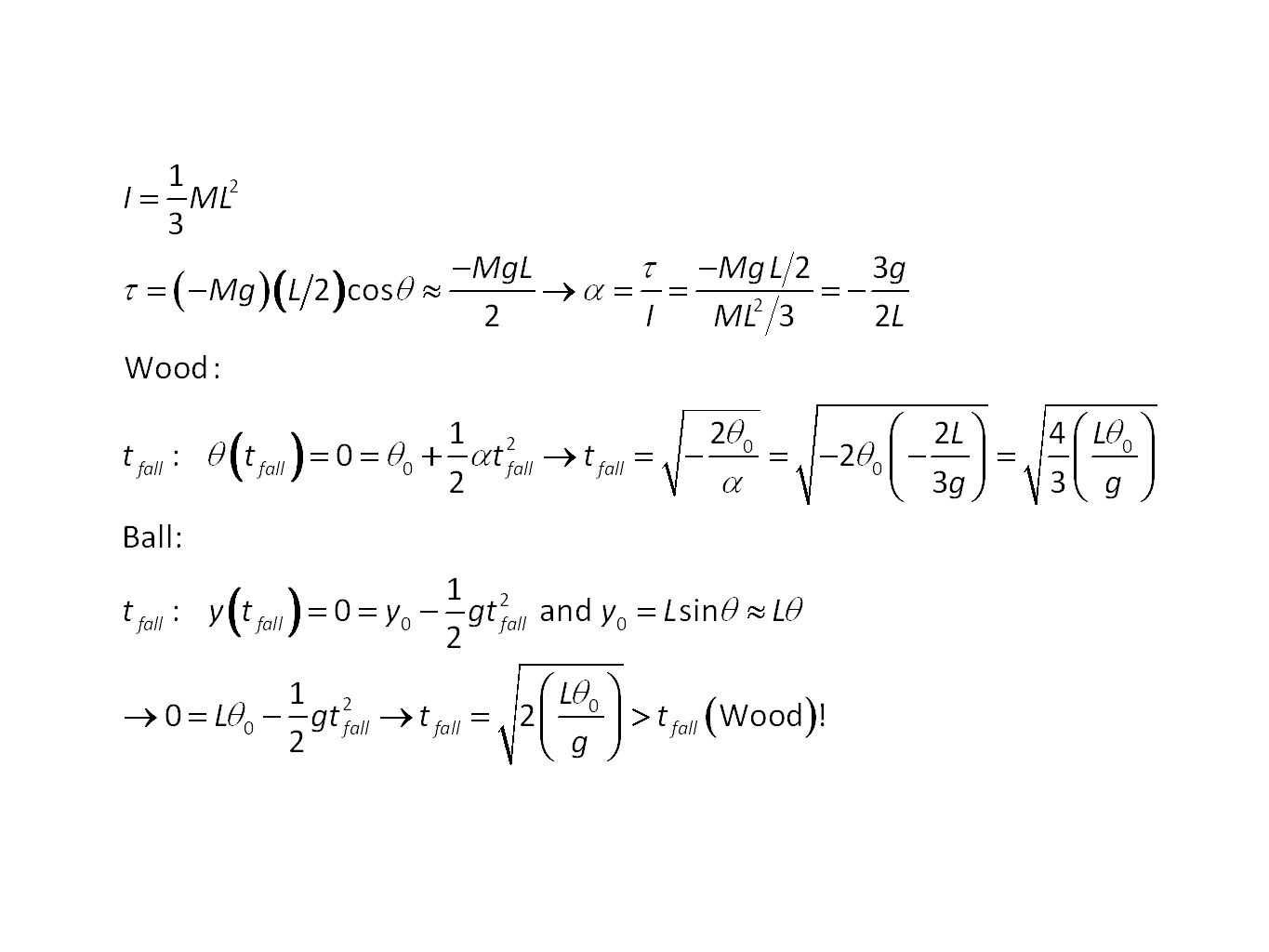

**Angular and linear acceleration**

28
**Angular Momentum Consider a particle moving in a circle of radius r,**

I = mr2 L = Iω = mr2ω = rm(rω) = rmvt = rpt

29
**Angular Momentum For more general motion (not necessarily circular),**

The tangential component of the momentum, times the distance

30
Angular Momentum For an object of constant moment of inertia, consider the rate of change of angular momentum spinning chair with weights analogous to 2nd Law for Linear Motion

31
**Conservation of Angular Momentum**

If the net external torque on a system is zero, the angular momentum is conserved. As the moment of inertia decreases, the angular speed increases, so the angular momentum does not change.

32
**Figure Skater a) the same b) larger because she’s rotating faster**

A figure skater spins with her arms extended. When she pulls in her arms, she reduces her rotational inertia and spins faster so that her angular momentum is conserved. Compared to her initial rotational kinetic energy, her rotational kinetic energy after she pulls in her arms must be: a) the same b) larger because she’s rotating faster c) smaller because her rotational inertia is smaller

33
**Figure Skater a) the same b) larger because she’s rotating faster**

A figure skater spins with her arms extended. When she pulls in her arms, she reduces her rotational inertia and spins faster so that her angular momentum is conserved. Compared to her initial rotational kinetic energy, her rotational kinetic energy after she pulls in her arms must be: a) the same b) larger because she’s rotating faster c) smaller because her rotational inertia is smaller KErot = I 2 = L (used L = Iω ). Because L is conserved, larger ω means larger KErot. Where does the “extra” energy come from?

34
**KErot = I 2 = L 2 (used L = Iω )**

KErot = I 2 = L 2 (used L = Iω ). Because L is conserved, larger ω means larger KErot. Where does the “extra” energy come from? As her hands come in, the velocity of her arms is not only tangential... but also radial. So the arms are accelerated inward, and the force required times the Δr does the work to raise the kinetic energy

35
**Conservation of Angular Momentum**

Angular momentum is also conserved in rotational collisions larger I, same total angular momentum, smaller angular velocity

36
**Rotational Work s = r Δθ W = (r Δθ) F = rF Δθ = τ Δθ τ = r F**

A torque acting through an angular displacement does work, just as a force acting through a distance does. Consider a tangential force on a mass in circular motion: τ = r F Work is force times the distance on the arc: s = r Δθ W = s F W = (r Δθ) F = rF Δθ = τ Δθ The work-energy theorem applies as usual.

37
**Rotational Work and Power**

Power is the rate at which work is done, for rotational motion as well as for translational motion. Again, note the analogy to the linear form (for constant force along motion):

38
**Dumbbell II a) case (a) b) case (b)**

c) no difference d) it depends on the rotational inertia of the dumbbell A force is applied to a dumbbell for a certain period of time, first as in (a) and then as in (b). In which case does the dumbbell acquire the greater energy ? Answer: b

39
**Dumbbell II a) case (a) b) case (b)**

c) no difference d) it depends on the rotational inertia of the dumbbell A force is applied to a dumbbell for a certain period of time, first as in (a) and then as in (b). In which case does the dumbbell acquire the greater energy ? Answer: b If the CM velocities are the same, the translational kinetic energies must be the same. Because dumbbell (b) is also rotating, it has rotational kinetic energy in addition.

40
**A 2. 85-kg bucket is attached to a disk-shaped pulley of radius 0**

A 2.85-kg bucket is attached to a disk-shaped pulley of radius m and mass kg. If the bucket is allowed to fall, (a) what is its linear acceleration? (b) What is the angular acceleration of the pulley? (c) How far does the bucket drop in 1.50 s?

41
**A 2. 85-kg bucket is attached to a disk-shaped pulley of radius 0**

A 2.85-kg bucket is attached to a disk-shaped pulley of radius m and mass kg. If the bucket is allowed to fall, (a) What is its linear acceleration? (b) What is the angular acceleration of the pulley? (c) How far does the bucket drop in 1.50 s? (a) Pulley spins as bucket falls (b) (c)

42
**The Vector Nature of Rotational Motion**

The direction of the angular velocity vector is along the axis of rotation. A right-hand rule gives the sign. Right-hand Rule: your fingers should follow the velocity vector around the circle Optional material Section 11.9

43
The Torque Vector Similarly, the right-hand rule gives the direction of the torque vector, which also lies along the assumed axis or rotation Right-hand Rule: point your RtHand fingers along the force, then follow it “around”. Thumb points in direction of torque. Optional material Section 11.9

44
**The linear momentum of components related to the vector angular momentum of the system**

Optional material Section 11.9

45
**Applied tangential force related to the torque vector**

Optional material Section 11.9

46
**Applied torque over time related to change in the vector angular momentum.**

hanging wheel Optional material Section 11.9

47
**Spinning Bicycle Wheel**

You are holding a spinning bicycle wheel while standing on a stationary turntable. If you suddenly flip the wheel over so that it is spinning in the opposite direction, the turntable will: a) remain stationary b) start to spin in the same direction as before flipping c) start to spin in the same direction as after flipping

48
**What is the torque (from gravity) around the supporting point?**

Which direction does it point? Without the spinning wheel: does this make sense? With the spinning wheel: how is L changing? Why does the wheel not fall? Does this violate Newton’s 2nd?
