By Dr. Ahmed Mostafa Assist. Prof. of anesthesia & I.C.U. Benha faculty of medicine.

Similar presentations


Presentation on theme: "By Dr. Ahmed Mostafa Assist. Prof. of anesthesia & I.C.U. Benha faculty of medicine."— Presentation transcript:

1

2

3 By Dr. Ahmed Mostafa Assist. Prof. of anesthesia & I.C.U. Benha faculty of medicine

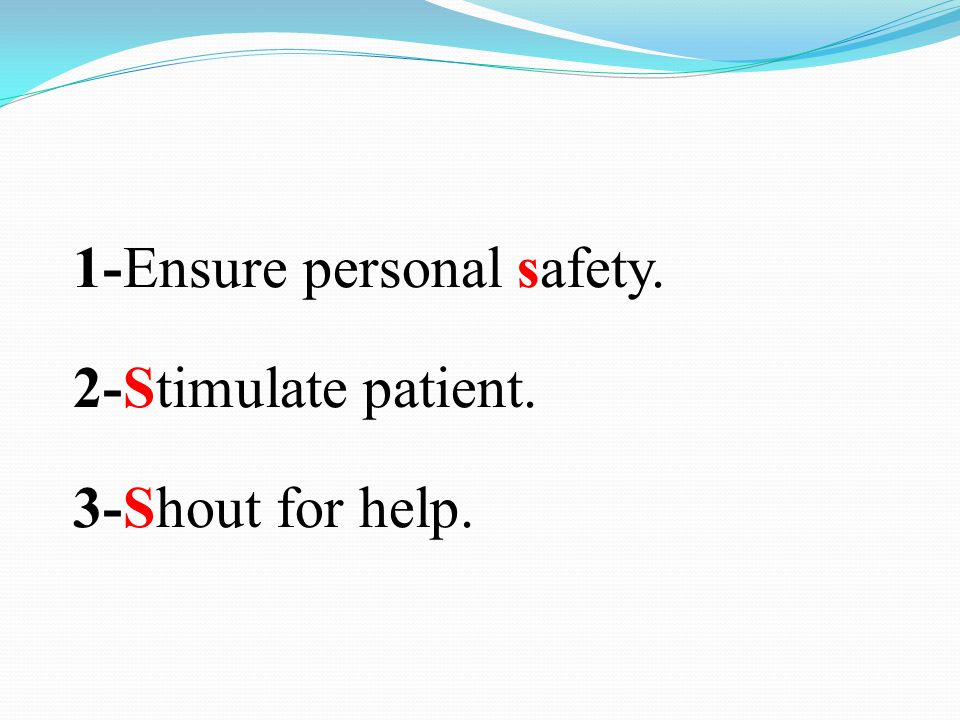

4 1-Ensure personal safety. 2-Stimulate patient. 3-Shout for help.

5 Airway Signs of airway obstruction: - Snoring. - Paradoxical chest and abdominal movement (see- saw respirations). - Use of accessory muscles of respiration. - Cyanosis is a late sign. Airway may be: - Clear & safe. - At risk. - Obstructed : Partial or complete.

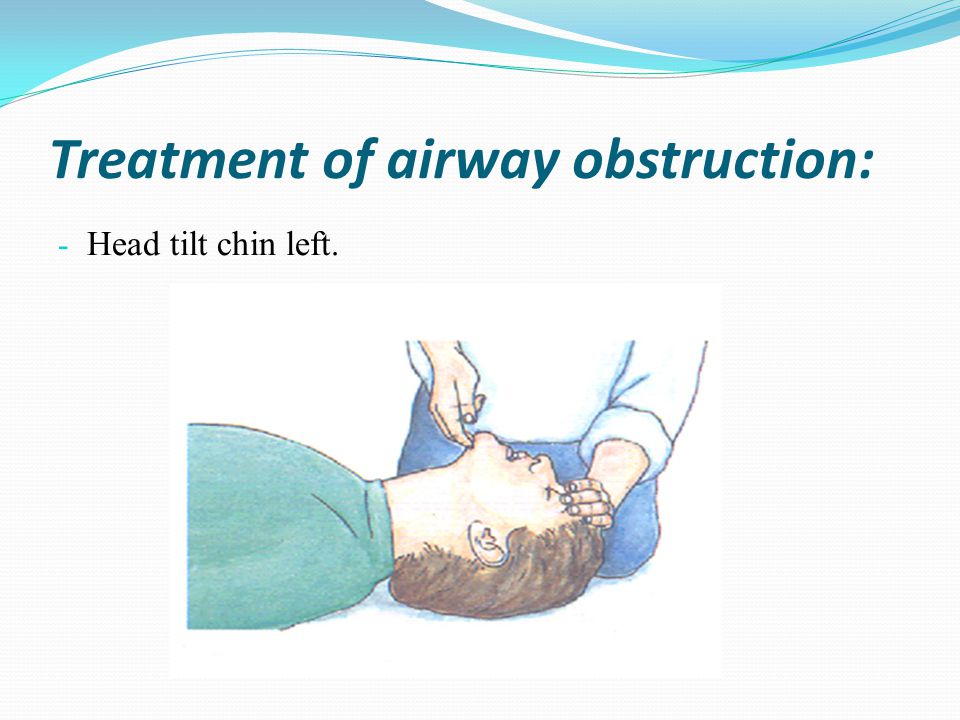

6 Treatment of airway obstruction: - Head tilt chin left.

7

8 Treatment of airway obstruction: - Jaw thrust.

9

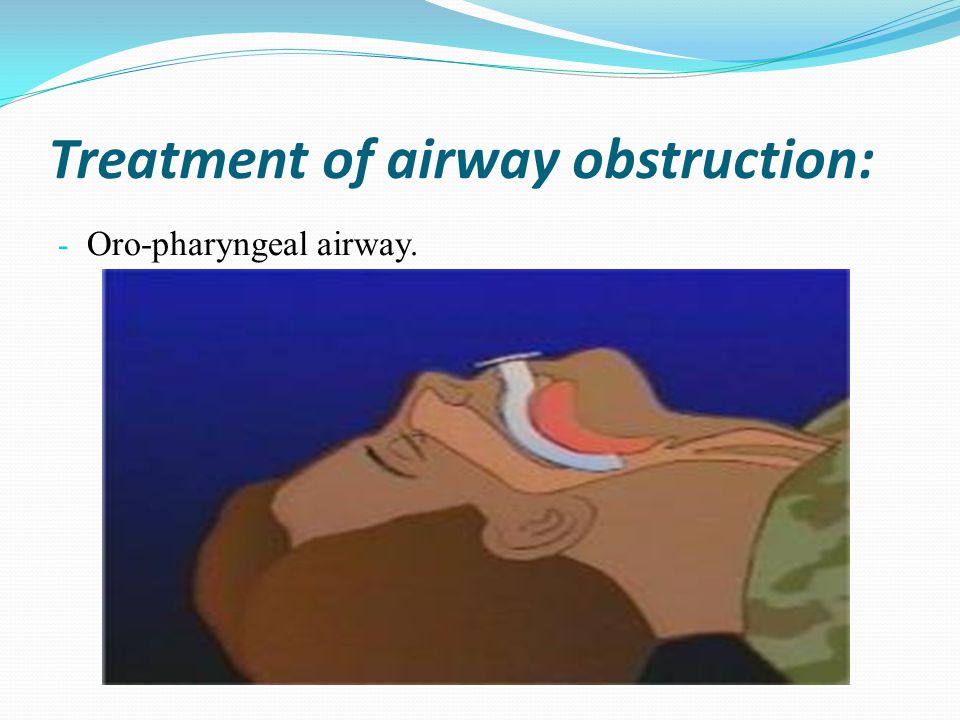

10 Treatment of airway obstruction: - Oro-pharyngeal airway.

11

12

13

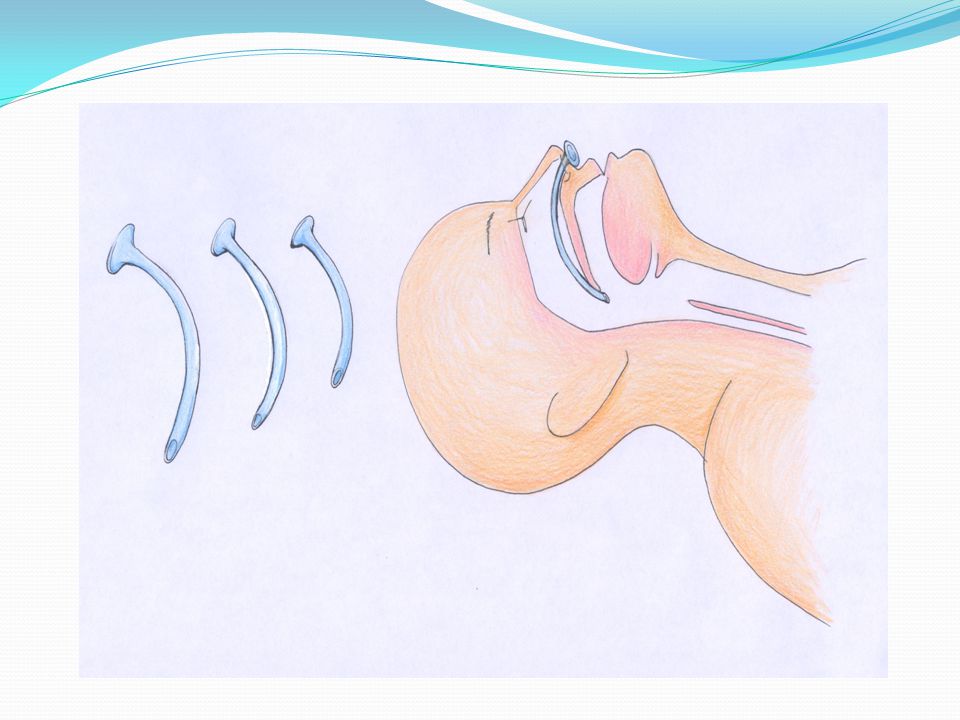

14 Treatment of airway obstruction: Nasal airway.

15

16 Treatment of airway obstruction: - Oxygen. - Suction. - In case of trauma  neck collar.

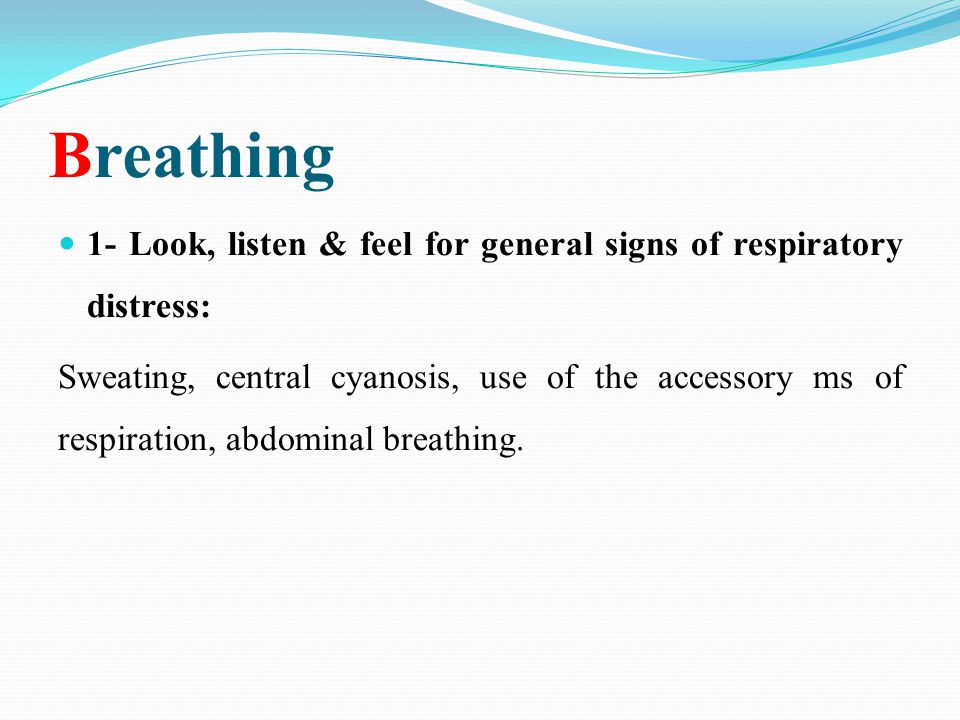

17 Breathing 1- Look, listen & feel for general signs of respiratory distress: Sweating, central cyanosis, use of the accessory ms of respiration, abdominal breathing.

18 Breathing * Rate: - Normal rate is Critically ill patient may be: o < 6 min. o > 30 min * Tidal volume (depth of breathing). * Work of breathing: (chest deformity, abdominal distension and unequal chest movement). * Oxygenation: e.g., cyanosis, SaO2 (pulse oximeter) Give: oxygen.

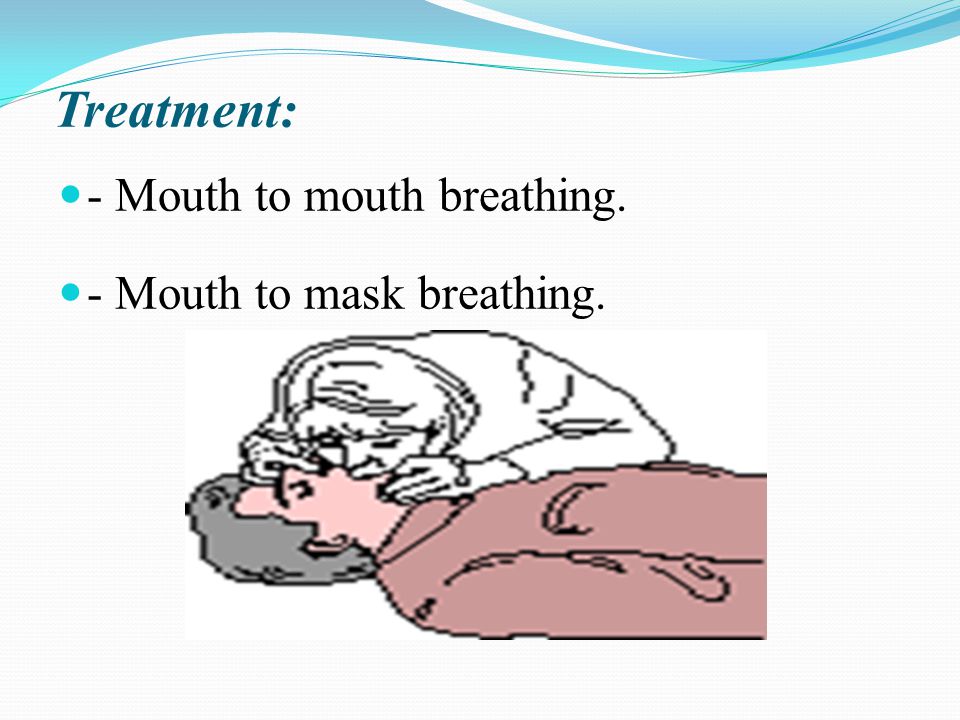

19 Treatment: - Mouth to mouth breathing. - Mouth to mask breathing.

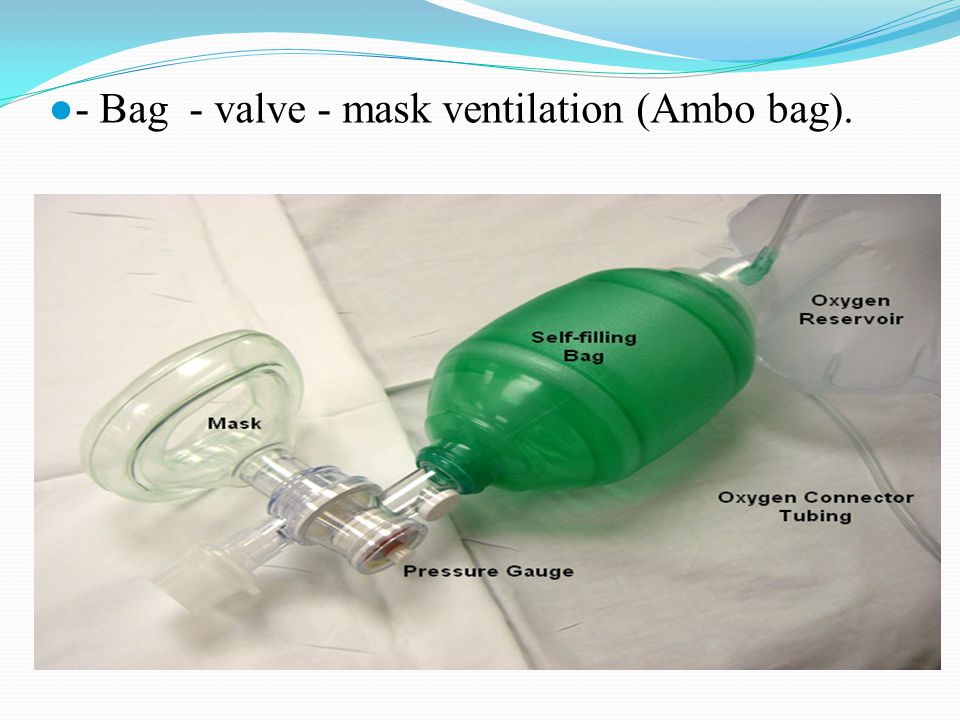

20 ●- Bag - valve - mask ventilation (Ambo bag).

21 ●- Endotracheal intubation.

22

23

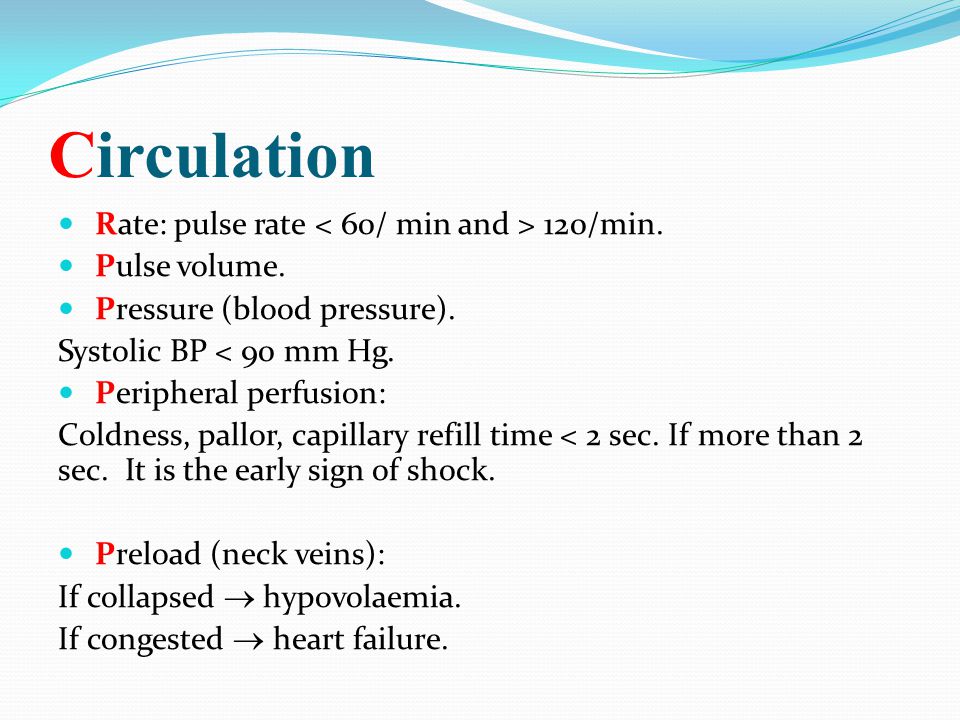

24 Circulation Rate: pulse rate 120/min. Pulse volume. Pressure (blood pressure). Systolic BP < 90 mm Hg. Peripheral perfusion: Coldness, pallor, capillary refill time < 2 sec. If more than 2 sec. It is the early sign of shock. Preload (neck veins): If collapsed  hypovolaemia. If congested  heart failure.

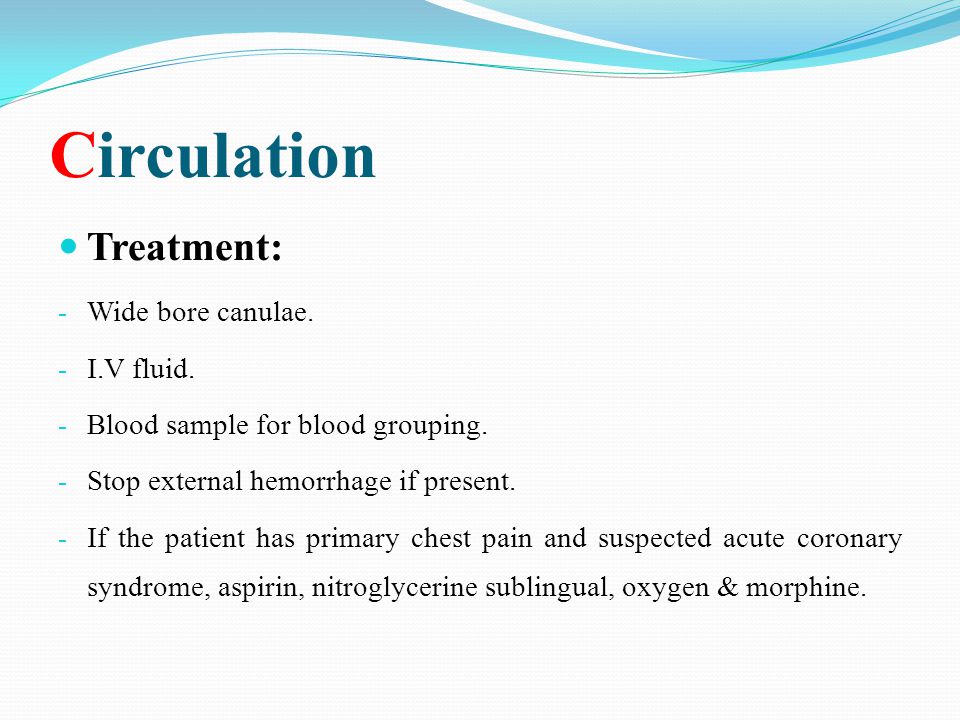

25 Circulation Treatment: - Wide bore canulae. - I.V fluid. - Blood sample for blood grouping. - Stop external hemorrhage if present. - If the patient has primary chest pain and suspected acute coronary syndrome, aspirin, nitroglycerine sublingual, oxygen & morphine.

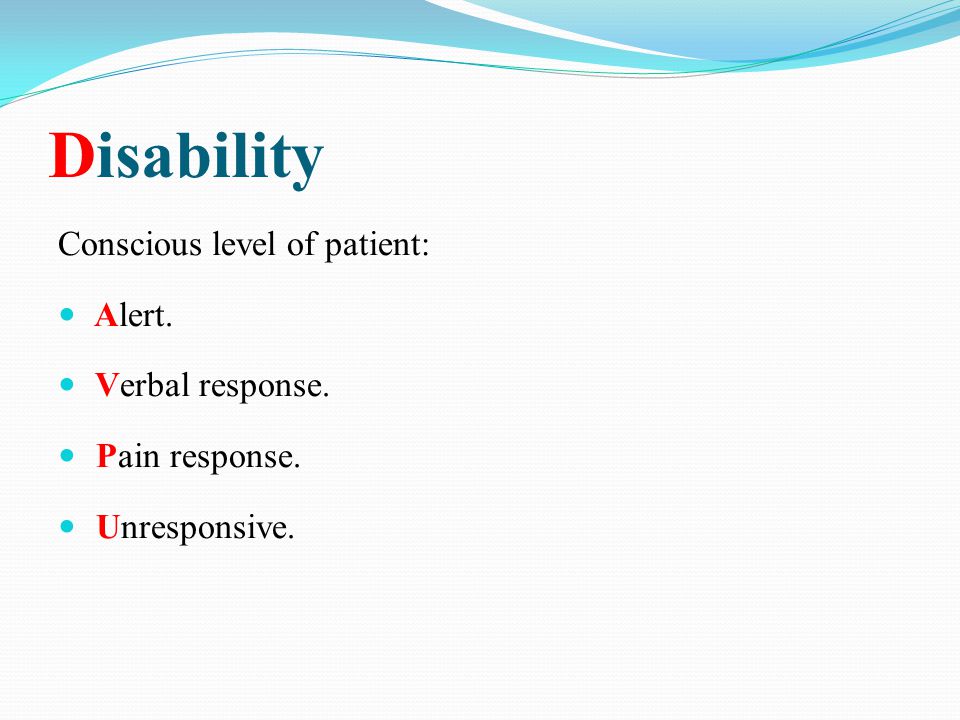

26 Disability Conscious level of patient: Alert. Verbal response. Pain response. Unresponsive.

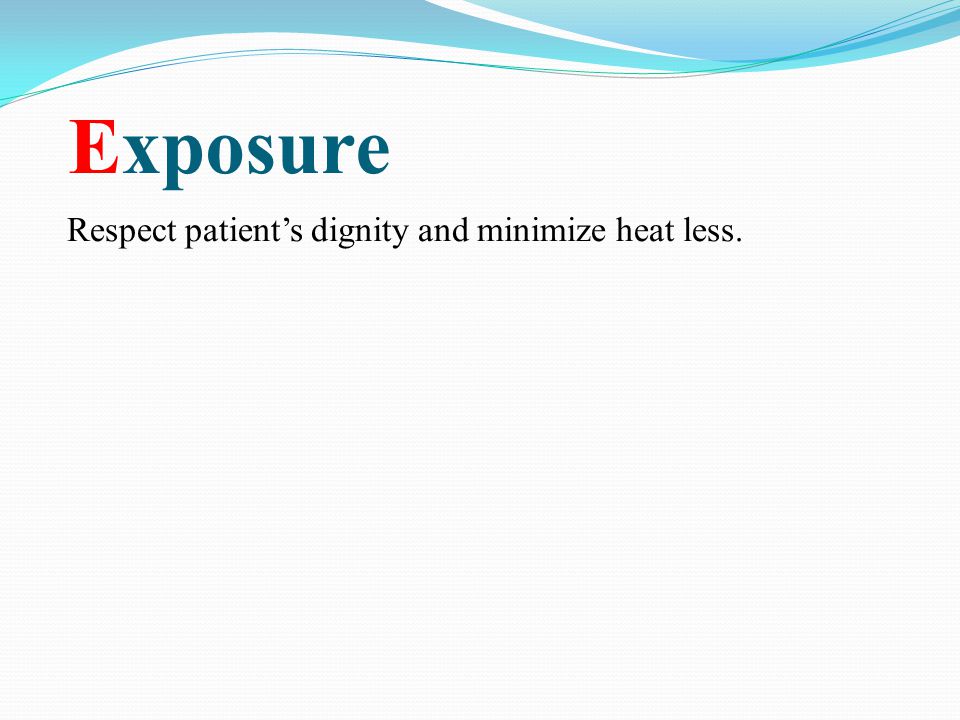

27 Exposure Respect patient’s dignity and minimize heat less.

28

29 Thank you Dr. Ahmed Mostafa
