1 Isolde new vistar and Isolde beam interlocks OP DAYS 2009 Emiliano Piselli - Jose-Luis Sanchez Alvarez BE-OP-PSB

2 25/02/2009 Emiliano Piselli 2 Outline ISOLDE Where? What? Isolde Beam Vistar Display infos VISTAR... FDF (Fixed Display Framework) Interlocks system Configuration GUI Conclusions

3 25/02/2009 Emiliano Piselli 3 ISOLDE

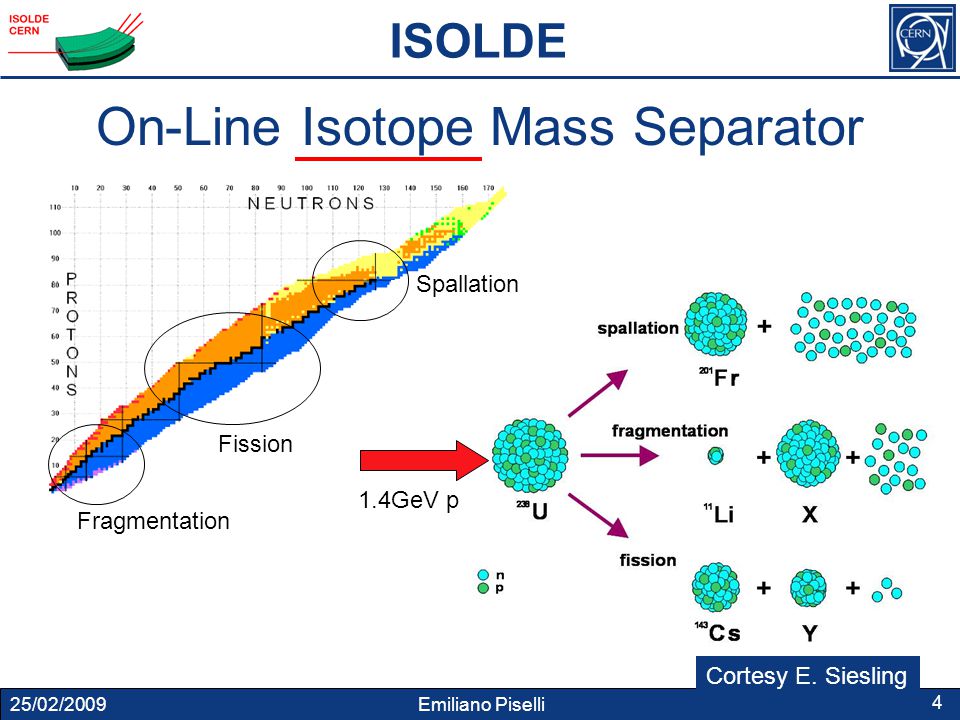

4 25/02/2009 Emiliano Piselli 4 On-Line Isotope Mass Separator Fragmentation Fission Spallation 1.4GeV p ISOLDE Cortesy E. Siesling

5 25/02/2009 Emiliano Piselli Cortesy E. Siesling ISOLDE 5 On-Line Isotope Mass Separator

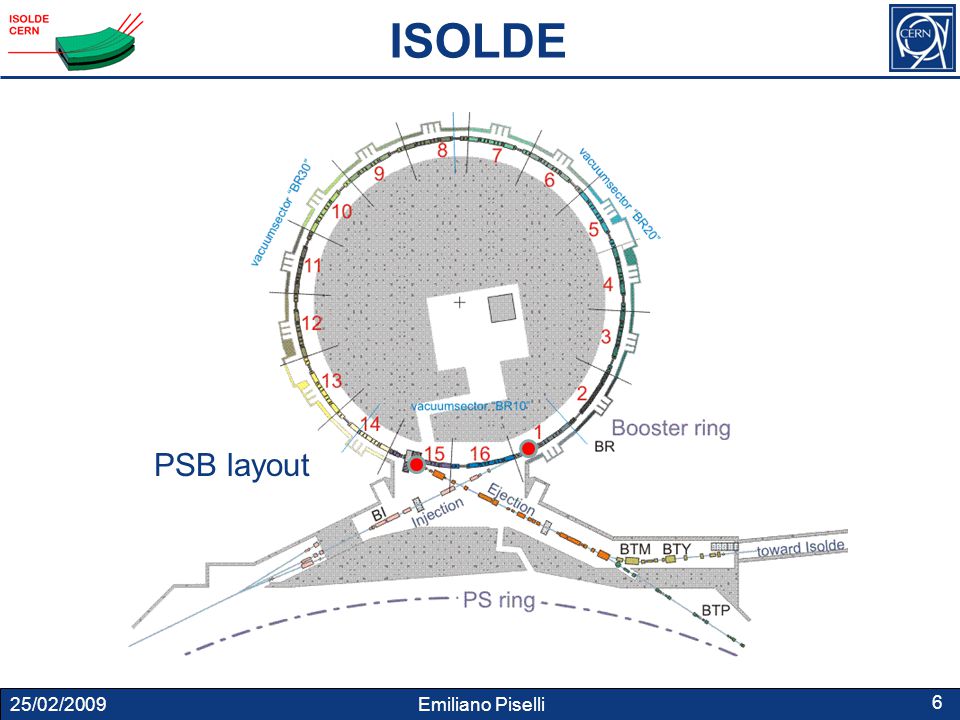

6 25/02/2009 Emiliano Piselli 6 PSB layout ISOLDE

7 25/02/2009 Emiliano Piselli 7 ISOLDE GPS...General Purpose Separator HRS...High Resolution Separator

8 25/02/2009 Emiliano Piselli 88 Isolde layout Cortesy E. Siesling GPS target HRS target BTY line from PSB ISOLDE

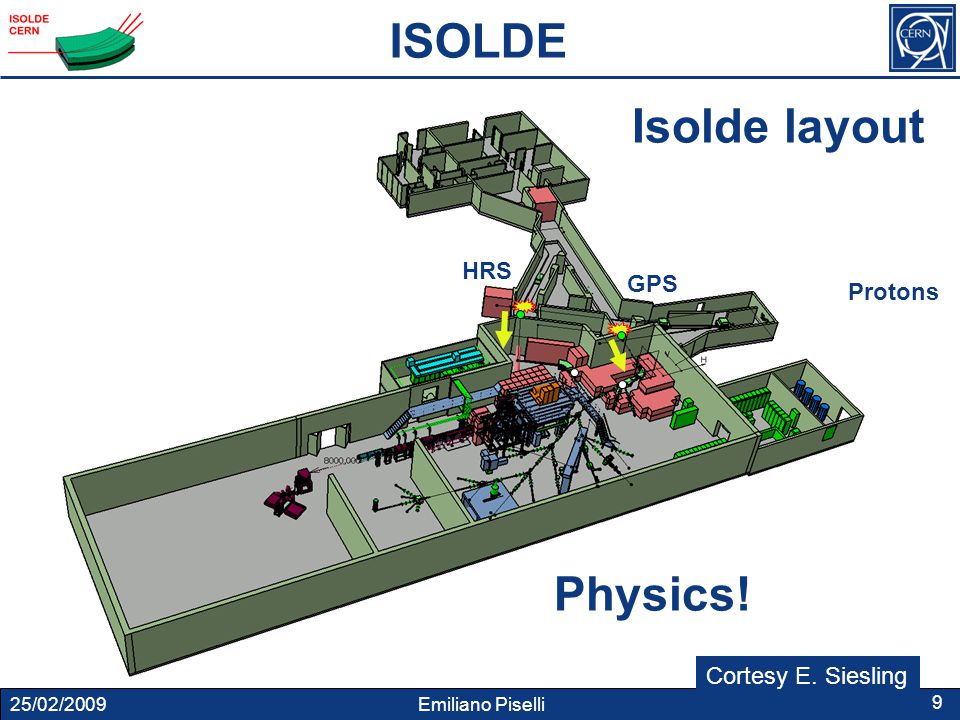

9 25/02/2009 Emiliano Piselli 9 HRS GPS Protons Isolde layout Physics! ISOLDE Cortesy E. Siesling

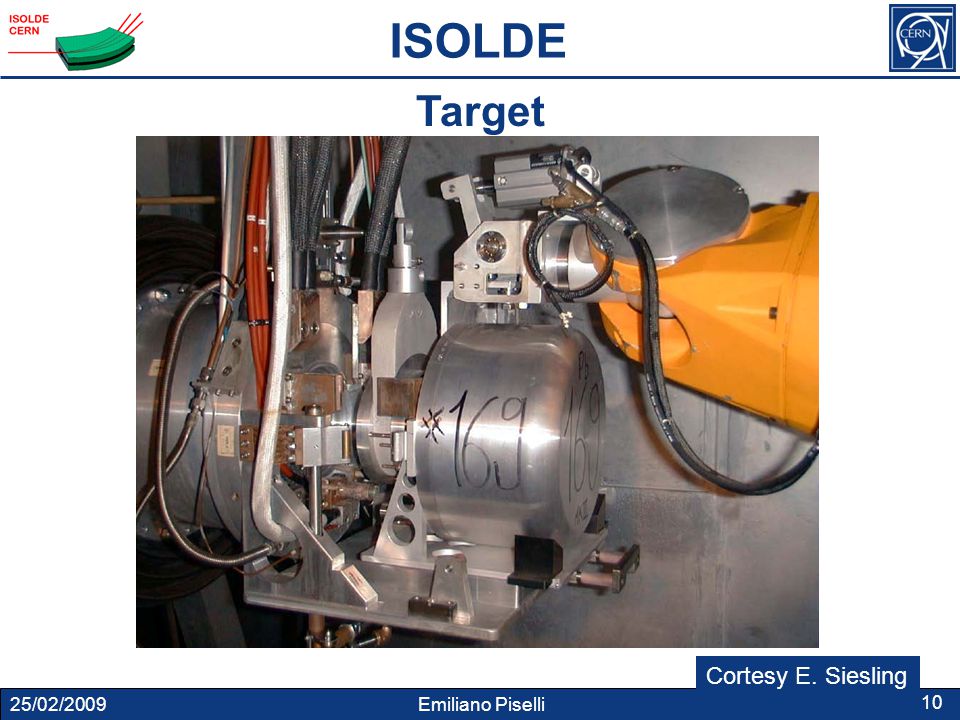

10 25/02/2009 Emiliano Piselli 10 Target ISOLDE Cortesy E. Siesling

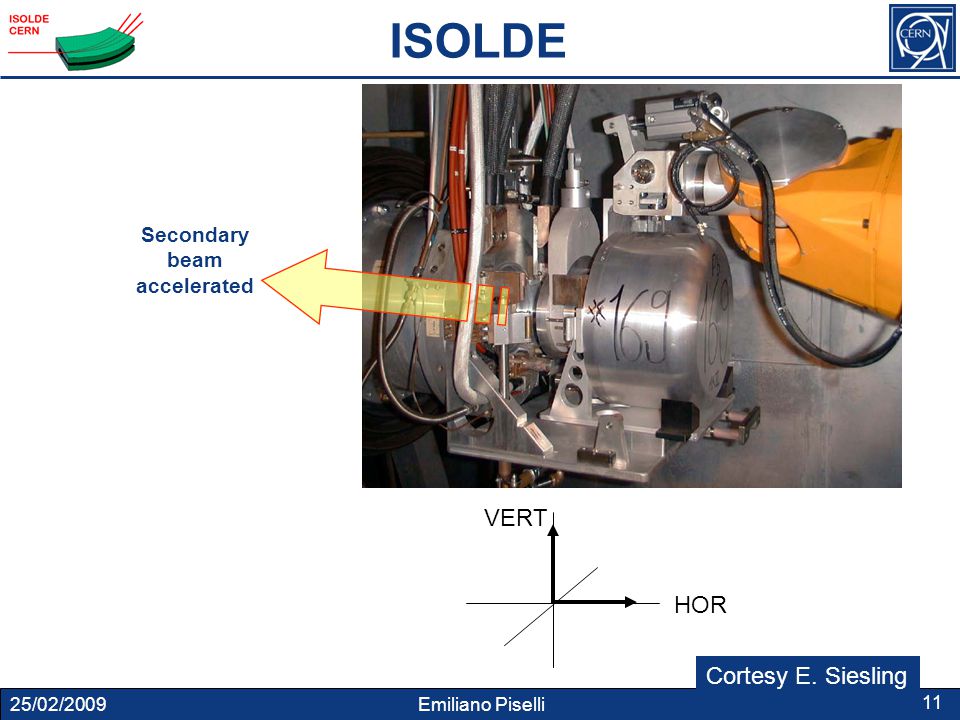

11 25/02/2009 Emiliano Piselli 11 Secondary beam accelerated HOR VERT ISOLDE Cortesy E. Siesling

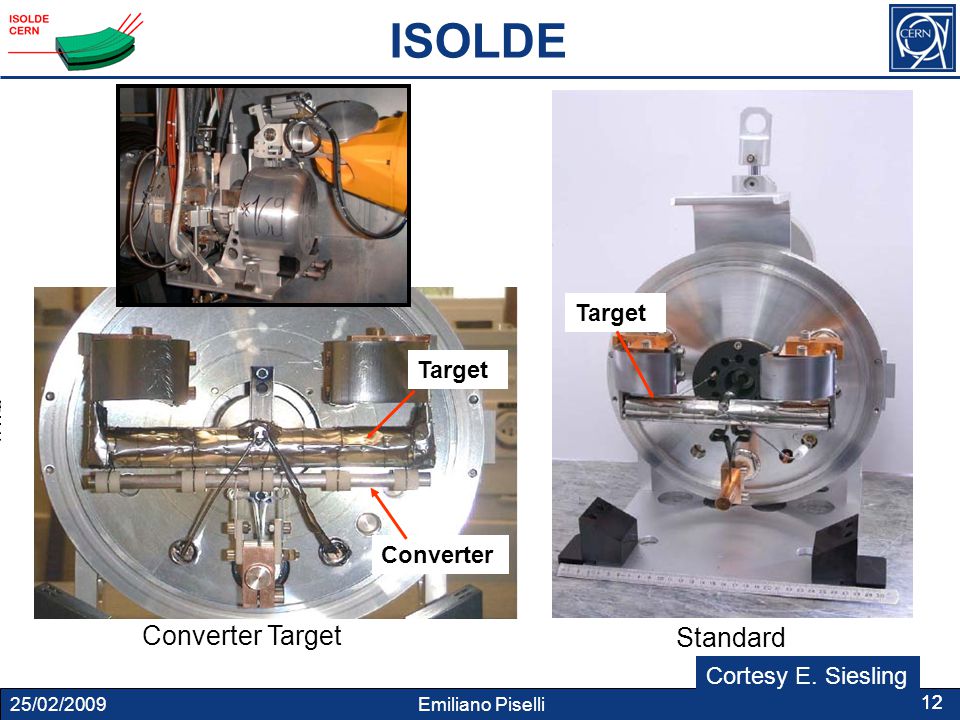

12 25/02/2009 Emiliano Piselli 12 Converter Target Standard Converter Target p+ ISOLDE Cortesy E. Siesling

13 25/02/2009 Emiliano Piselli 13 Standard focus Waist of beam at target (converter targets) n n n n Fragmentation, Spallation, Fission Proton beam focusing ISOLDE Cortesy E. Siesling

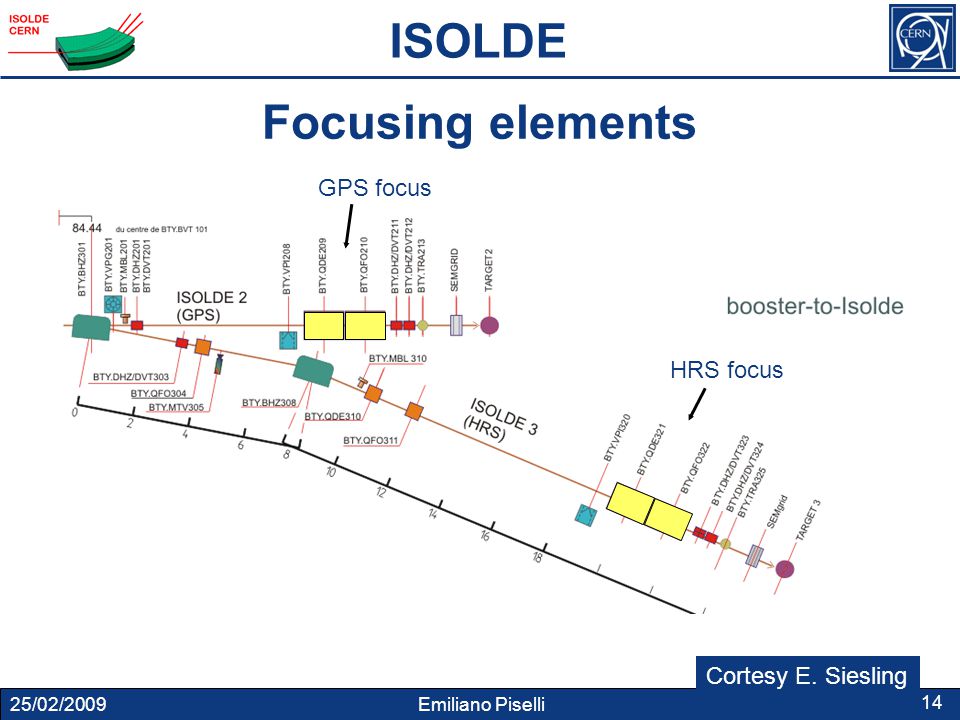

14 25/02/2009 Emiliano Piselli 14 Focusing elements GPS focus HRS focus ISOLDE Cortesy E. Siesling

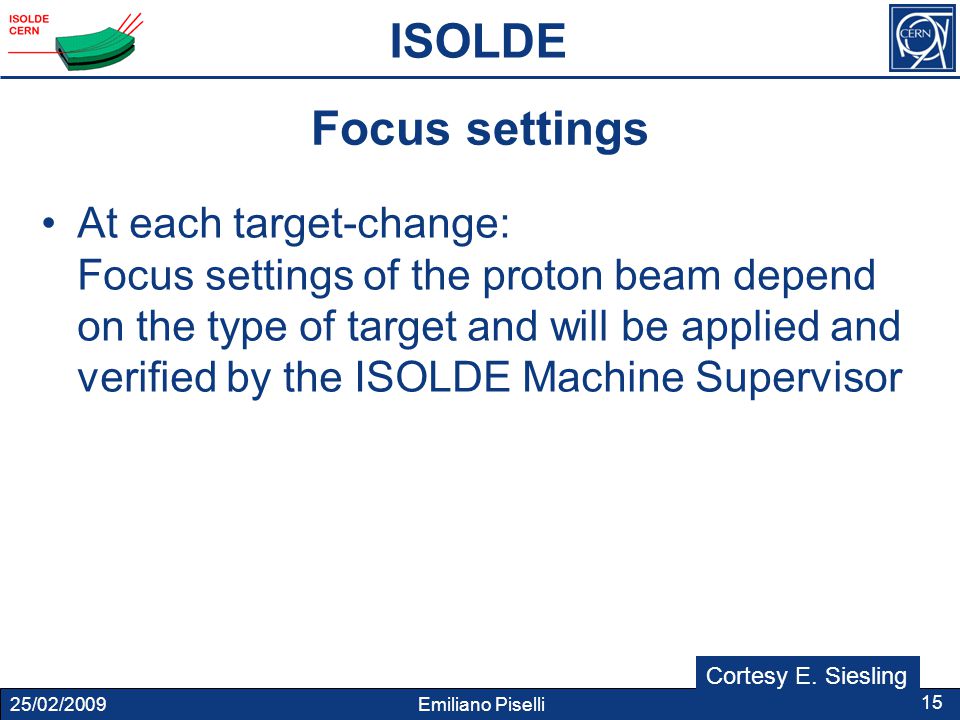

15 25/02/2009 Emiliano Piselli 15 Focus settings At each target-change: Focus settings of the proton beam depend on the type of target and will be applied and verified by the ISOLDE Machine Supervisor ISOLDE Cortesy E. Siesling

16 25/02/2009 Emiliano Piselli 16 Liquid metal target: Cracked container welds Converter target: Twisted W convertor rod Wrong Beam ISOLDE Cortesy E. Siesling

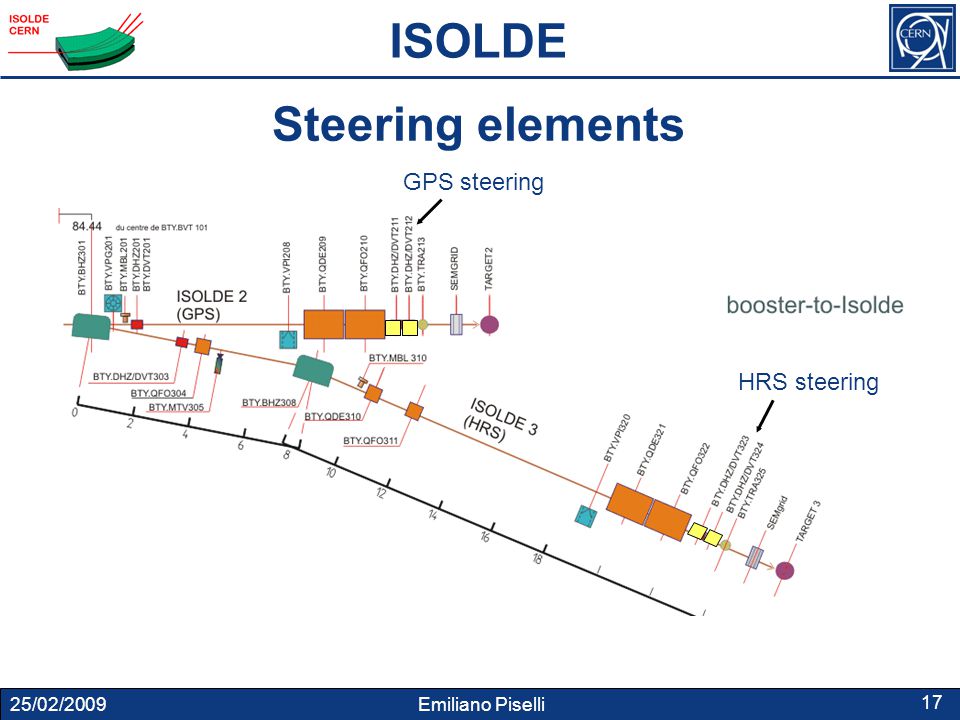

17 25/02/2009 Emiliano Piselli 17 GPS steering HRS steering Steering elements ISOLDE

18 25/02/2009 Emiliano Piselli 18 Steering settings At each target-change: Proton Scan: Final steering of the proton beam is done by the ISOLDE Machine Supervisor ISOLDE Cortesy E. Siesling

19 25/02/2009 Emiliano Piselli 19 Isolde beam ISOLDE Focus settings… Steering settings… Max intensities (ppp & pps)

20 25/02/2009 Emiliano Piselli 20 Display informations TARGET BEAM CONTACT VISTAR

21 25/02/2009 Emiliano Piselli 21 VISTAR

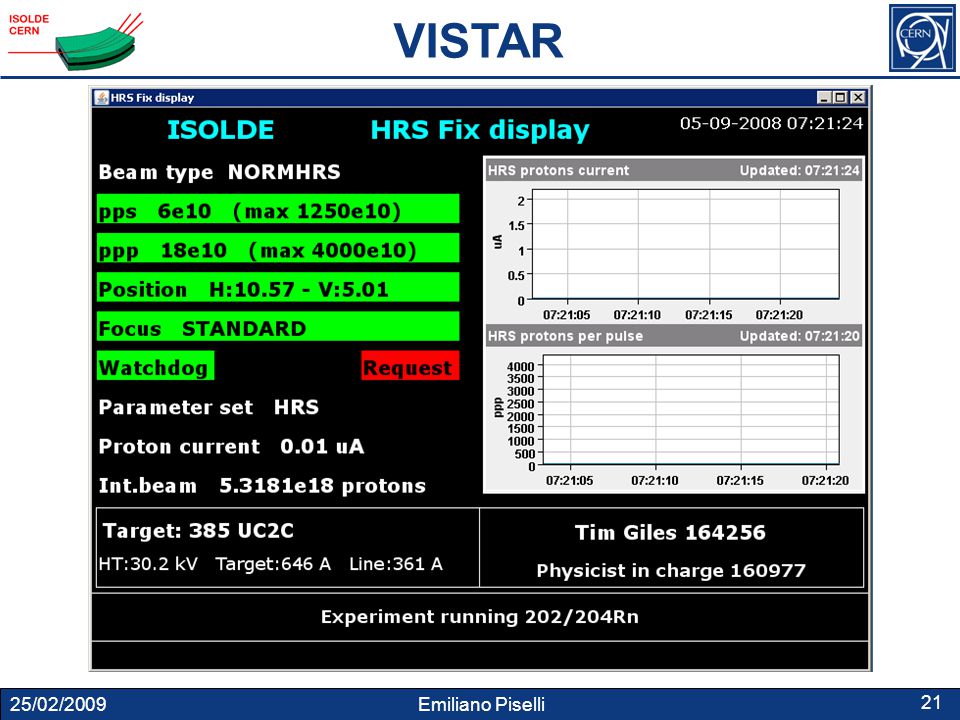

22 25/02/2009 Emiliano Piselli 22 VISTAR

23 25/02/2009 Emiliano Piselli 23 VISTAR

24 25/02/2009 Emiliano Piselli 24 VISTAR

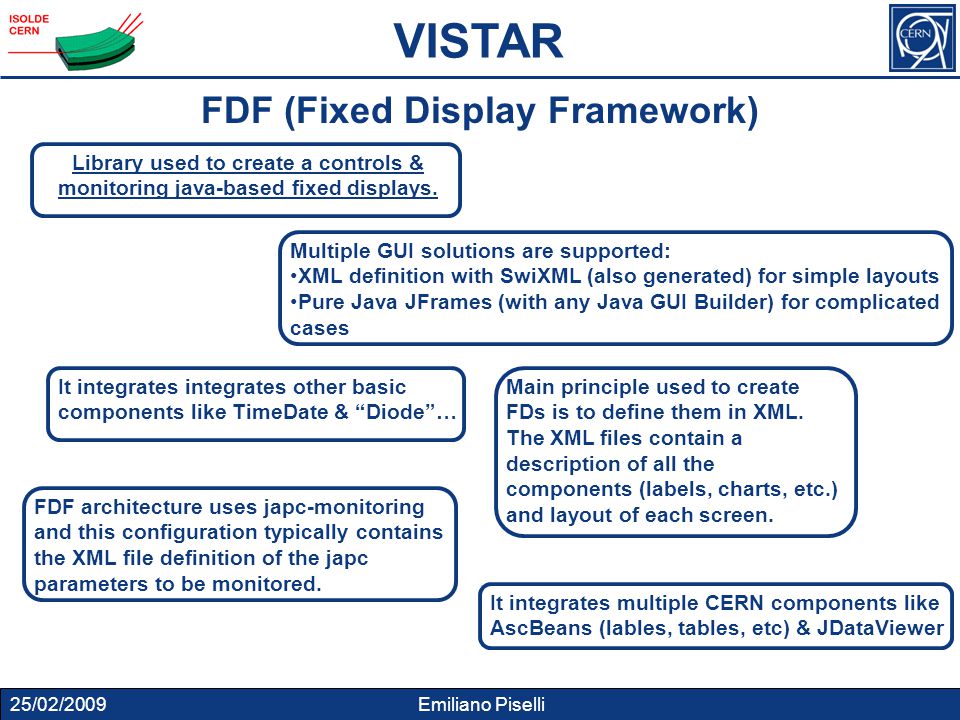

25 25/02/2009 Emiliano Piselli VISTAR FDF (Fixed Display Framework) Library used to create a controls & monitoring java-based fixed displays. Multiple GUI solutions are supported: XML definition with SwiXML (also generated) for simple layouts Pure Java JFrames (with any Java GUI Builder) for complicated cases It integrates multiple CERN components like AscBeans (lables, tables, etc) & JDataViewer It integrates integrates other basic components like TimeDate & “Diode”… Main principle used to create FDs is to define them in XML. The XML files contain a description of all the components (labels, charts, etc.) and layout of each screen. FDF architecture uses japc-monitoring and this configuration typically contains the XML file definition of the japc parameters to be monitored.

26 25/02/2009 Emiliano Piselli 26 VISTAR

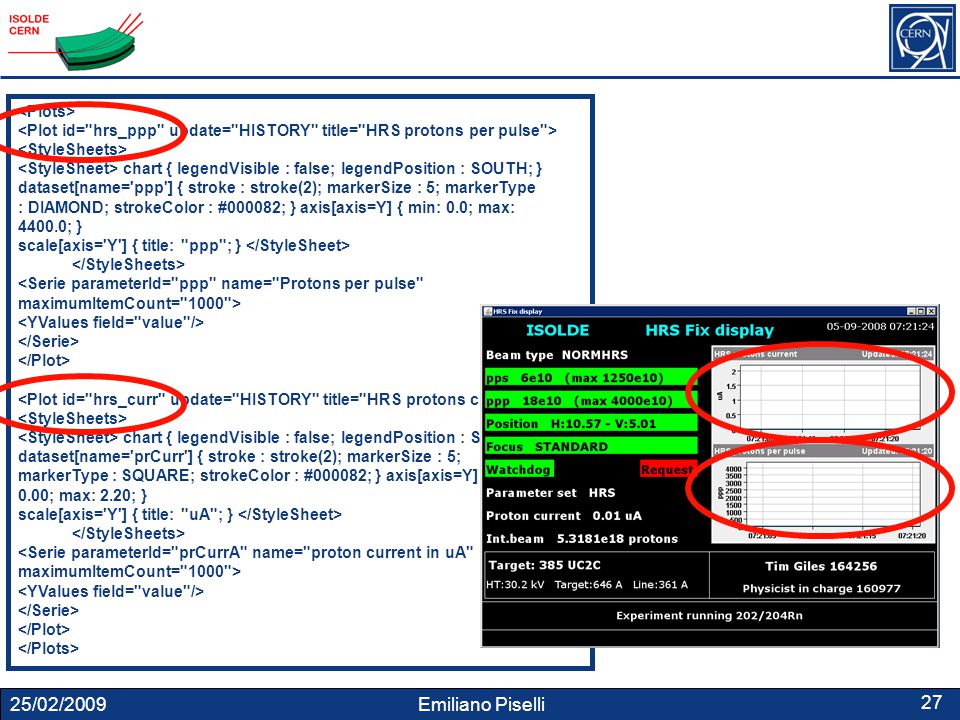

27 25/02/2009 Emiliano Piselli 27 chart { legendVisible : false; legendPosition : SOUTH; } dataset[name='ppp'] { stroke : stroke(2); markerSize : 5; markerType : DIAMOND; strokeColor : #000082; } axis[axis=Y] { min: 0.0; max: 4400.0; } scale[axis='Y'] { title: "ppp"; } chart { legendVisible : false; legendPosition : SOUTH; } dataset[name='prCurr'] { stroke : stroke(2); markerSize : 5; markerType : SQUARE; strokeColor : #000082; } axis[axis=Y] { min: 0.00; max: 2.20; } scale[axis='Y'] { title: "uA"; }

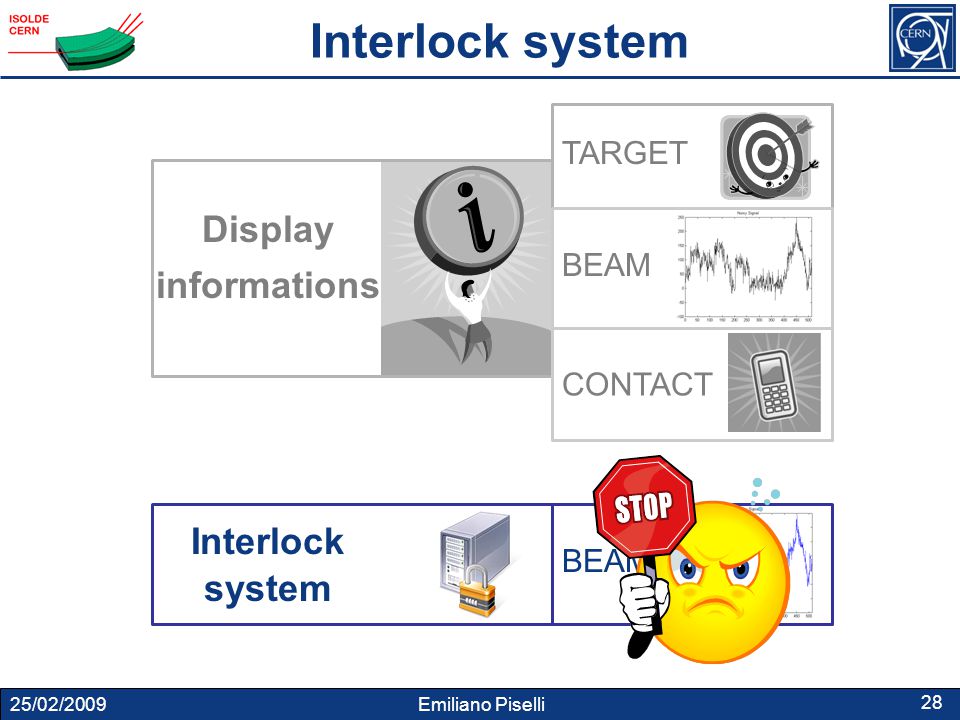

28 25/02/2009 Emiliano Piselli 28 Display informations TARGET BEAM CONTACT Interlock system BEAM Interlock system

29 25/02/2009 Emiliano Piselli 29 Interlock system PSB layout Beam 2 Isolde

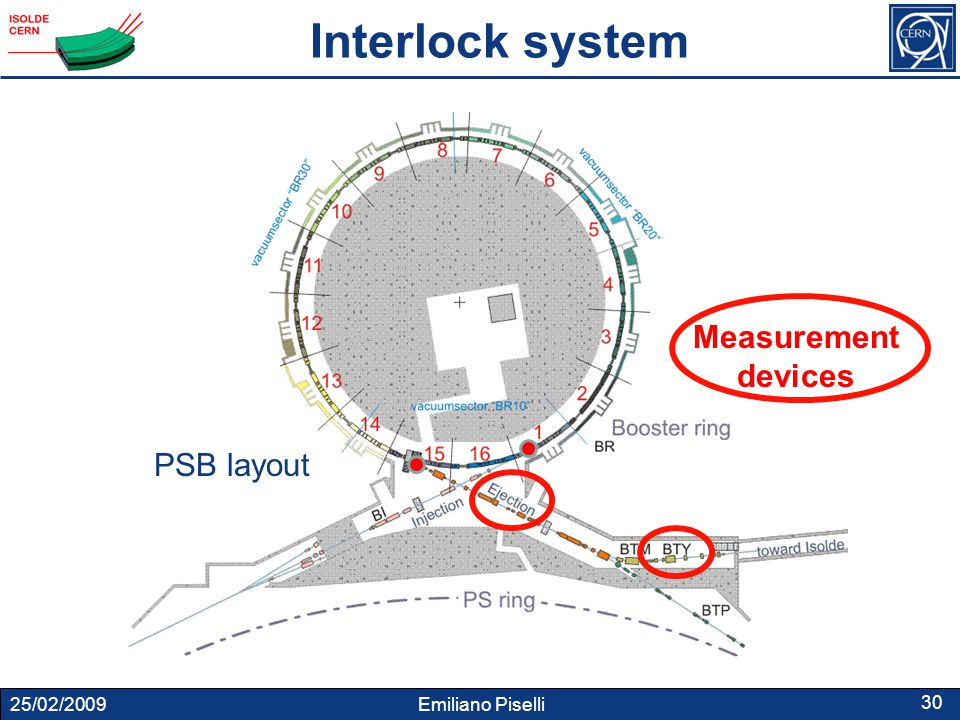

30 25/02/2009 Emiliano Piselli 30 Interlock system PSB layout Measurement devices

31 25/02/2009 Emiliano Piselli 31 Interlock system PSB layout

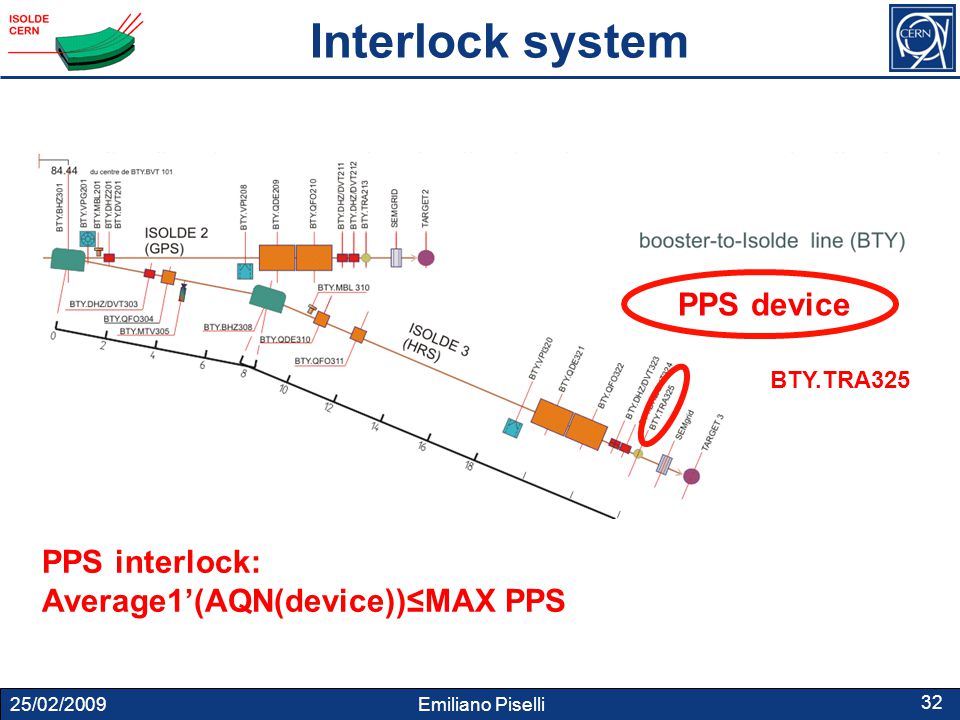

32 25/02/2009 Emiliano Piselli 32 Interlock system PPS device PPS interlock: Average1’(AQN(device))≤MAX PPS BTY.TRA325

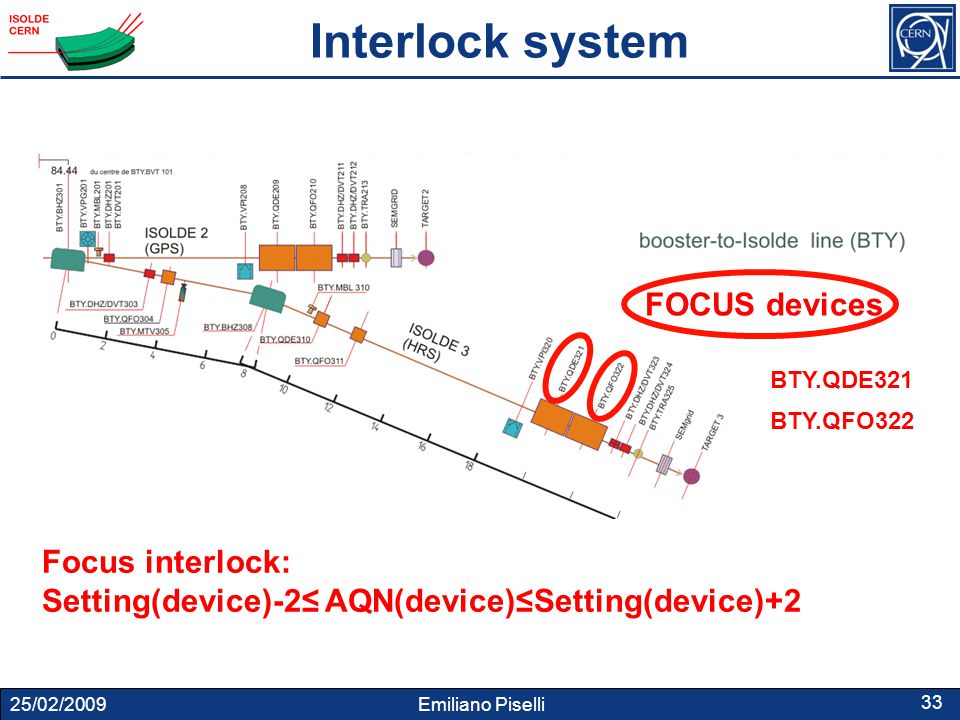

33 25/02/2009 Emiliano Piselli 33 Interlock system FOCUS devices Focus interlock: Setting(device)-2≤ AQN(device)≤Setting(device)+2 BTY.QDE321 BTY.QFO322

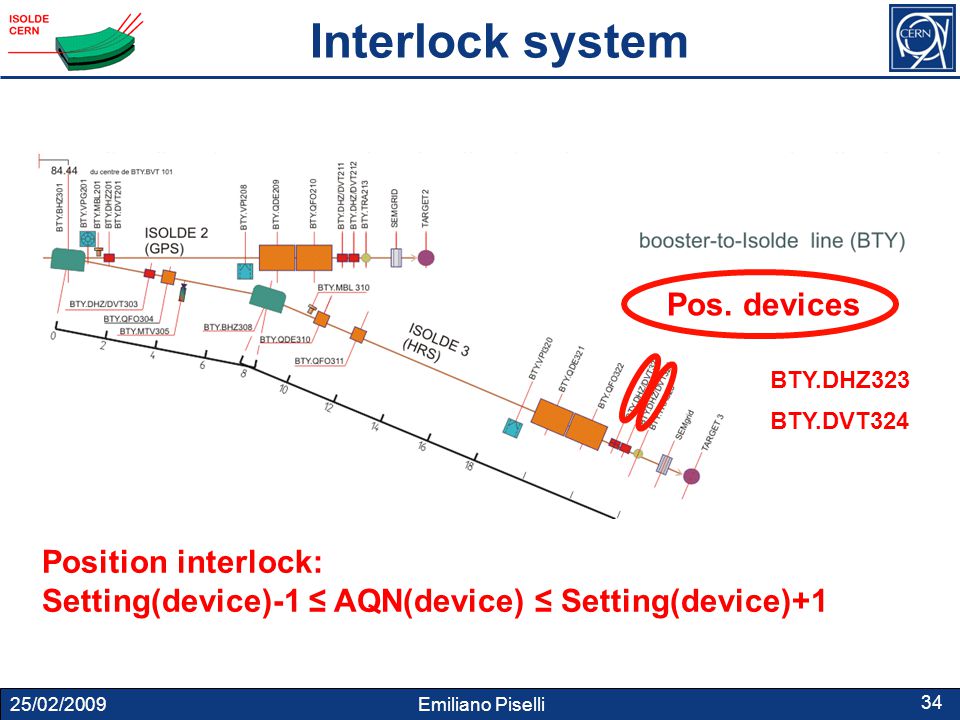

34 25/02/2009 Emiliano Piselli 34 Interlock system Pos. devices Position interlock: Setting(device)-1 ≤ AQN(device) ≤ Setting(device)+1 BTY.DHZ323 BTY.DVT324

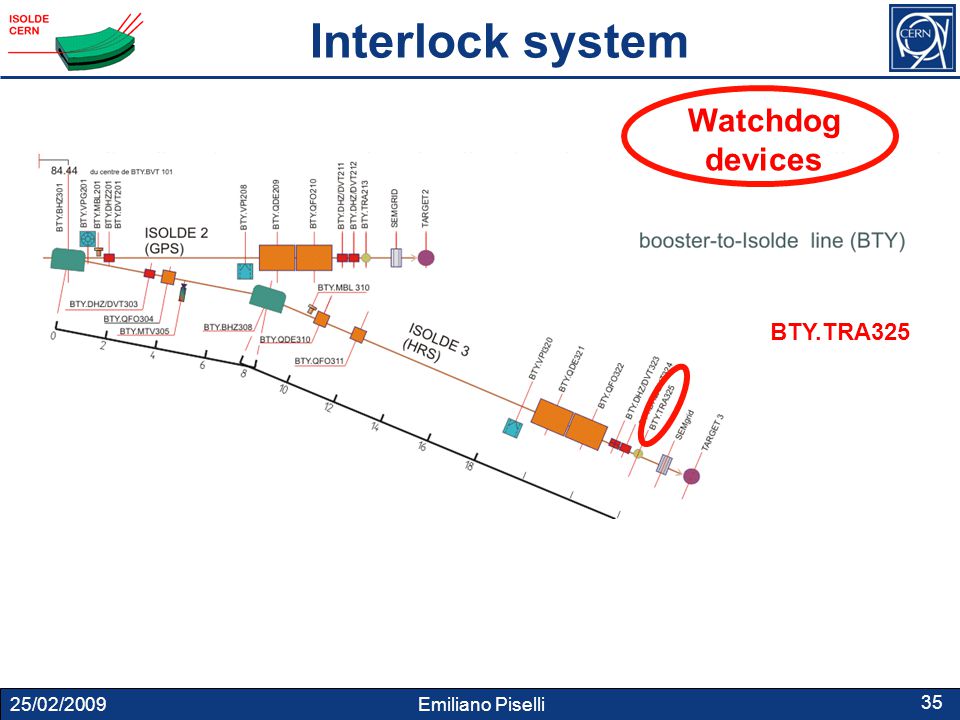

35 25/02/2009 Emiliano Piselli 35 Interlock system Watchdog devices BTY.TRA325

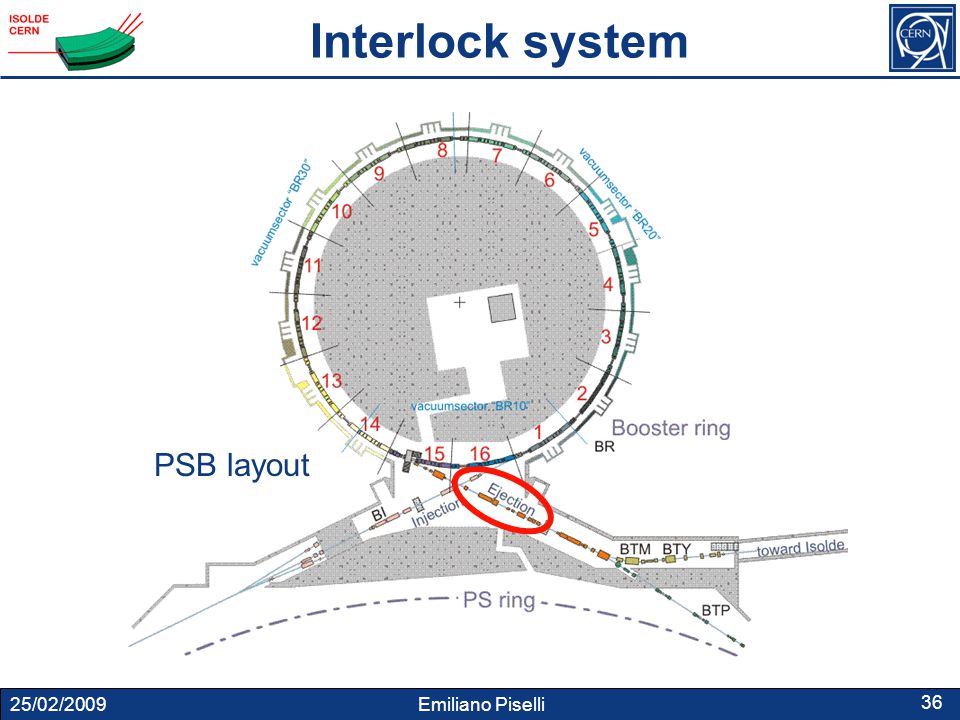

36 25/02/2009 Emiliano Piselli 36 Interlock system PSB layout

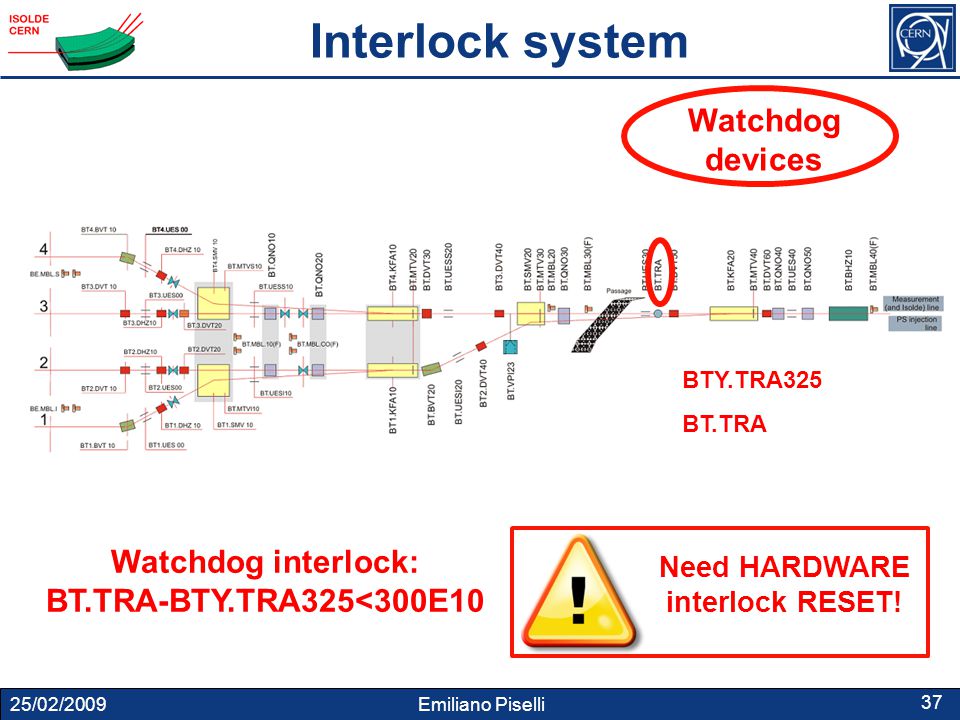

37 25/02/2009 Emiliano Piselli 37 Interlock system Watchdog devices Watchdog interlock: BT.TRA-BTY.TRA325<300E10 BTY.TRA325 BT.TRA Need HARDWARE interlock RESET!

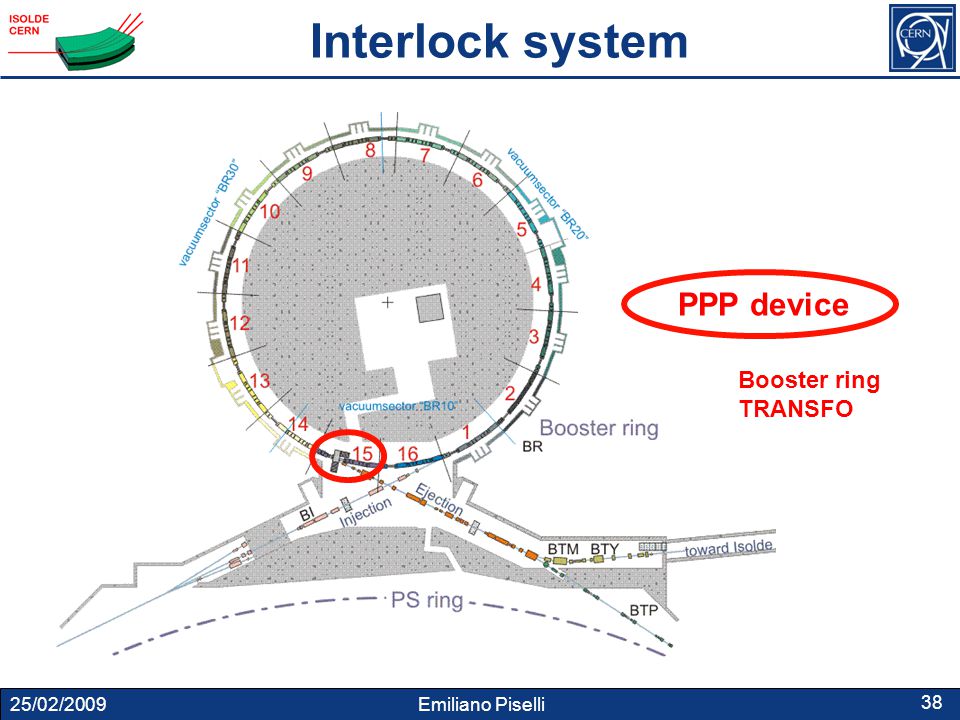

38 25/02/2009 Emiliano Piselli 38 Interlock system PPP device Booster ring TRANSFO

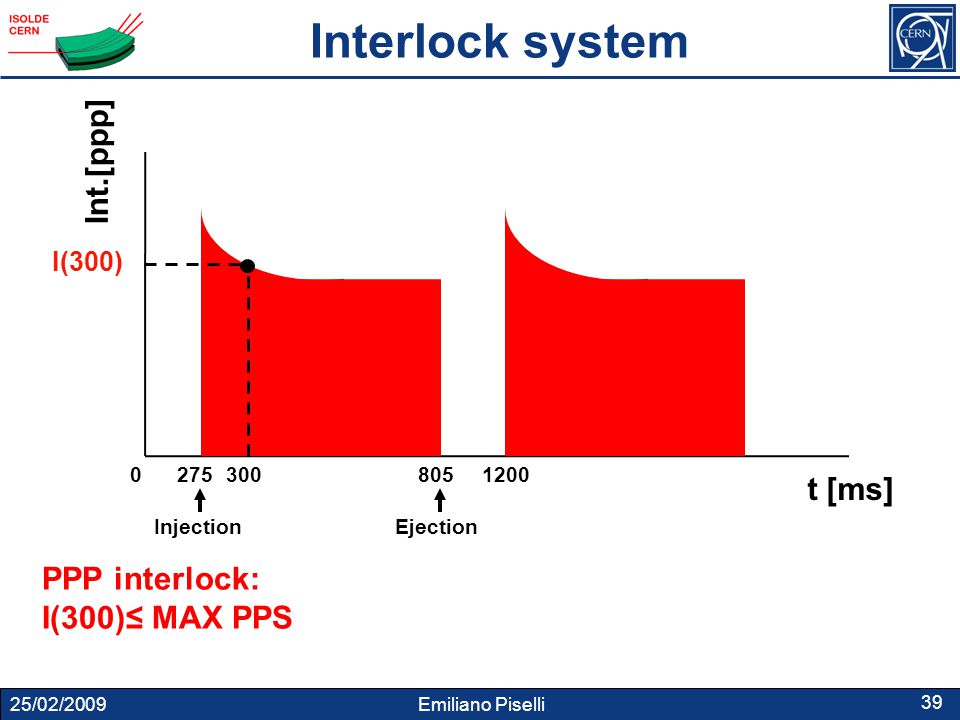

39 25/02/2009 Emiliano Piselli 39 Interlock system 2753008051200 Int.[ppp] t [ms] InjectionEjection 0 I(300) PPP interlock: I(300)≤ MAX PPS

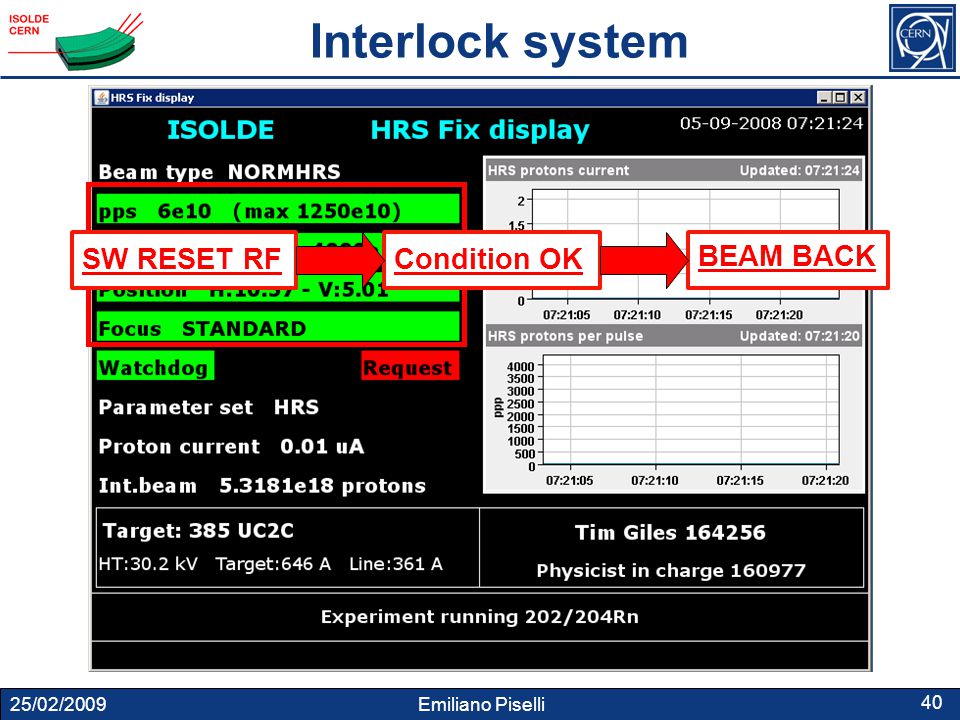

40 25/02/2009 Emiliano Piselli 40 Interlock system SW RESET RFCondition OK BEAM BACK

41 25/02/2009 Emiliano Piselli 41 Interlock system HW Interlock HW RESETBEAM BACK

42 25/02/2009 Emiliano Piselli 42 Configuration GUI

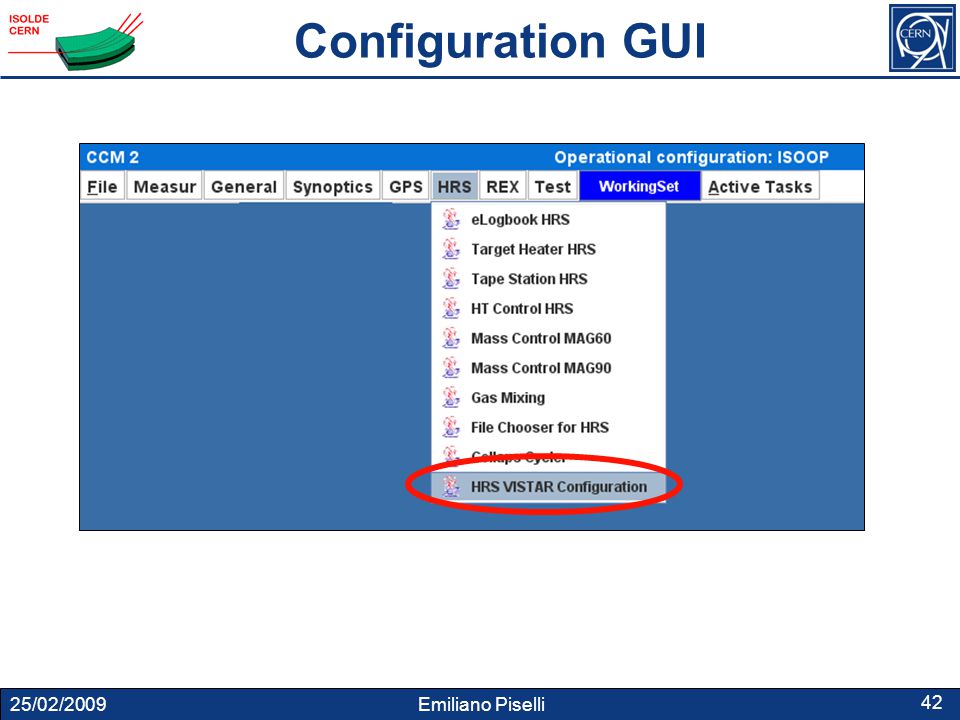

43 25/02/2009 Emiliano Piselli 43 Configuration GUI

44 25/02/2009 Emiliano Piselli 44 Configuration GUI

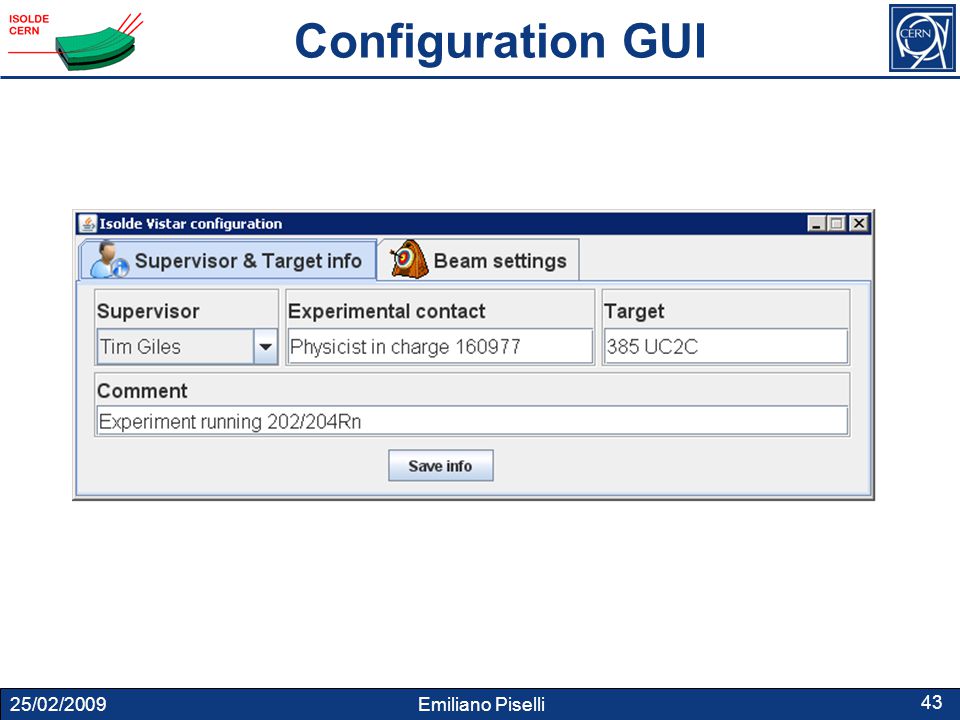

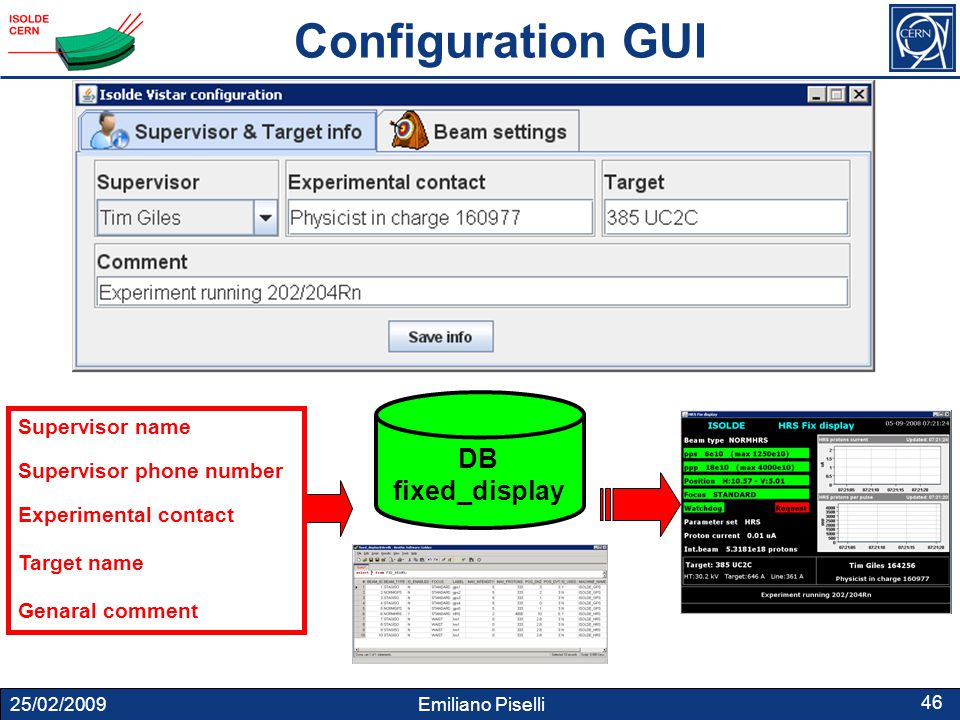

45 25/02/2009 Emiliano Piselli 45 DB fixed_display Supervisor name Supervisor phone number Experimental contact Target name Genaral comment Configuration GUI

46 25/02/2009 Emiliano Piselli 46 DB fixed_display Supervisor name Supervisor phone number Experimental contact Target name Genaral comment Configuration GUI

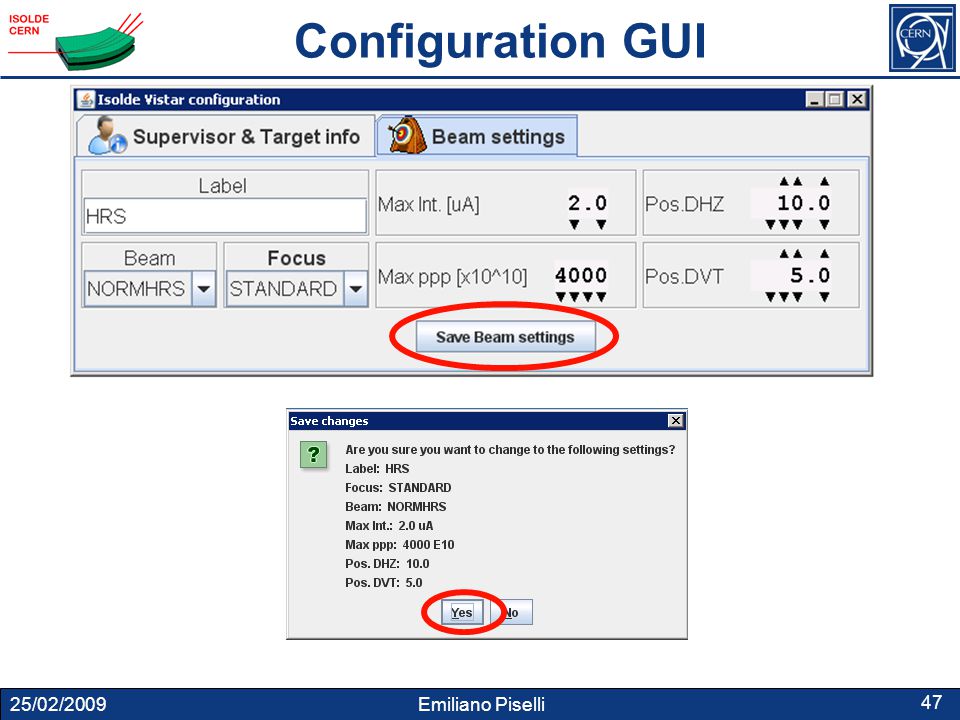

47 25/02/2009 Emiliano Piselli 47 Configuration GUI

48 25/02/2009 Emiliano Piselli 48 DB fixed_display Beam Label Beam type Focus Max Intensity Max proton per pulse Pos. DHZ Pos. DVT Max proton per pulse Pos. DHZ Pos. DVT Focus Max Intensity DEVICEDEVICE Configuration GUI

49 25/02/2009 Emiliano Piselli 49 Special FOCUS disable Position and focus interlock Configuration GUI

50 25/02/2009 Emiliano Piselli 50...Isolde VISTAR is CO standard and fully CO supported...Isolde VISTAR contains many informations extremelly useful for the users and PSB team....Isolde Interlock system is very fast...reaction time smaller than 10ms. Conclusions

51 25/02/2009 Emiliano Piselli 51 Tim Giles (EN-STI-RBP) Jakub Wozniak & Danilo Cimino (BE-CO-AP) BE-OP-PSB Thanks to... Thanks to you for your attention...
