Page 1© Crown copyright 2004 Unified Model Developments 2004 Mike Bush NWP Met Office

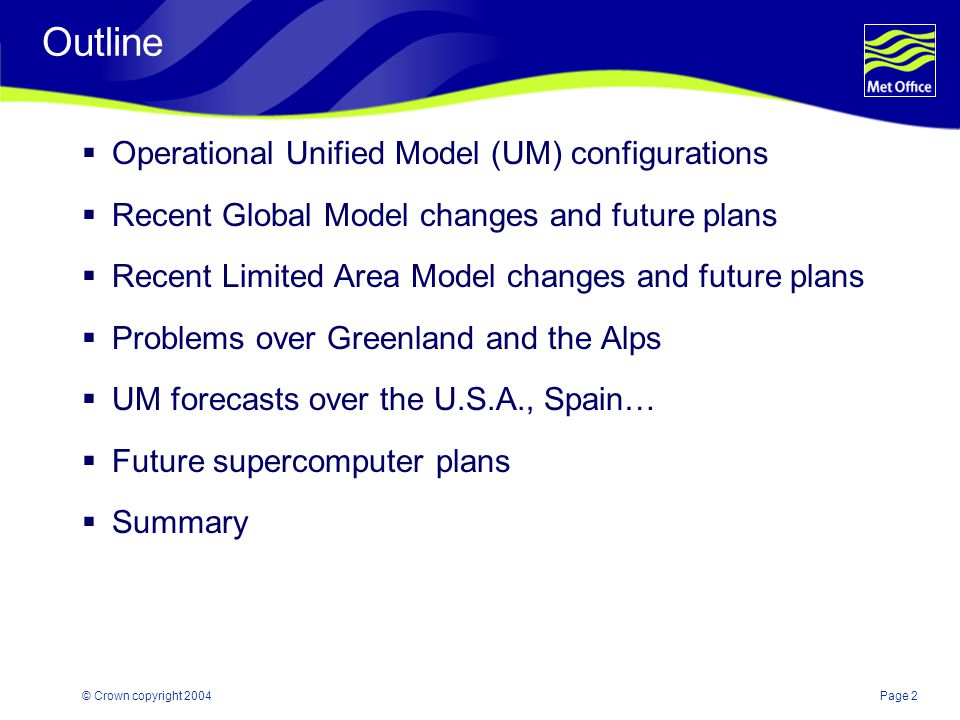

Page 2© Crown copyright 2004 Outline Operational Unified Model (UM) configurations Recent Global Model changes and future plans Recent Limited Area Model changes and future plans Problems over Greenland and the Alps UM forecasts over the U.S.A., Spain… Future supercomputer plans Summary

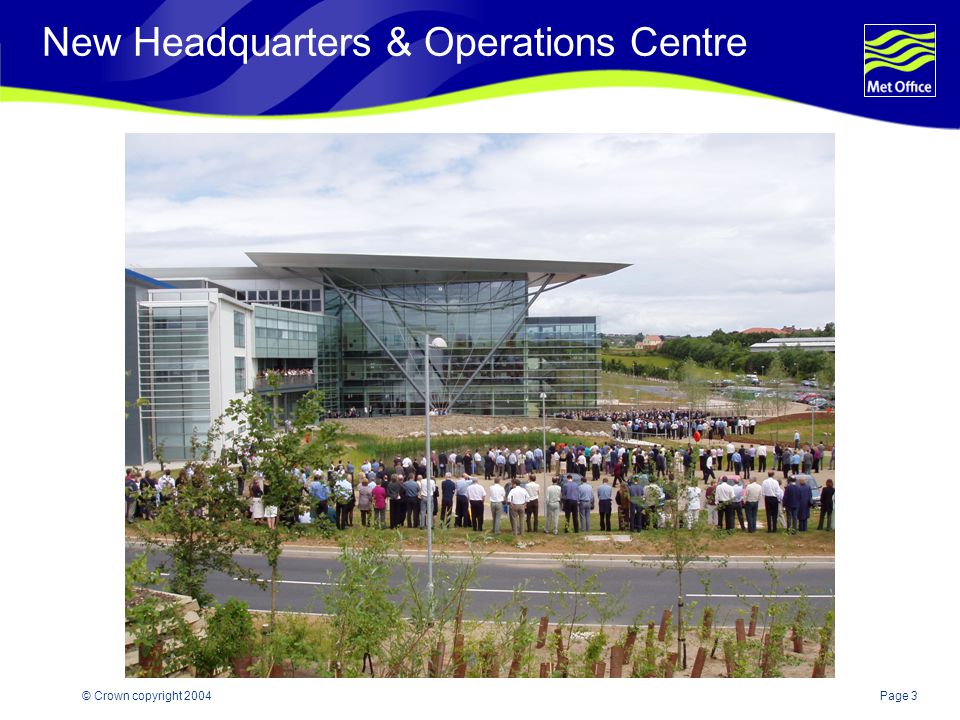

Page 3© Crown copyright 2004 New Headquarters & Operations Centre
Page 4© Crown copyright 2004 Operational UM configurations Global 38 levels, N216= 432x325 (~60km) North Atlantic European (NAE) 38 levels, 0.18 deg (20km) UK Mesoscale 38 levels, 0.11 deg (12km) Stratospheric 50 levels (~1.3km @ 100-1hpa), N48=96x73 (~300km) Crisis models (CAMMS) Middle East, SW Asia

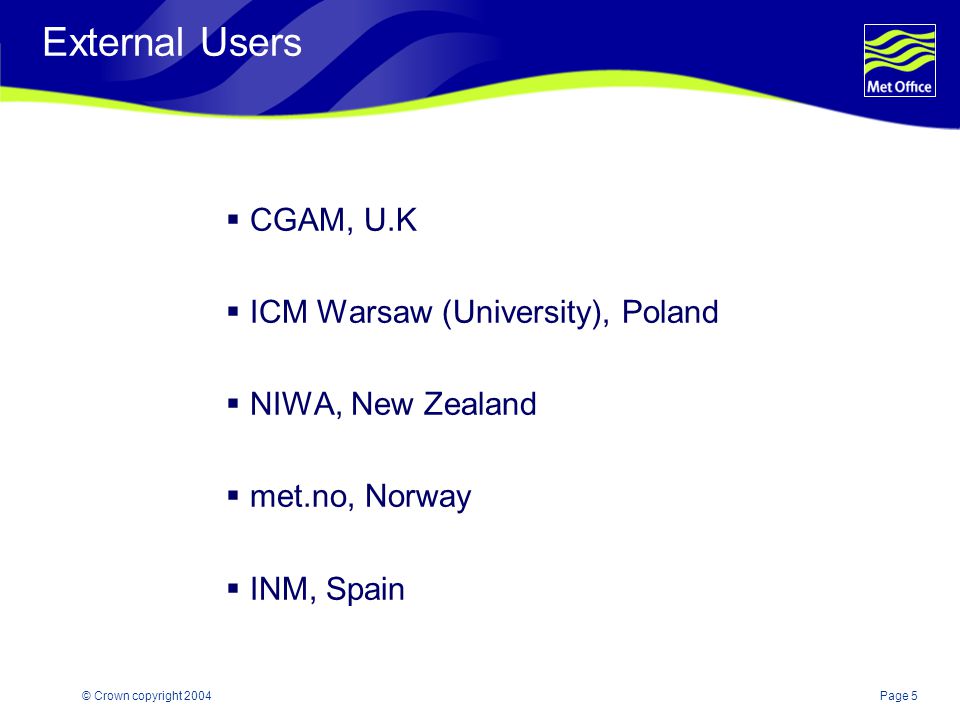

Page 5© Crown copyright 2004 External Users CGAM, U.K ICM Warsaw (University), Poland NIWA, New Zealand met.no, Norway INM, Spain

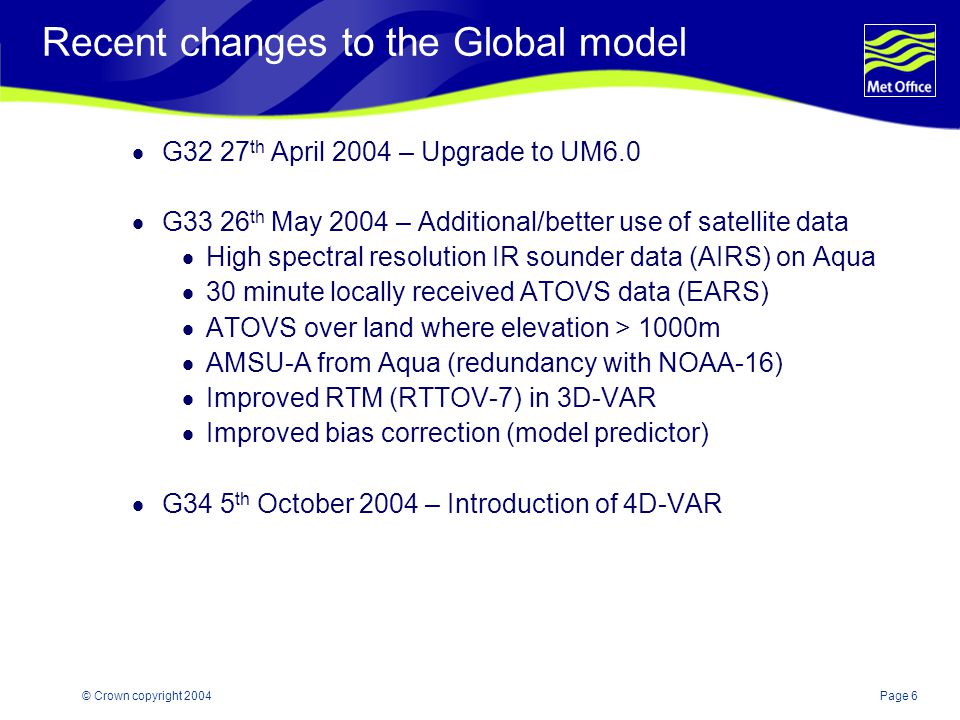

Page 6© Crown copyright 2004 Recent changes to the Global model G32 27 th April 2004 – Upgrade to UM6.0 G33 26 th May 2004 – Additional/better use of satellite data High spectral resolution IR sounder data (AIRS) on Aqua 30 minute locally received ATOVS data (EARS) ATOVS over land where elevation > 1000m AMSU-A from Aqua (redundancy with NOAA-16) Improved RTM (RTTOV-7) in 3D-VAR Improved bias correction (model predictor) G34 5 th October 2004 – Introduction of 4D-VAR
Page 7© Crown copyright 2004 Southern Hemisphere – 500 hPa Height Stephen English > 5% better Operations 3/44 Experiment 24/44

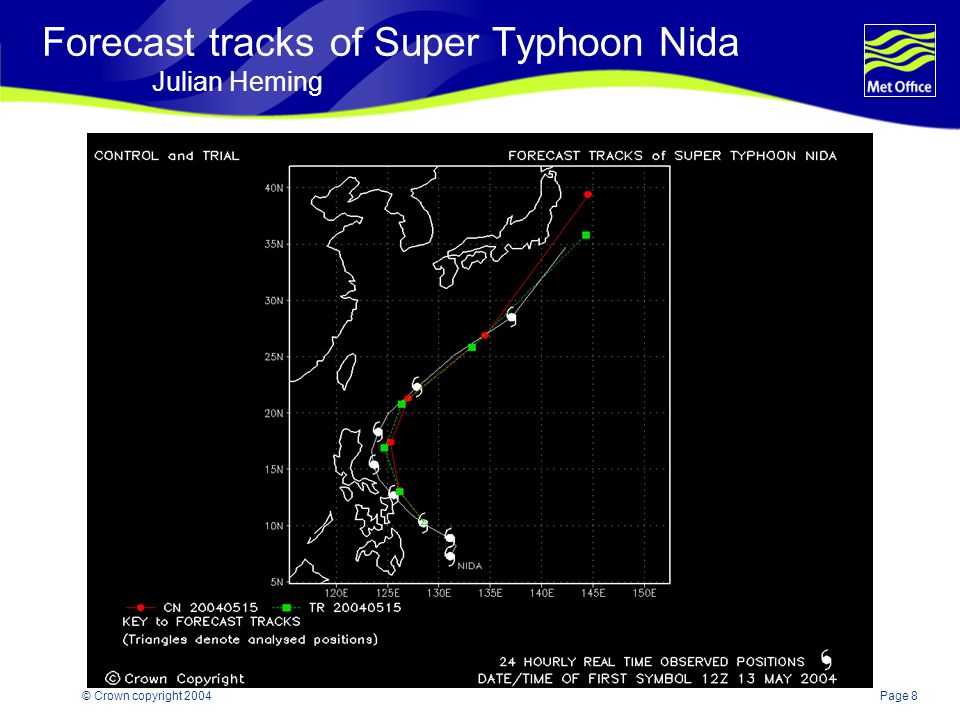

Page 8© Crown copyright 2004 Forecast tracksof Super Typhoon Nida Julian Heming

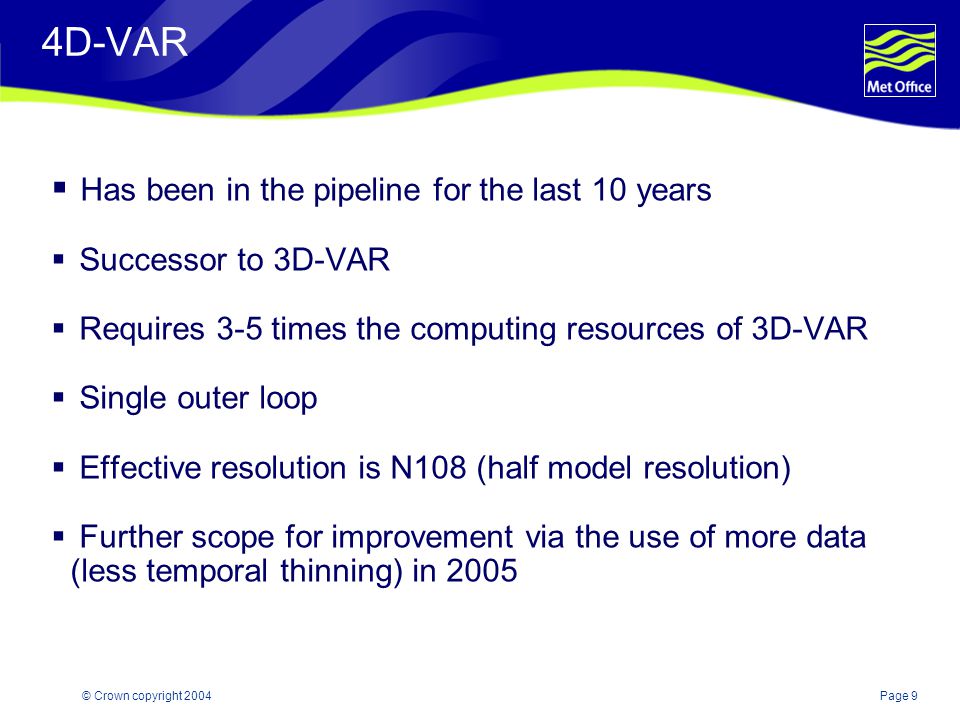

Page 9© Crown copyright 2004 4D-VAR Has been in the pipeline for the last 10 years Successor to 3D-VAR Requires 3-5 times the computing resources of 3D-VAR Single outer loop Effective resolution is N108 (half model resolution) Further scope for improvement via the use of more data (less temporal thinning) in 2005
Page 10© Crown copyright 2004 4D-VAR vs 3D-VAR: % Reduction in RMSE Rick Rawlins Positive impact in NH, SH and Tropics Strongest signal in SH Satellites are the main data source in the SH Satellite data is asynoptic and so particularly suited to 4D-VAR

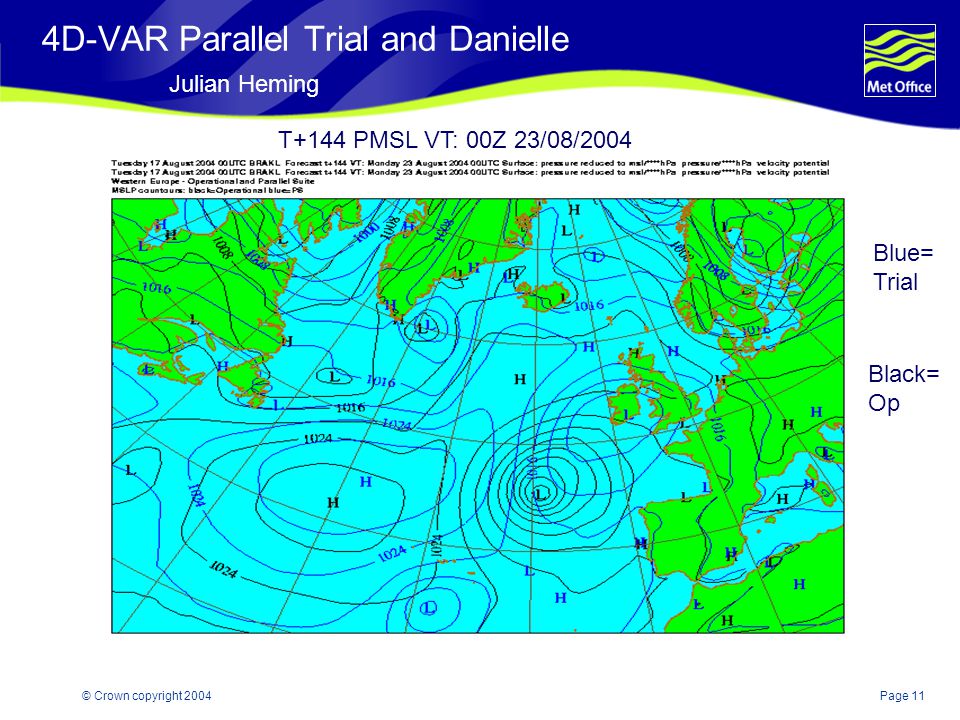

Page 11© Crown copyright 2004 4D-VAR Parallel Trial and Danielle Julian Heming T+144 PMSL VT: 00Z 23/08/2004 Blue= Trial Black= Op

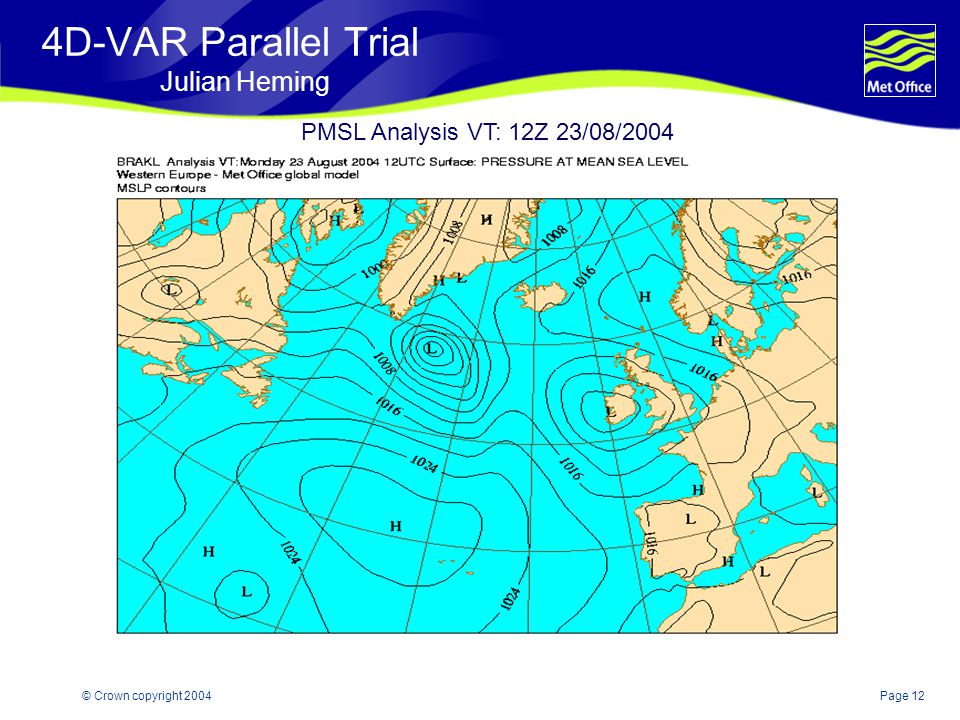

Page 12© Crown copyright 2004 4D-VAR Parallel Trial Julian Heming PMSL Analysis VT: 12Z 23/08/2004
Page 13© Crown copyright 2004 Global future plans 2004 – 2005 Sean Milton Saharan Albedo - November 2004 Improved Microphysics - November 2004 Boundary Layer - revised diagnosis of K profile depths - Spring 2005? 70 levels - Summer 2005 (retirement of the Stratospheric model) Prognostic Cloud and condensate - Summer 2005 40km horizontal resolution - Summer 2005 Soil level increments from screen level data

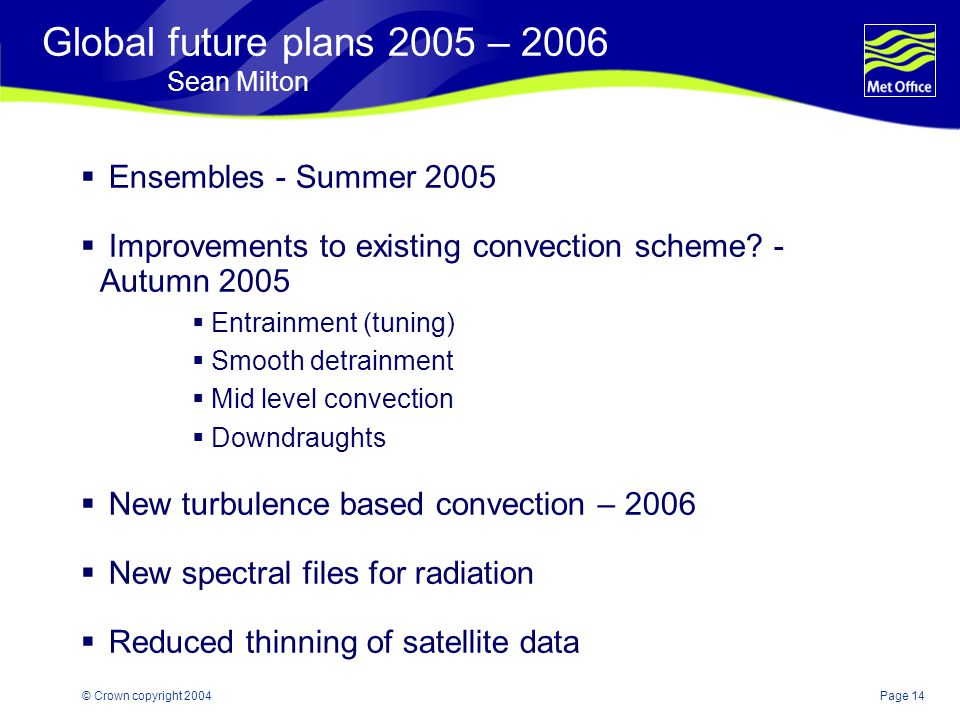

Page 14© Crown copyright 2004 Global future plans 2005 – 2006 Sean Milton Ensembles - Summer 2005 Improvements to existing convection scheme? - Autumn 2005 Entrainment (tuning) Smooth detrainment Mid level convection Downdraughts New turbulence based convection – 2006 New spectral files for radiation Reduced thinning of satellite data

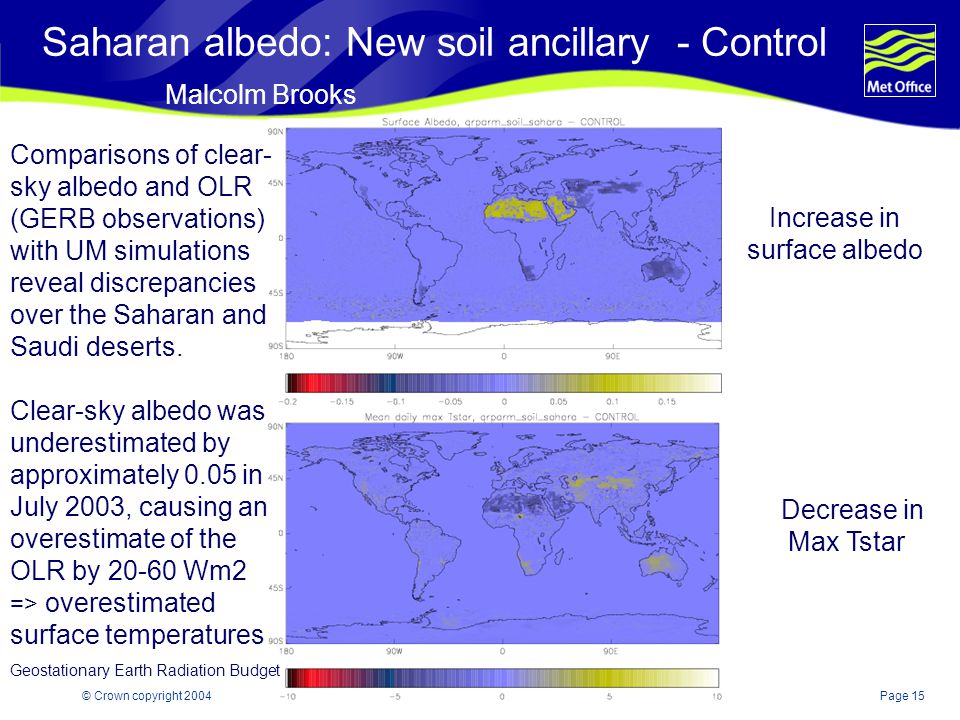

Page 15© Crown copyright 2004 Saharan albedo: New soil ancillary - Control Malcolm Brooks Increase in surface albedo Decrease in Max Tstar Comparisons of clear- sky albedo and OLR (GERB observations) with UM simulations reveal discrepancies over the Saharan and Saudi deserts. Clear-sky albedo was underestimated by approximately 0.05 in July 2003, causing an overestimate of the OLR by 20-60 Wm2 => overestimated surface temperatures Geostationary Earth Radiation Budget

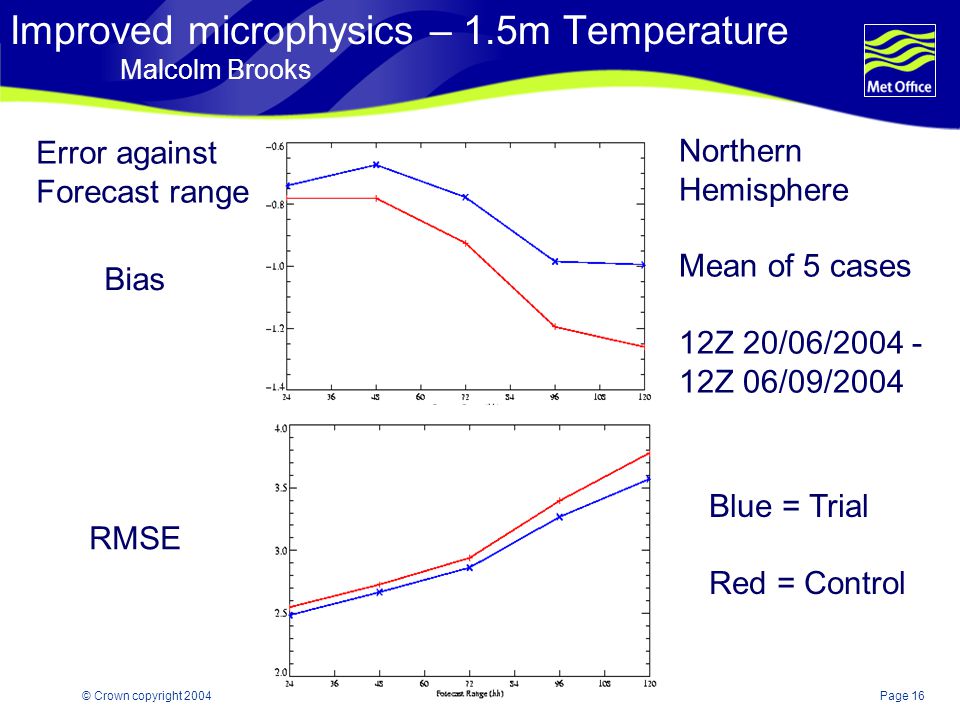

Page 16© Crown copyright 2004 Improved microphysics – 1.5m Temperature Malcolm Brooks Blue = Trial Red = Control RMSE Northern Hemisphere Mean of 5 cases 12Z 20/06/2004 - 12Z 06/09/2004 Bias Error against Forecast range

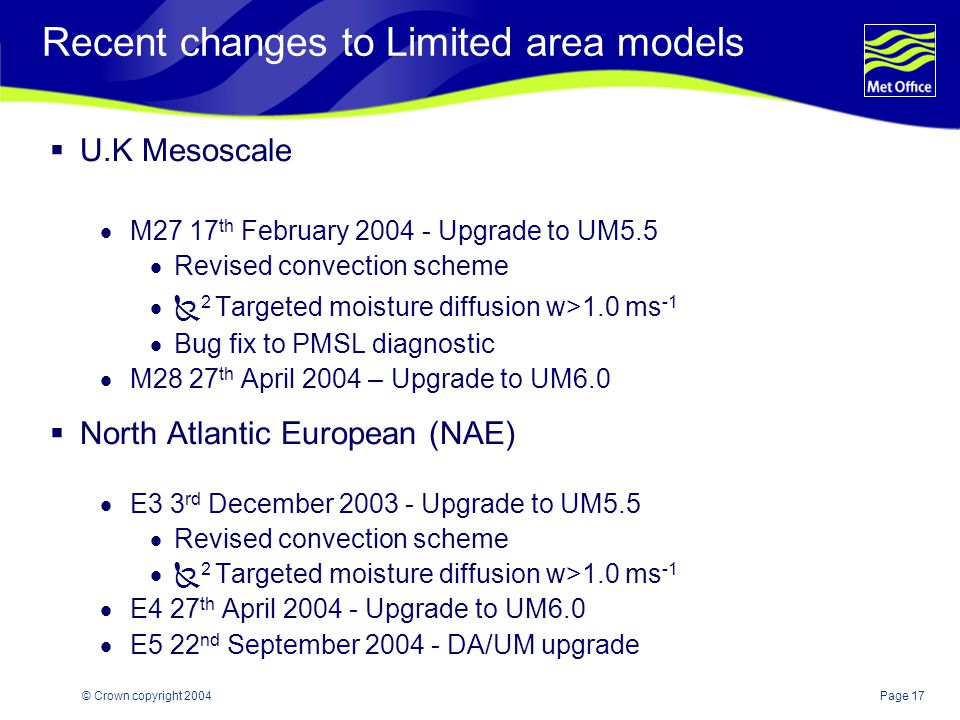

Page 17© Crown copyright 2004 Recent changes to Limited area models U.K Mesoscale M27 17 th February 2004 - Upgrade to UM5.5 Revised convection scheme 2 Targeted moisture diffusion w>1.0 ms -1 Bug fix to PMSL diagnostic M28 27 th April 2004 – Upgrade to UM6.0 North Atlantic European (NAE) E3 3 rd December 2003 - Upgrade to UM5.5 Revised convection scheme 2 Targeted moisture diffusion w>1.0 ms -1 E4 27 th April 2004 - Upgrade to UM6.0 E5 22 nd September 2004 - DA/UM upgrade
Page 18© Crown copyright 2004 Changes to Limited area models Balkans model 23 rd March 2004 - Withdrawn (replaced by NAE) Middle East model 27 th April 2004 - Upgrade to UM6.0 South West Asia model 27 th April 2004 - Upgrade to UM6.0 Falklands model (new) 5 th October 2004 - Introduction

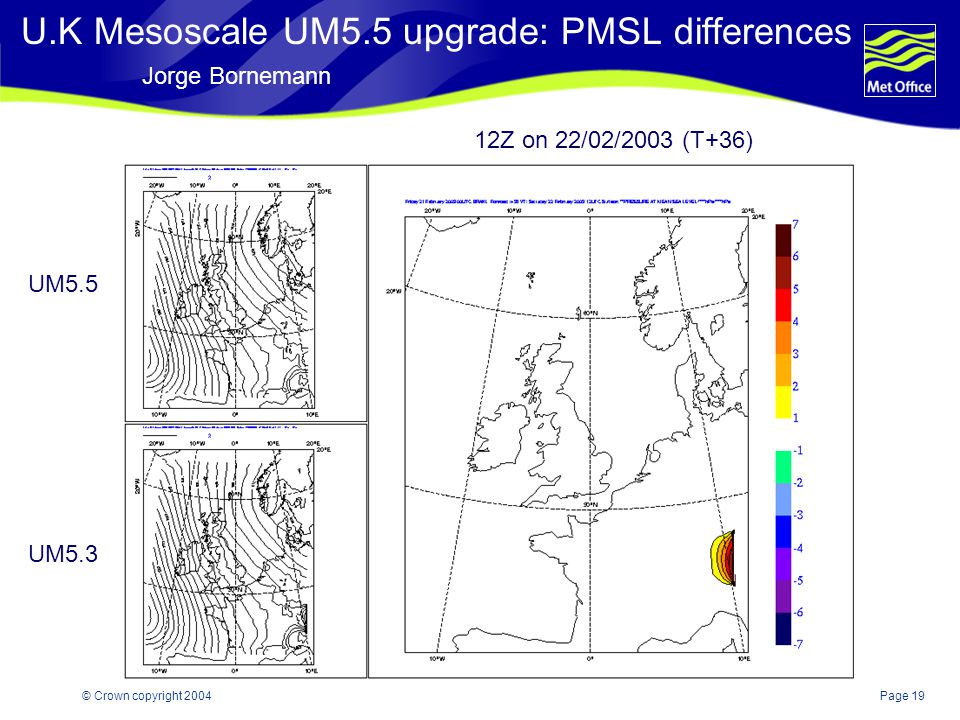

Page 19© Crown copyright 2004 U.K Mesoscale UM5.5 upgrade: PMSL differences Jorge Bornemann UM5.5 UM5.3 12Z on 22/02/2003 (T+36)

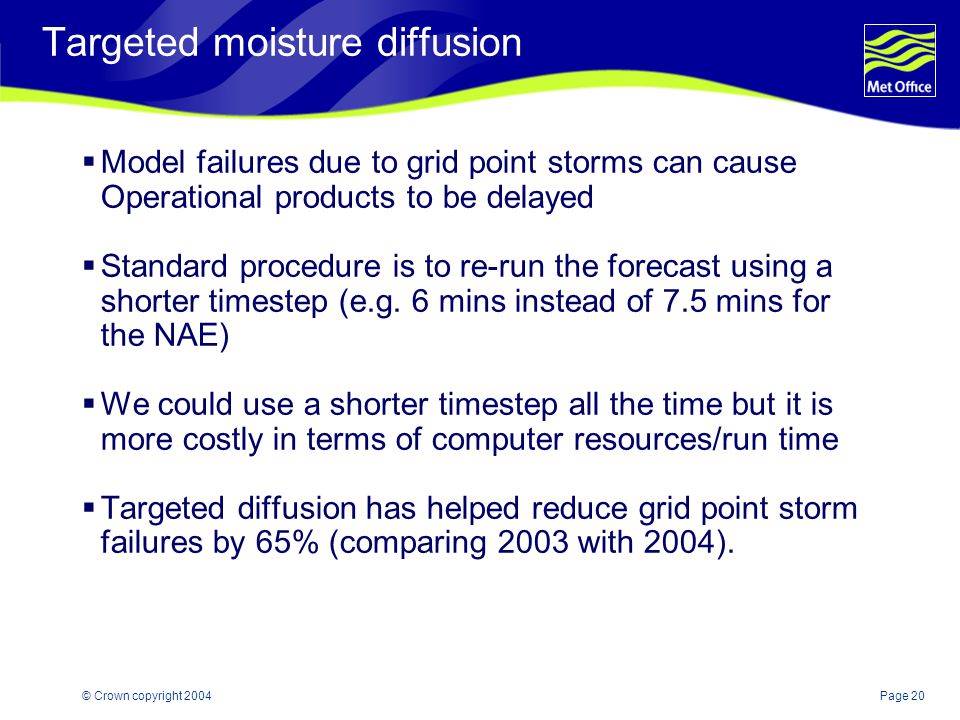

Page 20© Crown copyright 2004 Targeted moisture diffusion Model failures due to grid point storms can cause Operational products to be delayed Standard procedure is to re-run the forecast using a shorter timestep (e.g. 6 mins instead of 7.5 mins for the NAE) We could use a shorter timestep all the time but it is more costly in terms of computer resources/run time Targeted diffusion has helped reduce grid point storm failures by 65% (comparing 2003 with 2004).
Page 21© Crown copyright 2004 North Atlantic-European Model (NAE)
Page 22© Crown copyright 2004 Greenland – Valley cooling problem Low values of theta caused model to crash (<100K !) Cold spots confined to certain locations (valleys) in Greenland and Northern Canada Forced to reconfigure from Global 6 times last Winter…
Page 23© Crown copyright 2004 Greenland – Cross section across valleys Chris Smith, Nigel Wood Investigations revealed that the problem was present in no physics runs Implication: a numerical instability in the dynamics Runaway cooling occurs when the Courant number falls below a critical threshold: C < C_crit (N, Δh) Δh is valley depth
Page 24© Crown copyright 2004 Alps – Cold spot in Valle D’Aosta Sam Smith, Andy Malcolm Similar problems were encountered in 2km resolution modelling of MAP case studies Theta advection uses non-interpolating Semi Lagrangian in the vertical Mod to use full 3D SL theta advection with strict monotonicity cures the problem Overall model stability still remains an issue

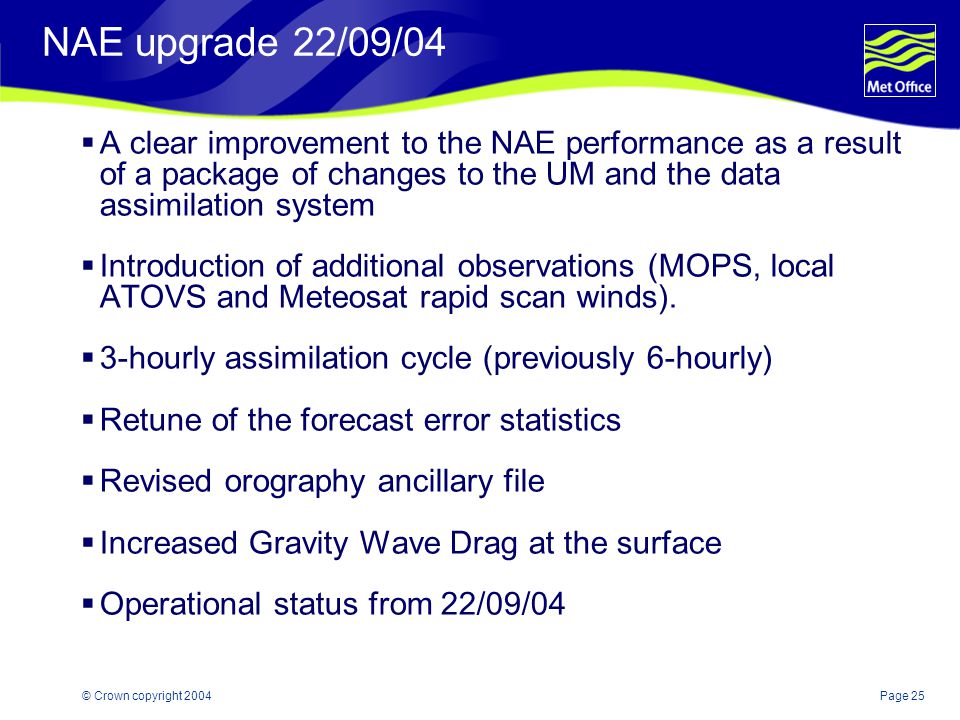

Page 25© Crown copyright 2004 NAE upgrade 22/09/04 A clear improvement to the NAE performance as a result of a package of changes to the UM and the data assimilation system Introduction of additional observations (MOPS, local ATOVS and Meteosat rapid scan winds). 3-hourly assimilation cycle (previously 6-hourly) Retune of the forecast error statistics Revised orography ancillary file Increased Gravity Wave Drag at the surface Operational status from 22/09/04
Page 26© Crown copyright 2004 ATOVS data coverage Brett Candy QY06 01/10/04 RTTOV-5 + ATOVSG RTTOV-7 + ATOVSL Blue = NOAA16 Red = NOAA15
Page 27© Crown copyright 2004 NAE performance relative to Global & UK Mes Wind Cloud RMSE against Lead Time 18/08/2004 – 17/09/2004 Red = NAE Green = Global Blue = UK Mes
Page 28© Crown copyright 2004 NAE performance relative to Global & UK Mes Jorge Bornemann
Page 29© Crown copyright 2004 NAE future plans 2004 - 2005 Reduced domain - Winter 2004 38 levels ozone - Winter 2004 Physics changes (Microphysics, Boundary Layer, Prognostic cloud + condensate, Convection…) as per Global - Spring 2005 Saharan Albedo - Spring 2005 Use of 9 surface tiles (currently 1) - Spring 2005 12km horizontal resolution - Spring 2005 Replace U.K Mesoscale model - 2005
Page 30© Crown copyright 2004 NAE future plans 2005 - 2006 Nimrod soil state model for the U.K radar area (currently reset to climatology once a week) - Spring 2005 Full resolution AMSU-B - Summer 2005 Ensembles - Summer 2005 70 levels - Summer 2005 Use of soil level increments from screen level data outside the U.K radar area - Winter 2005/2006 4DVAR (currently 3D-VAR) - Winter 2005/2006
Page 31© Crown copyright 2004 NAE – reduced domain from Winter 2004

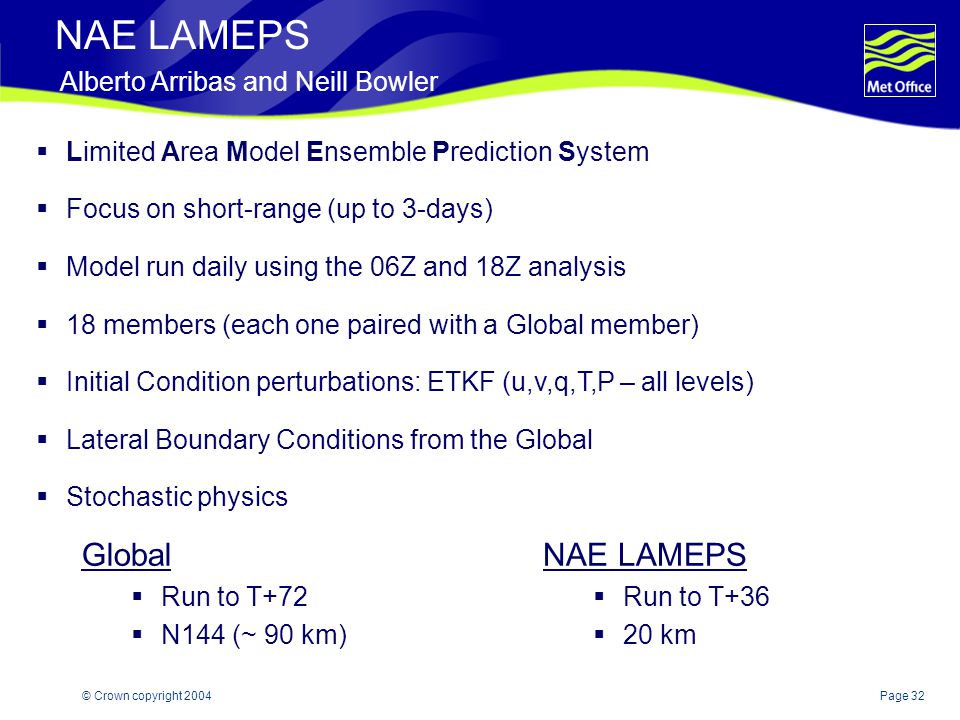

Page 32© Crown copyright 2004 NAE LAMEPS Alberto Arribas and Neill Bowler Global Run to T+72 N144 (~ 90 km) NAE LAMEPS Run to T+36 20 km Limited Area Model Ensemble Prediction System Focus on short-range (up to 3-days) Model run daily using the 06Z and 18Z analysis 18 members (each one paired with a Global member) Initial Condition perturbations: ETKF (u,v,q,T,P – all levels) Lateral Boundary Conditions from the Global Stochastic physics

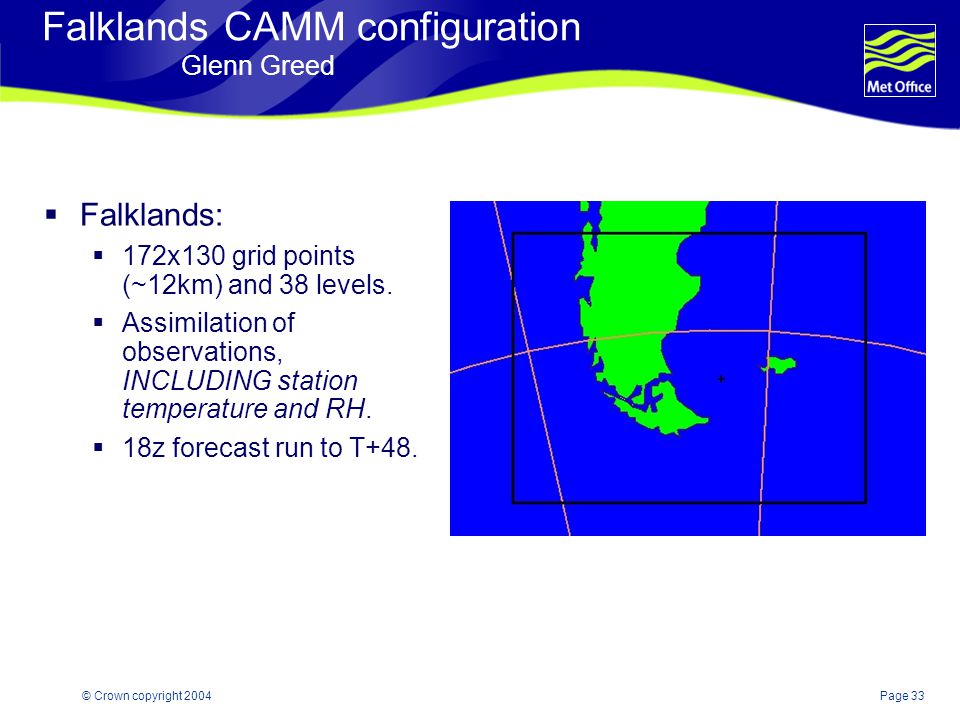

Page 33© Crown copyright 2004 Falklands CAMM configuration Glenn Greed Falklands: 172x130 grid points (~12km) and 38 levels. Assimilation of observations, INCLUDING station temperature and RH. 18z forecast run to T+48.
Page 34© Crown copyright 2004 U.S.A test CAMM (17km) – Hurricane Ivan Glenn Greed
Page 35© Crown copyright 2004 TRMM Rain 09Z, GOES-12 IR 0745Z Glenn Greed

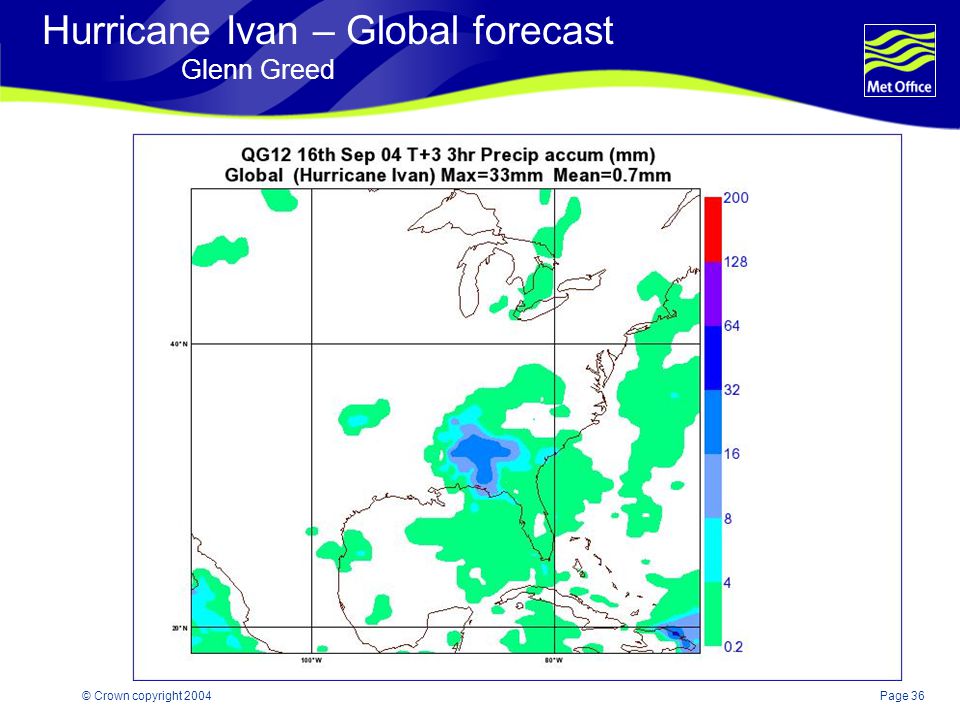

Page 36© Crown copyright 2004 Hurricane Ivan – Global forecast Glenn Greed
Page 37© Crown copyright 2004 INM collaboration - 5 Km UM over Spain Jorge Bornemann Resolution 0.05 degrees (~5 Km) 606x430 grid boxes 38 levels Rotated grid
Page 38© Crown copyright 2004 Spain 5Km model. 10m Winds Jorge Bornemann Mistral and Levante sensibly captured 18Z 05/01/2004 (T+18)

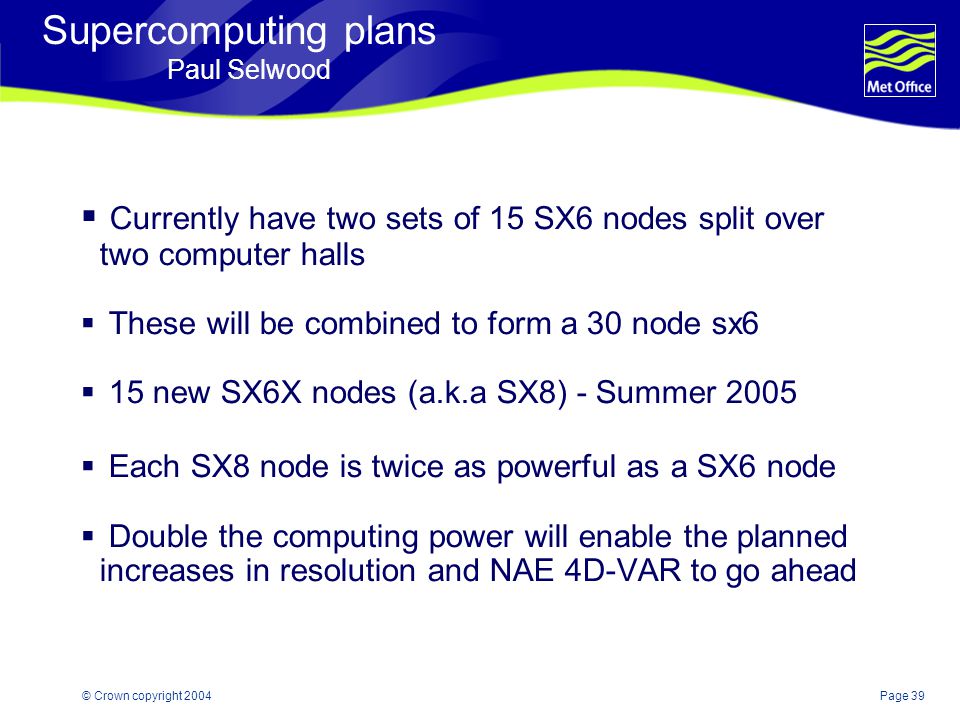

Page 39© Crown copyright 2004 Supercomputing plans Paul Selwood Currently have two sets of 15 SX6 nodes split over two computer halls These will be combined to form a 30 node sx6 15 new SX6X nodes (a.k.a SX8) - Summer 2005 Each SX8 node is twice as powerful as a SX6 node Double the computing power will enable the planned increases in resolution and NAE 4D-VAR to go ahead
Page 40© Crown copyright 2004 Summary 2004 Balkans model withdrawn All operational models ported to the SX6 and upgraded to UM6.0 (April) Satellite upgrade to the Global model (May) NAE upgrade (September) 4D-VAR in Global (October) Falklands model (October) Reduced NAE domain (November)
Page 41© Crown copyright 2004 Summary of plans 2005 70 levels in all models Withdraw Stratospheric model 40km Global model Physics changes in all models Introduce Global and Limited Area Ensembles 12km NAE model Withdraw U.K Mesoscale model Introduce 4km UK model
Page 42© Crown copyright 2004 Questions & Answers
