**NE 301 - Introduction to Nuclear Science Spring 2012**

Classroom Session 8: Radiation Interaction with Matter Non-Charged Radiation Mass Attenuation Tables and Use Absorbed Dose (D), Kerma (K) Gray (Gy) = 100 rad Dose Calculations Analysis of Gamma Information (NAA) Chemical Effects of Nuclear Reactions

2
**Reminder Load TurningPoint Reset slides Load List**

Homework #2 due February 9 Next Tuesday February 14 – 1st Demo Session MCA Gamma Spectroscopy identification of isotopes NAA of samples

3
**Ionizing Radiation: Electromagnetic Spectrum**

Each radiation have a characteristic , i.e.: Infrared: Chemical bond vibrations (Raman, IR spectroscopy) Visible: external electron orbitals, plasmas, surface interactions UV: chemical bonds, fluorecense, organic compounds (conjugated bonds) X-rays: internal electron transitions (K-shell) Gamma-rays: nuclear transitions Neutrons mK, can be used to test metal lattices for example) Ionizing

4
**Radiation Interaction with Matter**

Five Basic Ways: Ionization Kinetic energy transfer Molecular and atomic excitation Nuclear reactions Radiative processes

5
**Radiation from Decay Processes**

Charged Directly ionizing (interaction with e-’s) β’s, α’s, p+’s, fission fragments, etc. Coulomb interaction – short range of travel Fast moving charged particles It can be completely stopped Uncharged Indirectly ionizing (low prob. of interaction – more penetrating) , X-Rays, UV, neutrons No coulomb interaction – long range of travel Exponential shielding, it cannot be completely stopped R

6
**Stochastic (Probabilistic) With an electron or a nucleus **

Neutral Interactions Stochastic (Probabilistic) With an electron or a nucleus Can be scattering – elastic or inelastic Can be absorptive It is still a collision: Flux of particles is important

7
**Flux or Intensity Flux is usually for neutrons (n)**

Intensity is usually for photons (’s) Target Beam Density of particles in the beam Velocity of beam particles

8
**Attenuation of Uncollided Radiation**

How do we calculate the change in the flux of (uncollided) particles as it moves through the slab? Uncollided radiation is a simplification. In reality not every collided photon/neutron is lost and there are buildup factors (Bi)

9
**Attenuation of Uncollided Radiation**

Beam with intensity I, interacting with shield (1-D)

10
**Microscopic and Macroscopic Cross Sections**

Sigma-N = Linear Attenuation Coefficient or Macroscopic Cross Section ( or ) Notice Different Units: is measured in cm-1 is measured in barns 1 barn = cm2 Constant of Proportionality or Microscopic Cross-Section

11
**A beam of neutrons is normally incident on a slab 20 cm thick**

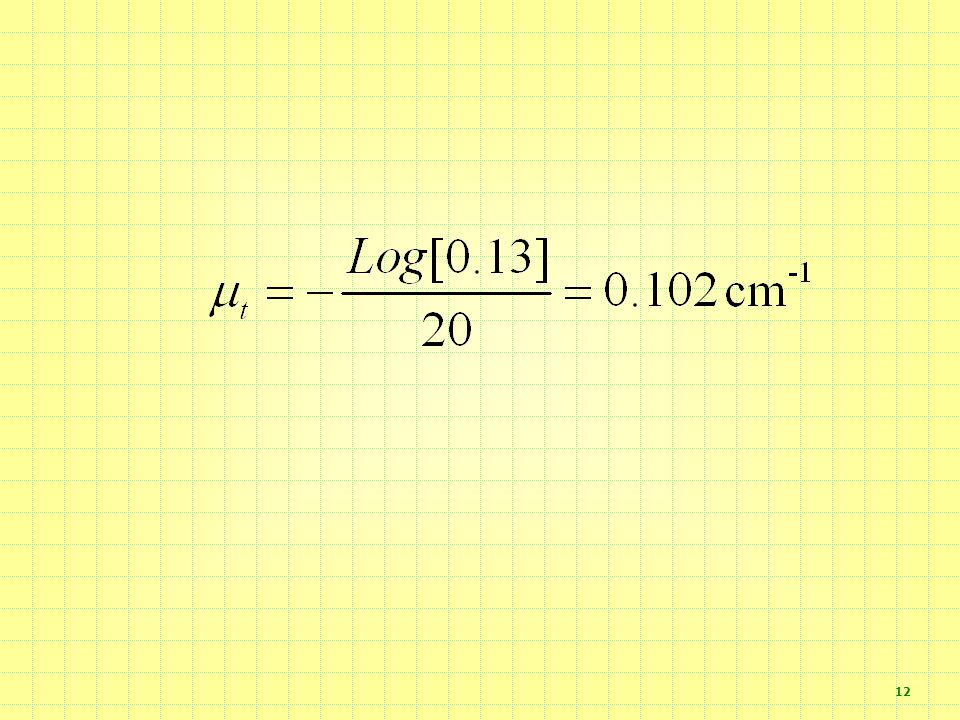

A beam of neutrons is normally incident on a slab 20 cm thick. The intensity of neutrons transmitted through the slab without interactions is found to be 13% of the incident intensity. What is the total interaction coefficient t for the slab material? 0.01 cm-1 0.1 cm-1 1 cm-1 10 cm-1

13
**Attenuation of Uncollided Radiation**

Beams of particles: with intensity I0, interacting with shield (1-D) Point sources: Isotropic source emitting Sp particles per unit time

14
**Related Concepts Mean Free Path (mfp or ):**

Average distance a particle travels before an interaction Half-thickness (x1/2) of the slab? Thickness of slab that will decrease uncollided flux by half Similar concepts to mean-life and half-life

15
**10 and 6.9 cm 20 and 13.8 cm 116 and 80 cm 1000 and 693 cm**

It is found that 35% of a beam of neutrons undergo collisions as they travel across a 50 cm slab. What is the mfp and x1/2 for the slab? 10 and 6.9 cm 20 and 13.8 cm 116 and 80 cm 1000 and 693 cm

16
Clicker solution

17
What is the intensity of uncollided neutrons near a 1m diameter water tank containing a 1Ci source? (assume t=0.1 cm-1) 1.7e8 n/cm2s 1.7e5 n/cm2s 1.5e5 n/cm2s 8e3 n/cm2s 2e3 n/cm2s

18
Solution Watch out for sign in exponential

19
**Photon Interactions - tables**

Photon energies: 10 eV < E < 20 MeV IMPORTANT radiation shielding design For this energy range, 1. Photoelectric Effect 2. Pair Production 3. Compton Scattering

20
**Pair Production Compton Scattering The Photoelectric Effect**

21
**Example: Photon Interactions for Pb**

Low Intermediate High Energy Photoelectric Effect Compton Scattering Pair Production

22
: Gammas

23
Problem with Photons 100 mCi source of 38Cl is placed at the center of a tank of water 50 cm in diameter What is the uncollided -flux at the surface of the tank?

24
**100 mCi 38Cl, water tank 50 cm dia.**

Problem with Photons 100 mCi 38Cl, water tank 50 cm dia. What is the uncollided -flux at the surface of the tank?

27
**Linear Coefficients – Macroscopic Cross Sections**

Linear Absorption Coefficient μt Linear Scattering Coefficient μs Macroscopic Fission Cross-section Σf, μf for neutrons

28
Neutrons:

30
**For homogeneous mixes of any type**

Valid for any cross section type (fission, total, etc) Valid for chemical compounds as well DO NOT add microscopic cross-sections

31
**In natural uranium (=19. 21 g/cm3), 0. 720% of the atoms are 235U, 0**

In natural uranium (=19.21 g/cm3), 0.720% of the atoms are 235U, % are 234U, and the remainder 238U. From the data in Table C.1. What is the total linear interaction coefficient (macroscopic cross section) for a thermal neutron in natural uranium? 0.24 cm-1 cm-1 238U: 0.59 cm-1 Who dominates?

32
**Absorbed Dose, D (Gray, rad)**

Energy absorbed per kilogram of matter (J/kg) Gray: 1 Gy = 1 J/kg The traditional unit: Rad: rad = 1 Gy rad = Radiation Absorbed Man Dose rate = dose/time

33
**Kerma (Approx. dose for neutrons)**

Kinetic Energy of Radiation absorbed per unit MAss For uncharged radiation Kerma is easier to calculate than dose for neutrons Kerma and Dose: same for low energy Kerma over-estimates dose at high energy No account for “Bremsstrahlung” radiation loses.

34
**Calculating Dose Rate and Kerma Rate**

en(E)/ =mass interaction coefficient (table C3) E = particle energy [MeV] = flux [particles/cm2 s] Notice Difference tr(E)/ =mass interaction coefficient (table C3) E = particle energy [MeV] = flux [particles/cm2 s] Engineering Equations – PLEASE Watch out for units!
