1 1 HEAD GEAR DR. ABDUL JABBAR

2 2 Means of applying posterior directed forces to teeth and skeletal structures from an extra oral source

3 3 Headgear Introduced in late 1800s Abandoned as it was thought that intra- oral elastics would be as effective Reintroduced in 1940s after cephalometric developed

4 4

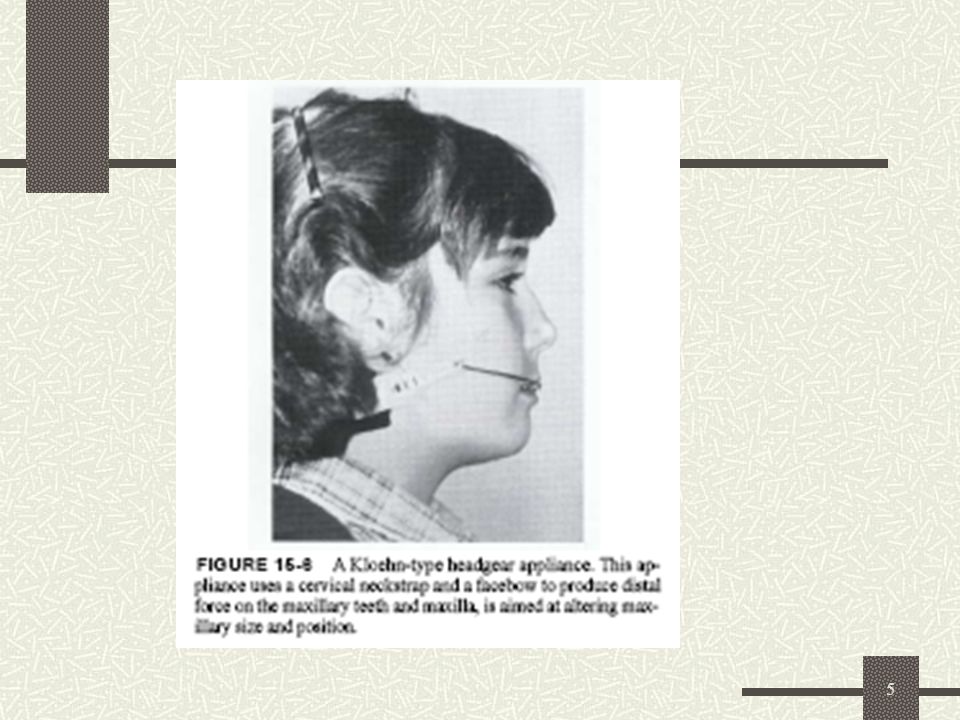

5 5

6 6 Mechanism of action Growth modification by changing the pattern of bone apposition at the sutures CL II correction is obtained as the mandible grows forward normally while maxillary growth is restrained Favorable mandibular growth is a must for CL II correction with HG use

7 7 Force is generated by head cap or neck strap through ; springs Elastic bands

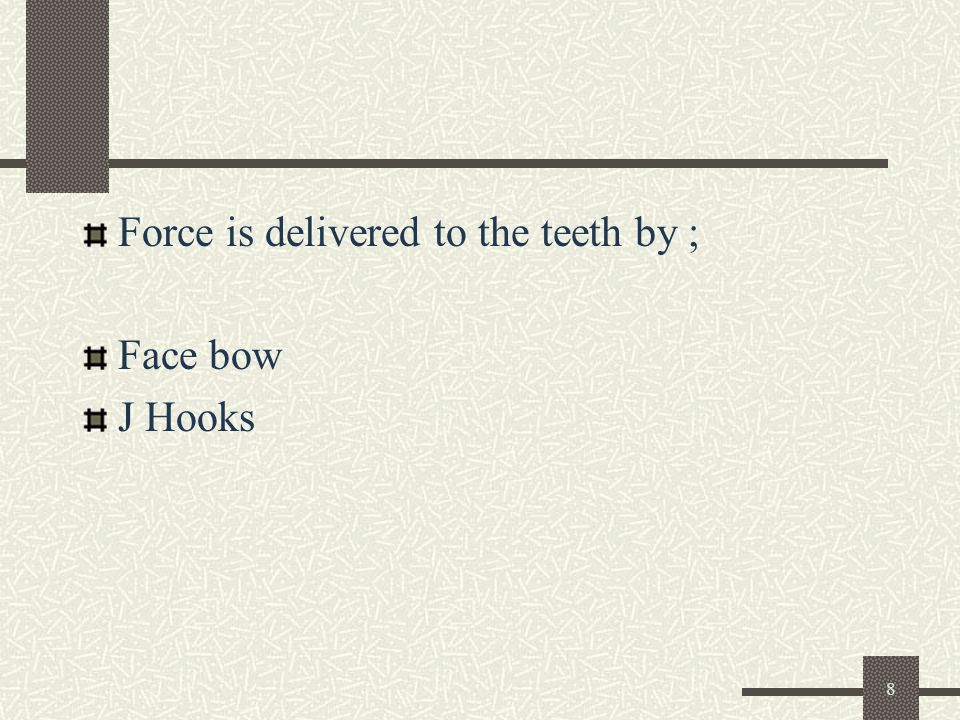

8 8 Force is delivered to the teeth by ; Face bow J Hooks

9 9 classification Distalising HG: direction of elastic traction has a distal component Types : Occipital directed ( high) pull Combination pull Cervical directed (low) pull J-hook HG Asymmetric HG HG to mandible

10 High Pull Headgear Skeletal Class II with prognathic maxilla High Angle case Growing ages Straight Pull Headgear Skeletal Class II with prognathic maxilla normal Angle case Growing ages Cervical Pull Headgear Skeletal Class II with prognathic maxilla Low Angle case Growing ages 10

11 11 High pull HG

12 12 Combination pull HG

13 13 Low pull HG

14 14 J Hook HG

15 15 A.Single pull to maxillary dentition B.Attachment of the J hooks to both maxillary and mandibular dental arches.

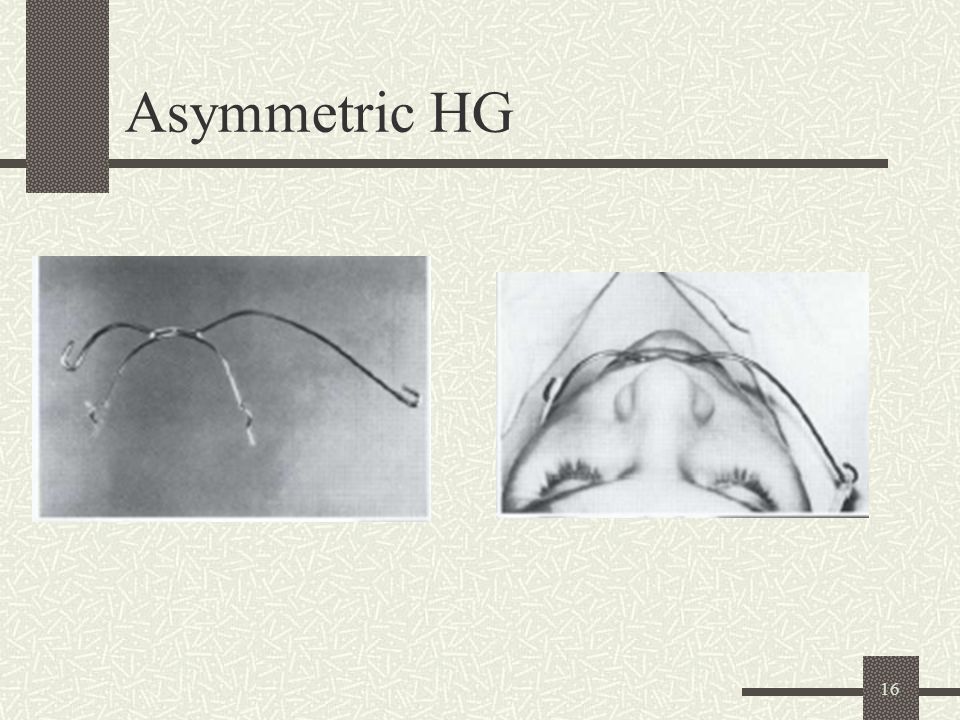

16 16 Asymmetric HG

17 17 Components Head cap / neck strap Elastics Face bow (Inner bow, outer bow and U loop)

18 18

19 19

20 20

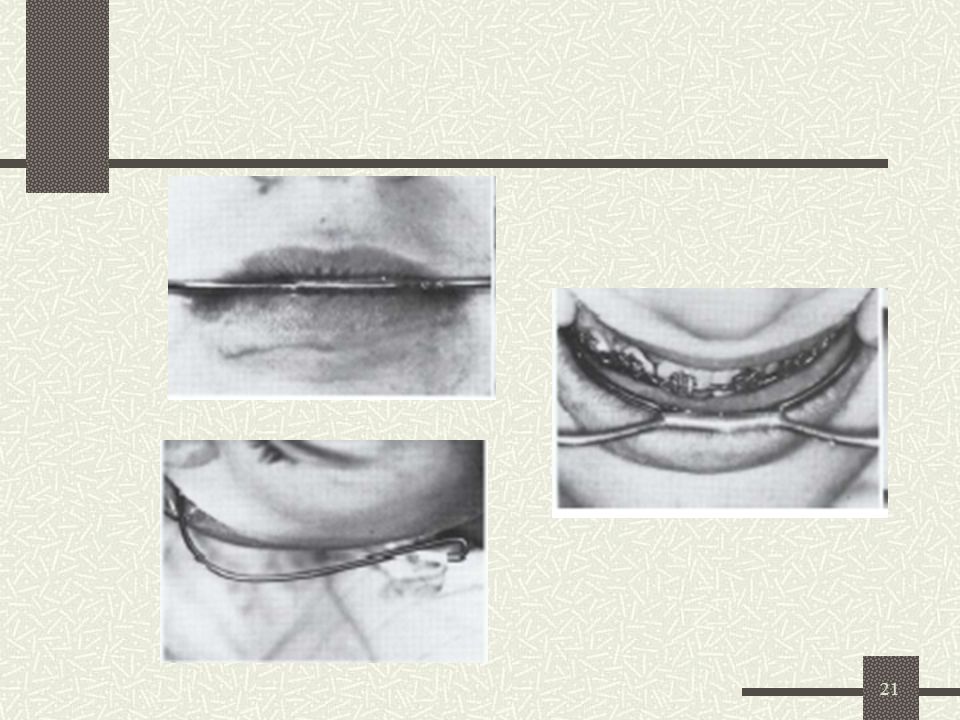

21 21

22 22

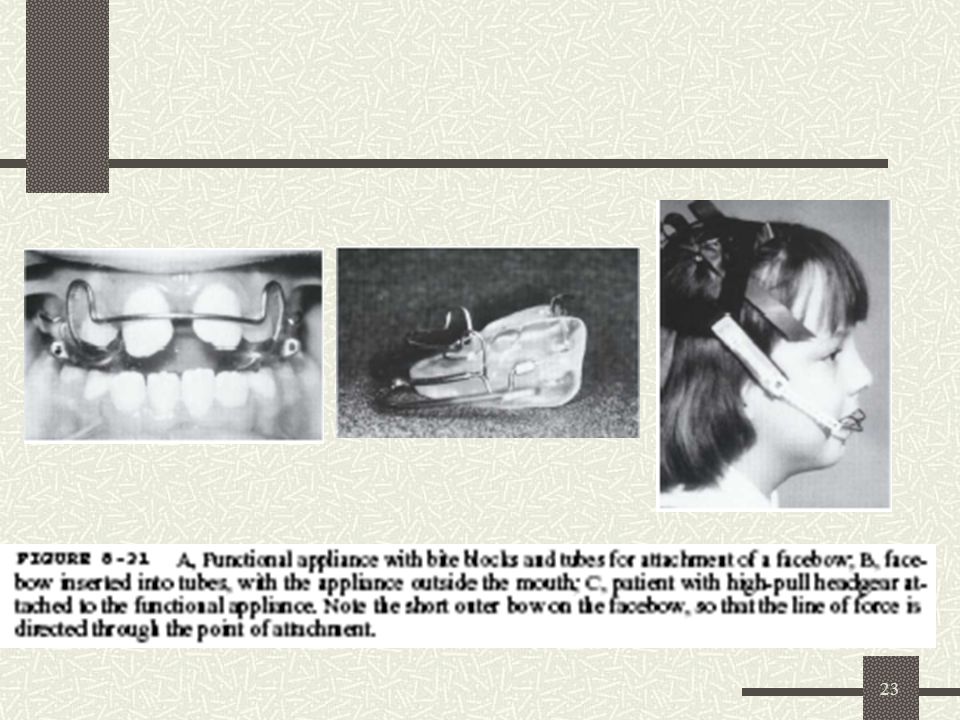

23 23

24 24

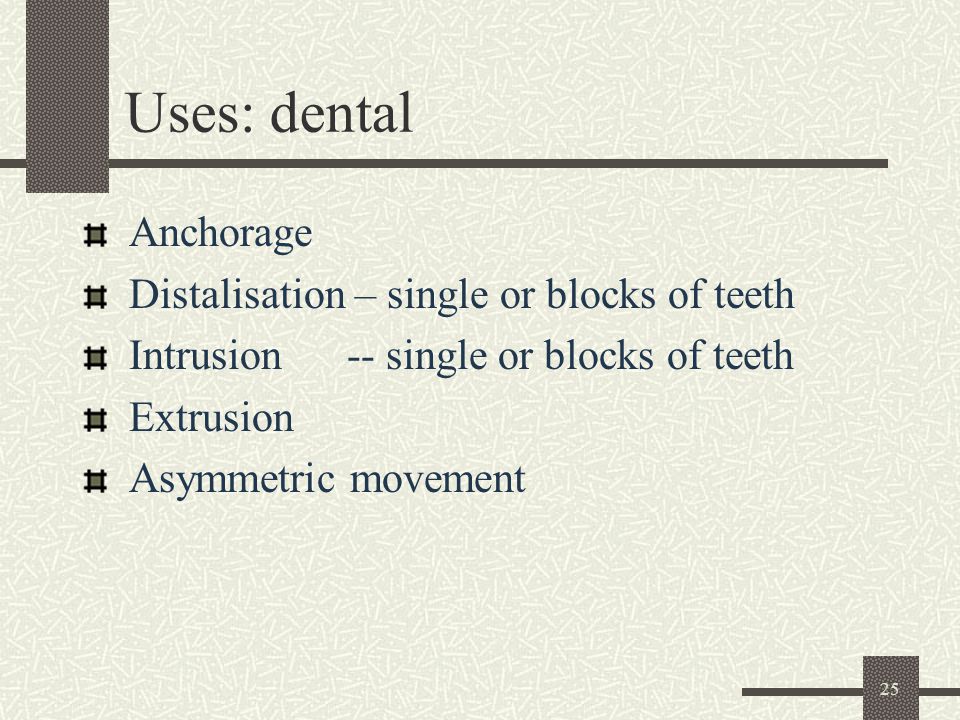

25 25 Uses: dental Anchorage Distalisation – single or blocks of teeth Intrusion -- single or blocks of teeth Extrusion Asymmetric movement

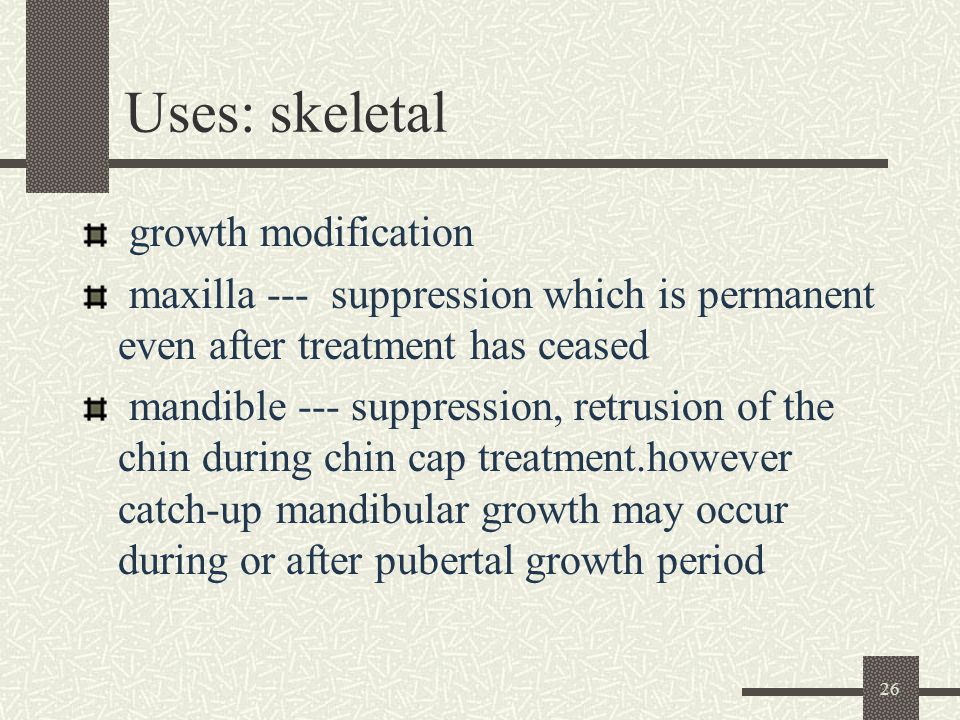

26 26 Uses: skeletal growth modification maxilla --- suppression which is permanent even after treatment has ceased mandible --- suppression, retrusion of the chin during chin cap treatment.however catch-up mandibular growth may occur during or after pubertal growth period

27 27

28 28 Factors influencing effect Direction of force Duration of force Magnitude of force Centers of rotation

29 29

30 30

31 31

32 32

33 33 Duration and magnitude of force Orthopedic effect Principle: higher forces for comparatively smaller duration oz or gm / side hrs

34 34 Duration and magnitude of force Tooth movement Principle : smaller forces for longer duration gm / side hrs Anchorage gm / side 10 hrs min.

35 35 Magnitude of force is determined by a Strain-gauge Spring loaded assembly comes with a built- in force indicator

36 36 FORCE MEASURING DEVICE

37 37

38 38 Centers of rotation Single rooted teeth centroid 6_ trifurcation Maxilla b/w roots of 4&5

39 39 Resolution of forces:horizontally Force thru center of resistance bodily movement Force above center of resistance distal root tipping Force below center of resistance mesial root tipping

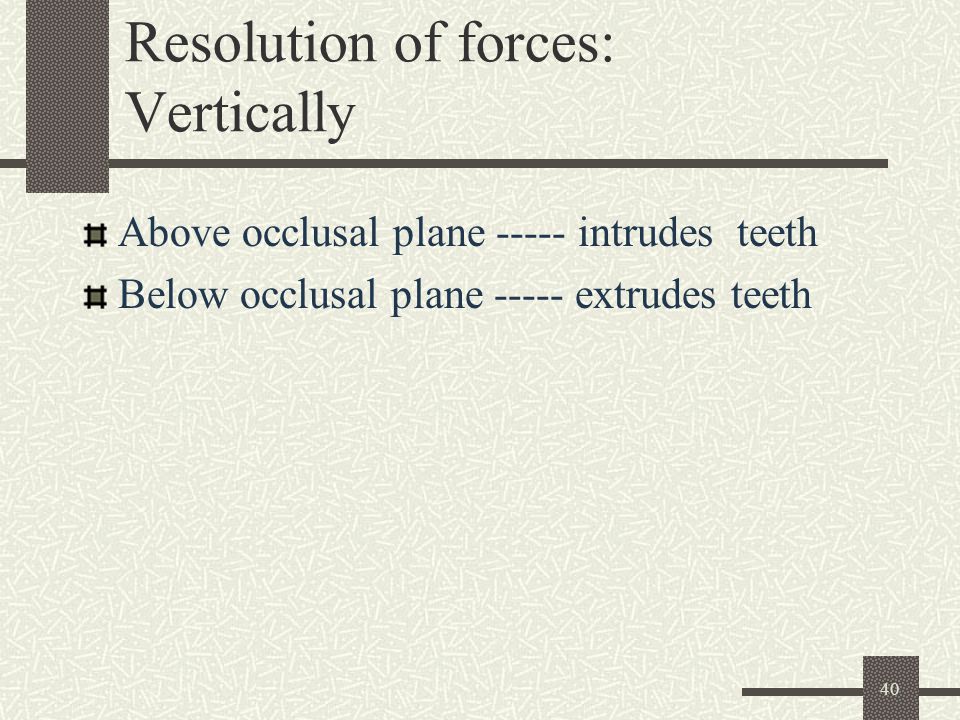

40 40 Resolution of forces: Vertically Above occlusal plane intrudes teeth Below occlusal plane extrudes teeth

41 41 Problems with HG Tooth- related Unwanted tooth movement Tipping Extrusion of 6_ may cause clockwise rotation of mand. Pt. Becomes more CLII Buccal rolling of 6_ with high pull HG Cross bite on side of movement with asymmetric HG Lingual tipping of lower incisors, clockwise rotation of mand. & increased LAFH with chin cup therapy Root resorption possibly with J hook HG

42 42

43 43

44 44 Problems with HG Patient related Co-operation biological variability growth may be unfavorable Extra / intra-oral injuries Pain Difficulty with insertion

45 45 Assessment of patient compliance at every visit Check for signs of use intra orally as well as extra orally Hand out Time-sheets for record of wear Offer reward

46 46 Extra oral injuries include injuries to eyes, eyelids, nose etc. Most common are eye injuries Catapult type of injury very common while playing Disengagement of face bow during sleep

47 47 Safety No single safety HG is best Should use safety face bow and release mechanism together Written instructions must be given to patient Risks involved should be explained told to seek medical advice if any problem arises

48 48

49 49

50 50

51 51 THANK YOU
