Binary Shading using Geometry and Appearance Bert Buchholz Tamy Boubekeur Doug DeCarlo Marc Alexa Telecom ParisTech – CNRS Rutgers University TU Berlin Computer Graphics Forum Vol. 29, N. 6, 2010 Presented at Eurographics 2011

2
Binary Drawing Depicting scenes using 2 colors

3
Conversion Binary Rendering Lighting Reflectance Geometry Camera

4
Related Work Line Drawing [DeCarlo 2003][Judd 2007] Image Binarization [Mould and Kaplan 2008] Local shading operators [Vergne 2008] Half-Toning [Floyd and Steinberg 1976] [Ostromoukhov and Hersch 1995]

5

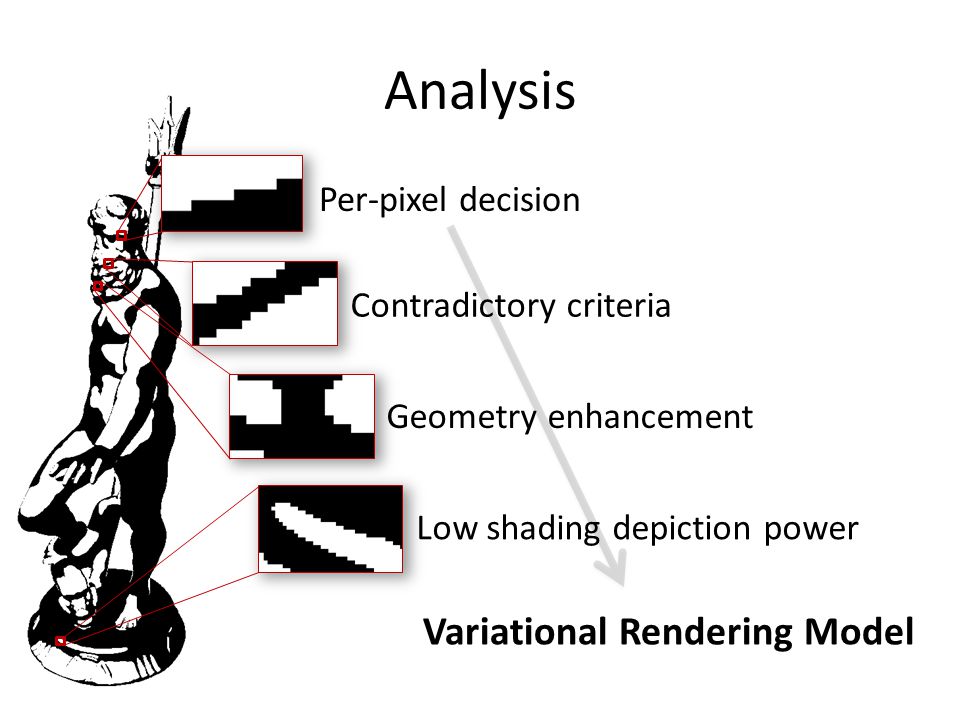

Analysis Variational Rendering Model Per-pixel decision Contradictory criteria Geometry enhancement Low shading depiction power

6
VARIATIONAL BINARY RENDERING

7
Variational Binary Shading Deferred shading framework Rendering data structured as a ST image graph Edges energies derived from geometry and appearance Final rendering as a min cut in the image graph

8
Deferred Shading Generate a set of arrays (render buffers) – Geometric Properties – Appearance Properties Rasterization Ray Tracing

9
Graph construction Standard Source-to-Sink Image Graph {V,E} Image Pixels Source (white) Sink (black) Image Connectivity Edges to Source Edges to SInk

10
Appearance Contribution to the Graph Through terminal weights on Appearance initiate B/W segmentation Experiments using : – Diffuse component – Specular component – Headlight component – Ambient Occlusion/Accessibility component Terminal Weights

11
Appearance Graph Terms Global to local feature control using spatial averages Support size Local term: Sign:locally lighter or darker Weighted combination to the global measure.

12
Global versus Local Thresholding GlobalLocal

13
Geometry Contribution to the Graph Modelled with neighbor edge weights Tailors anisotropic, non-local B/W diffusion Redistributes B/W values to enhance geometric features Based on: – View depth values – View dependent curvature, estimated as screen space normal derivatives [Judd 2007] Geodesic distance on the Gauss sphere Unit surface normal gathered at

14
Geometric Term Local curvature normalization: Support size Yields neighbor edge weights:

15
Geometry Contribution Modulation

16
Small components are successively connected

17
Graph Minimum Cut Max Flow Min Cut Theorem – Shortest split path in the graph →Feature size control through graph energy Separate the graph in two components Boykov and Kolmogorov implementation [2004]

18
Cut performance Rendering buffers can be speed up using rasterization Measured on a Core2Duo 1.83GHz (single thread)

19
RESULTS

20
Binary Shading Global to local features Appearance & geometry depiction Large variety of style Interactive control

21
Comparison to Line Drawing Line Drawing Binary Shading

22
Combination with Line Drawing

23
RGBN Picture Rendering [Toler-Franklin 2007]

24
Combination with Line Drawing

25
Comparison to Thresholding Diffuse Component Thresholding Over Gaussian Filtering Binary Rendering

26
Comparison to Thresholding

27
Comparison to Image Binarization (b,e) equivalent to [Mould and Kaplan 2008]

28
INTERACTIVE CONTROL On-going work

29
Interactive Control Solution 1: slider-based, for experts – Accurate control – « Too much » control for novice users Solution 2: painting interface

30
Paint Interface Supervised sparse B/W contraints Derive the graph energy structure

31
Paint Interface

32
LIMITATIONS AND FUTURE WORK

33
Animation … most of straightforward solutions have some temporal coherency failure cases. Works most of the time but…

34
K-color Rendering Extend to multi-label cuts Alternative energy minimizer – Lloyd relaxation/k-means – Mean Shift k-Component cut Vector Rendering

35
CONCLUSION

36
Binary Shading as a Single Cut Global solution Local to global control Appearance vs geometry control High level control For automatic binary drawing from 3D Scenes, decals, cut-out, etc…

37
Thank you Binary Shading Using Geometry and Appearance. Bert Buchholz, Tamy Boubekeur, Doug DeCarlo and Marc Alexa Computer Graphics Forum Vol. 29, Nb. 6, 2010 Presented at Eurographics 2011
