Presentation on theme: "MICROSCOPE. Parts of the Microscope a.Eyepiece b.Coarse Adjustment c.Fine Adjustment d.Objectives (LP, HP) e.Arm f.Stage g.Light source h.Base i.Diaphragm."— Presentation transcript:

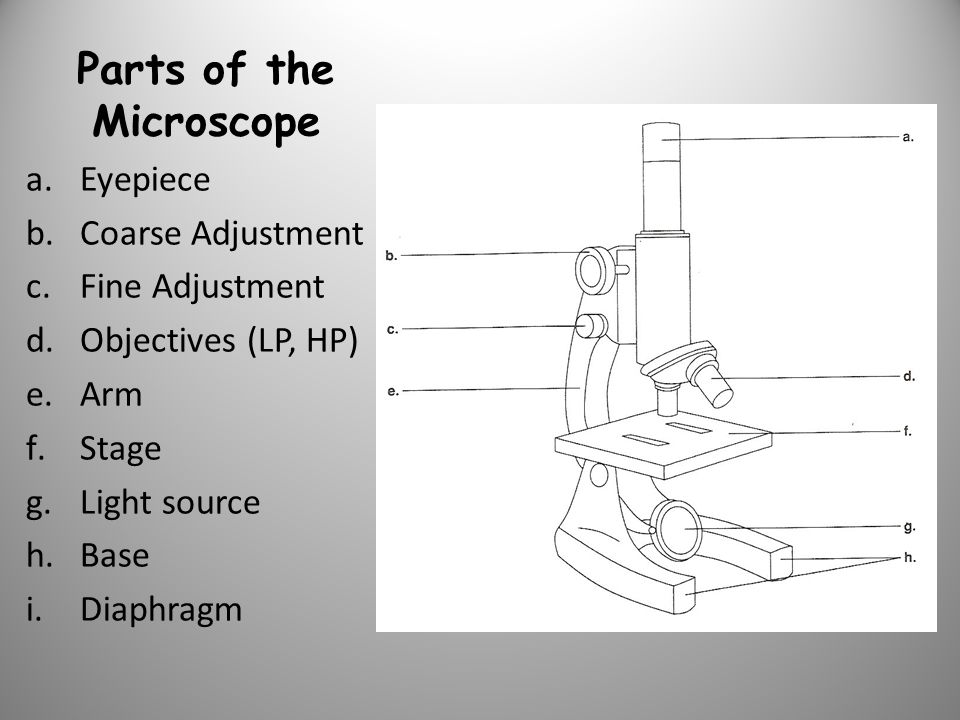

Parts of the Microscope a.Eyepiece b.Coarse Adjustment c.Fine Adjustment d.Objectives (LP, HP) e.Arm f.Stage g.Light source h.Base i.Diaphragm
FUNCTIONS – FILL IN AT BOTTOM OF SHEET a.Magnifies image (10X) b.Used for rough focus (use with low power) c.Used for fine adjustments (use with high power) d.Enlarges image (scanning 4x, low power 10x, high power 40x) e.Used for carrying microscope f.Platform for holding the slide g.Can be a mirror or light bulb h.Used for carrying the microscope i.Adjusts the amount of light
10x x 4x = 40x magnification magnification total of eyepiece lens of obj. lens magnification
Question 1: Calculate the total magnification: Eyepiece Lens Objective Lens Total Magnification a. 10x4x b. 10x10x c. 10x40x
Questions 2 & 3: Question 2: With which combination of lenses would you be able to see the largest area of a specimen? The smallest area? Question 3: Which set of lenses would you use to locate a specimen on a slide? Which set would you use to examine the details of a specimen?

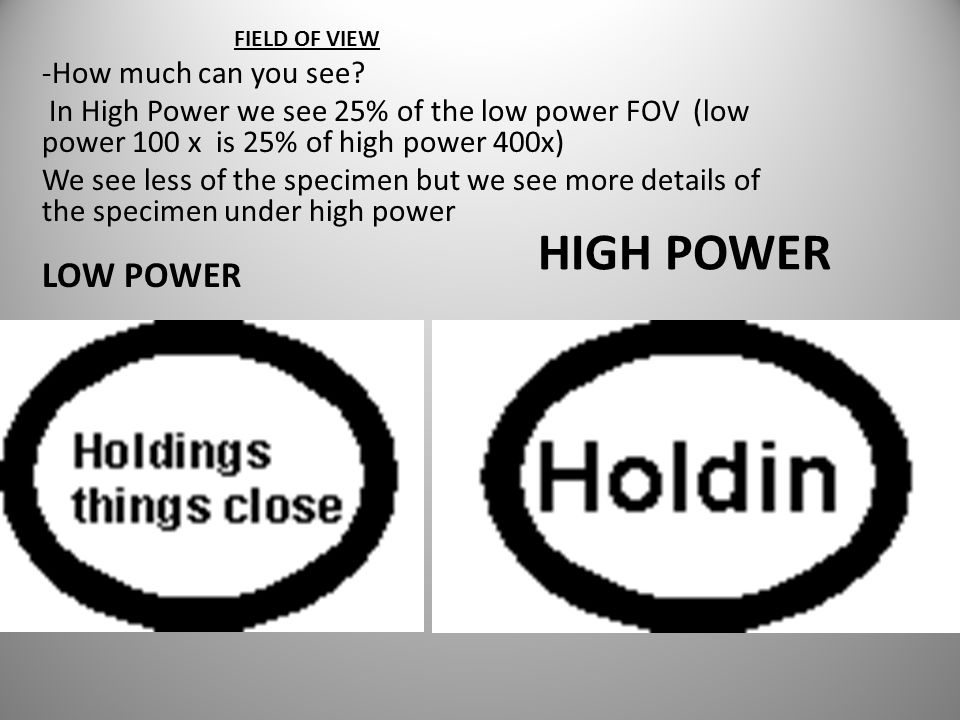

HIGH POWER FIELD OF VIEW -How much can you see? In High Power we see 25% of the low power FOV (low power 100 x is 25% of high power 400x) We see less of the specimen but we see more details of the specimen under high power LOW POWER

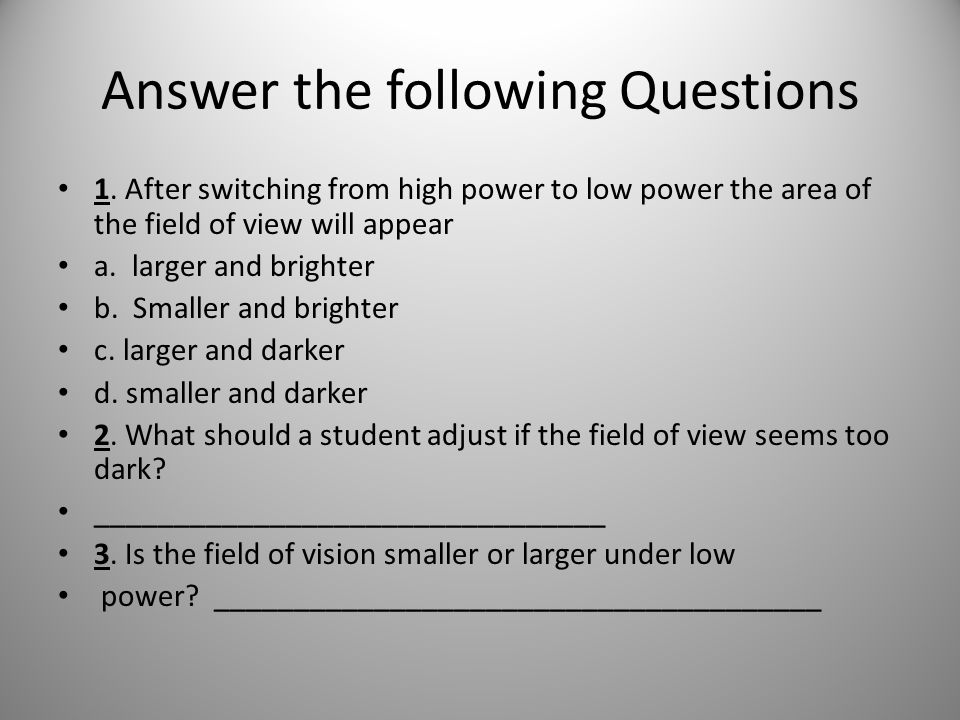

Answer the following Questions 1. After switching from high power to low power the area of the field of view will appear a. larger and brighter b. Smaller and brighter c. larger and darker d. smaller and darker 2. What should a student adjust if the field of view seems too dark? ________________________________ 3. Is the field of vision smaller or larger under low power? ______________________________________
4. To locate and observe a specimen under a slide, a student should begin by using what objective and what adjustment knob? 5. What adjustment knob should you use if you are using high power? 6. Why should a specimen be centered in the middle of the field of view when focusing under low power?
Electron Microscope The limit of resolution restricts the usefulness of light microscopes for studying VERY small specimens such as viruses. Electron microscopes use a stream of electrons to view these specimens. Electron microscopes have a limit of resolution more than 1000 times finer than light microscopes.
