1 LM10 A Motor Management System for Low Voltage Motor Control

2 2 GE Consumer & Industrial Multilin Presentation Agenda GE Multilin Business Recap LM10 Motor Protection System Product Details Equipment Integration Considerations Frequently Asked Questions Q&A

3 3 GE Consumer & Industrial Multilin GE Multilin Business Recap

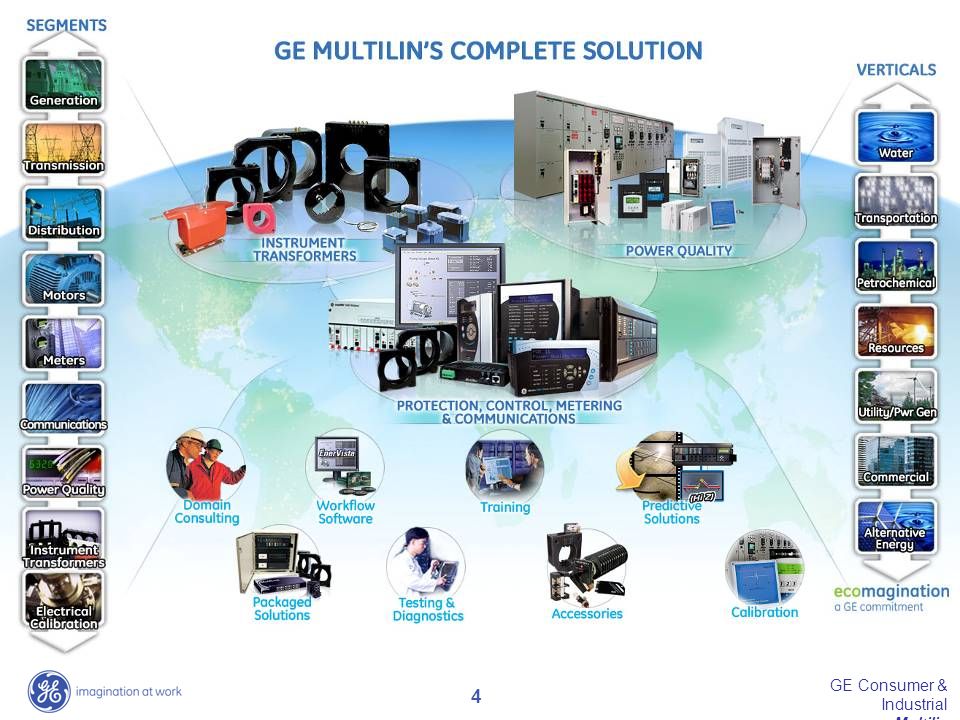

4 4 GE Consumer & Industrial Multilin

5 5 GE Consumer & Industrial Multilin Instrument Transformers Metering Communications Motor Protection Bus Protection Transformer Protection Feeder Protection Accessories Transmission Line Protection Low-End To Full-Featured Products MIGII 489L 489 G30 G60 T35 T L90 D60 L60 D30 B90 B30 MIB HIM F60 750/760 F35 URC F /737MIFII FM 2 Voltage Transformers Current Transformers Control Transformers F485 FAC1000/2000 Multinet JungleMux TN1U TN1Ue EPM 1000 EPM 5000 EPM 2000 EPM 6000 PQMII EPM 9800 EPM 9000 LM10 MM M Plus SPM MPM GE Multilin Broad Product Portfolio... Generator Protection

6 6 GE Consumer & Industrial Multilin LM10 Motor Protection System Product Details

7 7 GE Consumer & Industrial Multilin A modular approach to electronic motor protection & control Pick & choose the desired components (Base Unit, PDU, CT sensor pack) Designed for GE Evolution MCC … but applicable to any LV MCC Fits into standard motor control center “buckets” “More than an Overload relay” Converges several device requirements:  PLC I/O  Timing Relays  Load Sensing Relays  Ground Fault Relays  Over and Under Voltage Open Protocol (DeviceNet) compatible with all popular PLC’s Standard on LM10 SCADA and DCS adaptable Easy to use and install LM10  Ammeter, Voltmeter  Power Meter  Elapsed Motor Hours  Factory wiring

8 8 GE Consumer & Industrial Multilin LM10 Applications Low voltage motors up to 500HP Motor Types: Full Voltage non- reversing (FVNR) Full Voltage reversing (FVR) Reduced Voltage (RV) Two Speed- one winding (2S1W) Two Speed-two winding (2S2W) Custom Motor Type (Custom)

9 9 GE Consumer & Industrial Multilin LM10

10 10 GE Consumer & Industrial Multilin 2 nd 3 phase CT Input For Two Speed Motors CT Connections: 75 to 800:5 A ratio CT & VT Inputs Two sets of 3 phase CT inputs One set with either CT sensor pack or direct connect 75A to 800:5 A ratio CTs 2 nd Three Ph CT input for two speed motors Connect 20A ground fault sensor pack or 100:1 core balance CT Voltage input via CPT (provides control power, volt/power/PF metering, over/undervoltage ) LM10

11 11 GE Consumer & Industrial Multilin 7 Digital Inputs Stop control input Reset control input Contactor status inputs (Aux Sens1, Aux Sens2) Start control inputs for RUN1 and RUN2 DeviceNet control switch input (Control) ( disables RUN1 and RUN2 inputs, Stop and Reset not affected) 4 Relay Outputs NEMA C150 pilot duty ratings Two relays to control the coils of motor contactor (enabled by RUN1 or RUN2 inputs) One relay to annunciate ground fault status Additional programmable relay for fault status indication (overcurrent, jam, stall, unbalance, aux sense fault, load loss, power failure, DeviceNet fault, over/undervoltage) Power Supply Input 96 to 140VAC range Autorestart feature of up to 4 s Must be connected across A & B phases LM10

12 12 GE Consumer & Industrial Multilin LM10 – Components Base Unit Programmable Display UnitCT Sensor Pack DeviceNet Connector Std Harris 5Pin Micro connector (allows daisy chain from one unit to another) 4x16 LCD Used for to program and display metering and trip data RJ11: 6C Telephone Jack Used to connect to either PDU or PC; PC cable included, connect via Com1 Hardware Selectable MAC ID & Baud Rate (Up to 63 address & 500kbps) Pwr & Trip LEDs Trip Class Selector Up to 4 different NEMA overload trip classes (Class 10, 15, 20 or 30) Status LEDs (MS): Module Status (NS): Network Status (OC): Overcurrent Trip (GF): Gnd Fault Trip (CUB): O/C Unbalance Form Factor Small, fits in most MCCs Wide variety of commonly used CT blocks, one stop shopping for our customers Self powered from LM10 Base Unit

13 13 GE Consumer & Industrial Multilin LM10 Base Unit DeviceNet Connector Standard Harris 5Pin Micro connector (allows daisy chain from one unit to another) RJ11: 6C Telephone Jack Used to connect to either PDU or PC; PC cable included, connect via Com1 Hardware Selectable MAC ID & Baud Rate (Up to 63 address & 500kbps) Trip Class Selector Up to 4 different NEMA overload trip classes (Class 10, 15, 20 or 30) Status LEDs (MS): Module Status (NS): Network Status (OC): Overcurrent Trip (GF): Gnd Fault Trip (CUB): O/C Unbalance

14 14 GE Consumer & Industrial Multilin Dual row phoenix terminal block LM10 Base Unit

15 15 GE Consumer & Industrial Multilin Protection & Control Overcurrent Trip Current in any phase greater than 1.2 x FLA, the unit calculates the time to trip Separate calculations are performed for cold and hot motors Once the fault condition is reached, the LM10 unit will not reset until an appropriate cool-down period has elapsed Overcurrent function can not be disabled

16 16 GE Consumer & Industrial Multilin Protection & Control

17 17 GE Consumer & Industrial Multilin Protection & Control Cool Down Time Upon an Overcurrent, Jam or Stall fault, the LM10 forces a cool- down period before the motor may be restarted The time to reset is calculated as a function of Trip Class and % FLA a the time of trip While the motor is in the cool-down time delay, the PDU status screen will show a number decrementing from 99. Once the number reaches 0, the motor can be restarted and the “READY TO RUN” message will be displayed

18 18 GE Consumer & Industrial Multilin Protection & Control Current Unbalance Trip Trips if the phases are unbalanced If the average current exceeds the FLA, then the average current is used in the calculations Programmable trip setting between 2 and 25% FLA Time delay settable between 0 and 255 seconds 6% current unbalance equates to a 1% voltage unbalance A 4% voltage unbalance equates to a 24% current unbalance and will frequently cause motor damage This function can be disabled Ground Fault Trip Programmable trip setting between 0.4 and 20A Time delay settable between 0.5 and 2.5 seconds This function can be disabled

19 19 GE Consumer & Industrial Multilin Protection & Control Over/Undervoltage Trip Maximum & minimum trip levels are hard coded into LM10 Undervoltage trip level is 80% (or 96V) Overvoltage trip level is 117% (or 140V) This function can not be disabled Jam Protection According to NEMA or IEC MG part 12, page 21, “polyphase motors 600 V or less not exceeding 500 horsepower shall be capable of withstanding a current not less than 1.5 times the full load rated current for not less than two minutes when the motor is at normal operating temperature.” For relatively low over- current conditions, particularly on higher NEMA Class motors, trip times could be considerably longer than 2 minutes. Therefore, a separate Jam fault is available because the standard time overcurrent curve may not protect in this range. Jam level can be set between 100 and 250% of FLA Time delay settable between 0 and 1000 seconds This function can be disabled

20 20 GE Consumer & Industrial Multilin Protection & Control Stall Protection According to NEMA or IEC MG part 12, page 21, “polyphase motors 600 V or less not exceeding 500 horsepower shall be capable of withstanding locked- rotor current (6 times FLA) for not less than 12 seconds when the motor is at normal operating temperature.” Cold motor trip times for a 6 × FLA fault are determined by trip class. For example, a NEMA Class 20 motor at 6 × FLA would trip in 20 seconds. A separate Stall fault is available which would allow the user to reduce the trip time for large overcurrent situations. Stall level can be set between 330 and 600% of FLA Time delay settable between 0 and 30 seconds This function can be disabled Load Loss Trip Load loss is based on watts Power Factor calculated is phase relationship between voltage and phase C current Load loss level can be set between 15 and 85% of Full Load Time delay settable between 0 and 255 seconds This function can be disabled

21 21 GE Consumer & Industrial Multilin Protection & Control Auxiliary Sense Failure Detects that a LM10 relay contact (RUN1 or RUN2) did not open/close according to its command and will shut down the relay Time delay settable between 0.1 and 25.0 seconds This function can be disabled Power Loss Autorestart Feature “Power loss when running” LM10 will be able to recover from a power loss of up to 4 seconds and return to its previous run state Enabling autorestart allows the unit to restart the motor without operator intervention using a momentary Run input The default condition, “Disabled”, would require the operator to restart the motor after the LM10 regains power Potential safety hazards must be considered and the appropriate setup chosen for each individual application Run 1 to Run 2 or Run 2 to Run 1 Delay between forward and reverse or between speeds

22 22 GE Consumer & Industrial Multilin Programmable Display Unit (PDU) Method of configuring & monitoring LM10 units Configuring setpoints & time delays Viewing metering & history data RJ11 (6 conductor) cable between PDU and LM10 base unit LEDs Solid Green Power LED (flashes when configuring) Flashing Red Trip LED Trip Class, MAC ID and Baud Rate set on LM10 base unit only Keypad with: Up & down arrows ENTER key HISTORY key STATUS key CONFIG key RESET key (also esc or back key)

23 23 GE Consumer & Industrial Multilin enerVista LM10 Setup Software Computer’s 9-pin RS232 port connected to PDU port of LM10 base unit New LM10 configuration file can be created and saved Existing LM10 configuration can be retrieved and saved Existing configuration file can be altered and downloaded into different LM10 View metering values, status and history by clicking keys

24 24 GE Consumer & Industrial Multilin Monitoring & Metering Real-Time Metering: Phase A Current Phase B Current Phase C Current Ground Current Voltage kW Power Factor Average Current Current Unbalance Elapsed Motor Hours (user can reset) Trip History Last 10 faults Maintained in non-volatile memory Phase A Current Phase B Current Phase C Current Ground Current Voltage kW Power Factor Average Current Current Unbalance

25 25 GE Consumer & Industrial Multilin User Interfaces DeviceNet Protocol  Standard on LM10  Allows user to control & monitor LM10 units over a network Optional Programmable Display Unit (PDU)  Local configuration & monitoring RS232 Connection to PC using enerVista LM10 Setup Software Password Protection  Settable from 0 to 65535

26 26 GE Consumer & Industrial Multilin DeviceNet Protocol Supports Polled, Change of State (COS), Cyclic I/O Messaging and Explicit Messaging MAC Address can between 0 and 63 Baud Rate can be 125kbps, 250kbps or 500kbps DeviceNet Fault If enabled, the LM10 will consider a DeviceNet network failure as a fault and operate relay outputs and record into history report Control Input Option Terminal 21 determines how the RUN commanded is controlled If power is applied to the terminal, then the DeviceNet network has RUN control RESET & STOP functions are not affected

27 27 GE Consumer & Industrial Multilin CTSensor-Pack 1/2-27 FLA for NEMA Size FLA for NEMA Size 2 & 3 Relay Input-Output Programmable Points HV- Low Voltage Threshold LV- High Voltage Threshold VUB- Voltage Unbalance- OC- Over Current- LED CUB- Current Unbalance LED GF- Residual & Zero Sequence LED LL- Load Loss with time Delay TC- Time overcorrect Class 10/15/20/30 Time Delay on GF Timer Delay Between Run commands Auto-Restart After Power Failure Maintained or Momentary control communication Address Optional Key Pad Programmer & LCD Display NEMA 12 Surface Door Mounted or Hand held No screws Program Memory Power Metering ( KW, PF, Ph Amps) Accuracy Power + 5% Voltage + 1% Current + 3% Timer 5% + 1 second Power Consumption < 5Watts Error Messages Over current- LED & Communication. Unbalance - LED & Communication Ground Fault -LED & Communication Command Stop- Communication Load Loss- Communication Rating: 100V-120V 50/60Htz Control Power KV, 3Ph 50/60Htz. System Range CT’s with 5A secondary FLA NEMA Size 4 to 6 PC Software EnerVista Windows Set up software Specification for LM10

28 28 GE Consumer & Industrial Multilin LM10 – Order Code Note: Please see on-line store for the most up-to-date pricing and option availability

29 29 GE Consumer & Industrial Multilin Equipment Integration Considerations

30 30 GE Consumer & Industrial Multilin The LM10 is fully integrated into Evolution MCC Factory communication wiring uses 5-Pin Brad Harrison style connectors Additional I/O, via a variety of Off the Shelf DeviceNet I/O Blocks (GE and others), is available The LM10 has, and will maintain, ODVA approval, and supply an EDS file … and can Integrate with Others LM10 is Tightly Integrated Into GE MCC

31 31 GE Consumer & Industrial Multilin LM10 HMI PLC Application Req’ts 1.Protection 2.Configuration 3.Remote Start/Stop 4.Phase Metering 5.Motor Status EthernetDeviceNe t Typical Low Voltage MCC Architecture

32 32 GE Consumer & Industrial Multilin Programmable Display Unit mounted in Evolution Series E9000 MCC Evolution MCC

33 33 GE Consumer & Industrial Multilin LM10 Unit mounted in Evolution Series E9000 MCC Brad Harrison style Connecto r LM10 Base Unit CT Sensor Pack

34 34 GE Consumer & Industrial Multilin Frequently Asked Questions

35 35 GE Consumer & Industrial Multilin Some Frequently Asked Questions What about Remote IO? A wide selection of DeviceNet Remote IO is available from PLC manufacturers as well as from GE Mebane (MS2000IO). This IO is intended to work as part of a PLC/DCS system. Does this work with an HMI? Yes. You can configure this to work with an HMI either via the PLC/DCS controller or via a PC based DeviceNet card. Does this have ODVA? As we come out with firmware revisions, we will apply and maintain ODVA. On the subject of firmware, can I “flash” new firmware upgrades into the LM10? No. The LM10’s firmware is stored on a EPROM chip and not on flash memory. What about cables? You can obtain a 3’ cable when ordering the unit. Other DeviceNet cables can be ordered via your local PLC distributor. What types of DeviceNet Communications does the LM10 support? LM10 supports unsolicited DeviceNet messaging, and specific values via polled messaging. Please consult the manual for specifics. Who supports the LM10? GE Multilin supports the LM10 just as with all GE Multilin Devices. Please contact our Customer Support Team at For equipment integration considerations, please contact the MCC equipment OEM. Where can I get information on size, spec’s, mounting, and wiring information? All product information (manuals, cut sheets, etc.) are available on the web.

36 36 GE Consumer & Industrial Multilin Thank you for your time. Q&A
