1 University of Khartoum Institute of Environmental Sciences Dip/ M.Sc in Enviromental Sciences Fundamentals of Environmental Science By: Dr. Zeinab Osman Saeed

2 Dr. Zeinab Osman

3 The world's biomes Biomes are defined as "the world's major communities, classified according to the predominant vegetation and characterized by adaptations of organisms to that particular environment.The importance of biomes cannot be overestimated.

4 The world's biomes Biomes have changed and moved many times during the history of life on Earth. More recently, human activities have drastically altered these communities. Thus, conservation and preservation of biomes should be a major concern to all.

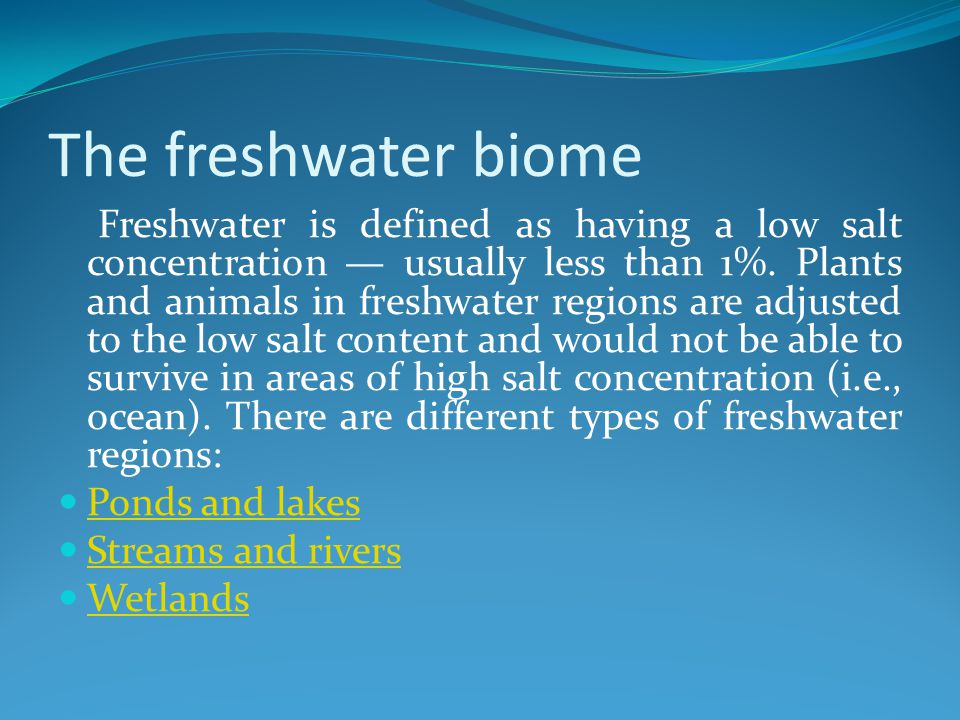

5 The freshwater biome Freshwater is defined as having a low salt concentration — usually less than 1%. Plants and animals in freshwater regions are adjusted to the low salt content and would not be able to survive in areas of high salt concentration (i.e., ocean). There are different types of freshwater regions: Ponds and lakes Ponds and lakes Streams and rivers Streams and rivers Wetlands

6 A lake at Maine.

7 The marine biome Marine regions cover about three-fourths of the Earth's surface and include oceans, coral reefs, and estuaries. Marine algae supply much of the world's oxygen supply and take in a huge amount of atmospheric carbon dioxide. The evaporation of the seawater provides rainwater for the land. Oceans Coral reefs Coral reefs Estuaries

8 Reef fish and coral in the central Pacific.

9 The desert biome Deserts cover about one fifth of the Earth's surface and occur where rainfall is less than 50 cm/year. Most deserts have a considerable amount of specialized vegetation, as well as specialized vertebrate and invertebrate animals. Soils often have abundant nutrients because they need only water to become very productive and have little or no organic matter. Disturbances are common in the form of occasional fires or cold weather, and sudden, infrequent, but intense rains that cause flooding.

10 Sand dunes in Death Valley, California.

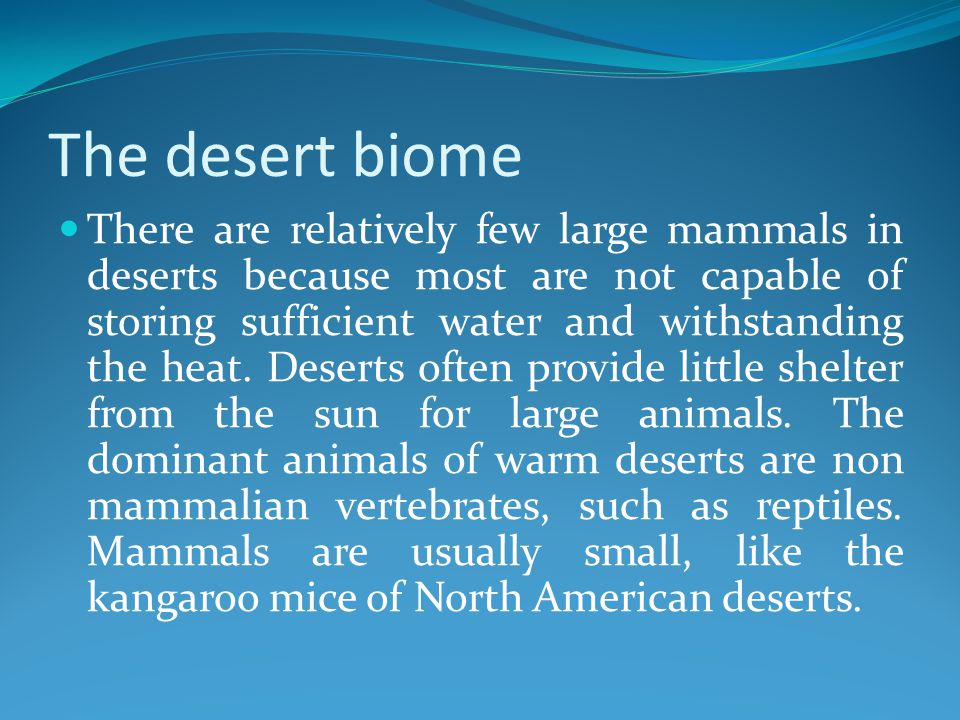

11 The desert biome There are relatively few large mammals in deserts because most are not capable of storing sufficient water and withstanding the heat. Deserts often provide little shelter from the sun for large animals. The dominant animals of warm deserts are non mammalian vertebrates, such as reptiles. Mammals are usually small, like the kangaroo mice of North American deserts.

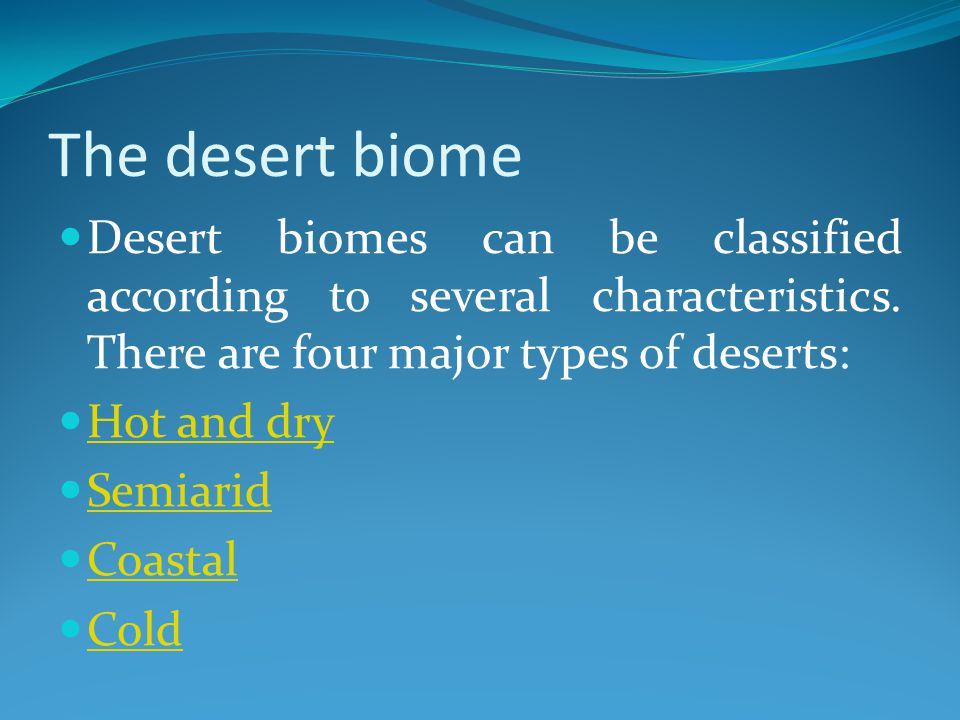

12 The desert biome Desert biomes can be classified according to several characteristics. There are four major types of deserts: Hot and dry Hot and dry Semiarid Coastal Cold

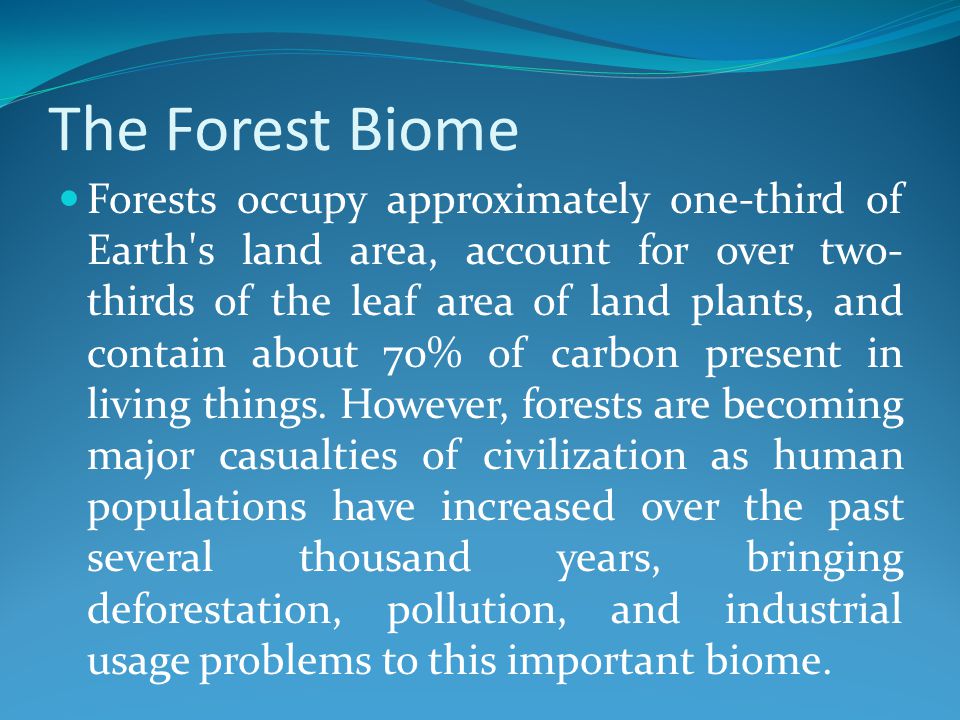

13 The Forest Biome Forests occupy approximately one-third of Earth's land area, account for over two- thirds of the leaf area of land plants, and contain about 70% of carbon present in living things. However, forests are becoming major casualties of civilization as human populations have increased over the past several thousand years, bringing deforestation, pollution, and industrial usage problems to this important biome.

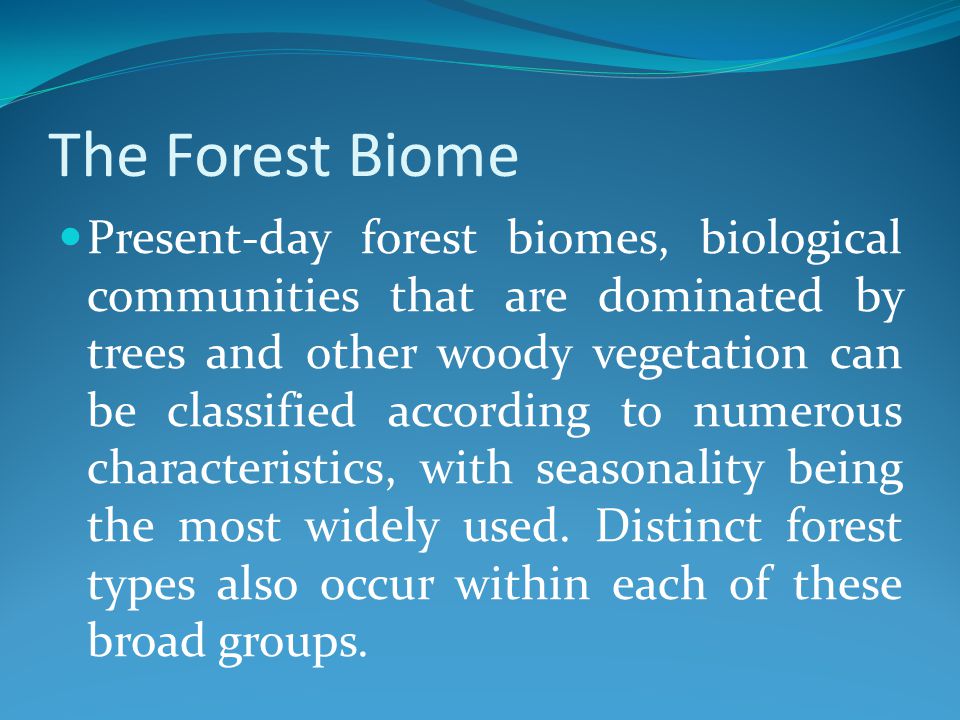

14 The Forest Biome Present-day forest biomes, biological communities that are dominated by trees and other woody vegetation can be classified according to numerous characteristics, with seasonality being the most widely used. Distinct forest types also occur within each of these broad groups.

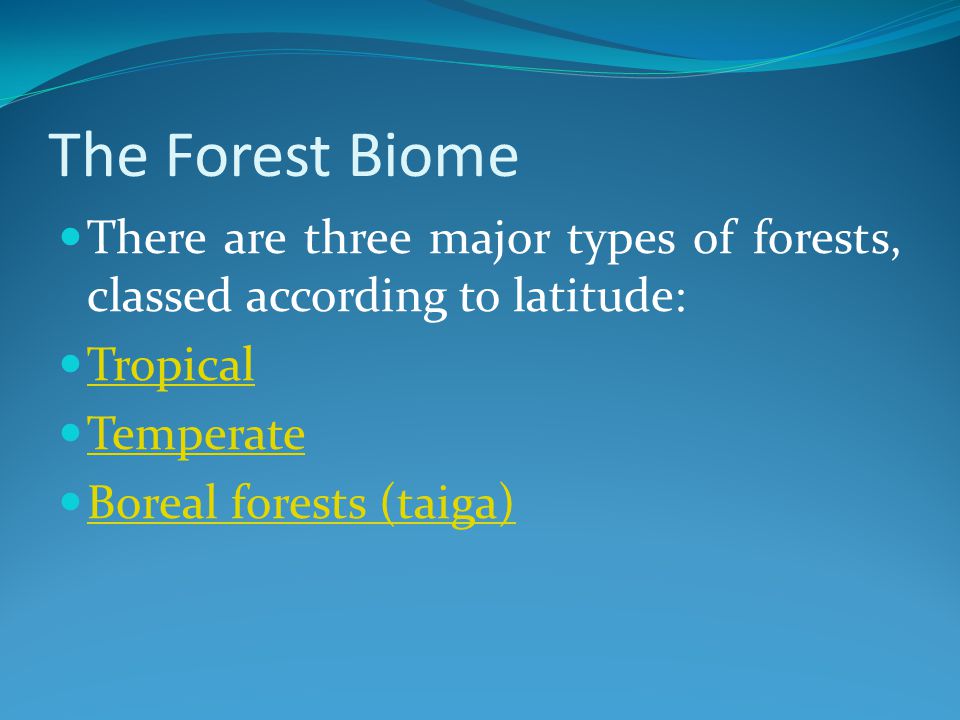

15 The Forest Biome There are three major types of forests, classed according to latitude: Tropical Temperate Boreal forests (taiga) Boreal forests (taiga)

16 A Wisconsin forest.

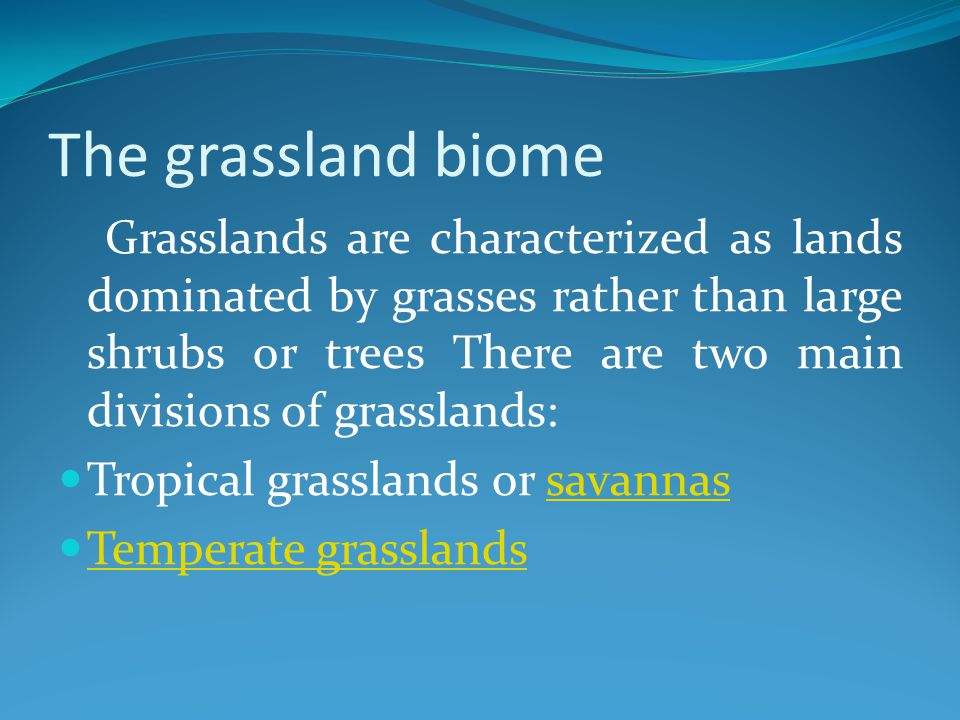

17 The grassland biome Grasslands are characterized as lands dominated by grasses rather than large shrubs or trees There are two main divisions of grasslands: Tropical grasslands or savannassavannas Temperate grasslands Temperate grasslands

18 A grassland in California.

19 The tundra biome Tundra is the coldest of all the biomes. It is noted for its frost-molded landscapes, extremely low temperatures, little precipitation, poor nutrients, and short growing seasons. Dead organic material functions as a nutrient pool. The two major nutrients are nitrogen and phosphorus. Nitrogen is created by biological fixation, and phosphorus is created by precipitation.

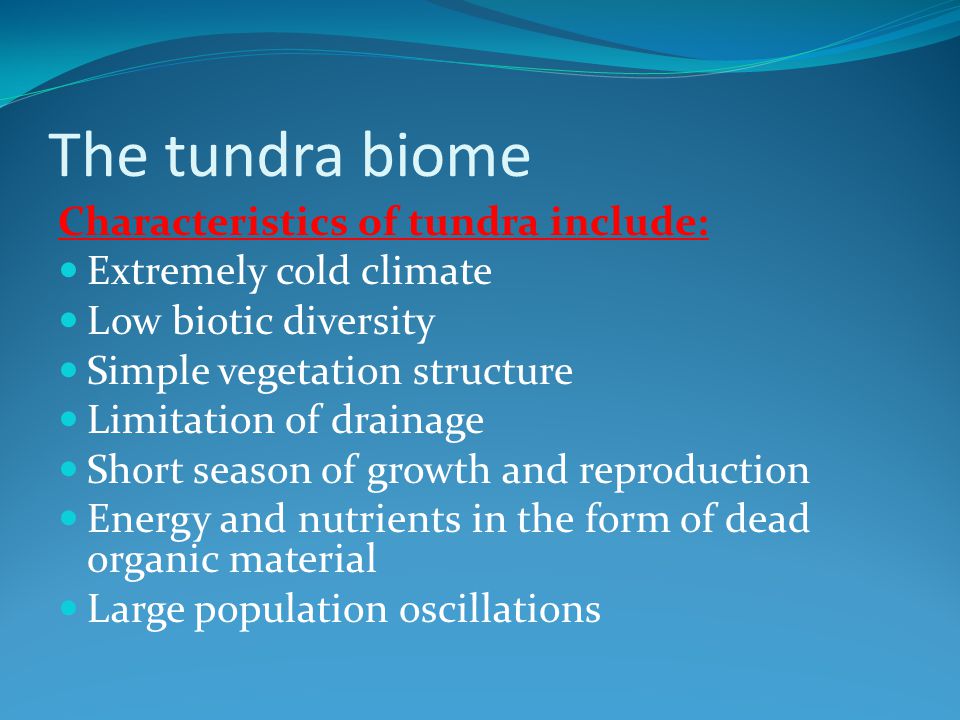

20 The tundra biome Characteristics of tundra include: Extremely cold climate Low biotic diversity Simple vegetation structure Limitation of drainage Short season of growth and reproduction Energy and nutrients in the form of dead organic material Large population oscillations

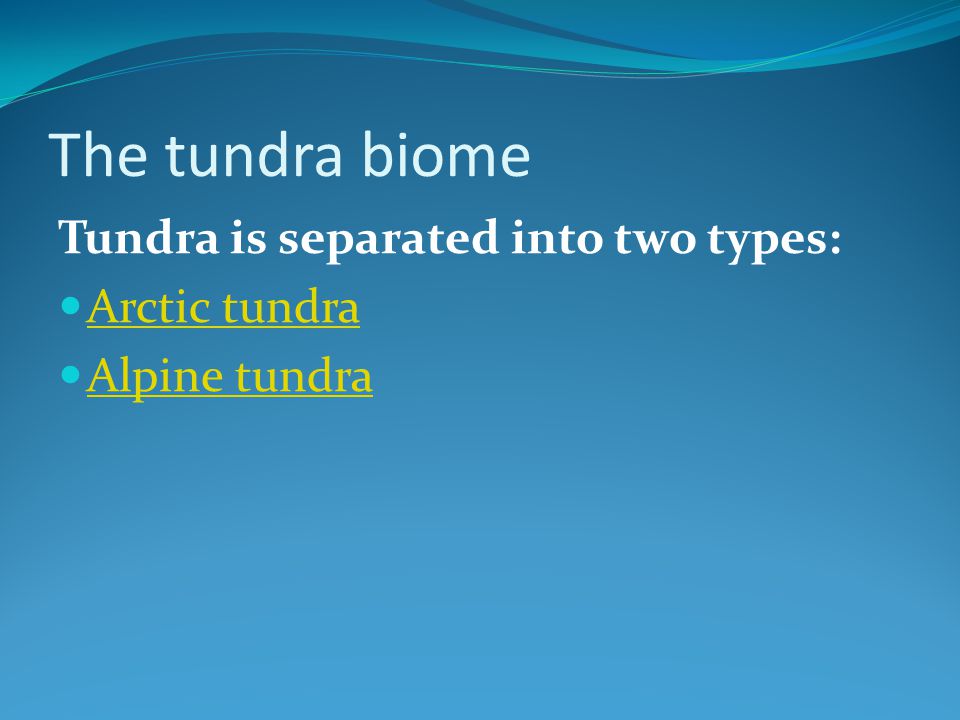

21 The tundra biome Tundra is separated into two types: Arctic tundra Alpine tundra

22 Tundra along the Colville River, Alaska.

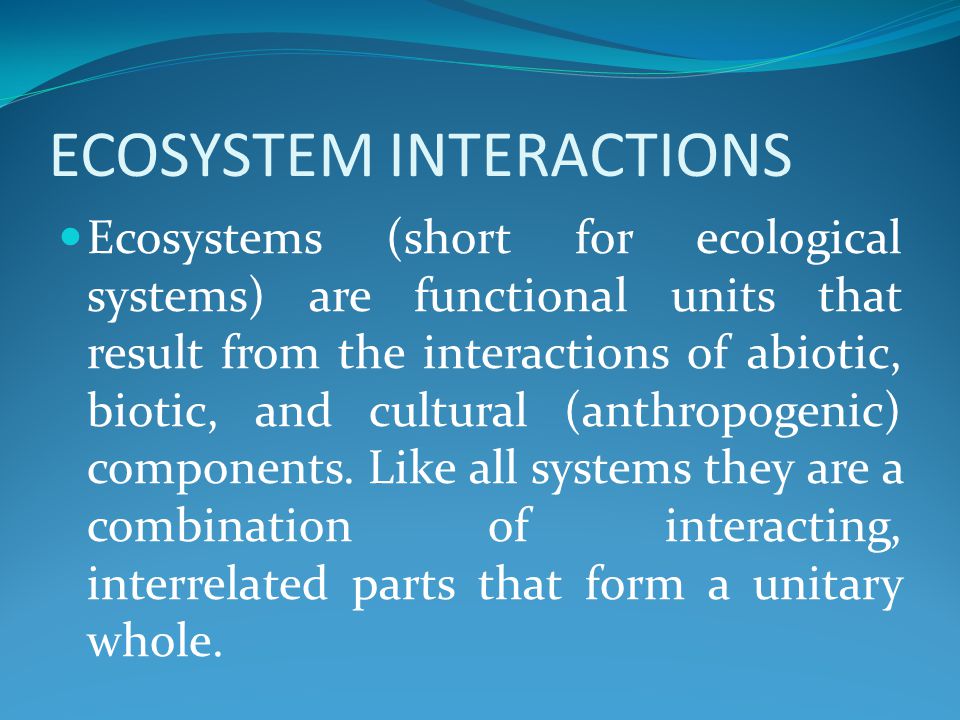

23 ECOSYSTEM INTERACTIONS Ecosystems (short for ecological systems) are functional units that result from the interactions of abiotic, biotic, and cultural (anthropogenic) components. Like all systems they are a combination of interacting, interrelated parts that form a unitary whole.

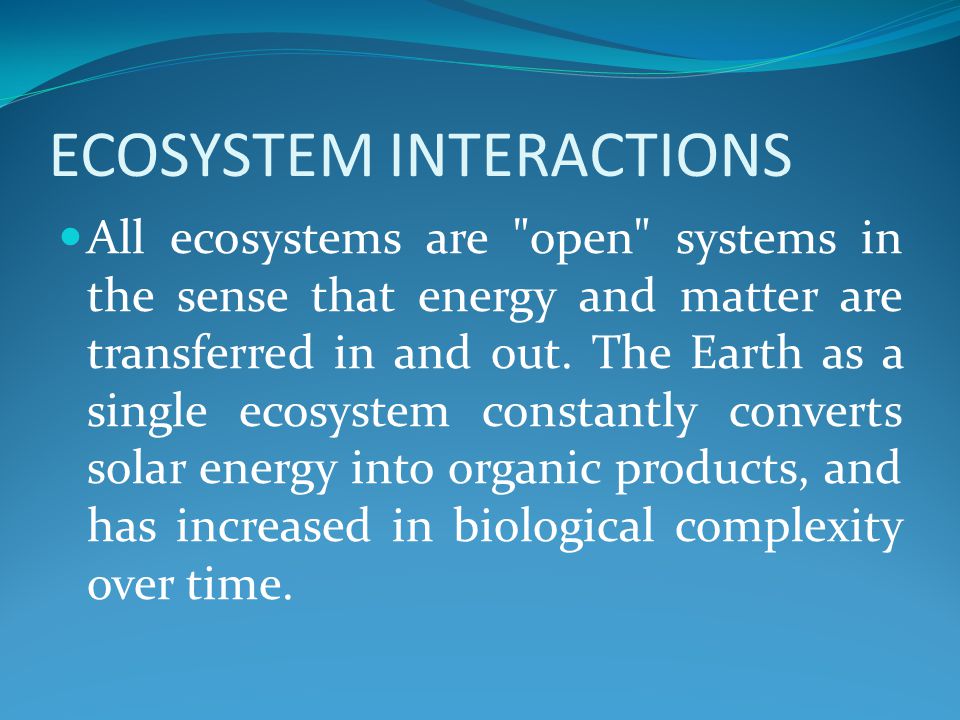

24 ECOSYSTEM INTERACTIONS All ecosystems are "open" systems in the sense that energy and matter are transferred in and out. The Earth as a single ecosystem constantly converts solar energy into organic products, and has increased in biological complexity over time.

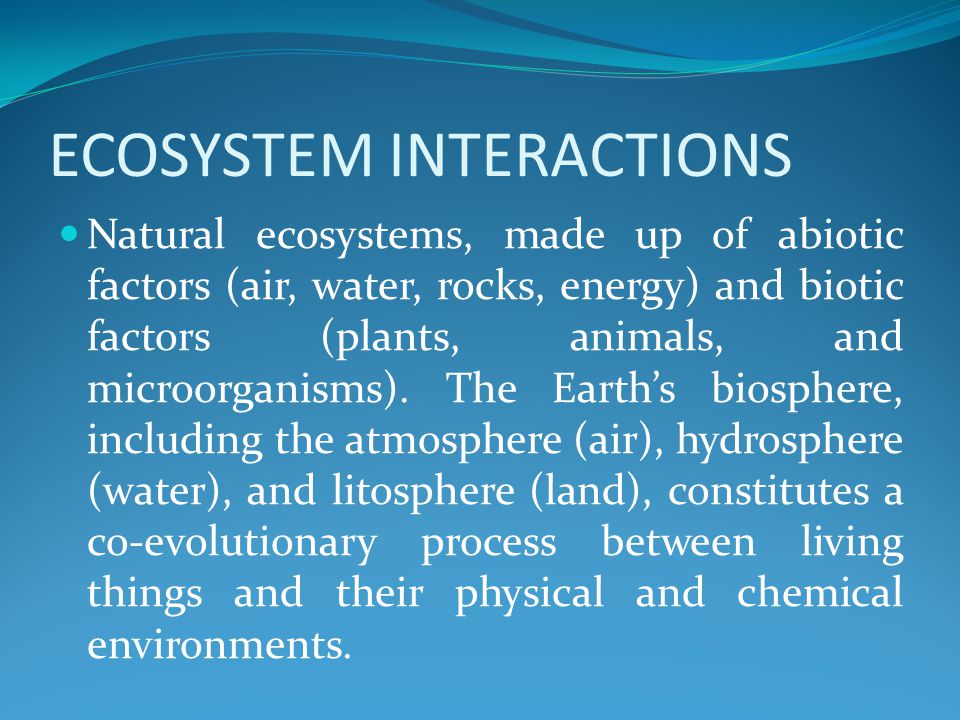

25 ECOSYSTEM INTERACTIONS Natural ecosystems, made up of abiotic factors (air, water, rocks, energy) and biotic factors (plants, animals, and microorganisms). The Earth’s biosphere, including the atmosphere (air), hydrosphere (water), and litosphere (land), constitutes a co-evolutionary process between living things and their physical and chemical environments.

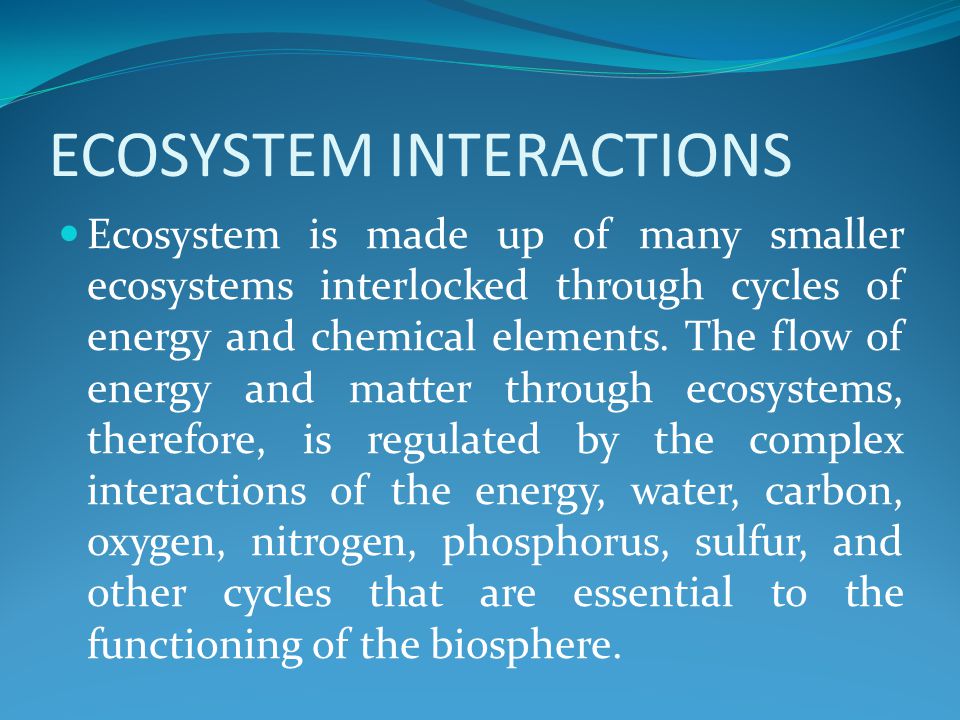

26 ECOSYSTEM INTERACTIONS Ecosystem is made up of many smaller ecosystems interlocked through cycles of energy and chemical elements. The flow of energy and matter through ecosystems, therefore, is regulated by the complex interactions of the energy, water, carbon, oxygen, nitrogen, phosphorus, sulfur, and other cycles that are essential to the functioning of the biosphere.

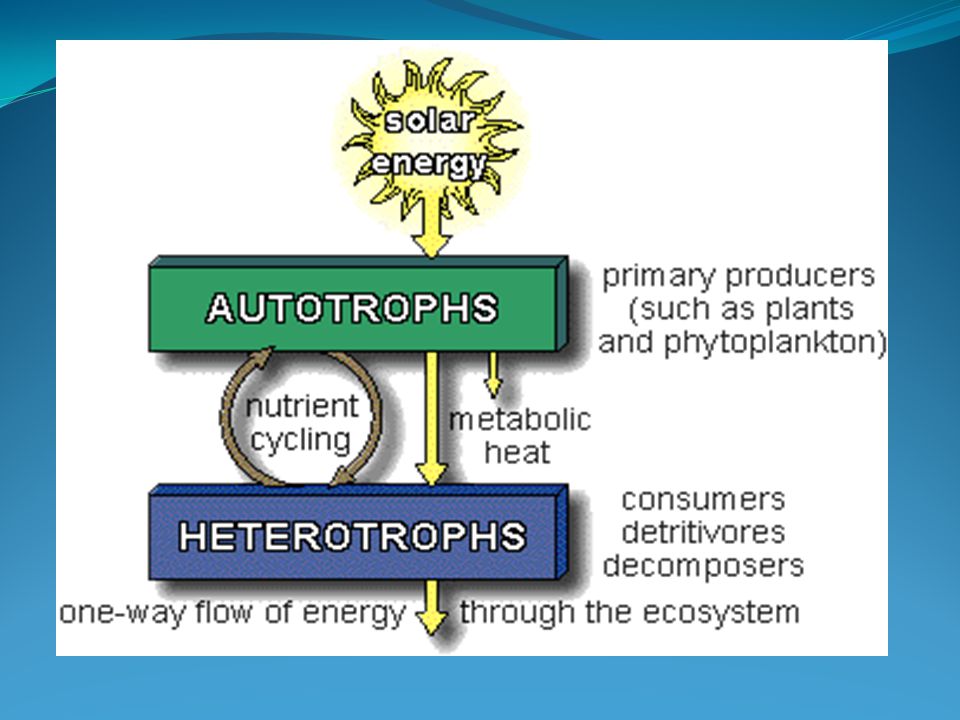

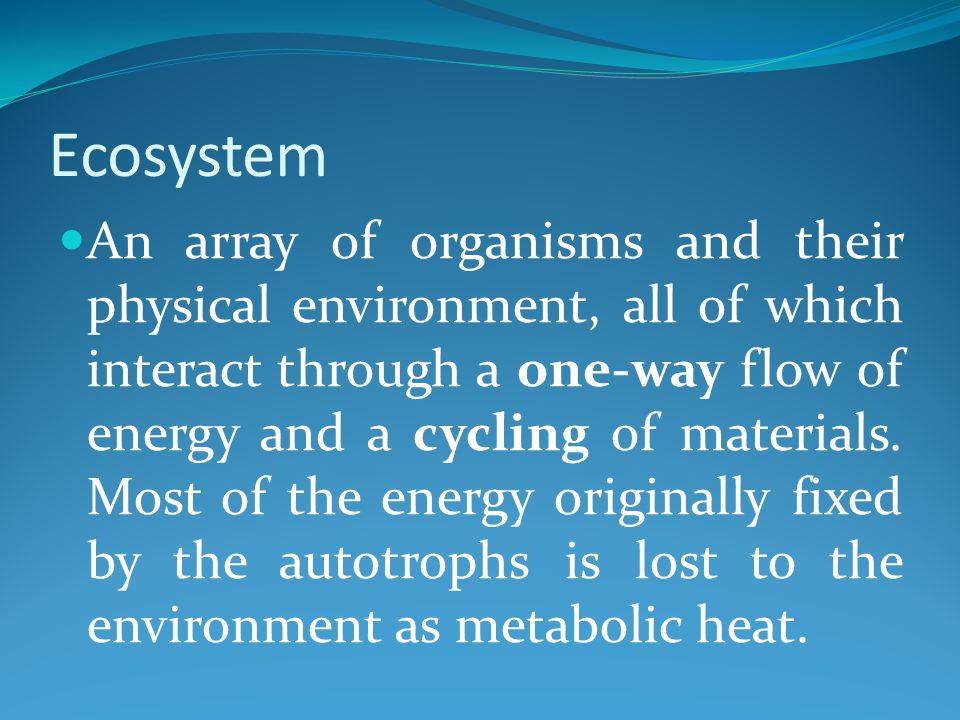

27 Ecosystem An array of organisms and their physical environment, all of which interact through a one-way flow of energy and a cycling of materials. Most of the energy originally fixed by the autotrophs is lost to the environment as metabolic heat.

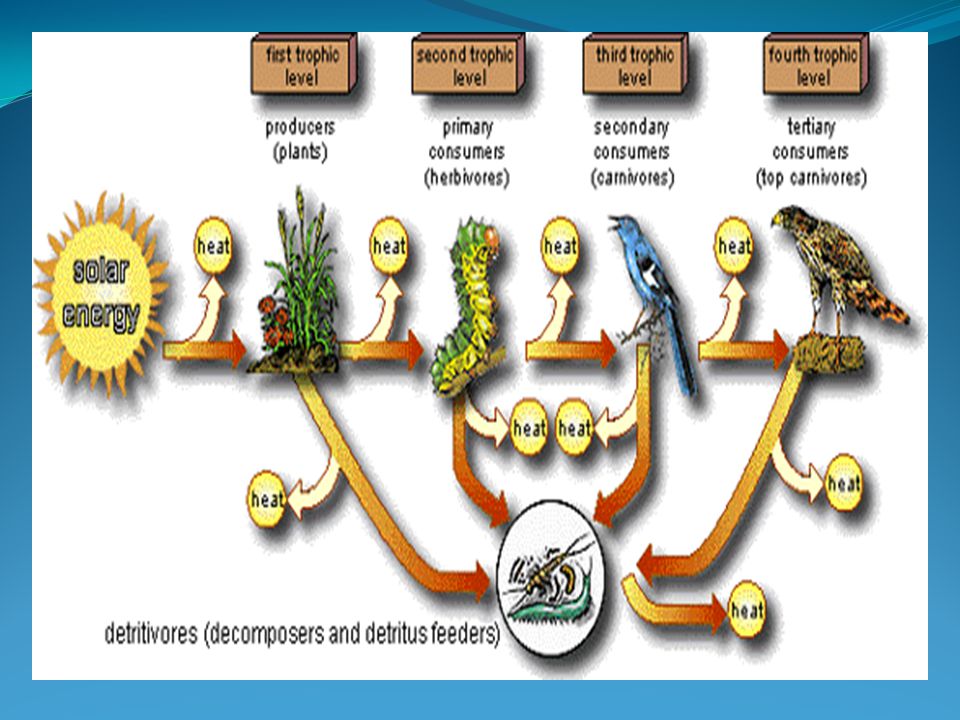

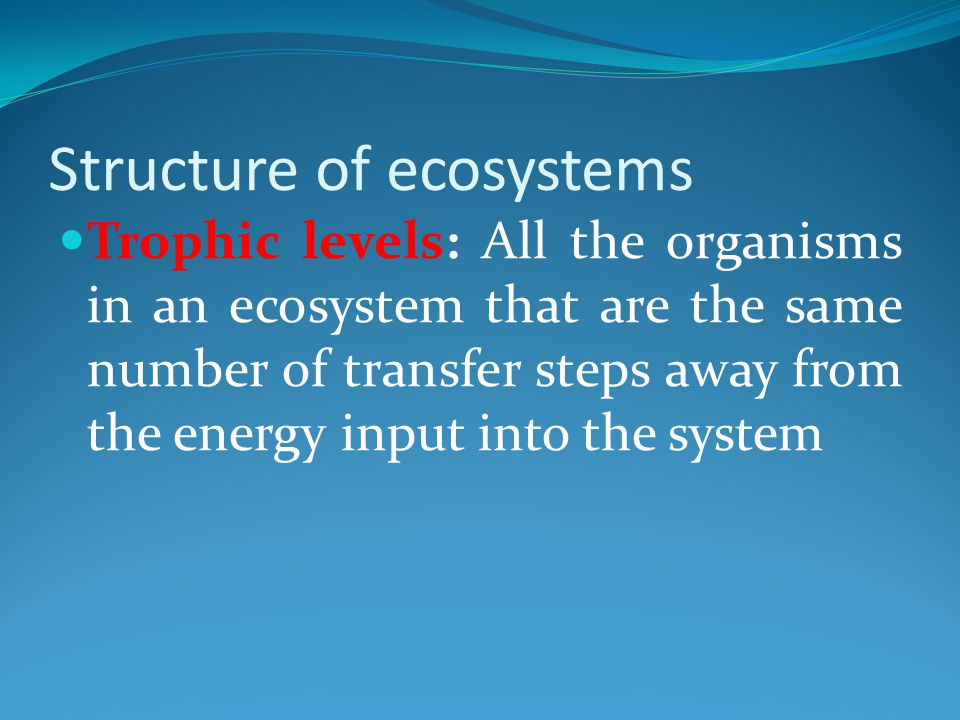

28 Structure of ecosystems Trophic levels: All the organisms in an ecosystem that are the same number of transfer steps away from the energy input into the system


30 Structure of ecosystems 1. Producers: autotrophic ("self-feed") organisms; produce the carbon and energy they need. Examples: photoautotrophs (plants, plankton) and chemoautotrophs (sulfur bacteria) 2. Consumers: heterotrophic organisms; obtain energy and carbon by feeding on the tissues of other organisms. Herbivores, carnivores, and parasites are examples.


32 Biogeochemical Cycles

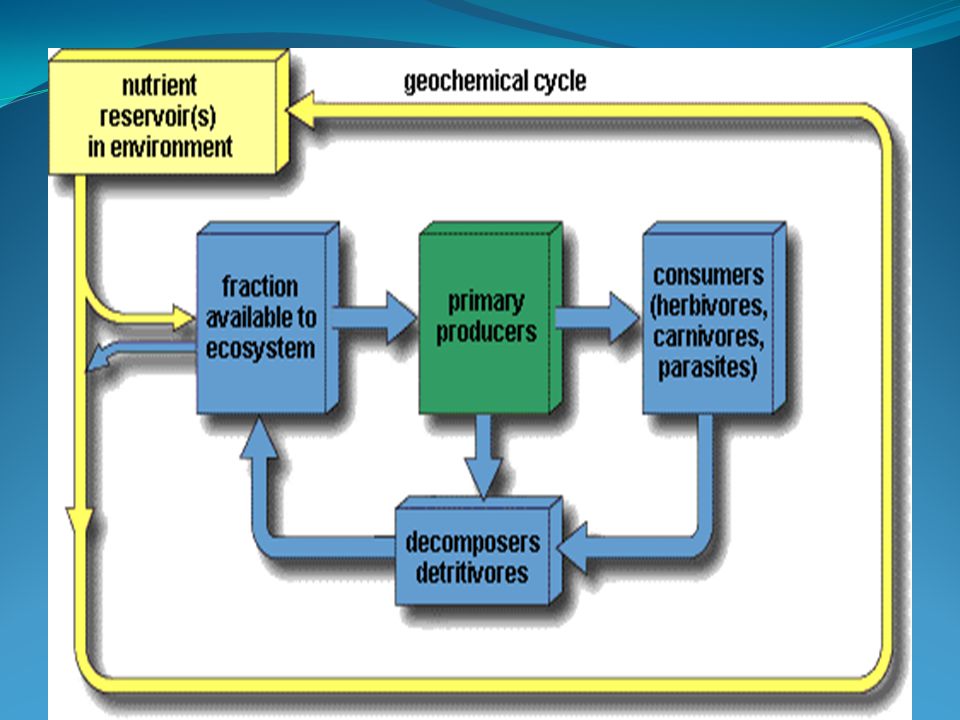

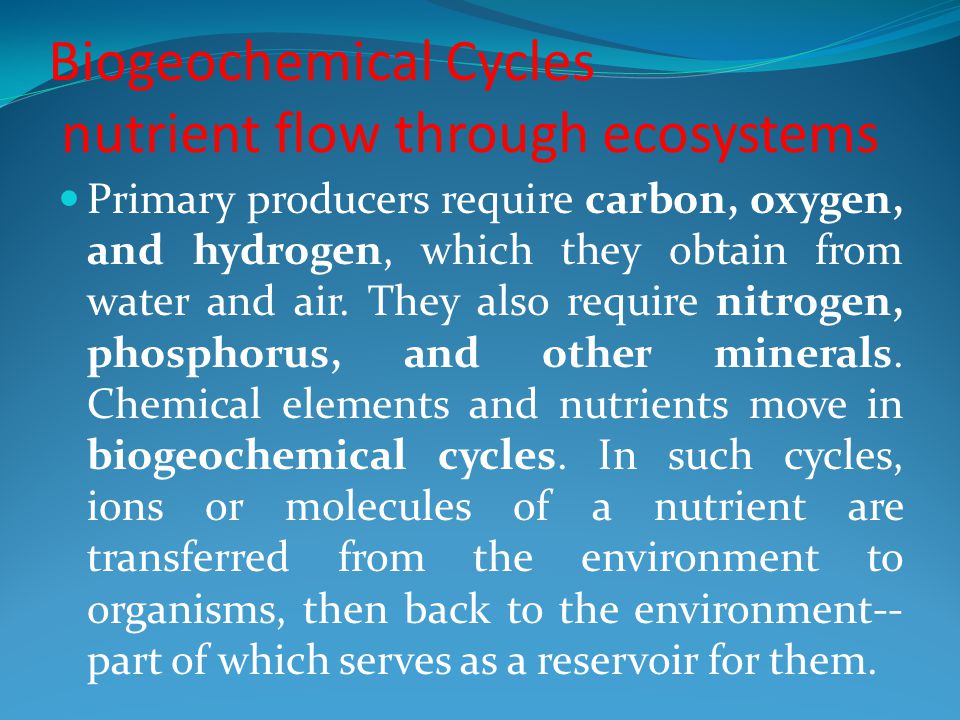

33 Biogeochemical Cycles nutrient flow through ecosystems Primary producers require carbon, oxygen, and hydrogen, which they obtain from water and air. They also require nitrogen, phosphorus, and other minerals. Chemical elements and nutrients move in biogeochemical cycles. In such cycles, ions or molecules of a nutrient are transferred from the environment to organisms, then back to the environment-- part of which serves as a reservoir for them.

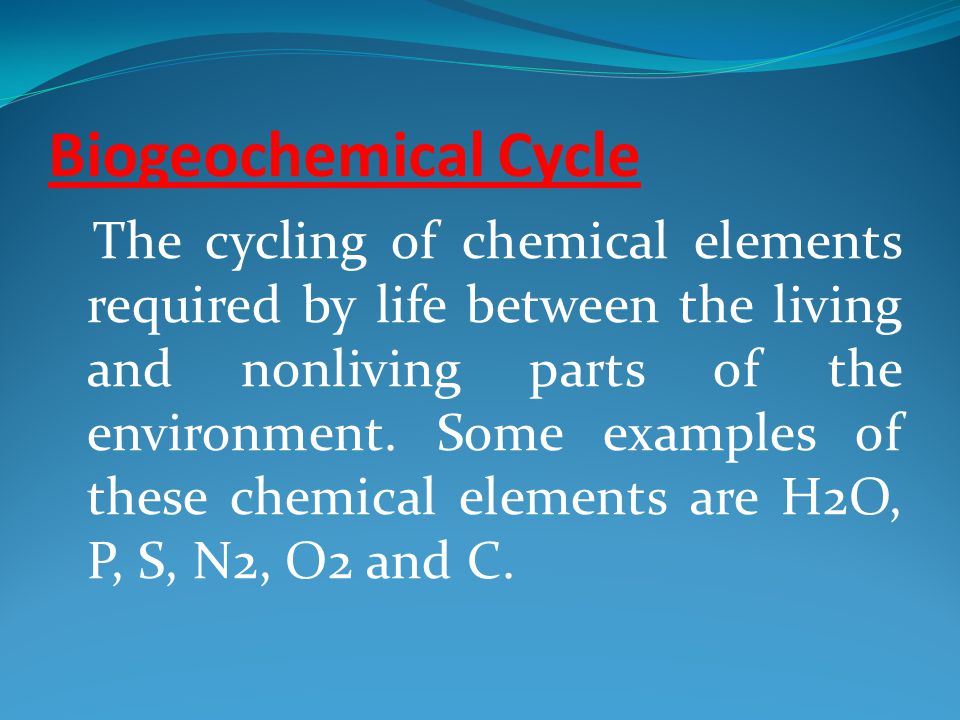

34 Biogeochemical Cycle The cycling of chemical elements required by life between the living and nonliving parts of the environment. Some examples of these chemical elements are H2O, P, S, N2, O2 and C.

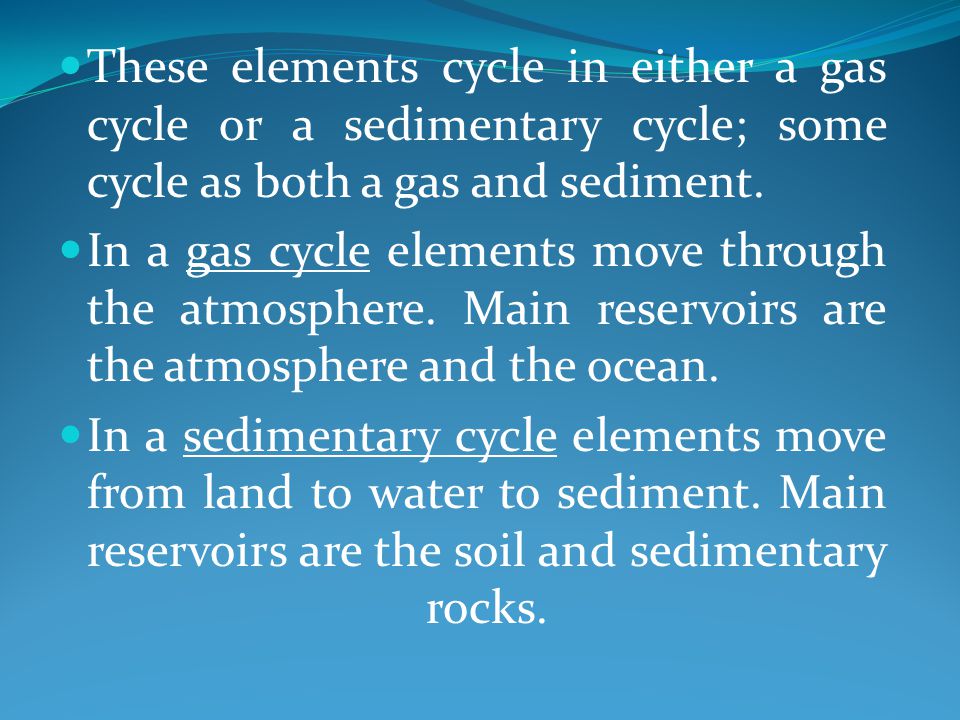

35 These elements cycle in either a gas cycle or a sedimentary cycle; some cycle as both a gas and sediment. In a gas cycle elements move through the atmosphere. Main reservoirs are the atmosphere and the ocean. In a sedimentary cycle elements move from land to water to sediment. Main reservoirs are the soil and sedimentary rocks.

36 Gas Sedimentary Carbon Phosphorus Nitrogen Sulfur Oxygen Carbon Phosphorus NitrogenSulfur Oxygen

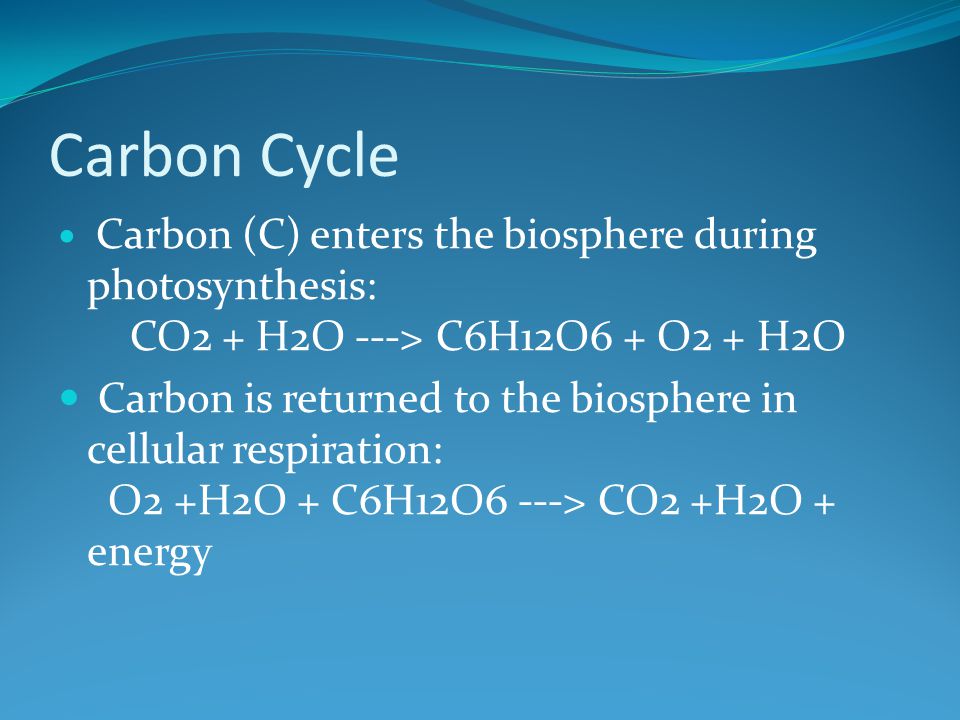

38 Carbon Cycle Carbon (C) enters the biosphere during photosynthesis: CO2 + H2O ---> C6H12O6 + O2 + H2O Carbon is returned to the biosphere in cellular respiration: O2 +H2O + C6H12O6 ---> CO2 +H2O + energy

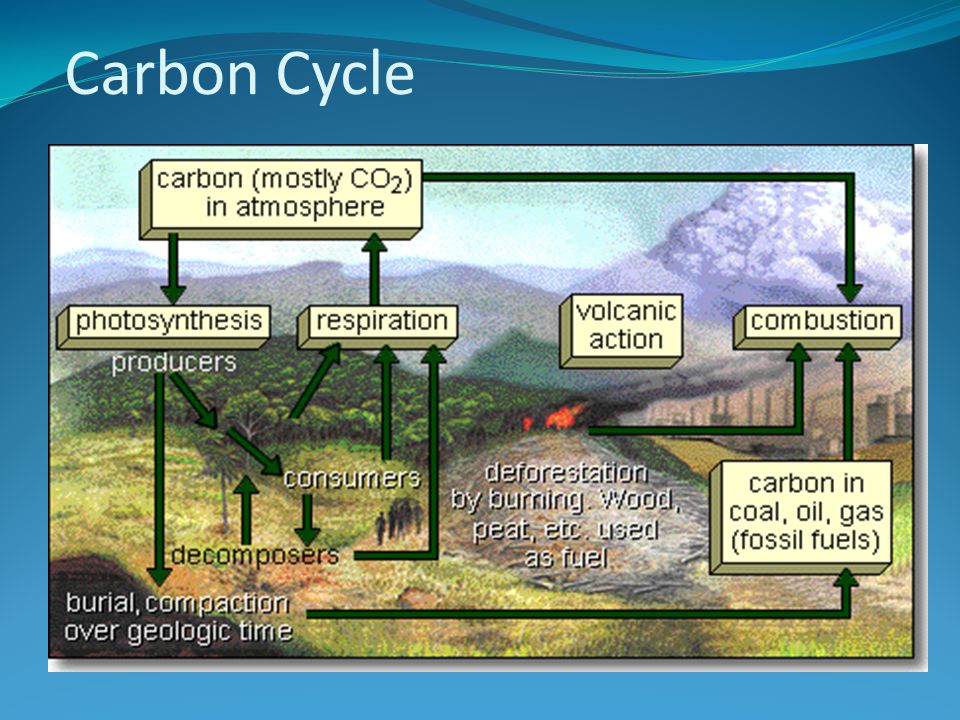

39 Carbon Cycle

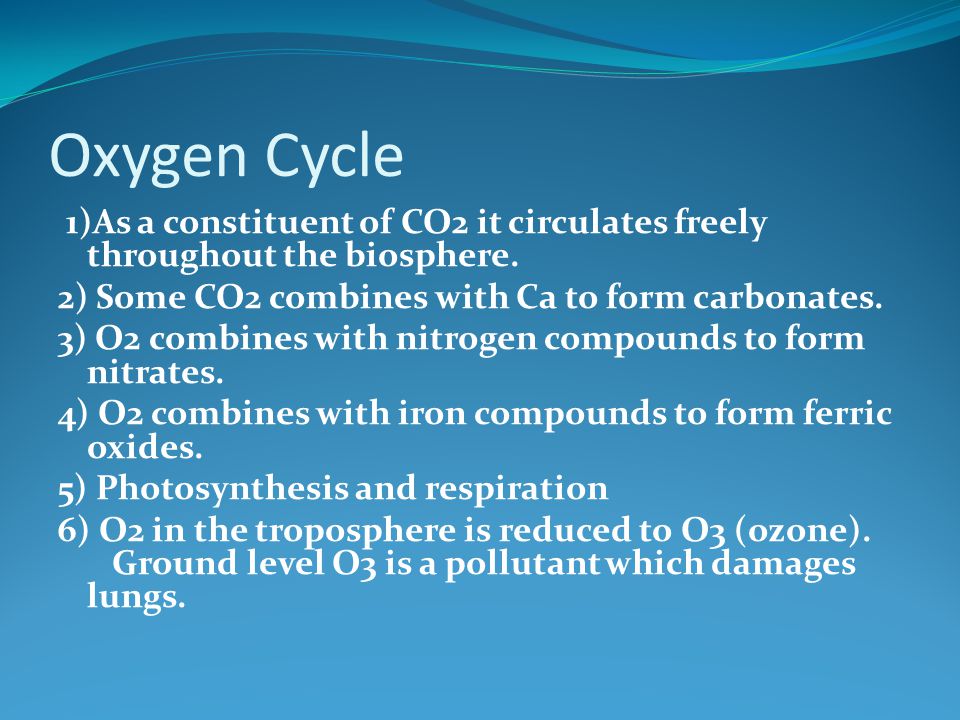

40 Oxygen Cycle 1)As a constituent of CO2 it circulates freely throughout the biosphere. 2) Some CO2 combines with Ca to form carbonates. 3) O2 combines with nitrogen compounds to form nitrates. 4) O2 combines with iron compounds to form ferric oxides. 5) Photosynthesis and respiration 6) O2 in the troposphere is reduced to O3 (ozone). Ground level O3 is a pollutant which damages lungs.

41 Oxygen Cycle

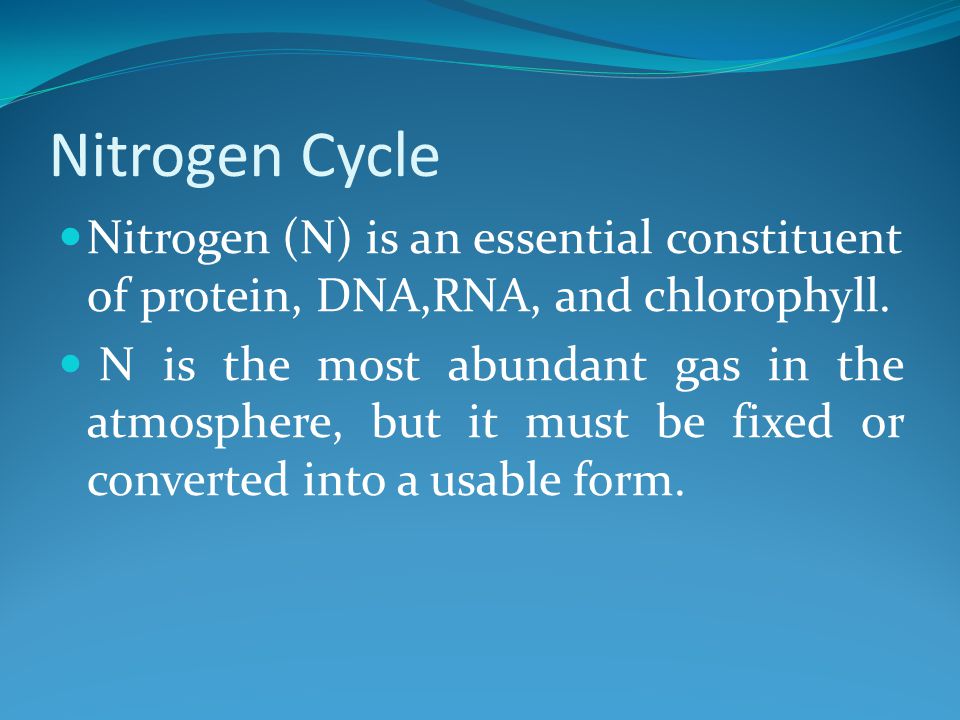

42 Nitrogen Cycle Nitrogen (N) is an essential constituent of protein, DNA,RNA, and chlorophyll. N is the most abundant gas in the atmosphere, but it must be fixed or converted into a usable form.

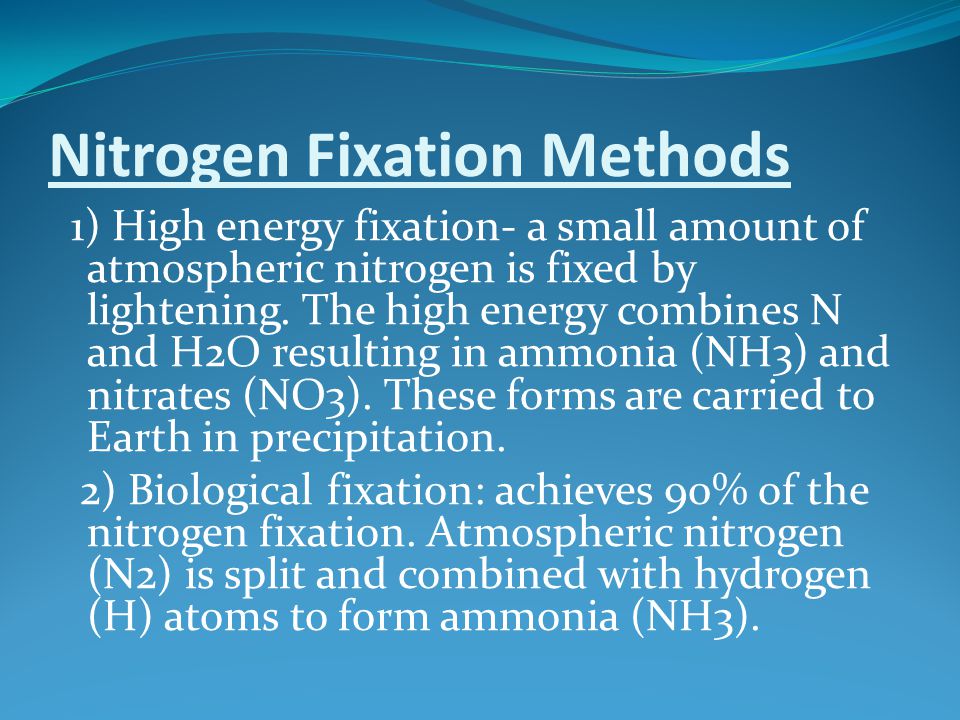

43 Nitrogen Fixation Methods 1) High energy fixation- a small amount of atmospheric nitrogen is fixed by lightening. The high energy combines N and H2O resulting in ammonia (NH3) and nitrates (NO3). These forms are carried to Earth in precipitation. 2) Biological fixation: achieves 90% of the nitrogen fixation. Atmospheric nitrogen (N2) is split and combined with hydrogen (H) atoms to form ammonia (NH3).

44 Who performs nitrogen fixation? - symbiotic bacteria (eg. Rhizobium spp.) living in associatin with leguminous ( plants in the pea family), and root-noduled non- leguminous plants (eg. Alnus spp.). - free-living anaerobic bacteria - blue-green algae (cyanobacteria) Once NH3 is in the soil it combines with H+ ions to form ammonium ion (NH4), or without it to form NO3. NH4+ and NO3 are readily absorbed by plants.

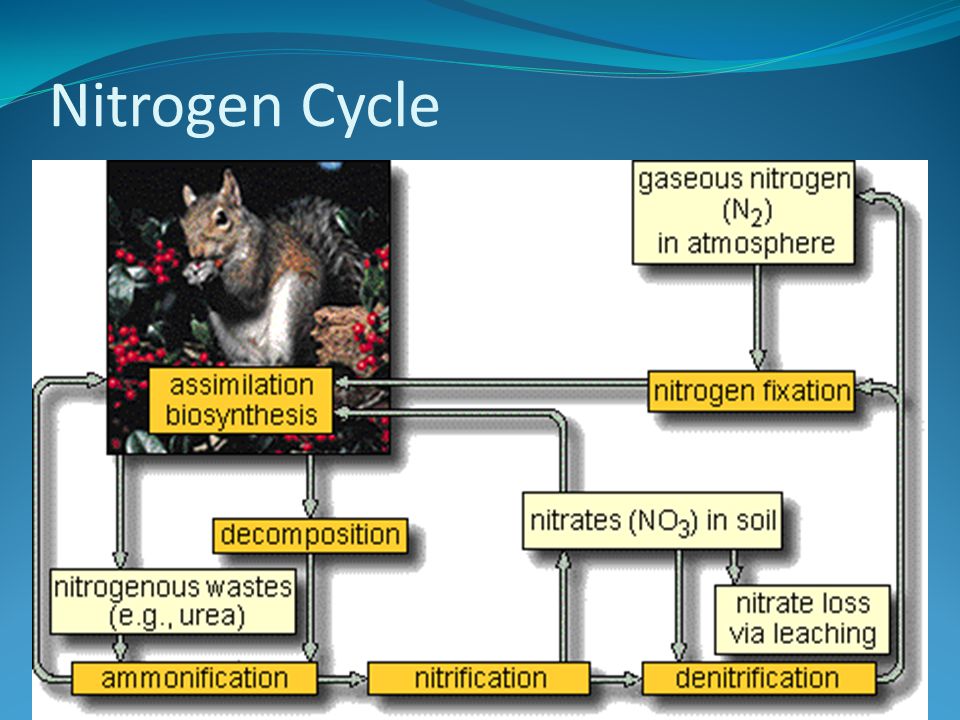

45 Nitrogen Cycle

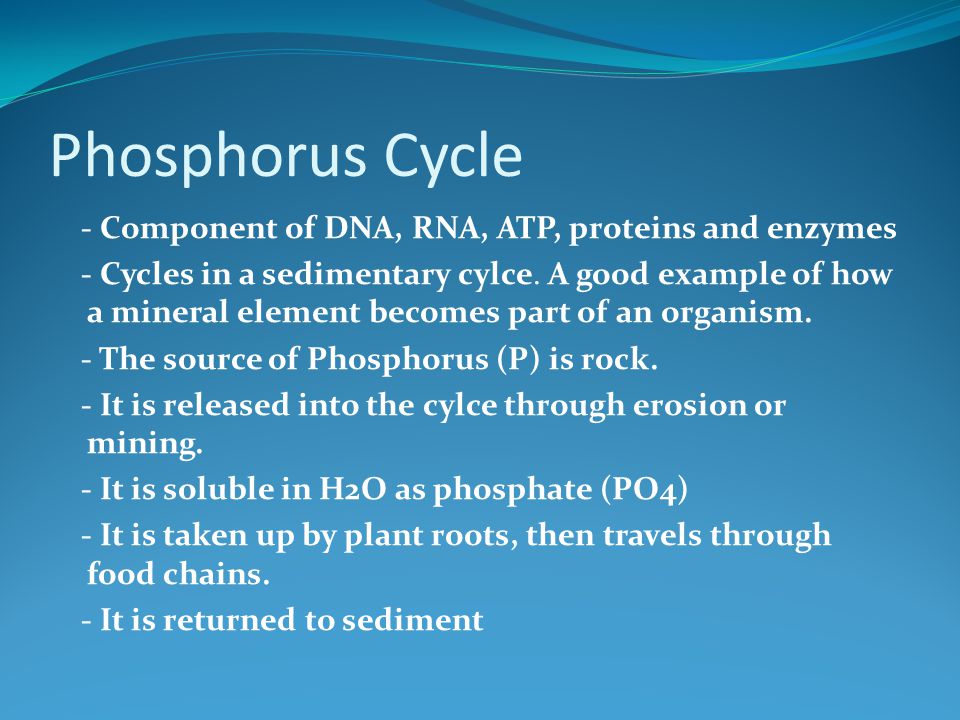

46 Phosphorus Cycle - Component of DNA, RNA, ATP, proteins and enzymes - Cycles in a sedimentary cylce. A good example of how a mineral element becomes part of an organism. - The source of Phosphorus (P) is rock. - It is released into the cylce through erosion or mining. - It is soluble in H2O as phosphate (PO4) - It is taken up by plant roots, then travels through food chains. - It is returned to sediment

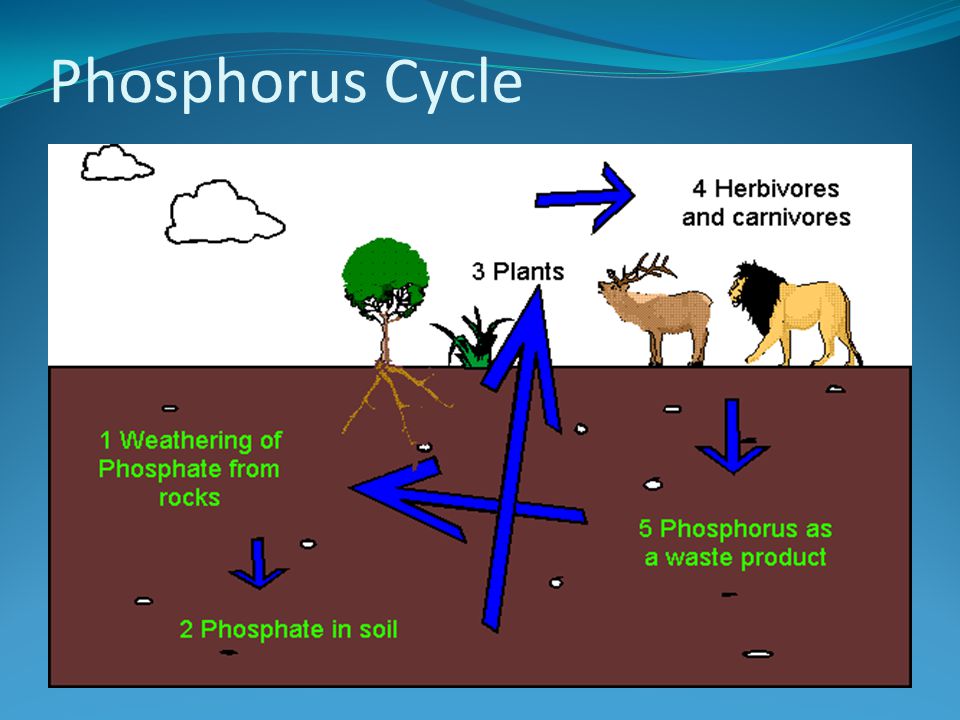

47 Phosphorus Cycle

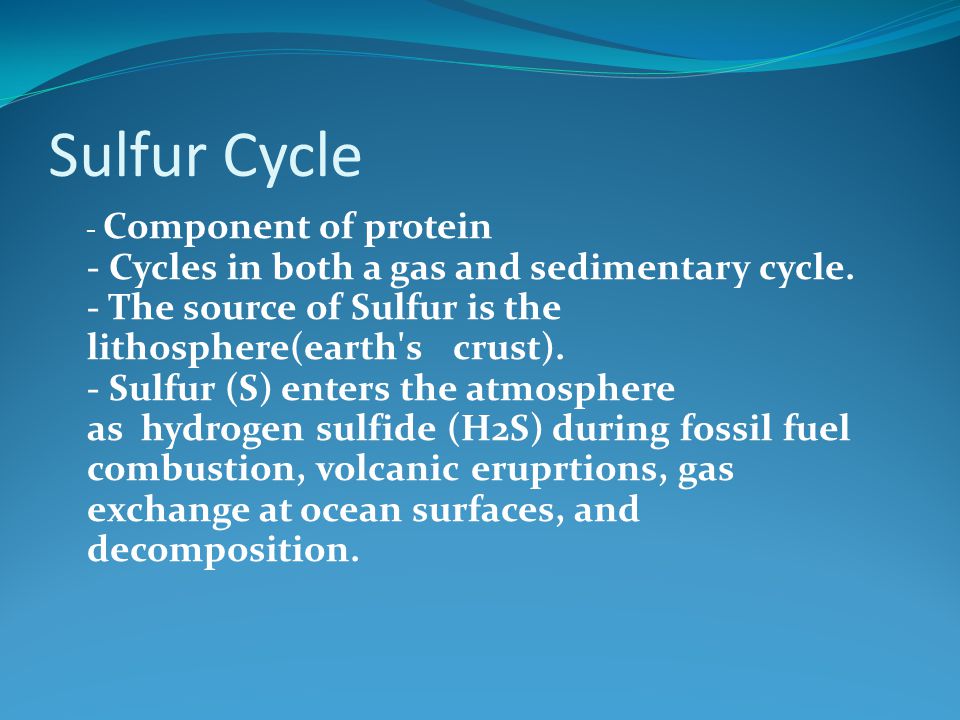

48 Sulfur Cycle - Component of protein - Cycles in both a gas and sedimentary cycle. - The source of Sulfur is the lithosphere(earth's crust). - Sulfur (S) enters the atmosphere as hydrogen sulfide (H2S) during fossil fuel combustion, volcanic eruprtions, gas exchange at ocean surfaces, and decomposition.

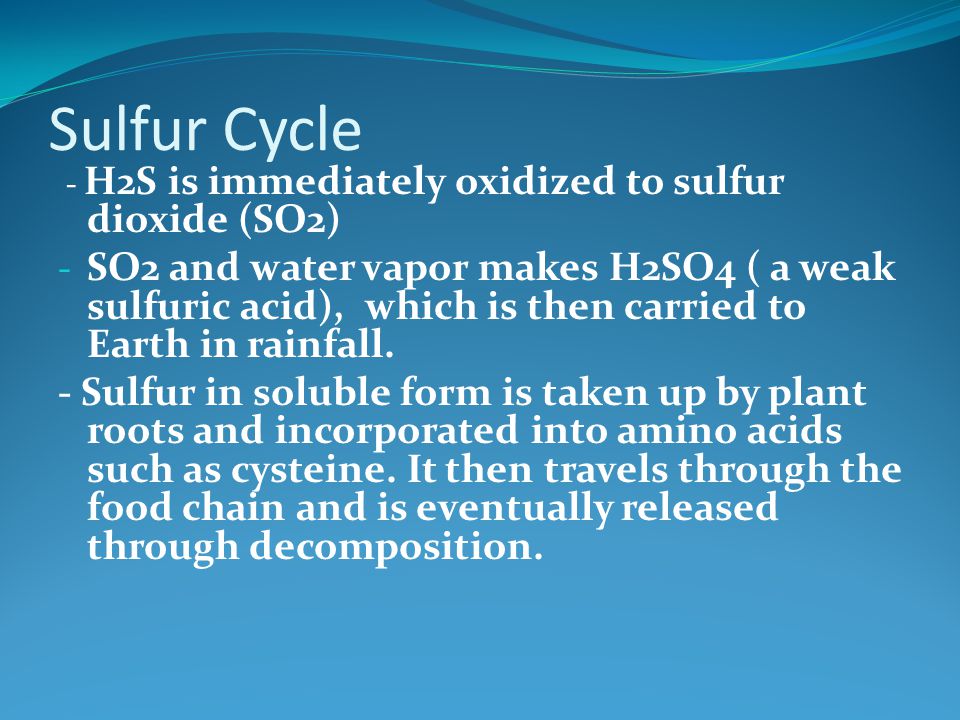

49 Sulfur Cycle - H2S is immediately oxidized to sulfur dioxide (SO2) - SO2 and water vapor makes H2SO4 ( a weak sulfuric acid), which is then carried to Earth in rainfall. - Sulfur in soluble form is taken up by plant roots and incorporated into amino acids such as cysteine. It then travels through the food chain and is eventually released through decomposition.

50 Sulfur Cycle
