The feasibility of Microwave- to-Optical Photon Efficient Conversion By Omar Alshehri Waterloo, ON Fall 2014 firstname.lastname@example.org
Outlines The device mechanism. Applications (potential). Advantages. Limitations. Improvements. The grand device!

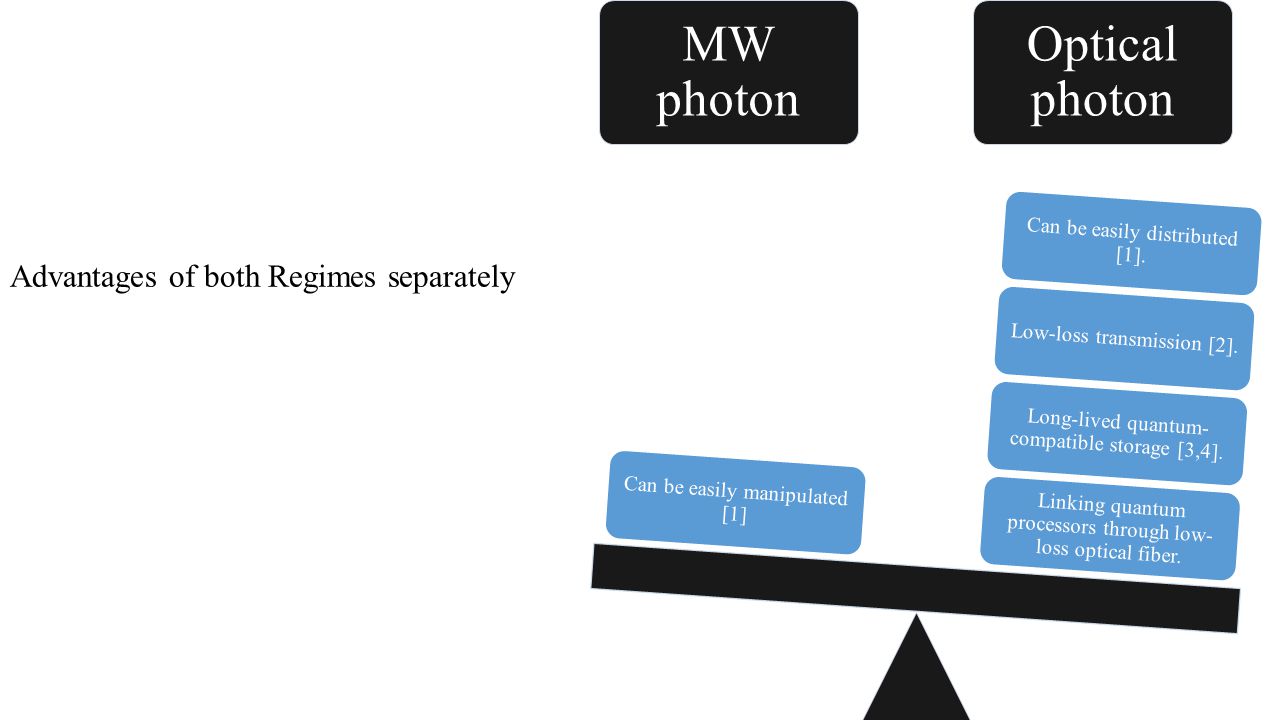

Advantages of both Regimes separately MW photon Optical photon Linking quantum processors through low- loss optical fiber. Long-lived quantum- compatible storage [3,4]. Low-loss transmission . Can be easily distributed . Can be easily manipulated

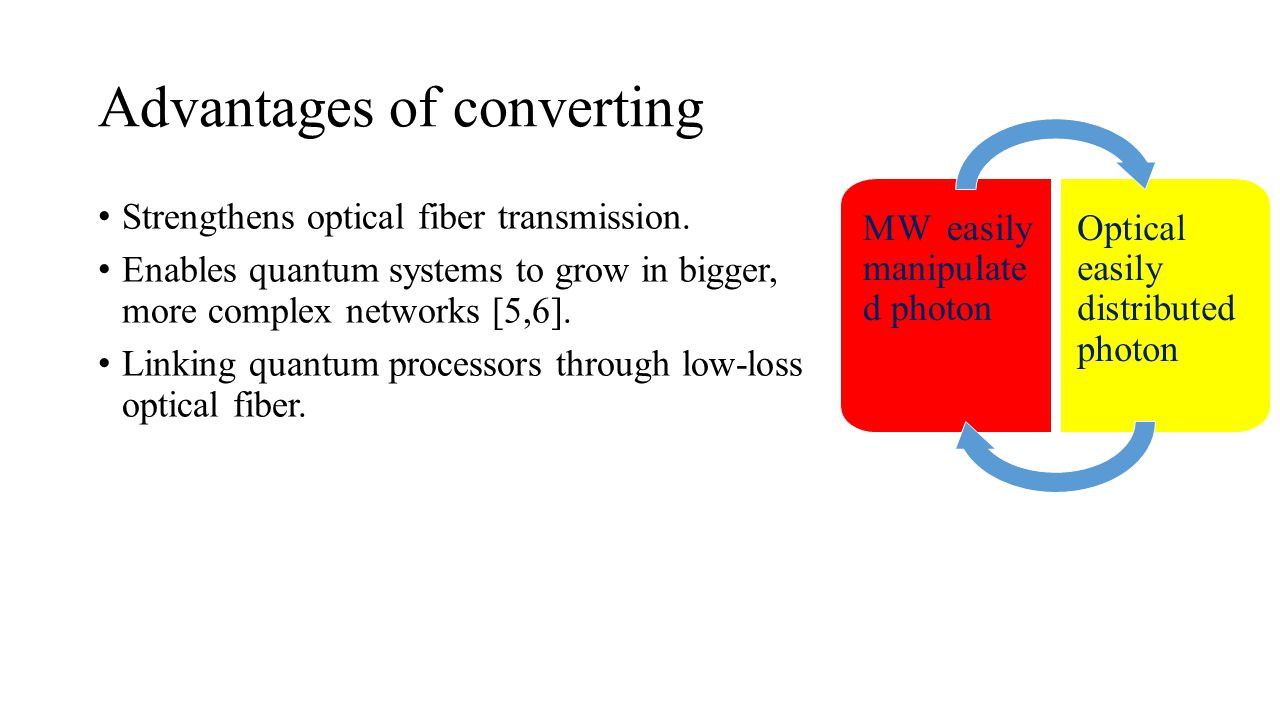

Advantages of converting Strengthens optical fiber transmission. Enables quantum systems to grow in bigger, more complex networks [5,6]. Linking quantum processors through low-loss optical fiber. MW easily manipulate d photon Optical easily distributed photon

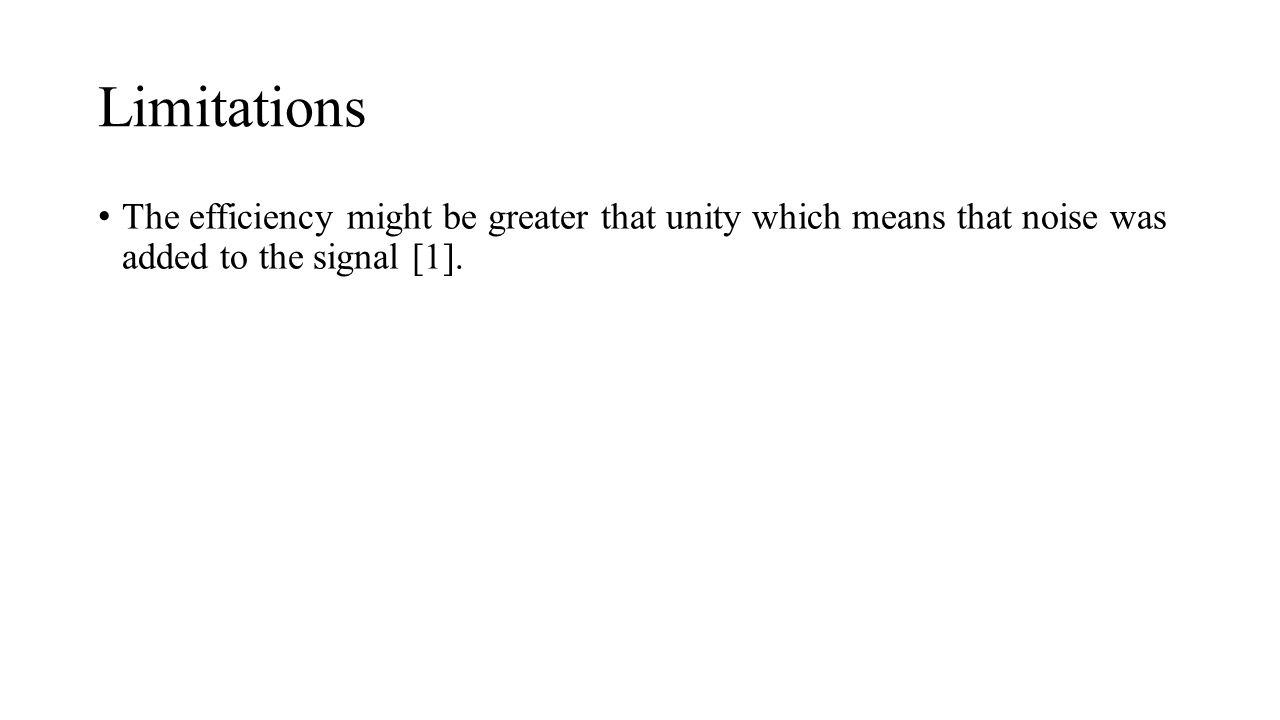

Limitations The efficiency might be greater that unity which means that noise was added to the signal .
Previous potential conversion technology The only know potential device is the electro-optics modulators which is expected to act as converters [7-9]. However, some models have predicted photon number efficiencies of only few 10 -4 [10,11,8].
Mechanisms of potential devices The photon must enter a nonlinear medium before it can be converted [itself]. Proposed nonlinear intermediate mediums: 1- Clouds of ultracold atoms [12,13]. 2- Ensembles of spins [14,15]. 3- Nanomechanical resonators [16-18].

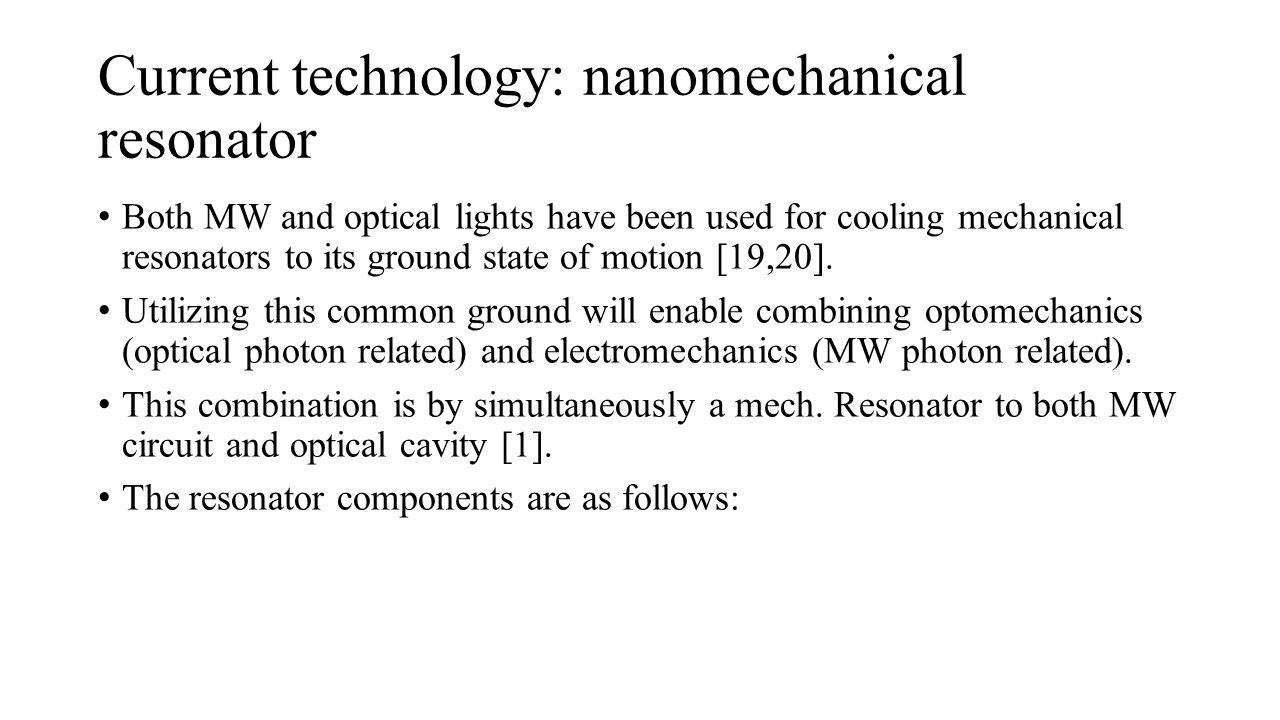

Current technology: nanomechanical resonator Both MW and optical lights have been used for cooling mechanical resonators to its ground state of motion [19,20]. Utilizing this common ground will enable combining optomechanics (optical photon related) and electromechanics (MW photon related). This combination is by simultaneously a mech. Resonator to both MW circuit and optical cavity . The resonator components are as follows:
Detector MW circuit Optical photon Nano resonator Current technology: nanomechanical resonator (cont.) The device is composed of one mechanical resonator and two electromagnetic resonators: one optical and one MW. The optical resonator = Fabry-Perot cavity @ 282 THz. The MW resonator = LC circuit @ 7 GHz. The mechanical resonator system: LC circuit substrate + niobium coated membrane + the gap sandwiched between both of them.
Ref  0- Maintain the cryogenics. 1- Inject a MW or optical field. 2- Measure the transmitted signals (seems random).
Current technology: nanomechanical resonator The best device fabricated today by Andrews et al  has conversion efficiency of 10%. This is the challenging part: integrating optical light with cryogenic temperatures. The cryogenics is needed for having 1- low noise, and 2- superconductivity. The ideal device should be 1- Coherent, 2- Lossless, and 3- Noiseless.
Future Improvements No technology nowadays can convert MW signal (low frequency) to optical (high frequency) while preserving the MW signal’s fragile quantum state . The 10% efficiency device can improve in efficiency as proposed by  by precooling the device further lower than 4 K below 40 mK. This is the challenging part: integrating optical light with cryogenic temperatures. The cryogenics is needed for having 1- low noise, and 2- superconductivity. The ideal device should be 1- Coherent, 2- Lossless, and 3- Noiseless.
