Mutual Exclusion By Shiran Mizrahi

Critical Section class Counter { private int value = 1; //counter starts at one public Counter(int c) { //constructor initializes counter value = c; } public int inc() { //increment value & return prior value int temp = value; //start of danger zone value = temp+1; //end of danger zone return temp; }

Critical Section The problem occurs if two threads both read the value field at the line marked “start of danger zone”, and then both update that field at the line marked “end of danger zone”. int temp = value; value = temp+1;

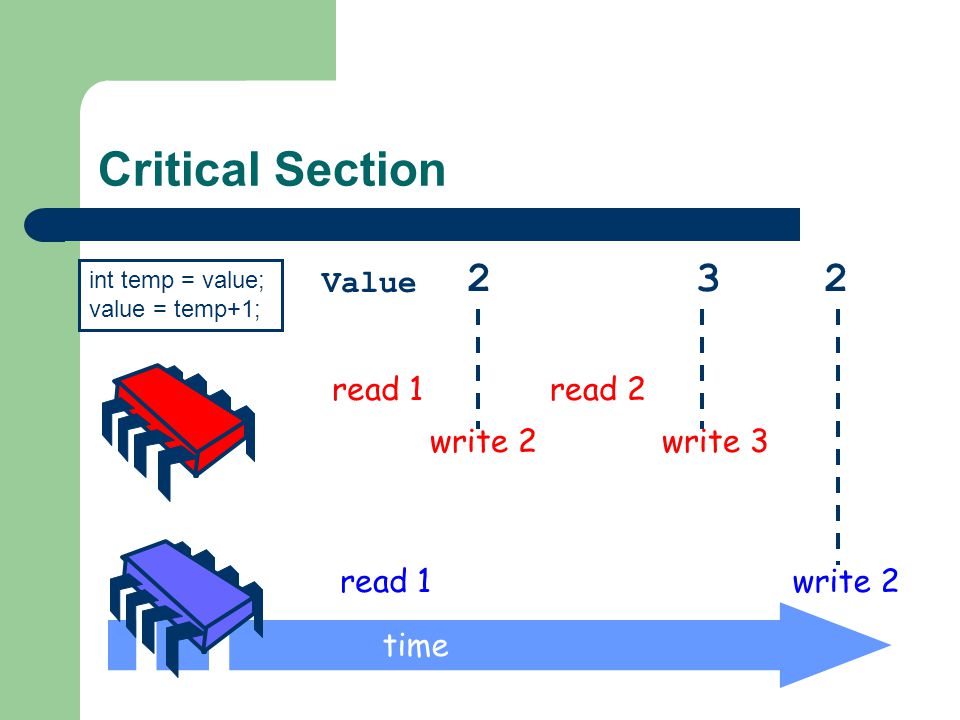

Critical Section Value read 1 write 2 read 2 write 3 write 2 232 time int temp = value; value = temp+1;

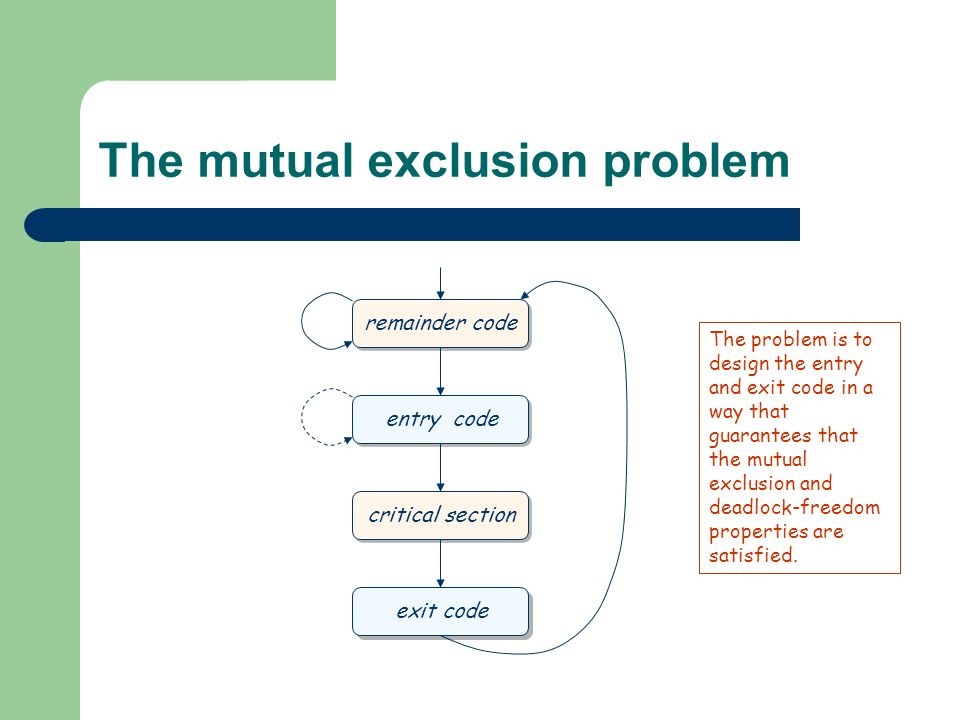

The mutual exclusion problem remainder code entry code critical section exit code The problem is to design the entry and exit code in a way that guarantees that the mutual exclusion and deadlock-freedom properties are satisfied.

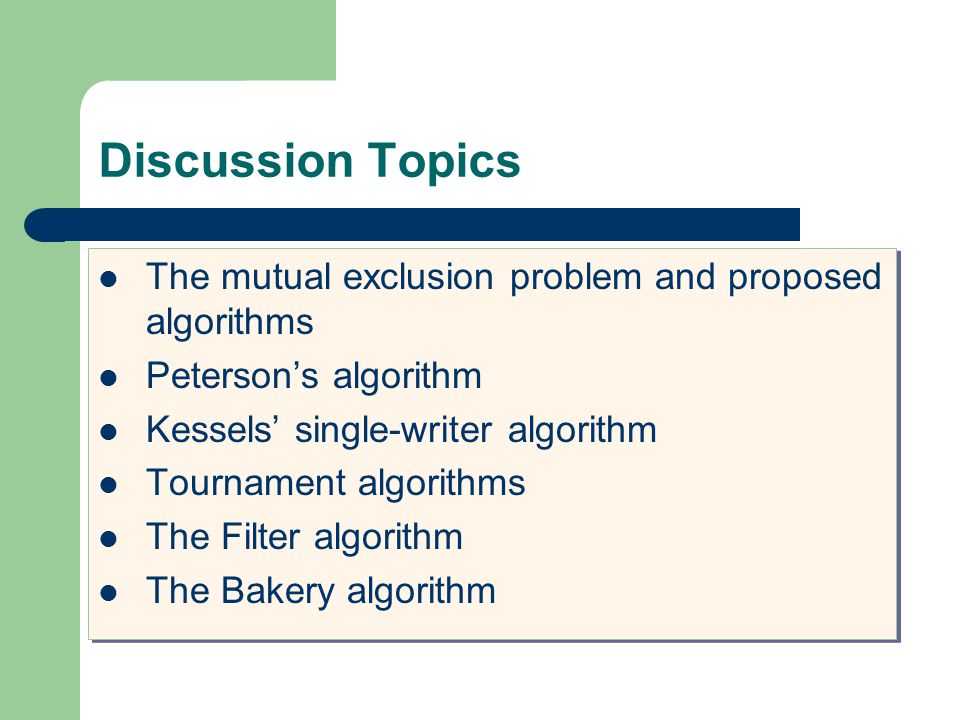

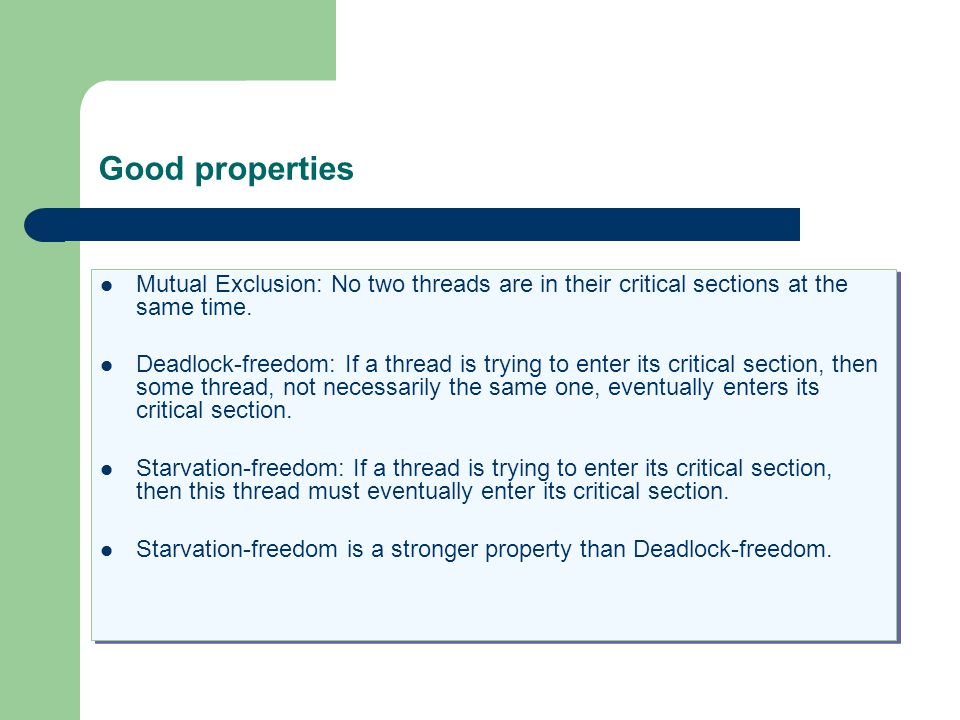

Discussion Topics The mutual exclusion problem and proposed algorithms Peterson’s algorithm Kessels’ single-writer algorithm Tournament algorithms The Filter algorithm The Bakery algorithm The mutual exclusion problem and proposed algorithms Peterson’s algorithm Kessels’ single-writer algorithm Tournament algorithms The Filter algorithm The Bakery algorithm

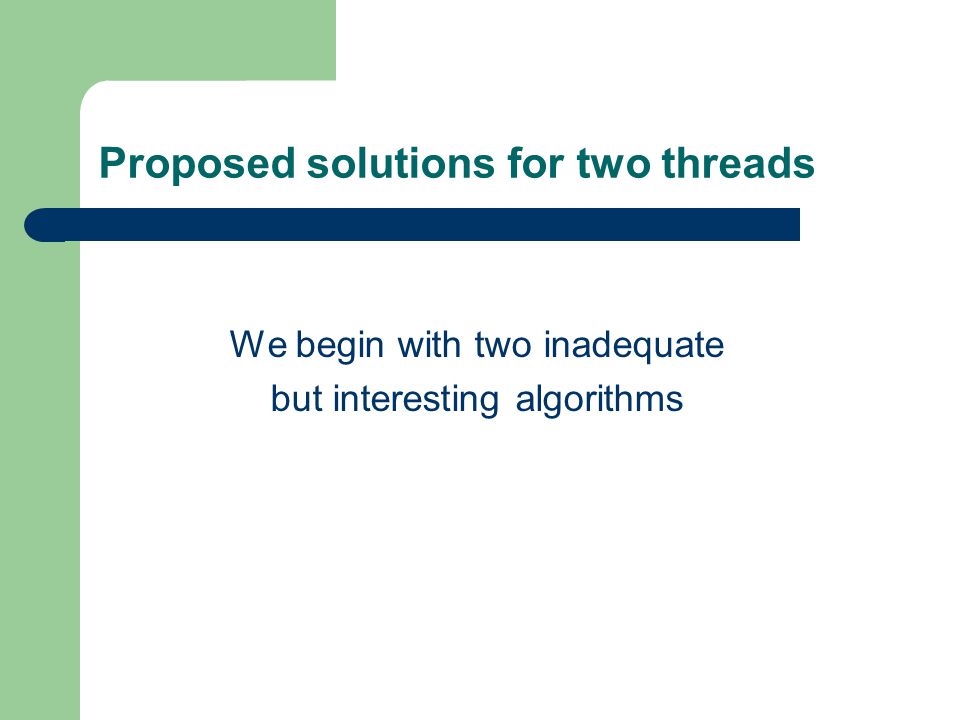

Proposed solutions for two threads We begin with two inadequate but interesting algorithms

Some notations A  B event A precedes event B CS A thread A is in the critical section write A (x=v) the event in which thread A writes to x read A (x==v) the event in which thread A reads from x

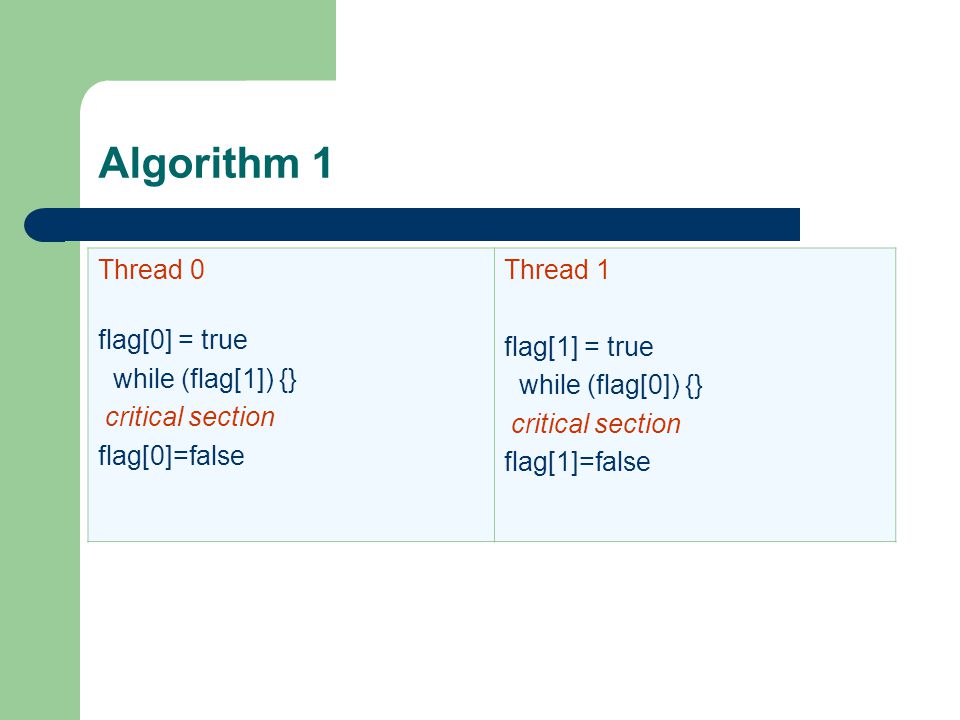

Algorithm 1 Thread 0 flag[0] = true while (flag[1]) {} critical section flag[0]=false Thread 1 flag[1] = true while (flag[0]) {} critical section flag[1]=false

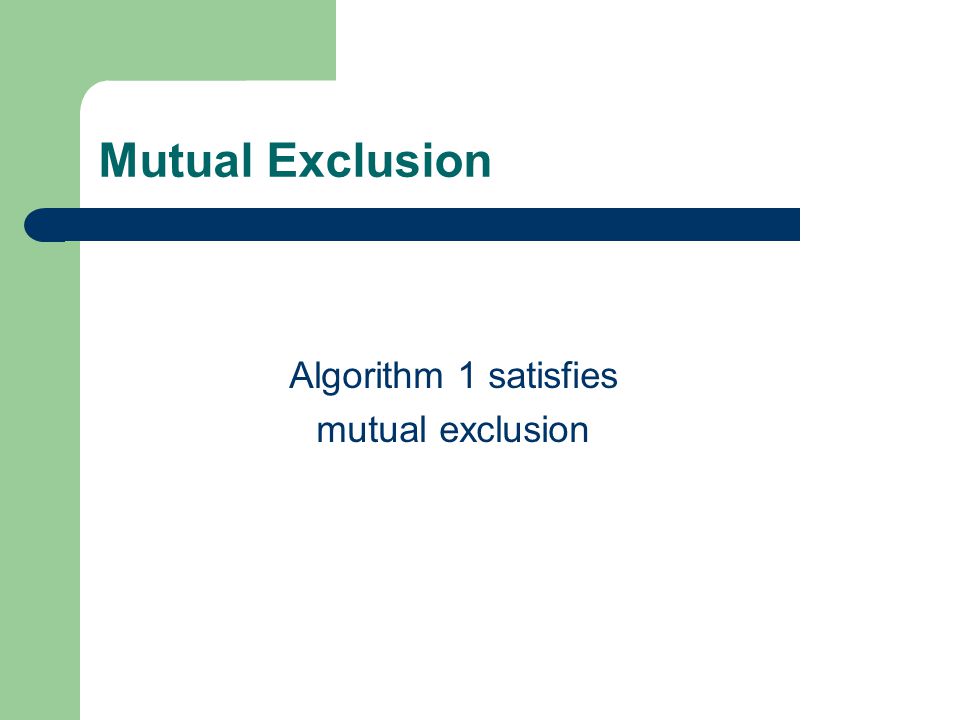

Mutual Exclusion Algorithm 1 satisfies mutual exclusion

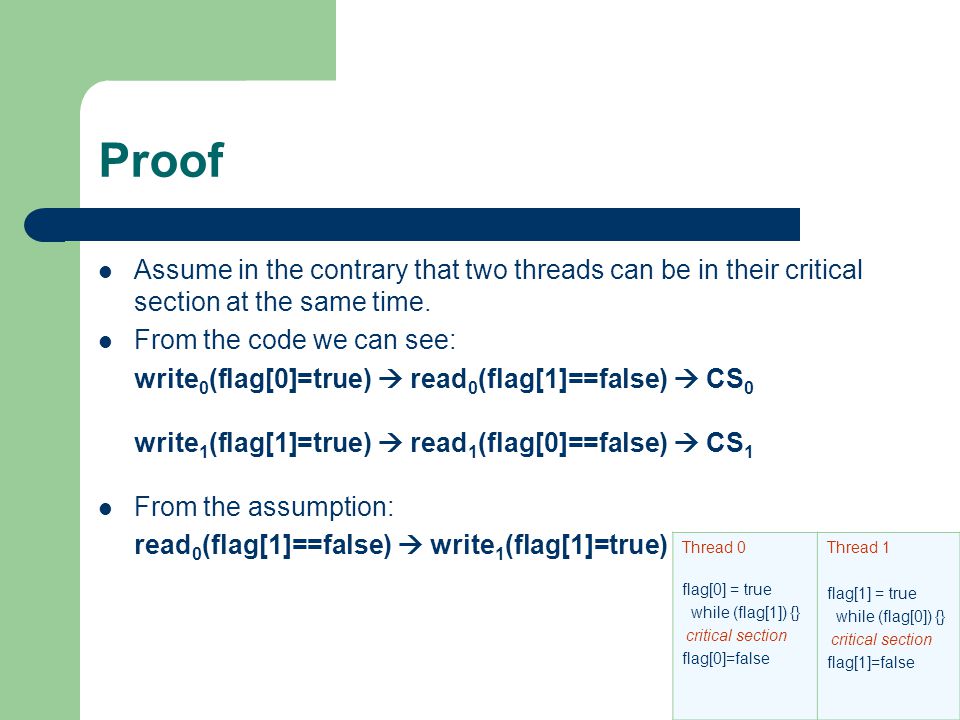

Proof Assume in the contrary that two threads can be in their critical section at the same time. From the code we can see: write 0 (flag[0]=true)  read 0 (flag[1]==false)  CS 0 write 1 (flag[1]=true)  read 1 (flag[0]==false)  CS 1 From the assumption: read 0 (flag[1]==false)  write 1 (flag[1]=true) Thread 0 flag[0] = true while (flag[1]) {} critical section flag[0]=false Thread 1 flag[1] = true while (flag[0]) {} critical section flag[1]=false

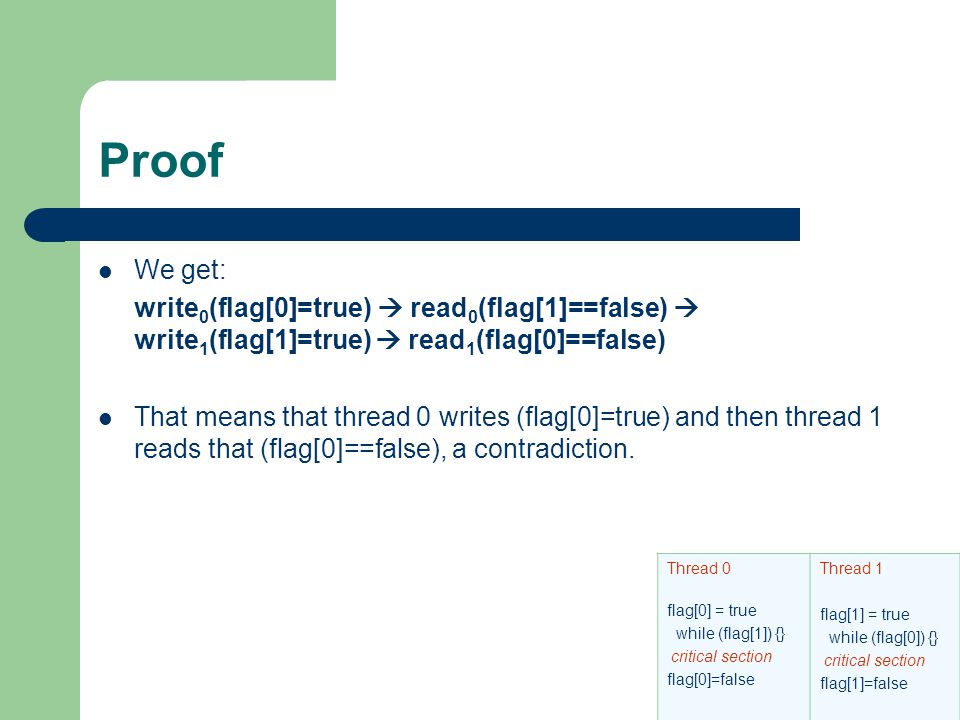

Proof We get: write 0 (flag[0]=true)  read 0 (flag[1]==false)  write 1 (flag[1]=true)  read 1 (flag[0]==false) That means that thread 0 writes (flag[0]=true) and then thread 1 reads that (flag[0]==false), a contradiction. Thread 0 flag[0] = true while (flag[1]) {} critical section flag[0]=false Thread 1 flag[1] = true while (flag[0]) {} critical section flag[1]=false

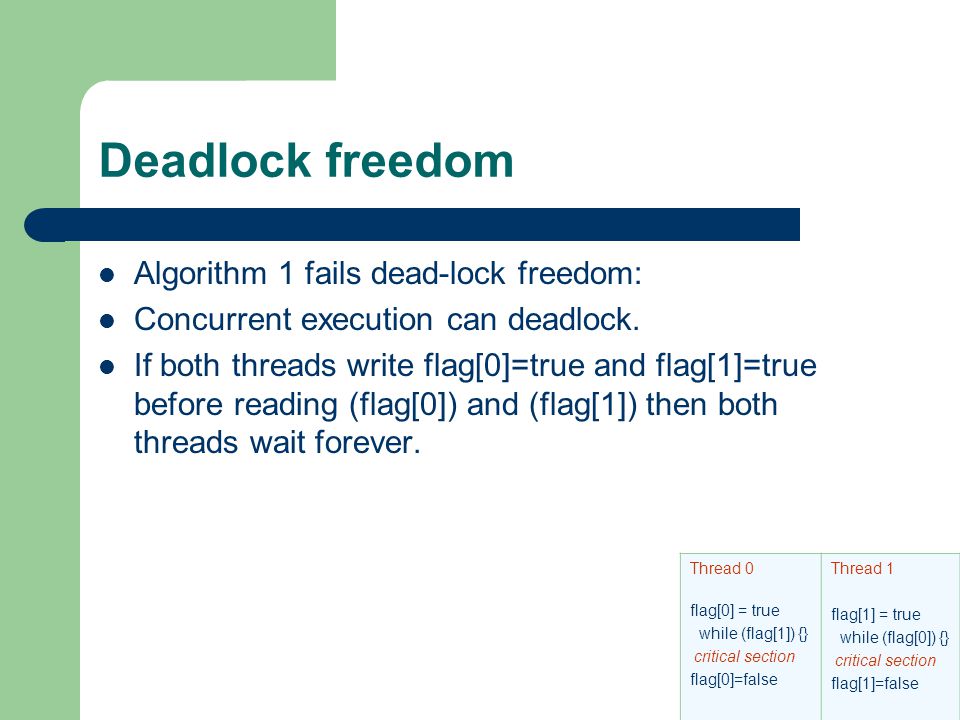

Deadlock freedom Thread 0 flag[0] = true while (flag[1]) {} critical section flag[0]=false Thread 1 flag[1] = true while (flag[0]) {} critical section flag[1]=false Algorithm 1 fails dead-lock freedom: Concurrent execution can deadlock. If both threads write flag[0]=true and flag[1]=true before reading (flag[0]) and (flag[1]) then both threads wait forever.

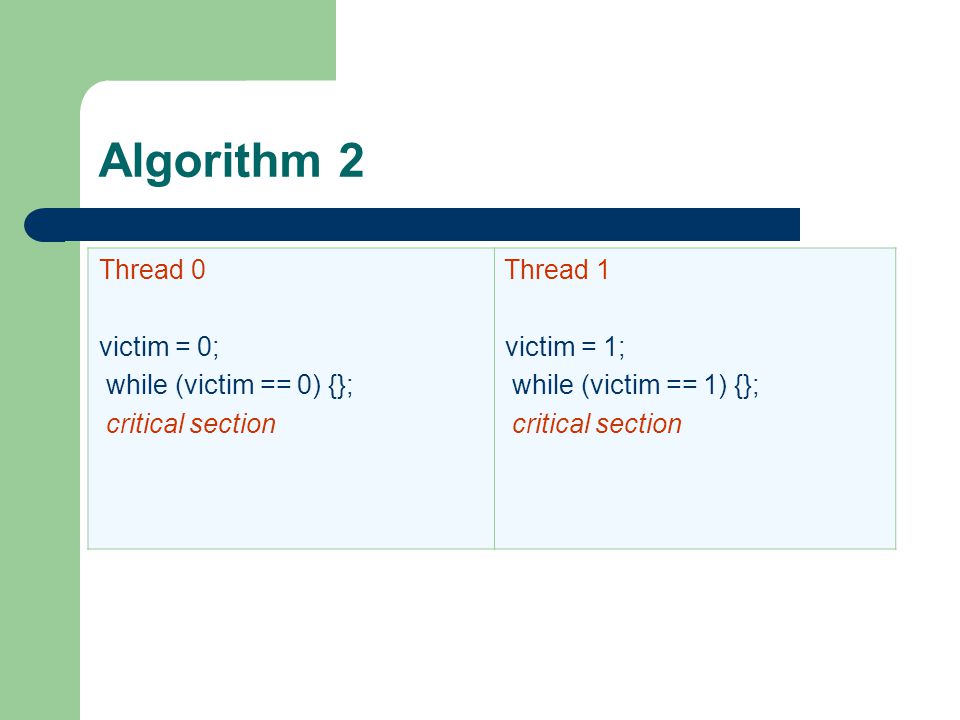

Algorithm 2 Thread 0 victim = 0; while (victim == 0) {}; critical section Thread 1 victim = 1; while (victim == 1) {}; critical section

Mutual Exclusion Algorithm 2 satisfies mutual exclusion

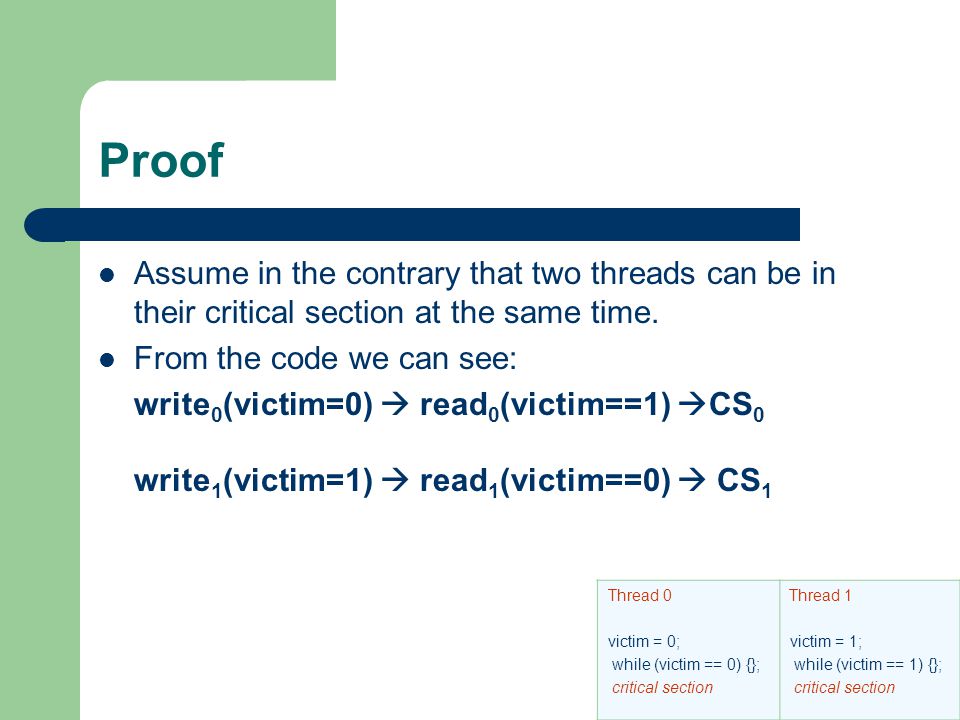

Proof Assume in the contrary that two threads can be in their critical section at the same time. From the code we can see: write 0 (victim=0)  read 0 (victim==1)  CS 0 write 1 (victim=1)  read 1 (victim==0)  CS 1 Thread 0 victim = 0; while (victim == 0) {}; critical section Thread 1 victim = 1; while (victim == 1) {}; critical section

Proof Since thread 1 must assign 1 to victim between the events write 0 (victim=0) and read 0 (victim==1), and since this assignment is the last, we get: write 0 (victim=0)  write 1 (victim=1)  read 0 (victim==1) Once victim is set to 1, it does not change, so every read will return 1, and this is a contradiction to the former equation: write 1 (victim=1)  read 1 (victim==0)  CS 1 Thread 0 victim = 0; while (victim == 0) {}; critical section Thread 1 victim = 1; while (victim == 1) {}; critical section

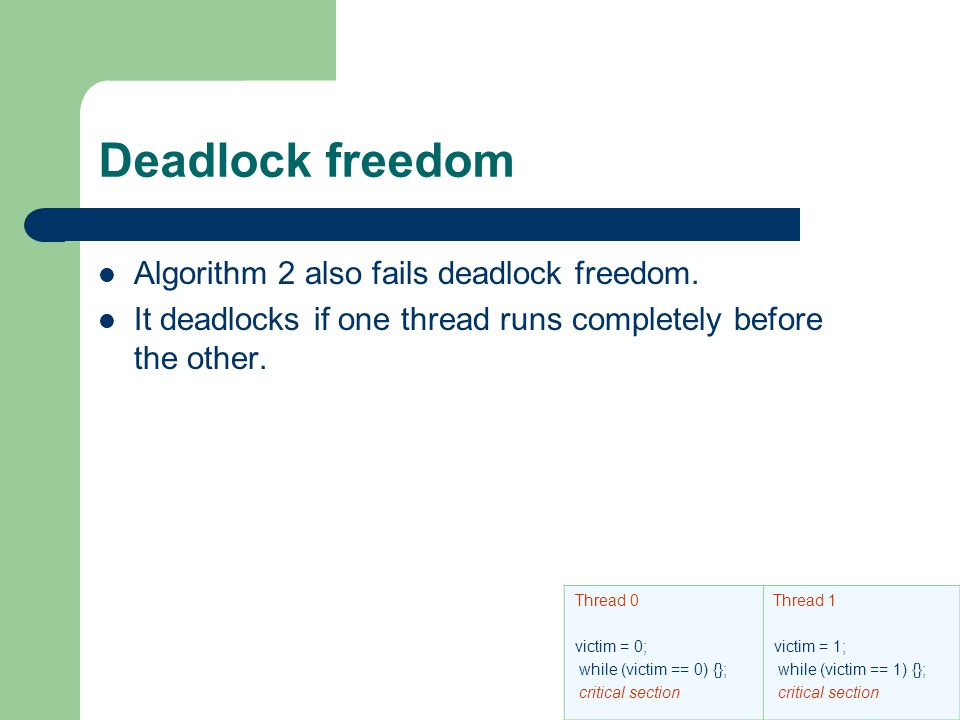

Deadlock freedom Algorithm 2 also fails deadlock freedom. It deadlocks if one thread runs completely before the other. Thread 0 victim = 0; while (victim == 0) {}; critical section Thread 1 victim = 1; while (victim == 1) {}; critical section

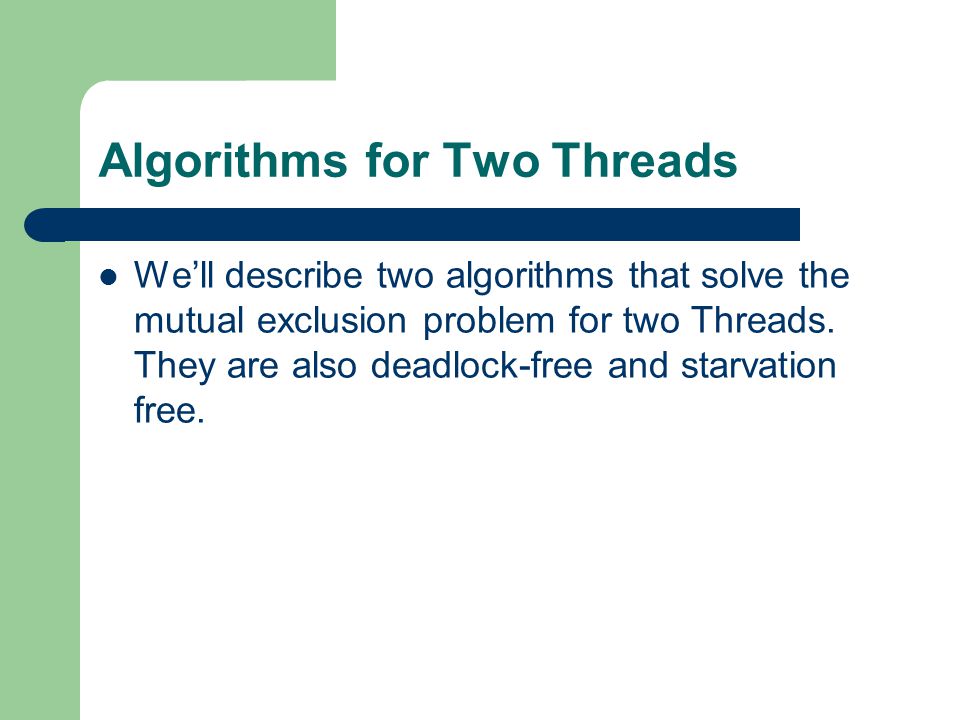

Algorithms for Two Threads We’ll describe two algorithms that solve the mutual exclusion problem for two Threads. They are also deadlock-free and starvation free.

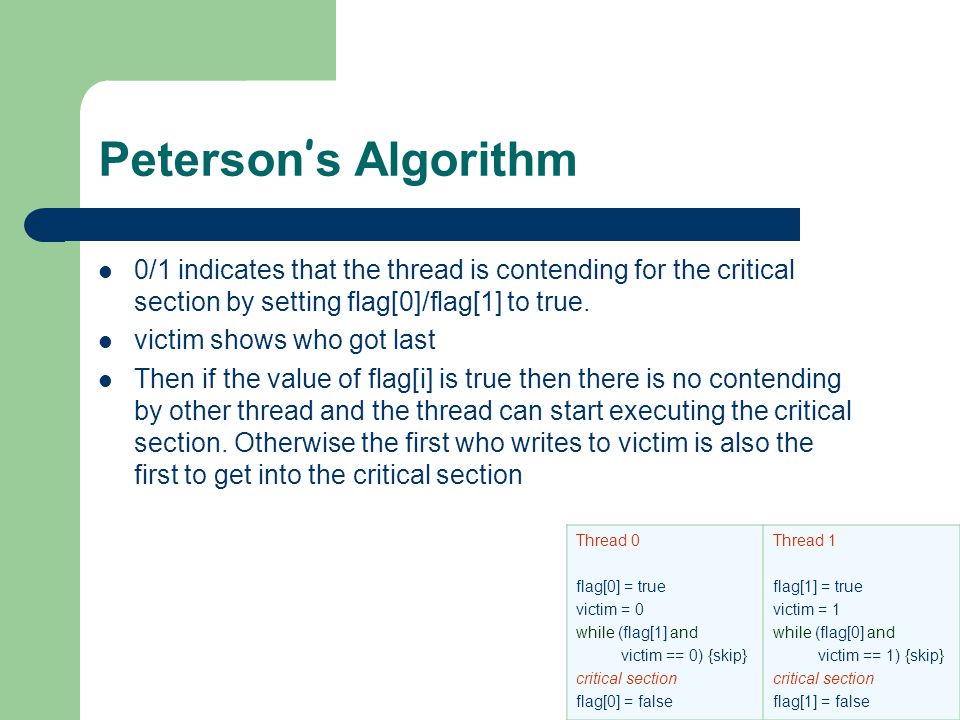

Peterson ’ s Algorithm Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

Peterson ’ s Algorithm 0/1 indicates that the thread is contending for the critical section by setting flag[0]/flag[1] to true. victim shows who got last Then if the value of flag[i] is true then there is no contending by other thread and the thread can start executing the critical section. Otherwise the first who writes to victim is also the first to get into the critical section Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

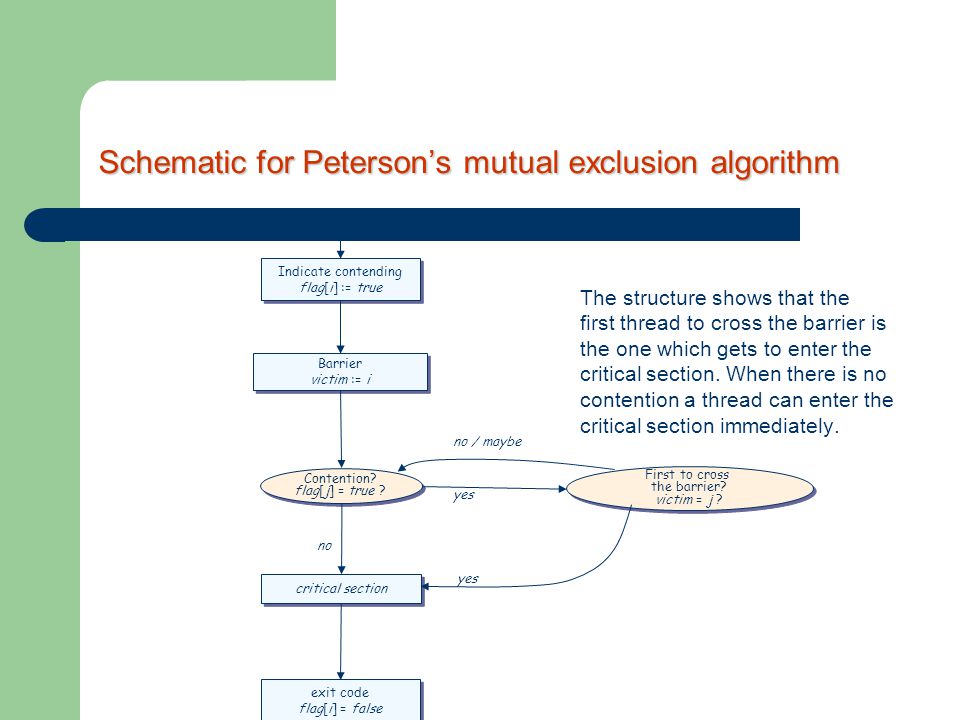

Schematic for Peterson’s mutual exclusion algorithm Indicate contending flag[i] := true Indicate contending flag[i] := true Barrier victim := i Barrier victim := i Contention? flag[j] = true ? Contention? flag[j] = true ? critical section exit code flag[i] = false exit code flag[i] = false First to cross the barrier? victim = j ? First to cross the barrier? victim = j ? yes no / maybe no The structure shows that the first thread to cross the barrier is the one which gets to enter the critical section. When there is no contention a thread can enter the critical section immediately.

Mutual Exclusion Peterson’s algorithm satisfies mutual exclusion

Proof Assume in the contrary that two threads can be in their critical section at the same time. From the code we see: (*) write 0 (flag[0]=true)  write 0 (victim=0)  read 0 (flag[1])  read 0 (victim)  CS 0 write 1 (flag[1]=true)  write 1 (victim=1)  read 1 (flag[0])  read 1 (victim)  CS 1 Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

Proof Assume that the last thread to write to victim was 0. Then: write 1 (victim=1)  write 0 (victim=0) This implies that thread 0 read that victim=0 in equation (*) Since thread 0 is in the critical section, it must have read flag[1] as false, so: write 0 (victim=0)  read 0 (flag[1]==false) Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

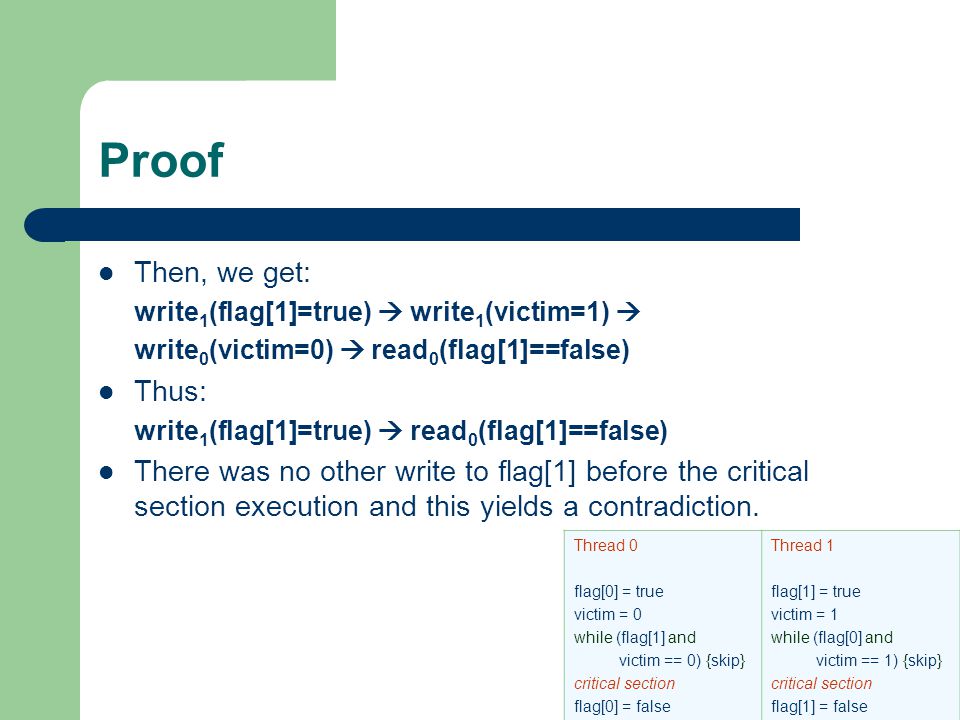

Proof Then, we get: write 1 (flag[1]=true)  write 1 (victim=1)  write 0 (victim=0)  read 0 (flag[1]==false) Thus: write 1 (flag[1]=true)  read 0 (flag[1]==false) There was no other write to flag[1] before the critical section execution and this yields a contradiction. Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

Starvation freedom Peterson’s algorithm is starvation-free

Proof Assume to the contrary that the algorithm is not starvation-free Then one of the threads, say thread 0, is forced to remain in its entry code forever Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

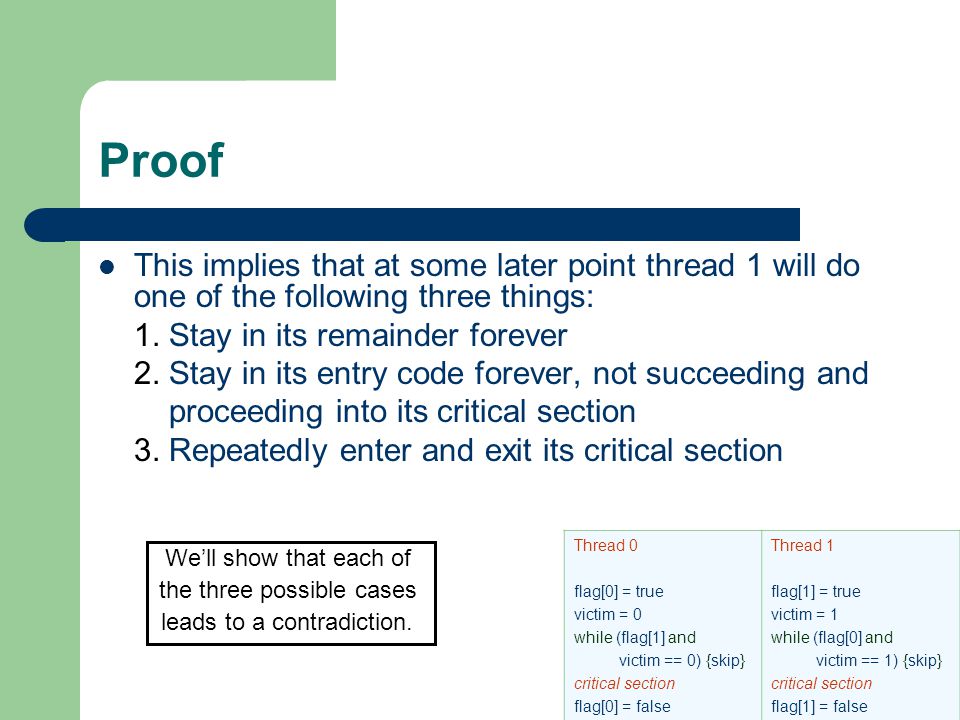

Proof This implies that at some later point thread 1 will do one of the following three things: 1. Stay in its remainder forever 2. Stay in its entry code forever, not succeeding and proceeding into its critical section 3. Repeatedly enter and exit its critical section Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false We’ll show that each of the three possible cases leads to a contradiction.

Proof In the first case flag[1] is false, and hence thread 0 can proceed. The second case is impossible since victim is either 0 or 1, and hence it always enables at least one of the threads to proceed. In the third case, when thread 1 exit its critical section and tries to enter its critical section again, it will set victim to 1 and will never change it back to 0, enabling thread 0 to proceed. Thread 0 flag[0] = true victim = 0 while (flag[1] and victim == 0) {skip} critical section flag[0] = false Thread 1 flag[1] = true victim = 1 while (flag[0] and victim == 1) {skip} critical section flag[1] = false

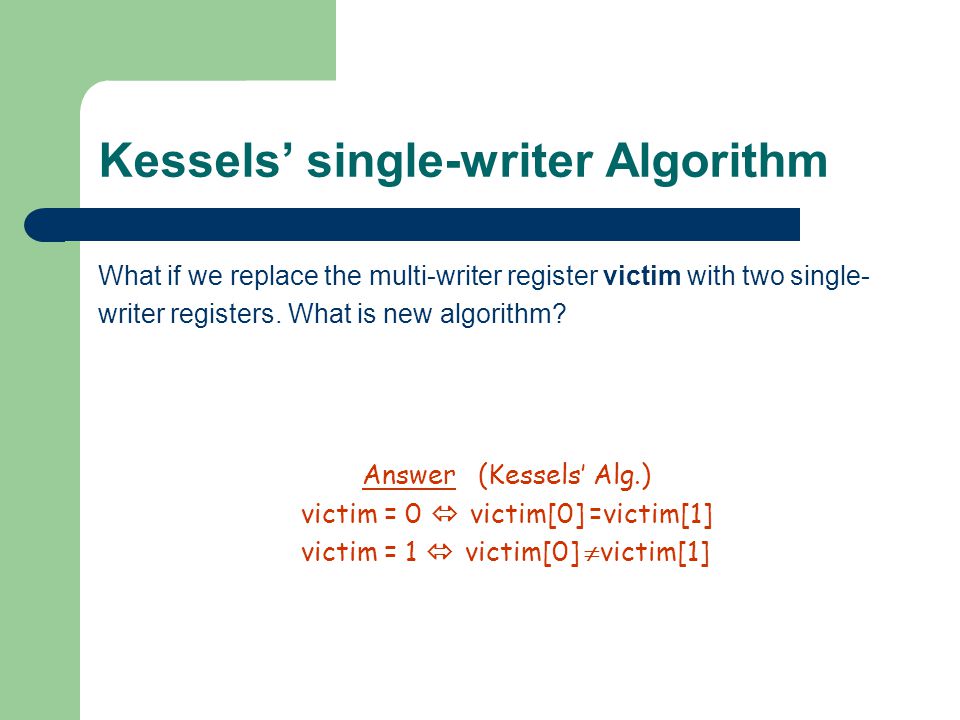

Kessels’ single-writer Algorithm What if we replace the multi-writer register victim with two single- writer registers. What is new algorithm? Answer (Kessels’ Alg.) victim = 0  victim[0] =victim[1] victim = 1  victim[0]  victim[1]

Kessels’ single-writer Algorithm Thread 0 flag[0] = true local[0] = victim[1] victim[0] = local[0] while (flag[1] and local[0]=victim[1]) {skip} critical section flag[0] = false Thread 1 flag[1] = true local[1]=1-victim[0] victim[1] = local[1] while (flag[0] and local[1]  victim[0])) {skip} critical section flag[1] = false Thread 0 can write the registers victim[0] and flag[0] and read the registers victim[1] and flag[1] Thread 1 can write the registers victim[1] and flag[1] and read the registers victim[0] and flag[0]

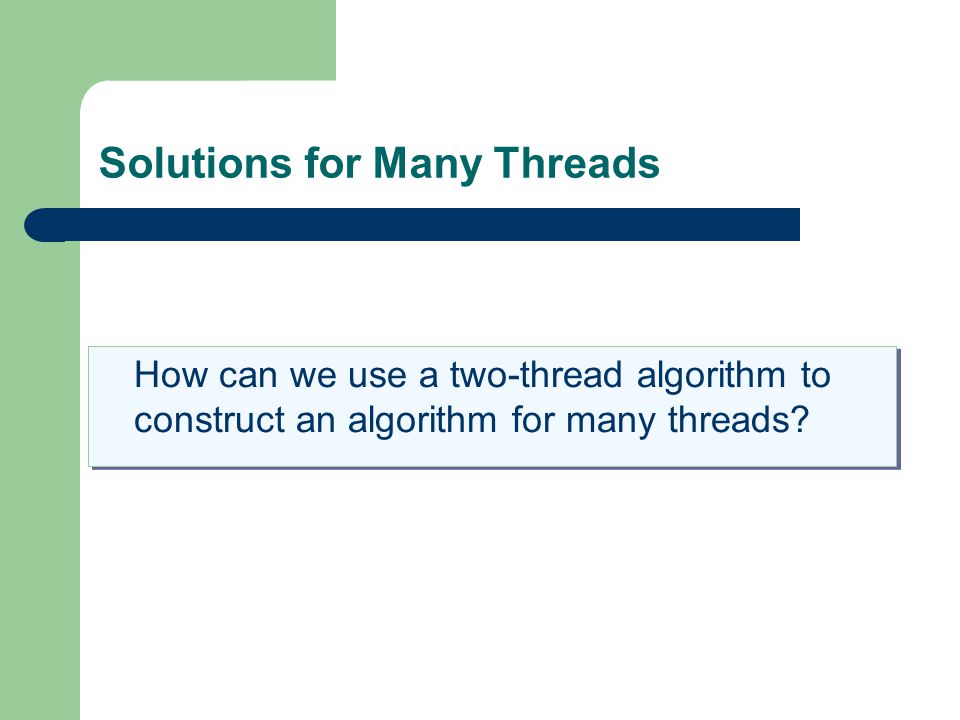

Solutions for Many Threads How can we use a two-thread algorithm to construct an algorithm for many threads?

Tournament Algorithms 12345678

A simple method which enables the construction an algorithm for n threads from any given algorithm for two threads. Each thread is progressing from the leaf to the root, where at each level of the tree it participates in a two thread mutual exclusion algorithm. As a thread advanced towards the root, it plays the role of thread 0 when it arrives from the left subtree, or of thread 1 when it arrives from the right subtree.

The Filter Algorithm for n Threads A direct generalization of Peterson’s algorithm to multiple threads. The Peterson algorithm used a two-element boolean flag array to indicate whether a thread is interested in entering the critical section. The filter algorithm generalizes this idea with an N-element integer level array, where the value of level[i] indicates the latest level that thread i is interested in entering. ncs cs level n-1

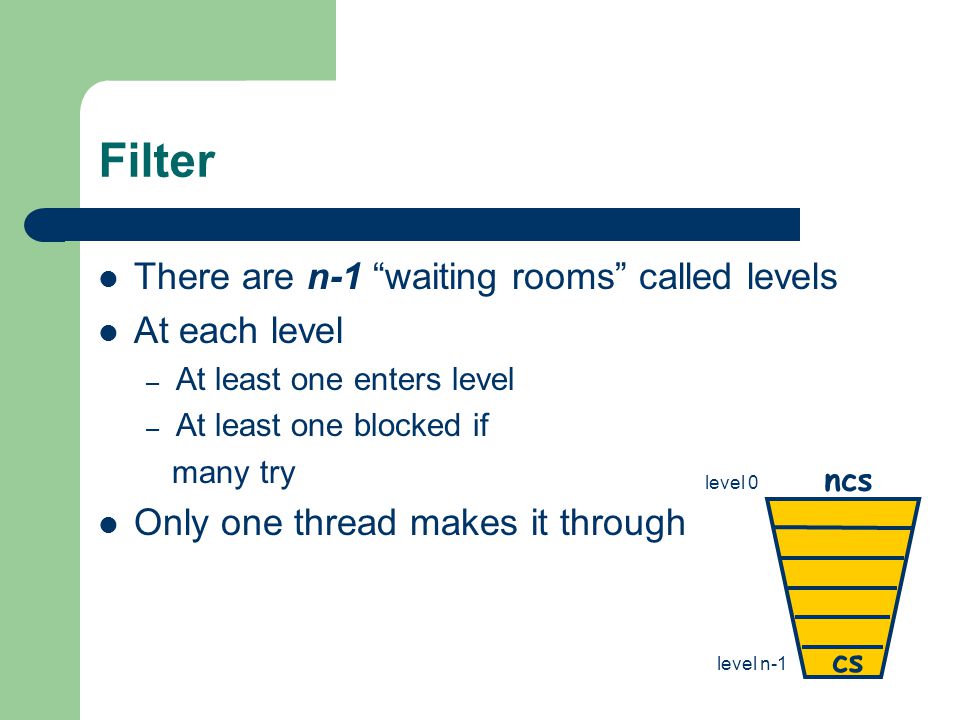

Filter There are n-1 “waiting rooms” called levels At each level – At least one enters level – At least one blocked if many try Only one thread makes it through ncs cs level 0 level n-1

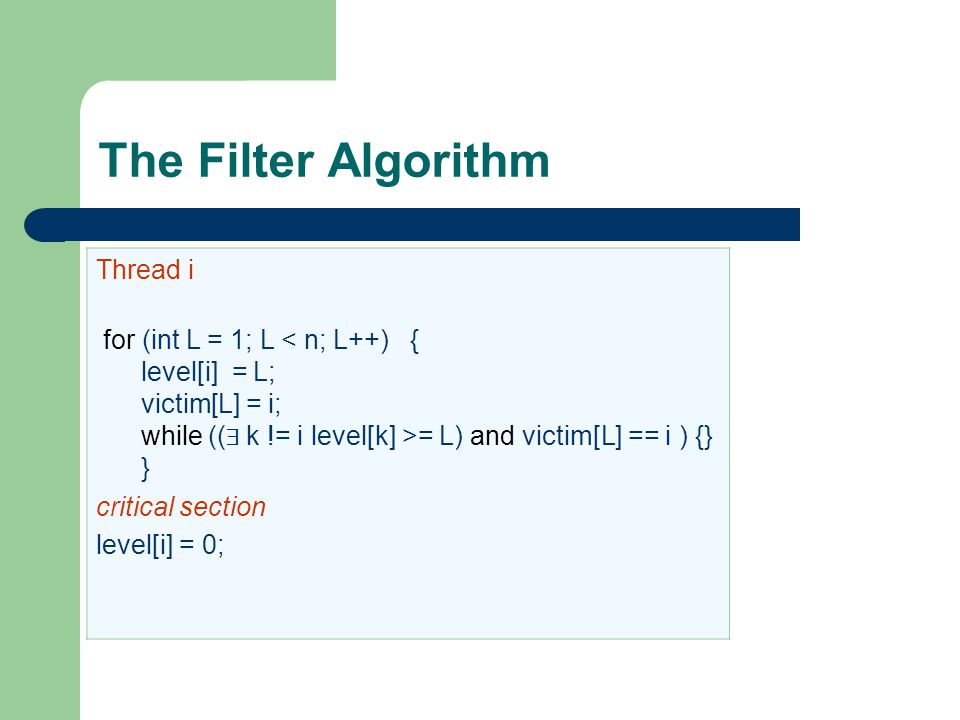

The Filter Algorithm Thread i for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0;

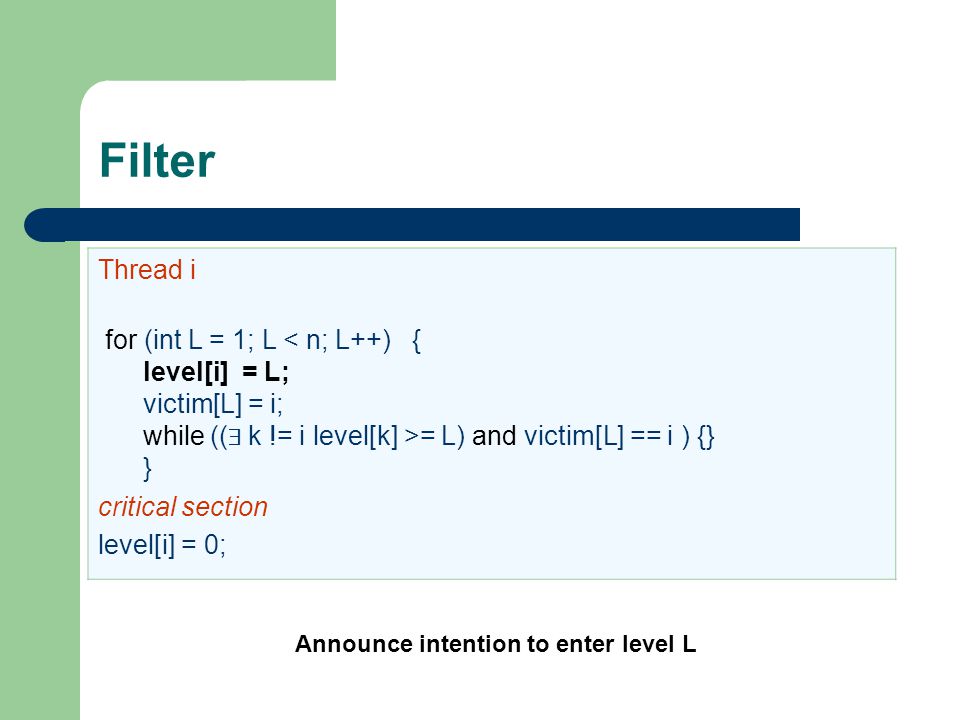

Thread i for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0; Filter One level at a time

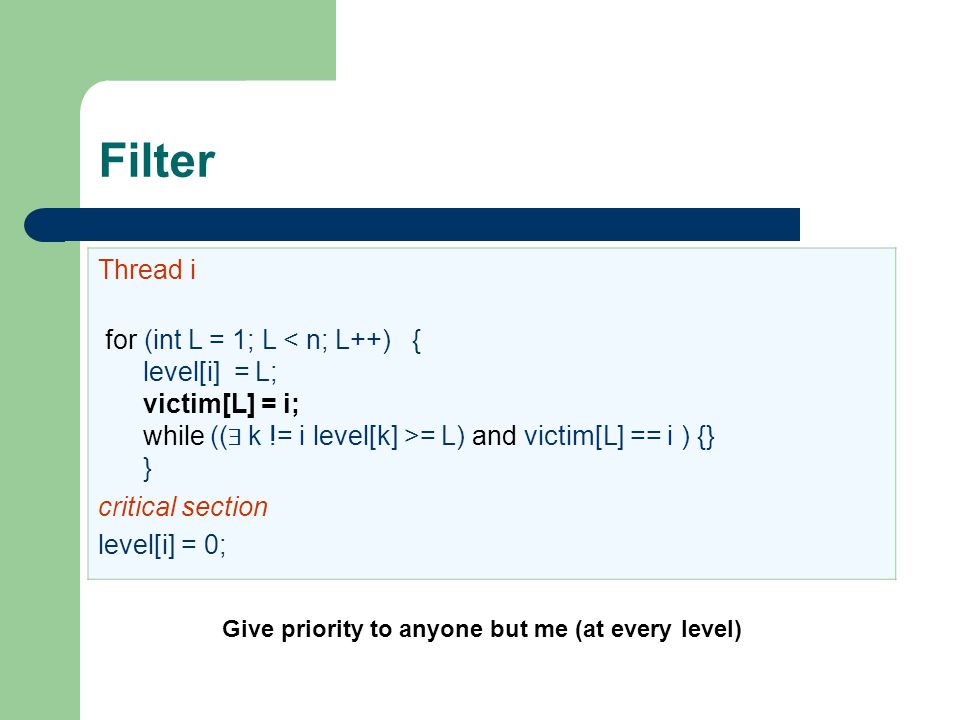

Filter Thread i for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0; Announce intention to enter level L

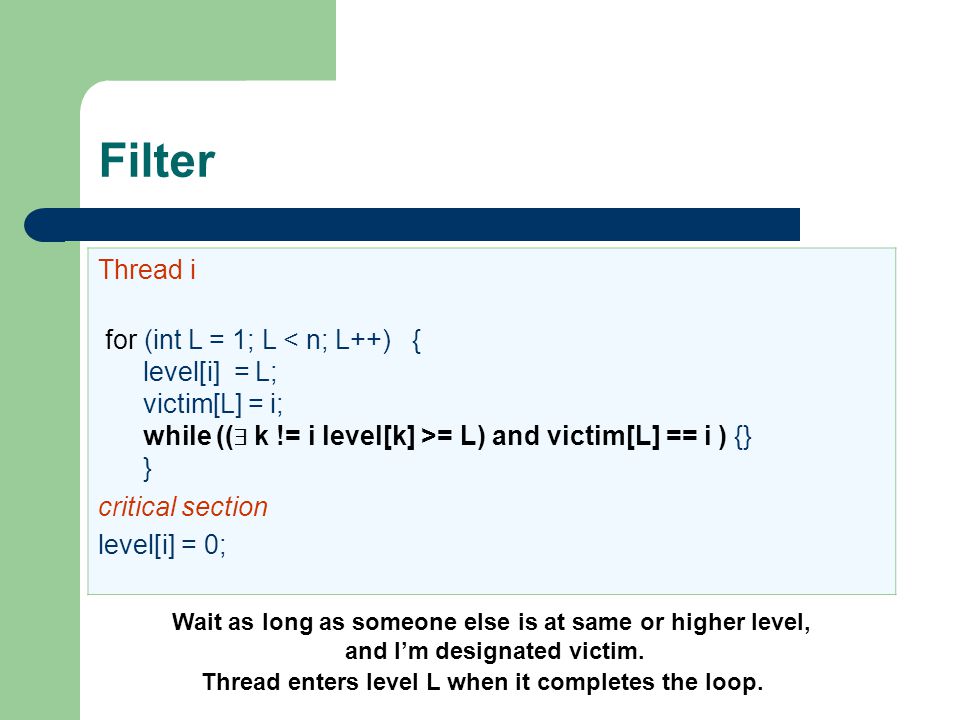

Filter Thread i for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0; Give priority to anyone but me (at every level)

Filter Thread i for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0; Wait as long as someone else is at same or higher level, and I’m designated victim. Thread enters level L when it completes the loop.

Claim There are at most n-L threads enter level L Proof: by induction on L and by contradiction At L=0 – trivial Assume that there are at most n-L+1 threads at level L-1. Assume that there are n-L+1 threads at level L Let A be the last thread to write victim[L] and B any other thread at level L

Proof structure ncs cs Assumed to enter L-1 By way of contradiction all enter L n-L+1 = 4 A B Last to write victim[L] Show that A must have seen B at level L and since victim[L] == A could not have entered

Proof From the code we get: From the assumption: write B (level[B]=L)  write B (victim[L]=B) write A (victim[L]=A)  read A (level[B]) write B (victim[L]=B)  write A (victim[L]=A) for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0;

Proof When combining all we get: Since B is at level L, when A reads level[B], it reads a value greater than or equal L and so A couldn’t completed its loop and still waiting (remember that victim=A), a contradiction. write B (level[B]=L)  read A (level[B]) for (int L = 1; L < n; L++) { level[i] = L; victim[L] = i; while ((  k != i level[k] >= L) and victim[L] == i ) {} } critical section level[i] = 0;

A conclusion The filter algorithm satisfies mutual exclusion At level n-1 there are at most n-(n-1)=1 threads, which means at most one thread in the critical section

Starvation-freedom Filter Lock satisfies properties: – Just like Peterson algorithm at any level – So no one starves

Fairness Starvation freedom guarantees that if a thread is trying to enter its critical section, it will eventually do so There is no guarantee about how long it will take We wish for fairness: if thread A enters the entry code before thread B, then A should enter the critical section first

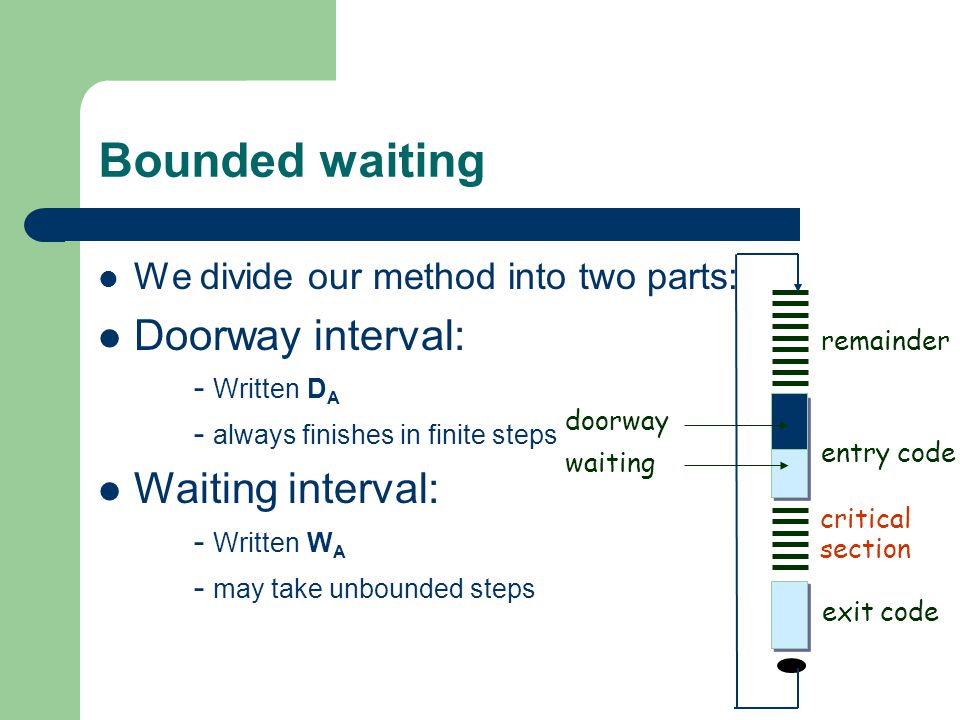

Bounded waiting We divide our method into two parts: Doorway interval: - Written D A - always finishes in finite steps Waiting interval: - Written W A - may take unbounded steps entry code exit code critical section remainder doorway waiting

The mutual exclusion problem Mutual Exclusion Deadlock-freedom Starvation-freedom FIFO

r-Bounded Waiting For threads A and B: – If D A k  D B j A’s k-th doorway precedes B’s j-th doorway – Then CS A k  CS B j+r A’s k-th critical section precedes B’s (j+r)-th critical section B cannot overtake A by more than r times First-come-first-served means r = 0.

Fairness in Filter Algorithm Filter satisfies properties: – No one starves – But very weak fairness Not r-bounded for any r! – That’s pretty lame…

Bakery Algorithm The idea is similar to a line at the bakery A customer takes a number greater than numbers of other customers Each of the threads gets a unique identifier

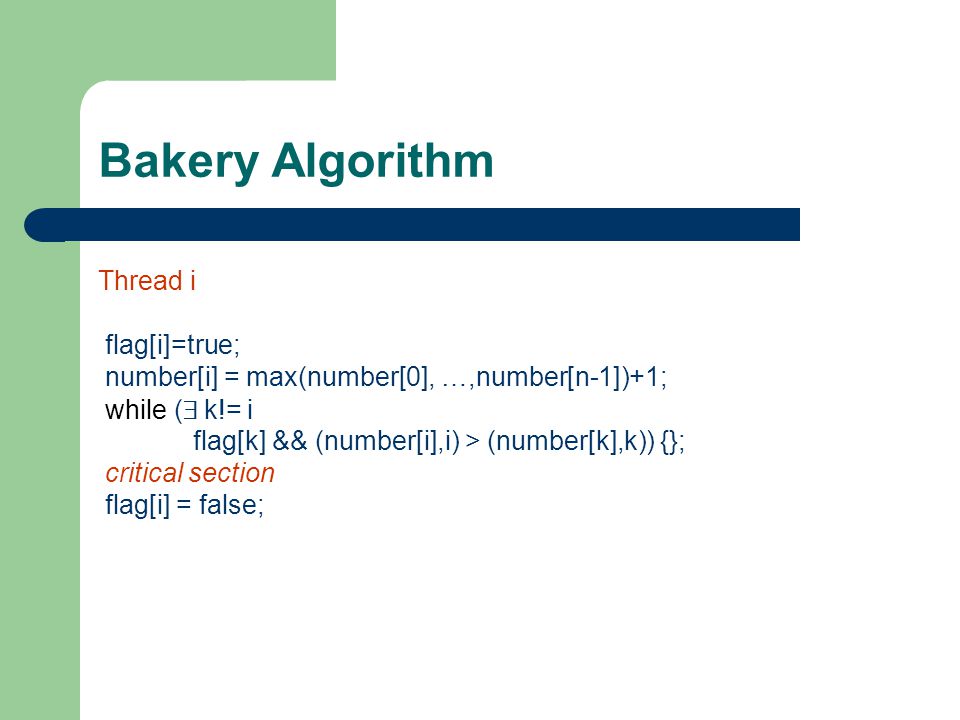

Bakery Algorithm Thread i flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false;

Bakery Algorithm flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false; Doorway

Bakery Algorithm flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false; I’m interested

Bakery Algorithm flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false; Take an number numbers are always increasing!

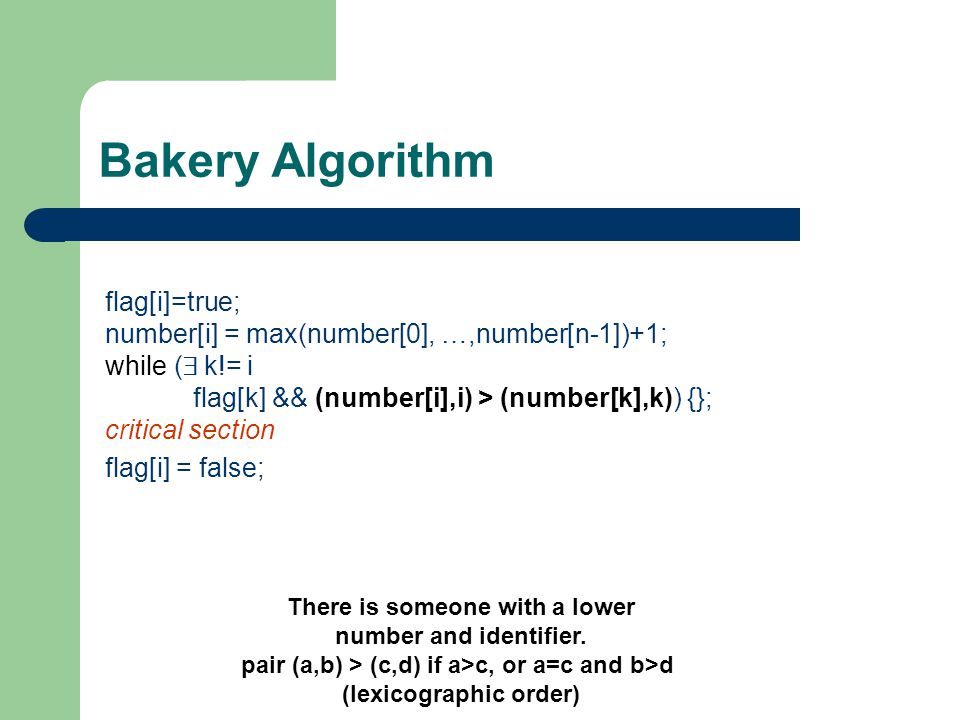

Bakery Algorithm flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false; Someone is interested

Bakery Algorithm flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false; There is someone with a lower number and identifier. pair (a,b) > (c,d) if a>c, or a=c and b>d (lexicographic order)

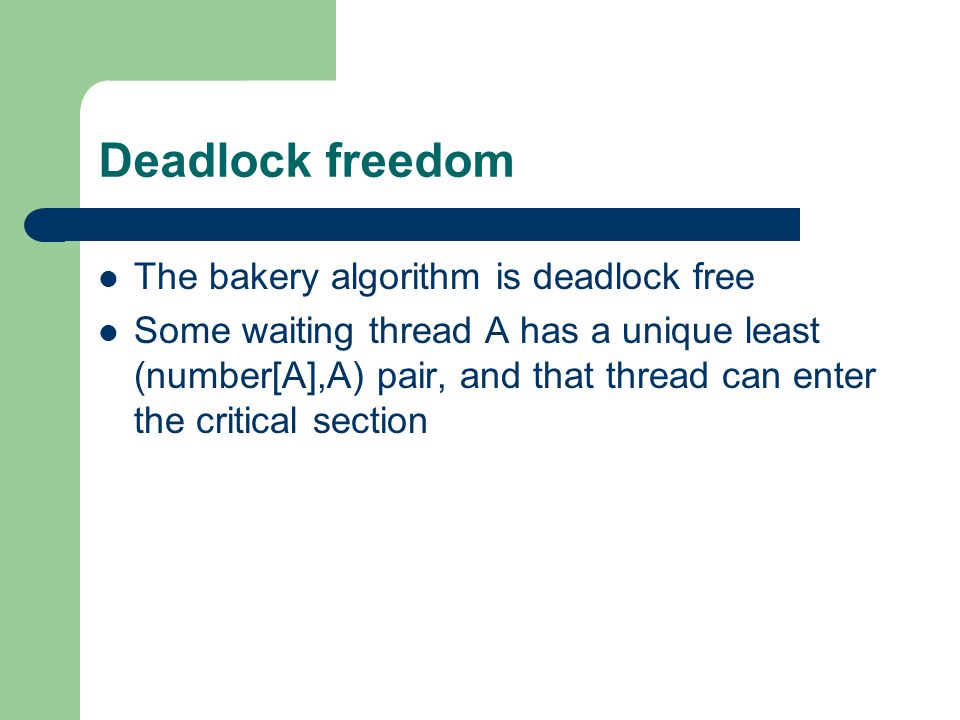

Deadlock freedom The bakery algorithm is deadlock free Some waiting thread A has a unique least (number[A],A) pair, and that thread can enter the critical section

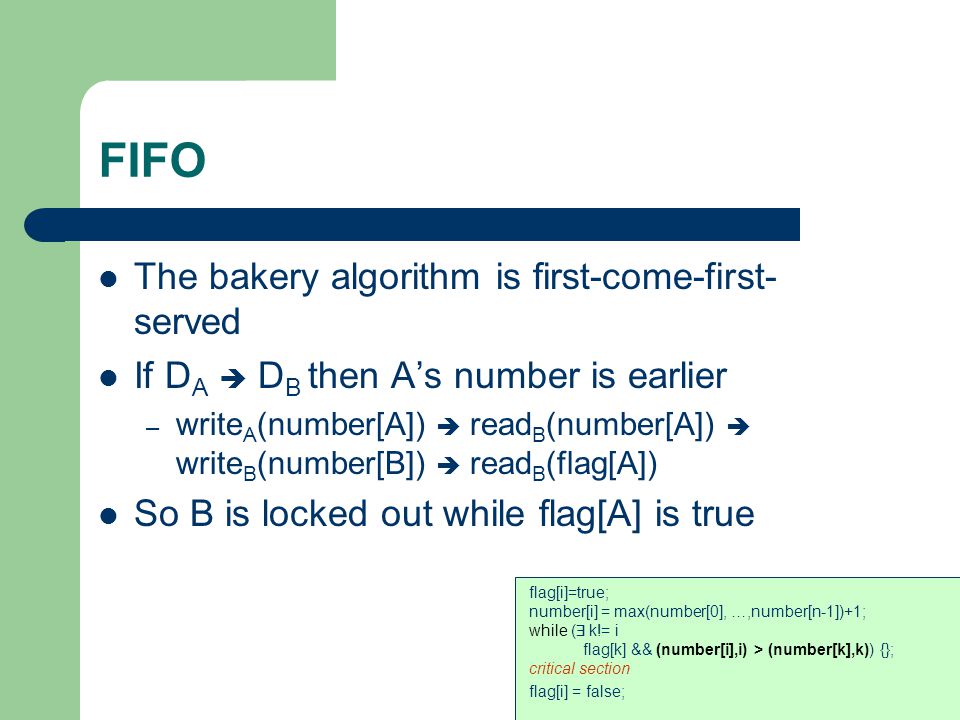

FIFO The bakery algorithm is first-come-first- served If D A  D B then A’s number is earlier – write A (number[A])  read B (number[A])  write B (number[B])  read B (flag[A]) So B is locked out while flag[A] is true flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false;

Starvation freedom The bakery algorithm satisfies deadlock freedom and first-come-first-served and those properties implies starvation freedom

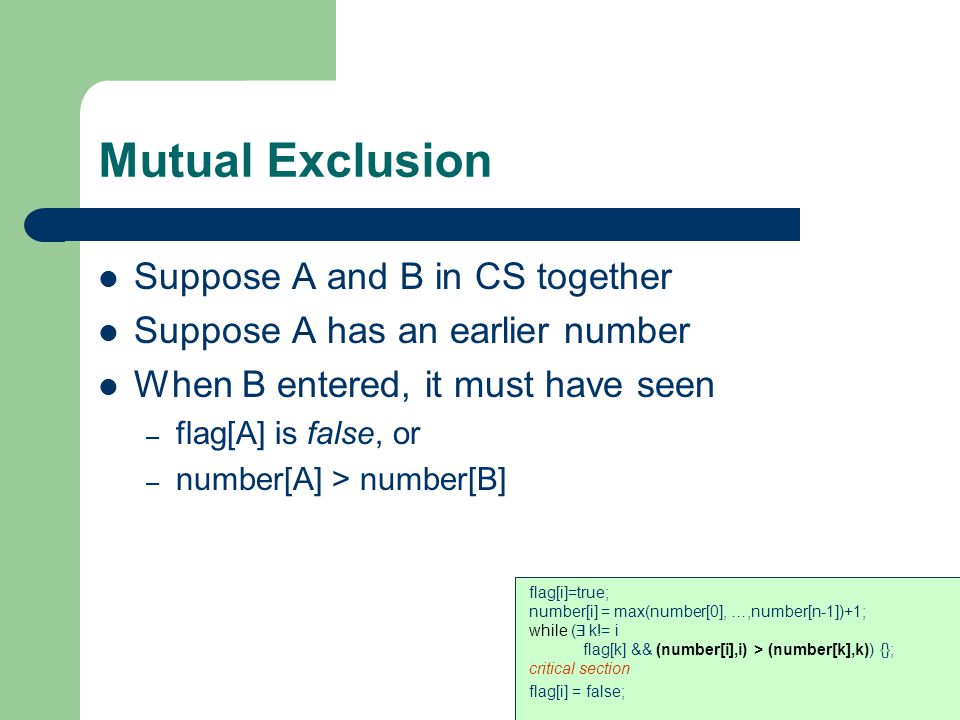

Mutual Exclusion Suppose A and B in CS together Suppose A has an earlier number When B entered, it must have seen – flag[A] is false, or – number[A] > number[B] flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false;

Mutual Exclusion numbers are strictly increasing so B must have seen (flag[A] == false) numbering B  read B (flag[A])  write A (flag[A])  numbering A Which contradicts the assumption that A has an earlier number flag[i]=true; number[i] = max(number[0], …,number[n-1])+1; while (  k!= i flag[k] && (number[i],i) > (number[k],k)) {}; critical section flag[i] = false;
