**Chapter 3 Material & Energy Balance**

Eskedar T. (AAiT-CED)

2
**Materials and Energy Balances**

Tools for quantitative understanding of the behavior of environmental systems. For accounting of the flow of energy and materials into and out of the environmental systems.

3
**Materials and Energy Balances**

Material Balance Energy Balance production, transport, and fate modeling Pollutant Energy

4
**Unifying Theories Conservation of Matter**

The law of conservation of matter states that (without nuclear reaction) matter can neither be created nor destroyed. We ought to be able to account for the “matter” at any point in time. The mathematical representation of this accounting system is called a materials balance or mass balance. Conservation of Matter

5
**Unifying Theories Conservation of Energy**

The law of conservation of energy states that energy cannot be created or destroyed. Meaning that we should be able to account for the “energy” at any point in time. The mathematical representation of this accounting system we use to trace energy is called an energy balance. Conservation of Energy

6
**Material Balances input output**

The simplest form of a materials balance or mass balance Accumulation = input – output Accumulation input output Environmental System (Natural or Device)

7
**The control volume Control Volume Food to Consumer people goods Solid**

Accumulation Food to people Consumer goods Solid Waster

8
**Examples of Control Volume**

9
**Time as a factor Mass rate of accumulation =**

Mass rate of input – Mass rate of output

10
Example 3.1 Selam is filling her bathtub but she forgot to put the plug in. if the volume of water for a bath is m3 and the tap is flowing at 1.32 L/min and the drain is running at 0.32 L/min, how long will it take to fill the tub to bath level? Assuming Selam shuts off the water when the tub is full and does not flood the house, how much water will be wasted? Assume the density of water is 1,000 kg/m3

11
**Solution Vaccumulation We must convert volumes to masses.**

Qin = 1.32 L/min Qout = 0.32 L/min We must convert volumes to masses. Mass = (volume)(density) Volume = (flow rate)(time) = (Q)(t)

12
**Solution From mass balance we have Accumulation = mass in –mass out**

(Vacc)() = (Qin)()(t) - (Qin)()(t) Vacc = (Qin)(t) – (Qin)(t) Vacc = 1.32t – 0.32t 350L = (1.00 L/min)(t) t= 350 min or hr The amount of wasted water is Waste water = (0.32)(350) = 112 L

13
Efficiency Mass flow rate = Mass balance Efficiency of a system OR

14
Example The air pollution control equipment on a municipal waste incinerator includes a fabric filter particle collector (known as a baghouse). The baghouse contains 424 cloth bags arranged in parallel, that is 1/424 of the flow goes through each bag. The gas flow rate into and out of the baghouse is 47 m3/s, and the concentration of particles entering the baghouse is 15 g/m3. In normal operation the baghouse particulate discharge meets the regulatory limit of 24 mg/m3. Calculate the fraction of particulate matter removed and the efficiency of particulate removal when all 424 bags are in place and the emissions comply with the regulatory requirements. Estimate the mass emission rate when one of the bags is missing and recalculate the efficiency of the baghouse. Assume the efficiency for each individual bag is the same as the overall efficiency for the baghouse.

15
**Solution Cout = 24 mg/m3 Qout = 47 m3/s Cin = 15 g/m3 Qin = 47 m3/s**

Baghouse Cin = 15 g/m3 Qin = 47 m3/s Accumulation = particle removal Hopper

16
**Cont’d 𝑑𝑀 𝑑𝑡 = (15,000mg/m3)(47m3/s)-(24mg/m3)(47m3/s)=703,872 mg/s**

The fraction of particulates removed is 703,872𝑚𝑔/𝑠 (15,000𝑚𝑔/𝑚3)(47𝑚𝑔/𝑠) = 703,872𝑚𝑔/𝑠 705,000𝑚𝑔/𝑠 =0.9984 The efficiency of the baghouse is η= 15,000 𝑚𝑔/𝑚3−24 𝑚𝑔/𝑚3 15,000 𝑚𝑔/𝑚3 (100%) =99.84%

17
**Cont’d Cemission= ? Cin = 15 g/m3 Qemission= 47 m3/s**

QBypass =(1/424)( 47 m3/s) Cemission= ? Qemission= 47 m3/s Baghouse Bypass Cout= ? Qout= (423/424)47 m3/s Cin = 15 g/m3 Qin =( )( 47 m3/s) 𝑑𝑀 𝑑𝑡 = ? Control Volume

18
Cont’d A control volume around the baghouse alone reduces the number of unknowns to two: Because we know the efficiency and the influent mass flow rate, we can solve the mass balance equation for the mass flow rate out of the filter. Solving for CoutQout CoutQout =(1- η)CinQin= ( )(15,000mg/m3)(47m3/s)( ) =1,125mg/s

19
Cont’d Effluent 𝑑𝑀 𝑑𝑡 =CinQin from bypass +CinQin from baghouse-CemissionQemission Because there is no accumulation in the junction 𝑑𝑀 𝑑𝑡 =0 and the mass balance equation CoutQout=CinQin from bypass +CinQin from baghouse = (15,000mg/m3)(47m3/s)(1/424)+1,125=2788 mg/s The concentration in the effluent is 𝐶𝑜𝑢𝑡𝑄𝑜𝑢𝑡 𝑄𝑜𝑢𝑡 = 2,788 mg/s 47𝑚3/𝑠 = 59 mg/m3 The overall efficiency of the baghouse with missing bag is η= 15,000 𝑚𝑔/𝑚3−59 𝑚𝑔/𝑚3 15,000 𝑚𝑔/𝑚3 (100%)= 99.61% Bypass From baghouse

20
Exercise A storm sewer is carrying snow melt containing g/L of sodium chloride into a small stream. The stream has a naturally occurring sodium chloride concentration of 20 mg/L. If the storm sewer flow rate is 2.00 L/min and the stream flow rate is 2.0 m3/s, what is the concentration of salt in the stream after the discharge point? Assume that the sewer flow and the storm flow are completely mixed, that the salt is a conservative substance (it does not react) and that the system is at steady state.

21
**Reaction Order and Reactors**

kinetic reactions : reactions that are time dependent. Reaction kinetics: the study of the effects of temperature, pressure, and concentration on the rate of a chemical reaction.

22
Rate of reaction The rate of reaction, ri, the rate of formation or disappearance of a substance. 𝑑𝑀 𝑑𝑡 = 𝑑(𝑖𝑛) 𝑑𝑡 − 𝑑(𝑜𝑢𝑡) 𝑑𝑡 +r, r=-KCn Homogenous reactions. single phase reactions Heterogeneous reactions : multiphase reactions (between phases surface)

23
**Rate of reaction ri = kf1(T,P);f2([A],[B], …)**

Rate constant Concentration of reactant Assuming that the pressure and temperature are constant aA + bB cC Rate of reaction rA = - k[A]α[b]β = k[C]γ

24
**Order of reaction Rate of reaction rA = - k[A]α[b]β = k[C]γ**

the order with respect to reactant A is α, to B is β, and to product C is γ. rA = -k zero-order reaction rA = -k[A] first-order reaction rA = -k[A2] second-order reaction rA = -k[A][B] second-order reaction

25
Order of reaction

26
**material flows into, through, and out of the reactor**

Types of Reactors batch reactors and flow reactors. fill-and-draw material flows into, through, and out of the reactor Unsteady state

27
Flow reactors IDEAL REACTORS REAL REACTOR

28
**Steady-state conservative system**

Conserved system: where no chemical or biological reaction takes place and no radioactive decay occurs for the substance in the mass balance. Steady-state: Input rate = Output rate Accumulation =0

29
**Steady-state conservative system**

Decay rate = 0 Accumulation rate = 0 Mixture Wastes Stream Qm Cm Qw Cw Qs Cs Q = flow rate C = concentration CsQs + QwCw = QmCm

30
**Including reactions For non-conservative substances**

Accumulation rate = input rate – output rare ± transformation rate

31
**Simple completely mixed systems**

With first-order reactions Total mass of substance = concentration x volume when V is a constant, the mass rate of decay of the substance is first-order reactions can be described by r = -kC=dC/dt,

32
Example A well-mixed sewage lagoon is receiving 430 m3/d of sewage out of a sewer pipe. The lagoon has a surface area of 10 ha and a depth of 1.0m. The pollutant concentration in the raw sewage discharging into the lagoon is 180 mg/L. The organic matter in the sewage degrades biologically in the lagoon according to first-order kinetics. The reaction rate constant is 0.70 d-1. Assuming no other water losses or gains and that the lagoon is completely mixed, find the steady-state concentration of the pollutant in the lagoon effluent.

33
**Solution Accumulation=input rate – output rate – decay rate**

Sewage Lagoon Cin = 180 mg/L Qin = 430 m3/d Ceff = ? Qeff = 430 m3/d Decay Control volume Accumulation=input rate – output rate – decay rate Assuming steady-state condition, accumulation = 0 input rate = output rate + decay rate CinQin = CeffQeff + (K)(Clagoon)(V) Ceff=1.10mg/ L

34
Batch reactors dM/dt = ?

35
**Plug-flow reactors Mass balance for each plug element**

No mass exchange occurs across the plug boundaries, d(in) and d(out) = 0

36
**Plug-flow reactors The residence time for each plug: Residence time**

L=length The residence time for each plug:

37
Example A wastewater treatment plant must disinfect its effluent before discharging the wastewater to a near-by stream. The wastewater contains 4.5 x 105 fecal coliform colony-forming units (CFU) per liter. The maximum permissible fecal coliform concentration that may be discharged is 2,000 fecal coliform CFU/L. It is proposed that a pipe carrying the wastewater be used for disinfection process. Determine the length of the pipe required if the linear velocity of the wastewater in the pipe is 0.75 m/s. Assume that the pipe behaves as a steady-state plug-flow system and that the reaction rate constant for destruction of the fecal coliforms is 0.23 min-1.

38
Solution Using the steady-state solution on the mass-balance equation, we obtain Solving for the length of pipe, we have ln(4.44x10-3)=-0.23min-1 𝐿 45𝑚/𝑚𝑖𝑛 L=1,060m Cin=4.5x105 CFU/L U=0.75 m/s Cout=2,000 CFU/L U=0.75 m/s

39
**Waste Concentration (mg/L)**

Example A contaminated soil is to be excavated and treated in a completely mixed aerated lagoon. To determine the time it will take to treat the contaminated soil, a laboratory completely mixed batch reactor is used to gather the following data. Assuming a first-order reaction, estimate the rate constant, k, and determine the time to achieve 99 % reduction in the original concentration. Time (d) Waste Concentration (mg/L) 1 280 16 132

40
**Solution Using the 1st and 16th day, the time interval t= 16-1 = 15 d**

Solving for k, we have k = d-1 To achieve 99 % reduction the concentration at Time t must be 1 – 0.99 of the original concentration t = 92 days

41
**Step function response**

Concentration, Cin Time Step increase Time Step decrease Time pulse/spike increase

42
**Batch reactor Concentration, Cin Decay Formation Time 1/k Time 1/k**

Time 1/k Time Decay 1/k Time Formation

43
**Influent concentration Effluent concentration**

CMFR Conservative C1 0 t= C1 C0 -0.37C C1 C0 Concentration, Cin Concentration, Cin Time Influent concentration Time Effluent concentration C0 Concentration, Cin C0 Concentration, Cin 0.37C0

44
CMFR Conservative For balanced flow (Qin = Qout) and no reaction, the mass balance becomes Where M = CV. The solution is Where = V/Q

45
CMFR Conservative Flushing of nonreactive contaminant from a CMFR by a contaminant-free fluid Which means Cin = 0 and the mass balance becomes Where M = CV. The initial concentration is C0=M/V For time t 0 we obtain

46
Exercise Before entering an underground utility vault to do repairs, a work crew analyzed the gas in the vault and found that it contained 29mg/m3 of H2S. Because the allowable exposure level is 14 mg/m3 the work crew began ventilating the vault with a blower. If the volume of the vault is 160 m3 and the flow rate of contaminant-free air is 10 m3/min, how long will it take to lower the H2S level to that will allow the work crew to enter? Assume the manhole behaves as CMFR and that H2S is nonreactive in the time period considered.

47

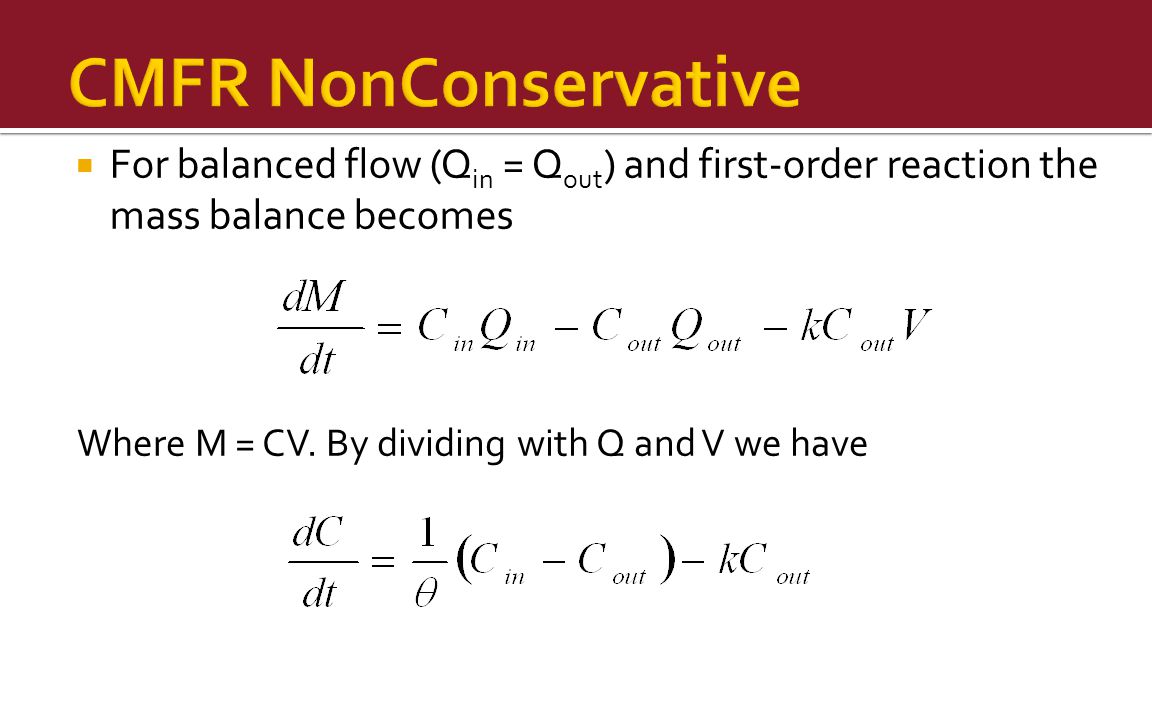

CMFR NonConservative For balanced flow (Qin = Qout) and first-order reaction the mass balance becomes Where M = CV. By dividing with Q and V we have

48
**CMFR NonConservative OR For stead-state conditions dC/dt=0 Decay**

Formation Co Co Concentration, Cin Concentration, Ceff Time Time

49
**CMFR NonConservative A step decrease in influent concentration (Cin=O)**

for non-steady-state conditions with first-order decay Where M = CV. By dividing with Q and V we have

50
**Effluent concentration Influent concentration**

CMFR NonConservative C0 Concentration, Cin C0 Concentration, Cin Time Effluent concentration Time Influent concentration

51
Example A chemical degrades in a flow-balanced, steady-state CMFR according to first-order reaction kinetics. The upstream concentration of the chemical is 10 mg/L and the downstream concentration is 2 mg/L. Water is being treated at a rate of 29 m3/min. The volume of the tank is 590 m3. What is the rate of decay? What is the rate constant?

52
Solution For a first-order reaction, the rate of decay, r =-kC, thus we have to solve for kC from For steady-state, dM/dt = 0 and for balanced flow, Qin = Qout r=kC=0.4

53
**Solution… For a first-order reaction in a CMFR**

The mean hydraulic detention time is Solving for the rate constant we get

54
**Report format Mini Project 20 to 30 pages**

Cover page: Title and Group member names Table of content References Last Date of Submission: June , 2011
