1 RP techniques for tissue engineering purposes Author: Evgeny Barabanov

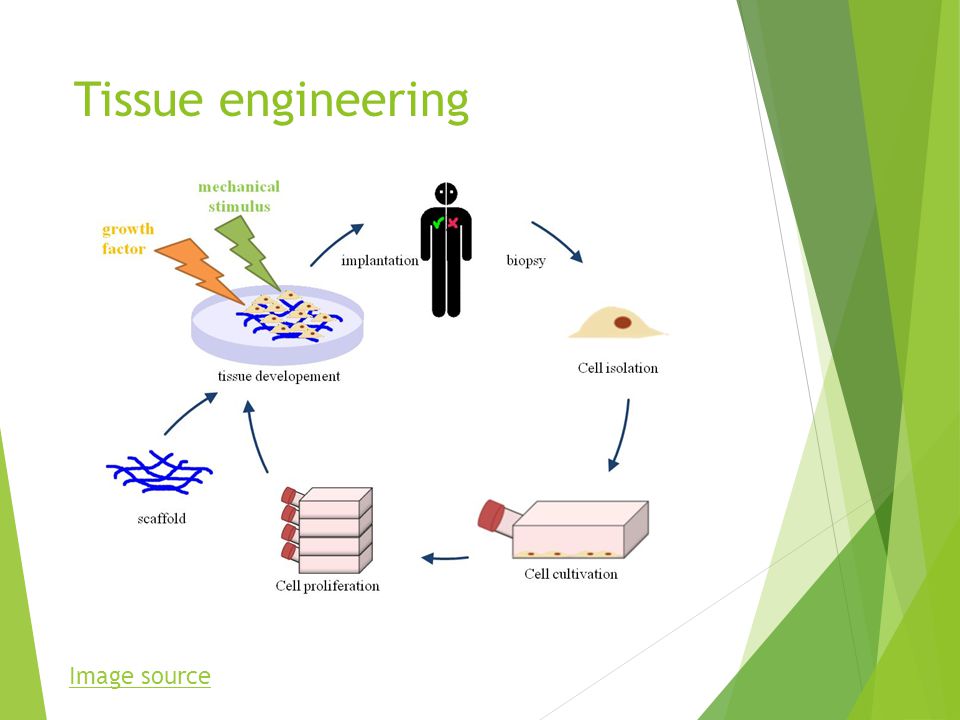

2 Tissue engineering Image source

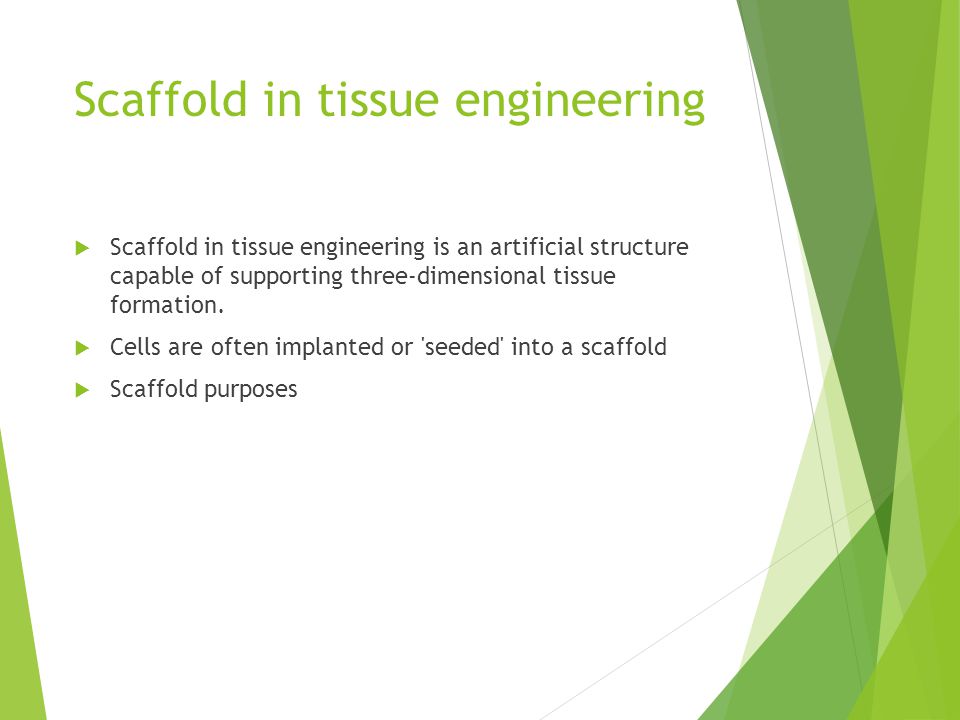

3 Scaffold in tissue engineering  Scaffold in tissue engineering is an artificial structure capable of supporting three-dimensional tissue formation.  Cells are often implanted or 'seeded' into a scaffold  Scaffold purposes

4 Example - carbon nanotube Image source

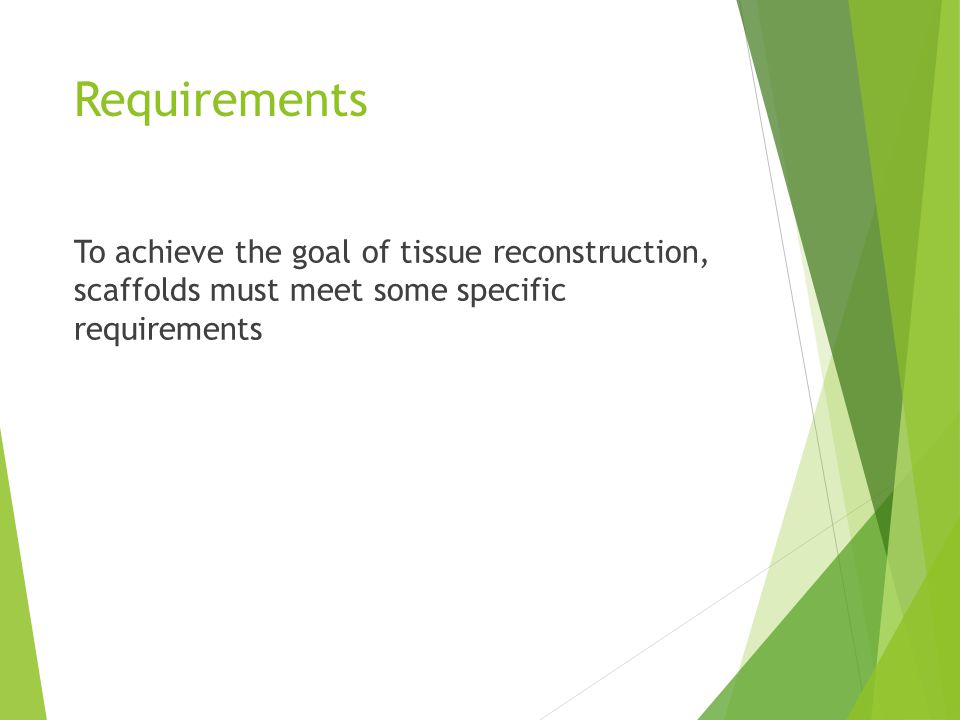

5 Requirements To achieve the goal of tissue reconstruction, scaffolds must meet some specific requirements

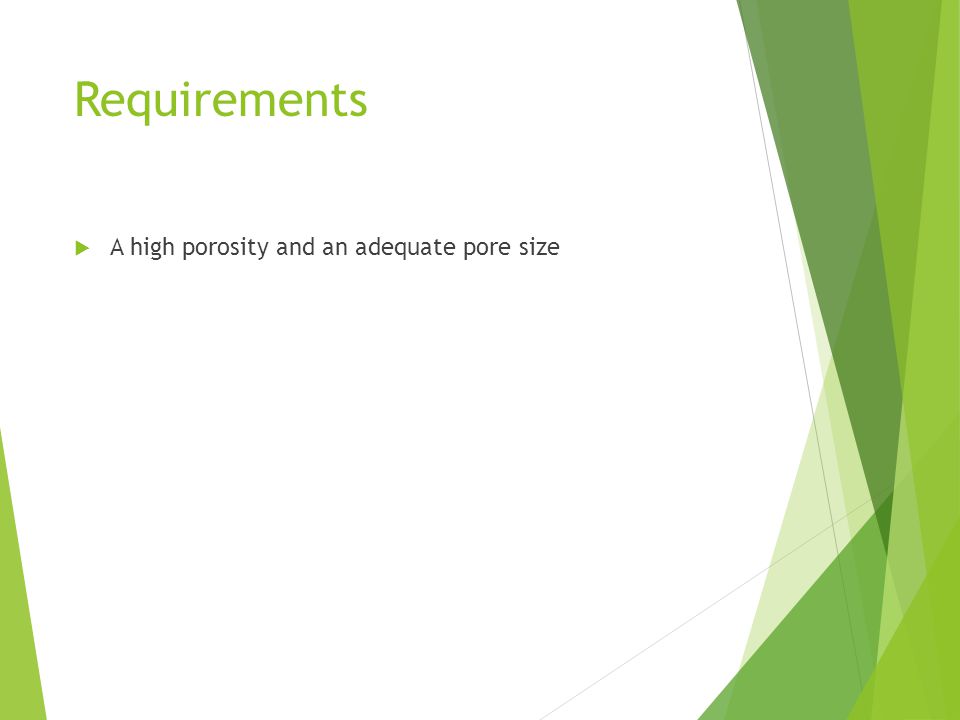

6 Requirements  A high porosity and an adequate pore size

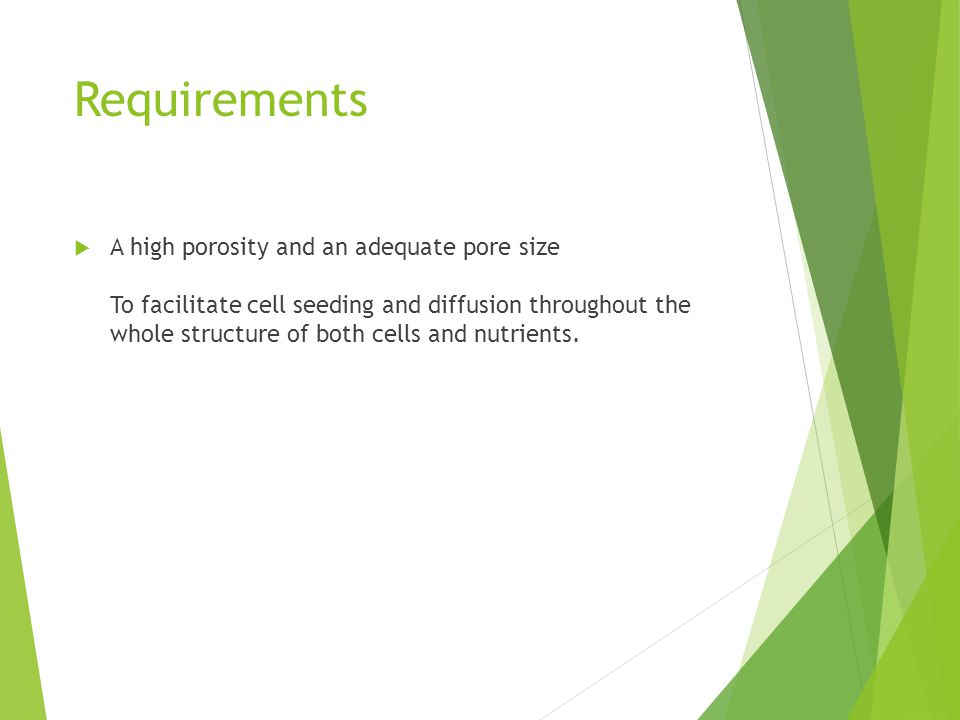

7 Requirements  A high porosity and an adequate pore size To facilitate cell seeding and diffusion throughout the whole structure of both cells and nutrients.

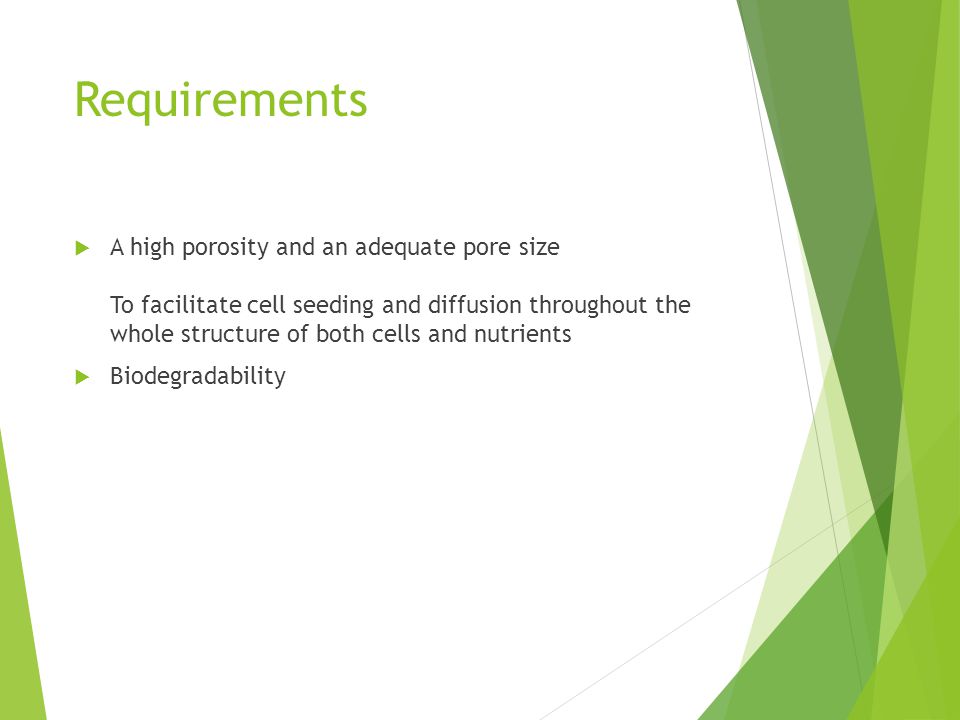

8 Requirements  A high porosity and an adequate pore size To facilitate cell seeding and diffusion throughout the whole structure of both cells and nutrients  Biodegradability

9 Requirements  A high porosity and an adequate pore size To facilitate cell seeding and diffusion throughout the whole structure of both cells and nutrients  Biodegradability To allow absorption by the surrounding tissues without the necessity of a surgical removal

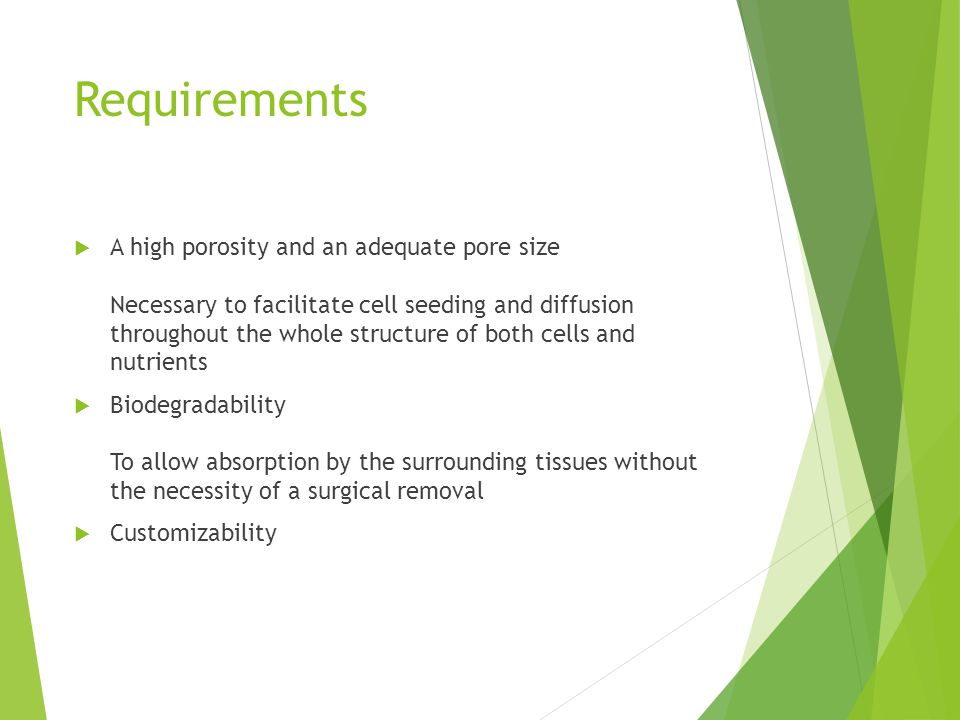

10 Requirements  A high porosity and an adequate pore size Necessary to facilitate cell seeding and diffusion throughout the whole structure of both cells and nutrients  Biodegradability To allow absorption by the surrounding tissues without the necessity of a surgical removal  Customizability

11 Requirements  A high porosity and an adequate pore size To facilitate cell seeding and diffusion throughout the whole structure of both cells and nutrients  Biodegradability To allow absorption by the surrounding tissues without the necessity of a surgical removal  Customizability To allow fabrication into various shapes and sizes for matching the each patient’s individual needs

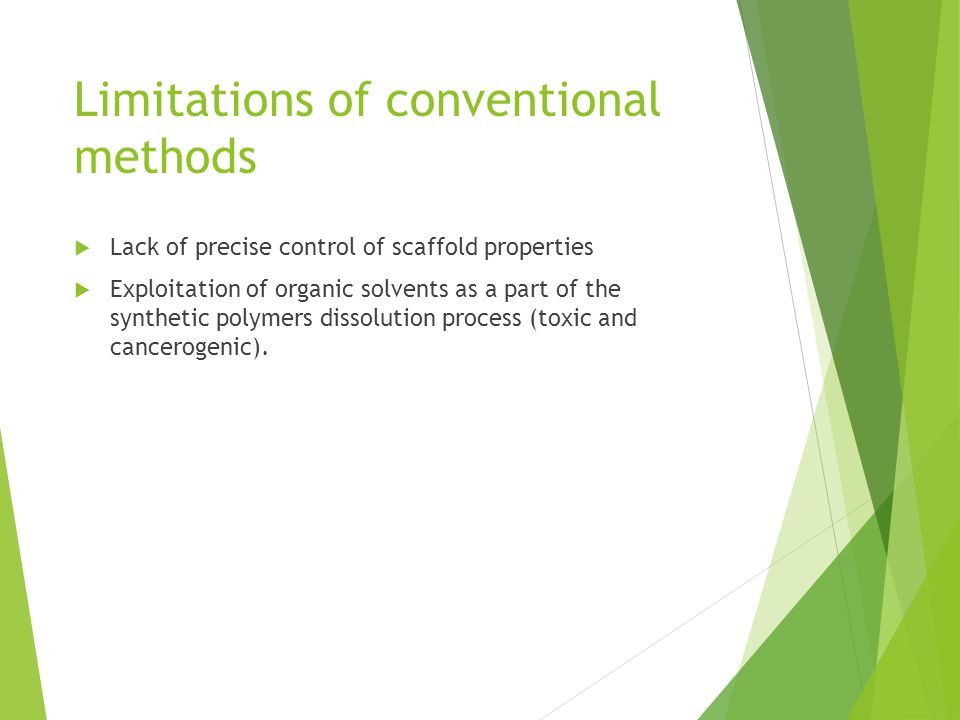

12 Limitations of conventional methods  Lack of precise control of scaffold properties  Exploitation of organic solvents as a part of the synthetic polymers dissolution process (toxic and cancerogenic).

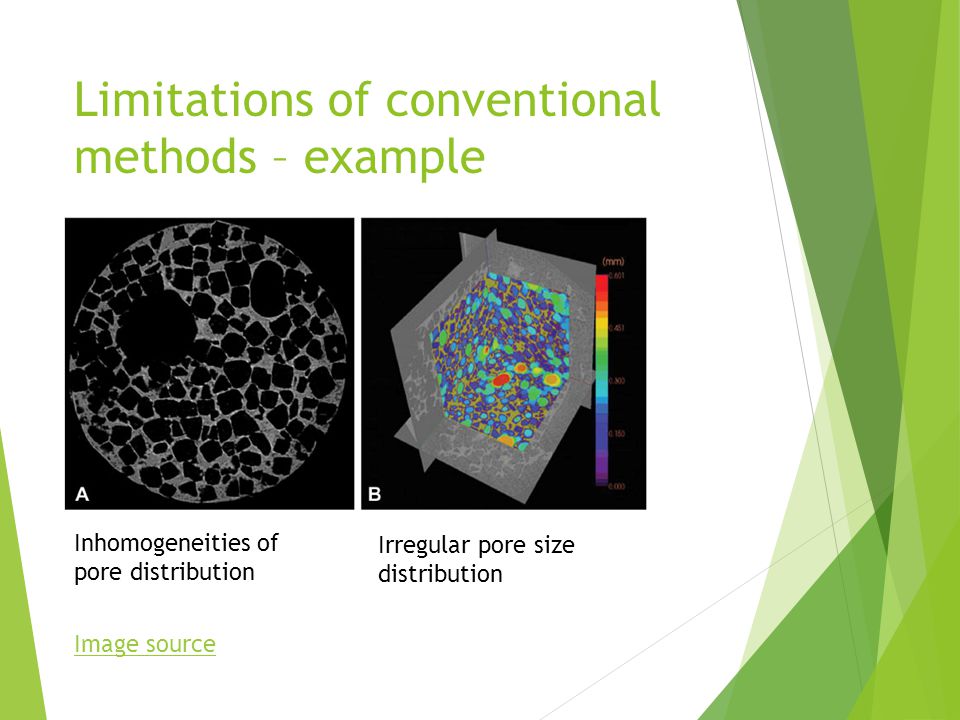

13 Limitations of conventional methods – example Inhomogeneities of pore distribution Irregular pore size distribution Image source

14 Rapid prototyping of bone and cartilage

15 Ideally, bone grafts should be porous, be able to promote new bone formation, and they should possess proper mechanical and physical properties. Image source

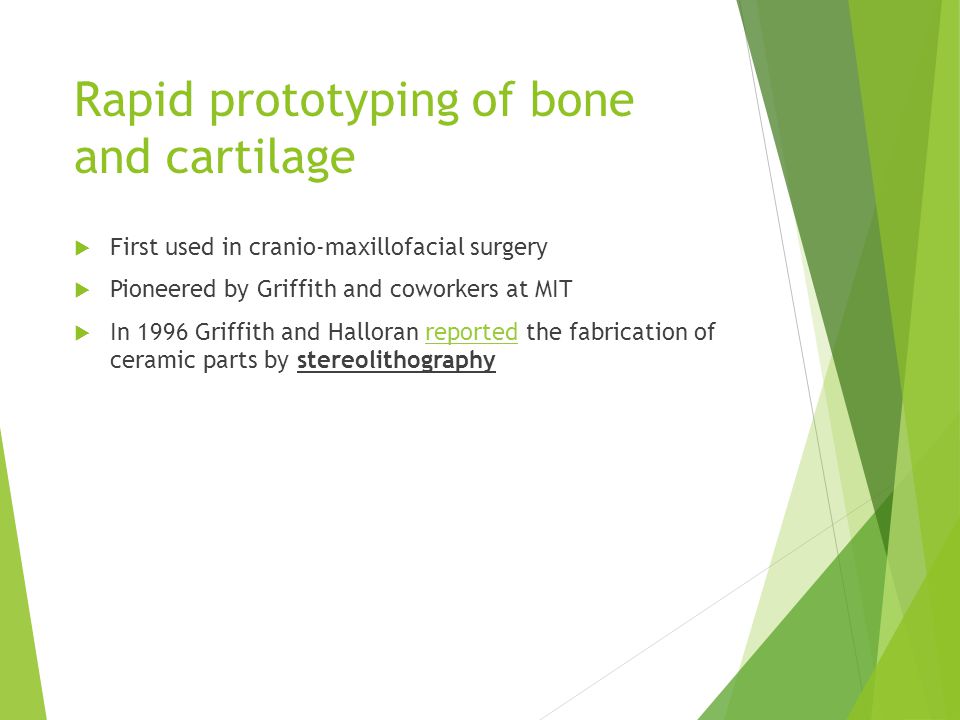

16 Rapid prototyping of bone and cartilage  First used in cranio-maxillofacial surgery  Pioneered by Griffith and coworkers at MIT  In 1996 Griffith and Halloran reported the fabrication of ceramic parts by stereolithographyreported

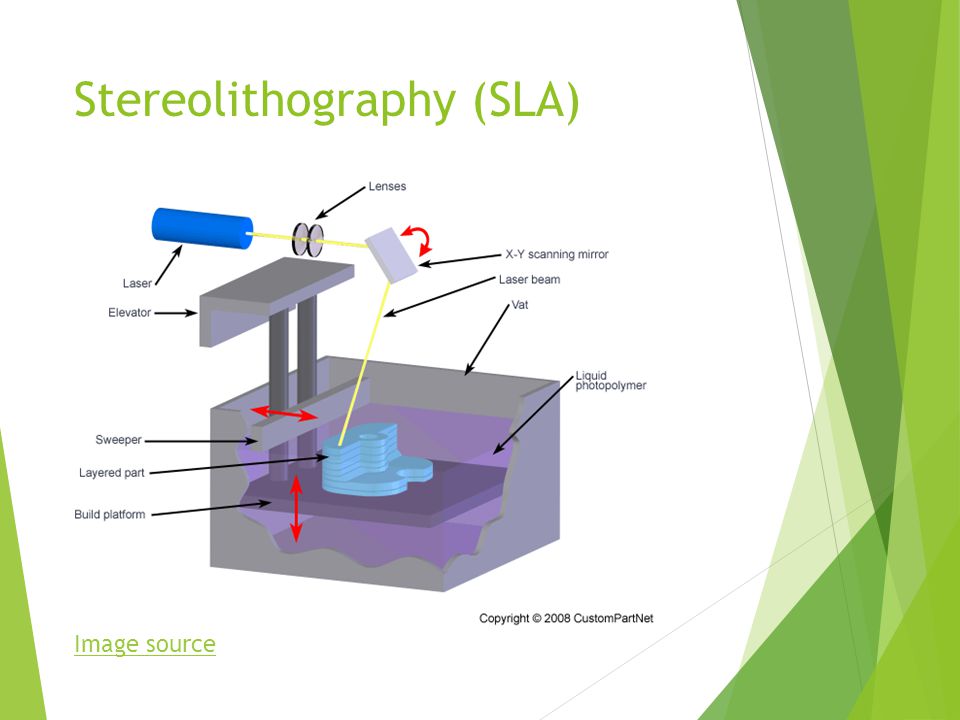

17 Stereolithography (SLA) Image source

18 Stereolithography (SLA) Hydroxyapatite (HA) scaffolds fabrication for orbital floor implants (by Levy et al.) Image source

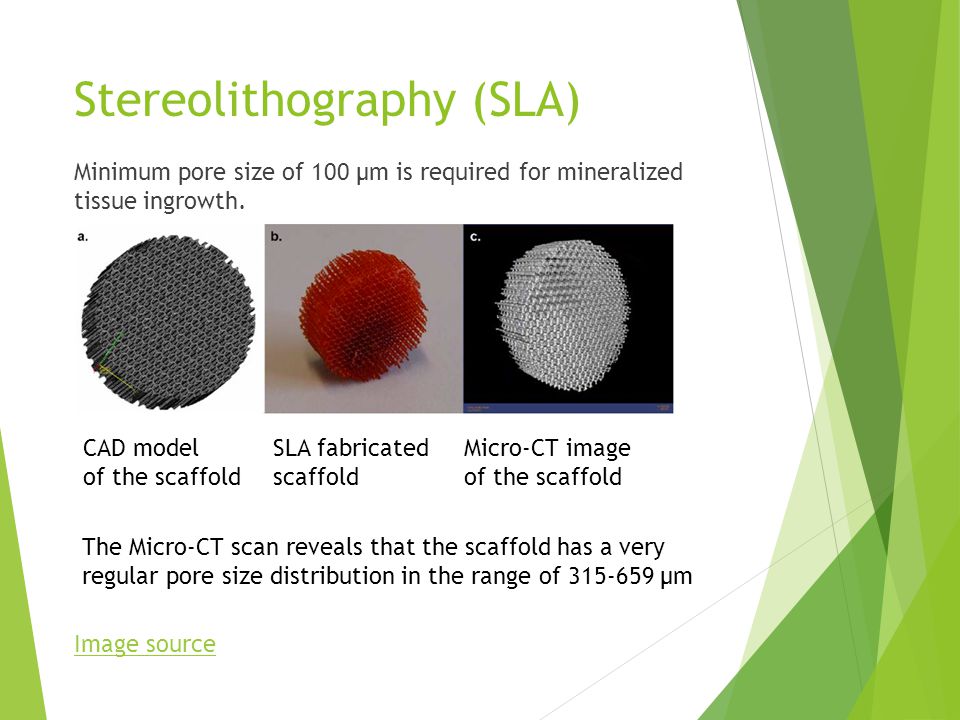

19 Stereolithography (SLA) Minimum pore size of 100 μm is required for mineralized tissue ingrowth. CAD model of the scaffold SLA fabricated scaffold Micro-CT image of the scaffold The Micro-CT scan reveals that the scaffold has a very regular pore size distribution in the range of μm Image source

20 Stereolithography (SLA) Disadvantages:

21 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures

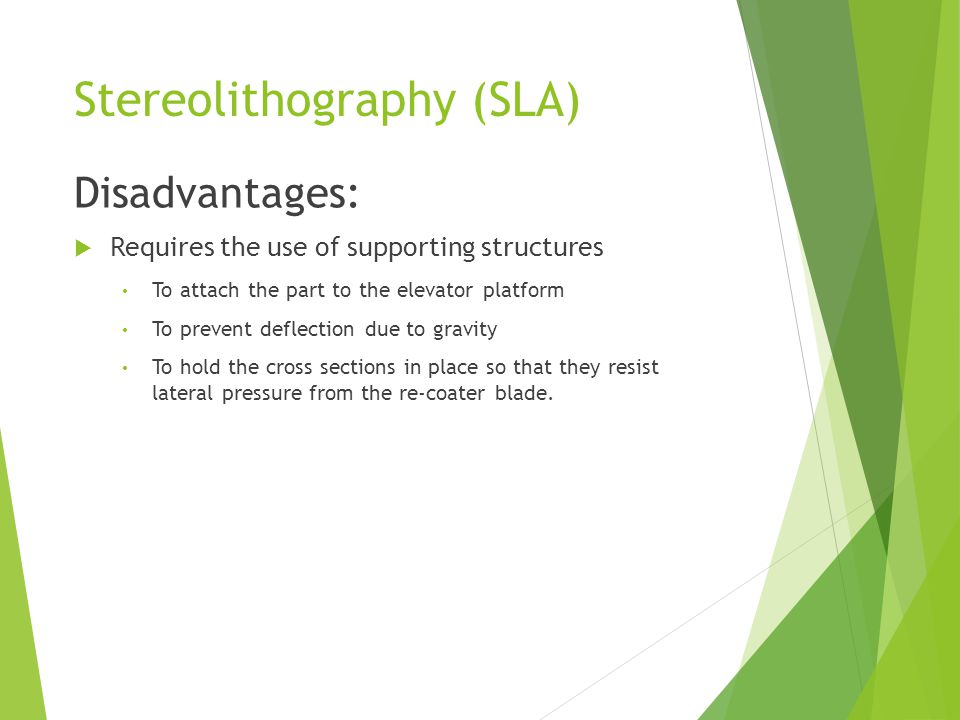

22 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures To attach the part to the elevator platform To prevent deflection due to gravity To hold the cross sections in place so that they resist lateral pressure from the re-coater blade.

23 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures To attach the part to the elevator platform To prevent deflection due to gravity To hold the cross sections in place so that they resist lateral pressure from the re-coater blade. Although supports are generated automatically during the preparation of CAD models, they must be removed from the finished product manually.

24 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures  Limited materials (photo polymers)

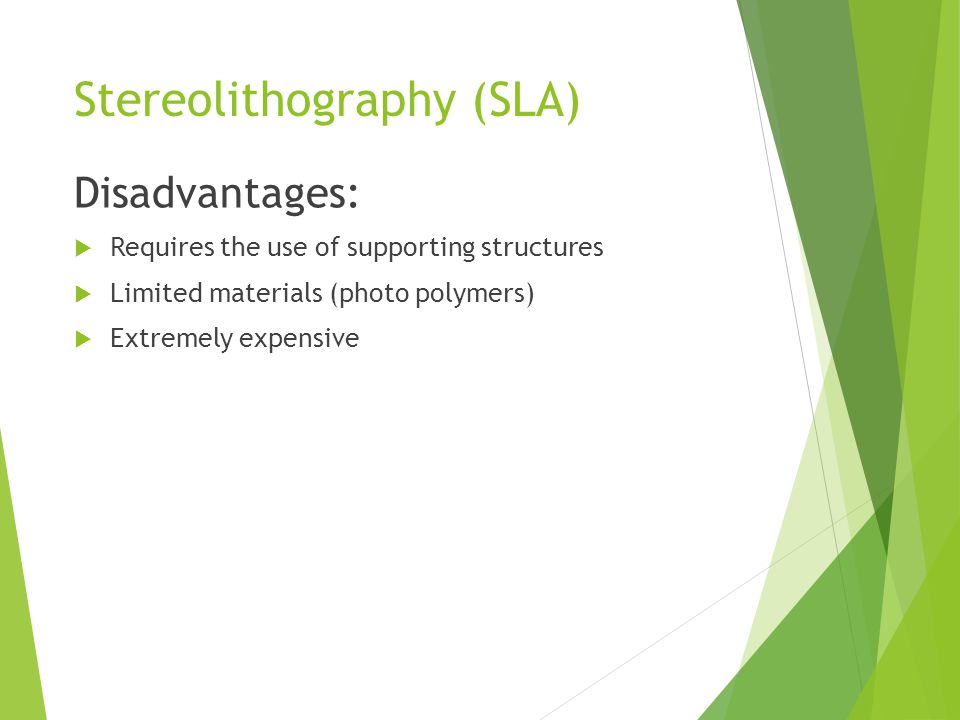

25 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures  Limited materials (photo polymers)  Extremely expensive

26 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures  Limited materials (photo polymers)  Extremely expensive Advantages:

27 Stereolithography (SLA) Disadvantages:  Requires the use of supporting structures  Limited materials (photo polymers)  Extremely expensive Advantages:  Relatively fast (functional parts can be manufactured within a day)

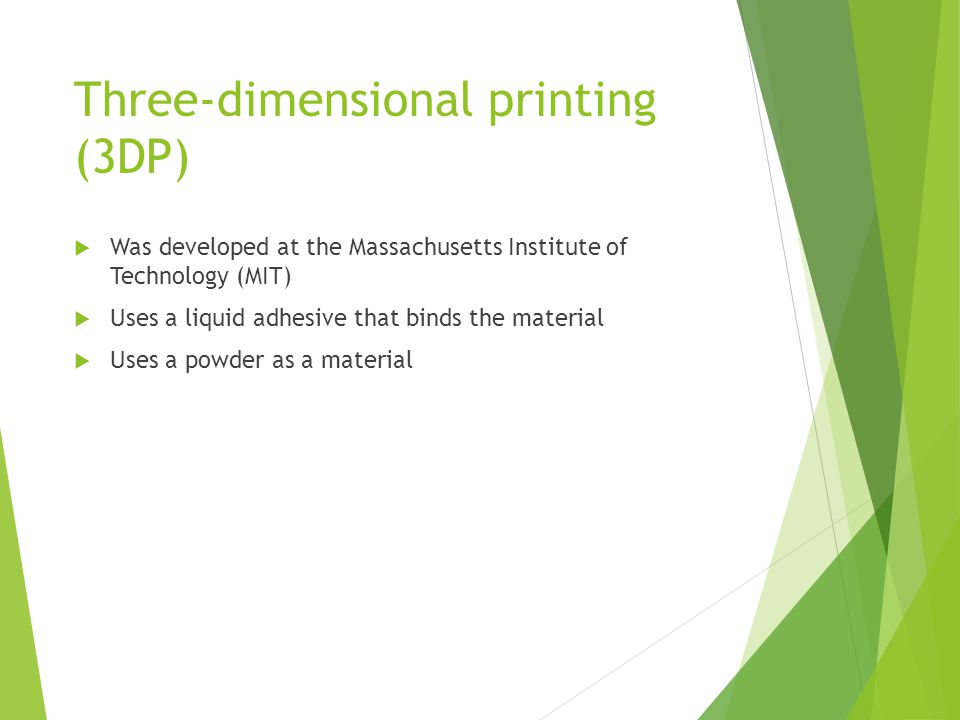

28 Three-dimensional printing (3DP)  Was developed at the Massachusetts Institute of Technology (MIT)  Uses a liquid adhesive that binds the material  Uses a powder as a material

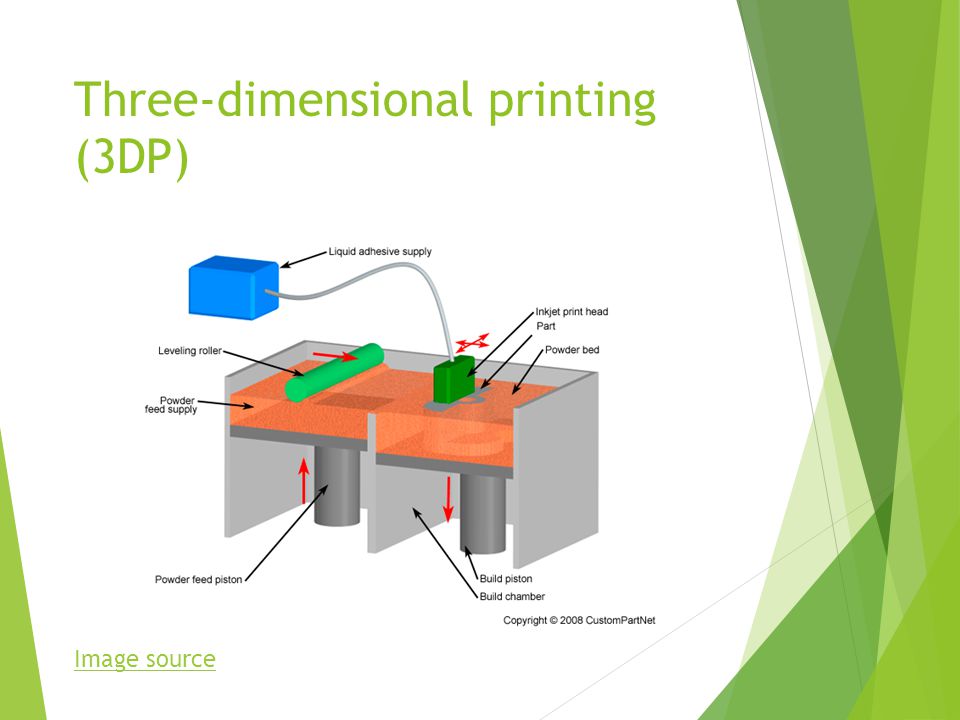

29 Three-dimensional printing (3DP) Image source

30 Three-dimensional printing (3DP) Advantages:  Does not require supporting structures

31 Three-dimensional printing (3DP) Advantages:  Does not require supporting structures The remaining free standing powder supports the part during the build

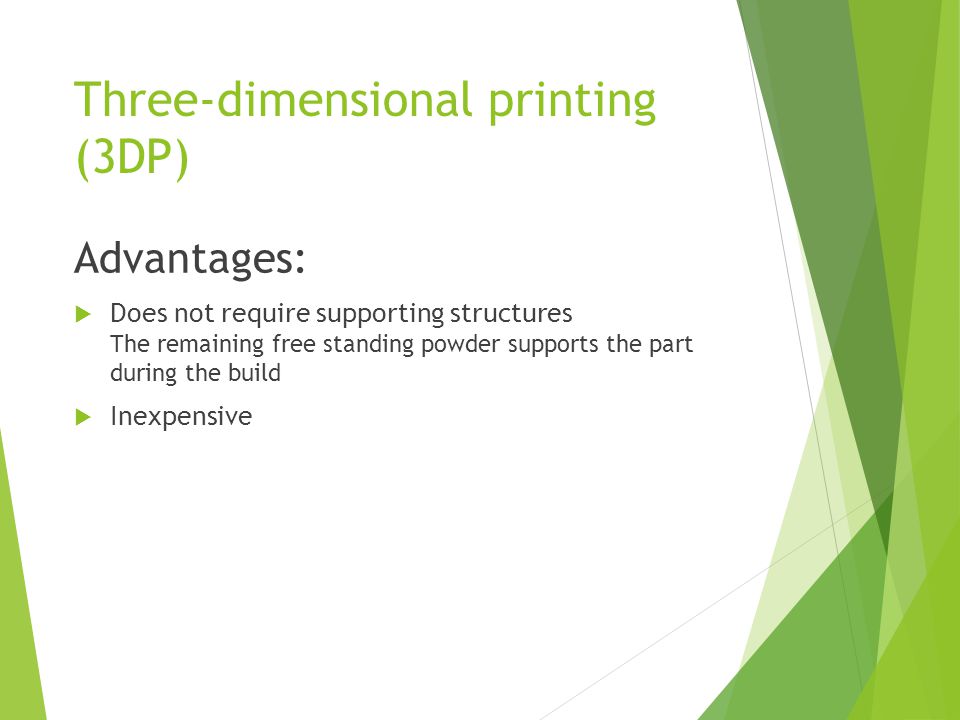

32 Three-dimensional printing (3DP) Advantages:  Does not require supporting structures The remaining free standing powder supports the part during the build  Inexpensive

33 Three-dimensional printing (3DP) Advantages:  Does not require supporting structures The remaining free standing powder supports the part during the build  Inexpensive Disadvantages:

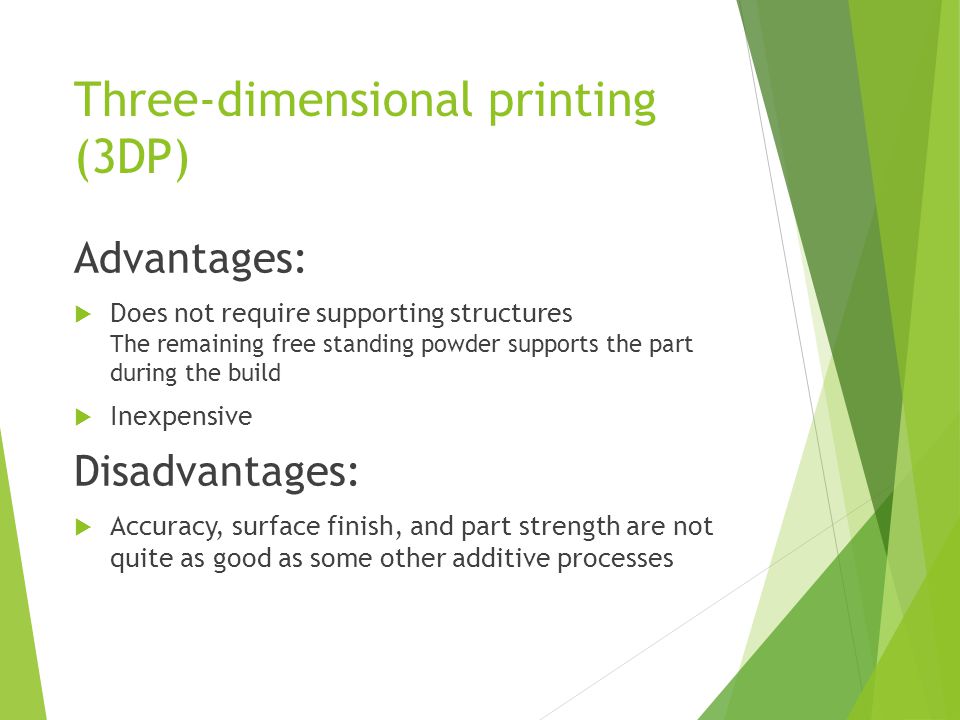

34 Three-dimensional printing (3DP) Advantages:  Does not require supporting structures The remaining free standing powder supports the part during the build  Inexpensive Disadvantages:  Accuracy, surface finish, and part strength are not quite as good as some other additive processes

35 Selective laser sintering (SLS)  Was developed and patented by Dr. Carl Deckard and academic adviser, Dr. Joe Beaman at the University of Texas in Austin in the mid-1980s  A combination of SLA and 3DP

36 Selective laser sintering (SLS) Image source

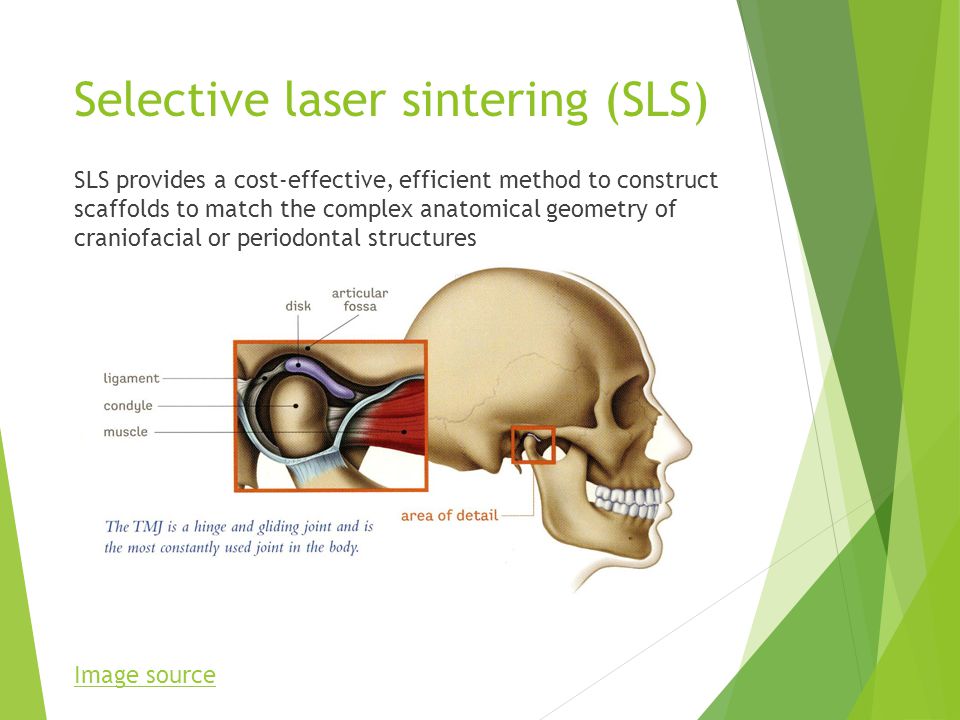

37 Selective laser sintering (SLS) SLS provides a cost-effective, efficient method to construct scaffolds to match the complex anatomical geometry of craniofacial or periodontal structures Image source

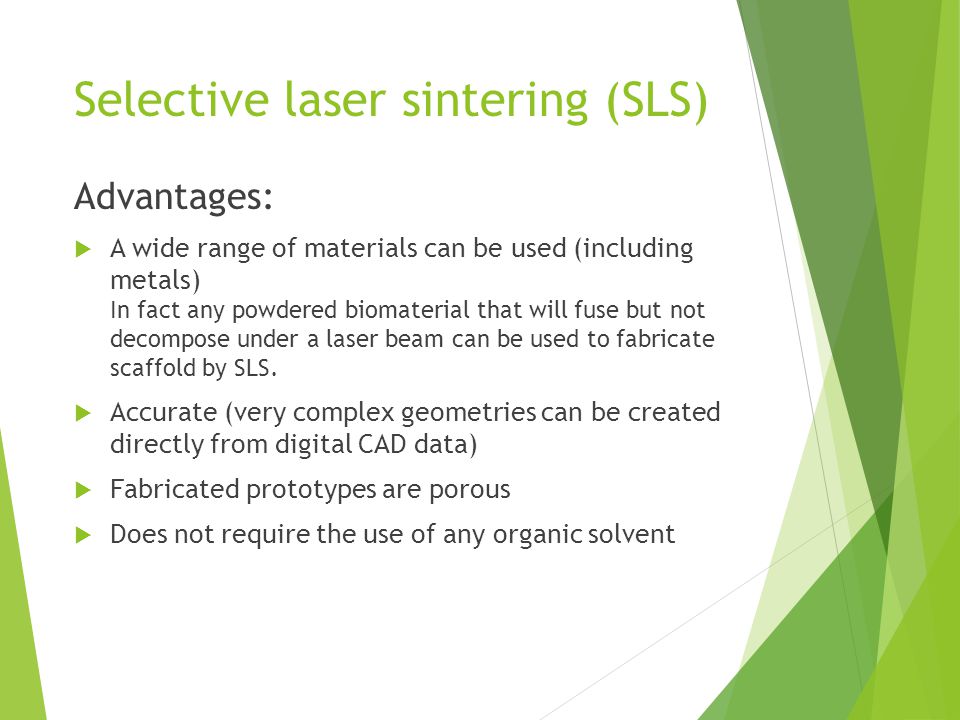

38 Selective laser sintering (SLS) Advantages:  A wide range of materials can be used (including metals) In fact any powdered biomaterial that will fuse but not decompose under a laser beam can be used to fabricate scaffold by SLS.  Accurate (very complex geometries can be created directly from digital CAD data)  Fabricated prototypes are porous  Does not require the use of any organic solvent

39 Fused deposition modeling (FDM)  Was developed by S. Scott Crump in the late 1980s and was commercialized in 1990 by Stratasys in Eden Prairie, Minnesota  Uses semiliquid-state thermoplastic polymer as a material  Two heads with a fixed distance in between

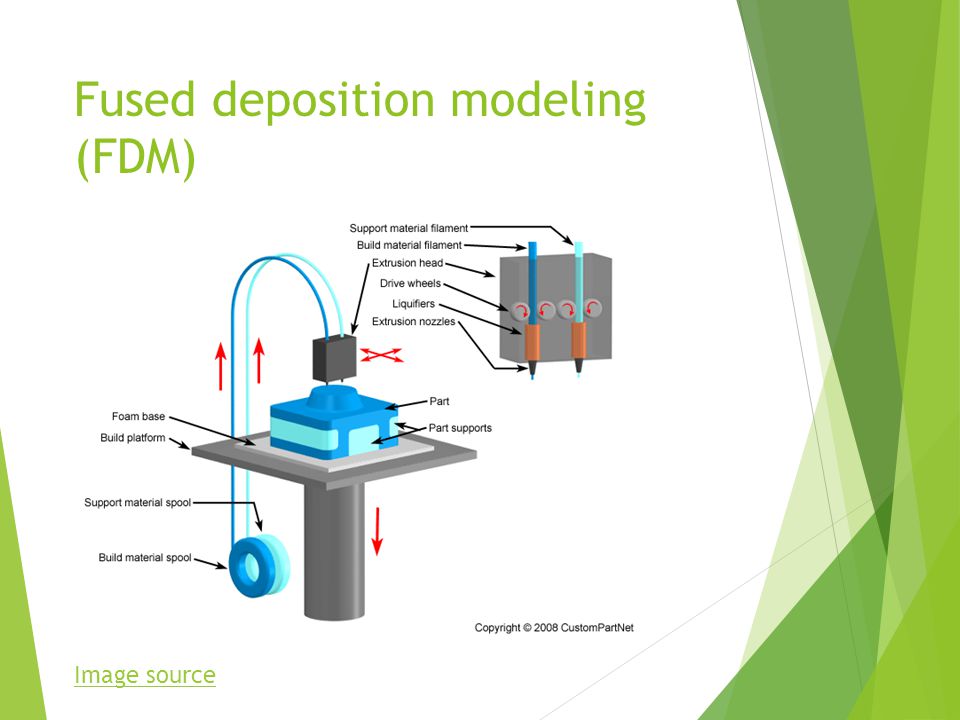

40 Fused deposition modeling (FDM) Image source

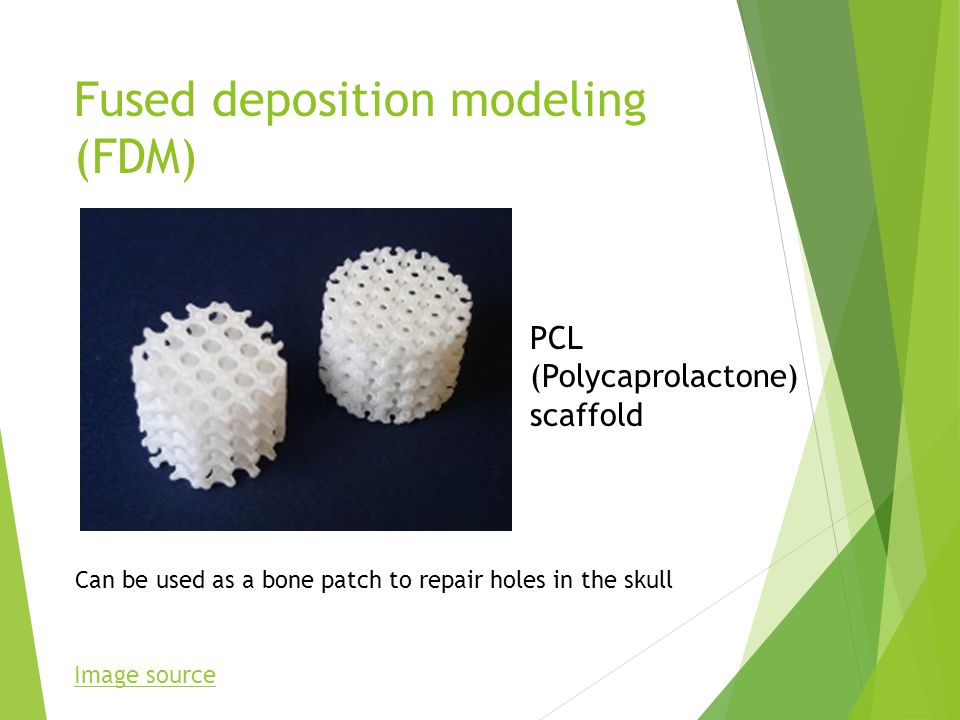

41 Fused deposition modeling (FDM) Can be used as a bone patch to repair holes in the skull PCL (Polycaprolactone) scaffold Image source

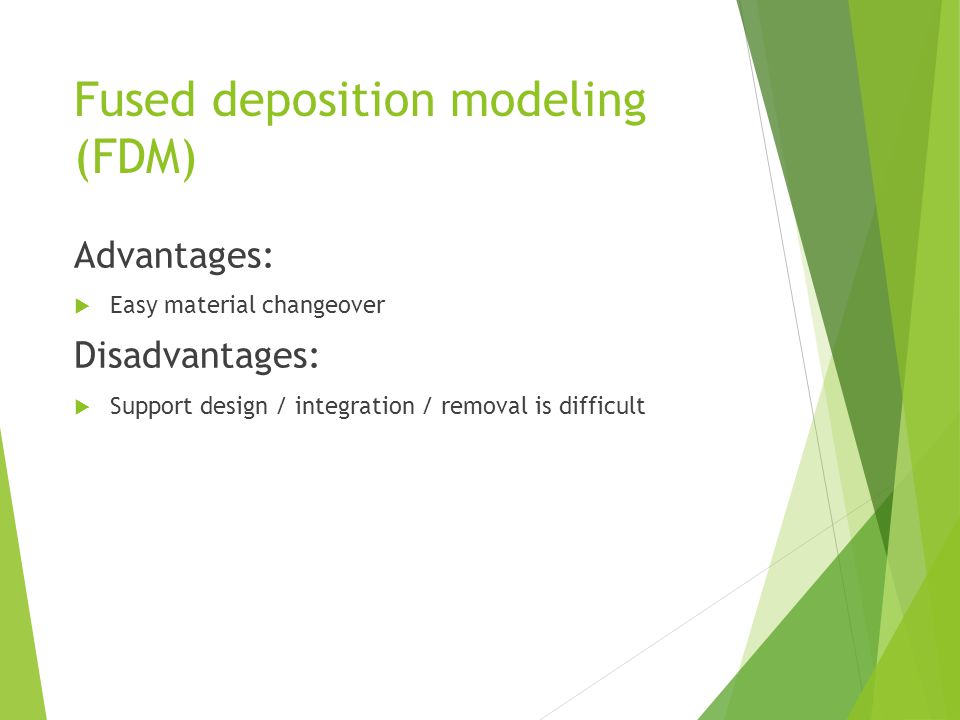

42 Fused deposition modeling (FDM) Advantages:  Easy material changeover Disadvantages:  Support design / integration / removal is difficult

43 Soft tissue scaffolds by the means of RP

44  The requirements of soft tissue implants differ from hard tissue replacements  Soft tissue has a very high content of water, so from the chemical point of view it is a hydrogel.

45 Hydrogels  Polymers  Can absorb water even 10 times specimen’s original weight without disintegrating (only swelling)  Can be used as simple scaffold structures, like sheets, fibers, wovens or non-wovens  Proven to be excellent candidates for substituting soft tissues

46 Hydrogel scaffolds Advantages:

47 Hydrogel scaffolds Advantages:  Flexible

48 Hydrogel scaffolds Advantages:  Flexible  Similar to the extracellular matrix

49 Hydrogel scaffolds Advantages:  Flexible  Similar to the extracellular matrix  Permeability to oxygen and metabolites

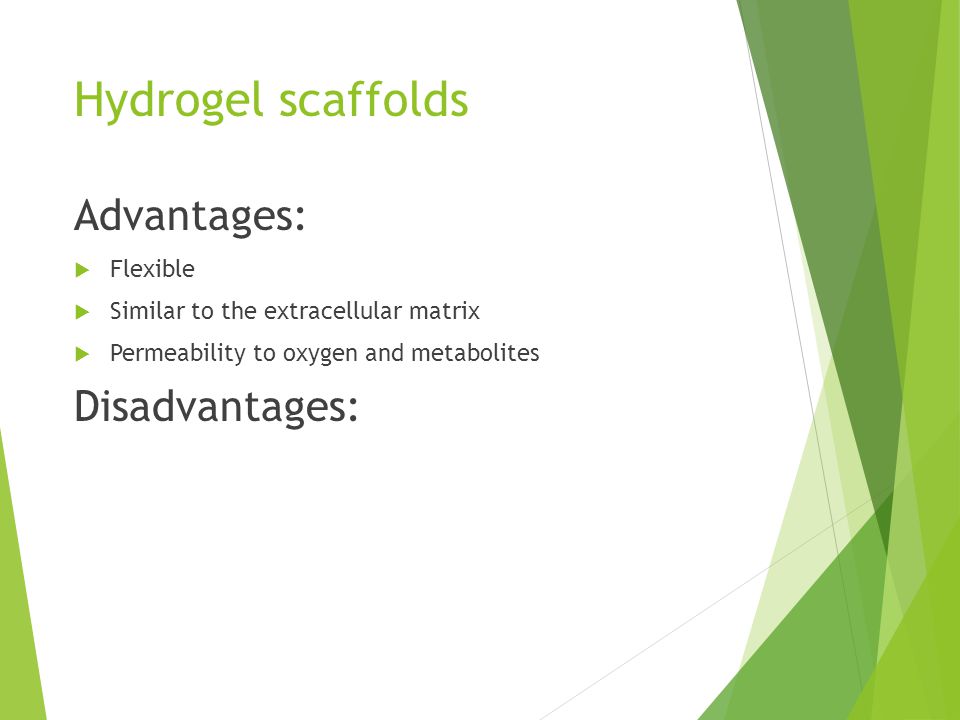

50 Hydrogel scaffolds Advantages:  Flexible  Similar to the extracellular matrix  Permeability to oxygen and metabolites Disadvantages:

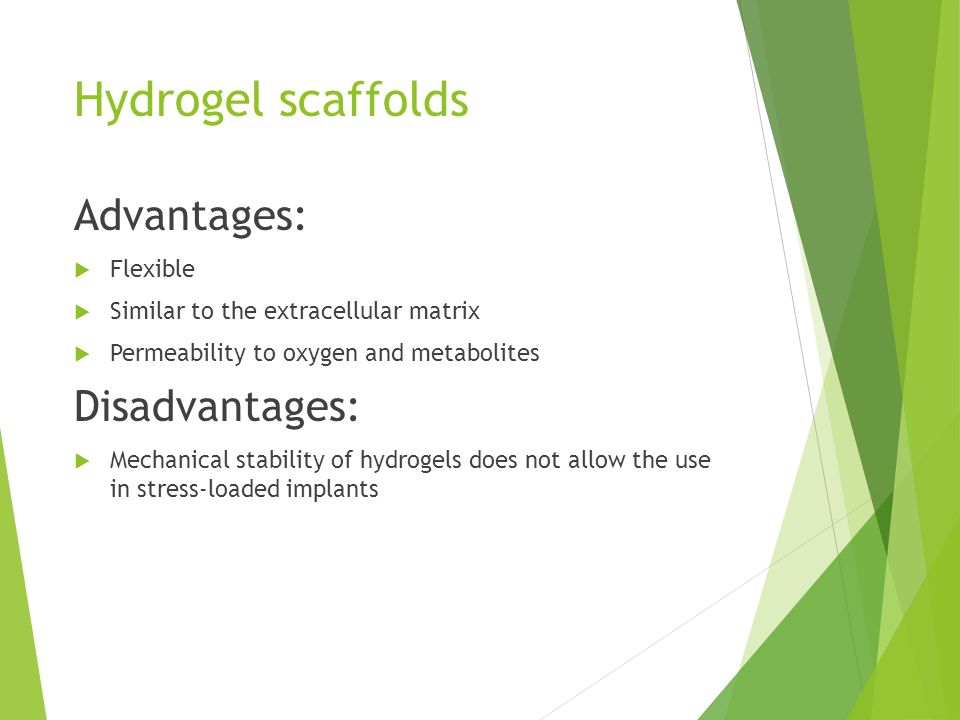

51 Hydrogel scaffolds Advantages:  Flexible  Similar to the extracellular matrix  Permeability to oxygen and metabolites Disadvantages:  Mechanical stability of hydrogels does not allow the use in stress-loaded implants

52 Hydrogel scaffolds Advantages:  Flexible  Similar to the extracellular matrix  Permeability to oxygen and metabolites Disadvantages:  Mechanical stability of hydrogels does not allow the use in stress-loaded implants  Cannot be produced with SLA, SLS, 3DP and FDM due to their processing conditions

53 3D Bioplotter  Developed at the Freiburg Materials Research Center  Can produce hydrogel scaffolds

54 3D Bioplotter Image source

55 3D Bioplotter Advantages:  Allows to integrate living cells into scaffold fabrication process  No support structure is needed (the liquid medium compensates for gravity)

56 Two-photon polymerization  Uses two-photon absorption and subsequent polymerization  Allows fabrication of any computer generated 3D structure by direct laser “recording” into the volume of a photosensitive material  Allows real-time monitoring of the polymerization process

57 Two-photon polymerization Overlap of photons from the ultra short laser pulse leads to chemical reactions between monomers and starter molecules within transparent matrix. Image source

58 Two-photon polymerization Advantages:  Provides much better resolution than other RP methods  Can handle very complex structures

59 Potential advantages and challenges of rapid prototyping processes in tissue engineering

60 Advantages

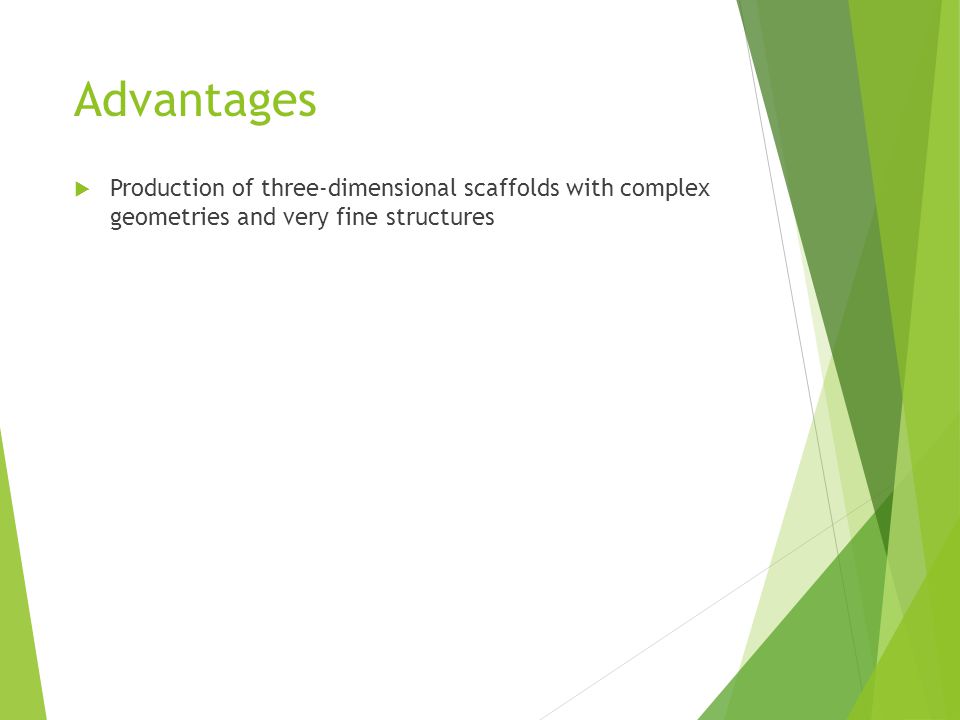

61  Production of three-dimensional scaffolds with complex geometries and very fine structures

62 Advantages  Production of three-dimensional scaffolds with complex geometries and very fine structures  High customizability

63 Advantages  Production of three-dimensional scaffolds with complex geometries and very fine structures  High customizability  Control of the scaffold porosity

64 Advantages  Production of three-dimensional scaffolds with complex geometries and very fine structures  High customizability  Control of the scaffold porosity  Speed - three-dimensional parts can be manufactured in hours and days instead of weeks and months

65 Advantages  Production of three-dimensional scaffolds with complex geometries and very fine structures  High customizability  Control of the scaffold porosity  Speed - three-dimensional parts can be manufactured in hours and days instead of weeks and months  Several RP techniques operate without the use of toxic organic solvents

66 Challenges

67  Surface roughness

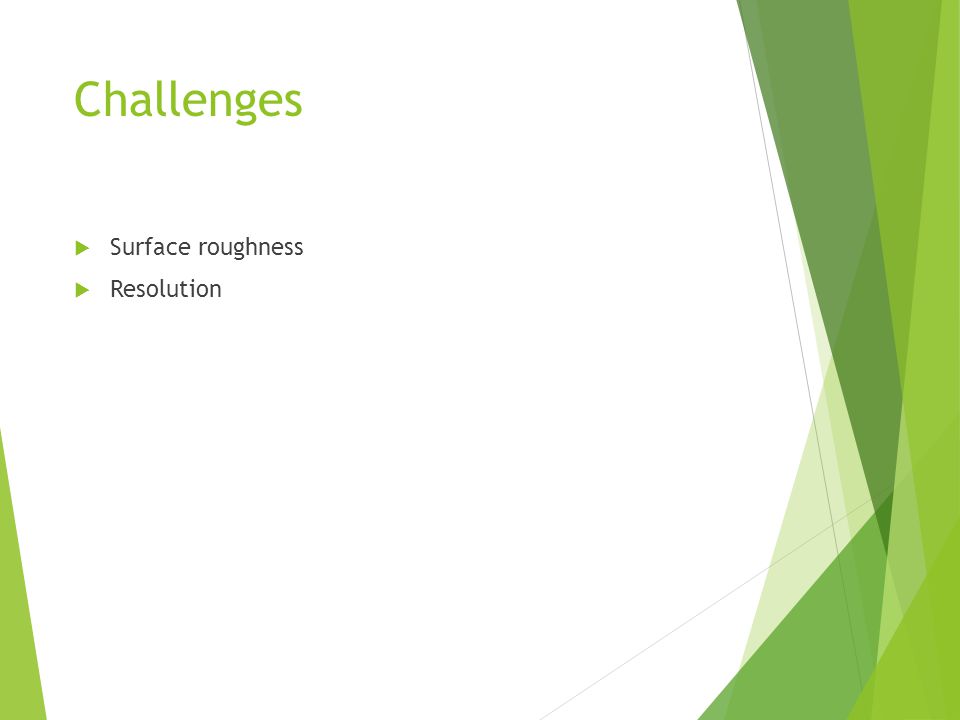

68 Challenges  Surface roughness  Resolution

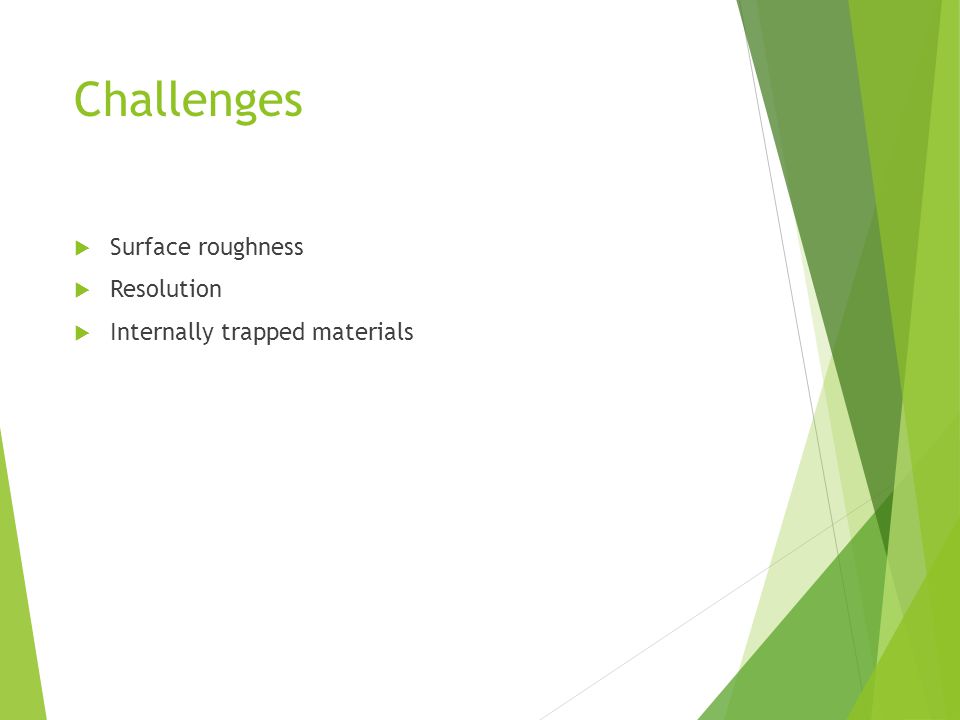

69 Challenges  Surface roughness  Resolution  Internally trapped materials

70 Challenges  Surface roughness  Resolution  Internally trapped materials  Environment requirements

71 Challenges  Surface roughness  Resolution  Internally trapped materials  Environment requirements  Temperature

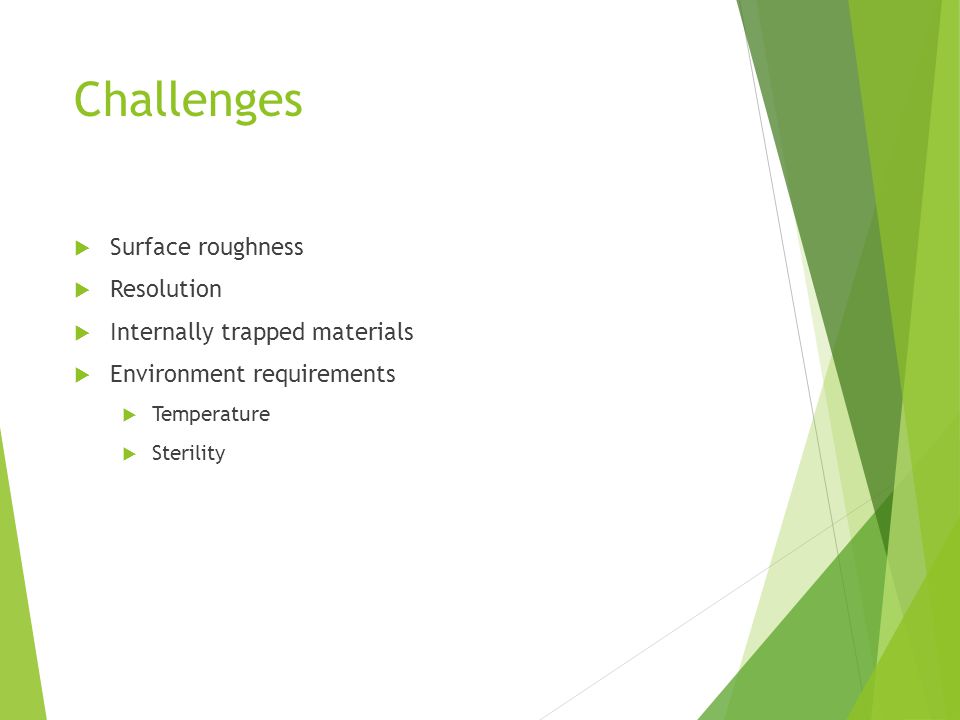

72 Challenges  Surface roughness  Resolution  Internally trapped materials  Environment requirements  Temperature  Sterility

73 Summary Although RP methods already can serve as a link between tissue and engineering, every RP process has its own unique disadvantages in building tissue engineering scaffolds. Hence, the future research should be focused into the development of RP machines designed specifically for fabrication of tissue engineering scaffolds.

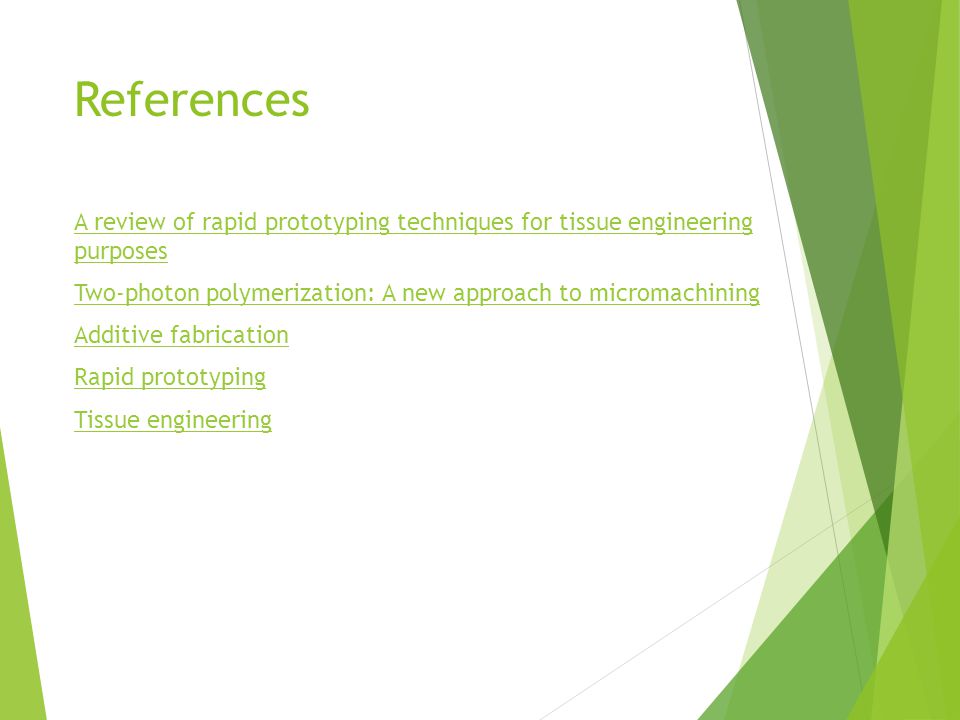

74 References A review of rapid prototyping techniques for tissue engineering purposes Two-photon polymerization: A new approach to micromachining Additive fabrication Rapid prototyping Tissue engineering
