1 The Search for the Genetic Material of Life What is a gene? Stable source of information Ability to replicate accurately Capable of change

2 The Search for the Molecular Basis of Heredity Search for genetic material---nucleic acid or protein/DNA or RNA? Search for genetic material---nucleic acid or protein/DNA or RNA? Griffith’s Transformation Experiment Griffith’s Transformation Experiment Avery’s Transformation Experiment Avery’s Transformation Experiment Hershey-Chase Bacteriophage Experiment Hershey-Chase Bacteriophage Experiment Tobacco Mosaic Virus (TMV) Experiment Tobacco Mosaic Virus (TMV) Experiment Nucleotides - composition and structure Nucleotides - composition and structure Double-helix model of DNA - Watson & Crick Double-helix model of DNA - Watson & Crick Original Source for portions of slide content: by Kevin McCracken University of Alaska Fairbanks. Original Source for portions of slide content: by Kevin McCracken University of Alaska Fairbanks.

3 Timeline of events 1890Weismann - substance in the cell nuclei controls development. 1900Chromosomes shown to contain hereditary information, later shown to be composed of protein & nucleic acids. 1928Griffith’s Transformation Experiment 1944Avery’s Transformation Experiment 1953Hershey-Chase Bacteriophage Experiment 1953Watson & Crick propose double-helix model of DNA 1956Gierer & Schramm/Fraenkel-Conrat & Singer Demonstrate RNA is viral genetic material.

4 Frederick Griffith’s Transformation Experiment “transforming principle” demonstrated with Streptococcus pneumoniae Griffith hypothesized that the transforming agent was a “IIIS” protein.

5 Peter J. Russell, iGenetics: Copyright © Pearson Education, Inc., publishing as Benjamin Cummings. Oswald T. Avery’s Transformation Experiment Determined that “IIIS” DNA was the genetic material responsible for Griffith’s results (not RNA).

6 Bacteriophage = Virus that attacks bacteria and replicates by invading a living cell and using the cell’s molecular machinery. Structure of T2 phage DNA & protein Hershey-Chase Bacteriophage Experiment

7 Life cycle of virulent T2 phage:

8 1.T2 bacteriophage is composed of DNA and proteins: 2.Set-up two replicates: Label DNA with 32 P Label Protein with 35 S 3.Infected E. coli bacteria with two types of labeled T P is discovered within the bacteria and progeny phages, whereas 35 S is not found within the bacteria but released with phage ghosts. Hershey-Chase Bacteriophage Experiment : Alfred Hershey

9 Gierer & Schramm Tobacco Mosaic Virus (TMV) Experiment – 1956 & Fraenkel-Conrat & Singer Used 2 viral strains to demonstrate RNA is the genetic material of TMV

10 Conclusions about these early experiments: Griffith 1928 & Avery 1944: DNA (not RNA) is transforming agent. Hershey-Chase 1953: DNA (not protein) is the genetic material. Gierer & Schramm 1956/Fraenkel-Conrat & Singer 1957: RNA (not protein) is genetic material of some viruses.

11 Nucleotide = monomers that make up DNA and RNA (Figs ) Three components 1. Pentose (5-carbon) sugar DNA = deoxyribose RNA = ribose (compare 2’ carbons) 2. Nitrogenous base Purines Adenine Guanine Pyrimidines Cytosine Thymine (DNA) Uracil (RNA) 3. Phosphate group attached to 5’ carbon

12 Nucleotides are linked by phosphodiester bonds to form polynucleotides. Phosphodiester bond Covalent bond between the phosphate group (attached to 5’ carbon) of one nucleotide and the 3’ carbon of the sugar of another nucleotide. This bond is very strong, and for this reason DNA is remarkably stable. DNA can be boiled and even autoclaved without degrading! 5’ and 3’ The ends of the DNA or RNA chain are not the same. One end of the chain has a 5’ carbon and the other end has a 3’ carbon.

13 5’ end 3’ end

14 James D. Watson & Francis H. Crick Double Helix Model of DNA Two sources of information: 1.Base composition studies of Erwin Chargaff indicated double-stranded DNA consists of ~50% purines (A,G) and ~50% pyrimidines (T, C) amount of A = amount of T and amount of G = amount of C (Chargraff’s rules) %GC content varies from organism to organism Examples:%A%T%G%C%GC Homo sapiens Zea mays Drosophila Aythya americana

15 James D. Watson & Francis H. Crick Double Helix Model of DNA Two sources of information: 2.X-ray diffraction studies - Rosalind Franklin & Maurice Wilkins Conclusion-DNA is a helical structure with distinctive regularities, 0.34 nm & 3.4 nm.

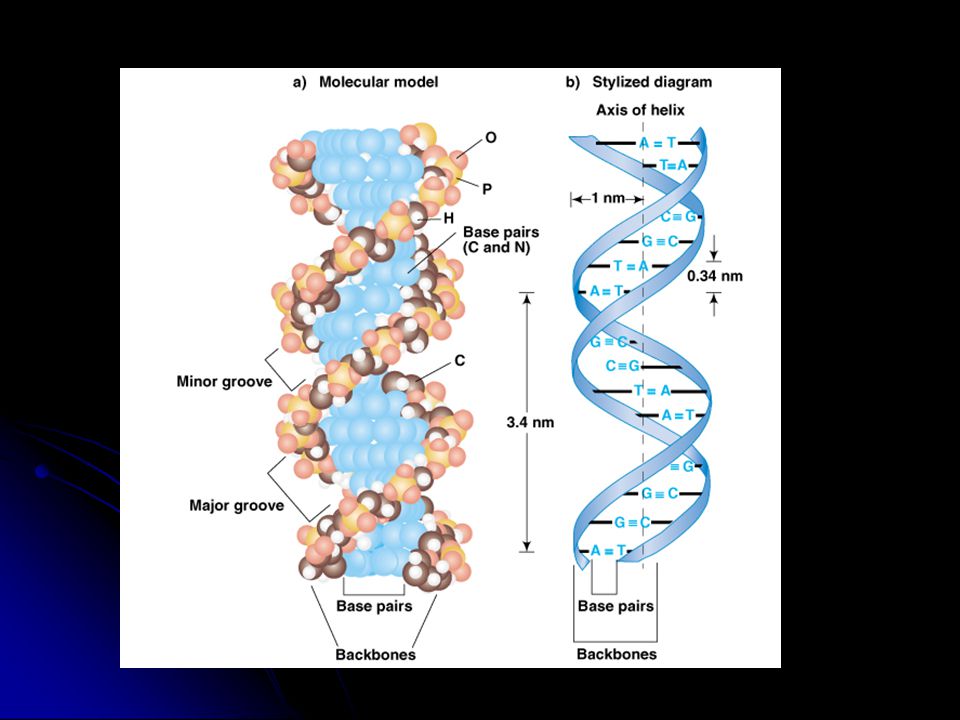

16 Double Helix Model of DNA: Six main features 1.Two polynucleotide chains wound in a right-handed (clockwise) double-helix. 2.Nucleotide chains are anti-parallel: 5’  3’ 3’  5’ 3.Sugar-phosphate backbones are on the outside of the double helix, and the bases are oriented towards the central axis. 4.Complementary base pairs from opposite strands are bound together by weak hydrogen bonds. A pairs with T (2 H-bonds), and G pairs with C (3 H-bonds). e.g.,5’-TATTCCGA-3’ 3’-ATAAGGCT-3’ 5.Base pairs are 0.34 nm apart. One complete turn of the helix requires 3.4 nm (10 bases/turn). 6.Sugar-phosphate backbones are not equally-spaced, resulting in major and minor grooves.

17

18

19 1962: Nobel Prize in Physiology and Medicine James D. Watson Francis H. Crick Maurice H. F. Wilkins What about? Rosalind Franklin

20 Yeast Alanine tRNA RNA (A pairs with U and C pairs with G) Examples: mRNAmessenger RNA tRNAtransfer RNA rRNAribosomal RNA snRNAsmall nuclear RNA RNA secondary structure: single-stranded Function in transcription (RNA processing) and translation

21 Organization of DNA/RNA in chromosomes Genome = chromosome or set of chromosomes that contains all the DNA an organism (or organelle) possesses Prokaryotic chromosomes 1. most contain one double-stranded circular DNA molecule 2. typically arranged in arranged in a dense clump in a region called the nucleoid Eukaryotic chromosomes 1. Eukaryotic chromosome structure Chromatin - complex of DNA and chomosomal proteins ~ twice as much or more protein as DNA. 2. Eukaryotic chromosomes or chromatin found in the nucleus of the cell. 3. Cells from different species contain varying numbers of chromosome of different sizes and morphologies -the karyotype (e.g., pea, 2N = 14; human, 2N = 46, fruit fly, 2N= 8).
