There are (3) major Refineries in Iraq: 1- Doura Refinery – built in the Fifties of the last Century with a capacity of (70) kb1/d which was increased.

Similar presentations


Presentation on theme: "There are (3) major Refineries in Iraq: 1- Doura Refinery – built in the Fifties of the last Century with a capacity of (70) kb1/d which was increased."— Presentation transcript:

1 There are (3) major Refineries in Iraq: 1- Doura Refinery – built in the Fifties of the last Century with a capacity of (70) kb1/d which was increased to (110) k b1/d by adding 4 (10) k b1/d units. 2- Basrah Refinery - built in the seventies of the last Century with a capacity of (140) kb1/d which was increased to (180) k b1/d by adding 4 (10) k b1/d units. 3- Baiji Refinery- built in the seventies and eighties of the last Century with a capacity of (290) kb1/d which was increased to (310) k b1/d by adding 2 (10) k b1/d units.

2 All these refineries.were simple designed to produce white products not exceeding (50 -55%) of the feed crude. Only Baiji has a hydrocracker units of (30)kb1/d capacity. All three refineries have lube oil plants of various capacities. These refineries sustained severe damage during the 1991 gulf war. They were all fixed and put int operation within 2 -3 months from the end of the said war, but were not restored to a healthy state. The long period of UN sanction inflicted more damage due to disrepair&lack of maintenance.

3 Period April 2003 – Dec 2008 The operation of refineries was adversely affected by the security situation. Insurgent & terrorist attacks targeted crude oil & product pipe lines. Refineries suffered frequent stoppage of operation, either due to lack of crude oil or inability to evacuate products. This applies to the period 2005 – In 2008 there is a definite improvement in the operation thus the daily average for refining has been gradually increasing coupled with decrease of oil products imports.

4 Status End MIDLAND REFINERIES A- Doura Refinery Installed Capacity : 210kb 1/d. - 2 new CDUs,each of 70 kb1/d - both in operation. - A third Hydrotreater Reformer Unit 10 kb1/d – procurement phase. - Isomerisation Unit 10 kb1/d – Civil work & supply of equipment phase. - A power generation station 50 mw – under construction. - One New Boiler 150 ton/h with Demin Water Unit –completed & in operation. Second New boiler 150 ton/h under construction. - An RFCC Unit 40 kb1/d – FEED Package awarded. - New Cooling Tower – Contract awarded.

5 Lube Oil Plants There are 3 Lube Oil plant : - No:1 – completed 1959 by Foster wheeler - capacity 25 kton/y present operation at 85% of capacity. - No:2 – completed 1969 by Snam Projetee – capacity 36 kton/y present operation at 77% of capacity - No:3 – completed 1978 by Nigata – capacity 60 kton/y- present operation at 94% of capacity A- Doura Refinery

6 Future Plans - Replacement of 3 CDUs 70 kb1/d total capacity with one CDU unit 70 kb1/d. - Additional treatment of Industrial water including circulation of treated water. - Improvement of Flare system to reduce emmissions. - Complete renovation of lube oil plants. - Replacement of old reformer units with new ones. - New Gas Oil hydrotreater units A- Doura Refinery

7 Status End 2010 MIDLAND REFINERIES B- Najaf Refinery: - 3 Distillation Units, (10)kb1/d each – in operation. - A Naphtha Hydrotreater & Reformer unit with all related utilities in the engineering phase. - Asphalt unit – planned.

8 Status End 2010 MIDLAND REFINERIES C- Samawa Refinery - 3 Distillation Units, (10)kb1/d each – in operation. - A Naphtha Hydrotreater & Reformer unit with all related utilities in the engineering phase. - Asphalt unit – planned

9 Status End MIDLAND REFINERIES D- Diwanya Refinery - One Distillation Unit, (10)kb1/d in operation. - 2rd Distillation Unit, (10)kb1/d under fabrication.

10 Status End NORTH REFINERIES A- Baiji Refinery Complex – Capacity 310 kb1/d. - New Isomeration Unit – 19.6 kb1/d – Final stages of construction. - 6 New boilers – 400 ton/hr total capacity -under construction. - New power generation plants (85)mw – contracted. - New LPG unit for North Refinery, 400 tons/d – Award of contract under processing. - Upgrading of Waste Water Treatment System – under implementation. - Re-construction of (51) storage tanks – 9 Nos complete, 80% completion of remaining tanks. - Rehabilitation & De- bottle necking of Hydro- Cracker Unit – under evaluation with Designer & Supplier. - New FCC unit 50 kb1/d – Feasibility Completed

11 Status End NORTH REFINERIES A-Baiji Refinery Complex - Lube Oil Plant, 250 kton/y – at present one train 125 kton/y is in operation. Second train is under rehabilitation. B- Kirkuk Refinery - 3 CDU 10kb1/d each – in operation. C- Kasak Refinery - one 10 kb1/d unit – in operation. - Second 10 kb1/d unit - civil work construction. - Waste Water Treatment Unit – under construction. - New Storage Tanks – under construction.

12 Status End NORTH REFINERIES D- Qayarah Refinery - 4 Old Asphalt Units, one 180 cum /d & three 360 cum/d each - only one unit 360 cum/d is in operation at 50% capacity. other units are under rehabilitation. - A new Asphalt Unit is planned. - One 10kb1/d CDU operating on Kirkuk Crude - installed. - 2rd 10kb1/d CDU operating on Kirkuk Crude - under installation. - 8 storage tanks –under construction. E- Seeniyah Refinery - Three 10 kb1/d units – in operation - 10 storage tanks – under construction. - Waste Water Treatment unit – under construction.

13 Status End NORTH REFINERIES F- Haditha Refinery - 2 units, 16 kb1/d total capacity – in operation storage tanks – under construction. - Waste Water Treatment Unit – planned. Future Plans - Rehabilitation of Gas Oil Hydrotreating Units. - Rehabilitation & upgrading of lube plant. - Replacement of old reformer units.

14 Status End SOUTH REFINERIES A- Basrah Refinery - New (70) kb1/d Distillation Units with an LPG unit (300) ton/d- under construction. - Third Hydrotreater Platformer Unit 10kb1/d -under construction. - New LPG unit (200) ton for Train(1) – procurement phase - New Isomeriation Unit (11) kb1/d - Delivery of equipment & Site preparation. - 3 New Boilers, 100 ton/h each – under installation. - New Waste Water Treatment Plant – Awarded. - New cooling Tower – under construction. - New FCC Unit 30 kb1/d – FEED package preparation phase. - Replacement of old reformer units.

15 Future Plans - New Utility Package. - New Gas oil Hydrotreatment Unit- Design completed. - New Naphtha hyrotreater unit 15 kb1/d. - Upgrading of Instrumentation & Control. - Improvement of Flare System to reduce emmissions. - Up grading of waste water system & recirculation of treated water.

16 Status End SOUTH REFINERIES B – Nasiriyah Refinery - 3 Distillation Units, (10)Kb1/d each in operation. - A Hydrotreater Reformer unit with all related utilities- Engineering phase. - A Waste Water Treatment unit – Evaluation of offers. - An Ro unit 50m3/h completed & in operation. - Expansion of utilities & tankage – planned. C- Missan Refinery - 3 CDUs, 10 kb1/d each – installed & in operation

17 - year : k b1/d - = : = - = : = - = : = - = : = - = : = - = : = (Jan- Oct)

18 Year ton/d Total Value million $ = = = = = = = = = = = = End of Aug * Import for Ministry of Electricity is not included

19 Consumption of white Products Legend Gasoline Gas Oil Kerosene

20 NEW REFINERIES 1- Karbala Refinery Capacity BPSD

21 SITE INFORMATION: Kerbala Refinery is located about (110) KM South west Of Baghdad. Area : 4 X 3 Km2 Coordinate U.T.M. : N : E :

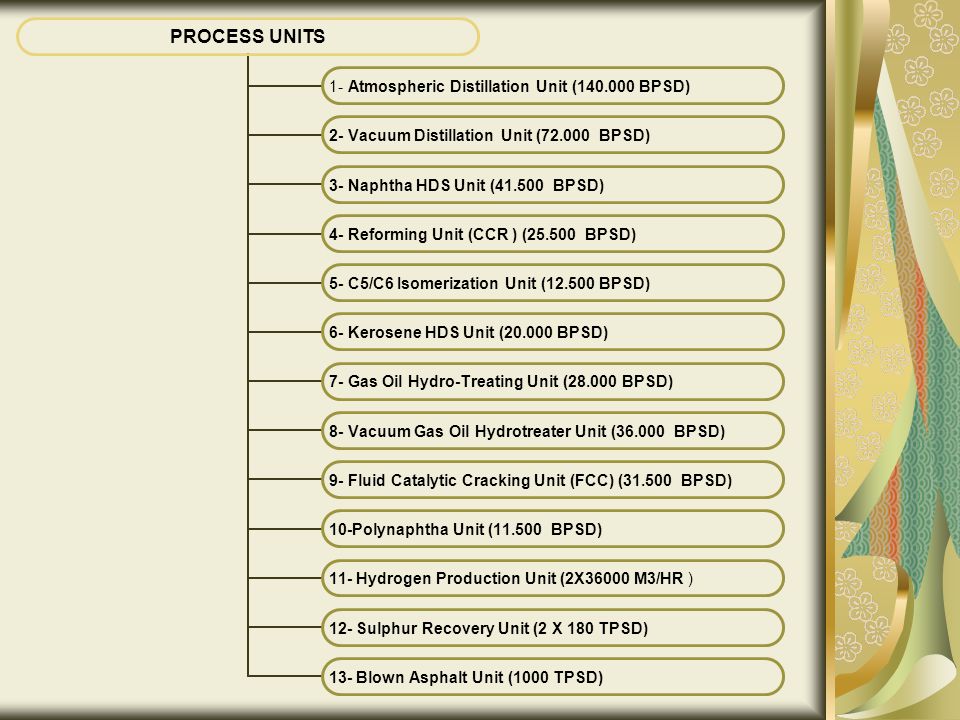

22 PROCESS UNITS 1- Atmospheric Distillation Unit ( BPSD) 2- Vacuum Distillation Unit ( BPSD) 3- Naphtha HDS Unit ( BPSD) 4- Reforming Unit (CCR ) ( BPSD) 5- C5/C6 Isomerization Unit ( BPSD) 6- Kerosene HDS Unit ( BPSD) 7- Gas Oil Hydro- Treating Unit ( BPSD) 8- Vacuum Gas Oil Hydrotreater Unit ( BPSD) 9- Fluid Catalytic Cracking Unit (FCC) ( BPSD) 10-Polynaphtha Unit ( BPSD) 11- Hydrogen Production Unit (2X36000 M3/HR ) 12- Sulphur Recovery Unit (2 X 180 TPSD) 13- Blown Asphalt Unit (1000 TPSD)

23 Products Specification will be according to EURO-4 as minimum required. Gasoline, Kerosene &Gas oil with (10 ppm ) Sulphur content. PRODUCTS LPG GASOLINE (Unleaded Premium, Regular) KEROSENE & ATK GAS OIL (Diesel) HEAVY GAS OIL (Heavy Diesel) SULPHUR BLOWN ASPHALT (Paving & Many Types of Industrial Blown Asphalt) FUEL OIL ( less than 15% vol. of crude)FUEL OIL ( less than 15% vol. of crude) ELECTRICAL POWER  400 MW

24 Expected Product Quantities : Th.M3/SDPRODUCTS 160 T/SDLPG 8.750GASOLINE 3.000ATK/KEROSENE 3.85DIESEL 0HEAVY DIESEL 3.7FUEL OIL 1000 T/SDASPHALT 175 T/SDSULPHUR 100 MWELECTRICITY

25 2-Maissan Refinery Capacity BPSD

26 SITE INFORMATION: Maissan Refinery is located about (400) KM South Of Baghdad. Area :( 2 X 3) Km2 Coordinate U.T.M. : N : E :

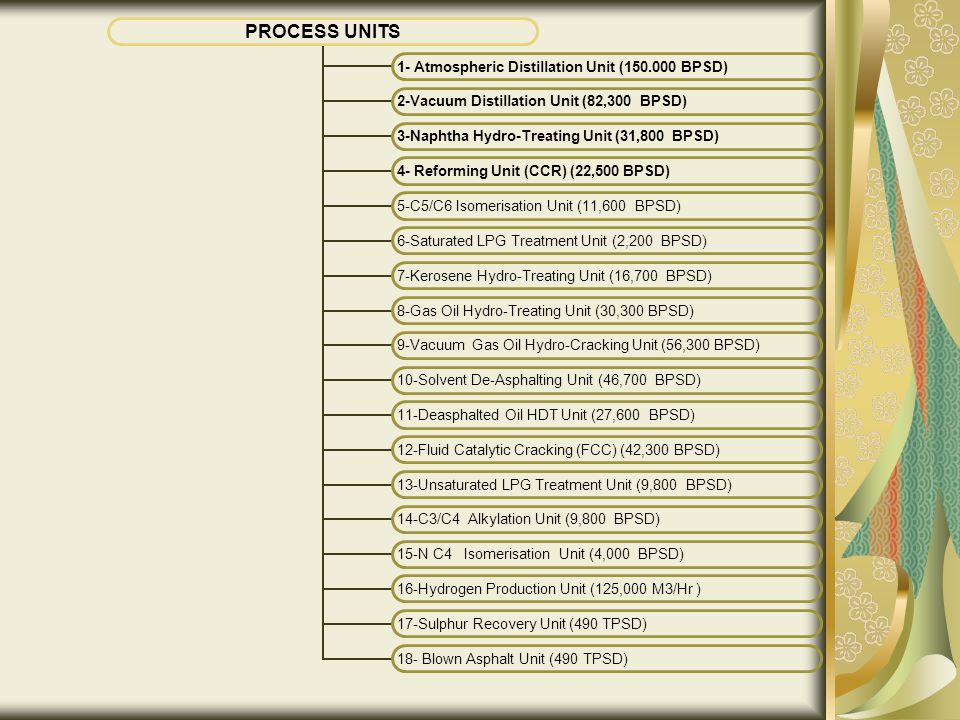

27 PROCESS UNITS 1- Atmospheric Distillation Unit ( BPSD) 2-Vacuum Distillation Unit (82,300 BPSD) 3-Naphtha Hydro-Treating Unit (31,800 BPSD) 4- Reforming Unit (CCR) (22,500 BPSD) 5-C5/C6 Isomerisation Unit (11,600 BPSD) 6-Saturated LPG Treatment Unit (2,200 BPSD) 7-Kerosene Hydro-Treating Unit (16,700 BPSD) 8-Gas Oil Hydro-Treating Unit (30,300 BPSD) 9-Vacuum Gas Oil Hydro- Cracking Unit (56,300 BPSD) 10-Solvent De- Asphalting Unit (46,700 BPSD) 11-Deasphalted Oil HDT Unit (27,600 BPSD) 12-Fluid Catalytic Cracking (FCC) (42,300 BPSD) 13-Unsaturated LPG Treatment Unit (9,800 BPSD) 14-C3/C4 Alkylation Unit (9,800 BPSD) 15-N C4 Isomerisation Unit (4,000 BPSD) 16-Hydrogen Production Unit (125,000 M3/Hr ) 17-Sulphur Recovery Unit (490 TPSD) 18- Blown Asphalt Unit (490 TPSD)

28 Products Specification will be according to EURO-4 as minimum required. Gasoline, Kerosene &Gas oil with (10 ppm ) Sulphur content. PRODUCTS LPG GASOLINE (Unleaded Premium, Regular & Super) KEROSENE & ATK GAS OIL (Diesel) HEAVY GAS OIL (Heavy Diesel) SULPHUR ASPHALT (Paving & Many Types of Industrial Blown Asphalt) FUEL OIL ( less than 15% vol. of crude)FUEL OIL ( less than 15% vol. of crude) ELECTRICAL POWER  500 MW

29 Expected Product Quantities : Th.M3/SDPRODUCTS 250 T/SDLPG 9.000GASOLINE 2.650KEROSENE / ATK 7.650DIESEL 0.8HEAVY DIESEL 0.432FUEL OIL 490 T/SDASPHALT 490 T/SDSULPHUR 500 MWELECTRICITY

30 3- Al-Nassiriya Refinery 3- Al-Nassiriya Refinery Capacity BPSD

31 SITE INFORMATION: Al-Nassiriya Refinery is located about (400) KM South Of Baghdad. Refinery Area  5.6 Km2 Coordinates U.T.M. : N : E :

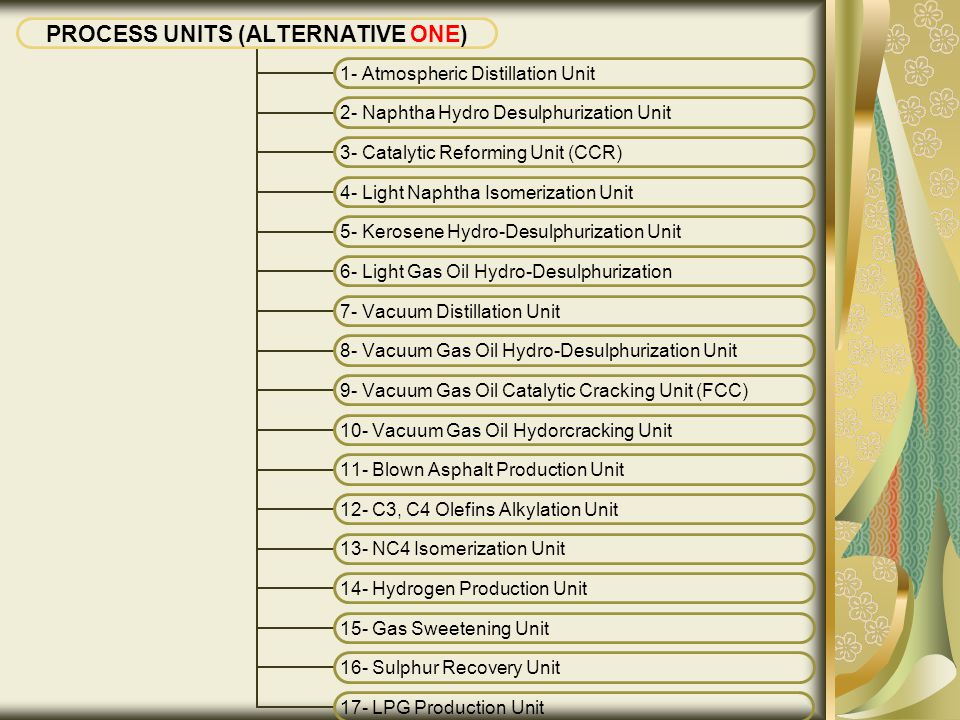

32 PROCESS UNITS (ALTERNATIVE ONE) 1- Atmospheric Distillation Unit 2- Naphtha Hydro Desulphurization Unit 3- Catalytic Reforming Unit (CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurization Unit 6- Light Gas Oil Hydro- Desulphurization 7- Vacuum Distillation Unit 8- Vacuum Gas Oil Hydro- Desulphurization Unit 9- Vacuum Gas Oil Catalytic Cracking Unit (FCC) 10- Vacuum Gas Oil Hydorcracking Unit 11- Blown Asphalt Production Unit 12- C3, C4 Olefins Alkylation Unit 13- NC4 Isomerization Unit 14- Hydrogen Production Unit 15- Gas Sweetening Unit 16- Sulphur Recovery Unit 17- LPG Production Unit

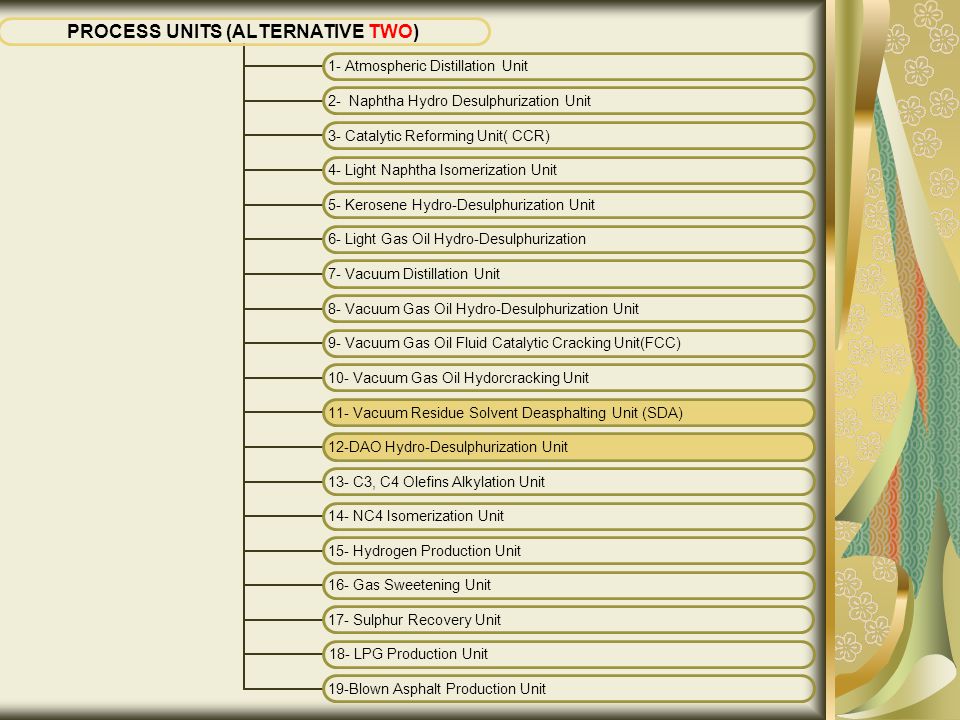

33 PROCESS UNITS (ALTERNATIV E TWO) 1- Atmospheric Distillation Unit 2- Naphtha Hydro Desulphurizatio n Unit 3- Catalytic Reforming Unit( CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurizatio n Unit 6- Light Gas Oil Hydro- Desulphurizatio n 7- Vacuum Distillation Unit 8- Vacuum Gas Oil Hydro- Desulphurizatio n Unit 9- Vacuum Gas Oil Fluid Catalytic Cracking Unit(FCC) 10- Vacuum Gas Oil Hydorcracking Unit 11- Vacuum Residue Solvent Deasphalting Unit (SDA) 12-DAO Hydro- Desulphurizatio n Unit 13- C3, C4 Olefins Alkylation Unit 14- NC4 Isomerization Unit 15- Hydrogen Production Unit 16- Gas Sweetening Unit 17- Sulphur Recovery Unit 18- LPG Production Unit 19-Blown Asphalt Production Unit

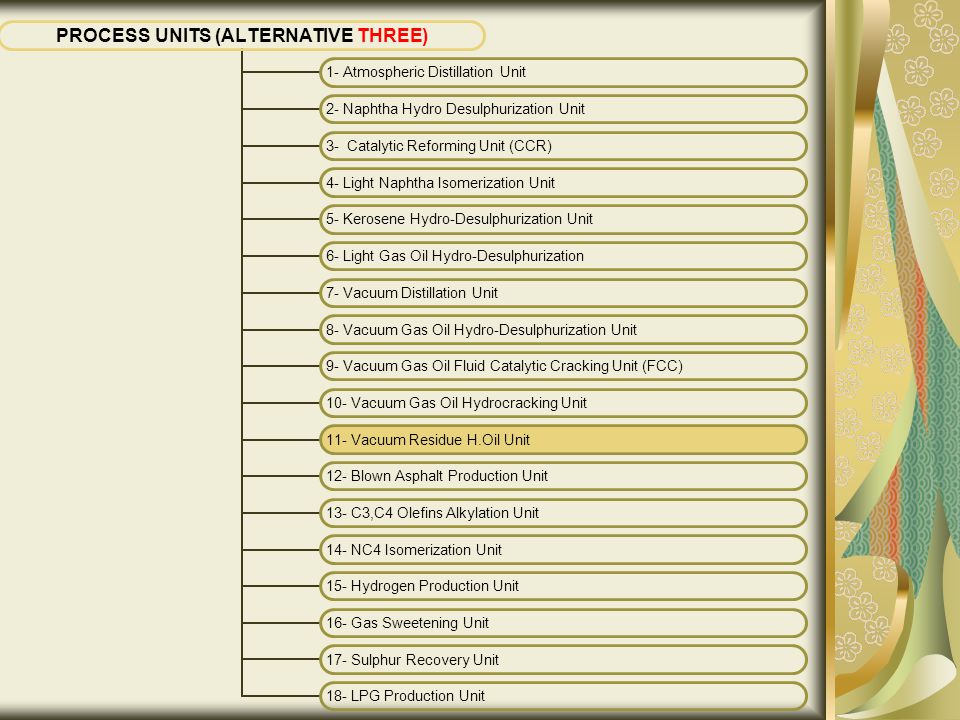

34 PROCESS UNITS (ALTERNATIVE THREE) 1- Atmospheric Distillation Unit 2- Naphtha Hydro Desulphurization Unit 3- Catalytic Reforming Unit (CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurization Unit 6- Light Gas Oil Hydro- Desulphurization 7- Vacuum Distillation Unit 8- Vacuum Gas Oil Hydro- Desulphurization Unit 9- Vacuum Gas Oil Fluid Catalytic Cracking Unit (FCC) 10- Vacuum Gas Oil Hydrocracking Unit 11- Vacuum Residue H.Oil Unit 12- Blown Asphalt Production Unit 13- C3,C4 Olefins Alkylation Unit 14- NC4 Isomerization Unit 15- Hydrogen Production Unit 16- Gas Sweetening Unit 17- Sulphur Recovery Unit 18- LPG Production Unit

35 PROCESS UNITS (ALTERNATIVE FOUR) 1- Atmospheric Distillation Unit 2- Naphtha Hydro Desulphurization Unit 3- Catalytic Reforming Unit (CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurization Unit 6- Light Gas Oil Hydro- Desulphurization 7- Vacuum Distillation Unit 8- Vacuum Gas Oil Hydro- Desulphurization Unit 9- Vacuum Gas Oil Fluid Catalytic Cracking Unit (FCC) 10- Vacuum Gas Oil Hydrocracking Unit 11- Vacuum Residue Coking Unit 12- C3,C4 Olefins Alkylation Unit 13- NC4 Isomerization Unit 14- Hydrogen Production Unit 15- Gas Sweetening Unit 16- Sulphur Recovery Unit 17- LPG Production Unit 18- Blown Asphalt Production Unit

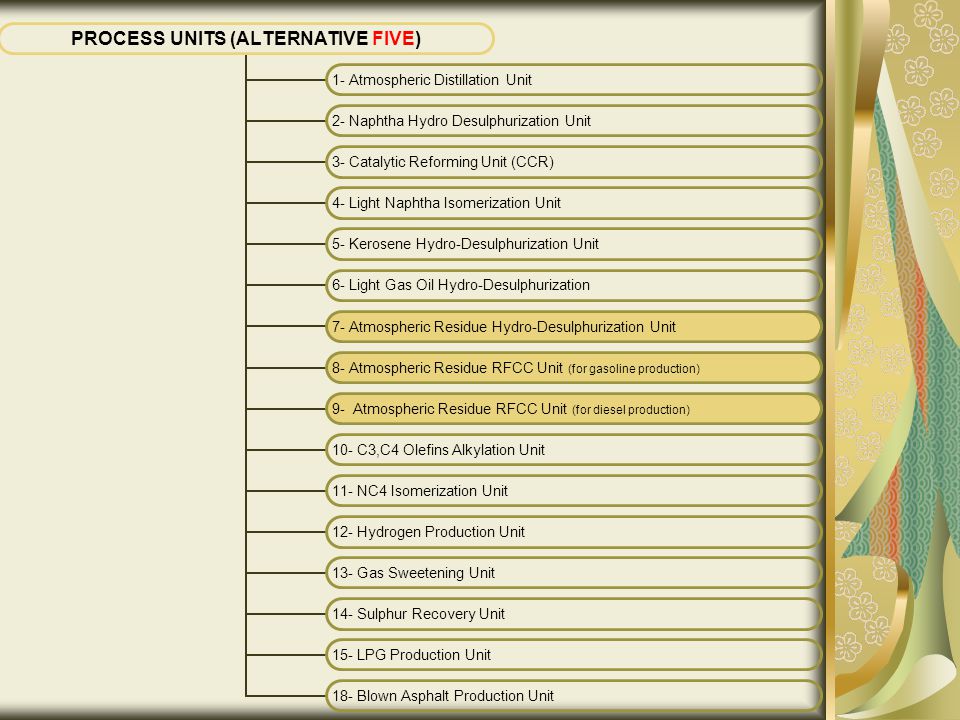

36 PROCESS UNITS (ALTERNATIVE FIVE) 1- Atmospheric Distillation Unit 2- Naphtha Hydro Desulphurization Unit 3- Catalytic Reforming Unit (CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurization Unit 6- Light Gas Oil Hydro- Desulphurization 7- Atmospheric Residue Hydro- Desulphurization Unit 8- Atmospheric Residue RFCC Unit (for gasoline production) 9- Atmospheric Residue RFCC Unit (for diesel production) 10- C3,C4 Olefins Alkylation Unit 11- NC4 Isomerization Unit 12- Hydrogen Production Unit 13- Gas Sweetening Unit 14- Sulphur Recovery Unit 15- LPG Production Unit 18- Blown Asphalt Production Unit

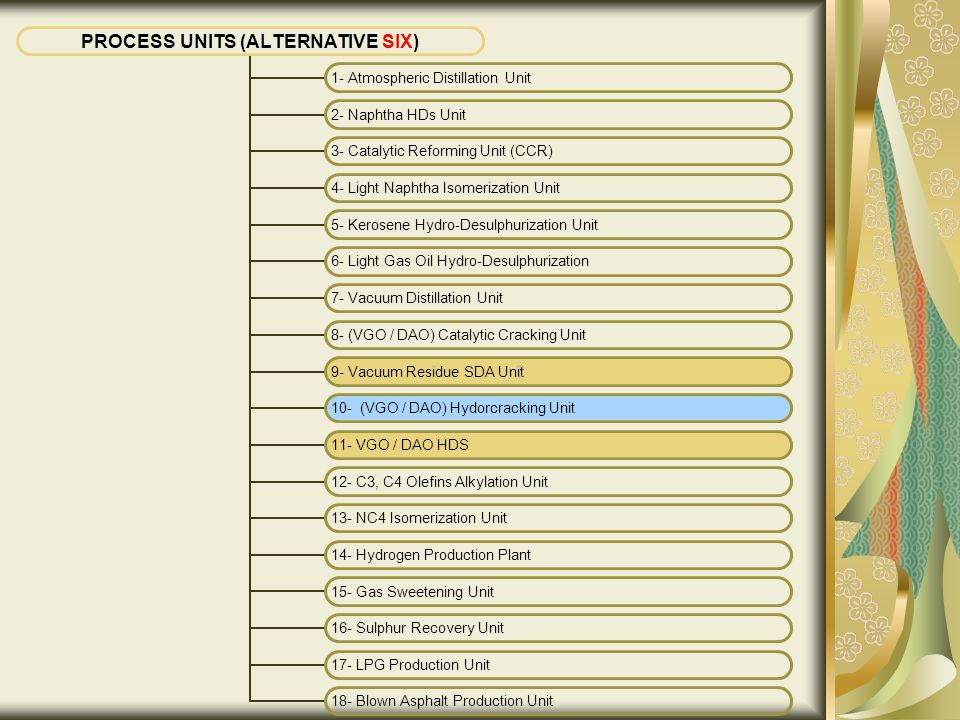

37 PROCESS UNITS (ALTERNATIVE SIX) 1- Atmospheric Distillation Unit 2- Naphtha HDs Unit 3- Catalytic Reforming Unit (CCR) 4- Light Naphtha Isomerization Unit 5- Kerosene Hydro- Desulphurization Unit 6- Light Gas Oil Hydro- Desulphurization 7- Vacuum Distillation Unit 8- (VGO / DAO) Catalytic Cracking Unit 9- Vacuum Residue SDA Unit 10- (VGO / DAO) Hydorcracking Unit 11- VGO / DAO HDS 12- C3, C4 Olefins Alkylation Unit 13- NC4 Isomerization Unit 14- Hydrogen Production Plant 15- Gas Sweetening Unit 16- Sulphur Recovery Unit 17- LPG Production Unit 18- Blown Asphalt Production Unit

38 Products Specification will be according to EURO-4 as minimum required. Gasoline, Kerosene &Gas oil with (10 ppm ) Sulphur content. PRODUCTS LPG GASOLINE Unleaded (Premium, Regular & Super) KEROSENE & ATK GAS OIL (Diesel) HEAVY GAS OIL (Heavy Diesel) SULPHUR ASPHALT (Paving & Many Types of Industrial Blown Asphalt) FUEL OIL ( less than 15% vol. of crude)FUEL OIL ( less than 15% vol. of crude) ELECTRICAL POWER  600 MW

39 Expected Product Quantities : Th.M3 /DPRODUCTS 1200 T/DLPG GASOLINE 7.000KEROSENE /ATK DIESEL 4.000HEAVY DIESEL 6.500REFINERY FUEL OIL T/DASPHALT T/DT/DSULPHUR MWELECTRICITY

40 4-Kirkuk Refinery Capacity BPSD

41 SITE INFORMATION: Kirkuk Refinery is located about (300) KM North Of Baghdad. Area :( 2 X 3) Km2 Coordinate U.T.M. : N : E :

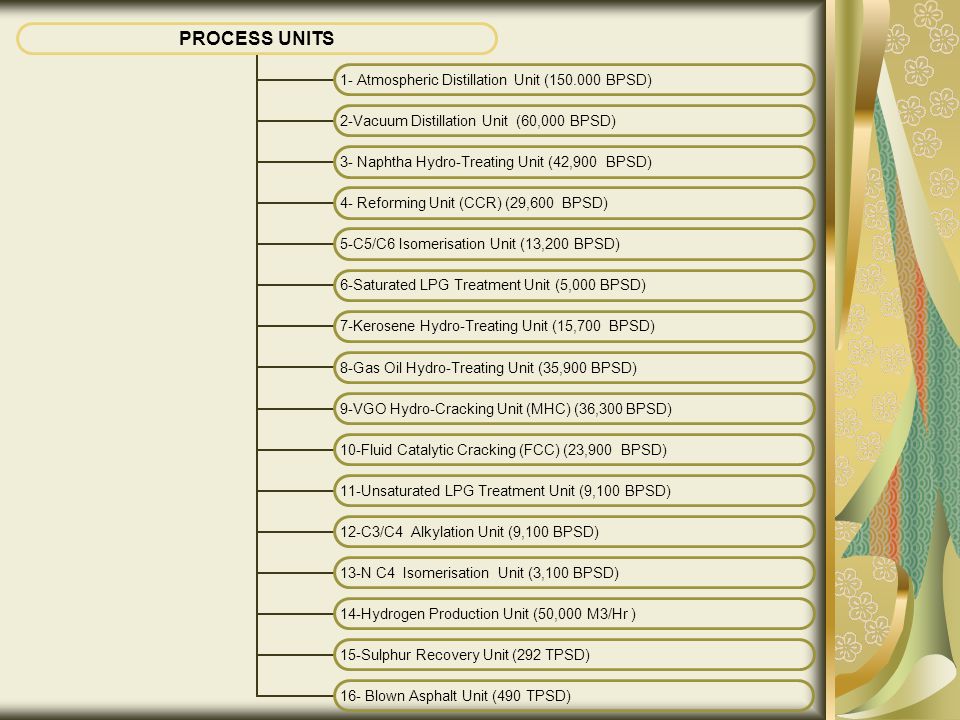

42 PROCESS UNITS 1- Atmospheric Distillation Unit ( BPSD) 2-Vacuum Distillation Unit (60,000 BPSD) 3- Naphtha Hydro- Treating Unit (42,900 BPSD) 4- Reforming Unit (CCR) (29,600 BPSD) 5-C5/C6 Isomerisation Unit (13,200 BPSD) 6-Saturated LPG Treatment Unit (5,000 BPSD) 7-Kerosene Hydro- Treating Unit (15,700 BPSD) 8-Gas Oil Hydro- Treating Unit (35,900 BPSD) 9-VGO Hydro- Cracking Unit (MHC) (36,300 BPSD) 10-Fluid Catalytic Cracking (FCC) (23,900 BPSD) 11-Unsaturated LPG Treatment Unit (9,100 BPSD) 12-C3/C4 Alkylation Unit (9,100 BPSD) 13-N C4 Isomerisation Unit (3,100 BPSD) 14-Hydrogen Production Unit (50,000 M3/Hr ) 15-Sulphur Recovery Unit (292 TPSD) 16- Blown Asphalt Unit (490 TPSD)

43 PRODUCTS LPG GASOLINE Unleaded ( Premium, Regular & Super) KEROSENE &ATK GAS OIL (DIESEL) HEAVY GAS OIL (HEAVY DIESEL) FUEL OIL ( less than 15% vol. of crude) ASPHALT (Paving & Many Types of Industrial Blown Asphalt) SULPHURSULPHUR ELECTRICAL POWER  400 MW Products Specification will be according to EURO-4 as minimum required. Gasoline, Kerosene &Gas oil with (10 ppm ) Sulphur content.

44 Expected Product Quantities : Th.M3 /SDPRODUCTS 225 T/SDLPG GASOLINE 3.450KEROSENE /ATK 6.150DIESEL 0.8HEAVY DIESEL 0.265FUEL OIL 490 T/SDASPHALT 292 T/SDSULPHUR 400 MWELECTRICITY

45 - Rehabilitation of the second train in Khor al Zubair – South gas – under way. - Rehabilitation of Sour gas treatment units at NGL North Rumailah – under way. -Studies for New slug catchers at khor al Zubair & NGL & Sulphur recovery unit at North Rumailah – under way.

46 Future Plans - Third Train in North Gas – Studies & Evaluation. - Expansion of existing compressor stations for Rumailah,Zubair&West Qurna Fields to match future production levels from these fields. - Expansion of NGL capacity of South Gas from present 1050 mmscf/d to 2500 mmscf/d. - Implementing Sour Gas treatment & Sulphur recovery Units at Khor al Zubair. - Building Power generation at Khor al Zubair. - Rehabilitation of LPG & Ng Export Terminal at Khor al Zubair.

47 Present Installed Refining Capacity 1- Salah al Din Complex – Baiji – 310 mb1/d 2- Doura Refinery – Baghdad – 210 mb1/d 3- Basrah Refinery – Basrah -140 mb1/d + 70mb1/d under construction small refineries, 30mb1/d – 180 mb1/d Kirkuk,Syniah-Baiji, Najaf,Samawa,Nasiriyah,Maisan - 1 small refinery at Diwaniyah – 20 mb1/d - 1 = = = Kasak –Neinewah – 10 mb1/d - 1 = = = Haditha – Anbar – 16 mb1/d Total- 886 mb1/d +70 mba under construction

48 Operating Capacity The average operating capacity is in the 580 – 620 mb1/d. The short fall in refining capacity is due to - Shortage in delivery of crude oil - Frequent stoppages due to operational problems - Accumulation of fuel oil or Naphtha in small refineries.

49 Main Projects in Existing Refineries - 3 Ismerisation Units at Baiji, Doura & Basrah – under construction. -2 Gasoline Reformers at Doura & Basrah- Procurement & Construction Phases. - Fcc unit at Basrah –FEED phase. - Fcc unit at Doura–FEED phase. - Fcc unit at Baiji – Feasibility Completed. -2Gas Oil Desulphurisation Units at Basrah & Doura- Bidding Stage. -3 small Gasoline Reformer units at Najaf,Samawa& Nasiriyah- Engineering phase. - Power Generation Units at Doura & Baiji – under construction

50 Nassiryah Refinery Process Units Design Capacity & Licensors LicensorUnit name UOPSaturated LPG Treater Units Naphtha Complex UOPNaphtha Hydrotreating Units UOPLight Naphtha Isomerisation Units UOPContinuous Catalytic Reforming Units Total for Naphtha Complex FCC Complex UOPVacuum Gas oil Hydrotreating UOPFluidised Catalytice Cracking Unit UOPUnsaturated Gas Plant UOPFCC Unsaturated LPG Treating Unit

51 Nassiryah Refinery Process Units Design Capacity & Licensors LicensorUnit name UOP FCC Complex UOPFull Range Catalytic Naphtha Treating Unit UOPHeavy Catalytic Naphtha Hydrodesulphurisation Unit Total for FCC Complex AxensC4 Isomerisation Unit DuPont(Stratco)H2so4 Alkylation Unit DuPont(Stratco)Sulphuric Acid Regeneration Unit Total CLGHydrocracker Unit

52 Nassiryah Refinery Process Units Design Capacity & Licensors LicensorUnit name Tecnimont KTHydrogen Production Units Tecnimont KTSulphur Recovery & Tail Gas Treating Units PoernerBitumen Blowing Unit AxensKerosene Hydrotreater Units AxensGaoil Hydrotreater Units Total AxensResidue Hydrocracker Units SGSFlue Gas Desulphurisation Unit Total

53 Karbala Refinery Process Units Design Capacity & Licensors LicensorUnit name Basic Design by TechnipCrude and Vacuum Distillation UOPNaphtha Hydrotreating UOPIsomerization UOPCatalytic Reforming AxensKerosene Hydrodesulfurization AxensDiesel Hydrodesulfurization UOPVGO Hydrotreating UOPFluid Catalytic Cracking AxensPoly Naphtha Poerner Asphalt Blowing Basic Design by TechnipLPG Production Haldor TopsoeHydrogen Production Unit – Train 1 & 2 Basic Design by TechnipGas Sweetening and Amine Regeneration Basic Design by TechnipSour Water Stripper KTISulphur Recovery – Train 1 & 2 KTITail Gas Treatment

54 Missan Refinery Process Units Design Capacity & Licensors LicensorUnit name KBR USA LLCFluid Catalytic Cracking –Unit 190 KBR USA LLCVacuum Residue Solvent De- asphalting ((ROSE)) –Unit 190 POERNER NGENIEUEGESLLSCHA FT MBH Blown Asphalt –Unit 250 AXENSNaphtha Hydrodesulphurization –Unit 120 AXENSContinuous Catalytic Reformer –Unit 130 AXENSVacuum Gas Oil Hydro cracker–Unit 180 AXENSDe-Asphalted Oil Hydrdesulphurisation –Unit 240 UOP LimitedC5 & C6 Isomerisation Process –Unit 140 UOP LimitedC4 Isomerisation Process –Unit 270 AXENSSaturated LPG Treatment ((SULFREX)) –Unit 155 AXENSUnsaturated LPG Treatment ((SULFREX)) –Unit 210 HALDOR TOPSOE A/SKerosene Hydrodesulphurisation –Unit 160 HALDOR TOPSOE A/S Light Gas Oil Hydrodesulphurisation –Unit 170

55 Missan Refinery Process Units Design Capacity & Licensors LicensorUnit name HALDOR TOPSOE A/SHydrogen Production –Unit 280 E.I du Pont Nemours and Company C 3/ C4 Alkylation –Unit 260
