1 TOOL GEOMETRY

2 MACHINING WOOD A Stress Failure Process With Three Objectives. 1.Severing – To make two or more pieces from one 2.Shaping – To impart a shape or contour on a piece of wood 3.Surfacing – Sanding, jointing or planing an edge or surface

3 MACHINING WOOD The tools

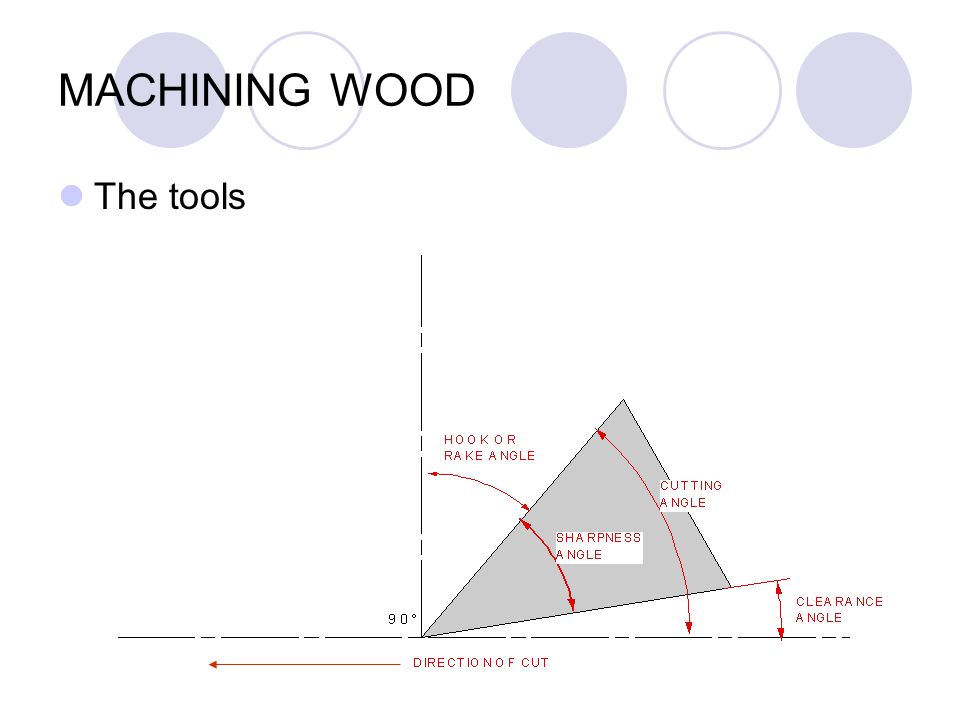

4 MACHINING WOOD The tools

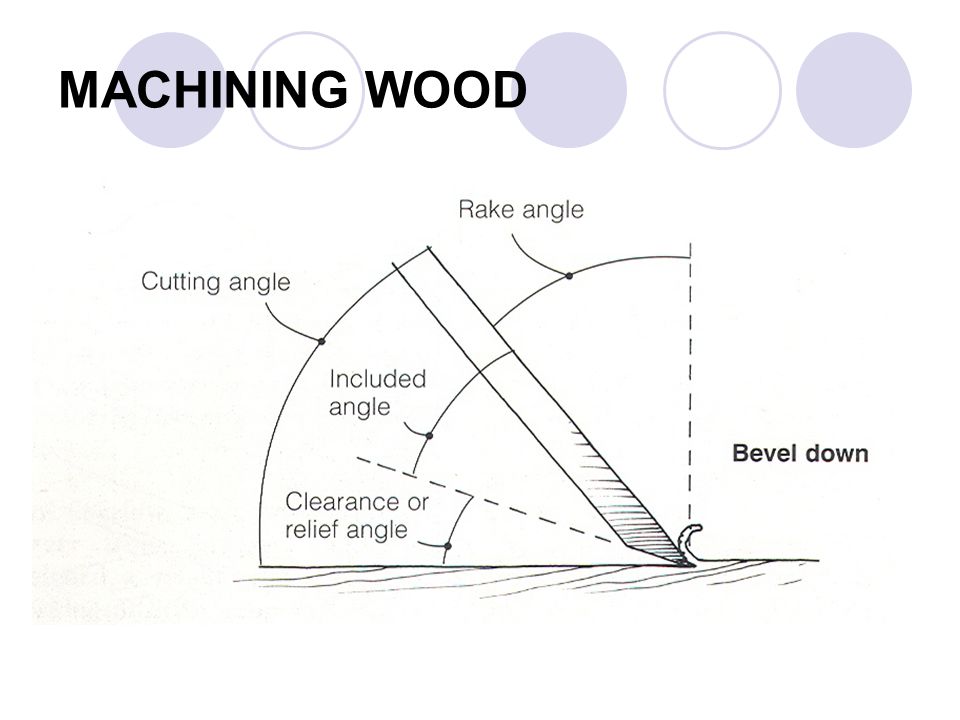

5 MACHINING WOOD

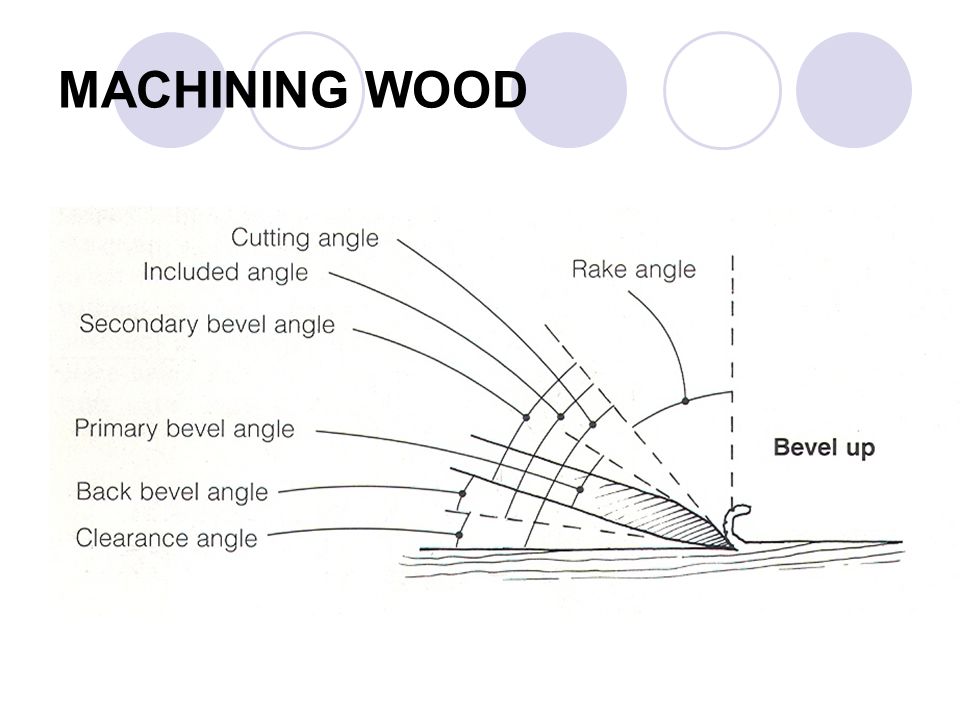

6

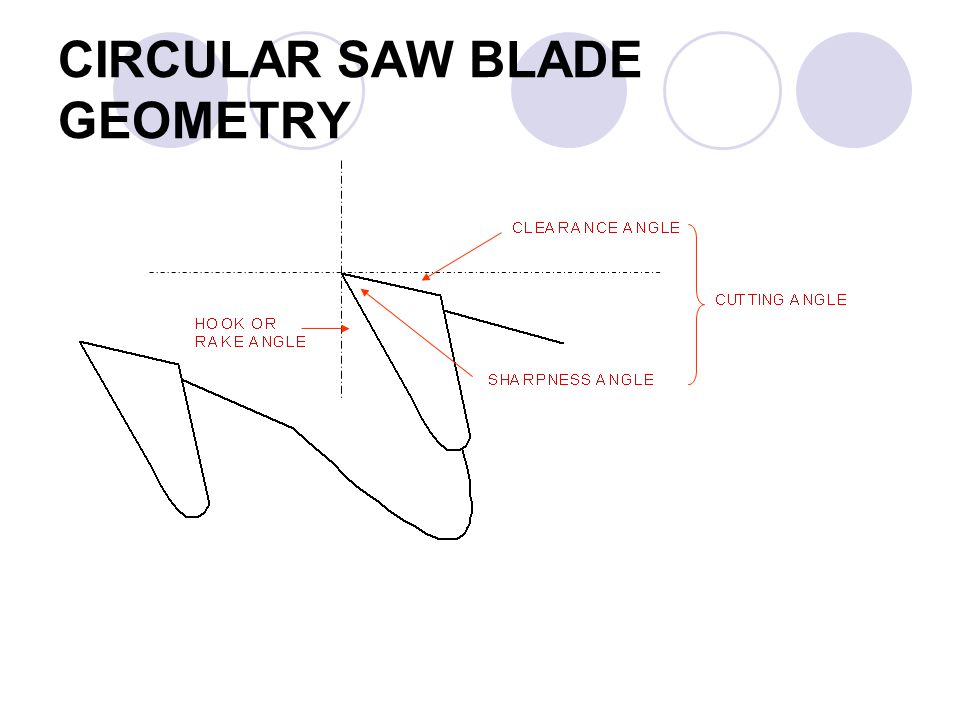

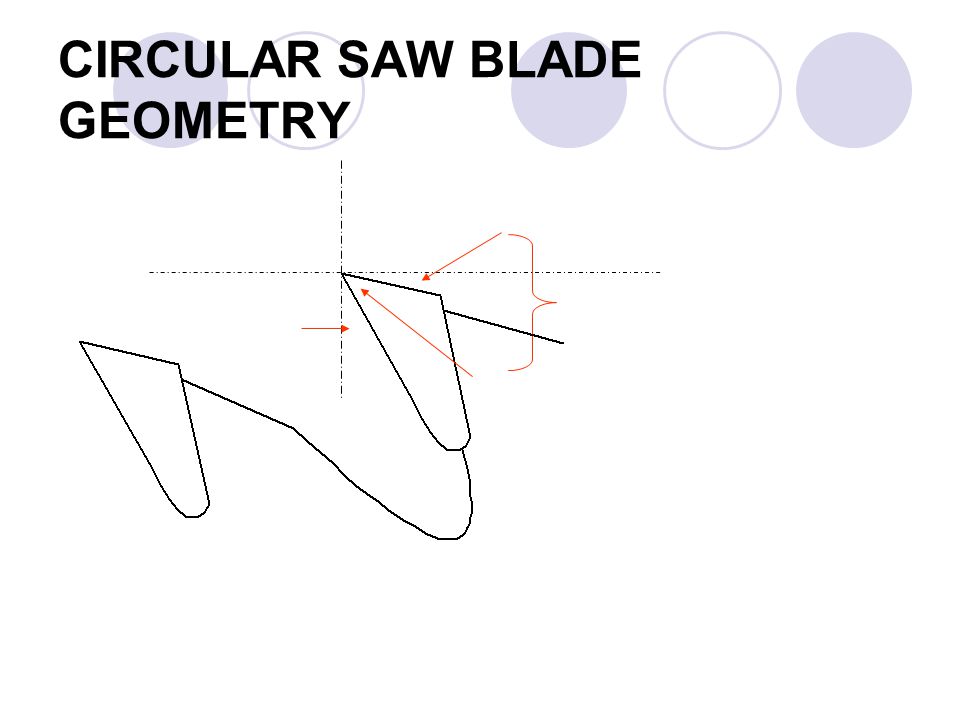

7 CIRCULAR SAW BLADE GEOMETRY

8

9 MACHINING WOOD IDEAL CUTTING ACTION

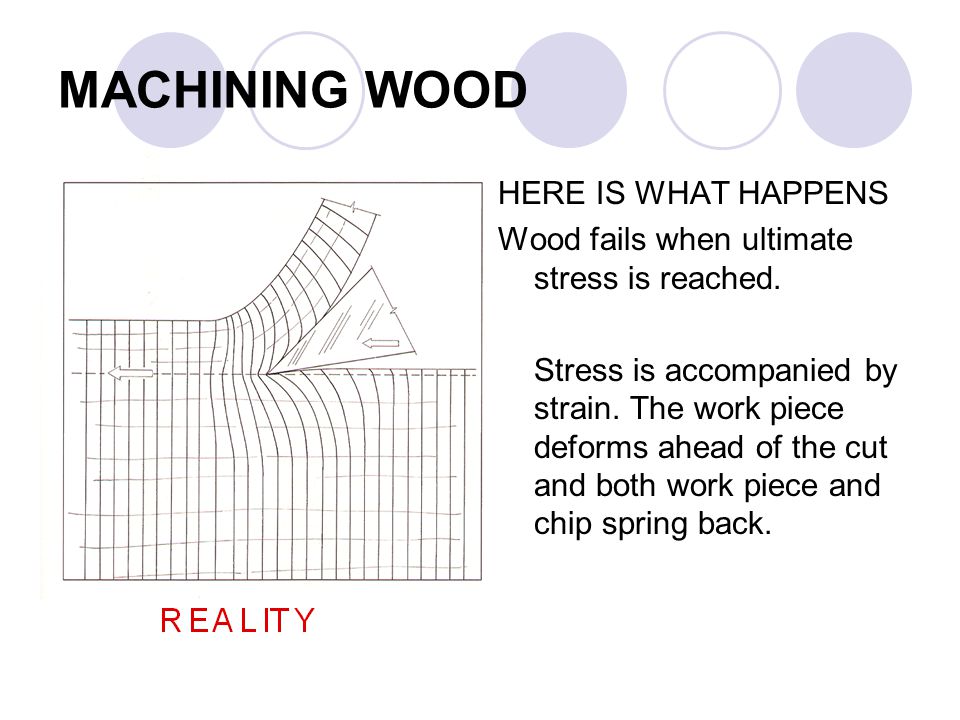

10 MACHINING WOOD HERE IS WHAT HAPPENS Wood fails when ultimate stress is reached. Stress is accompanied by strain. The work piece deforms ahead of the cut and both work piece and chip spring back.

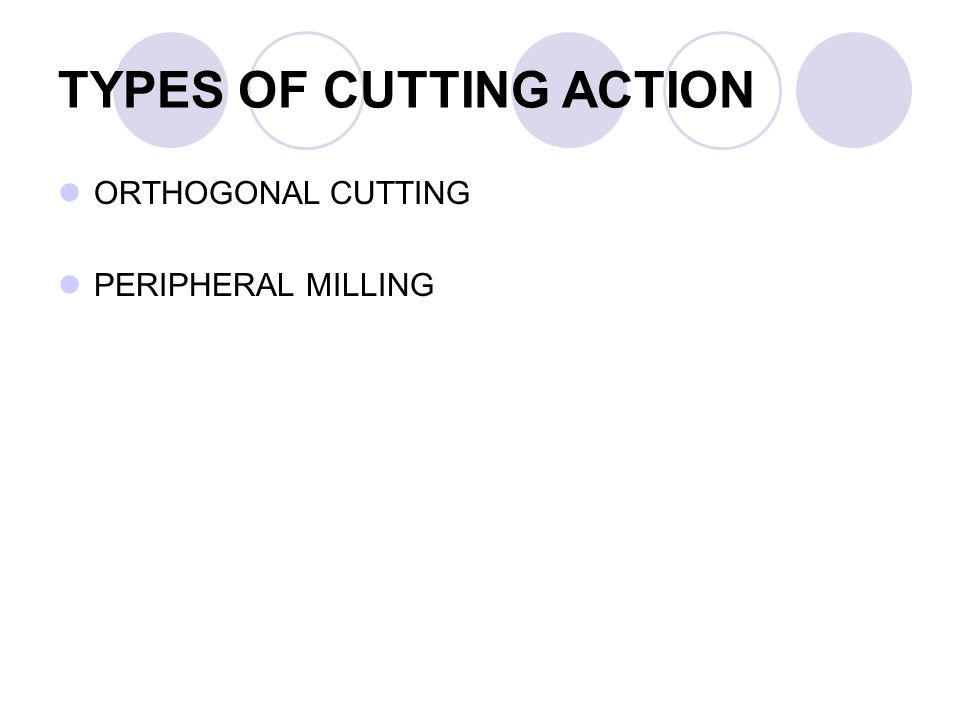

11 TYPES OF CUTTING ACTION ORTHOGONAL CUTTING PERIPHERAL MILLING

12 TYPES OF CUTTING ACTION 1.ORTHOGONAL CUTTING The tool edge is more or less perpendicular to its direction of travel The cut is parallel to the edge or surface of the board Examples: Pushing a hand plane across the surface of a work piece Using a cabinet scraper

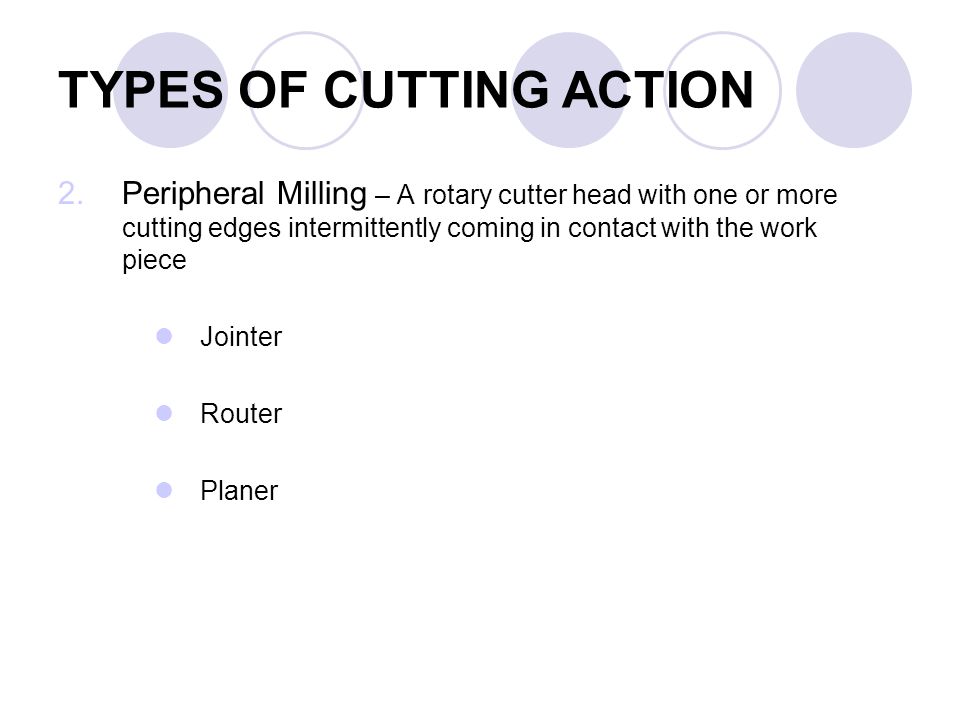

13 TYPES OF CUTTING ACTION 2.Peripheral Milling – A rotary cutter head with one or more cutting edges intermittently coming in contact with the work piece Jointer Router Planer

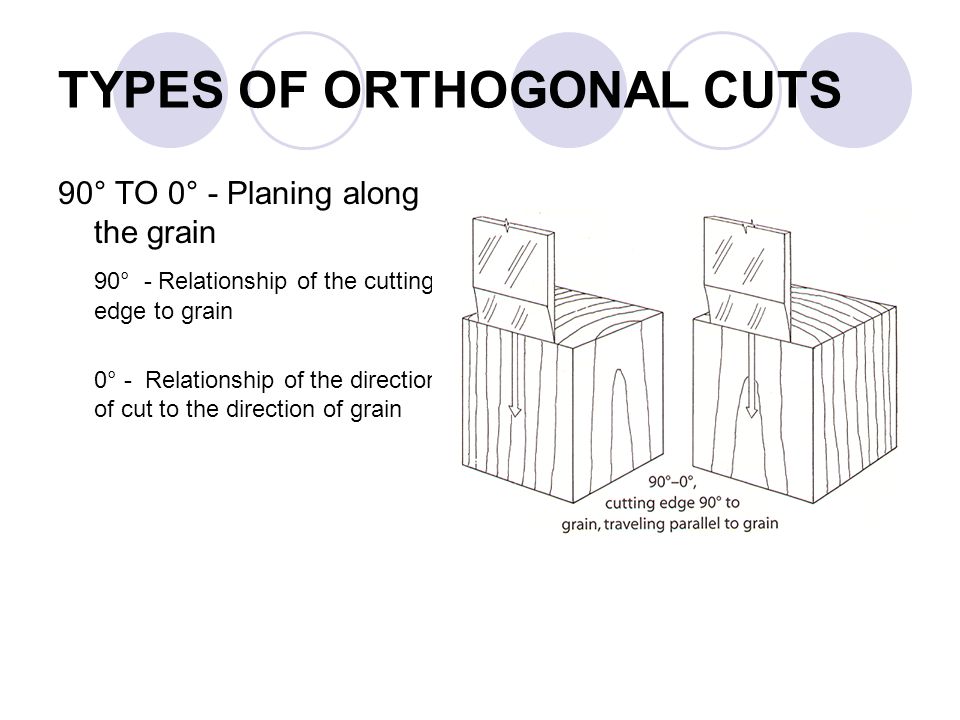

14 TYPES OF ORTHOGONAL CUTS 90° TO 0° - Planing along the grain 90° - Relationship of the cutting edge to grain 0° - Relationship of the direction of cut to the direction of grain

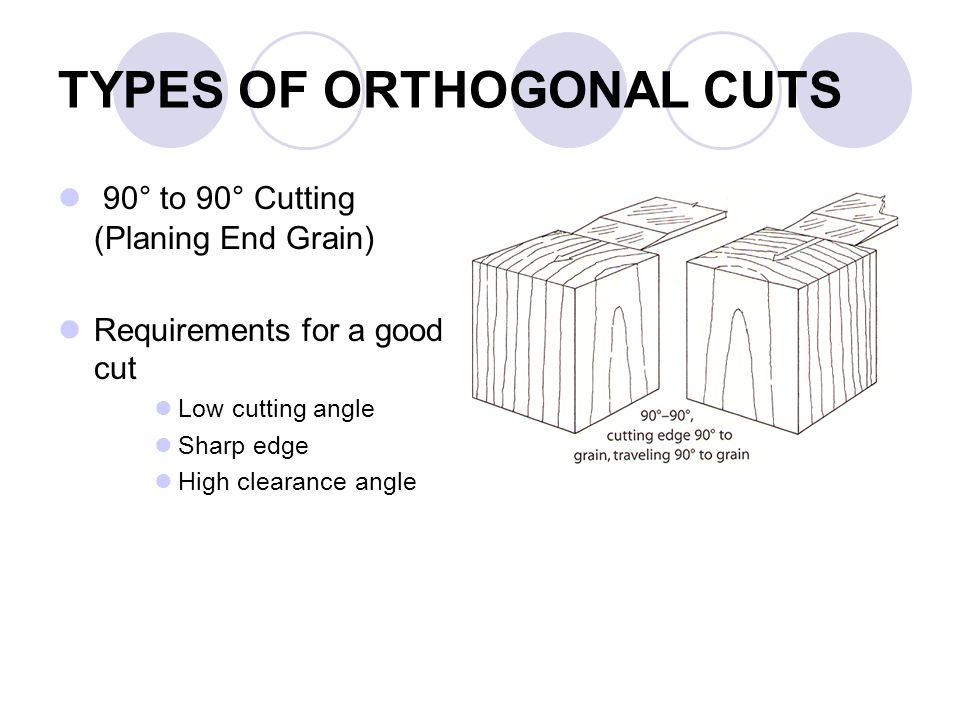

15 TYPES OF ORTHOGONAL CUTS 90° to 90° Cutting (Planing End Grain) Requirements for a good cut Low cutting angle Sharp edge High clearance angle

16 TYPES OF ORTHOGONAL CUTS A closer look at 90 to 90 cutting

17 TYPES OF ORTHOGONAL CUTS

18 The Effects of Skewing

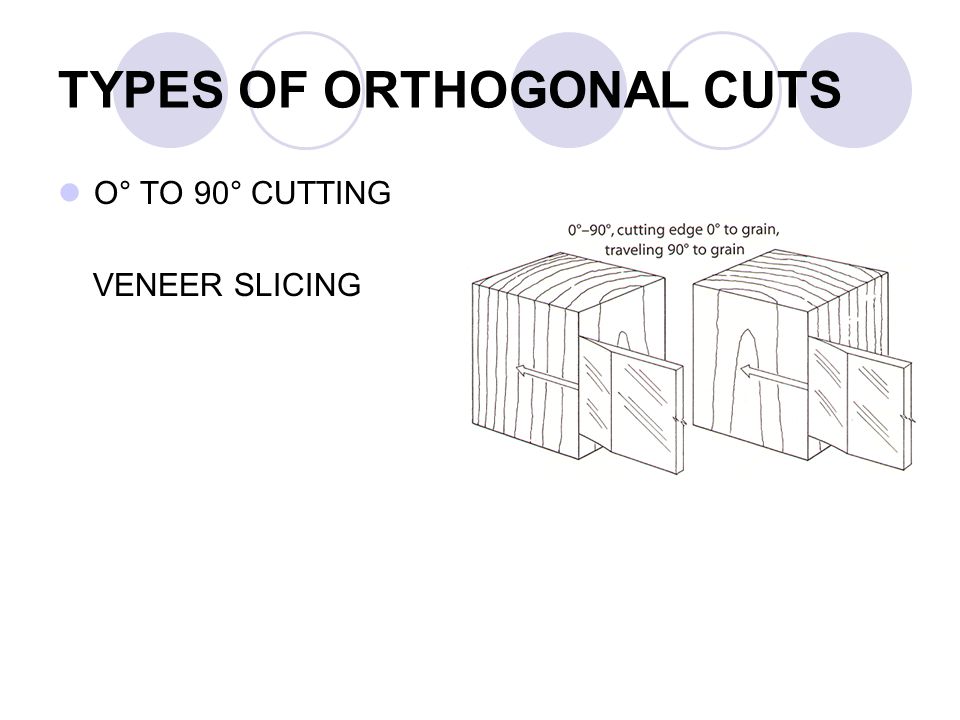

19 TYPES OF ORTHOGONAL CUTS O° TO 90° CUTTING VENEER SLICING

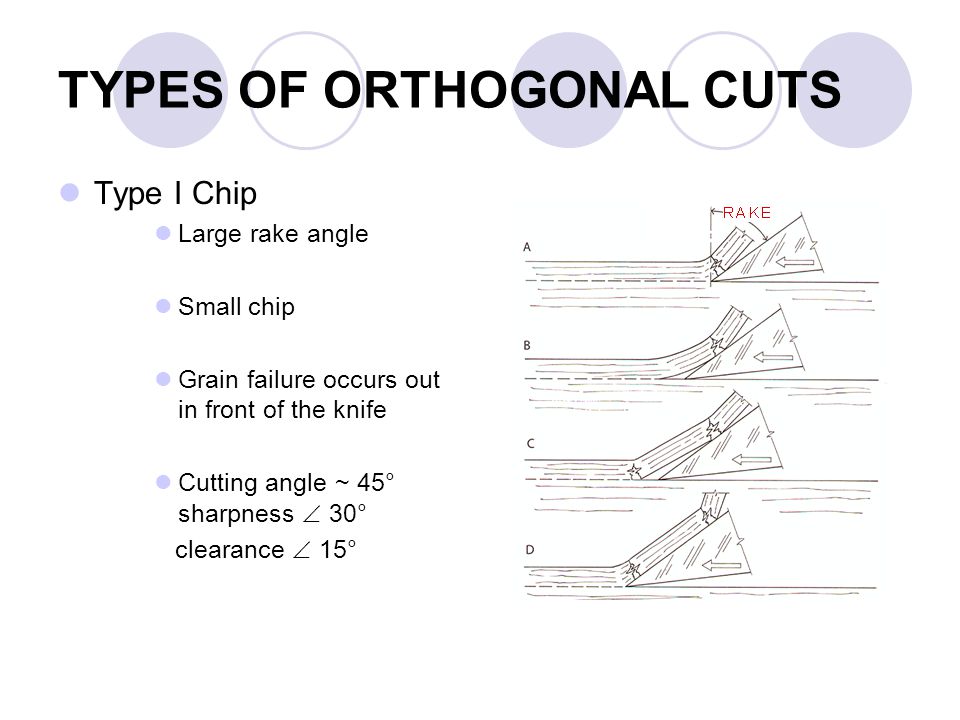

20 TYPES OF ORTHOGONAL CUTS Type I Chip Large rake angle Small chip Grain failure occurs out in front of the knife Cutting angle ~ 45° sharpness  30° clearance  15°

21 TYPES OF ORTHOGONAL CUTS Type II Chip Smaller rake angle Compression rather than upward lifting Failure occurs right at the cutting edge

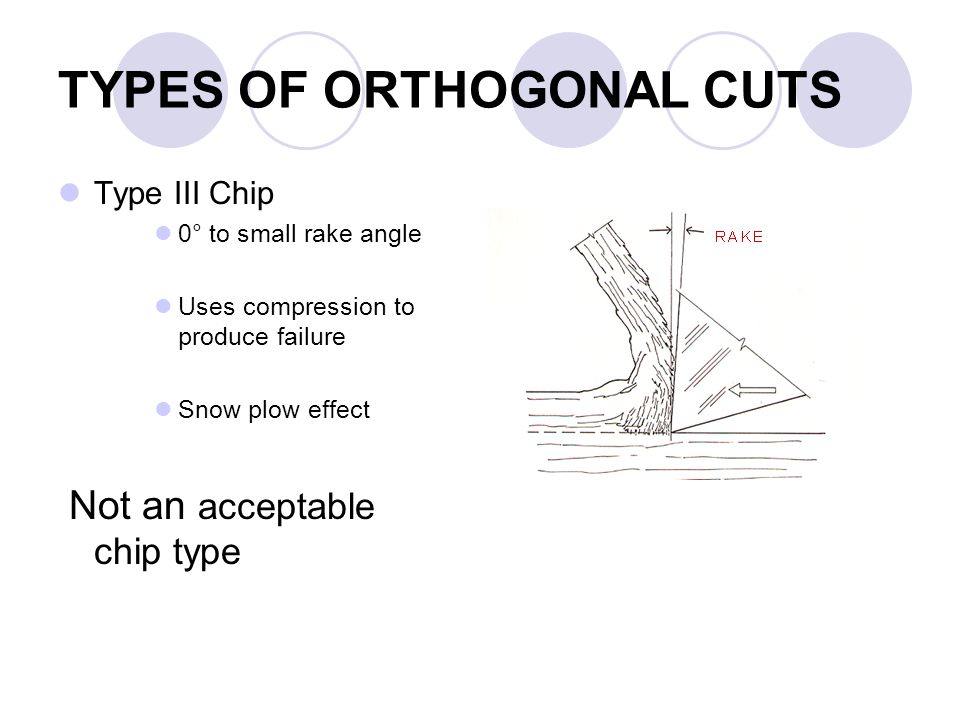

22 TYPES OF ORTHOGONAL CUTS Type III Chip 0° to small rake angle Uses compression to produce failure Snow plow effect Not an acceptable chip type

23 TYPES OF ORTHOGONAL CUTS CUTTING QUALITY

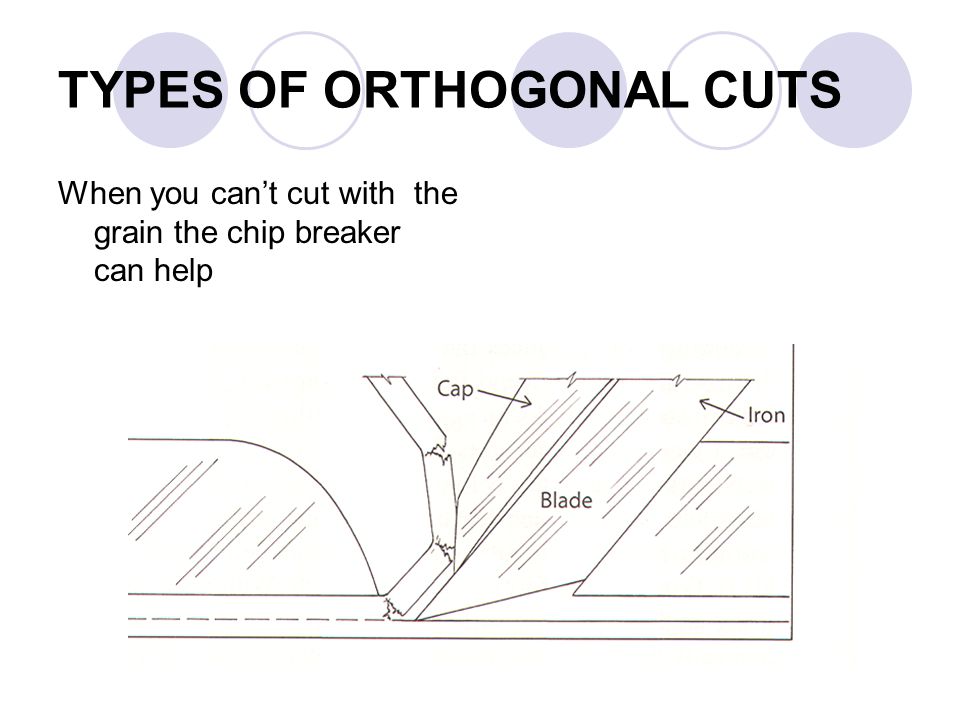

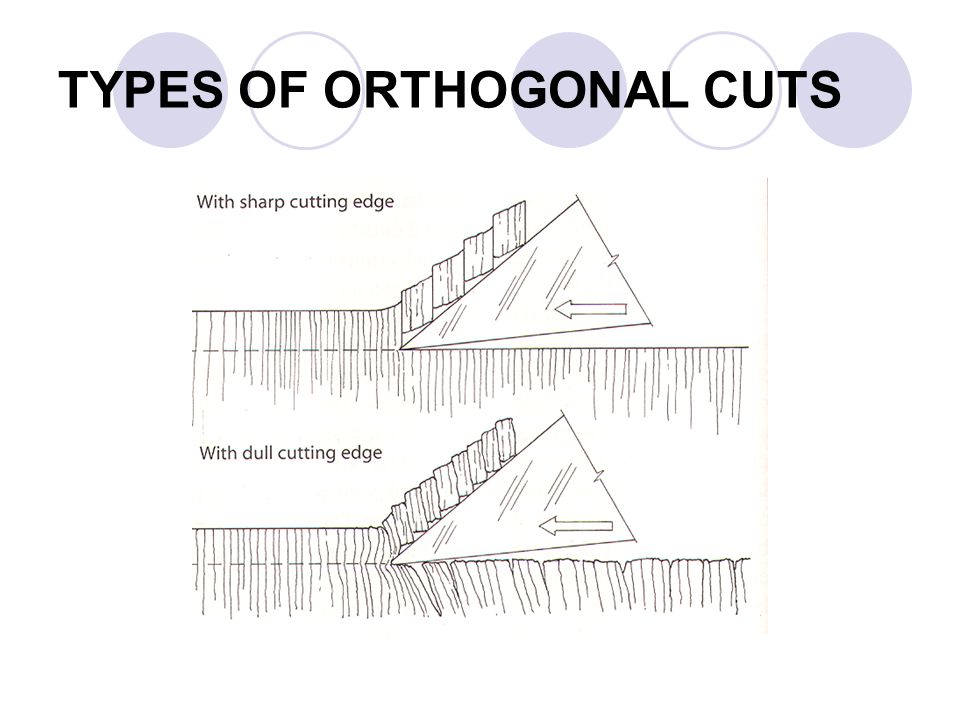

24 TYPES OF ORTHOGONAL CUTS When you can’t cut with the grain the chip breaker can help

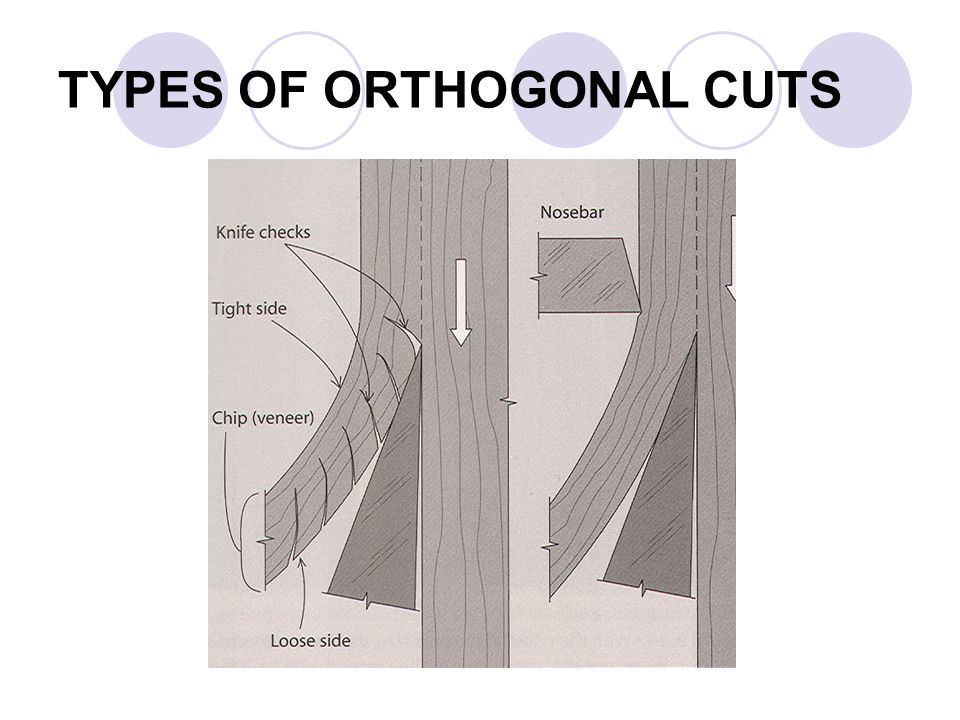

25 TYPES OF ORTHOGONAL CUTS

26

27 PERIPHERAL CUTTING Revolving cutterhead operating along an edge or face of a board Creates knife marks which should number between 12 and 25 per inch

28 PERIPHERAL CUTTING

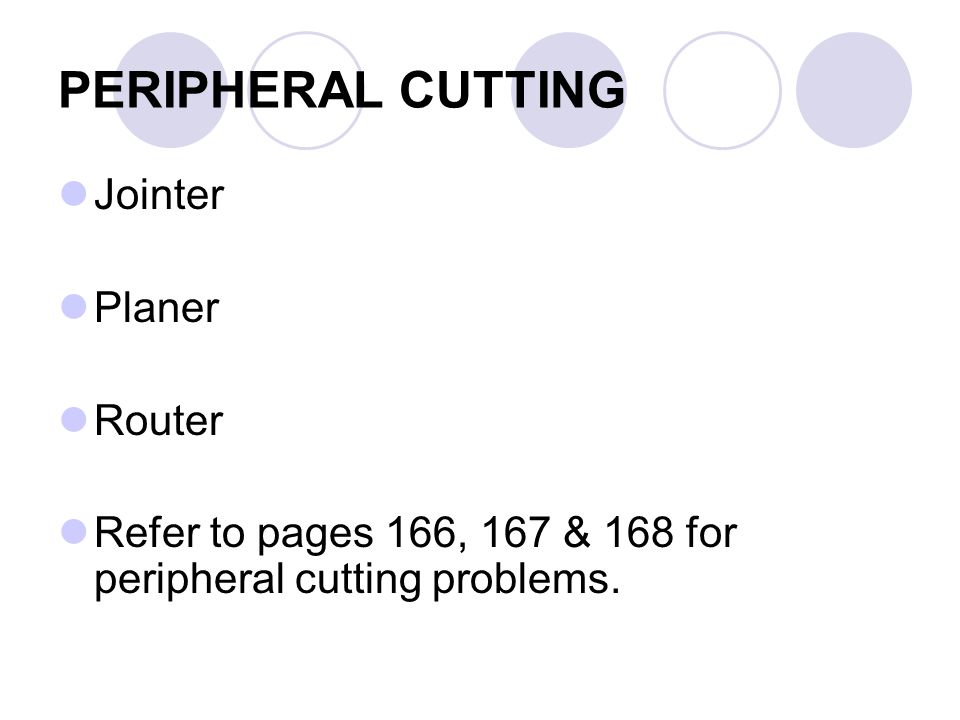

29 Jointer Planer Router Refer to pages 166, 167 & 168 for peripheral cutting problems.

30 MACHINING WOOD

31 The tools

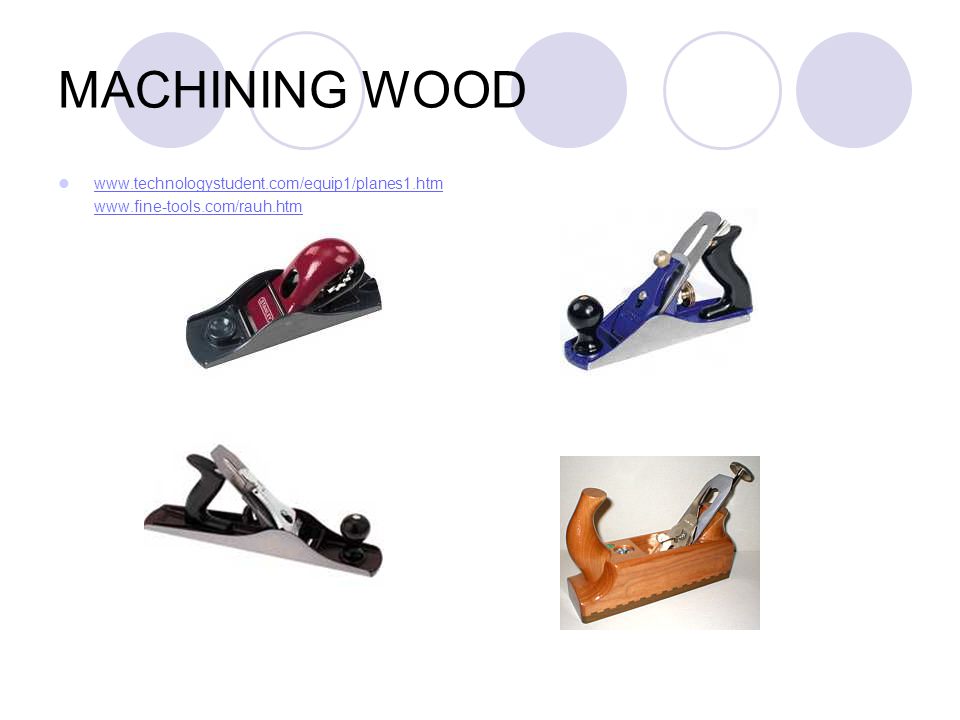

32 MACHINING WOOD

33 MACHINING WOOD

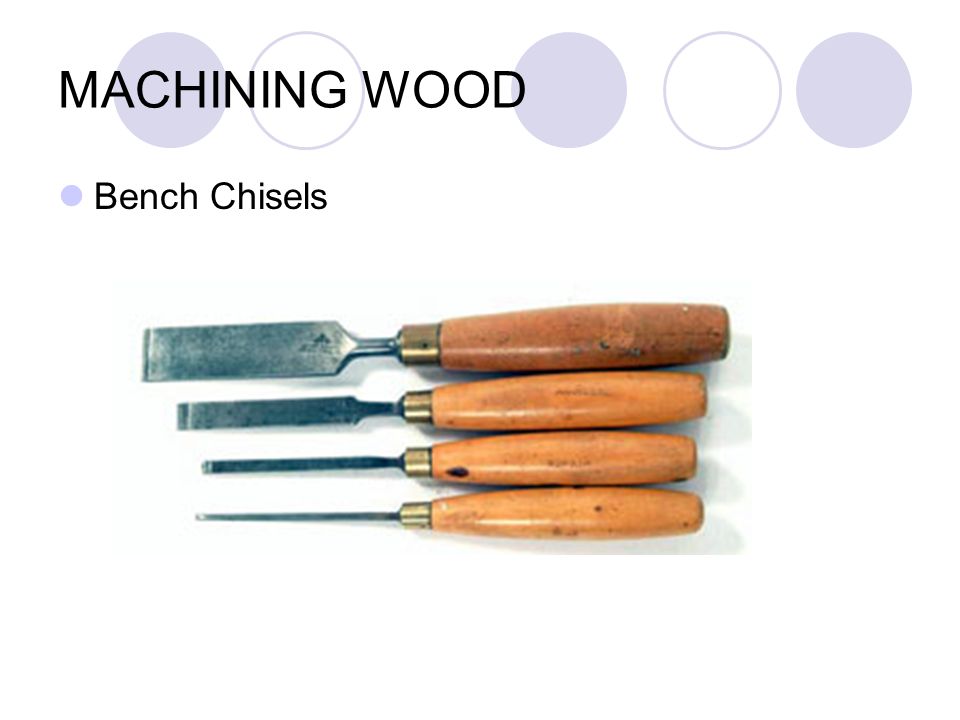

34 Bench Chisels

35 MACHINING WOOD Paring Chisel

36 MACHINING WOOD Cranked Paring Chisels

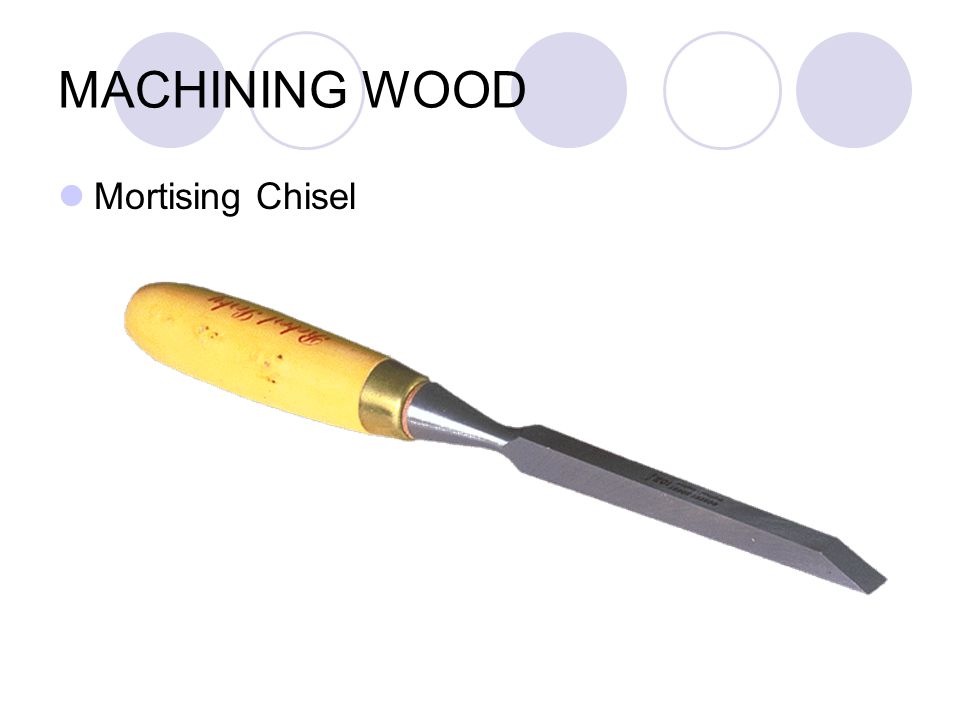

37 MACHINING WOOD Mortising Chisel

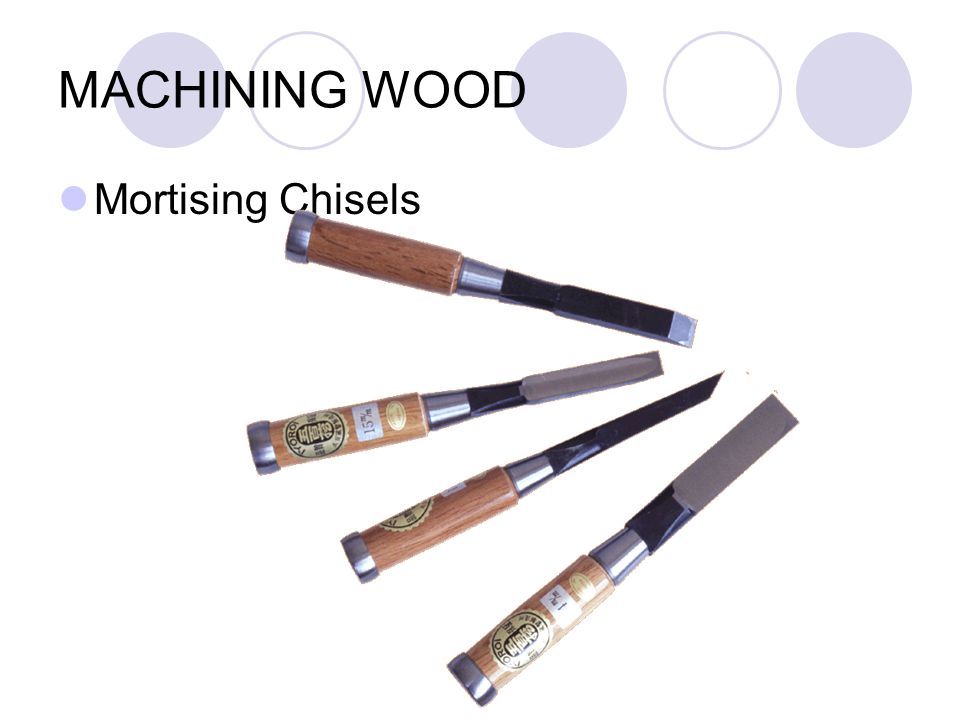

38 MACHINING WOOD Mortising Chisels

39 MACHINING WOOD SAW BLADES

40 MACHINING WOOD

41

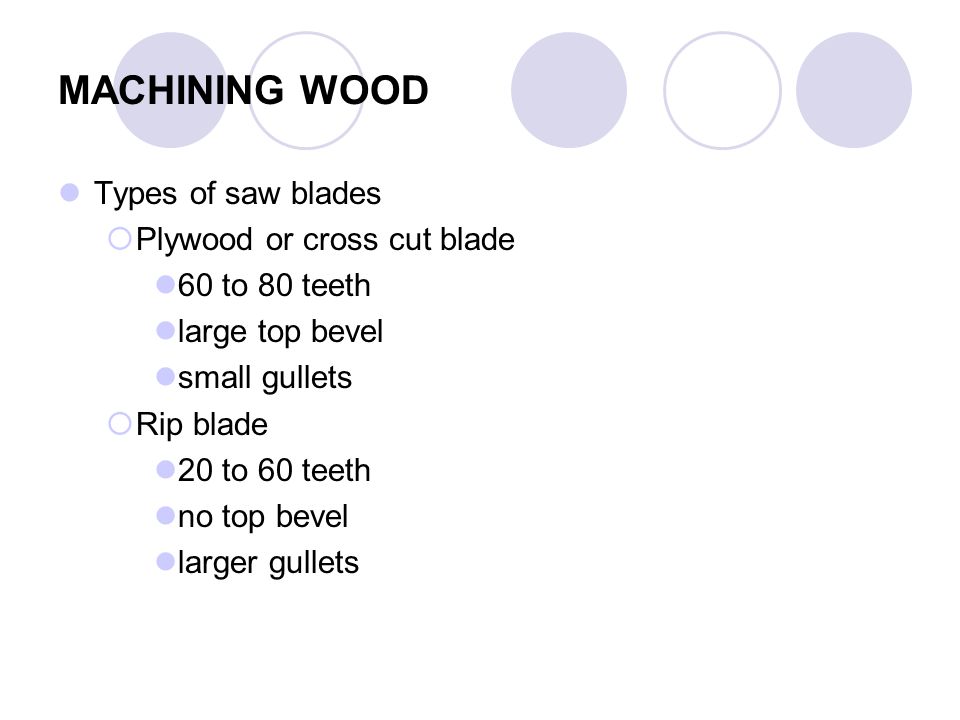

42 Types of saw blades  Plywood or cross cut blade 60 to 80 teeth large top bevel small gullets  Rip blade 20 to 60 teeth no top bevel larger gullets

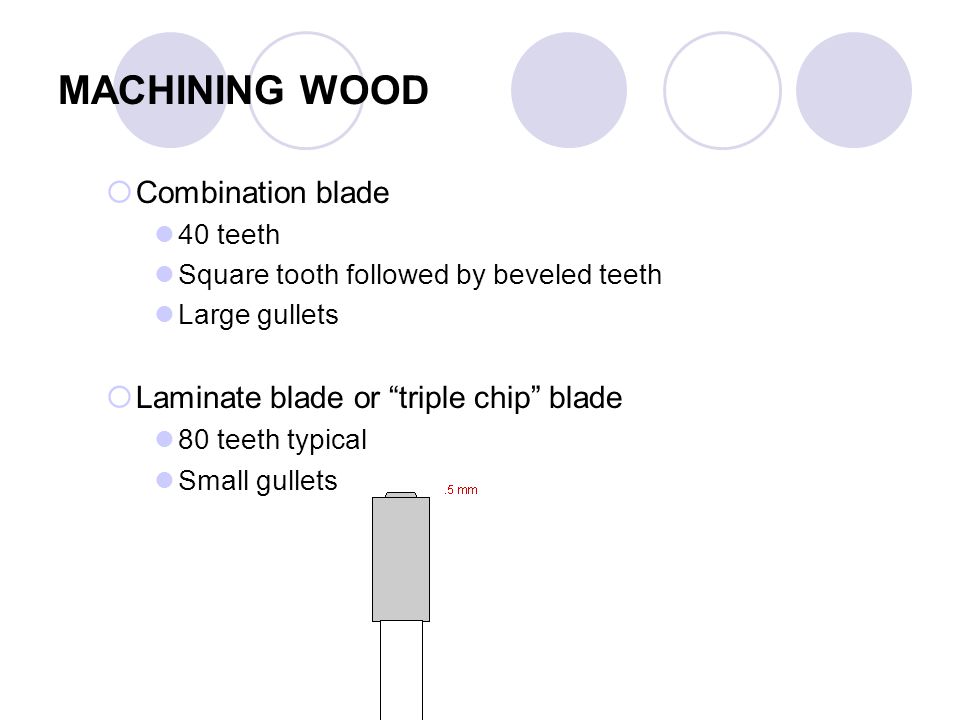

43 MACHINING WOOD  Combination blade 40 teeth Square tooth followed by beveled teeth Large gullets  Laminate blade or “triple chip” blade 80 teeth typical Small gullets

44 MACHINING WOOD Dado blades

45 MACHINING WOOD Cutter Heads

46 MACHINING WOOD Plywood Blade

47 MACHINING WOOD Forrest Blades Plywood/Laminate

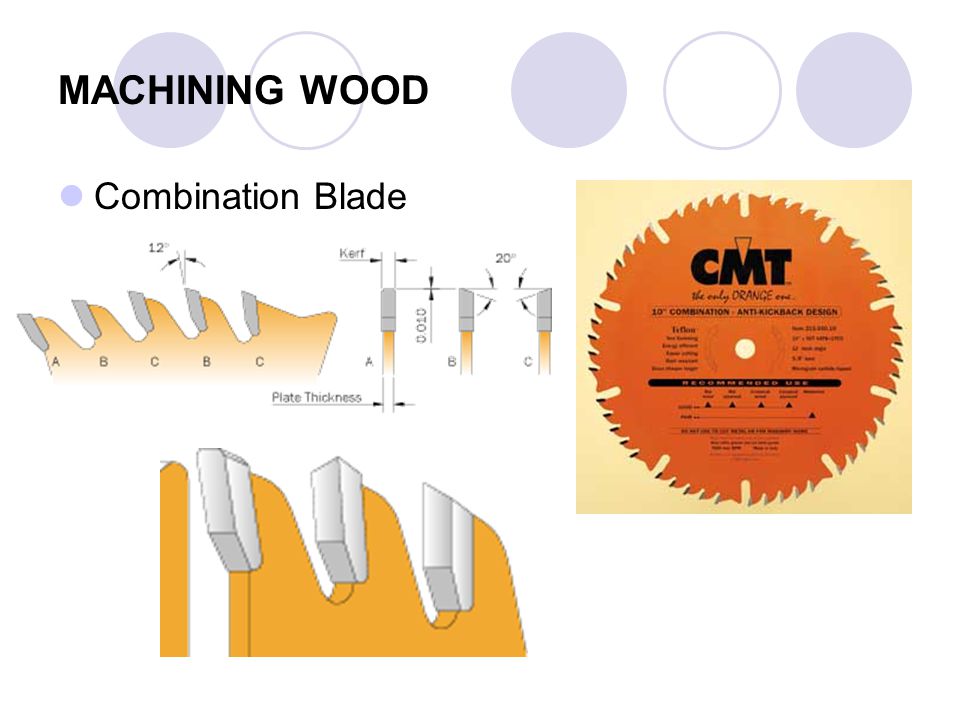

48 MACHINING WOOD Combination Blade

49 MACHINING WOOD Rip Blade

50 MACHINING WOOD Triple Chip
