Fundamentals of Anatomy & Physiology Frederic H. Martini Unit 2 Support and Movement Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings.

Similar presentations

Presentation on theme: "Fundamentals of Anatomy & Physiology Frederic H. Martini Unit 2 Support and Movement Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings."— Presentation transcript:

1 Fundamentals of Anatomy & Physiology Frederic H. Martini Unit 2 Support and Movement Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings PowerPoint ® Lecture Slides prepared by Professor Albia Dugger, Miami–Dade College, Miami, FL Professor Robert R. Speed, Ph.D., Wallace Community College, Dothan, AL

2 Chapter 7: The Axial Skeleton

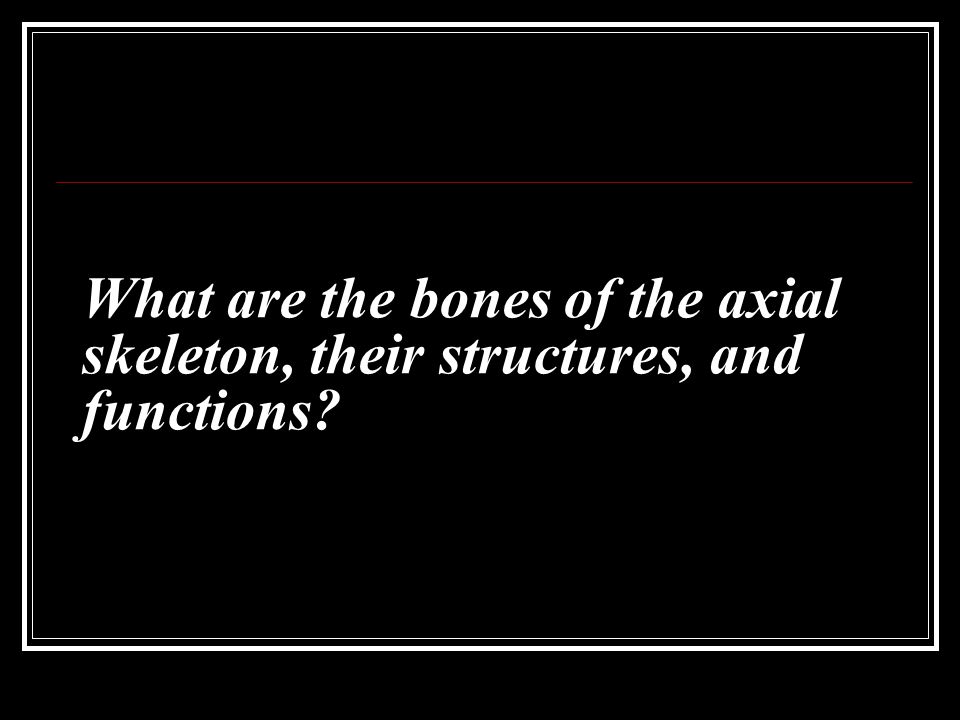

3 What are the bones of the axial skeleton, their structures, and functions?

4 Structures of Bones Articulations: contacts with other bones Marks: areas of muscle and ligament attachment Foraminae: openings for nerves and blood vessels

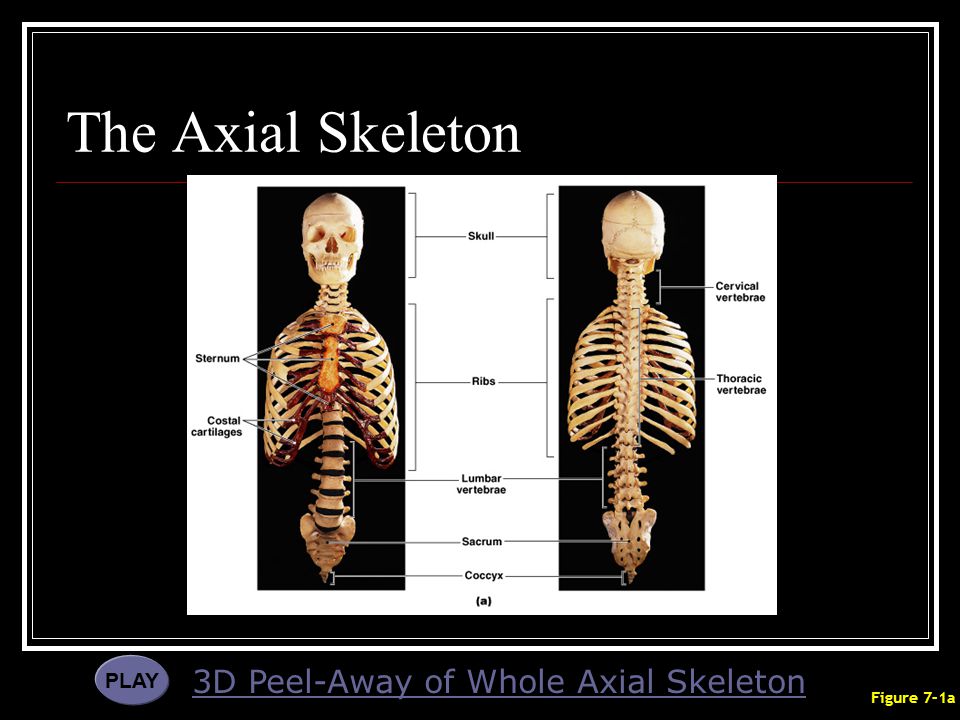

5 The Axial Skeleton 3D Peel-Away of Whole Axial Skeleton PLAY Figure 7–1a

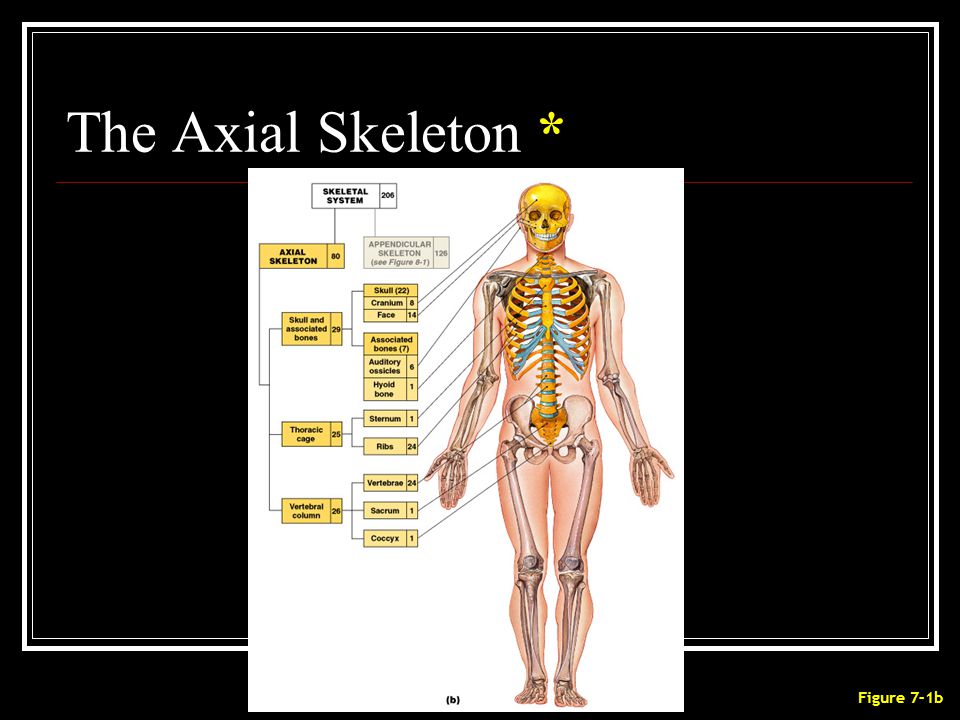

6 The Axial Skeleton * Figure 7–1b

7 The Axial Skeleton The axial skeleton: forms the longitudinal axis of the body has 80 bones

8 Bones of the Axial Skeleton The skull: 8 cranial bones 14 facial bones

9 Bones of the Axial Skeleton Bones associated with the skull: 6 auditory ossicles the hyoid bone

10 Bones of the Axial Skeleton The vertebral column: 24 vertebrae the sacrum the coccyx

11 Bones of the Axial Skeleton The thoracic cage: 24 ribs the sternum

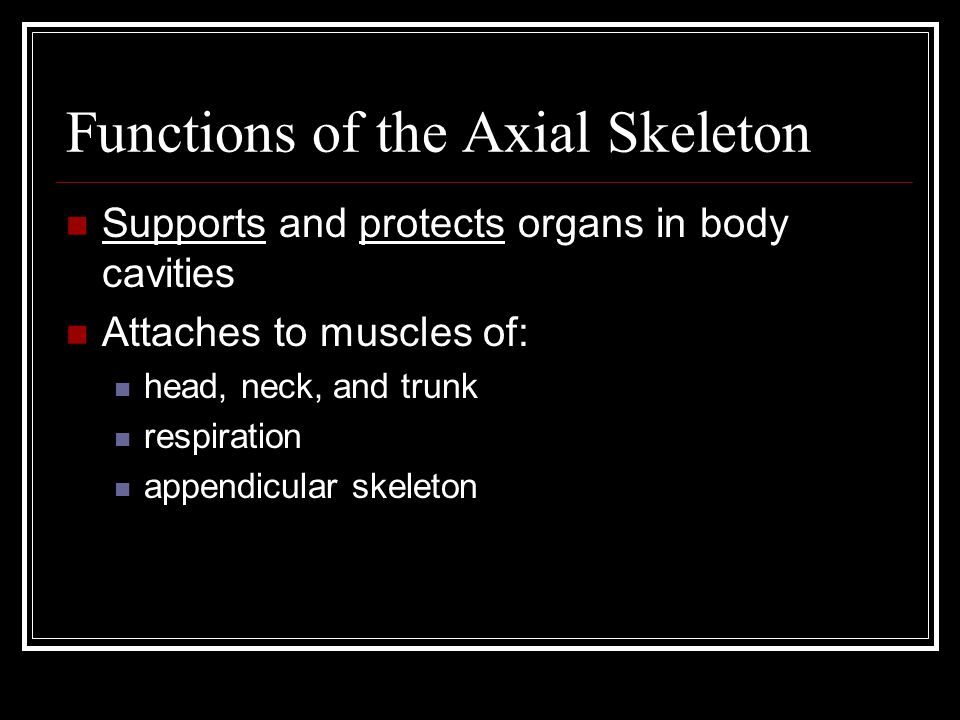

12 Functions of the Axial Skeleton Supports and protects organs in body cavities Attaches to muscles of: head, neck, and trunk respiration appendicular skeleton

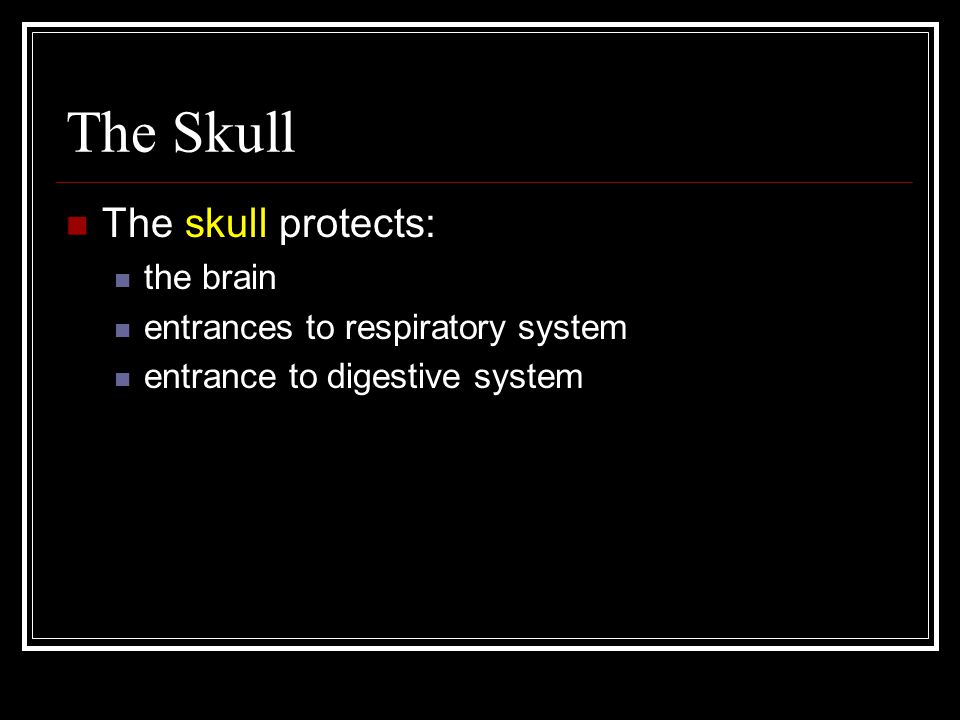

13 The Skull The skull protects: the brain entrances to respiratory system entrance to digestive system

14 The Skull PLAY The Adult Skull Figure 7–2

15 The Skull Has 22 bones: 8 cranial bones: form the braincase or cranium 14 facial bones: protect and support entrances to digestive and respiratory tracts

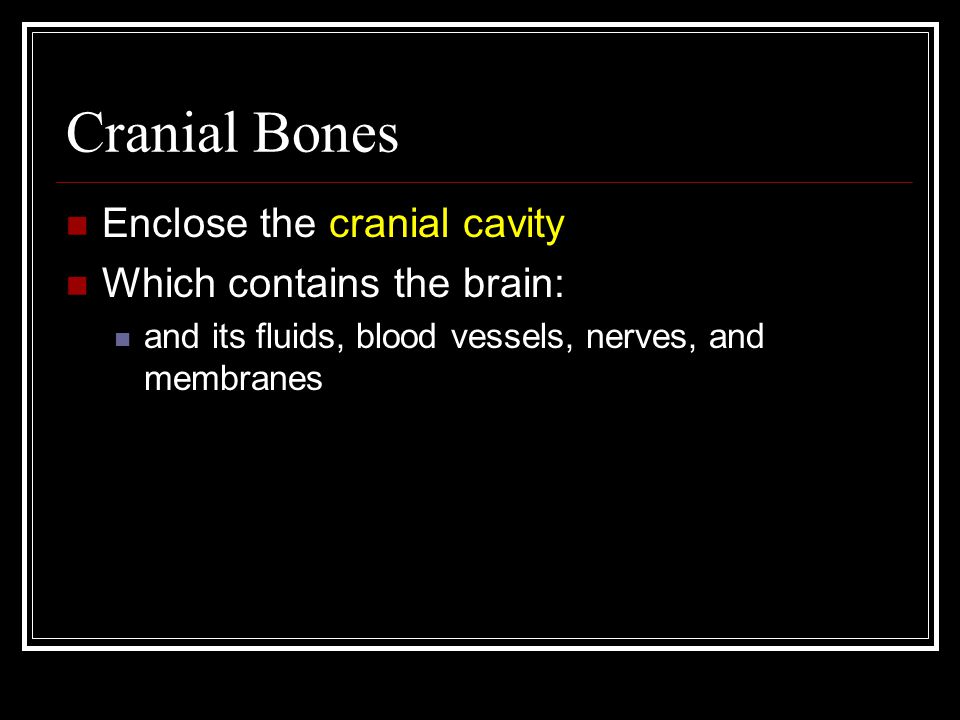

16 Cranial Bones Enclose the cranial cavity Which contains the brain: and its fluids, blood vessels, nerves, and membranes

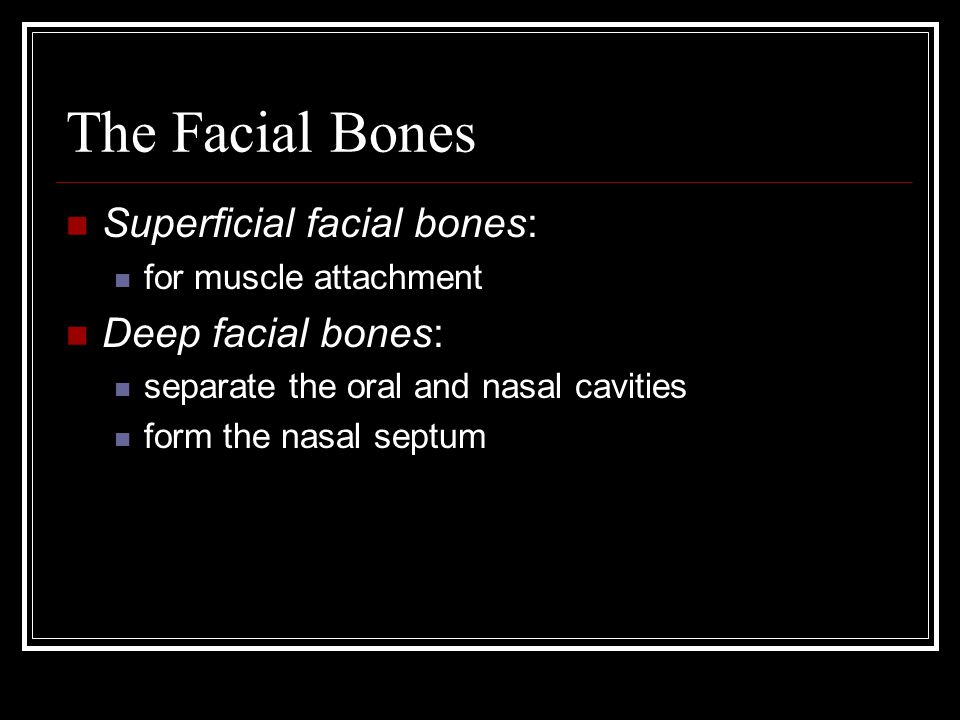

17 The Facial Bones Superficial facial bones: for muscle attachment Deep facial bones: separate the oral and nasal cavities form the nasal septum

18 Sinuses Cavities which decrease the weight of the skull: lined with mucus membranes protect the entrances of the respiratory system

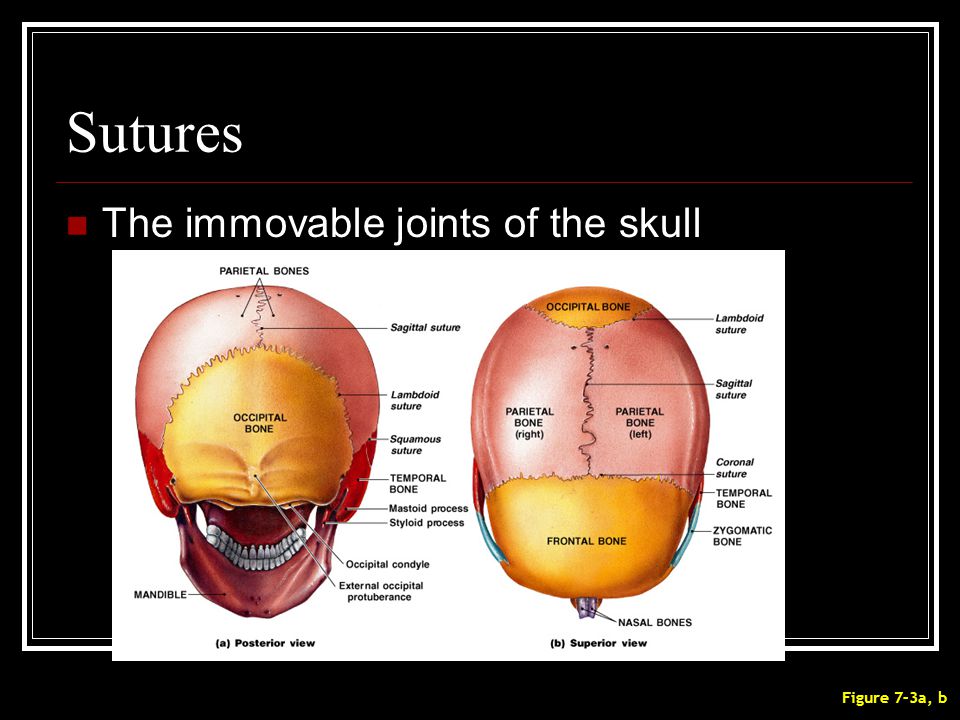

19 Sutures The immovable joints of the skull Figure 7–3a, b

20 Sutures Figure 7–3c

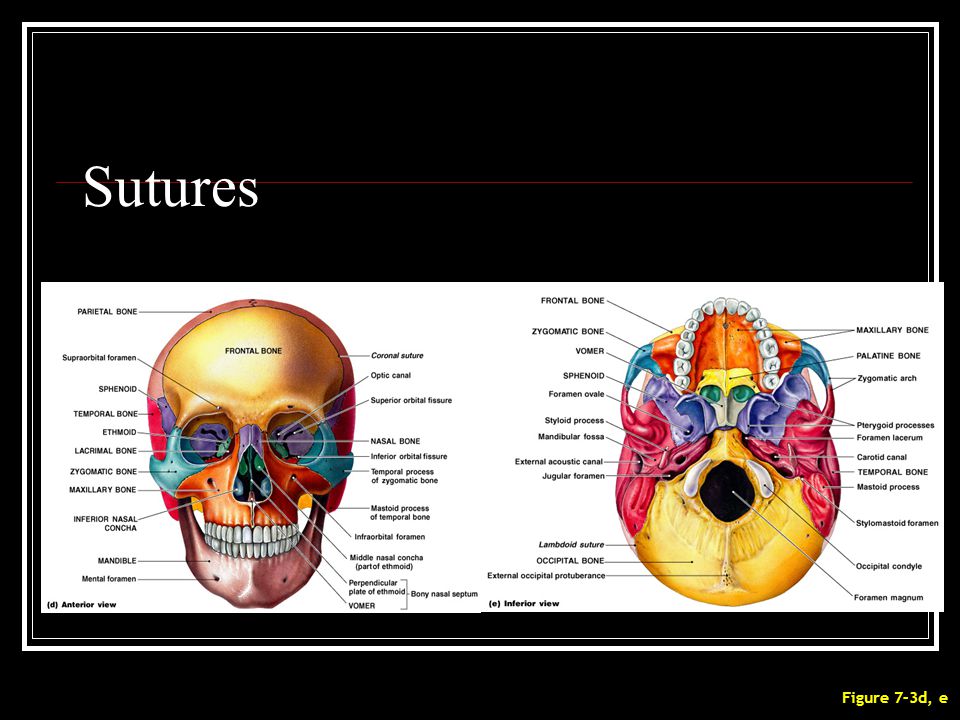

21 Sutures Figure 7–3d, e

22 The 4 Major Sutures 1. Lambdoid suture 2. Coronal suture 3. Sagittal suture 4. Squamous suture

23 Lambdoid Suture Separates occipital from parietal bones May contain sutural bones

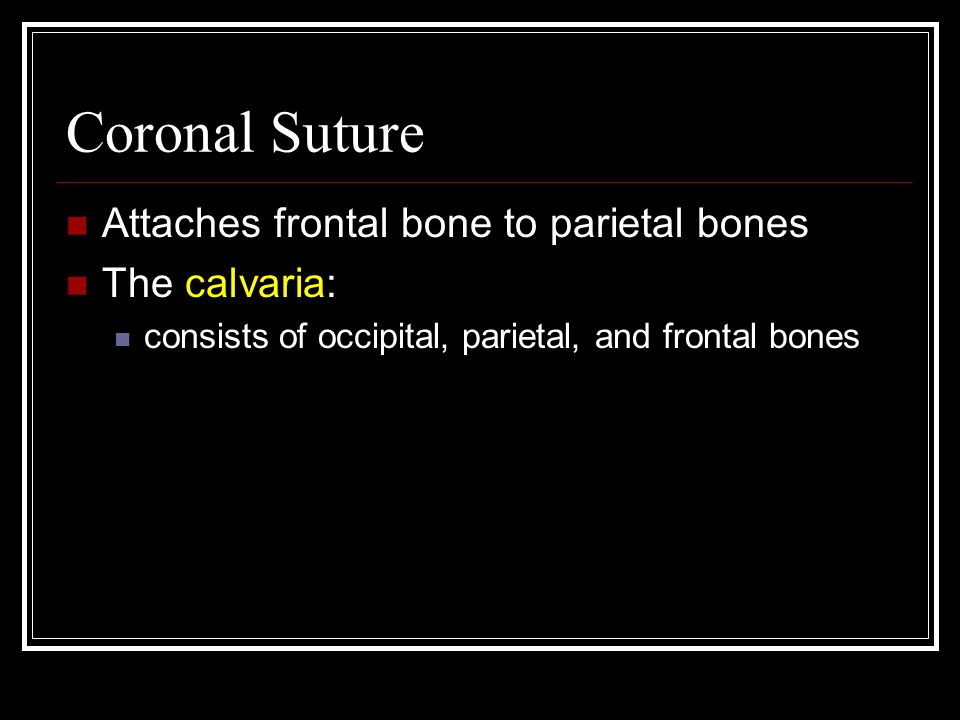

24 Coronal Suture Attaches frontal bone to parietal bones The calvaria: consists of occipital, parietal, and frontal bones

25 Sagittal Suture Between the parietal bones From lambdoid suture to coronal suture

26 Squamous Sutures Form boundaries between temporal bones and parietal bones

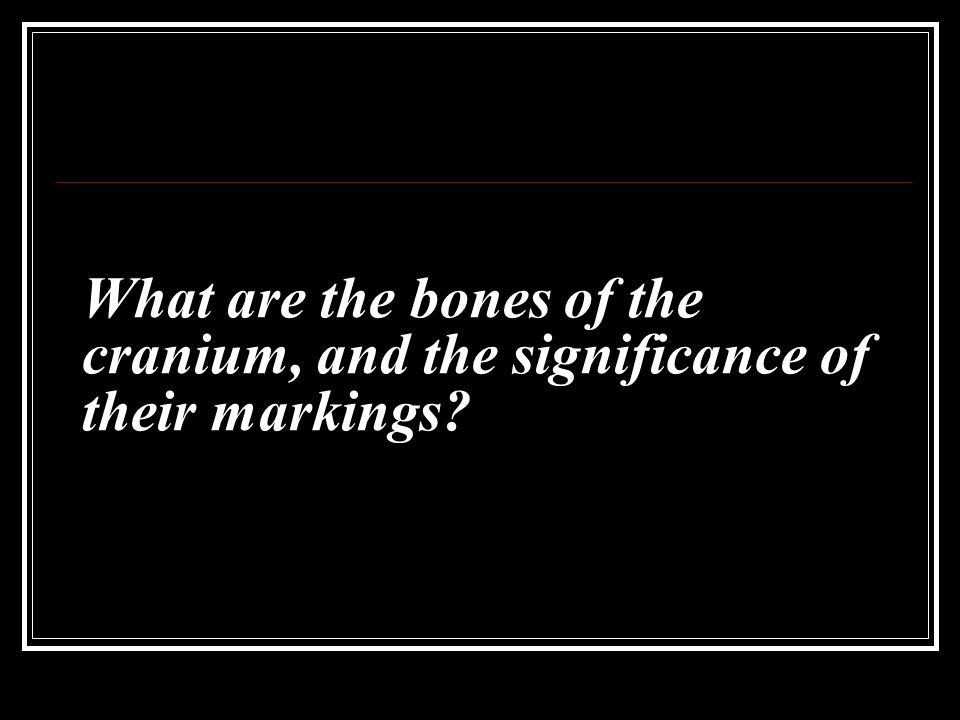

27 What are the bones of the cranium, and the significance of their markings?

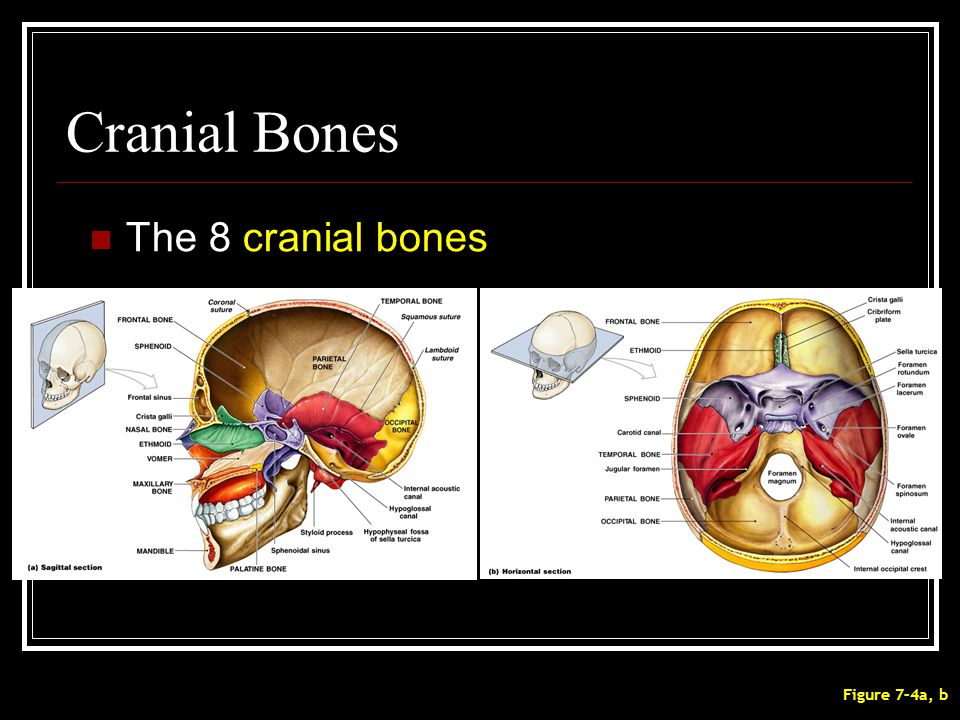

28 Cranial Bones The 8 cranial bones Figure 7–4a, b

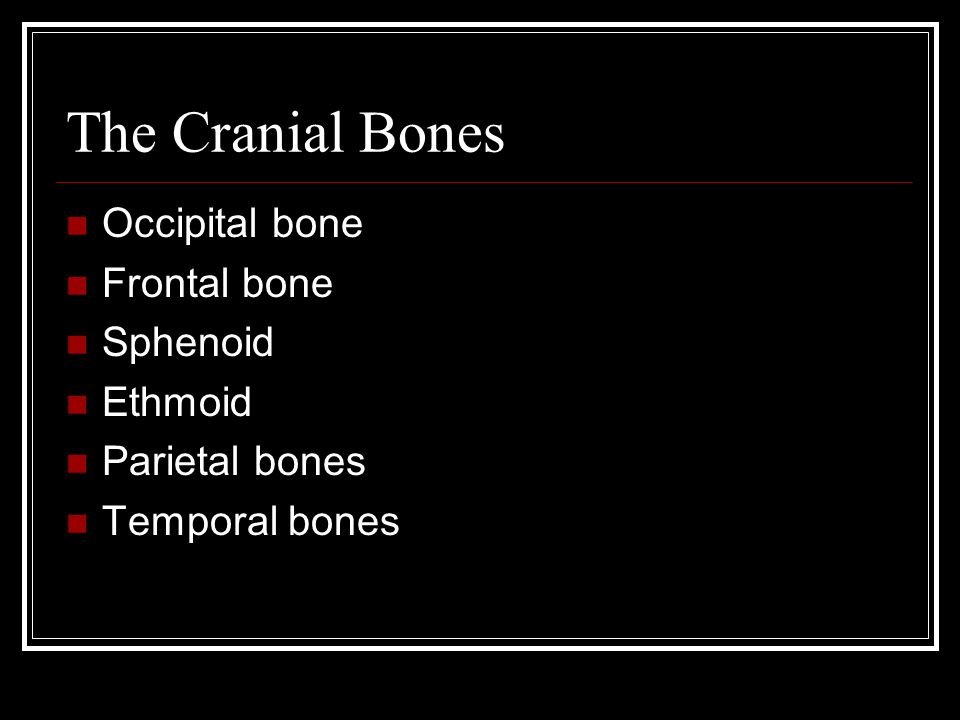

29 The Cranial Bones Occipital bone Frontal bone Sphenoid Ethmoid Parietal bones Temporal bones

30 The Occipital Bone Figure 7–5a

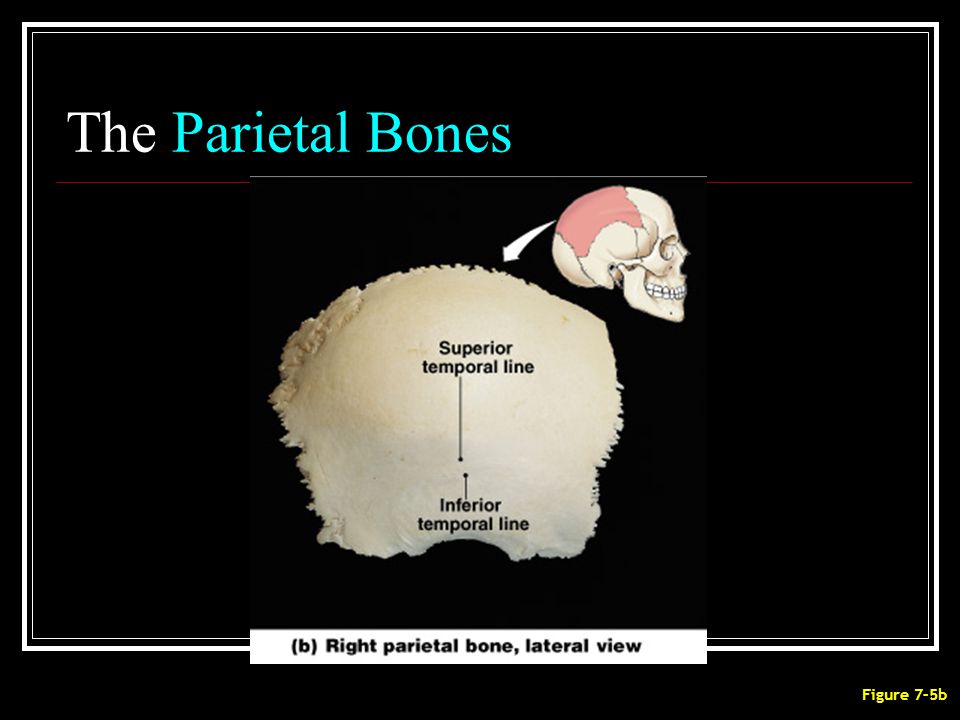

31 The Parietal Bones Figure 7–5b

32 The Frontal Bone Figure 7–6

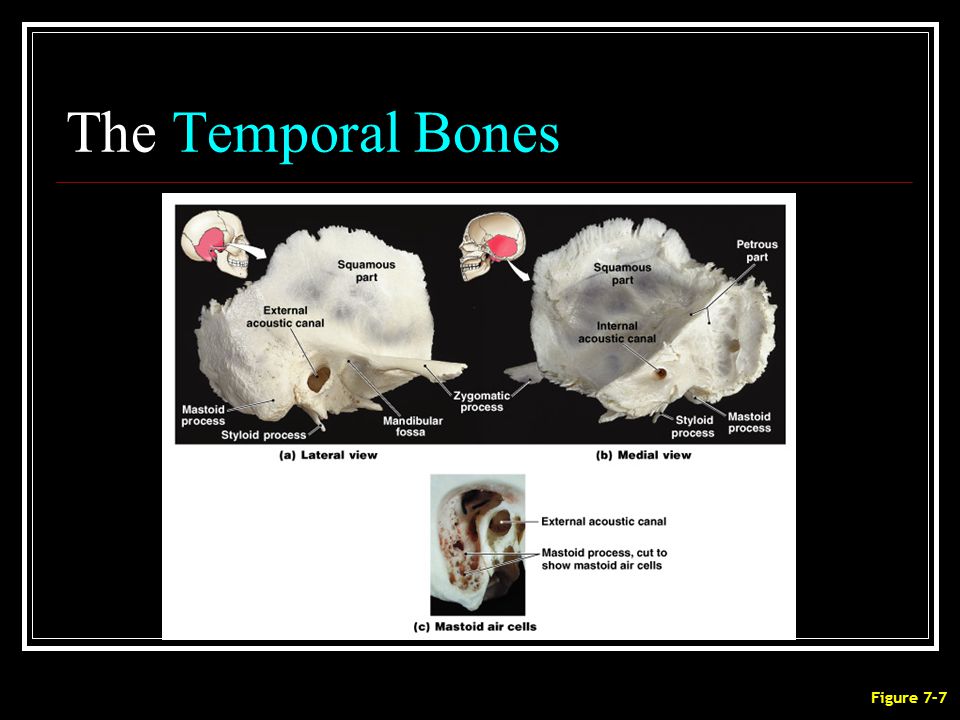

33 The Temporal Bones Figure 7–7

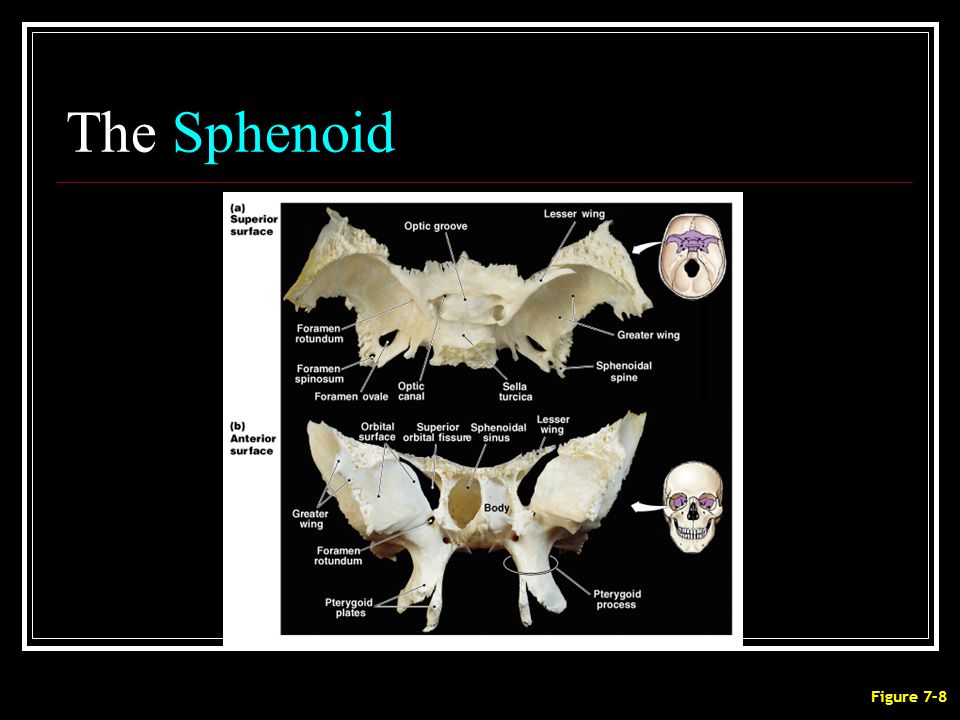

34 The Sphenoid Figure 7–8

35 The Ethmoid Figure 7–9

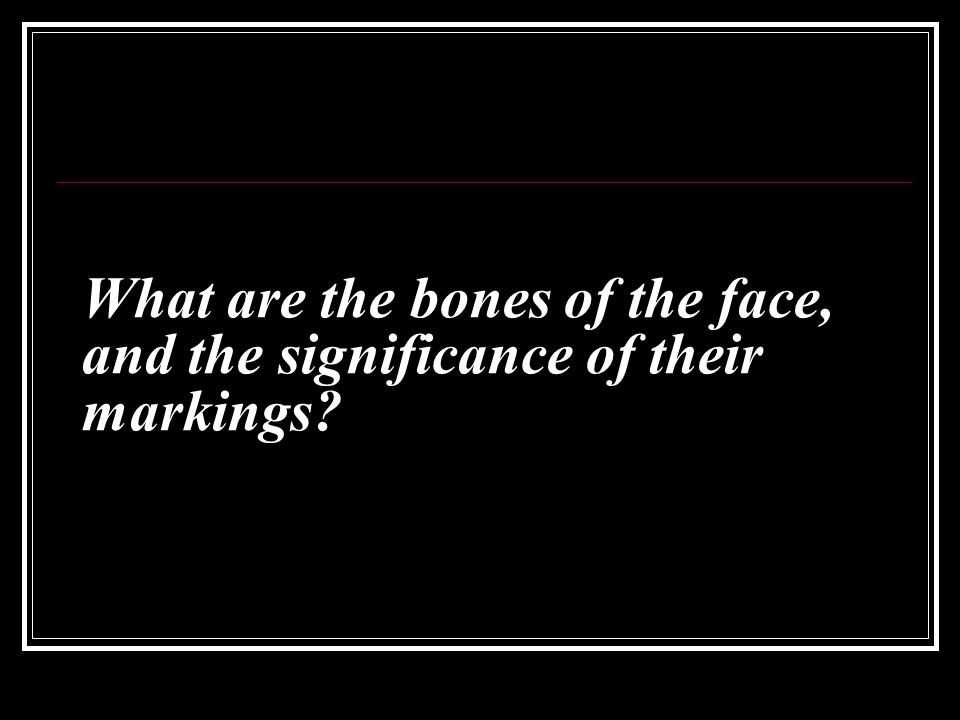

36 What are the bones of the face, and the significance of their markings?

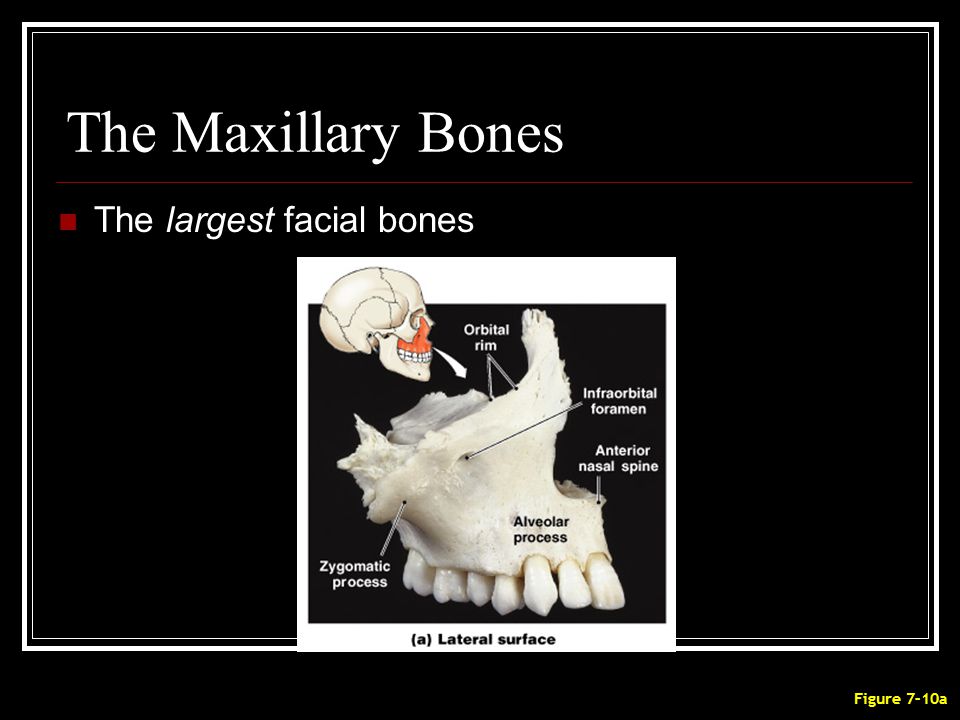

37 The Maxillary Bones The largest facial bones Figure 7–10a

38 The Palatine Bones Figure 7–10b,c

39 What are the structures and functions of the nasal complex?

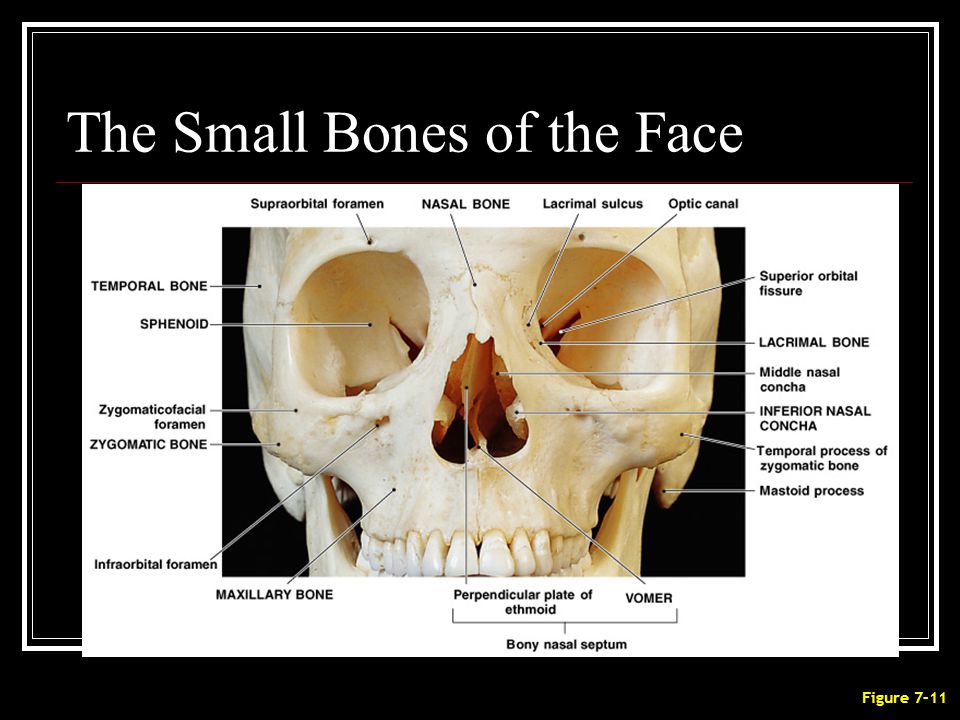

40 The Small Bones of the Face Figure 7–11

41 Functions of the Inferior Nasal Conchae To create air turbulence in the nasal cavity To increase the epithelial surface area To warm and humidify inhaled air

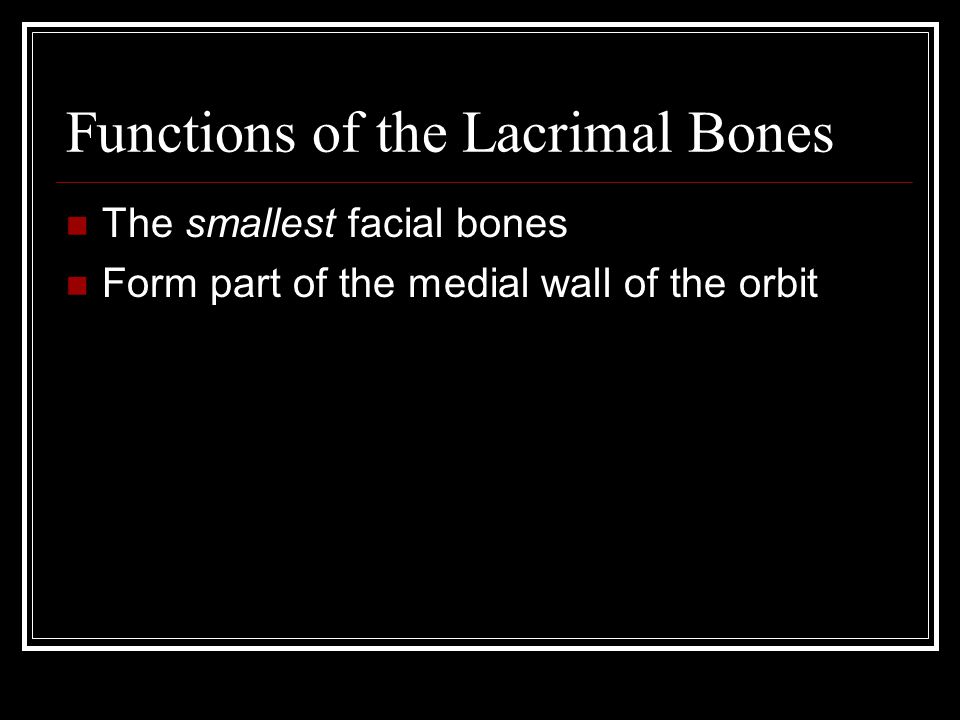

42 Functions of the Lacrimal Bones The smallest facial bones Form part of the medial wall of the orbit

43 The Mandible Figure 7–12a,b

44 The Hyoid Bone Figure 7–12c

45 Functions of the Hyoid Bone Supports the larynx Attaches muscles of the larynx, pharynx, and tongue

46 The Orbital Complex Portions of 7 cranial and facial bones Figure 7–13

47 The Orbital Complex Forms the eye sockets (orbits): frontal bone (roof) maxillary bone (floor) maxillary, lacrimal and ethmoid bones (orbital rim and medial wall) sphenoid and palatine bones

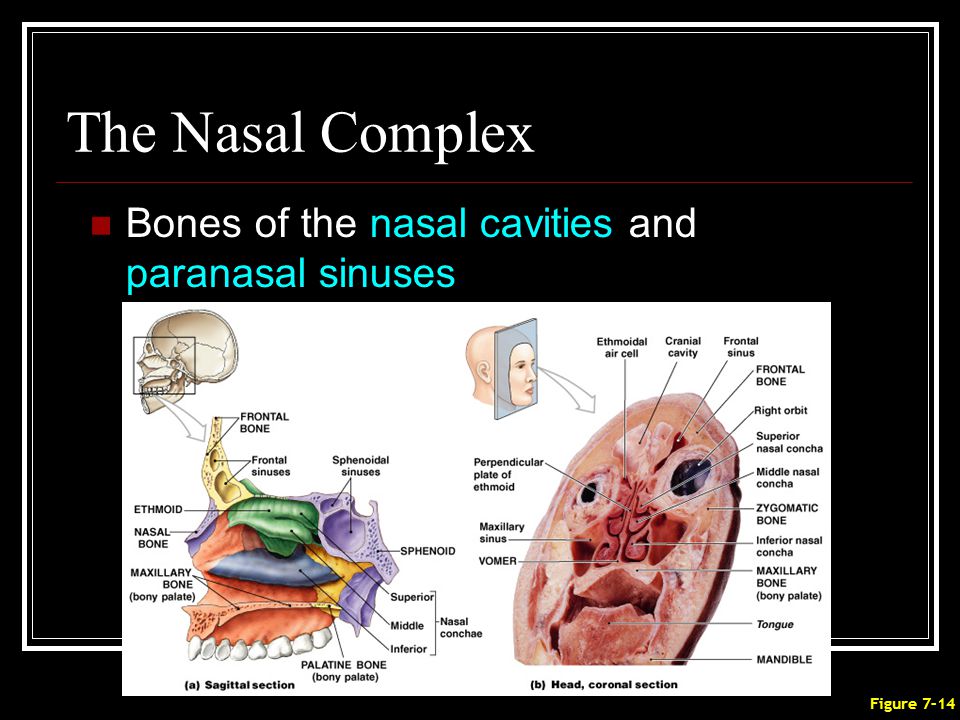

48 The Nasal Complex Bones of the nasal cavities and paranasal sinuses Figure 7–14

49 What are the functions of paranasal sinuses?

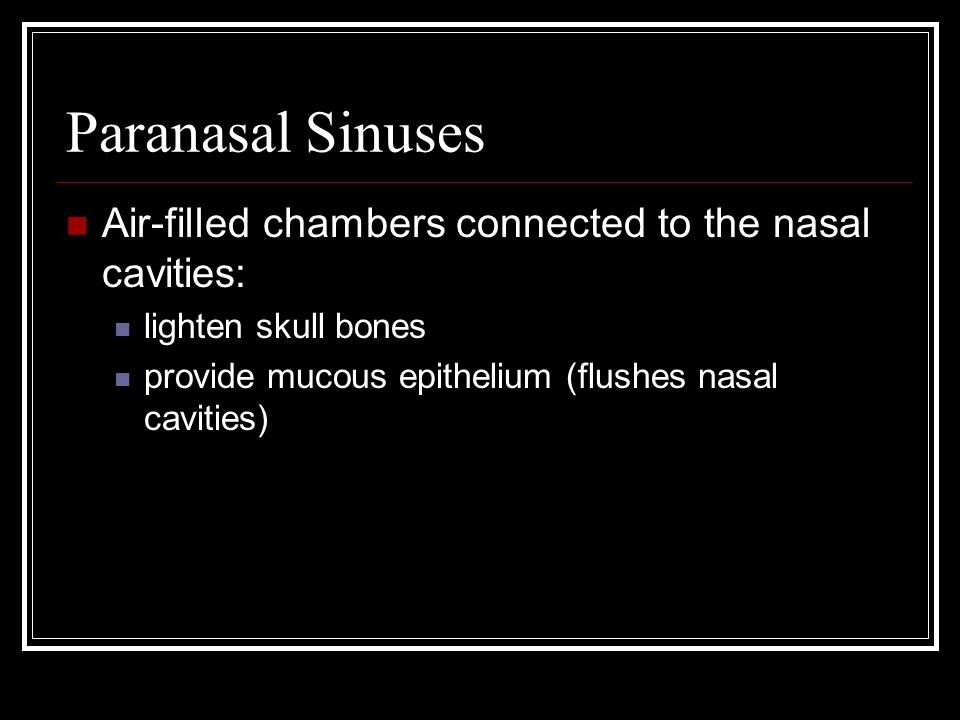

50 Paranasal Sinuses Air-filled chambers connected to the nasal cavities: lighten skull bones provide mucous epithelium (flushes nasal cavities)

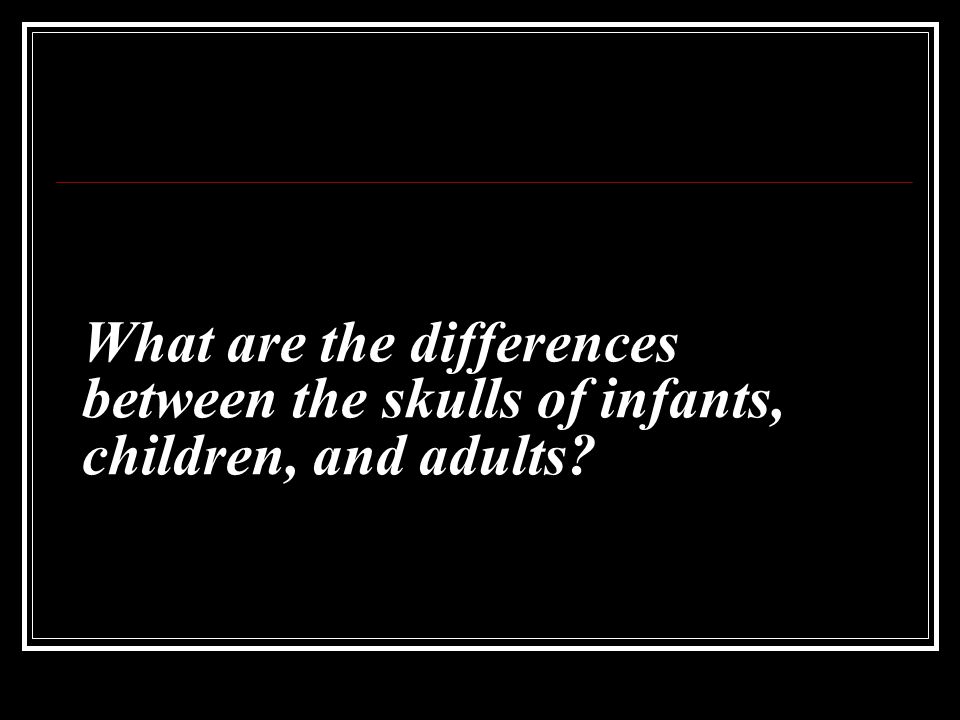

51 What are the differences between the skulls of infants, children, and adults?

52 The Infant Skull Figure 7–15

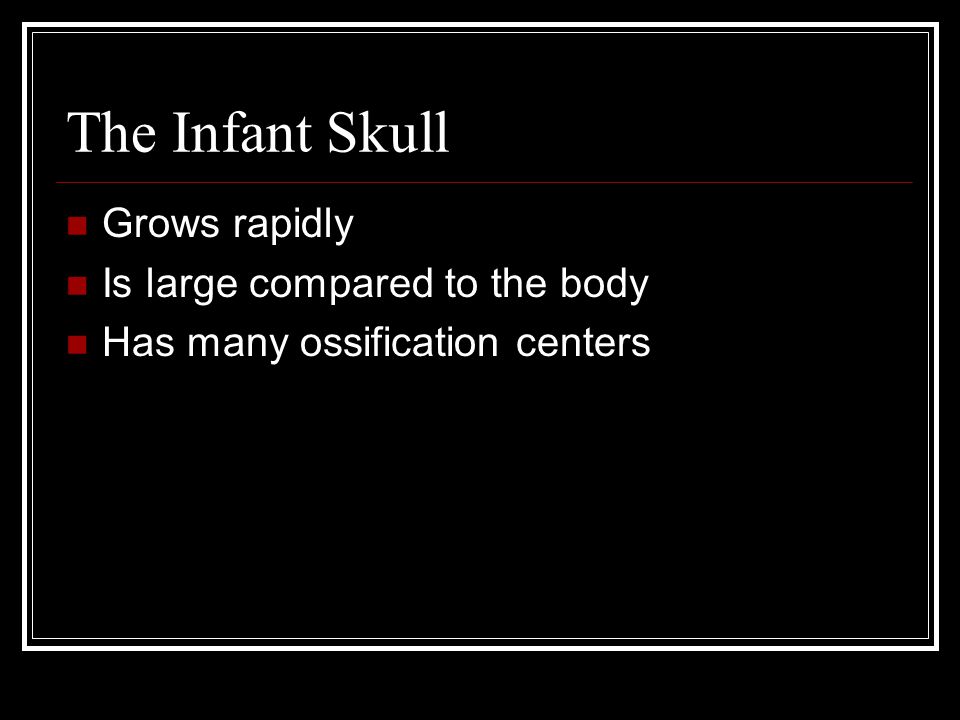

53 The Infant Skull Grows rapidly Is large compared to the body Has many ossification centers

54 The Infant Skull Fusion is not complete at birth: 2 frontal bones 4 occipital bones several sphenoid and temporal elements

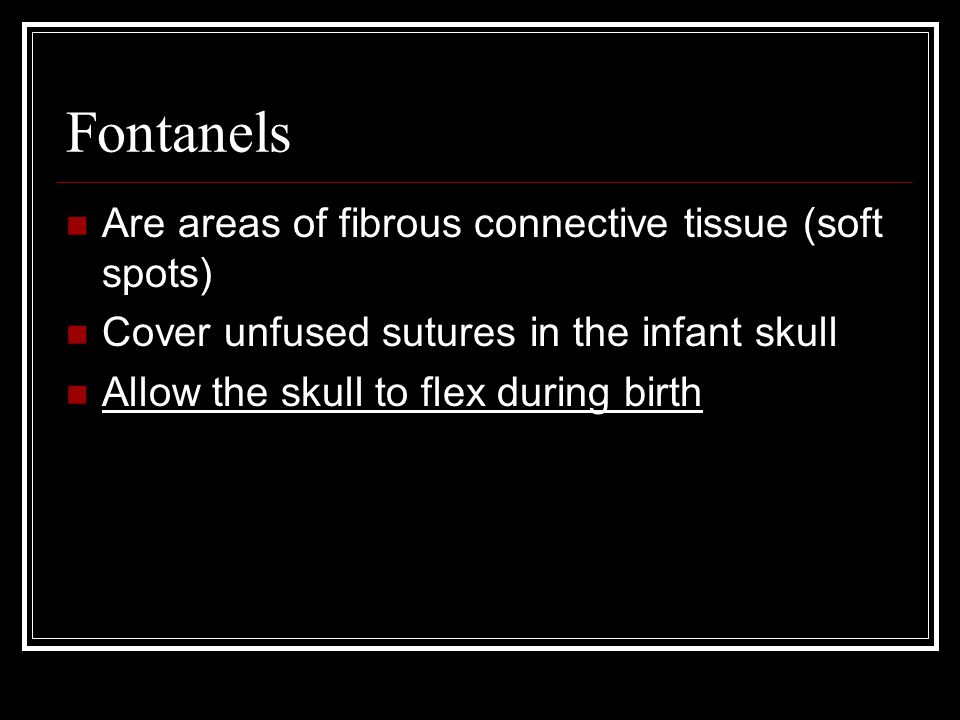

55 Fontanels Are areas of fibrous connective tissue (soft spots) Cover unfused sutures in the infant skull Allow the skull to flex during birth

56 The 4 Fontanels Anterior fontanel: frontal, sagittal, and coronal sutures Occipital fontanel: lambdoid and sagittal sutures

57 The 4 Fontanels Sphenoidal fontanels: squamous and coronal sutures Mastoid fontanel: squamous and lambdoid sutures

58 What are the vertebral regions, the curvatures of the vertebral column, and their functions?

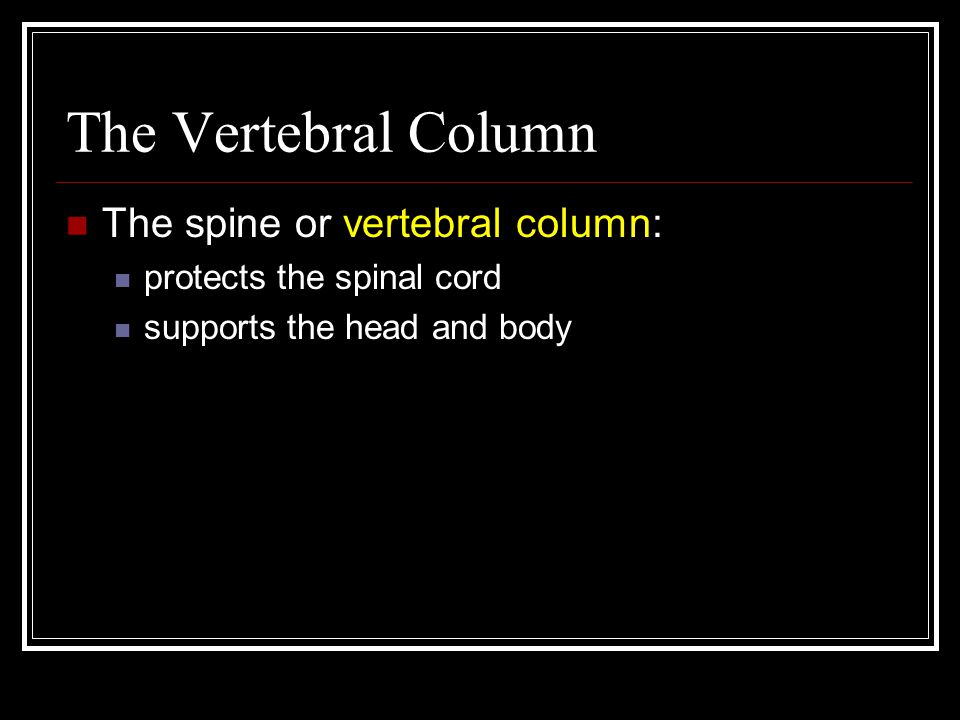

59 The Vertebral Column The spine or vertebral column: protects the spinal cord supports the head and body

60 Regions and Curves of the Vertebral Column 26 bones: 24 vertebrae, the sacrum, and coccyx PLAY The Vertebral Column Figure 7–16

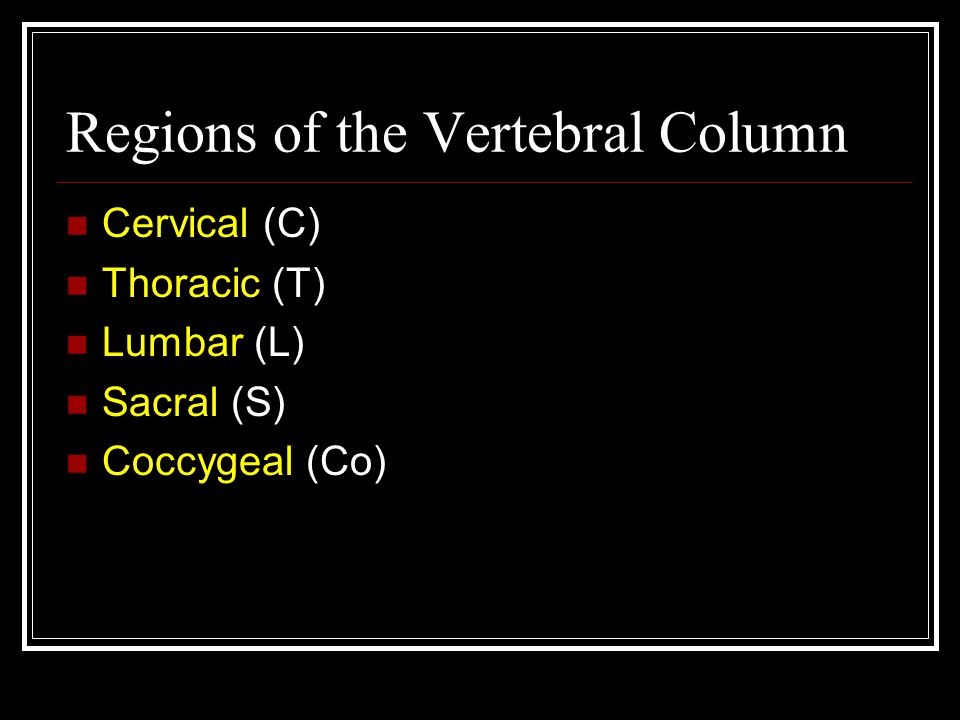

61 Regions of the Vertebral Column Cervical (C) Thoracic (T) Lumbar (L) Sacral (S) Coccygeal (Co)

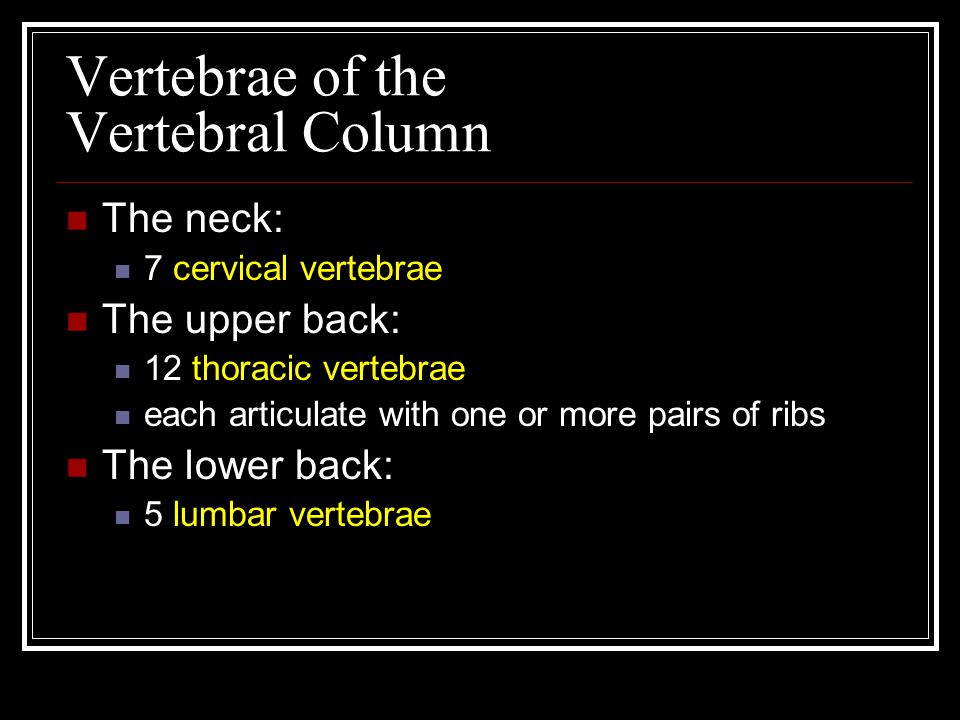

62 Vertebrae of the Vertebral Column The neck: 7 cervical vertebrae The upper back: 12 thoracic vertebrae each articulate with one or more pairs of ribs The lower back: 5 lumbar vertebrae

63 The Sacrum and Coccyx The 5th lumbar vertebra articulates with the sacrum The sacrum articulates with the coccyx

64 4 Curvatures of the Vertebral Column 1. Cervical curve 2. Thoracic curve 3. Lumbar curve 4. Sacral curve

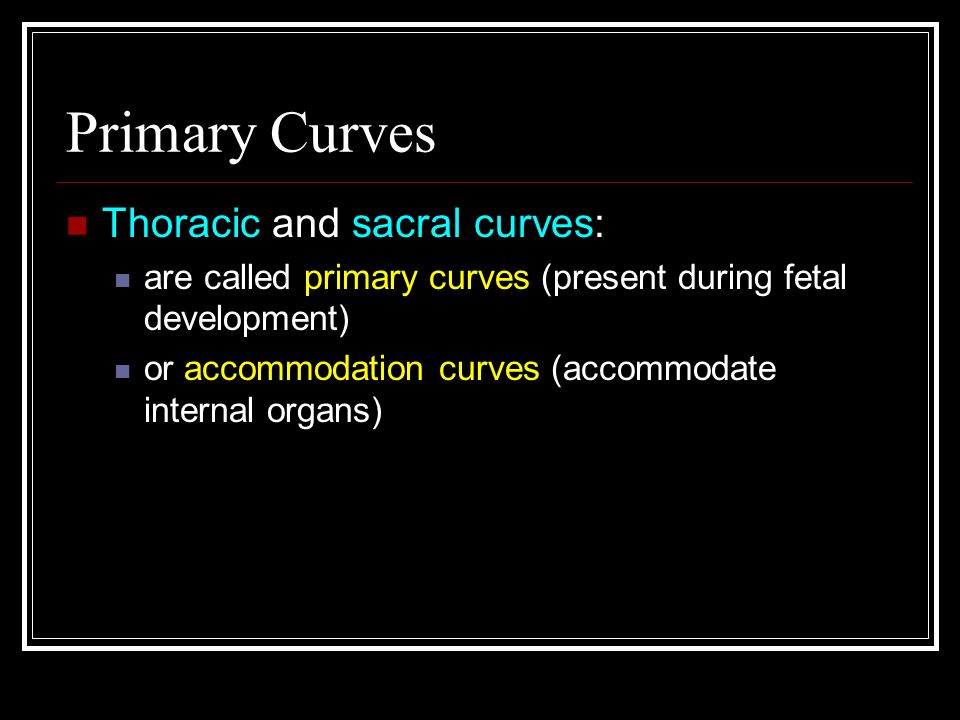

65 Primary Curves Thoracic and sacral curves: are called primary curves (present during fetal development) or accommodation curves (accommodate internal organs)

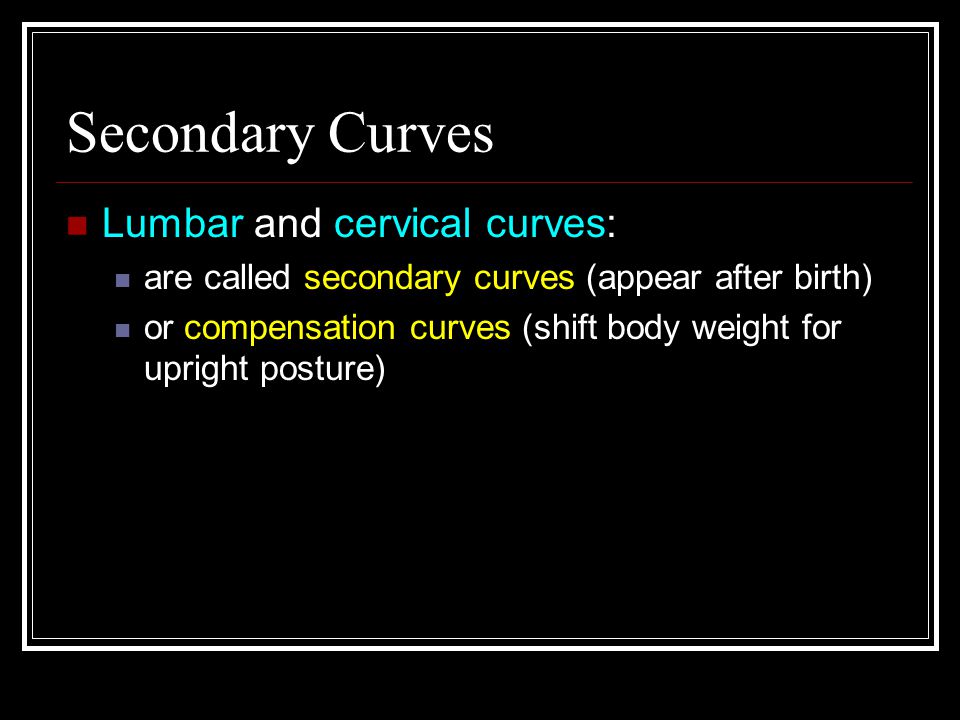

66 Secondary Curves Lumbar and cervical curves: are called secondary curves (appear after birth) or compensation curves (shift body weight for upright posture)

67 What are the structures and functions of each vertebral group?

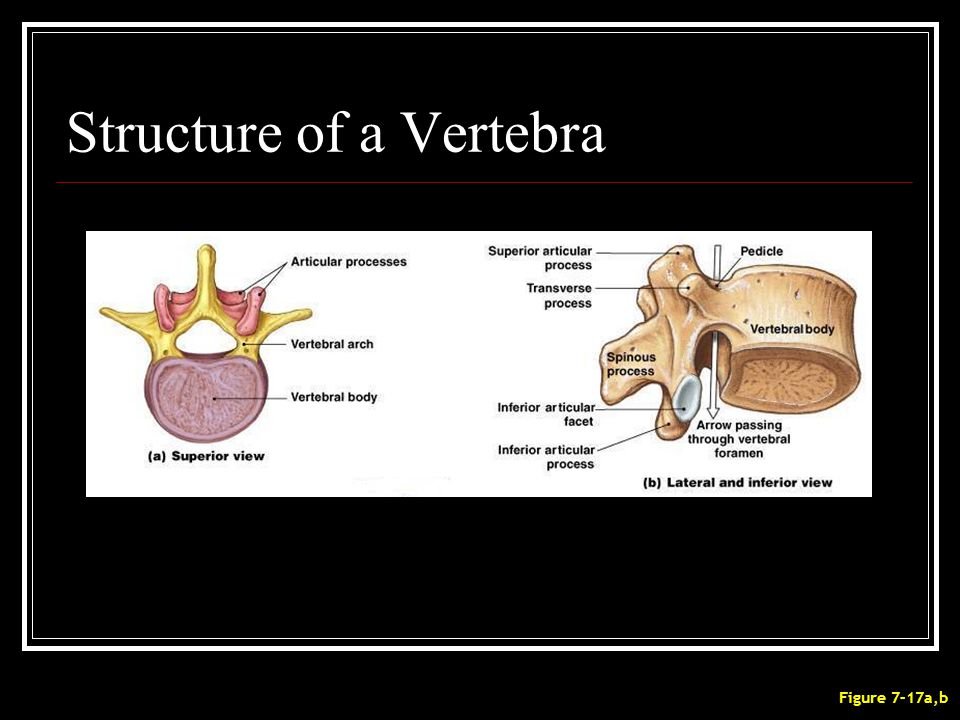

68 Structure of a Vertebra Figure 7–17a,b

69 The Vertebral Arch Figure 7–17c

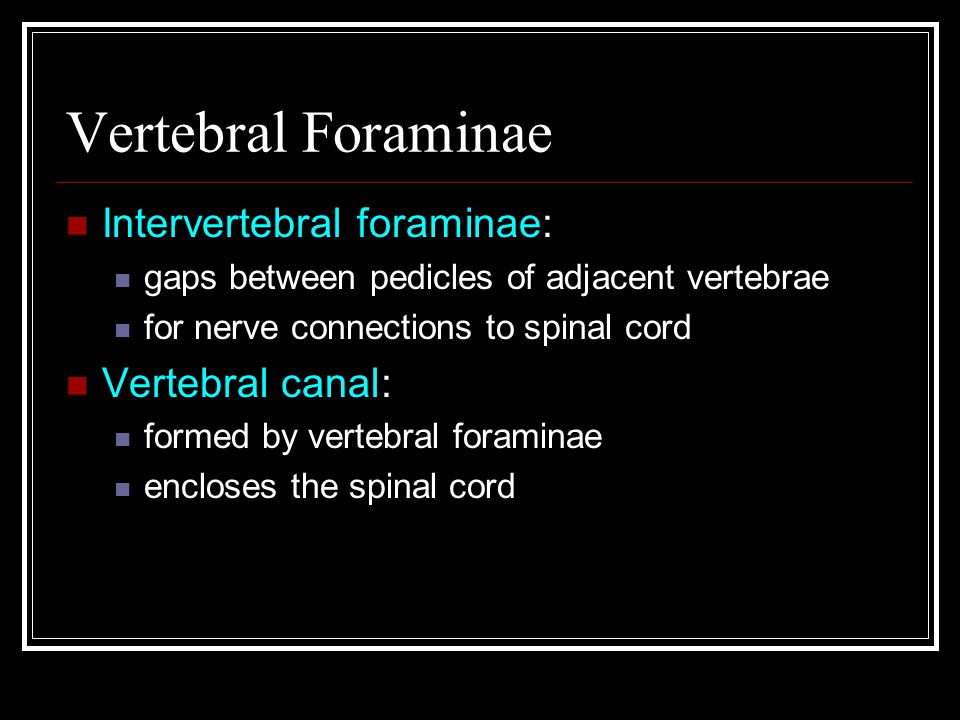

70 Vertebral Foraminae Intervertebral foraminae: gaps between pedicles of adjacent vertebrae for nerve connections to spinal cord Vertebral canal: formed by vertebral foraminae encloses the spinal cord

71 The Vertebral Canal Figure 7–17d,e

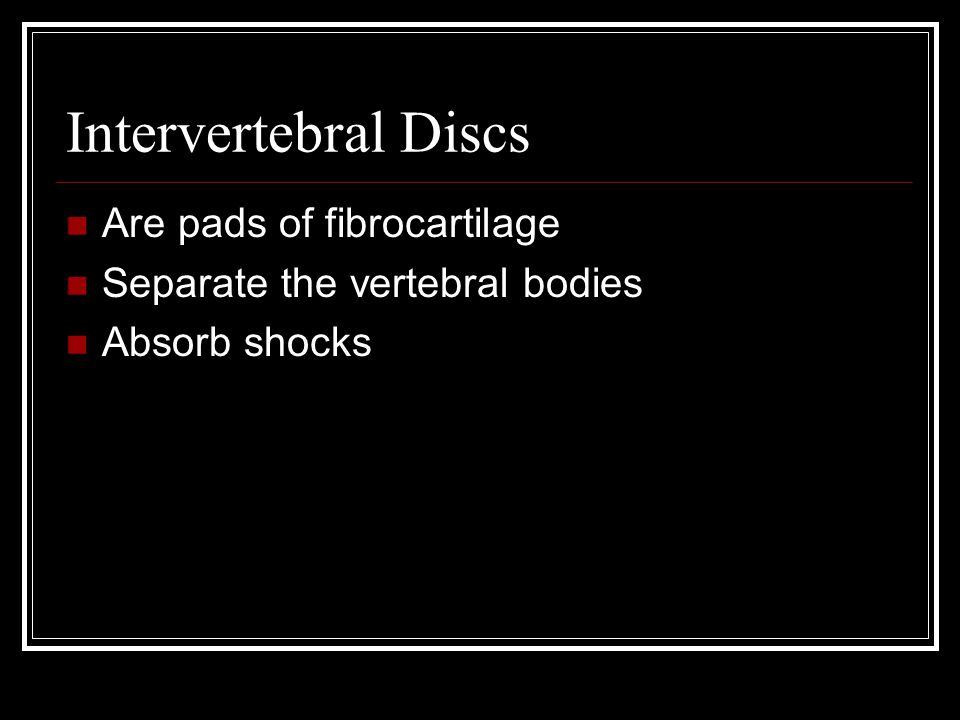

72 Intervertebral Discs Are pads of fibrocartilage Separate the vertebral bodies Absorb shocks

73 Vertebral Regions Figure 7–16

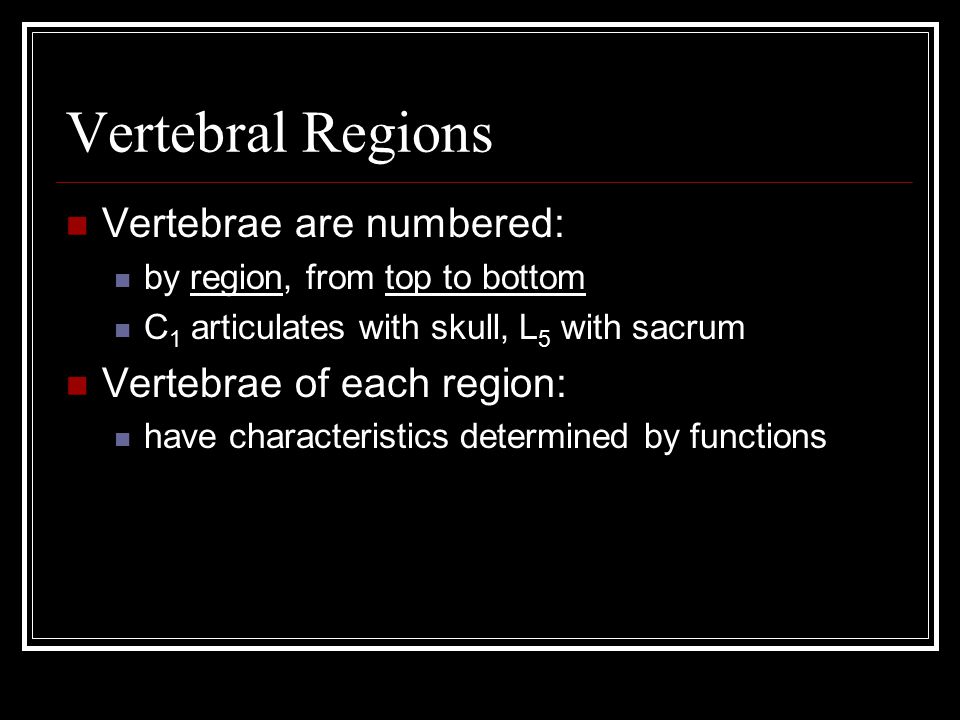

74 Vertebral Regions Vertebrae are numbered: by region, from top to bottom C 1 articulates with skull, L 5 with sacrum Vertebrae of each region: have characteristics determined by functions

75 The Cervical Vertebrae 3D Rotation of Cervical Vertebrae PLAY Figure7–18a, b

76 The Cervical Vertebrae Figure7–18c, d

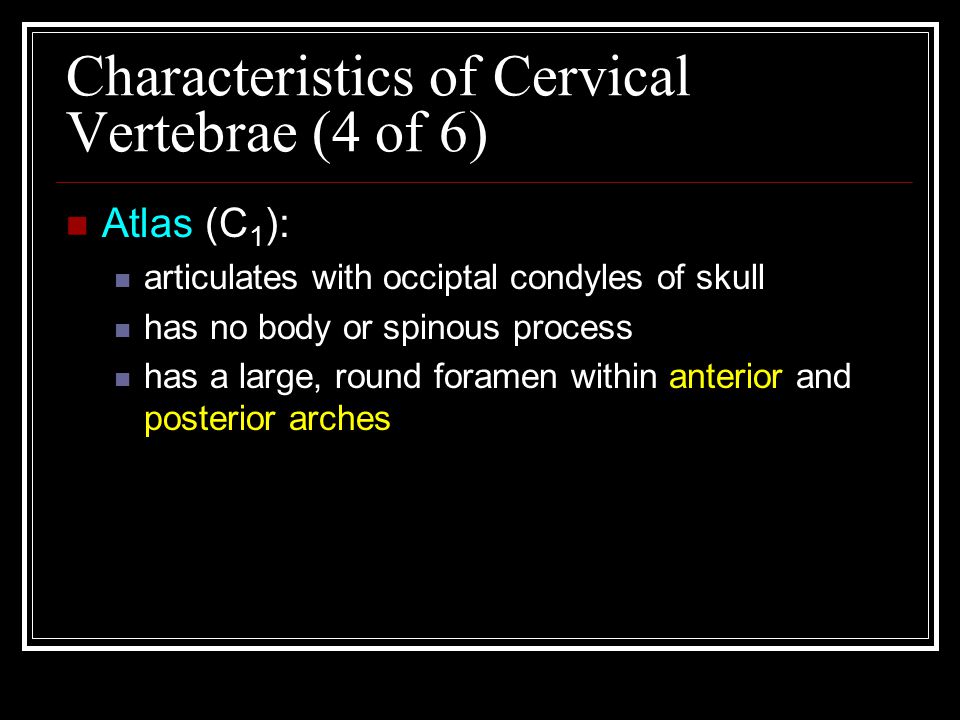

77 Characteristics of Cervical Vertebrae (4 of 6) Atlas (C 1 ): articulates with occiptal condyles of skull has no body or spinous process has a large, round foramen within anterior and posterior arches

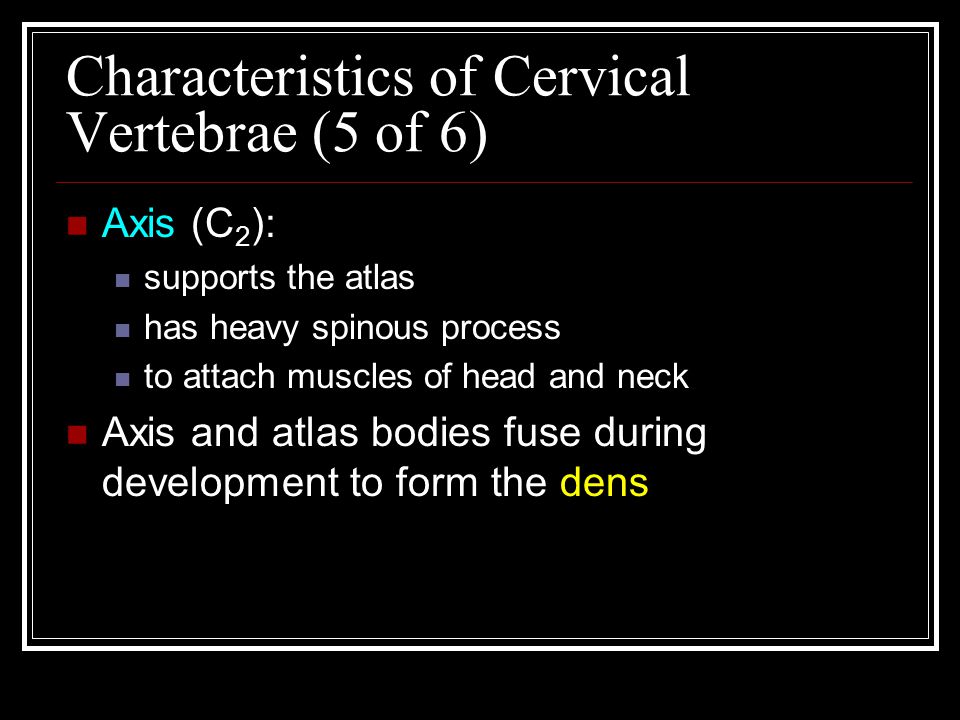

78 Characteristics of Cervical Vertebrae (5 of 6) Axis (C 2 ): supports the atlas has heavy spinous process to attach muscles of head and neck Axis and atlas bodies fuse during development to form the dens

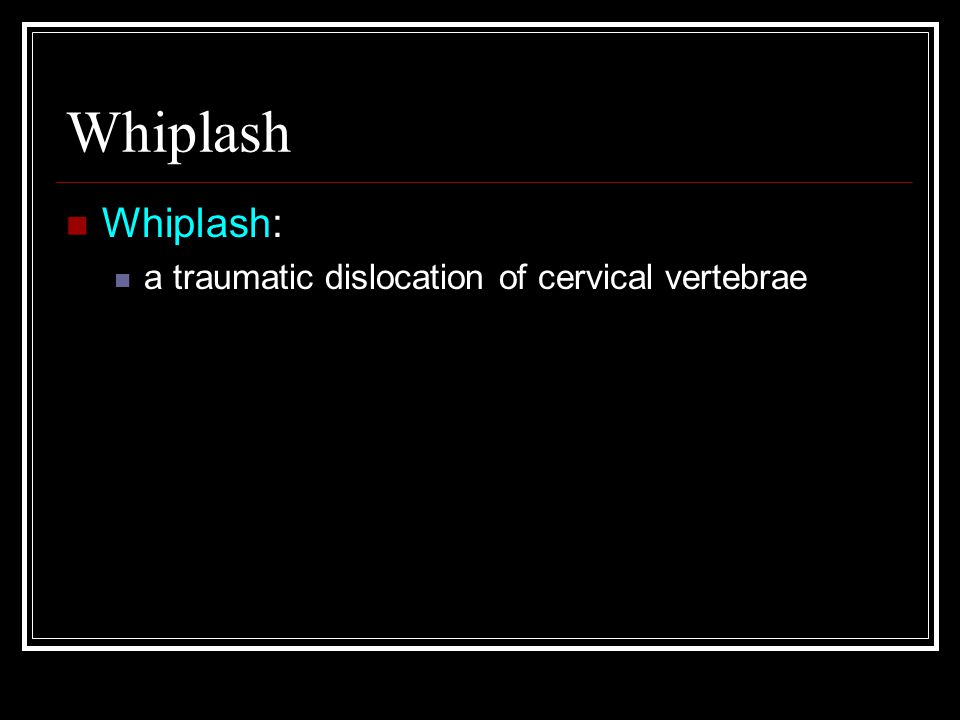

79 Whiplash Whiplash: a traumatic dislocation of cervical vertebrae

80 The Thoracic Vertebrae 3D Rotation of Thoracic Vertebrae PLAY Figure 7–19a

81 The Thoracic Vertebrae Figure 7–19b, c

82 The Lumbar Vertebrae 3D Rotation of Lumbar Vertebrae PLAY Figure 7–20a

83 The Lumbar Vertebrae Figure 7–20b, c

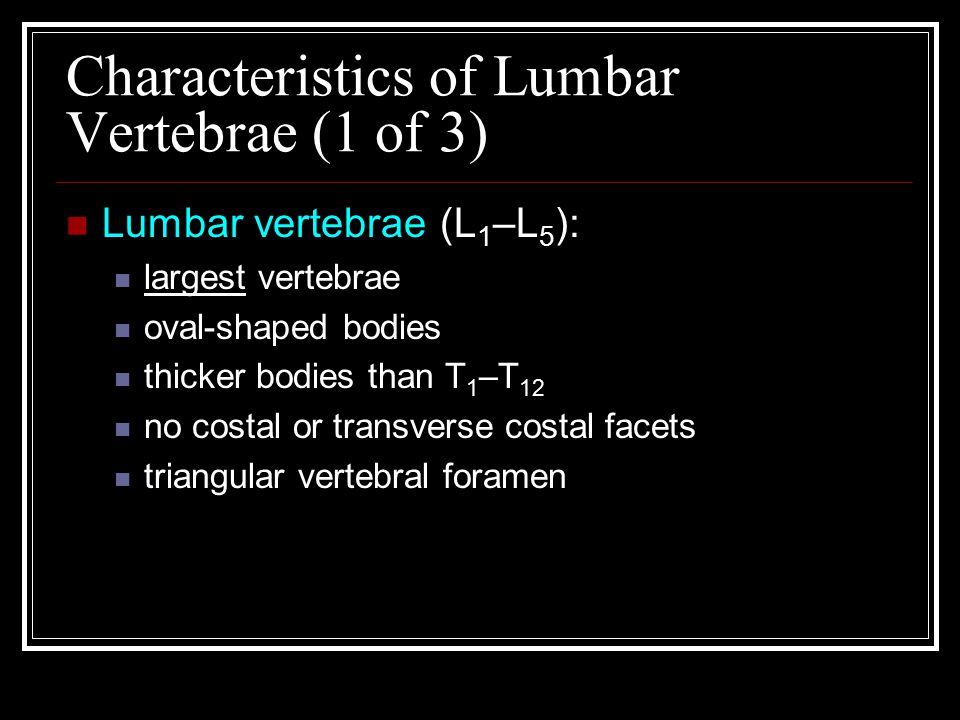

84 Characteristics of Lumbar Vertebrae (1 of 3) Lumbar vertebrae (L 1 –L 5 ): largest vertebrae oval-shaped bodies thicker bodies than T 1 –T 12 no costal or transverse costal facets triangular vertebral foramen

85 Comparing Vertebrae Table 7–2

86 The Sacrum and Coccyx 3D Rotation of Sacrum and Coccyx PLAY Figure 7–21

87 Characteristics of the Sacrum (1 of 3) The sacrum: is curved, more in males than in females protects reproductive, urinary, and digestive organs

88 Characteristics of the Sacrum (2 of 3) Attaches: the axial skeleton to pelvic girdle of appendicular skeleton broad muscles that move the thigh

89 Characteristics of the Sacrum (3 of 3) The adult sacrum: consists of 5 fused sacral vertebrae fuses between puberty and ages 25–30 leaving transverse lines

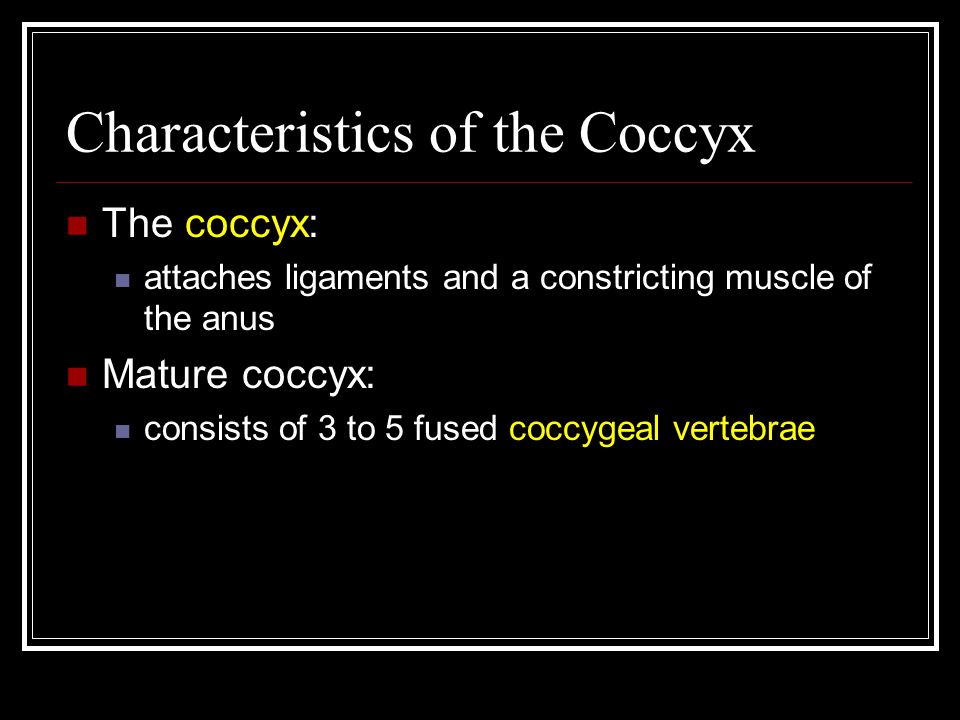

90 Characteristics of the Coccyx The coccyx: attaches ligaments and a constricting muscle of the anus Mature coccyx: consists of 3 to 5 fused coccygeal vertebrae

91 What is the significance of articulations between ribs, thoracic vertebrae, and sternum?

92 The Thoracic Cage The skeleton of the chest: supports the thoracic cavity Consists of: thoracic vertebrae ribs sternum (breastbone)

93 The Rib Cage Formed of ribs and sternum Figure 7–22a

94 Articulations of Ribs and Vertebrae Figure 7–22b

95 Functions of the Thoracic Cage Protects organs of the thoracic cavity: heart, lungs, and thymus

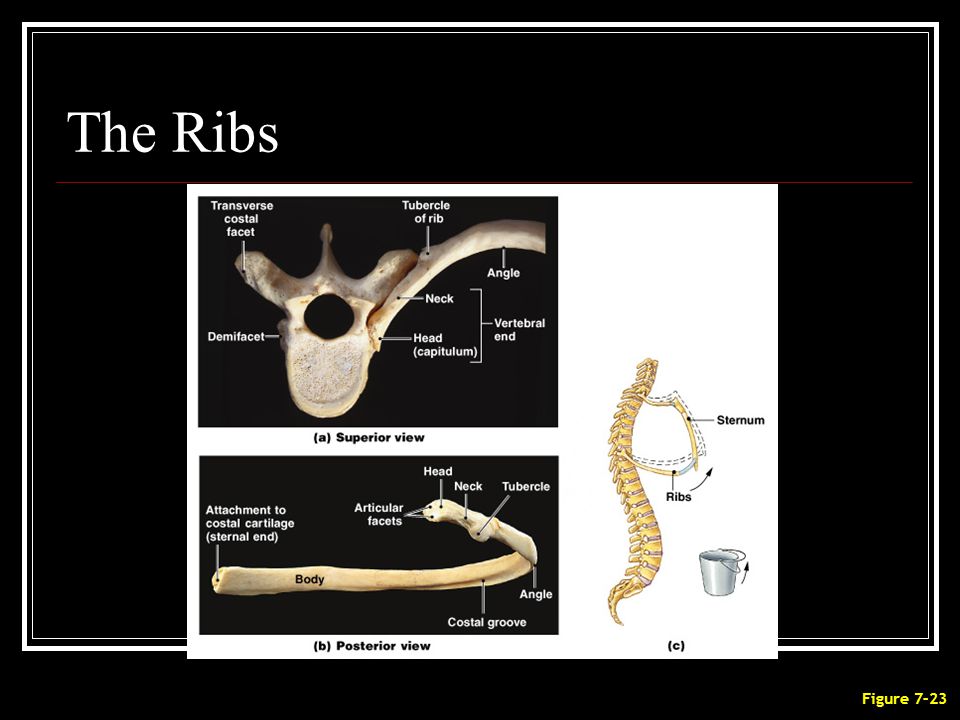

96 The Ribs Figure 7–23

97 Functions of Ribs Ribs: are flexible are mobile can absorb shock

98 Functions of Ribs Rib movements (breathing): affect width and depth of thoracic cage changing its volume

99 Ribs Ribs (costae): are 12 pairs of long, curved, flat bones extending from the thoracic vertebrae Ribs are divided into 2 types: true ribs false ribs

100 True Ribs Ribs 1–7 (true ribs) vertebrosternal ribs connected to the sternum by costal cartilages

101 False Ribs Ribs 8–12 (false ribs): do not attach directly to the sternum

102 Types of False Ribs Vertebrochondral ribs (ribs 8–10): fuse together merge with cartilage before reaching the sternum Floating or vertebral ribs (ribs 11–12): connect only to the vertebrae have no connection with the sternum

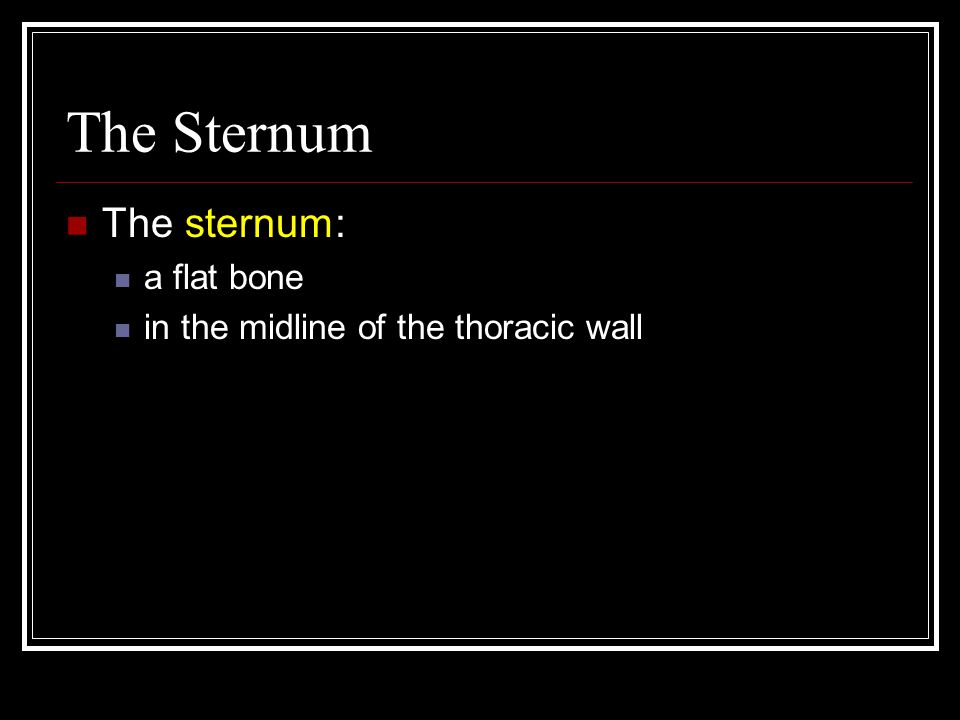

103 The Sternum The sternum: a flat bone in the midline of the thoracic wall

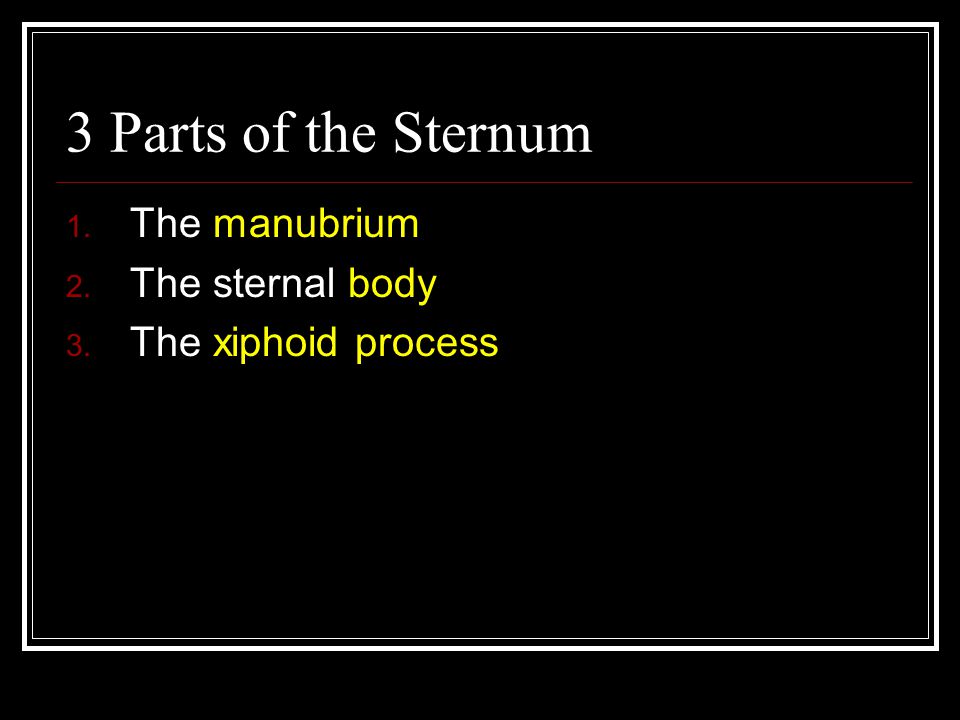

104 3 Parts of the Sternum 1. The manubrium 2. The sternal body 3. The xiphoid process

105 The Manubrium The manubrium: the superior portion of sternum broad, triangular shape articulates with collarbones (clavicles) articulates with cartilages of 1st rib pair has a jugular notch between clavicular articulations

106 The Sternal Body The sternal body: is tongue-shaped attaches to the manubrium attaches to costal cartilages of ribs 2–7

107 The Xiphoid Process The xiphoid process: is the smallest part of the sternum attaches to the sternal body attaches to diaphragm and rectus abdominis muscles

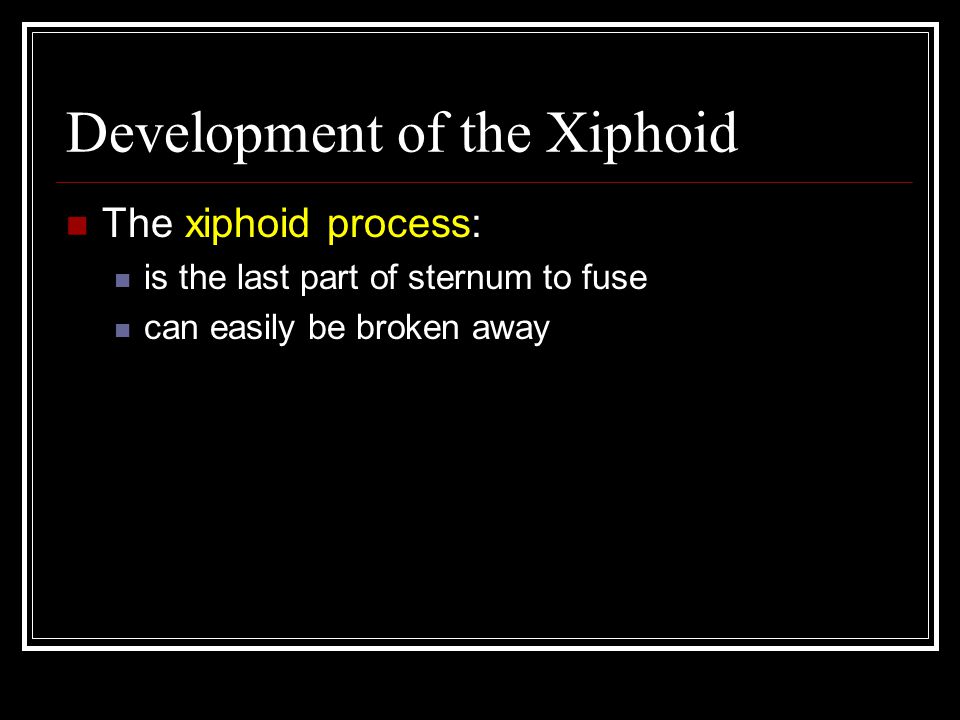

108 Development of the Xiphoid The xiphoid process: is the last part of sternum to fuse can easily be broken away

109 KEY CONCEPT The axial skeleton: protects the brain, spinal cord, and visceral organs of the chest Vertebrae: conduct body weight to the lower limbs Lower vertebrae are larger and stronger: because they bear more weight
