1 Aims Of The Session To gain knowledge and understanding of the anatomy of the brain To gain knowledge and understanding about head injuries To gain knowledge and understanding of neurological assessment and the skills involved in assessing patients

2 Introduction Each year 1.4 million people in the UK suffer head injury, 150,000 will be admitted to hospital with most being discharged within 48 hours.

3 Indications For Admission Patients who are unwell or who have a risk of later deterioration from an intracranial haematoma Patients who have lost consciousness or who have suffered amnesia of more than 5 min Presence of abnormal neurological findings Skull fractures

4 Indications For Surgery Elevation of depressed skull fracture Evacuation of a haematoma Arrest of a cerebral bleed

5 Anatomy - Bones Of The Skull Support and protect the brain Frontal Frontal Temporal Temporal Parietal Parietal Occipital Occipital

6 The Coverings of the Brain Meninges: three connective tissue membranes that cover the brain and spinal cord Dura mater - white fibrous tissue: outer layer Dura mater - white fibrous tissue: outer layer Arachnoid - delicate membranes: middle layer contains cerebrospinal fluid Arachnoid - delicate membranes: middle layer contains cerebrospinal fluid Pia mater - inner layer contains blood vessels Pia mater - inner layer contains blood vessels

7 Major Parts Of The Brain Cerebrum Largest area of the brain Largest area of the brain Divided into left and right hemispheres Divided into left and right hemispheres Right cerebral hemisphere controls the left side of the body Right cerebral hemisphere controls the left side of the body Left cerebral hemisphere controls the right side of the body Left cerebral hemisphere controls the right side of the body Each hemisphere is divided into four lobes – frontal, parietal, temporal, occipital Each hemisphere is divided into four lobes – frontal, parietal, temporal, occipital

8 Lobes Of The Brain Frontal Lobe associated with reasoning, planning, parts of speech, movement, emotions, and problem solving associated with reasoning, planning, parts of speech, movement, emotions, and problem solving Parietal Lobe associated with movement, orientation, recognition, perception of stimuli associated with movement, orientation, recognition, perception of stimuli Occipital Lobe associated with visual processing associated with visual processing Temporal Lobe associated with perception and recognition of auditory stimuli, memory, and speech associated with perception and recognition of auditory stimuli, memory, and speech

9 Major Parts Of The Brain Cerebellum Second largest part of the brain Second largest part of the brain It is connected to the brain stem It is connected to the brain stem Helps provide smooth coordinated body movement Helps provide smooth coordinated body movement

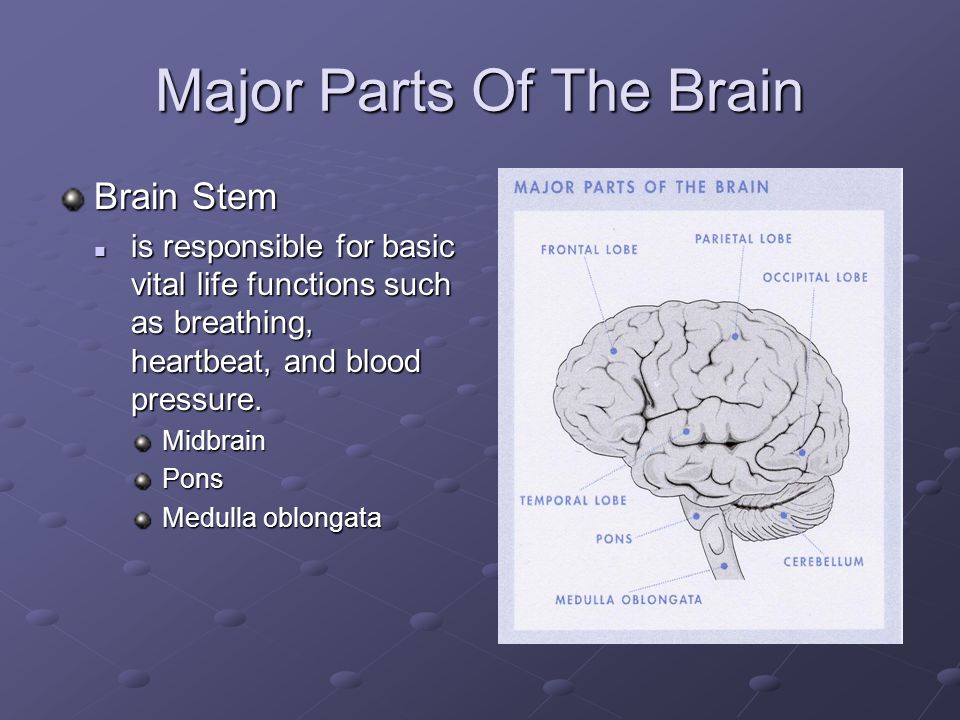

10 Major Parts Of The Brain Brain Stem is responsible for basic vital life functions such as breathing, heartbeat, and blood pressure. is responsible for basic vital life functions such as breathing, heartbeat, and blood pressure.MidbrainPons Medulla oblongata

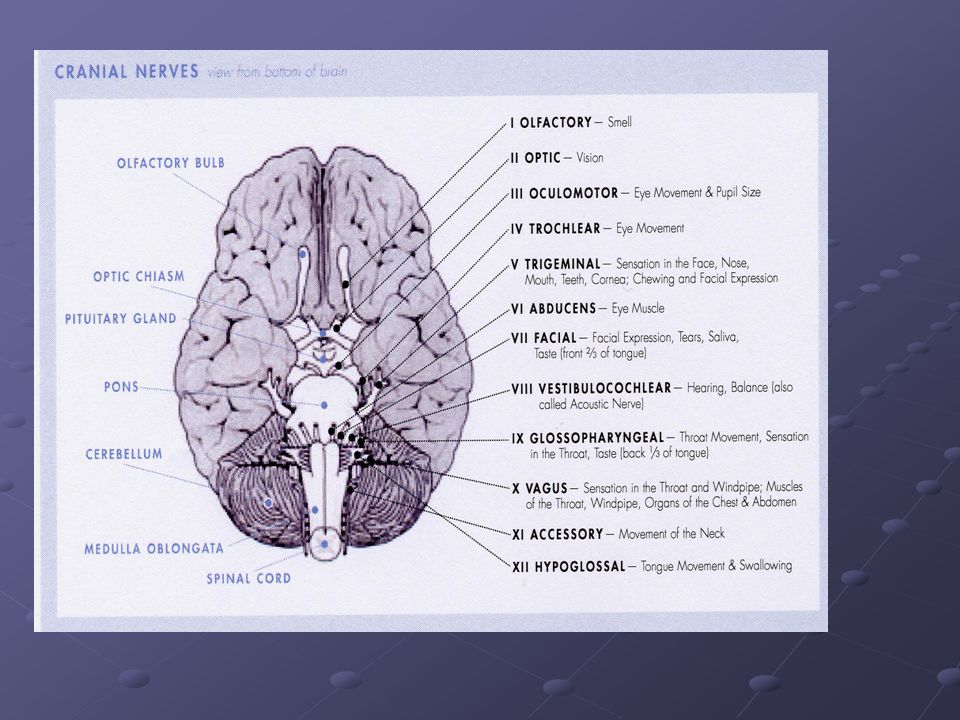

11

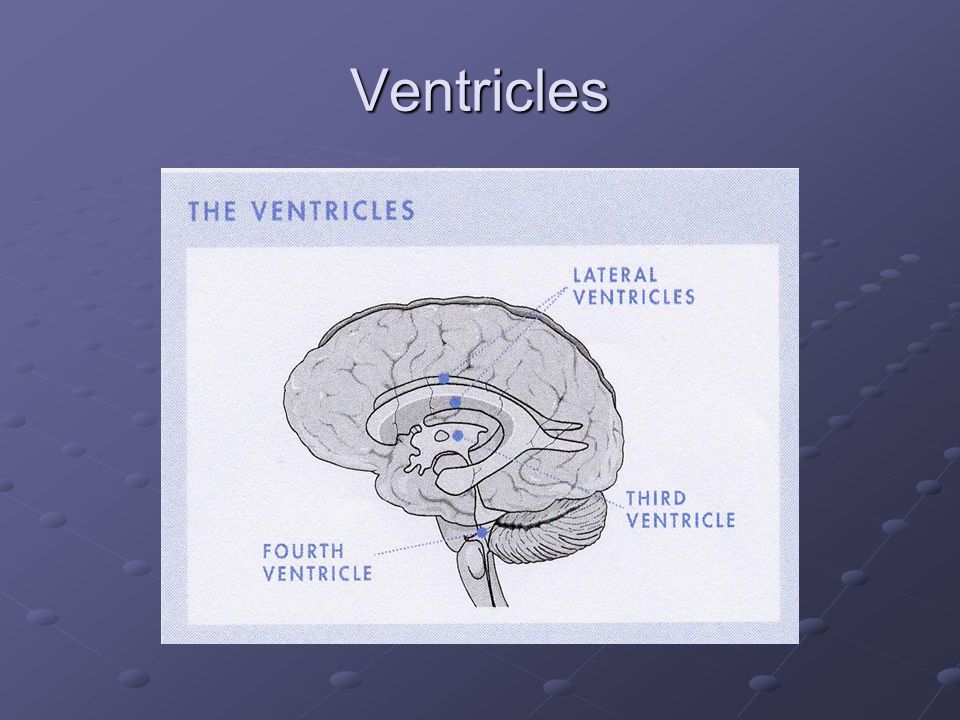

12 Ventricles

13 CSF And Ventricles Cerebrospinal fluid Clear watery substance made in the ventricles by the choroid plexus Clear watery substance made in the ventricles by the choroid plexus Cushions the brain and spinal cord Cushions the brain and spinal cord It circulates through the ventricles and sub- arachnoid space It circulates through the ventricles and sub- arachnoid space

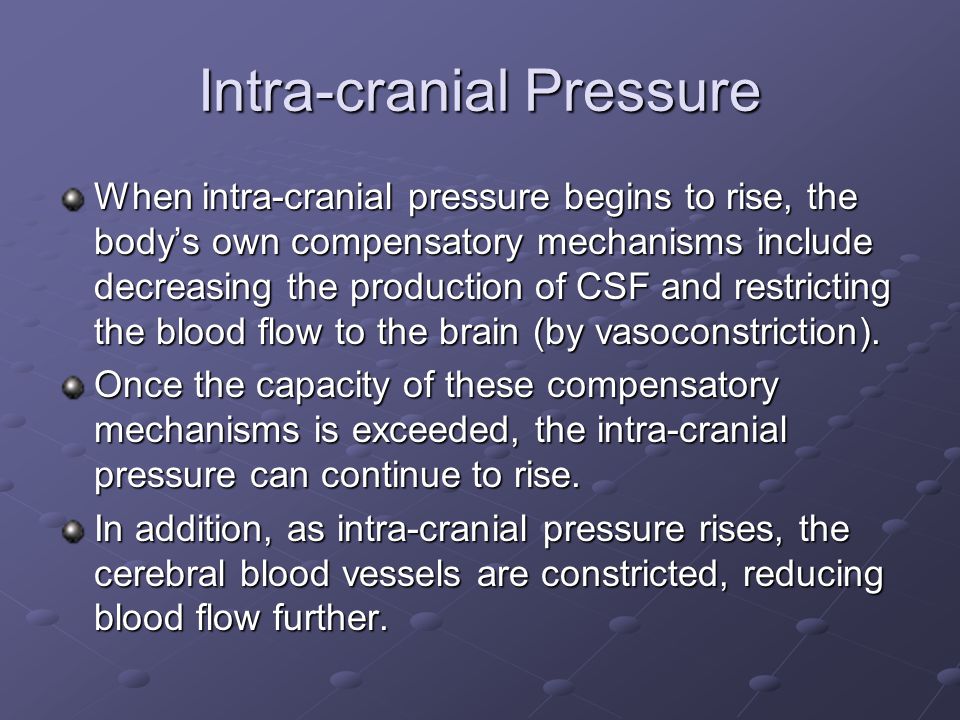

14 Intra-cranial Pressure When intra-cranial pressure begins to rise, the body’s own compensatory mechanisms include decreasing the production of CSF and restricting the blood flow to the brain (by vasoconstriction). Once the capacity of these compensatory mechanisms is exceeded, the intra-cranial pressure can continue to rise. In addition, as intra-cranial pressure rises, the cerebral blood vessels are constricted, reducing blood flow further.

15 Intra-cranial Pressure Normal intracranial pressure (ICP), usually measured as a mean pressure, is often cited as 0-10mmHg Sustained high pressures can cause 'coning' (tentorial herniation), when brainstem tissue is forced through the foramen magnum into the spinal cord.

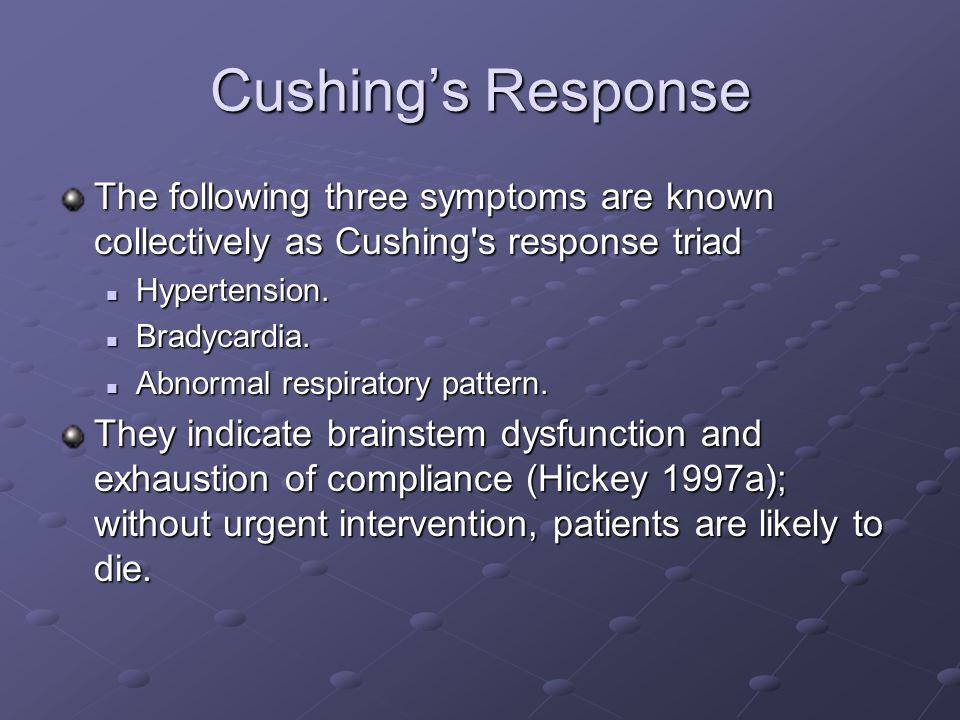

16 Cushing’s Response The following three symptoms are known collectively as Cushing's response triad Hypertension. Hypertension. Bradycardia. Bradycardia. Abnormal respiratory pattern. Abnormal respiratory pattern. They indicate brainstem dysfunction and exhaustion of compliance (Hickey 1997a); without urgent intervention, patients are likely to die.

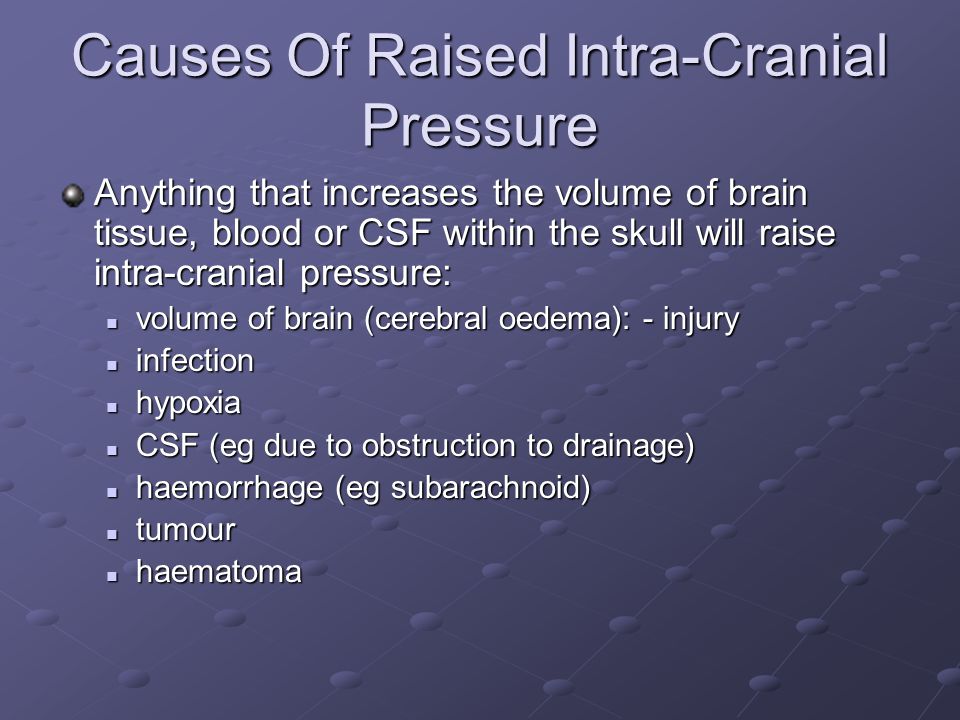

17 Causes Of Raised Intra-Cranial Pressure Anything that increases the volume of brain tissue, blood or CSF within the skull will raise intra-cranial pressure: volume of brain (cerebral oedema): - injury volume of brain (cerebral oedema): - injury infection infection hypoxia hypoxia CSF (eg due to obstruction to drainage) CSF (eg due to obstruction to drainage) haemorrhage (eg subarachnoid) haemorrhage (eg subarachnoid) tumour tumour haematoma haematoma

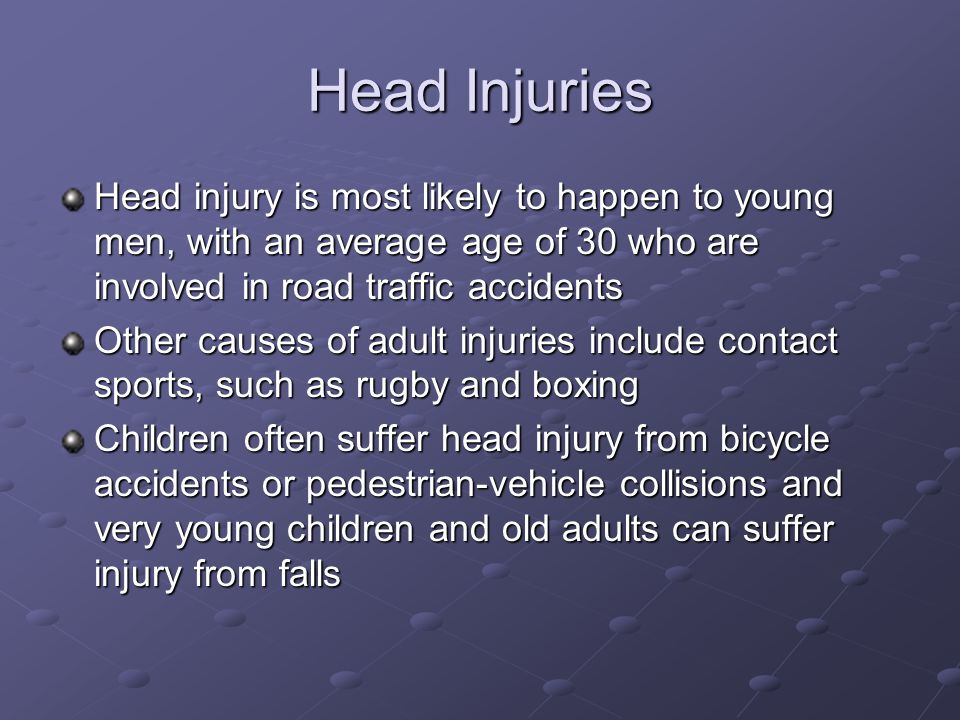

18 Head Injuries Head injury is most likely to happen to young men, with an average age of 30 who are involved in road traffic accidents Other causes of adult injuries include contact sports, such as rugby and boxing Children often suffer head injury from bicycle accidents or pedestrian-vehicle collisions and very young children and old adults can suffer injury from falls

19 Head Injuries The head is vulnerable to injury Analogy for a head injury Analogy for a head injury Blancmange (brain) Wrapped in cling film (arachnoid mater) In a paper bag (dura mater) Inside a cardboard box (skull) Wrapped in brown paper (skin) Any layer may be damaged by Any layer may be damaged by Direct impact on the box (blow) Dropping the box (fall) Shaking the box (acceleration/deceleration)

20 Head Injuries Skull fracture Simple: Simple: Linear or hairline Linear or hairline Depressed fracture – fragments are driven inwards Depressed fracture – fragments are driven inwards

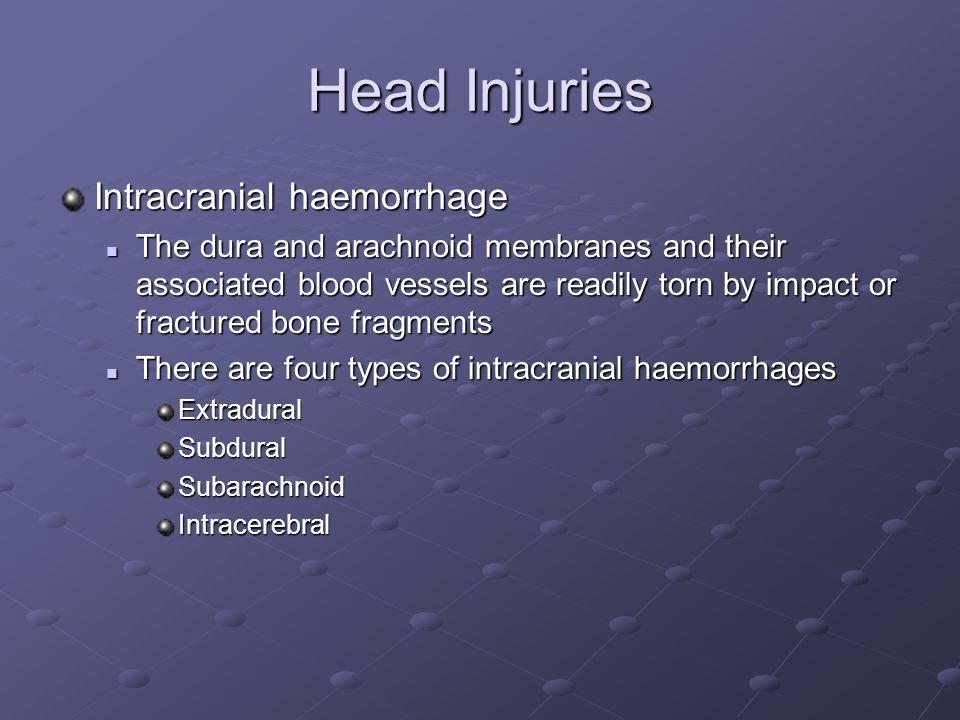

21 Head Injuries Intracranial haemorrhage The dura and arachnoid membranes and their associated blood vessels are readily torn by impact or fractured bone fragments The dura and arachnoid membranes and their associated blood vessels are readily torn by impact or fractured bone fragments There are four types of intracranial haemorrhages There are four types of intracranial haemorrhagesExtraduralSubduralSubarachnoidIntracerebral

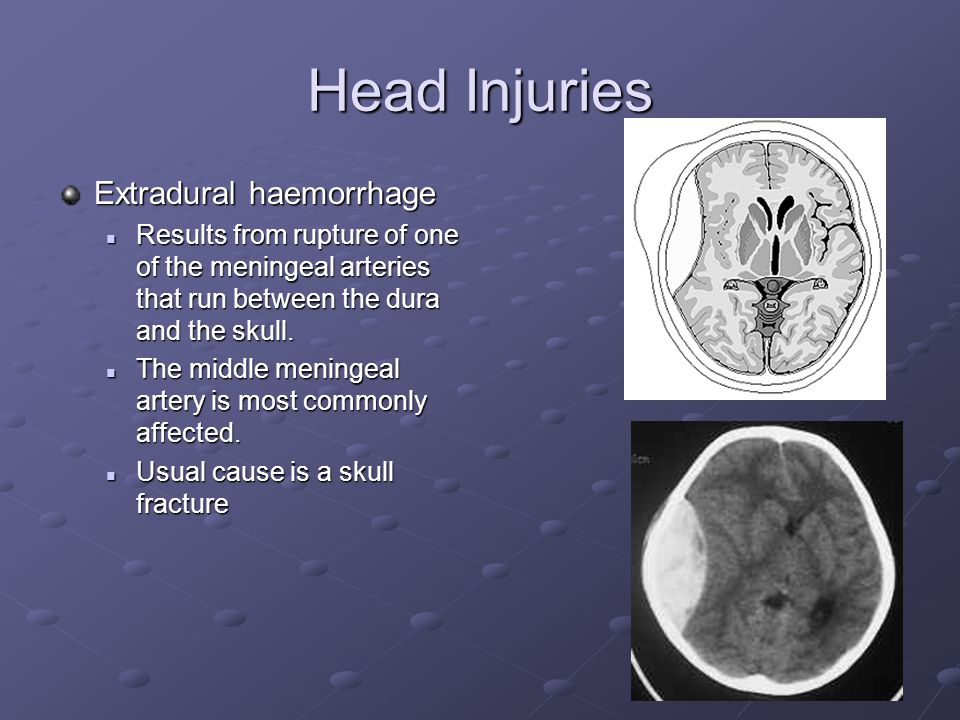

22 Head Injuries Extradural haemorrhage Results from rupture of one of the meningeal arteries that run between the dura and the skull. Results from rupture of one of the meningeal arteries that run between the dura and the skull. The middle meningeal artery is most commonly affected. The middle meningeal artery is most commonly affected. Usual cause is a skull fracture Usual cause is a skull fracture

23 Head Injuries Subdural haemorrhage More common than extradural haemorrage More common than extradural haemorrage Associated with sudden jarring or rotation of the head Associated with sudden jarring or rotation of the head Shears and tears the small veins which bridge the gap between the dura and cortical surface of the brain Shears and tears the small veins which bridge the gap between the dura and cortical surface of the brain

24 Head Injuries Intracerebral haemorrhage: May be natural, due to spontaneous rupture of a small blood vessel which has been weakened by the effects long-standing high blood pressure. May be natural, due to spontaneous rupture of a small blood vessel which has been weakened by the effects long-standing high blood pressure. Traumatic due to extension of haemorrhage from surface contusions deep into the substance of the brain. Traumatic due to extension of haemorrhage from surface contusions deep into the substance of the brain.

25 Assessment Of Head Injuries Glasgow Coma Scale (GCS) Scoring system originally described for patients with head injury; now applied to other causes of coma The Glasgow coma scale (GCS) is a reliable and universally comparable way of recording the conscious state of a person.

26 Assessment Of Head Injuries Three types of response are measured, and added together to give an overall score. The lower the score the lower the patient's conscious state. GCS (Mild) GCS (Mild) GCS 9-12 (Moderate) GCS 9-12 (Moderate) GCS 3-8 (Severe) GCS 3-8 (Severe)

27

28 Eye Opening E spontaneous4 to speech 3 to pain 2 no response 1 Best Motor Response M To Verbal Command: obeys6 To Painful Stimulus: localizes pain 5 flexion-withdrawal4 flexion-abnormal3 extension2 no response 1 Best Verbal Response V oriented and converses 5 disoriented and converses 4 inappropriate words 3 incomprehensible sounds 2 no response 1 E + M + V = 3 to 15 8 is the critical score Less than or equal to 8 at 6 hours - 50% die 9-11 = moderate severity Greater than or equal to 12 = minor injury Coma is defined as: (1) not opening eyes, (2) not obeying commands (3) not uttering understandable words.

29 DECORTICATE Decorticate posturing is also called decorticate response, decorticate rigidity, flexor posturing

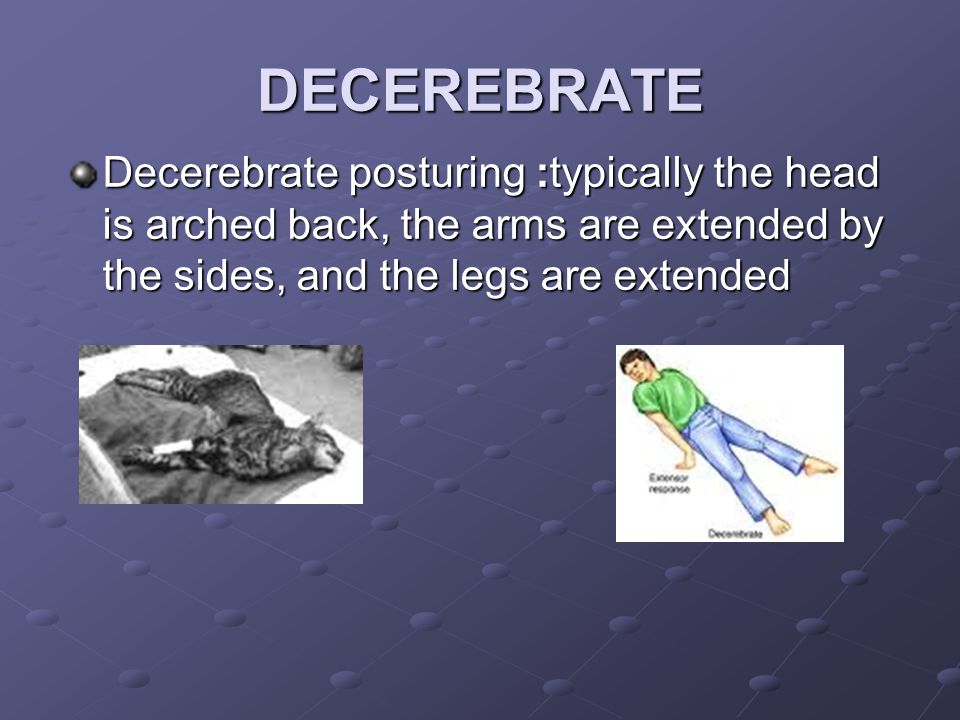

30 DECEREBRATE Decerebrate posturing :typically the head is arched back, the arms are extended by the sides, and the legs are extended

31 Neurological Observations Assess conscious level Speech Speech Mental state Mental stateEyes Can the patient see Can the patient see Is there an eye injury – eye maybe closed Is there an eye injury – eye maybe closed Can the patient focus Can the patient focus

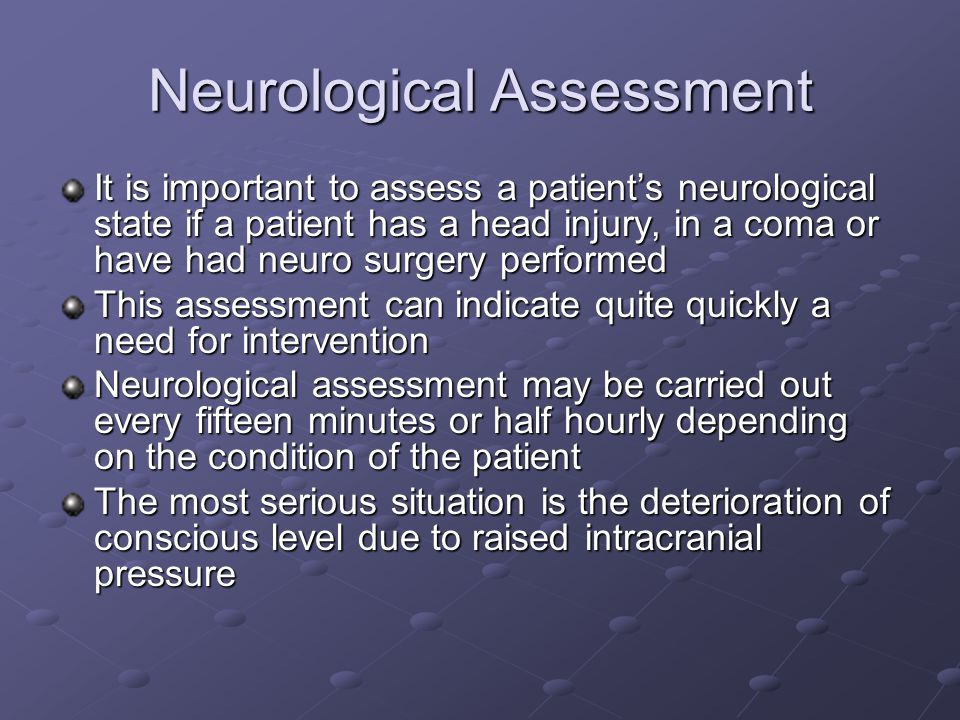

32 Neurological Assessment It is important to assess a patient’s neurological state if a patient has a head injury, in a coma or have had neuro surgery performed This assessment can indicate quite quickly a need for intervention Neurological assessment may be carried out every fifteen minutes or half hourly depending on the condition of the patient The most serious situation is the deterioration of conscious level due to raised intracranial pressure

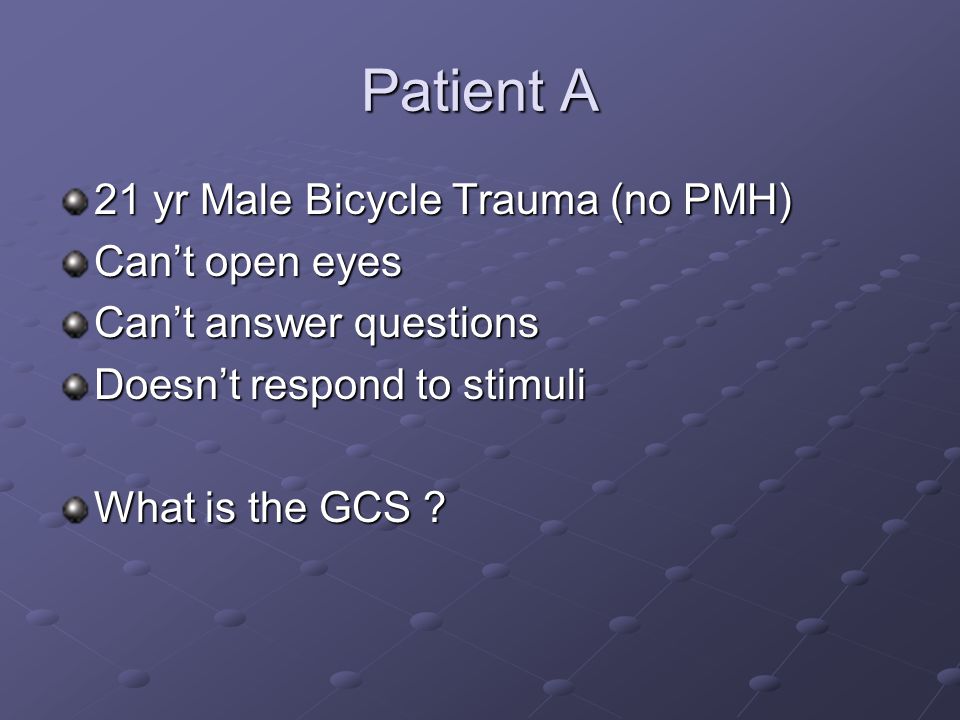

33 Patient A 21 yr Male Bicycle Trauma (no PMH) Can’t open eyes Can’t answer questions Doesn’t respond to stimuli What is the GCS ?

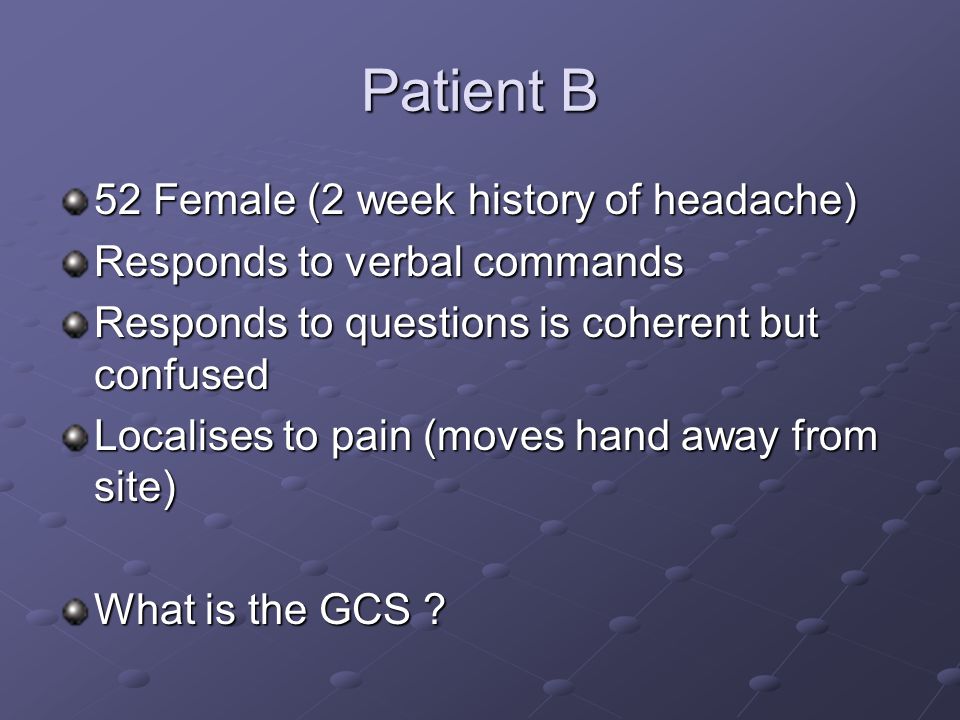

34 Patient B 52 Female (2 week history of headache) Responds to verbal commands Responds to questions is coherent but confused Localises to pain (moves hand away from site) What is the GCS ?

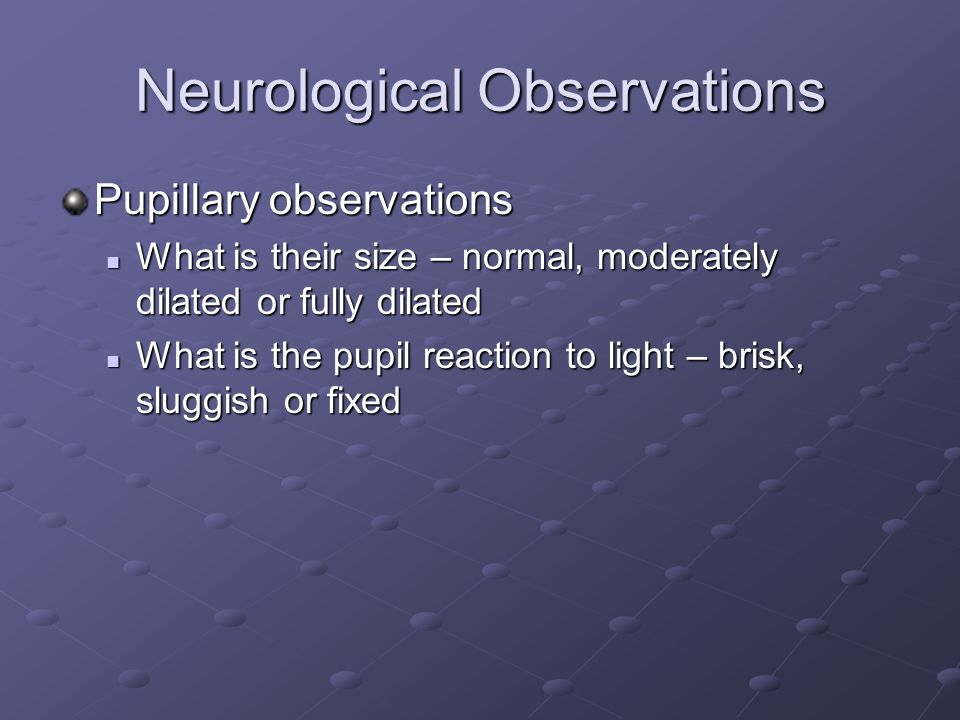

35 Neurological Observations Pupillary observations What is their size – normal, moderately dilated or fully dilated What is their size – normal, moderately dilated or fully dilated What is the pupil reaction to light – brisk, sluggish or fixed What is the pupil reaction to light – brisk, sluggish or fixed

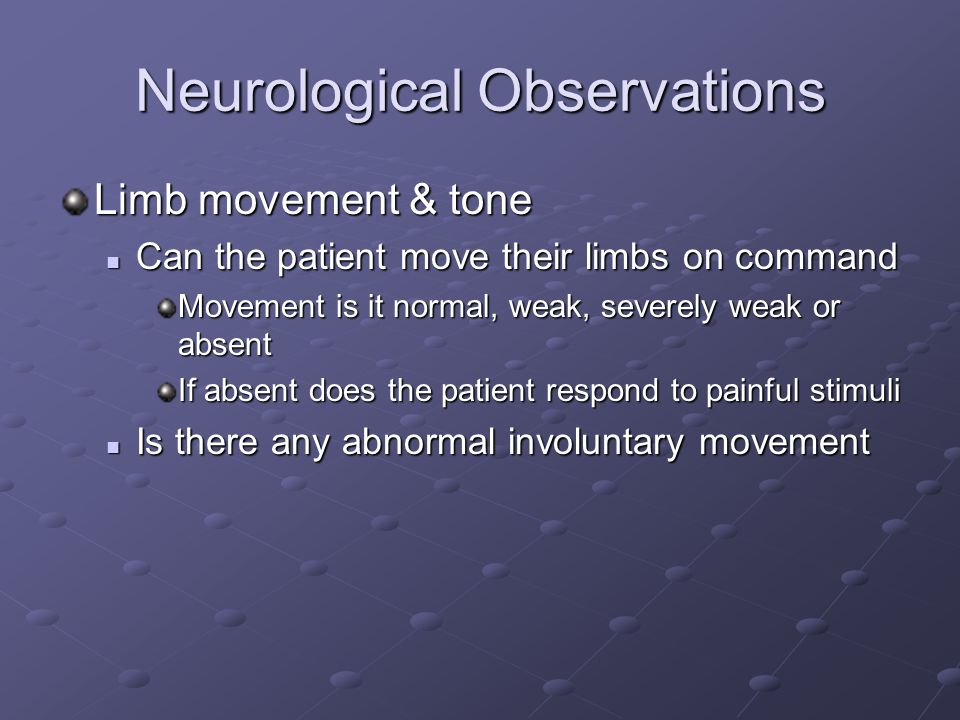

36 Neurological Observations Limb movement & tone Can the patient move their limbs on command Can the patient move their limbs on command Movement is it normal, weak, severely weak or absent If absent does the patient respond to painful stimuli Is there any abnormal involuntary movement Is there any abnormal involuntary movement

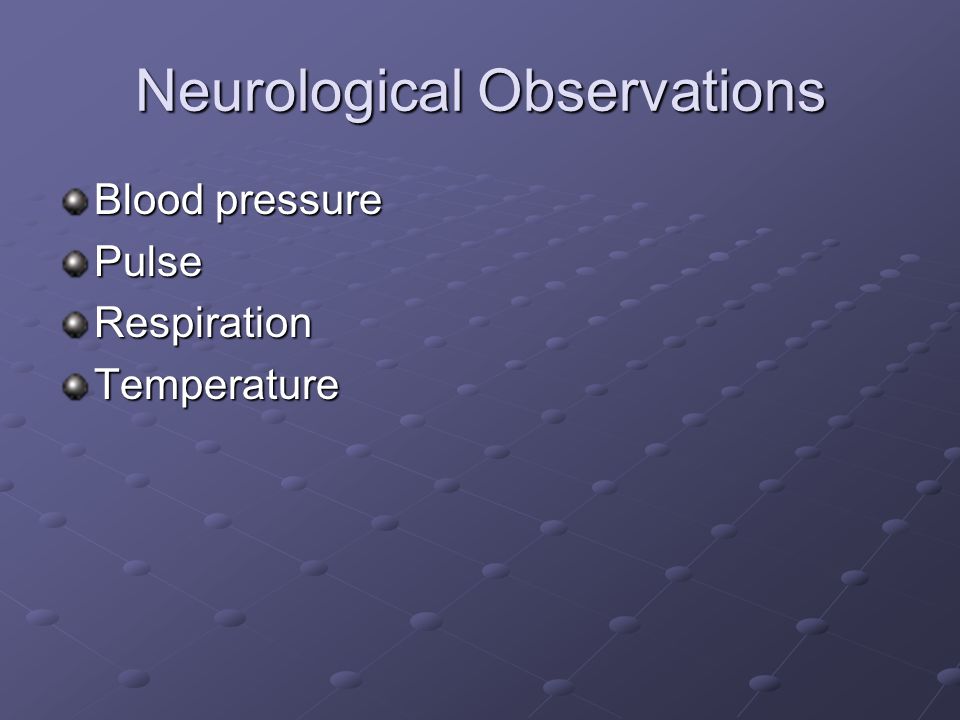

37 Neurological Observations Blood pressure PulseRespirationTemperature

38 Signs Of Raised ICP HeadacheVomiting Increasing drowsiness Deterioration in mental and verbal response Inequality of the pupils with sluggish reaction to light Development of hemiparesis Incontinence Pulse rate becomes slower Blood pressure rises Respiration – depth, rate and rhythm change when patient loses consciousness

39 Any Questions?

40 Bibliography Verran B, Aisbett P.(1988) Neurological and Neurosurgical Nursing. London Edward Arnold Publishing
