Complications of Urinary Diversion By Peter Tran, D.O. Garden City Hospital Resident Talk 12/17/2008.

Similar presentations

Presentation on theme: "Complications of Urinary Diversion By Peter Tran, D.O. Garden City Hospital Resident Talk 12/17/2008."— Presentation transcript:

1 Complications of Urinary Diversion By Peter Tran, D.O. Garden City Hospital Resident Talk 12/17/2008

2 Overview Classification of urinary diversions Factors influencing complications Complications according to bowel segments Metabolic/physiologic complications Surgical complications: early and late

3 Clasification of Diversions Orthotopic Heterotopic ◦ Continent cutaneous ◦ Non-continent cutaneous ◦ Diversion to GIT

4 Examples of Orthotopic Neobladders Figure 82-2 Construction of the modified Camey II. A, The ileal loop is folded three times (Z shaped) and incised on the antimesenteric border. B, The reservoir is closed with a running suture to approximate the incised ileum. C, The urethroenteric anastomosis is performed.

5 Examples of Orthotopic Neobladders Figure 82-3 Construction of the Hautmann ileal neobladder. A, A 70-cm portion of terminal ileum is selected. Note that the isolated segment of ileum is incised on the antimesenteric border. B, The ileum is arranged into an M or W configuration with the four limbs sutured to one another. C, After a buttonhole of ileum is removed on an antimesenteric portion of the ileum, the urethroenteric anastomosis is performed. The ureteral implants (Le Duc) are performed and stented, and the reservoir is then closed in a side-to-side manner.

6 Examples of Orthotopic Neobladders Figure 82-4 Construction of the ileal neobladder (Studer pouch) with an isoperistaltic afferent ileal limb. A, A 60- to 65-cm distal ileal segment is isolated (approximately 25 cm proximal to the ileocecal valve) and folded into a U configuration. Note that the distal 40 cm of ileum constitutes the U shape and is opened on the antimesenteric border; the more proximal 20 to 25 cm of ileum remains intact (afferent limb). B, The posterior plate of the reservoir is formed by joining the medial borders of the limbs with a continuous running suture. The ureteroileal anastomoses are performed in a standard end-to-side technique to the proximal portion (afferent limb) of the ileum. Ureteral stents are used and brought out anteriorly through separate stab wounds. C, The reservoir is folded and oversewn (anterior wall). D, Before complete closure, a buttonhole opening is made in the most dependent (caudal) portion of the reservoir. E, The urethroenteric anastomosis is performed. F, A cystostomy tube is placed, and the reservoir is closed completely.

7 Examples of Orthotopic Neobladders Figure 82-5 Construction of the Kock ileal reservoir. A, A total of 61 cm of terminal ileum is isolated. Two 22-cm segments are placed in a U configuration and opened adjacent to the mesentery. Note that the more proximal 17-cm segment of ileum will be used to make the afferent intussuscepted nipple valve. B, The posterior wall of the reservoir is then formed by joining the medial portions of the U with a continuous running suture. C, A 5- to 7-cm antireflux valve is made by intussusception of the afferent limb with the use of Allis forceps clamps. D, The afferent limb is fixed with two rows of staples placed within the leaves of the valve. E, The valve is fixed to the back wall from outside the reservoir. F, After completion of the afferent limb, the reservoir is completed by folding the ileum on itself and closing it (anterior wall). Note that the most dependent portion of the reservoir becomes the neourethra. The ureteroileal anastomosis is performed first, and the urethroenteric anastomosis is completed in a tension-free, mucosa-to-mucosa fashion.

8 Examples of Orthotopic Neobladders Figure 82-8 Construction of the Mainz ileocolonic orthotopic reservoir. A, An isolated 10 to 15 cm of cecum in continuity with 20 to 30 cm of ileum is isolated. B, The entire bowel segment is opened along the antimesenteric border. Note that an appendectomy is performed. C, The posterior plate of the reservoir is constructed by joining the opposing three limbs together with a continuous running suture. D, An antireflux implantation of the ureters through a sub-mucosal tunnel is performed and stented. E, A buttonhole incision in the dependent portion of the cecum is made that provides for the urethroenteric anastomosis. Note that the ureterocolonic anastomoses are performed before closure of the reservoir. F, The reservoir is closed side to side with a cystostomy tube and the stents exiting.

9 Examples of Orthotopic Neobladders Figure 82-9 Construction of Le Bag (ileocolonic) orthotopic reservoir. A, A total of 20 cm of ascending cecum and colon, with a corresponding length of adjacent terminal ileum, is isolated. The bowel is opened along the entire antimesenteric border, and the two incised segments are then sewn to one another. This forms the posterior plate of the reservoir. B, This reservoir is folded and rotated 180 degrees into the pelvis with the most proximal portion of the ileum (2 cm non- detubularized) anastomosed to the urethra. C, Modification is performed with complete detubularization of the bowel segment, which is then anastomosed to the urethra.

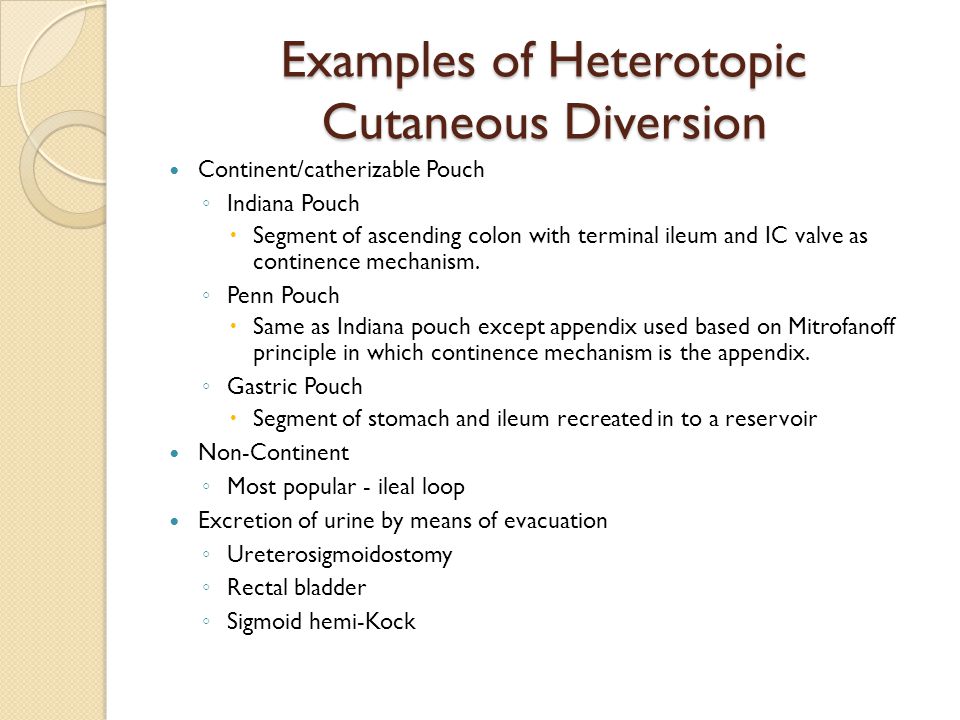

10 Examples of Heterotopic Cutaneous Diversion Continent/catherizable Pouch ◦ Indiana Pouch  Segment of ascending colon with terminal ileum and IC valve as continence mechanism. ◦ Penn Pouch  Same as Indiana pouch except appendix used based on Mitrofanoff principle in which continence mechanism is the appendix. ◦ Gastric Pouch  Segment of stomach and ileum recreated in to a reservoir Non-Continent ◦ Most popular - ileal loop Excretion of urine by means of evacuation ◦ Ureterosigmoidostomy ◦ Rectal bladder ◦ Sigmoid hemi-Kock

11 Factors Influencing Complications Patient factors Bowel factors

12 Patient Factors Performance status/co-morbidities Pt/caregiver compliance with CIC Mobility Previous XRT Renal function Liver function Body habitus BMI

13 Bowel Factors/Technical Factors Type of intestinal segment used Length of intestinal segment Continent vs. incontinent Method/extend of detubularization Capacity Compliance Refluxing/non-refluxing uretero-enteric anastomosis Type of diversion chosen

14 Gastric Complications Hypochloremic, hypokalemic metabolic alkalosis Hyper-gastrinemia Hematuria-dysuria syndrome

15 Jejunum Complications Most severe metabolic complications Hyponatremia Hyperkalemic, hypochloremic metabolic acidosis Severe dehydration

16 Ileal Complications Hyperchloremic, hypokalemic metabolic acidosis Vit B12 deficiency

17 Colonic Complications Hyperchloremic, hypokalemic metabolic acidosis

18 Metabolic/Physiologic Complications Renal deterioration Electrolyte disturbance Hypertension Altered sensorium Abnormal drug metabolism Osteomalacia Abnormal growth/development Vit deficiency Anemia Chronic diarrhea Hyper-gastrinemia

19 Electrolyte Disturbance Colon/Ileum ◦ Hyperchloremic, hypokalemic metabolic acidosis Stomach ◦ Hypochloremic, hypokalemic metabolic alkalosis Jejunum ◦ Hyperchloremic, hyperkalemic, hyponatremic metabolic acidosis Hyperammonemia Hypomagnesemia Hypocalcemia

20 Colon and Ileum Hyperchloremic, hypokalemic metabolic acidosis ◦ 15% of ileal conduits  10% severe enough to require Tx ◦ 20% of colon conduits  15% require Tx ◦ 50% ileal or colonic pouches  40% require Tx ◦ 80% of ureterosigmoidostomy

21 Hyperchloremic, hypokalemic metabolic acidosis Symptoms ◦ Easy fatigability ◦ Anorexia/weight loss ◦ Polydipsia ◦ Lethargy ◦ Exacerbation of diarrhea in GI diversions

22 Hyperchloremic, hypokalemic metabolic acidosis: MOA Net absorption of ammonium + chloride Increased secretion of HCO 3 Impaired distal tubular secretion of hydrogen Physiologic Response ◦ Increased acid secretion by kidneys ◦ Bone demineralization to buffer acidosis

23 Hyperchloremic, hypokalemic metabolic acidosis: Treatment Alkalinizing agent ◦ NaHCO 3 ◦ K-Citrate ◦ Na-Citrate Blockers of Cl transport ◦ Chlorpromazine ◦ Nicotinic acid

24 Gastric Complications Hypochloremic, hypokalemic metabolic alkalosis ◦ Rare unless comcomitant renal failure ◦ Severe dehydration, often triggered by vomiting or GI illness ◦ High serum gastrin levels  Overdistension of gastric segment triggers gastrin release

25 Gastric Complications Symptoms ◦ Lethargy ◦ Weakness ◦ Respiratory insufficiency ◦ Seizures ◦ Ventricular arrhythmia

26 Gastric Complications: MOA H+, K+, and Cl- loss in gastric segment Net addition of HCO 3 Serum gastrin levels correlate with systemic HCO 3 concentration

27 Gastric Complications: Tx Acute severe metabolic alkalosis ◦ Empty bladder ◦ NaCl volume replacement ◦ H 2 blocker ◦ PPI ◦ Arginine HCl ◦ Surgical removal of gastric segment

28 Gastric Complications: Tx Mild/prophylaxis ◦ Oral Na/K supplementation ◦ H 2 blockers

29 Hypokalemia - Incidence Colonic diversions ◦ 30% reduction in total body K Ileal diversions ◦ 0-15% reduction

30 Hypokalemia: MOA Colonic/Ileal diversions ◦ Ileum may passively reabsorb some K blunting the loss ◦ Chronic metabolic acidosis ◦ Renal K wasting

31 Hypokalemia Symptoms ◦ Typically no symptoms ◦ At most severe  Muscle weakness  Paralysis

32 Hypokalemia: Tx Correct the acidosis ◦ Beware of acutely worsening K as in moves backto intracellular stores ◦ Oral K supplementation


34 Altered Sensorium: MOA Hypomagnesemia Drug reabsorption Ammonia encephalopathy

35 Altered Sensorium: Hypomagnesemia Renal loss Chronic diarrhea Decreased absorption

36 Altered Sensorium: Hypomagnesemia Symptoms ◦ Cardiac arrhythmias ◦ Tremor ◦ Tetany ◦ Seizures Treament ◦ Mg replacement

37 Ammoniogenic Encephalopathy Ammonium secreted by the kidney Ammonia is produced by urease splitting bacteria Reabsorbed and transferred to liver by portal circulation Nomally liver copes and coverts ammonia to urea

38 Ammoniogenic Encephalopathy Risk Factors ◦ Typically in pre-existing or acquired liver disease ◦ Ureterosigmoidostomy>Colon or ileal conduits ◦ Triggers in setting of liver disease  Constipation  Increased protein load  GI bleed  UTI with ammonia producer  Co-existing CNS depressant use  Renal failure ◦ Normal liver ◦ Bacterial endotoxin – liver dysfunction with normal LFT

39 Ammoniogenic Encephalopathy: Symptoms Apathy Restlessness Sleep disturbance Impaired intellectual abililites Asterixis and lethargy Stupor Coma

40 Ammoniogenic Encephalopathy: Tx Decrease nitrogen load/remove precipitants ◦ Drain urine diversion ◦ Limit dietary protein intake ◦ Treat any systemic or UTI ◦ Lactulose  Lowers gut pH so more NH 4 than NH 3  Promotes non-urease producing bacteria  Decreases transit time of fecal matter  Complexes the ammonia ◦ Neomycin/tetracycline  Eliminate ammonia producing bacteria from the GIT ◦ Arginine glutamate  Complexes ammonia

41 Abnormal Drug Metabolism Drugs absorbs in GIT Drugs excreted unchanged in urine Reabsorbed in intestinal segment

42 Abnormal Drug Metabolism List of drugs ◦ Dilantin ◦ Methotrexate/chemo ◦ Theophylline ◦ Abx (beta-lactams, nitrofurantoin, aminoglycosides) ChemoTx ◦ Ensure pt well hydrated ◦ Drain diversion with catheter ◦ Consider leukovorin administration with methotrexate

43 Osteomalacia Potential long-term complication Affects children and adults Bone demineralization Mineralized component of bone is replace with osteoid

44 Osteomalacia Risk Factors ◦ Bowel segment used  Ureterosig most commonly  Colon or ileal cystoplasties  Colon or ileal conduits/neobladders ◦ Renal failure Chronic untreated metabolic acidosis

45 Osteomalacia: MOA Bone buffering of chronic metabolic acidosis Vit D resistance – less Ca absorption by GIT Vit D deficiency – acidosis limits vit D production Sulphate in urine inhibits Ca and Mg re-absorption Resitance to PTH ◦ = Ca loss

46 Osteomalacia Symptoms ◦ Diffuse skeletal pain ◦ Bone tenderness ◦ Fractures ◦ Gait disturbance ◦ Proximal muscle weakness

47 Osteomalacia Prevention ◦ Particularly important in postmenopausal women and children ◦ Tx underlying metabolic acidosis Vit C Vit D Activated Vit D metabolite ◦ 1-alpha-hydroxycholecalciferol ◦ Ca supplementation

48 Vitamin Deficiency ADEK – fat soluble lost in malabsorption of fat Vit B12 – absorbed in distal ileum

49 Vitamin B12 Deficiency: Etiology Not synthesized by mammals – only dietary source B12 released from food by enzymes in stomach Bound to IF in duodenum Absorbed in terminal ileum Stored mainly in liver Total body stores of 2-5mg, loss of 0.1% daily Takes 2-4 years for defeciency to take effect 3-20% incidence after terminal ileum resection

50 Vitamin B12 Deficiency: Symptoms Neurologic ◦ Peripheral neuropathy ◦ Degenerative changes/demyelination in spinal cord ◦ Voiding dysfunction ◦ Optic neuropathy Hematologic ◦ Megaloblastic anemia Inflammation of tongue/mouth Psychiatric disturbances

51 Vitamin B12 Deficiency: Labs MCV > 120 Often neutropenia and thrombocytopenia Hypersegmented neutrophils Low serum B12 levels

52 Vitamin B12 Deficiency: Bowel Segment Continent diversion increased risk ◦ Larger bowel segment used ◦ TI/IC junction resection ◦ Resection of > 50cm appears to be a major risk factor

53 Vitamin B12 Deficiency: Tx Prevention ◦ Replace with 100ug cobalamin IM monthly starting 1 year after surgery if > 50cm ileum resected Treatment ◦ Neurologic symptoms may precede other ◦ Treat if the least bit concered ◦ Treat if lab values are abnormal but asymptomatic

54 Surgical Complications Early ◦ Wound infection ◦ Intra-abdominal abscess ◦ Pyelonephritis ◦ Hemorrhage ◦ Urine leak/fistula ◦ Bowel leak/fistula ◦ Ileus ◦ Bowel obstruction ◦ Stomal bleeding/necrosis

55 Surgical Complications Late ◦ Wound hernia or dehiscence ◦ Bowel obstruction ◦ Ureteral stricture ◦ UTI/pyelo ◦ Urinary stones ◦ Renal deterioration ◦ Stomal stenosis/parastomal hernia ◦ Hematuria dysuria syndrome

56 Stomal Complications Early ◦ Bleeding ◦ Necrosis Late ◦ Dermatitis ◦ Retraction ◦ Prolapse ◦ Parastomal hernia ◦ Stenosis

57 Stomal Bleeding Early ◦ Conservative Tx ◦ Most will stop with pressure/time Late ◦ Liver disease due to dilated veins ◦ Correct coagulopathy ◦ Ligation ◦ Porto-systemic shunting

58 Parastomal Hernia Incidence ◦ 10% ileal conduit ◦ 20% colon conduit Risk Factors ◦ Wound infection ◦ Steriod use ◦ Malnutrition ◦ Obesity ◦ Chronic cough/COPD ◦ Advanced age ◦ Stomal not brought out through rectus muscle

59 Stomal Stenosis Incidence ◦ 3-25% of ileal conduits ◦ 10-20% of colon conduits ◦ Catherizable stoma – 50% Brooke > Turnbull loop

60 Stomal Stenosis Risk Factors ◦ Catherizable > end > loop ◦ Technical  Protruding better and flushed for non-continent  Insufficient fascial opening ◦ Muscle spasm ◦ Ischemia ◦ Infection ◦ Poor stomal hygiene ◦ Poor fitting appliance

61 Stomal Stenosis Symptoms ◦ Suspect in  Metabolic disturbance  Infection/pyelo/sepsis  Stones  Renal decline

62 Stomal Stenosis Work-up ◦ Conduit residual urine ◦ Loopogram  Elongation  Reflux with upper tract dilation  Segment stenosis Tx ◦ Requires surgical repair

63 Ureteroenteric Stricture Risk Factors ◦ Technical  Tension  Stripping ureteric blood supply  Insufficient window through colon mesentery  No mucosal to mucosal apposition ◦ Infection ◦ Stone passage ◦ Radiation ◦ IBD ◦ Previous urine leak

64 Ureteroenteric Stricture Symptom ◦ Stones ◦ Back pain ◦ Infection/sepsis DDx ◦ Ureteral stone ◦ TCC recurrence

65 Ureteroenteric Stricture Imaging US Loopogram CT/IVP Renogram Antegrade Nephrostogram ◦ Most useful ◦ Diagnostic/therapeutic ◦ Tract for antegrade procedure

66 Ureteroenteric Stricture Tx ◦ Endoscopic  Antegrade vs retrograde  Balloon dilation  Cold knife  Laser incision ◦ Open

67 Ureteroenteric Stricture Advantages of Endoscopic ◦ Reasonable 1 st line Tx ◦ Less morbidity ◦ Less OR time ◦ Less blood loss ◦ Shorter hospital stay ◦ Pt. with metastatic disease Disadvantages ◦ High failure rate ◦ May complicate open repair

68 Ureteroenteric Stricture Factors associated with failure of endoscopic repair ◦ Length > 1cm ◦ Stricture presenting < 6 months since surgery ◦ Left sided stricture

69 Ureteroenteric Anastomosis

70 Ureteroenteric Stricture ProcedureStricture Colon Leadbetter-Clarke14% Strickler14% Pagano7% Small Bowel Bricker7% Wallace3% Nipple8% Le Duc18%
