Presentation on theme: "RealityEngine Graphics Kurt Akeley Silicon Graphics Computer Systems."— Presentation transcript:

1 RealityEngine Graphics Kurt Akeley Silicon Graphics Computer Systems

2 Overview Introduction System Architecture Features Conclusions / Results

3 Introduction SGI created. High end graphics work station Hardware Solution

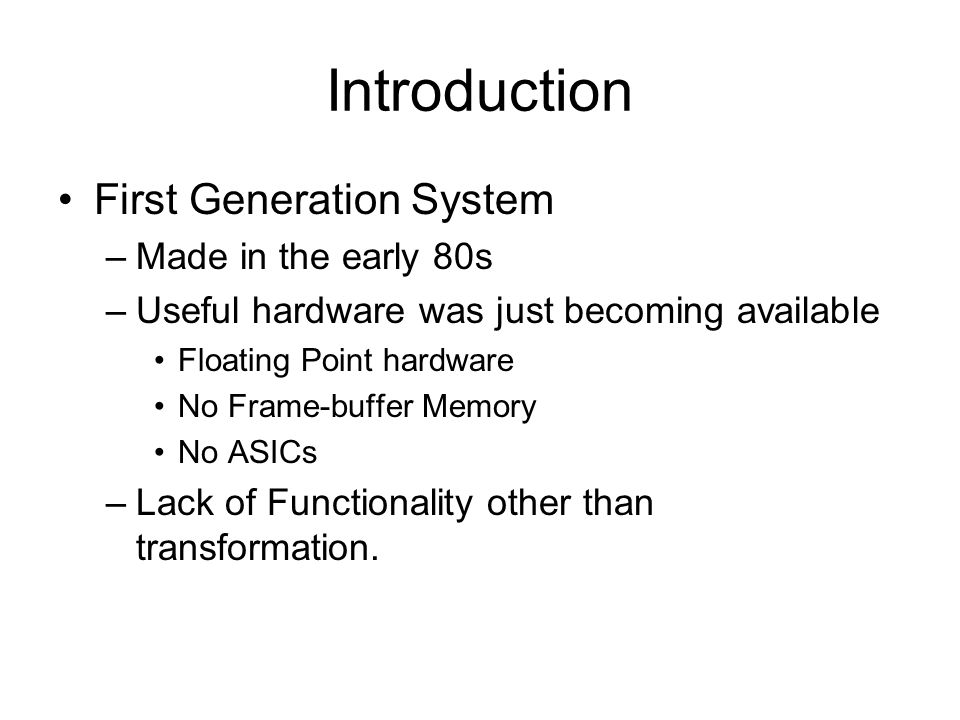

4 Introduction First Generation System –Made in the early 80s –Useful hardware was just becoming available Floating Point hardware No Frame-buffer Memory No ASICs –Lack of Functionality other than transformation.

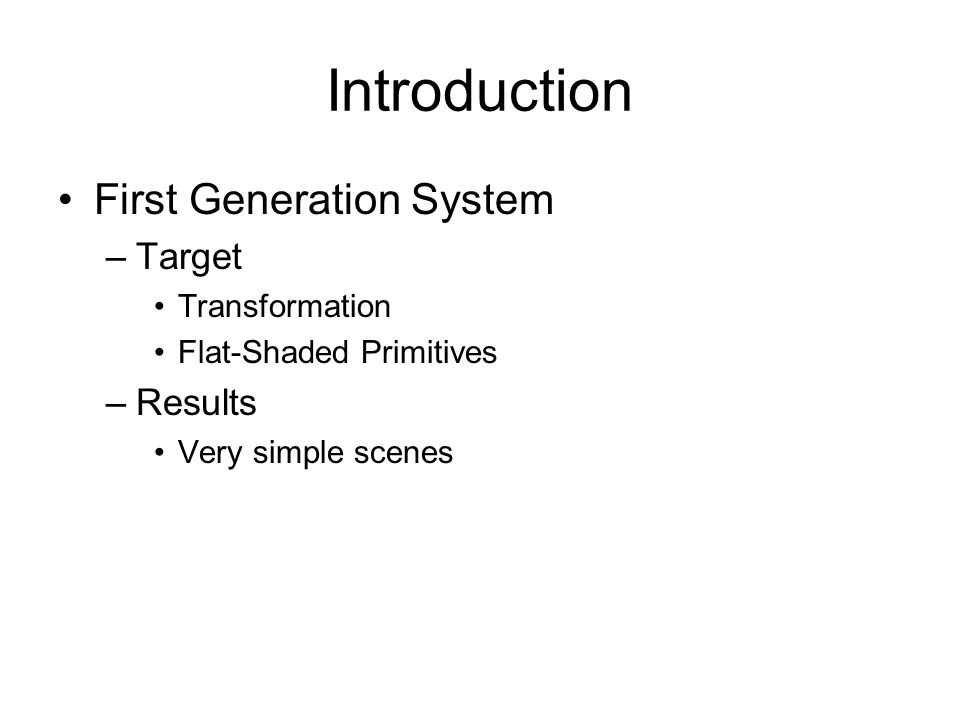

5 Introduction First Generation System –Target Transformation Flat-Shaded Primitives –Results Very simple scenes

6 Introduction Second Generation Systems –Made in the late 80s –Useful hardware was available and affordable Frame buffers ASICs –Greater Functionality

7 Introduction Second Generation System –Target Interpolate Color and Depth Good Performance Solid or Wire frame images –Results More complex scenes

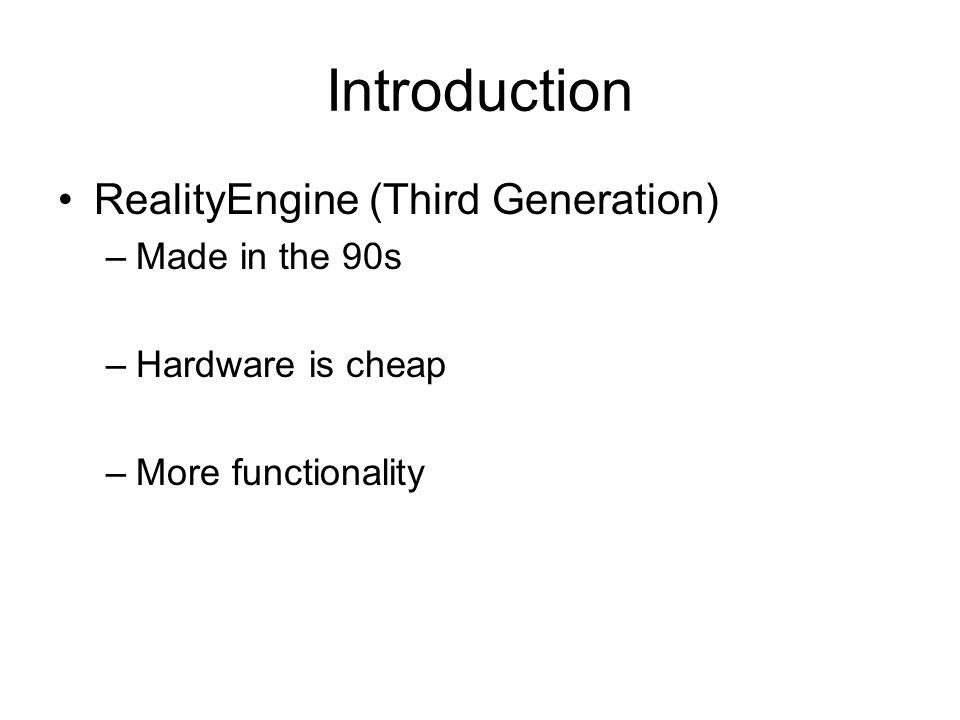

8 Introduction RealityEngine (Third Generation) –Made in the 90s –Hardware is cheap –More functionality

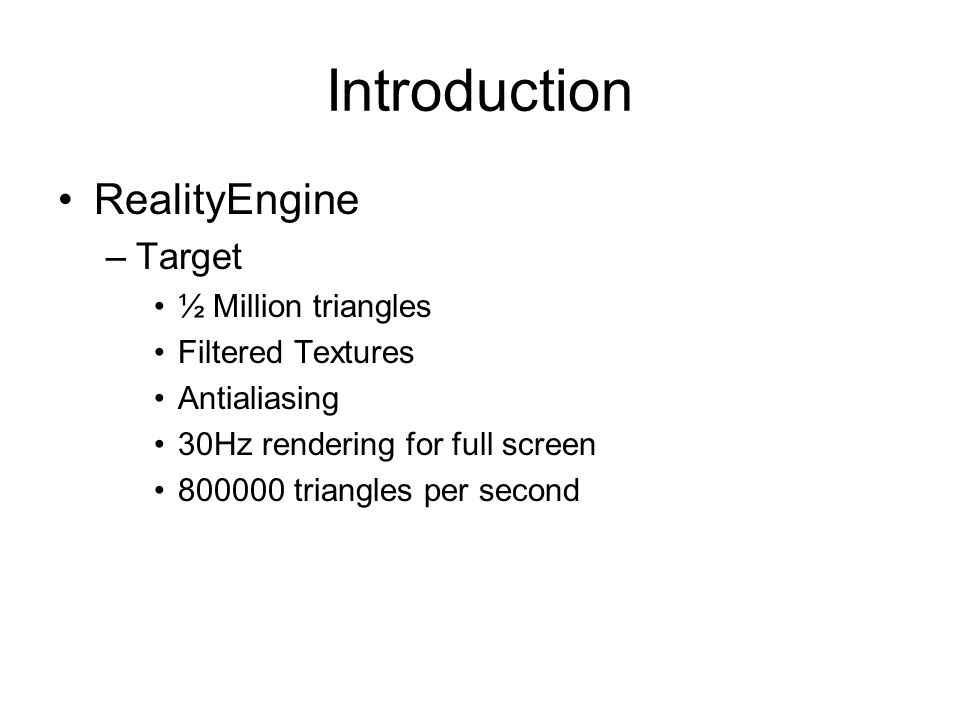

9 Introduction RealityEngine –Target ½ Million triangles Filtered Textures Antialiasing 30Hz rendering for full screen 800000 triangles per second

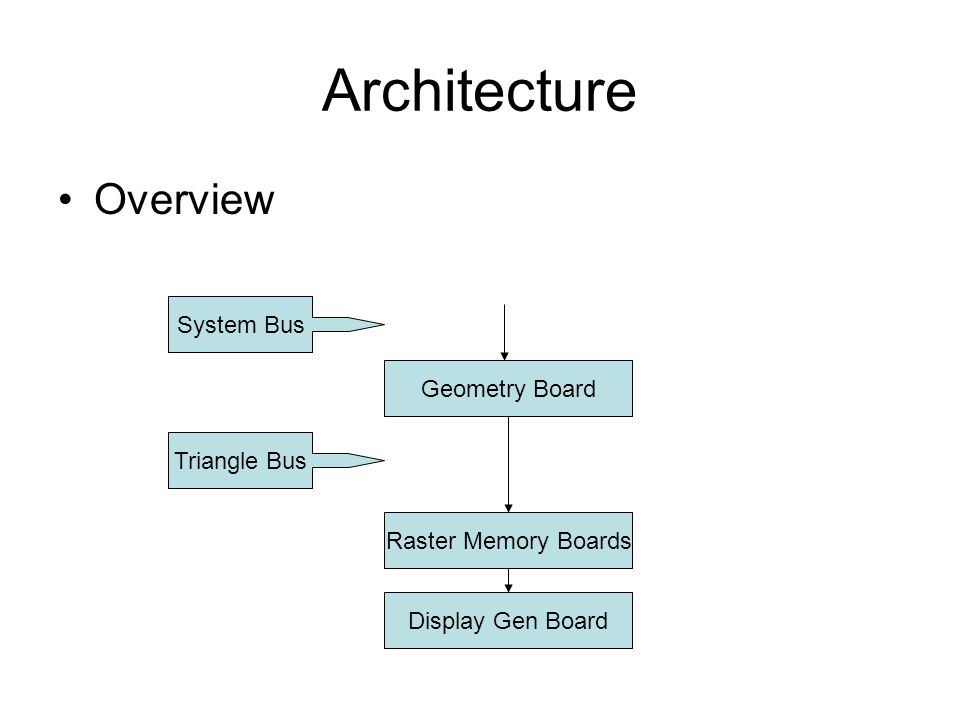

10 Architecture Overview Geometry Board Raster Memory Boards Display Gen Board Triangle Bus System Bus

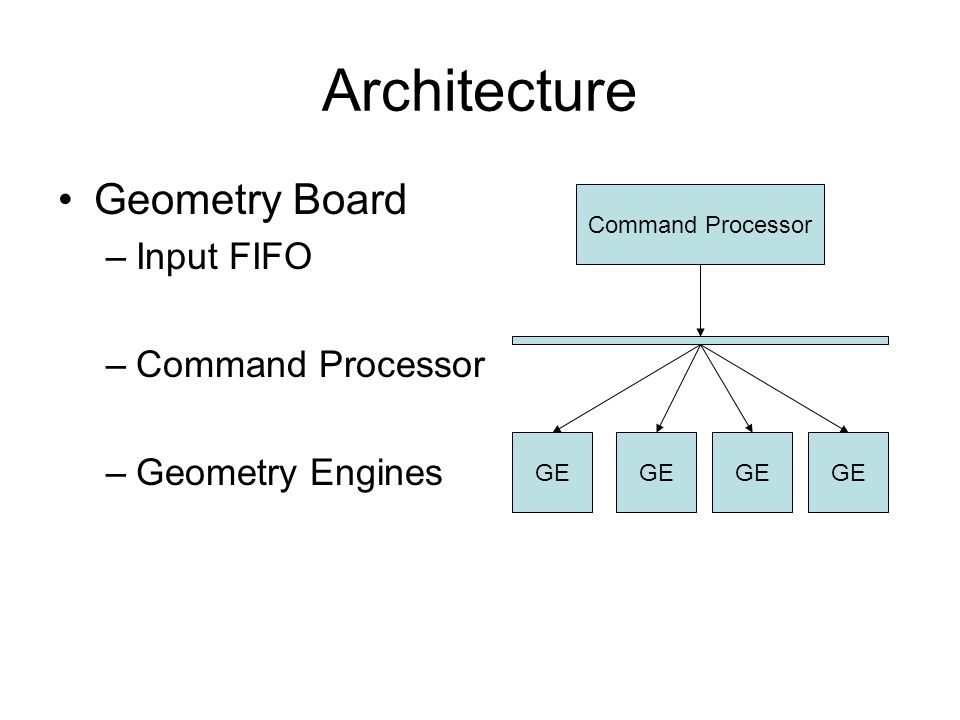

11 Architecture Geometry Board –Input FIFO –Command Processor –Geometry Engines Command Processor GE

12 Architecture Command Processor –Two kinds of Commands Frequent Infrequent –Breaks down commands –Broadcasts commands to Geometry Engines

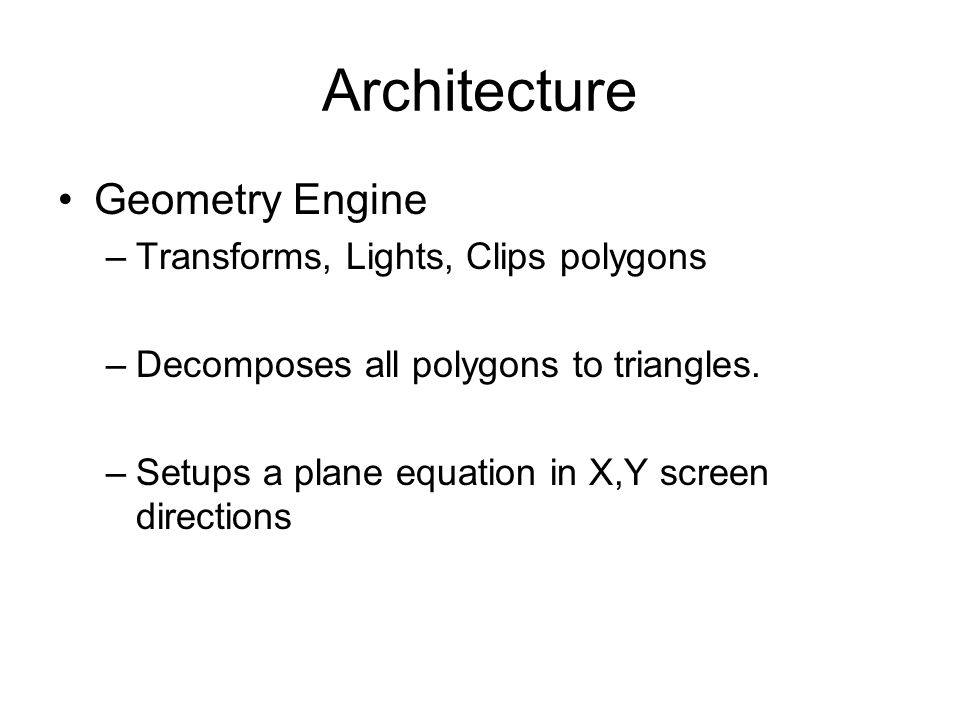

13 Architecture Geometry Engine –Transforms, Lights, Clips polygons –Decomposes all polygons to triangles. –Setups a plane equation in X,Y screen directions

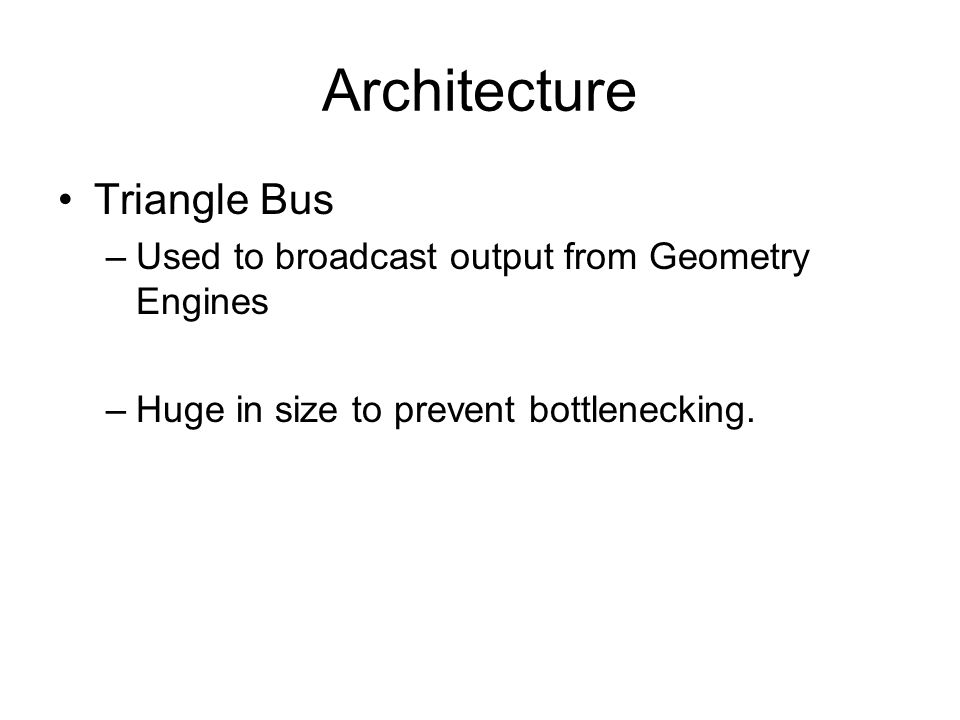

14 Architecture Triangle Bus –Used to broadcast output from Geometry Engines –Huge in size to prevent bottlenecking.

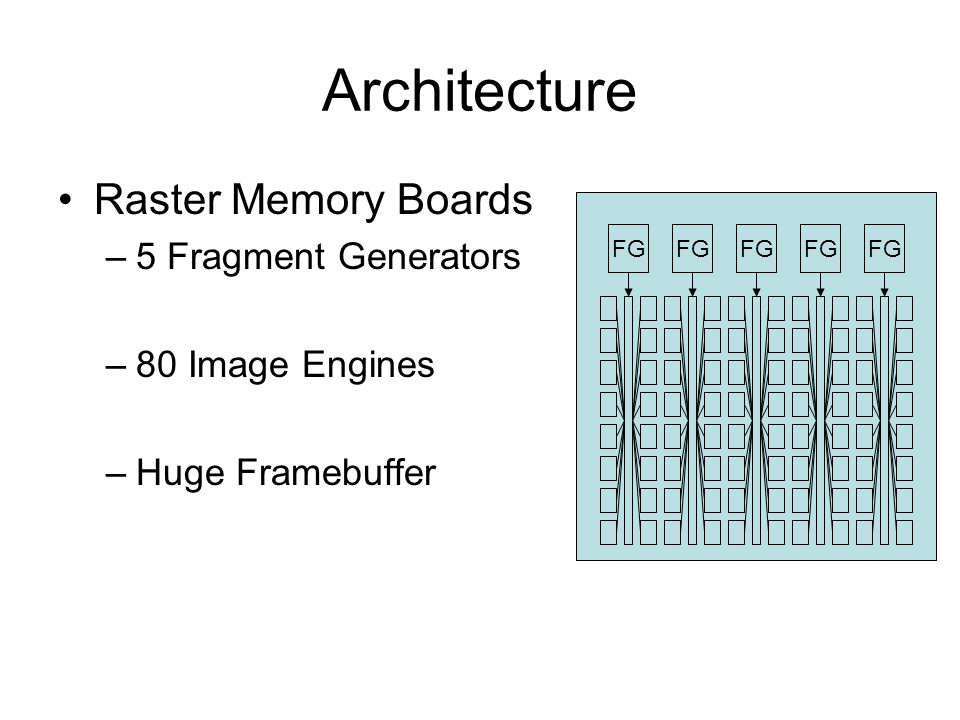

15 Architecture Raster Memory Boards –5 Fragment Generators –80 Image Engines –Huge Framebuffer FG

16 Architecture Fragment Generator –Fragments –Coverage Mask –Texture Controls –Color –Fog

17 Architecture Fragment Generator –Fragment Generation Uses Modified Pineda algorithm –Coverage Mask Generation Generates 8x8 Masks

18 Architecture Fragment Generator –Texture Control Based around the most center pixel in mask. LOD Fraction and the center pixels location determine texel location.

19 Architecture Fragment Generator –Blends texture color with fragment color –Blends Fog

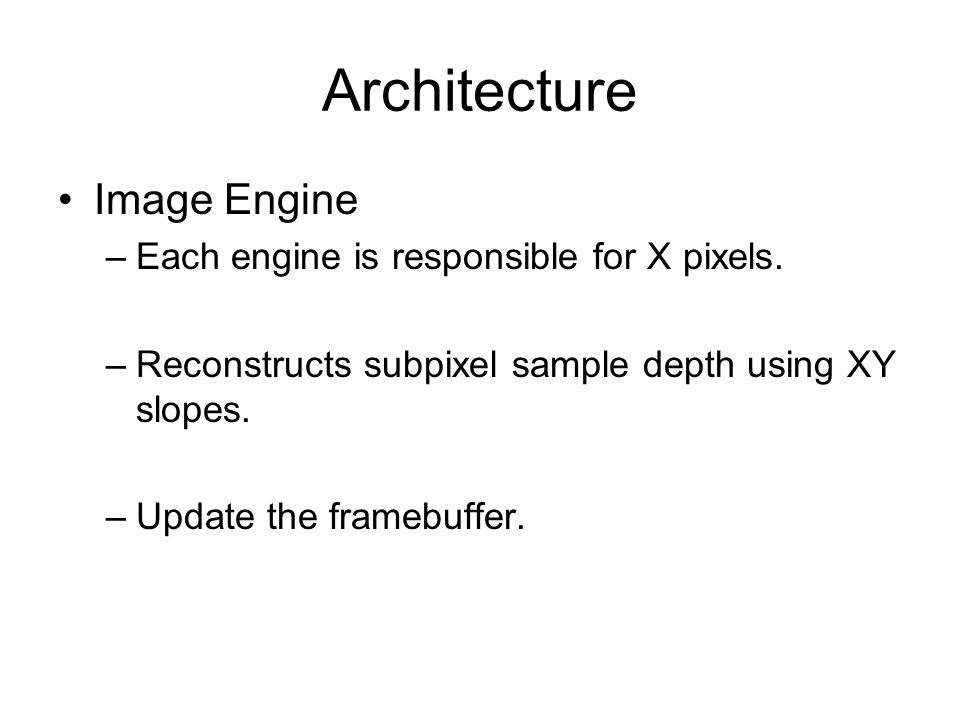

20 Architecture Image Engine –Each engine is responsible for X pixels. –Reconstructs subpixel sample depth using XY slopes. –Update the framebuffer.

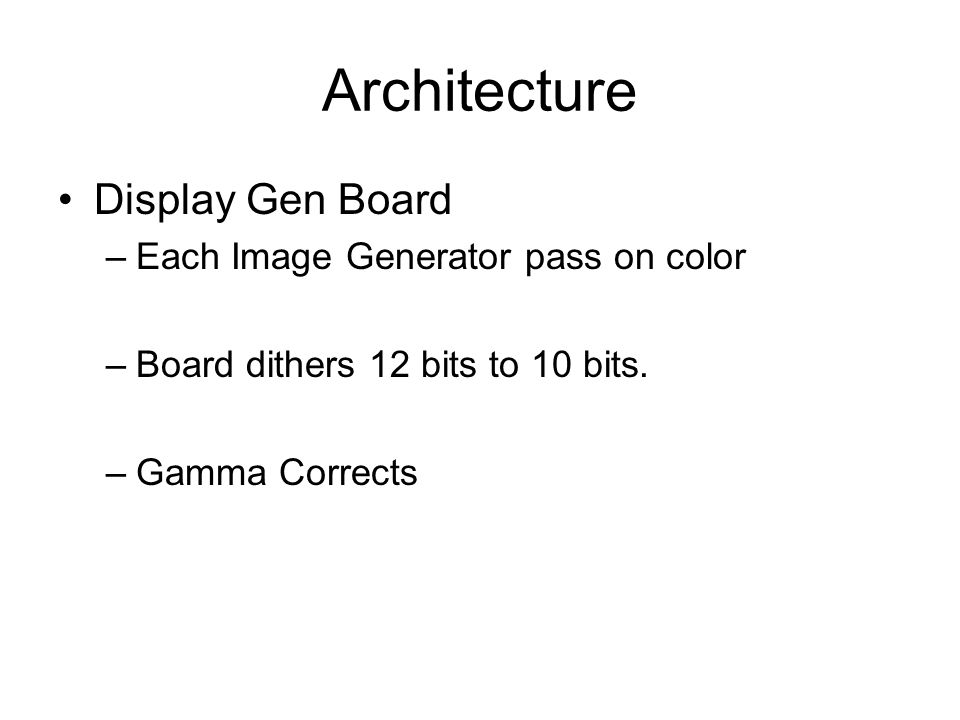

21 Architecture Display Gen Board –Each Image Generator pass on color –Board dithers 12 bits to 10 bits. –Gamma Corrects

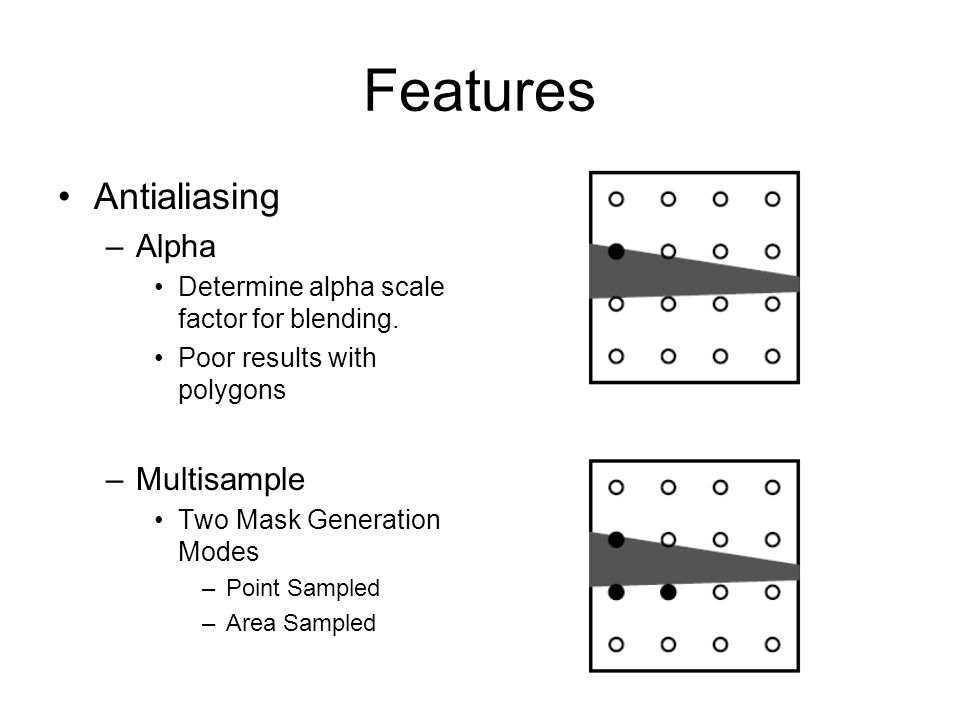

22 Features Antialiasing –Alpha Determine alpha scale factor for blending. Poor results with polygons –Multisample Two Mask Generation Modes –Point Sampled –Area Sampled

23 Features Texture Mapping –2D Textures Mipmapped –3D Textures –LOD texture mapping –Filtering –Magnification

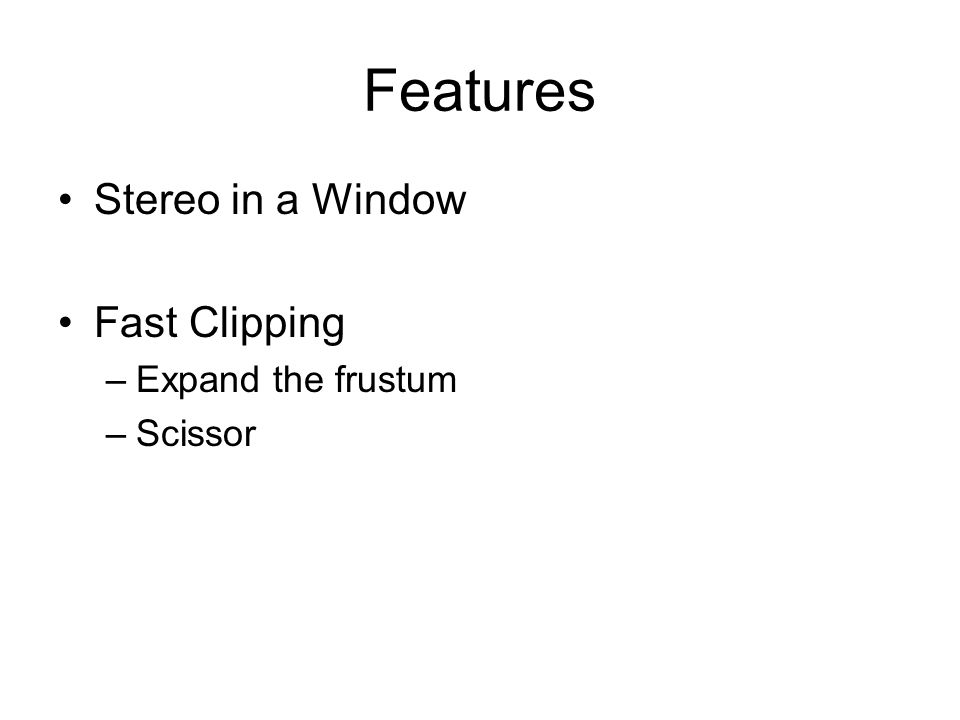

24 Features Stereo in a Window Fast Clipping –Expand the frustum –Scissor

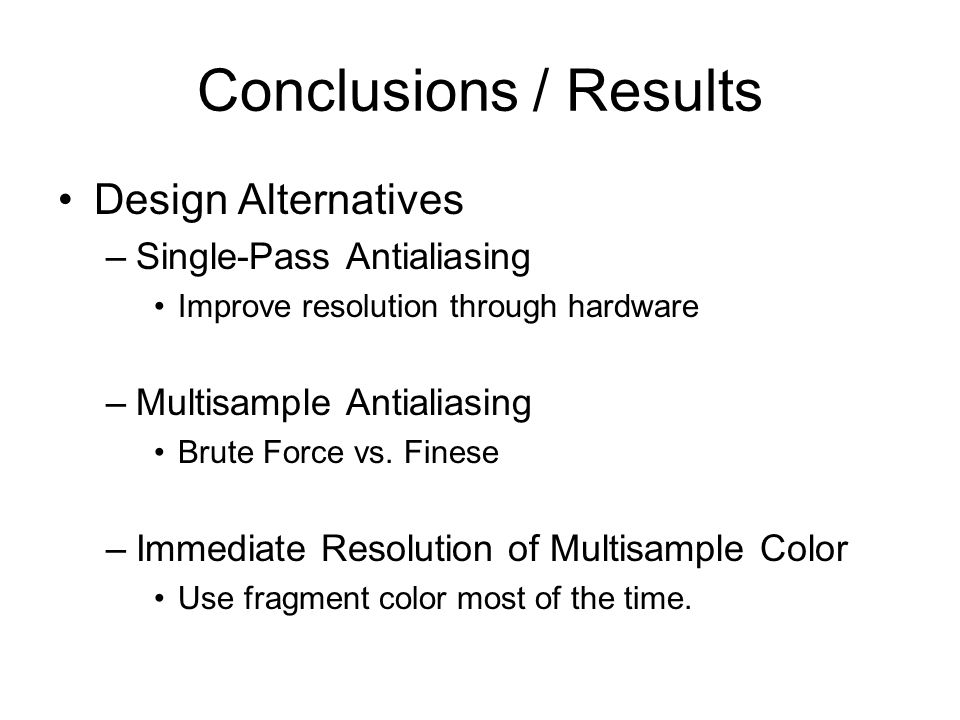

25 Conclusions / Results Design Alternatives –Single-Pass Antialiasing Improve resolution through hardware –Multisample Antialiasing Brute Force vs. Finese –Immediate Resolution of Multisample Color Use fragment color most of the time.

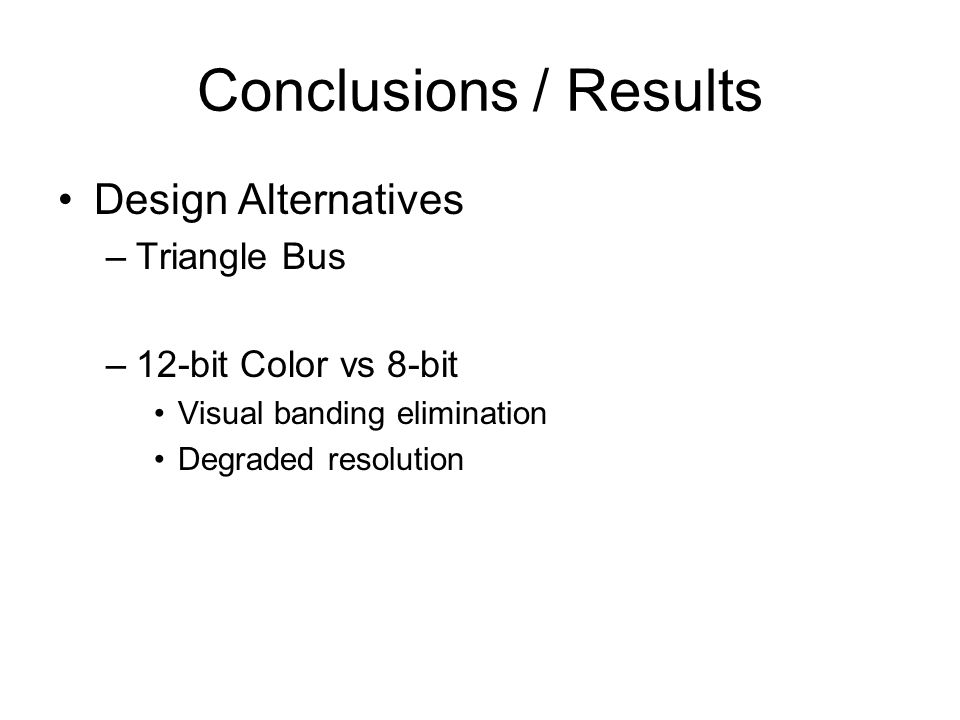

26 Conclusions / Results Design Alternatives –Triangle Bus –12-bit Color vs 8-bit Visual banding elimination Degraded resolution

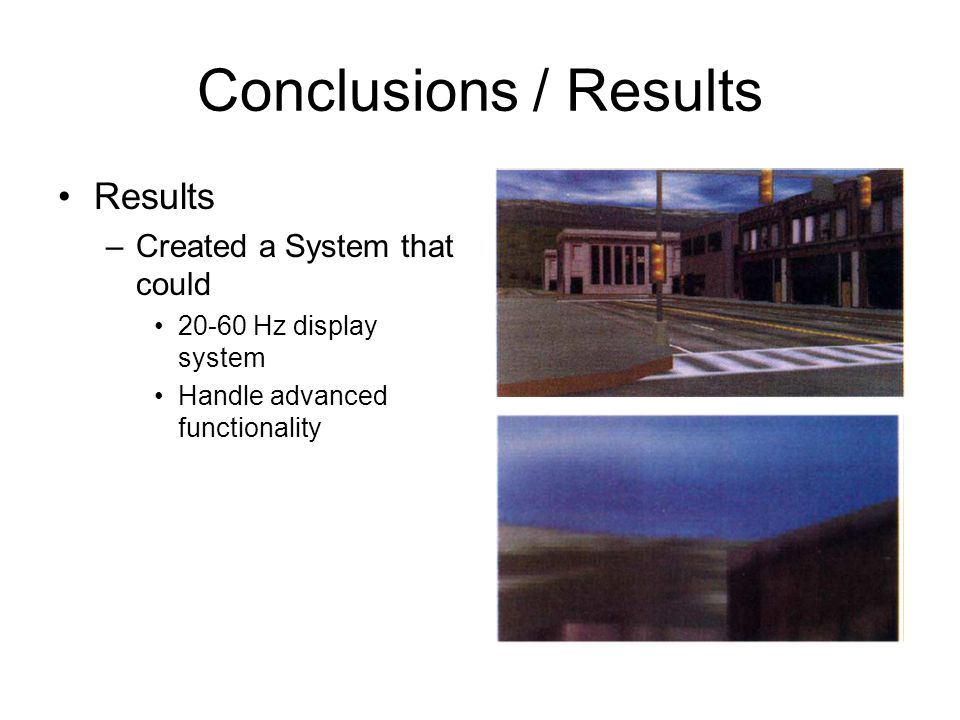

27 Conclusions / Results Results –Created a System that could 20-60 Hz display system Handle advanced functionality

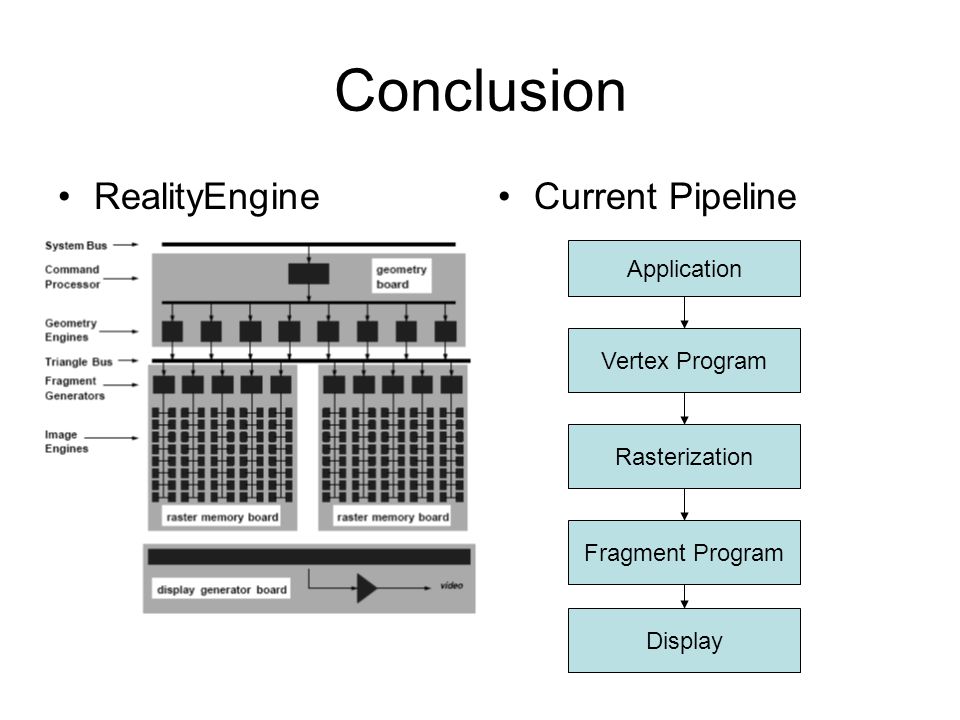

28 Conclusion RealityEngineCurrent Pipeline Application Vertex Program Rasterization Fragment Program Display
