1 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Solutions for DATA CENTER

2 ZPAS Solutions for Data Center ZPAS GROUP Infrastructure of Data Center - server cabinets - precise air-conditioning - guaranteed power supply systems - fire extinguishing systems - electronic security systems, - enviromental condition monitoring systems– ZPAS Control Oversee, ZPAS Solutions for DATA CENTER

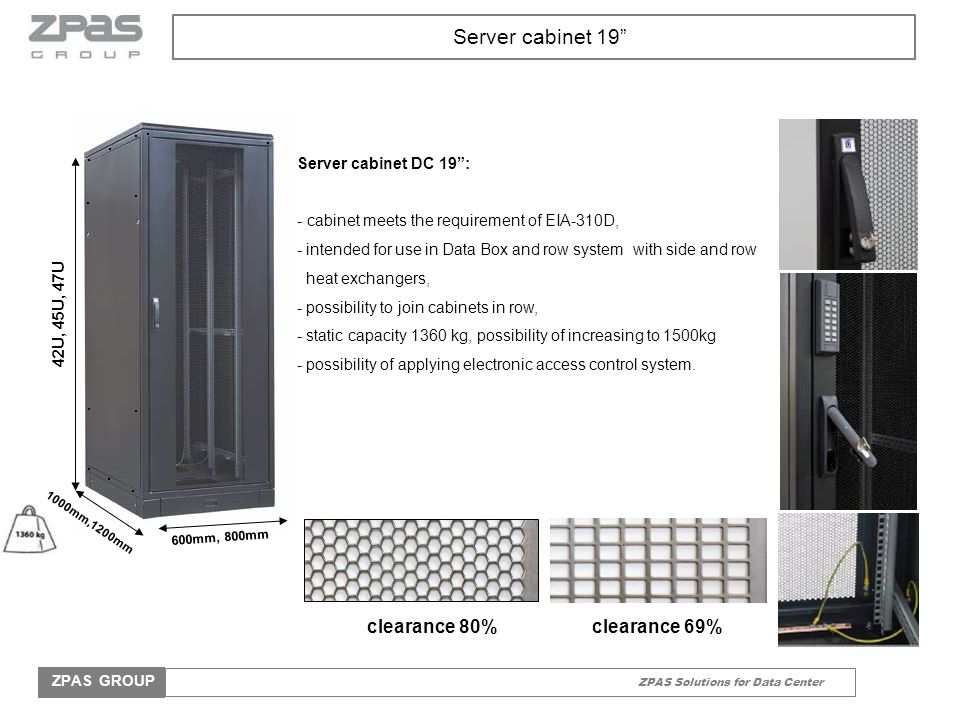

3 ZPAS Solutions for Data Center ZPAS GROUP Server cabinet 19” Server cabinet DC 19”: - cabinet meets the requirement of EIA-310D, - intended for use in Data Box and row system with side and row heat exchangers, - possibility to join cabinets in row, - static capacity 1360 kg, possibility of increasing to 1500kg - possibility of applying electronic access control system. 42U, 45U, 47U 1000mm,1200mm 600mm, 800mm clearance 80%clearance 69%

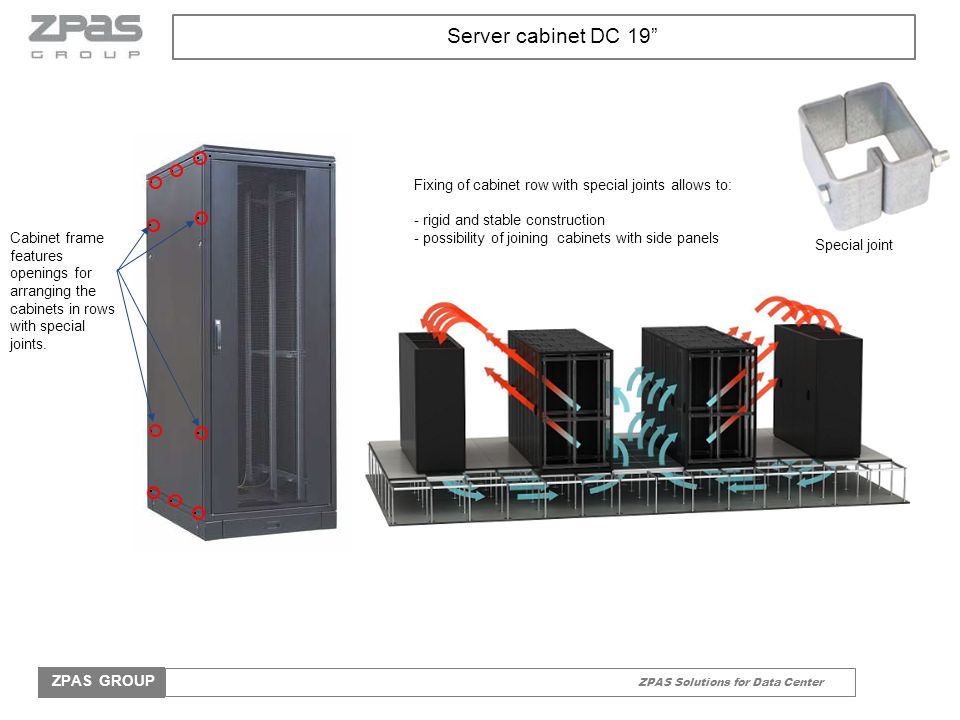

4 ZPAS Solutions for Data Center ZPAS GROUP Server cabinet DC 19” Cabinet frame features openings for arranging the cabinets in rows with special joints. Special joint Fixing of cabinet row with special joints allows to: - rigid and stable construction - possibility of joining cabinets with side panels

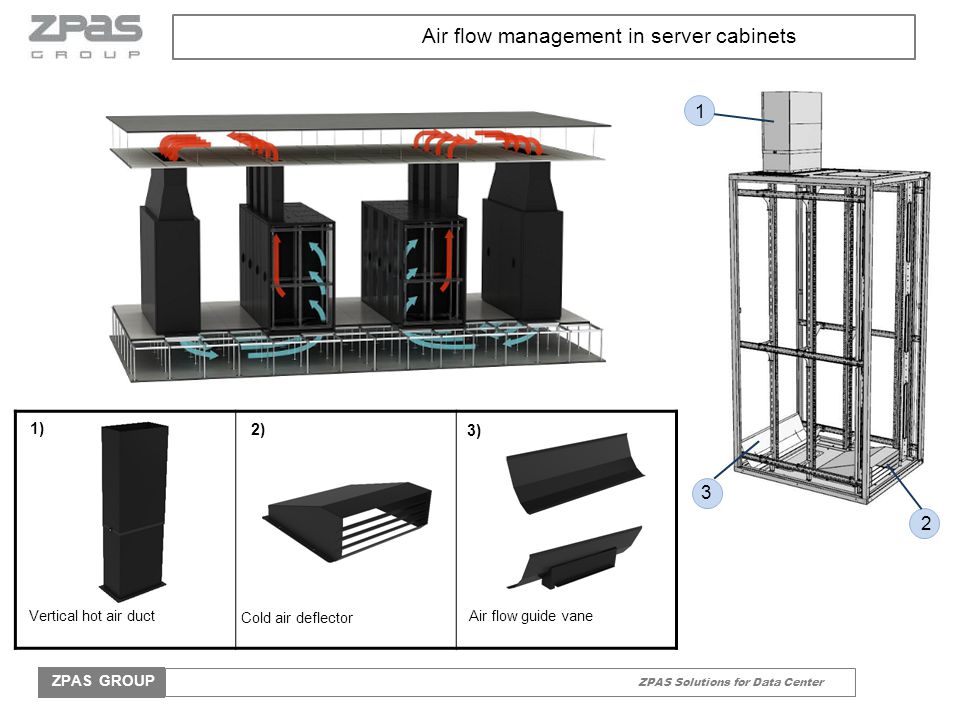

5 ZPAS Solutions for Data Center ZPAS GROUP Air flow management in server cabinets 1) 2) 3) Vertical hot air duct Cold air deflector Air flow guide vane

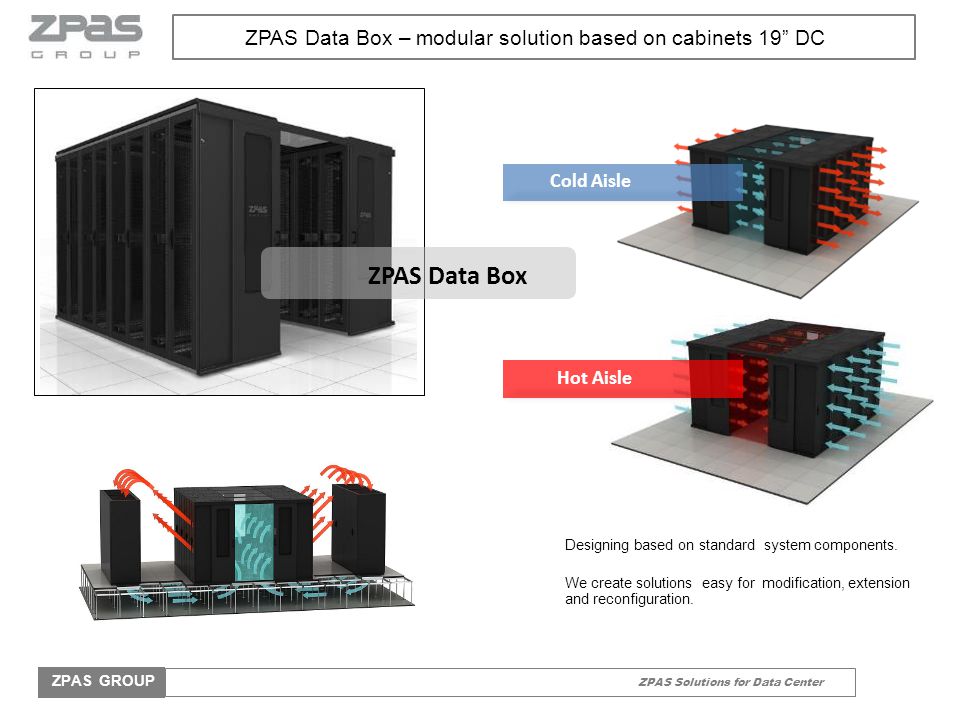

6 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – modular solution based on cabinets 19” DC Designing based on standard system components. We create solutions easy for modification, extension and reconfiguration. Cold Aisle Hot Aisle ZPAS Data Box

7 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – cable management systems Cable distribution on the top plate of server cabinets - single cable trace - duplex cable trace - transition between rows of cabinets Baks, Cablofil

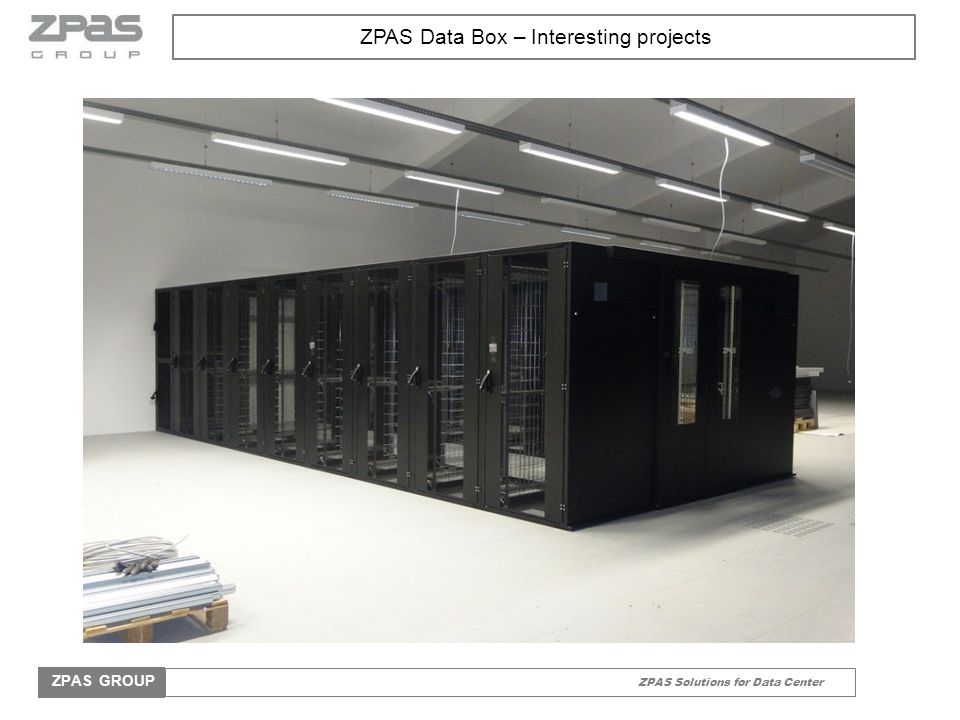

8 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – Interesting projects Interesting projects

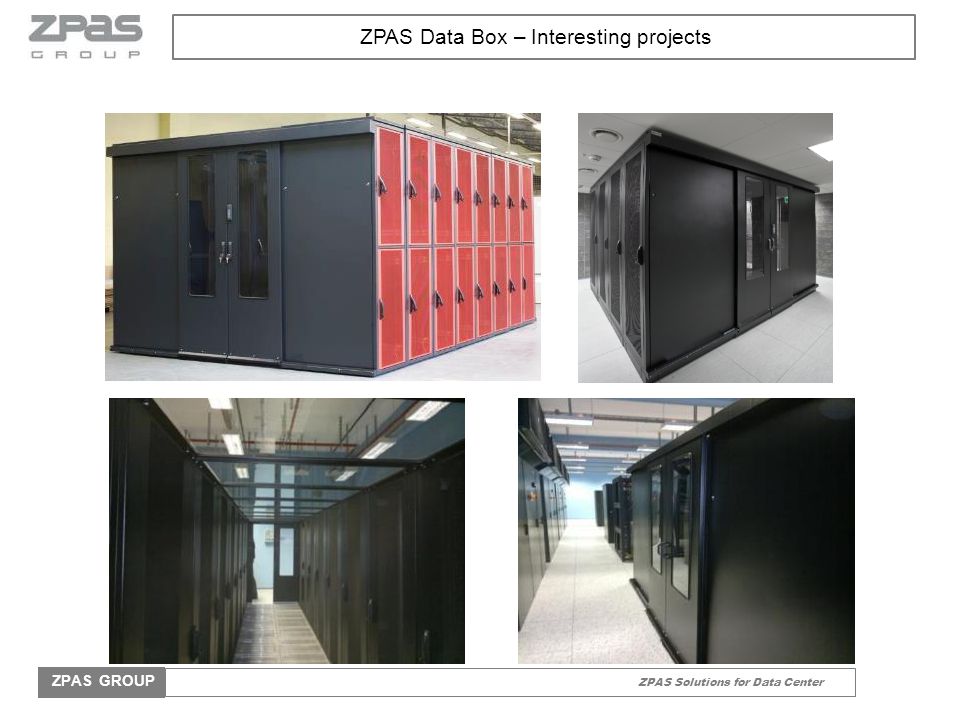

9 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – Interesting projects

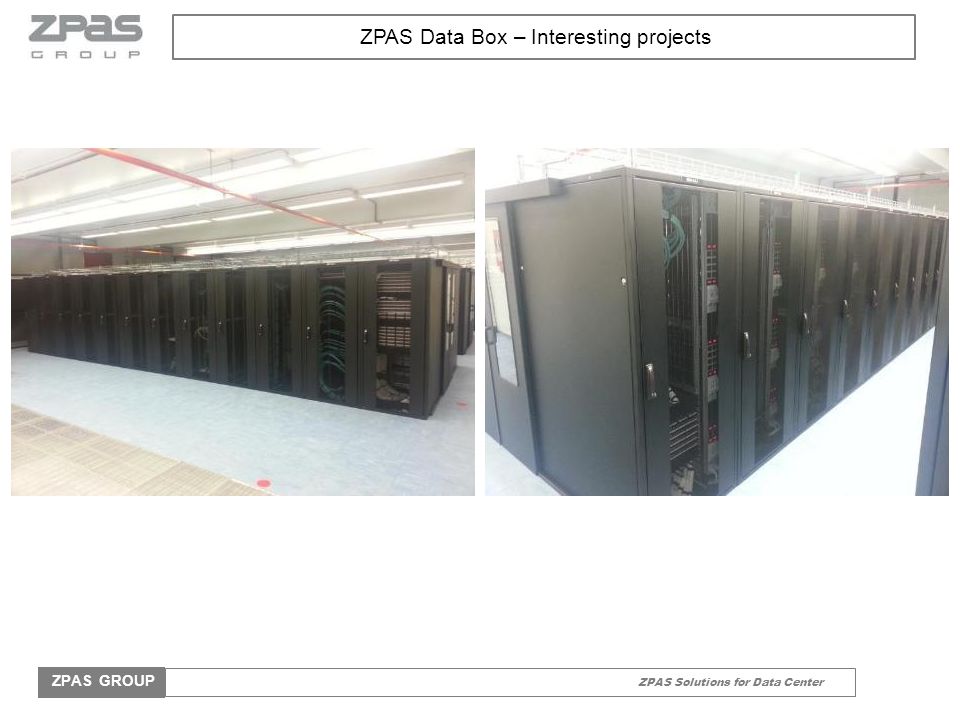

10 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – Interesting projects

11 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Data Box – Interesting projects

12 ZPAS Solutions for Data Center ZPAS GROUP Server cabinet with increased IP Protection Degree - with sideway heat exchangers - with heat exchanger compartment in server cabinet Server cabinet with IP54 Server cabinet 800x x1000 with sideway heat exchanger Benefits - steady flow of cold air over the entire height of the cabinet, - fire extinguishing in a single cabinet - automatically opening of the door in case of emergency air conditioner / temperature rise - the ability to easily move the cabinet with all systems Server cabinet 900x1000 with interior heat exchanger compartment

13 ZPAS Solutions for Data Center ZPAS GROUP Cable management systems Cable management components vertical and horizontal in server cabinet Cable management components outside cabinets

14 ZPAS Solutions for Data Center ZPAS GROUP Air flow management components Management of air flow - rules to be observed: - proper location of air conditioners, designing of cabinet rows with hot or cold aisles, - using of blanking plates 19 " - sealing of cabinets around usage space - all cable entries to be sealed - ensure adequate air flow to used equipment - monitors, servers, of tower-type not to be put on shelfs c) 1) 2) 3)4)

15 ZPAS Solutions for Data Center ZPAS GROUP Special cabinets Server cabinets 1000 x 1200mm intended for use in equipments with sideways air flow Directing the flow of cooling air through the air guides Nexus

16 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning systems Medium: Water chiller unit Cooling: 10 – 30kW Equipment: Carel Air-conditioning systems Heat exchangers ZPAS Row heat exchanger c Sideway heat exchanger Air-conditioning systems

17 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning systems Medium: water chiller unit Cooling: 10 – 30kW Equipment: Carel Air-conditioning systems Heat exchangers ZPAS Row heat exchanger c Sideway heat exchanger

18 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning systems Air-conditioning systems Heat exchangers ZPAS Row heat exchanger c Sideway heat exchanger Medium: water chiller, DX (R410A) Cooling efficiency: - Water chiller: 12,3 – 37,7kW - DX: 4,5 – 22,5kW Equipment: STULZ EC

19 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning: - even distribution of cold air at the whole height of the air -conditioner - controller with keyboard and display (adjustment of air-conditioning parameters) - monitoring of the air -conditioning via Ethernet - heat capacity control by controlling the flow of refrigerant or with variable speed of fans, - temperature and humidity measurements Benefits: -air-conditioners are in rows and not on the perimeter of the room, shortening air flow path causes a reduction of mixing of hot and cold streams and lower power consumption - hot air is captured directly from the IT equipment before mixing with colder ambient air giving higher air conditioner efficiency - modular design - easy to create a redundant N +1, - this solution does not require raised floor for distributing of cold air ZPAS Air-conditioning systems

20 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning systems Air-conditioning systems Heat exchangers ZPAS Medium: water chiller, DX (R410A) Precison air-conditioning cabinets

21 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Air-conditioning systems Air-conditioning systems Medium: water chiller, DX (R410A) Water chiller units and condensers Heat exchangers ZPAS Precision air-conditioning cabinets Hydraulic distributor

22 ZPAS Solutions for Data Center ZPAS GROUP ZPAS single cabinet air-conditioning systems SLIM Air-conditioners mounted on doors and sides. Coolling capacity 1050 – 8000W TOP Roof mounted air-conditioner, Cooling capacity 330 – 5200W EXW RACK Air-conditioner mounted in rack space 19’’, cooling capacity up to 2500W Recommended cabinet configuration: - recommended IP 54 - front and rear door without perforation - side panels - sealed all cable entries

23 ZPAS Solutions for Data Center ZPAS GROUP ZPAS server cabinet ventilation systems PWS roof fan Controlled by: - microprocesor panelu for fan control MPSM-S1, MPSK G0, G1 - speed controller ARW - thermostat KTS MPSM-S1 MPSK G1 MPSK G0 ARW 1,5/1 Thermostat KTS

24 ZPAS Solutions for Data Center ZPAS GROUP Ventilated door: Controlled by: - microprocessor control panel MPSM-S1, MPSK G0, G1 - rotation controller ARW - thermostat KTS MPSM-S1 MPSK G1 MPSK G0 ARW 1,5/1 Thermostat KTS ZPAS server cabinet ventilation systems

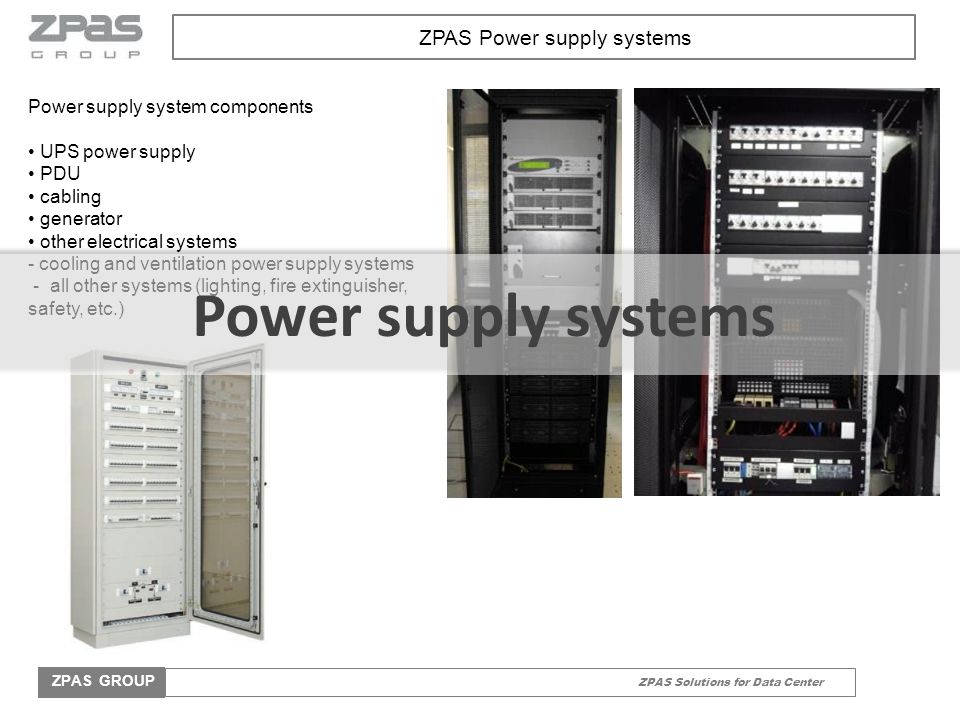

25 ZPAS Solutions for Data Center ZPAS GROUP ZPAS Power supply systems Power supply system components UPS power supply PDU cabling generator other electrical systems - cooling and ventilation power supply systems - all other systems (lighting, fire extinguisher, safety, etc.) Power supply systems

26 ZPAS Solutions for Data Center ZPAS GROUP ZPAS power supply systems Power supply system components UPS power supply PDU cabling generator other electrical systems - cooling and ventilation power supply systems - all other systems (lighting, fire extinguisher, safety, etc.)

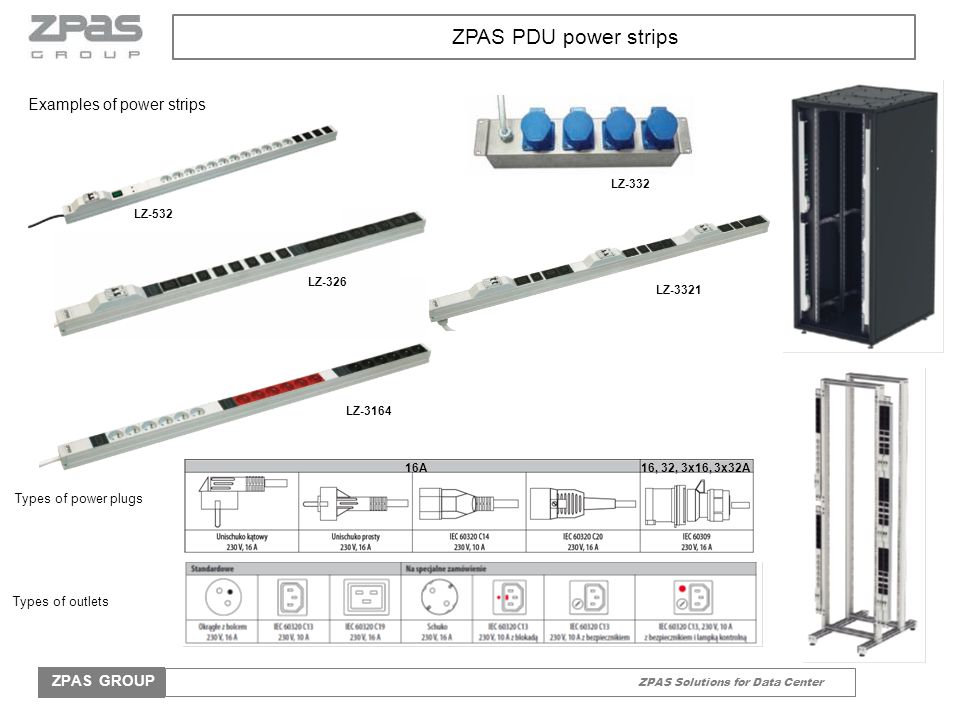

27 ZPAS Solutions for Data Center ZPAS GROUP ZPAS PDU power strips 16A 16, 32, 3x16, 3x32A Types of power plugs Types of outlets Examples of power strips LZ-532 LZ-332 LZ-326 LZ-3164 LZ-3321

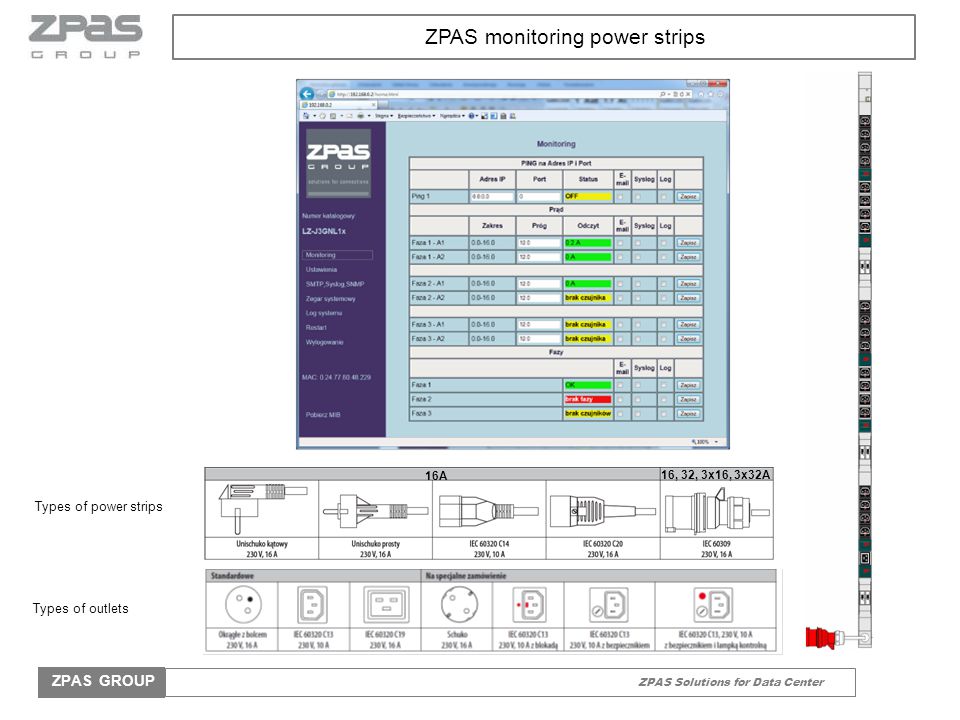

28 ZPAS Solutions for Data Center ZPAS GROUP ZPAS monitoring power strips 16A 16, 32, 3x16, 3x32A Types of power strips Types of outlets

29 ZPAS Solutions for Data Center ZPAS GROUP SOFT-START: automatic soft-starting of devices according to time delay scenario after power supply recovery MASTER-SLAVE: automatic shut down of unnecessary devices; saving power PDU-THERMOSTAT: - mulitstage cooling control - multi-heating control - ability to work a combined heating/cooling; Monitoring on-line: - current and power in the oultlets - current power supply - temperature Microprocessor power control panel

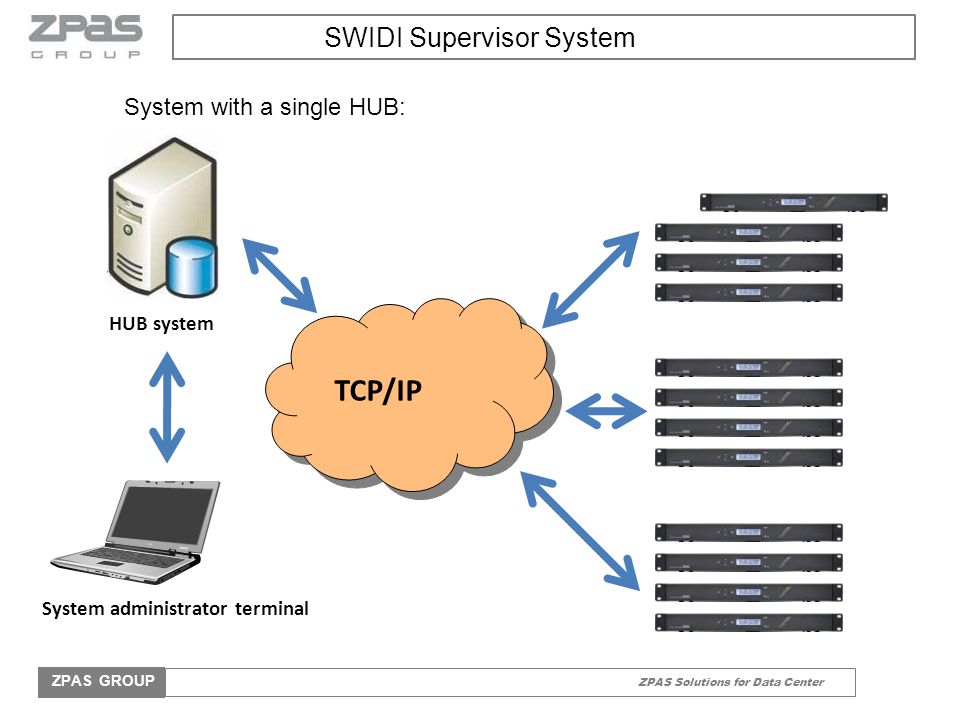

30 ZPAS Solutions for Data Center ZPAS GROUP SWIDI Supervisor System TCP/IP System administrator terminal HUB system System with a single HUB:

31 ZPAS Solutions for Data Center ZPAS GROUP FK-RACK fire extinguisher system Panel FK-RACK 19” : - 2 kg of gas extinguishing - redundant power supply - two optical smoke detector, - sounder, - interface for communication via Ethernet - 4 FK-RACK Slaves (RS 485) can be connected to FK-Rack Master Unsplit automatic fire panel FK-Rack is designed for fire detection and extinguishing control process using gas FE- 36. The panel is designed for use in server racks holding not more than 3 m3. It does not cause damage to the data stored on the storage media. FK-RACK Master FK-RACK Slave Fire extinguisher system

32 ZPAS Solutions for Data Center ZPAS GROUP FK-RACK fire extinguisher system Panel FK-RACK 19” : - 2 kg of gas extinguishing - redundant power supply - two optical smoke detector, - sounder, - interface for communication via Ethernet - 4 FK-RACK Slaves (RS 485) can be connected to FK-Rack Master Unsplit automatic fire panel FK-Rack is designed for fire detection and extinguishing control process using gas FE- 36. The panel is designed for use in server racks holding not more than 3 m3. It does not cause damage to the data stored on the storage media. FK-RACK Master FK-RACK Slave

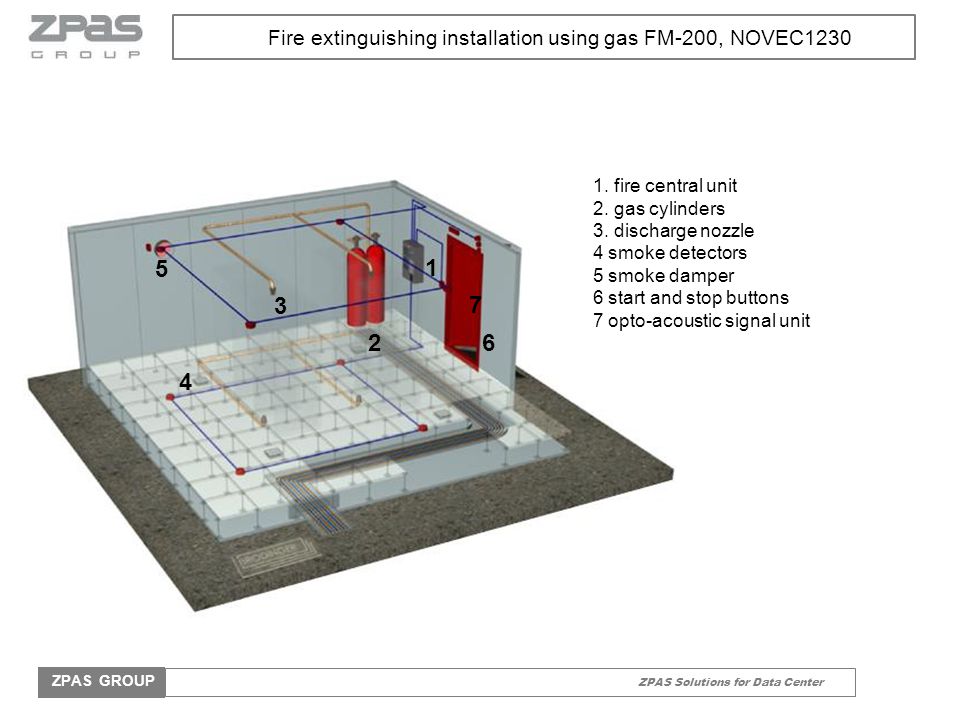

33 ZPAS Solutions for Data Center ZPAS GROUP Fire extinguishing installation using gas FM-200, NOVEC fire central unit 2. gas cylinders 3. discharge nozzle 4 smoke detectors 5 smoke damper 6 start and stop buttons 7 opto-acoustic signal unit

34 ZPAS Solutions for Data Center ZPAS GROUP - monitoring of access control system - archiving of all events by remote configuration of terminals, - add and manage of users - receiving alerts and visualization of the current state -the ability to remotely opening the cabinet, in the absence of an authorization user - map editor, which graphically shows the terminal layout Access control systems Access control systems and monitoring

35 ZPAS Solutions for Data Center ZPAS GROUP - monitoring of access control system - archiving of all events by remote configuration of terminals, - add and manage of users - receiving alerts and visualization of the current state -the ability to remotely opening the cabinet, in the absence of an authorization user - map editor, which graphically shows the terminal layout Access control systems

36 ZPAS Solutions for Data Center ZPAS GROUP Contactron or microswitch Smoke detector 3% Probe Motion detector Ethernet RJ45 Connection to controlling center Climate control monitoring

37 ZPAS Solutions for Data Center ZPAS GROUP Climate control monitoring ZPAS Control Oversee

38 ZPAS Solutions for Data Center ZPAS GROUP Climate control monitoring ZPAS Control Oversee

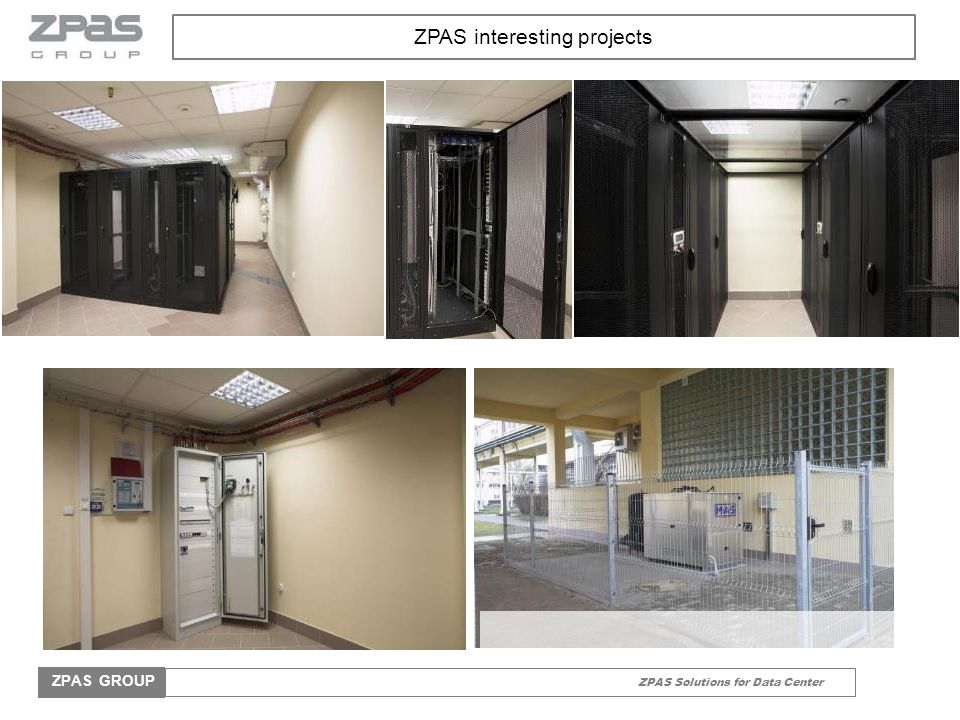

39 ZPAS Solutions for Data Center ZPAS GROUP ZPAS interesting projects Server room in ZPAS Interesting projects

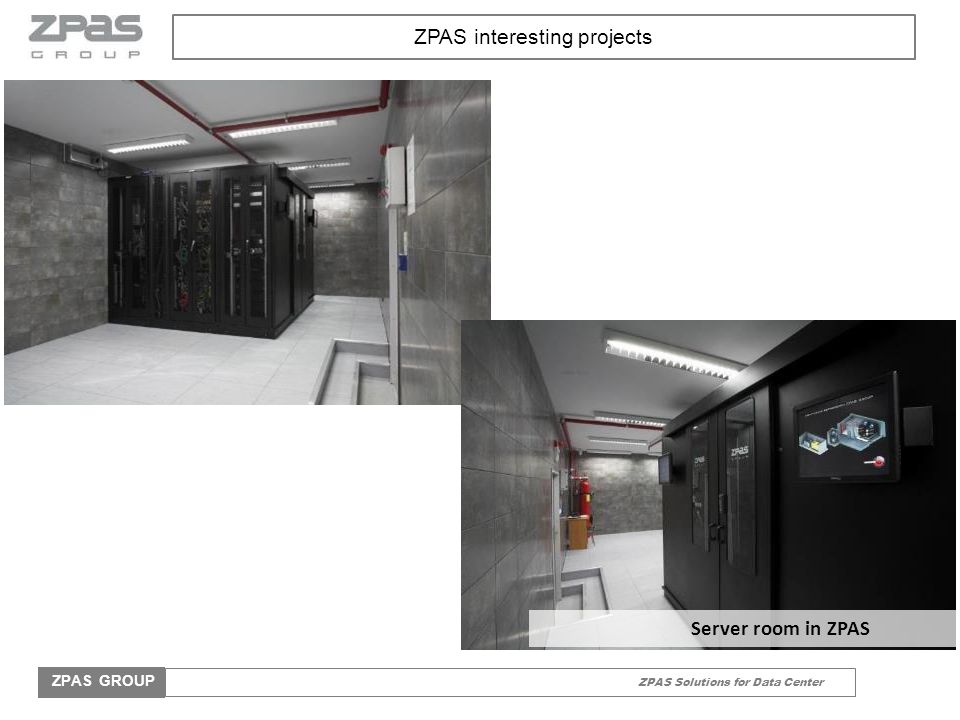

40 ZPAS Solutions for Data Center ZPAS GROUP ZPAS interesting projects Server room in ZPAS

41 ZPAS Solutions for Data Center ZPAS GROUP ZPAS interesting projects

42 ZPAS Solutions for Data Center ZPAS GROUP Kontakt Zakład Produkcji Automatyki Sieciowej S.A. Przygórze Wolibórz Krystian Guzara Tel GSM Fax
