1 Tas seminar/demonstration on Part L 2006 of the Building Regulations Presented by Alan Jones EDSL February 2006

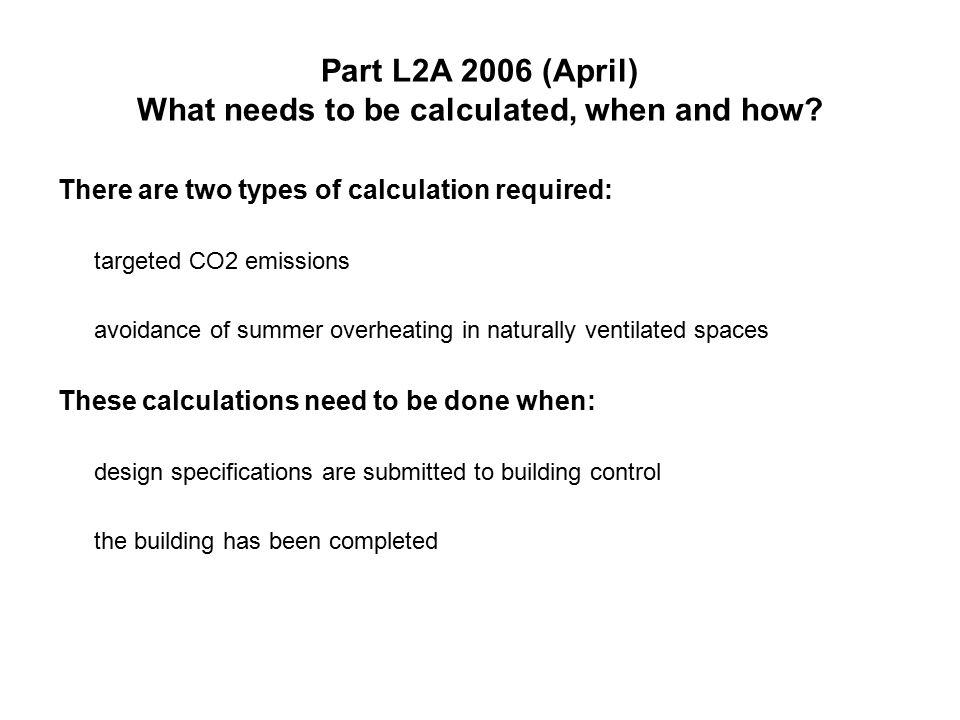

2 Part L2A 2006 (April) What needs to be calculated, when and how? There are two types of calculation required: targeted CO2 emissions avoidance of summer overheating in naturally ventilated spaces These calculations need to be done when: design specifications are submitted to building control the building has been completed

3 How will the target CO2 emissions rate (TER) be generated? CO2 emissions will be calculated for a notional building and systems. This notional model will reflect Part L standards and CIBSE TM32 TER is defined by reducing the notional emission by an improvement factor and LZC benchmark. For air conditioned or mechanically vented buildings the reduction is 28%. For naturally vented buildings the reduction is 23.5% Use either accredited simulation software or SBEM for this calculation

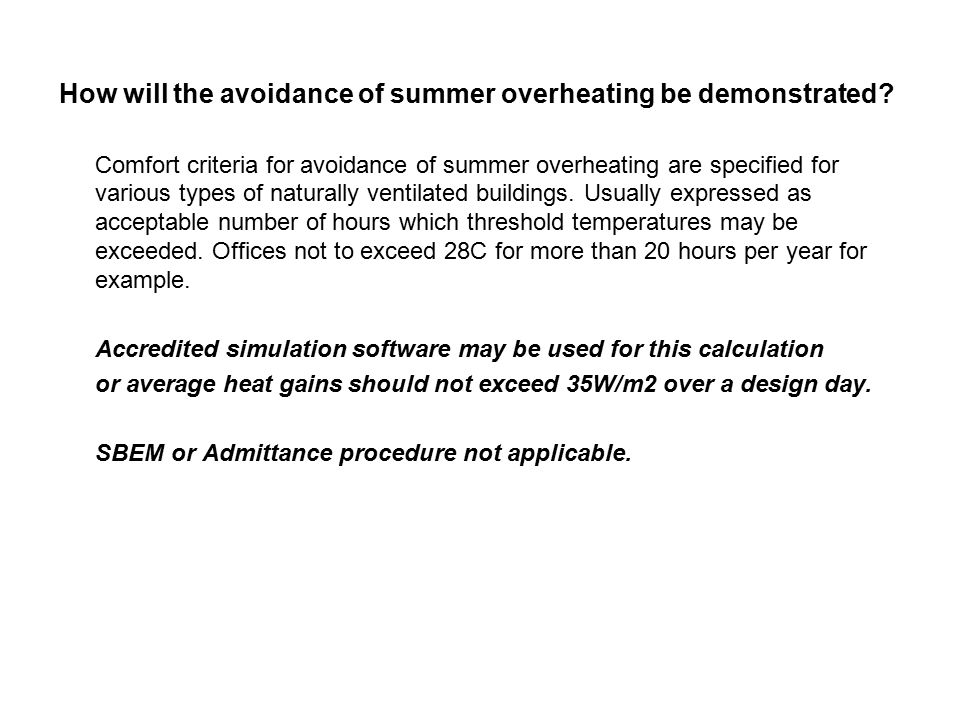

4 How will the avoidance of summer overheating be demonstrated? Comfort criteria for avoidance of summer overheating are specified for various types of naturally ventilated buildings. Usually expressed as acceptable number of hours which threshold temperatures may be exceeded. Offices not to exceed 28C for more than 20 hours per year for example. Accredited simulation software may be used for this calculation or average heat gains should not exceed 35W/m2 over a design day. SBEM or Admittance procedure not applicable.

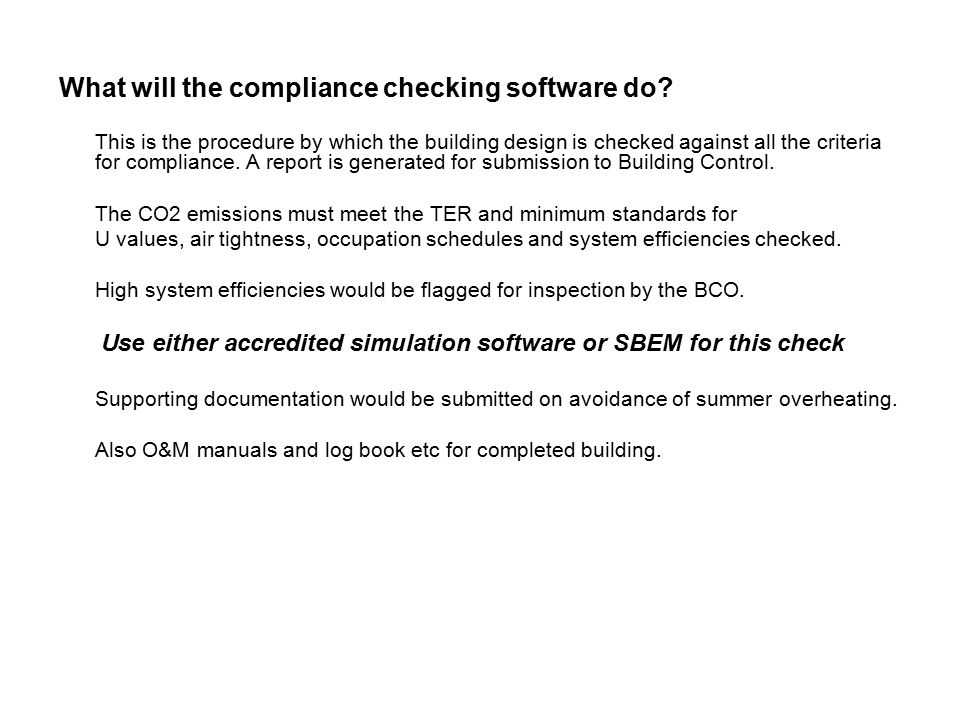

5 What will the compliance checking software do? This is the procedure by which the building design is checked against all the criteria for compliance. A report is generated for submission to Building Control. The CO2 emissions must meet the TER and minimum standards for U values, air tightness, occupation schedules and system efficiencies checked. High system efficiencies would be flagged for inspection by the BCO. Use either accredited simulation software or SBEM for this check Supporting documentation would be submitted on avoidance of summer overheating. Also O&M manuals and log book etc for completed building.

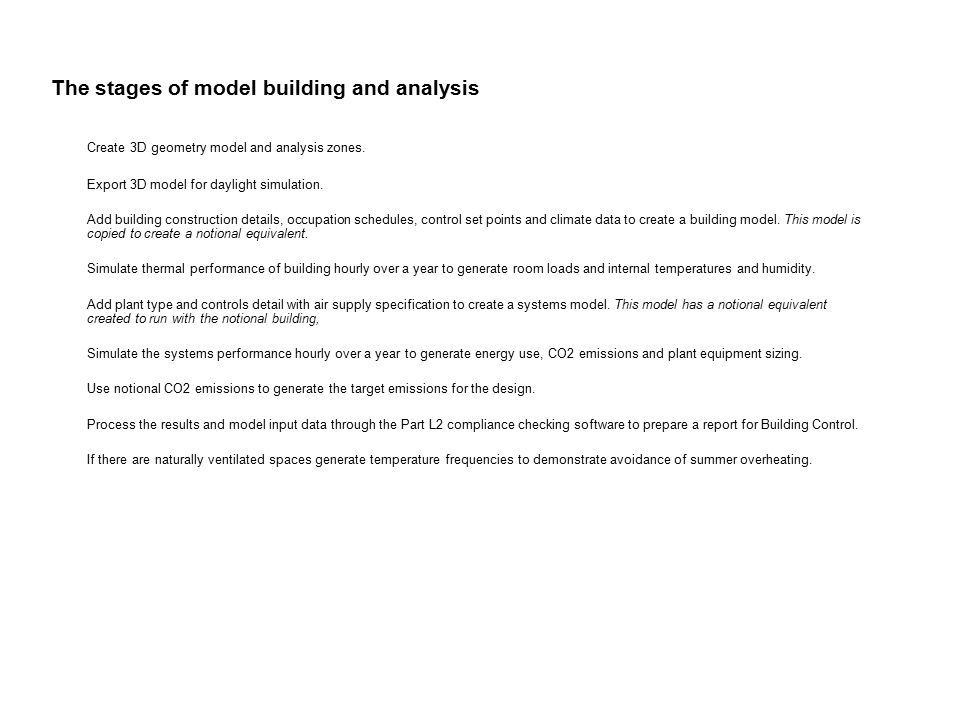

6 The stages of model building and analysis Create 3D geometry model and analysis zones. Export 3D model for daylight simulation. Add building construction details, occupation schedules, control set points and climate data to create a building model. This model is copied to create a notional equivalent. Simulate thermal performance of building hourly over a year to generate room loads and internal temperatures and humidity. Add plant type and controls detail with air supply specification to create a systems model. This model has a notional equivalent created to run with the notional building, Simulate the systems performance hourly over a year to generate energy use, CO2 emissions and plant equipment sizing. Use notional CO2 emissions to generate the target emissions for the design. Process the results and model input data through the Part L2 compliance checking software to prepare a report for Building Control. If there are naturally ventilated spaces generate temperature frequencies to demonstrate avoidance of summer overheating.

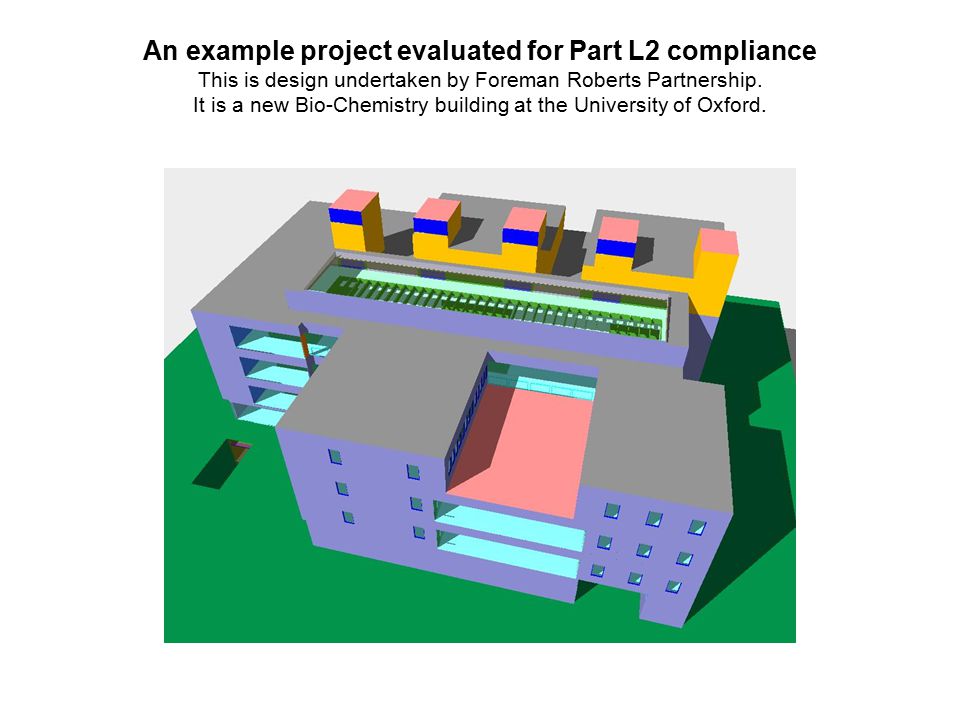

7 An example project evaluated for Part L2 compliance This is design undertaken by Foreman Roberts Partnership. It is a new Bio-Chemistry building at the University of Oxford.

8 Creating the 3D geometry model Import CAD floor plan as a template for drawing in walls etc

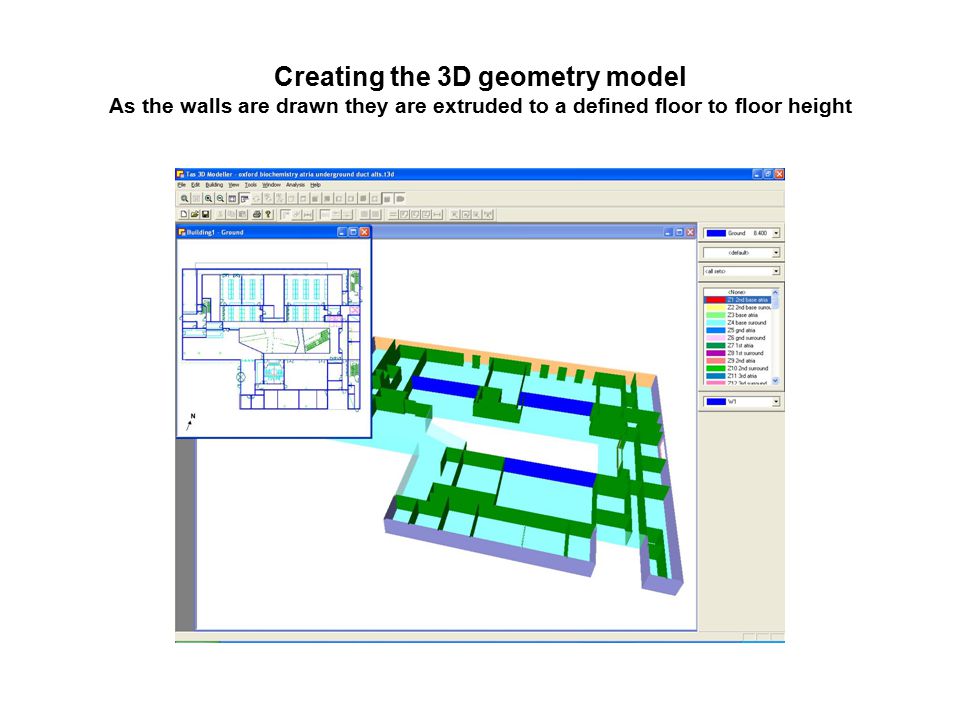

9 Creating the 3D geometry model As the walls are drawn they are extruded to a defined floor to floor height

10 Creating the 3D geometry model Windows are created and placed into the walls or roof

11 Creating the 3D geometry model The model is divided into analysis zones

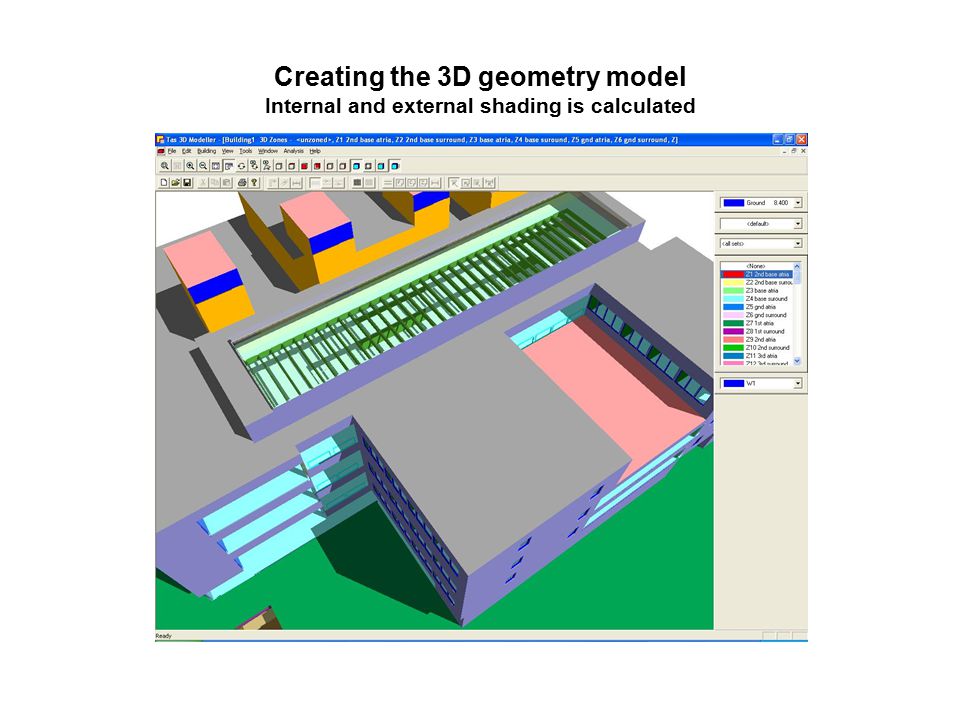

12 Creating the 3D geometry model Internal and external shading is calculated

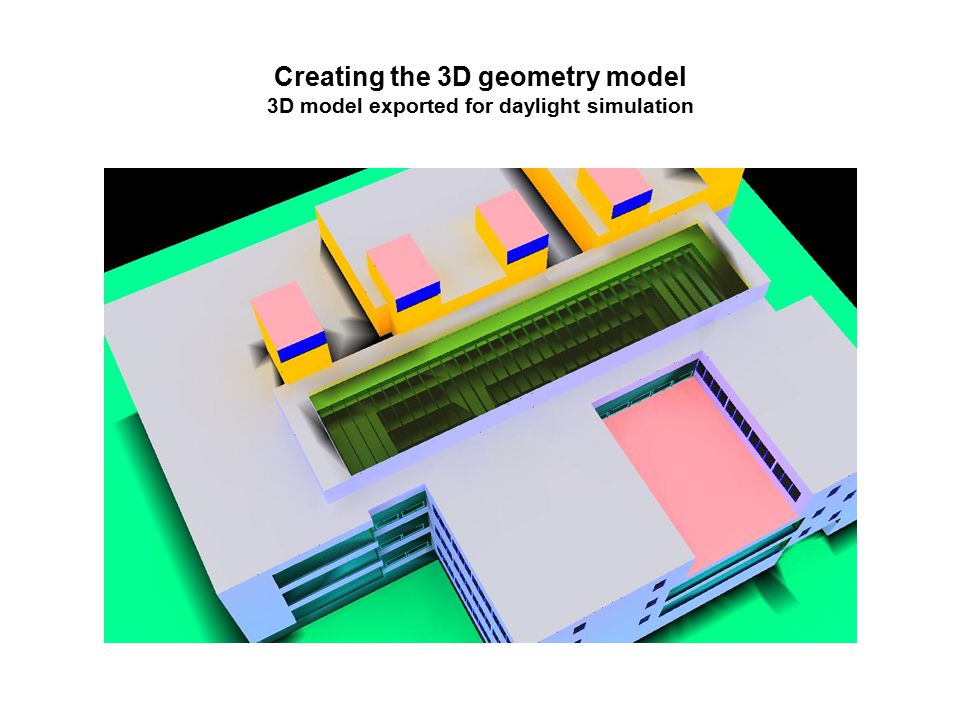

13 Creating the 3D geometry model 3D model exported for daylight simulation

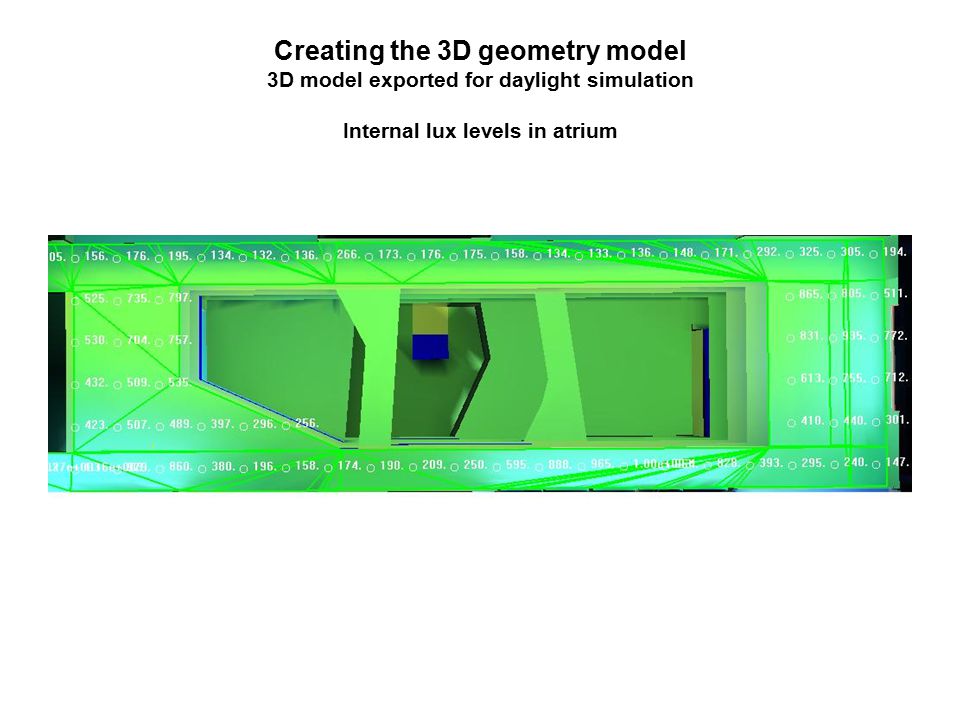

14 Creating the 3D geometry model 3D model exported for daylight simulation Internal lux levels in atrium

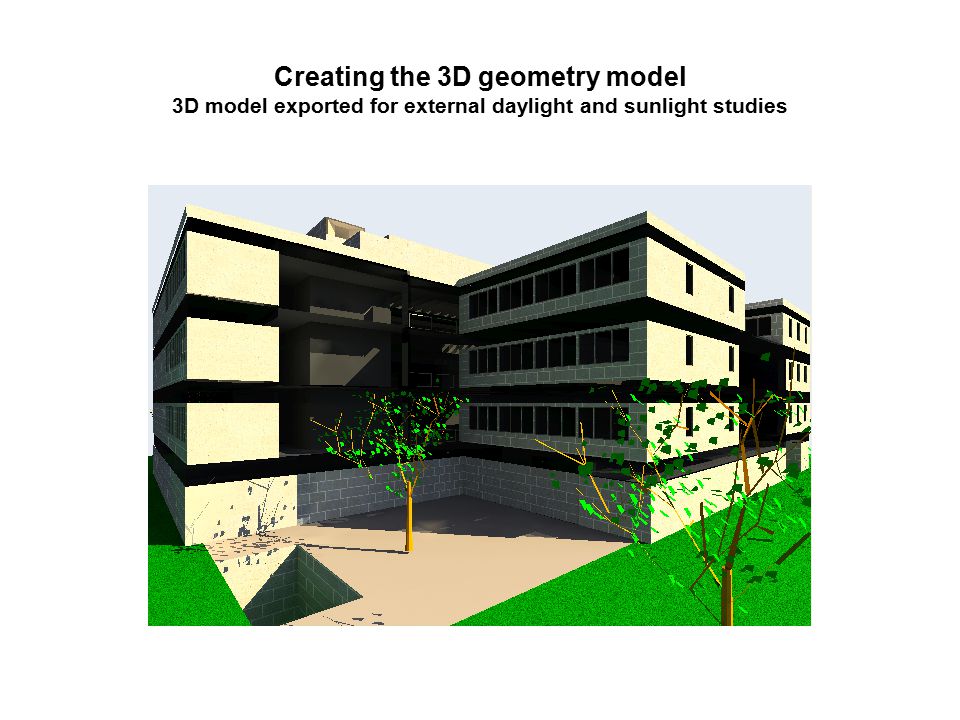

15 Creating the 3D geometry model 3D model exported for external daylight and sunlight studies

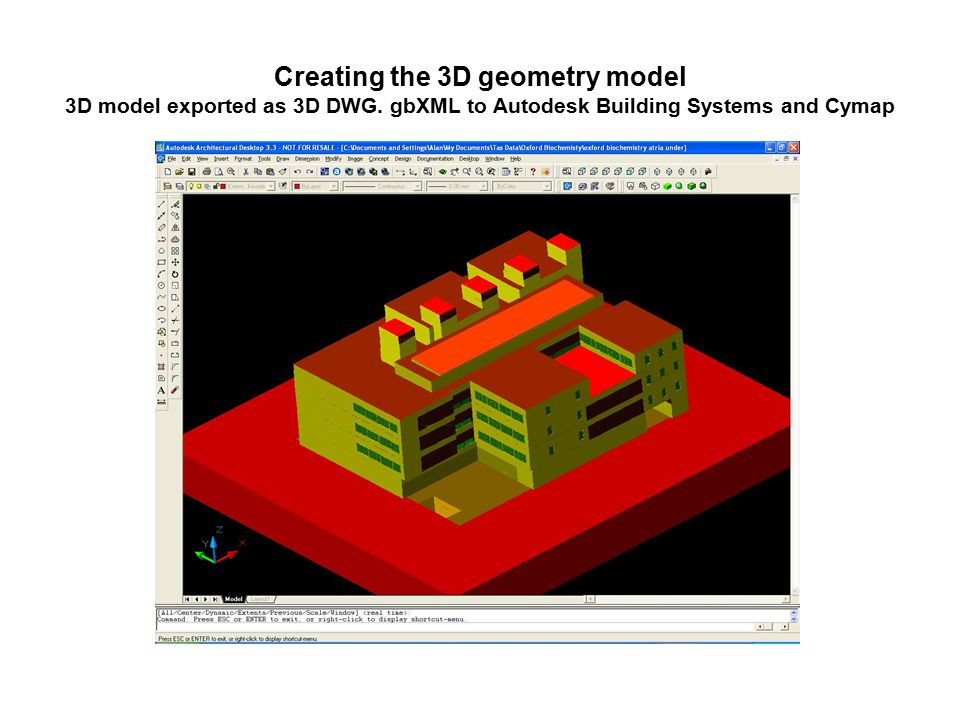

16 Creating the 3D geometry model 3D model exported as 3D DWG. gbXML to Autodesk Building Systems and Cymap

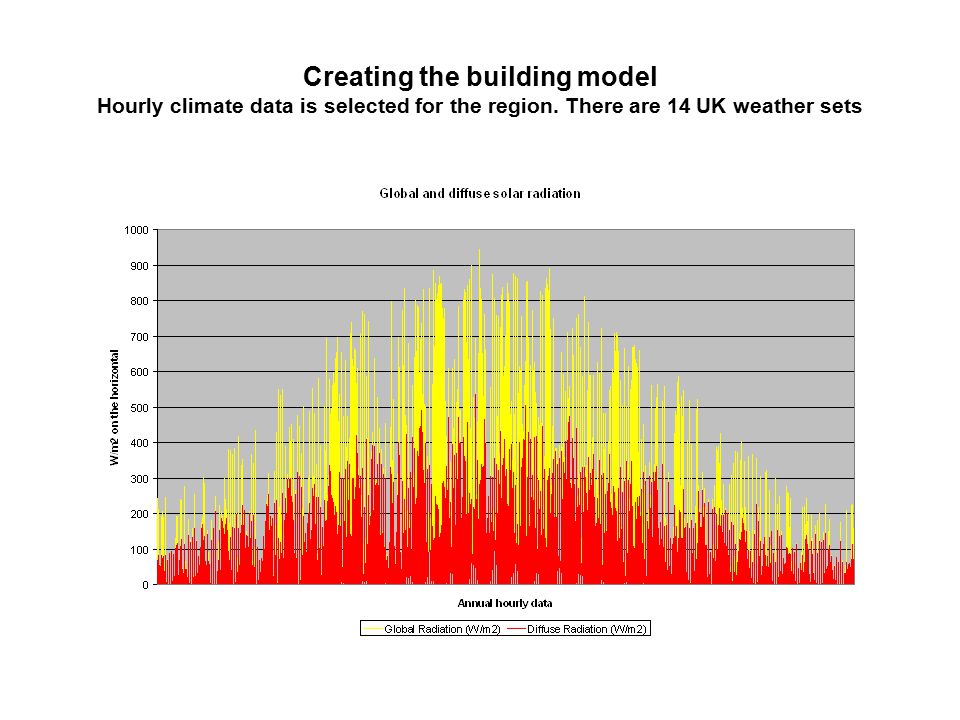

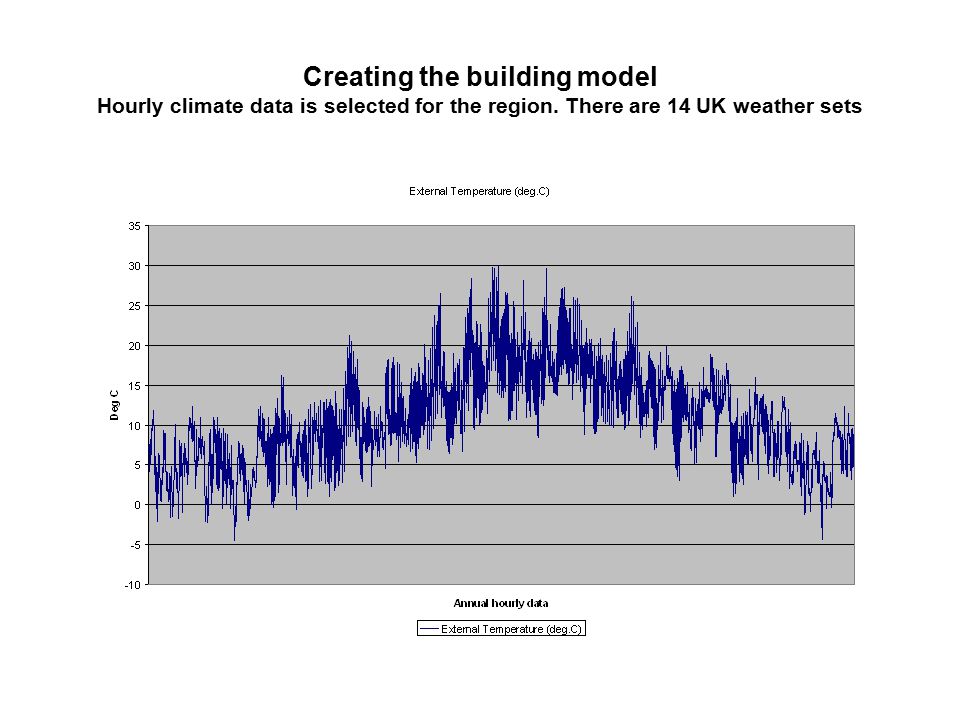

17 Creating the building model Hourly climate data is selected for the region. There are 14 UK weather sets

18

19

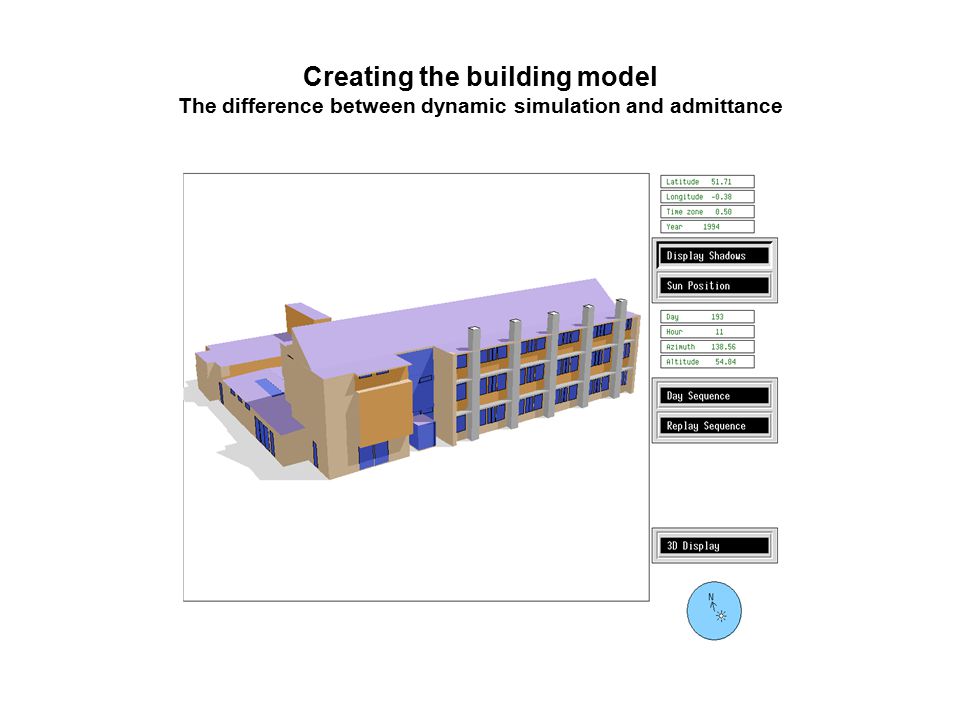

20 Creating the building model The difference between dynamic simulation and admittance

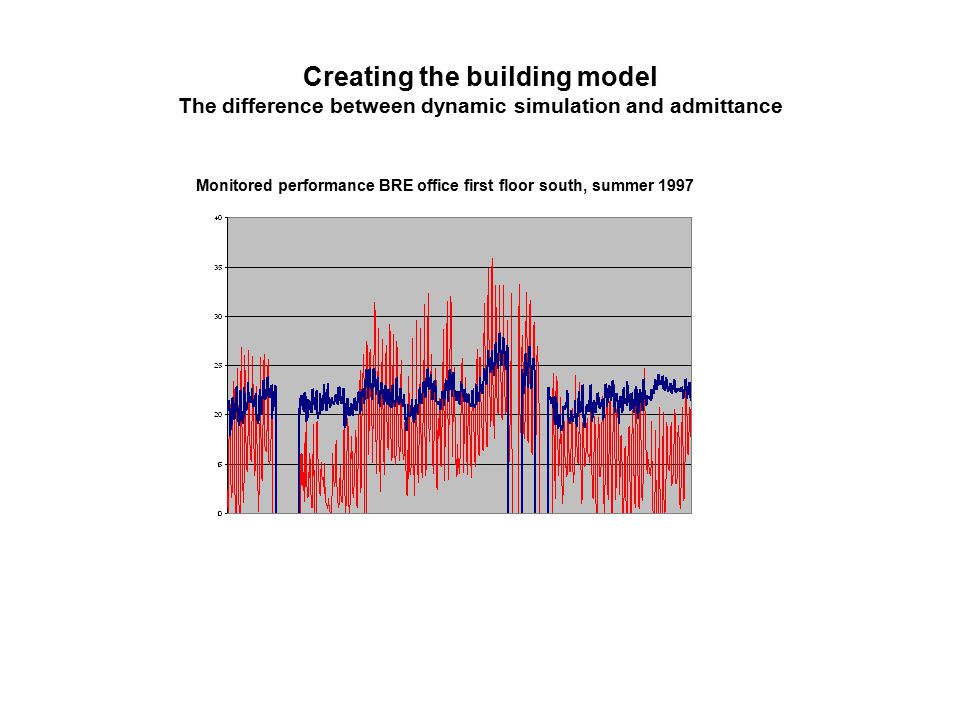

21 Monitored performance BRE office first floor south, summer 1997

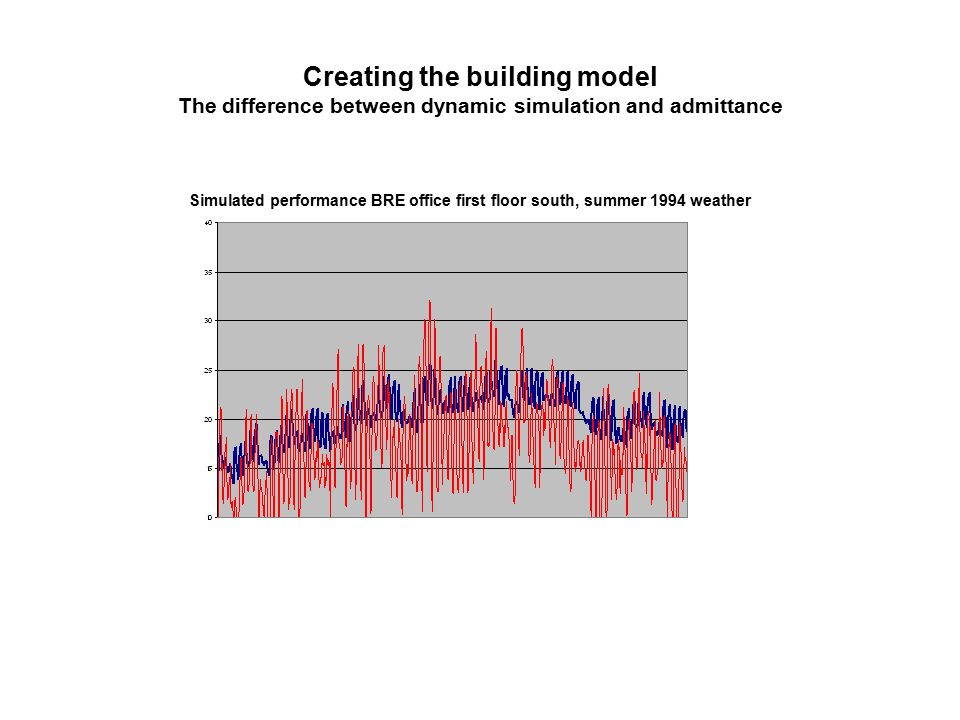

22 Creating the building model The difference between dynamic simulation and admittance Simulated performance BRE office first floor south, summer 1994 weather

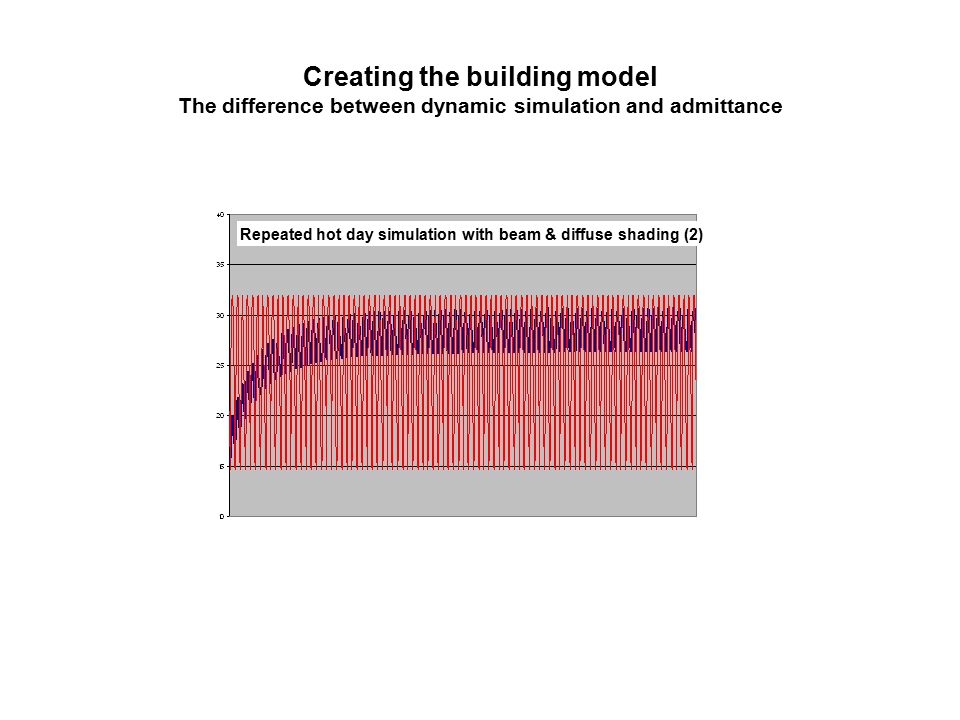

23 Creating the building model The difference between dynamic simulation and admittance Repeated hot day simulation with beam & diffuse shading (2)

24 Creating the building model The difference between dynamic simulation and admittance Repeated hot day simulation with beam shading only (3)

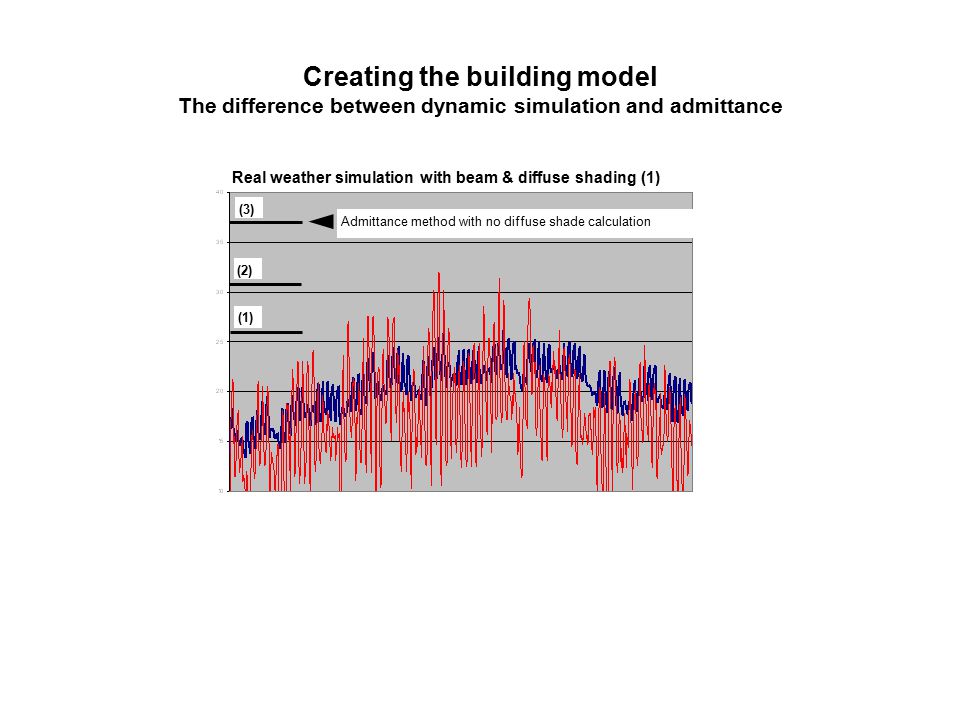

25 Creating the building model The difference between dynamic simulation and admittance Real weather simulation with beam & diffuse shading (1) (3) (2) (1) Admittance method with no diffuse shade calculation

26 Creating the building model Construction and glazing details are selected from databases

27

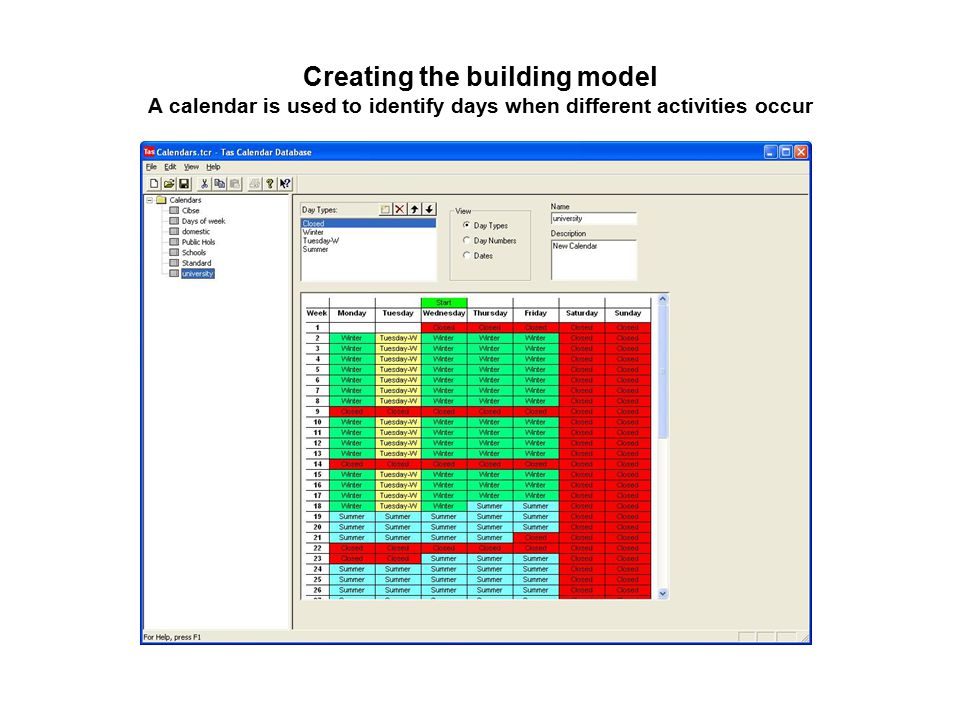

28 Creating the building model A calendar is used to identify days when different activities occur

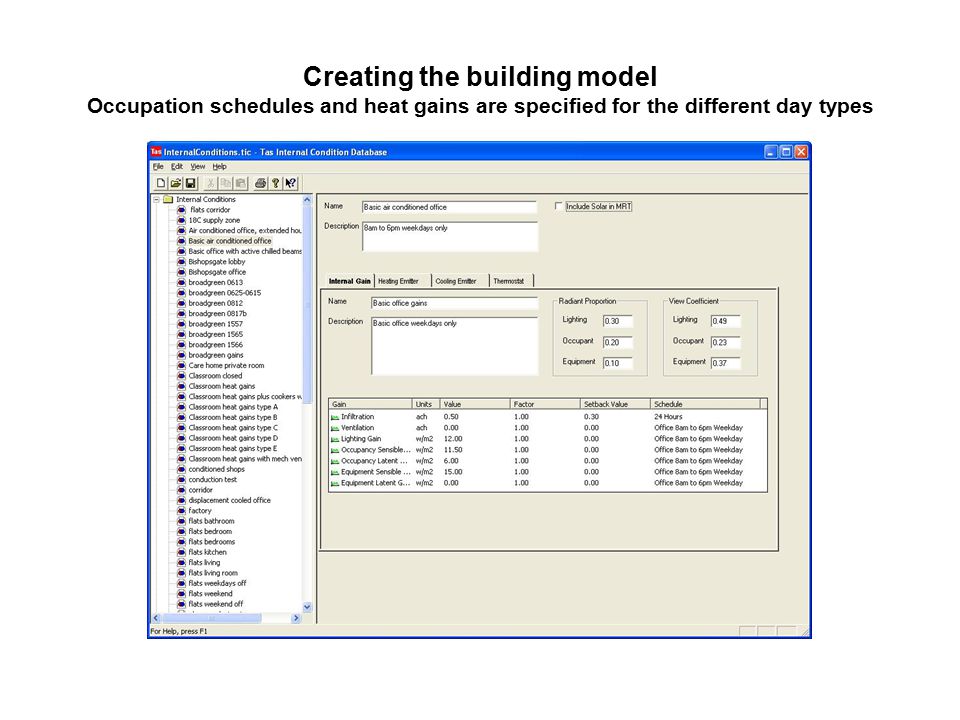

29 Creating the building model Occupation schedules and heat gains are specified for the different day types

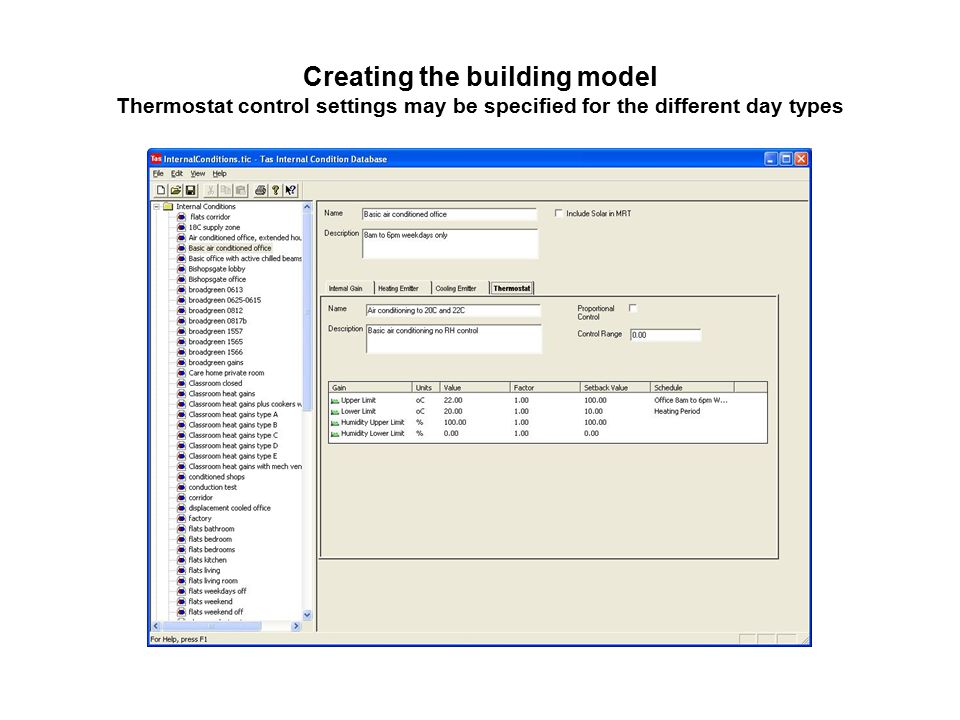

30 Creating the building model Thermostat control settings may be specified for the different day types

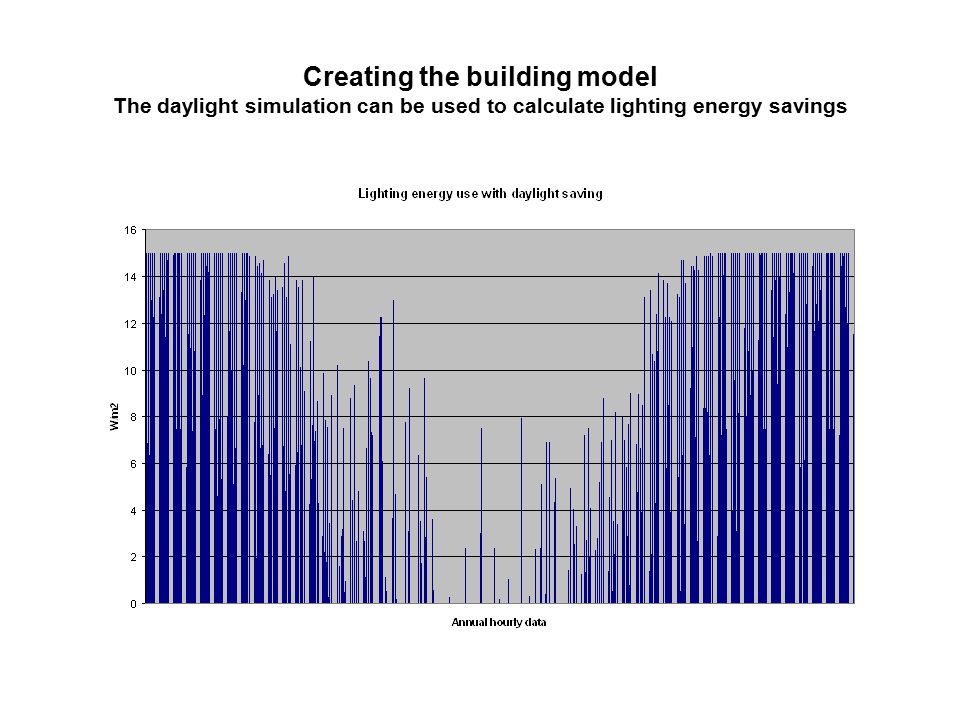

31 Creating the building model The daylight simulation can be used to calculate lighting energy savings

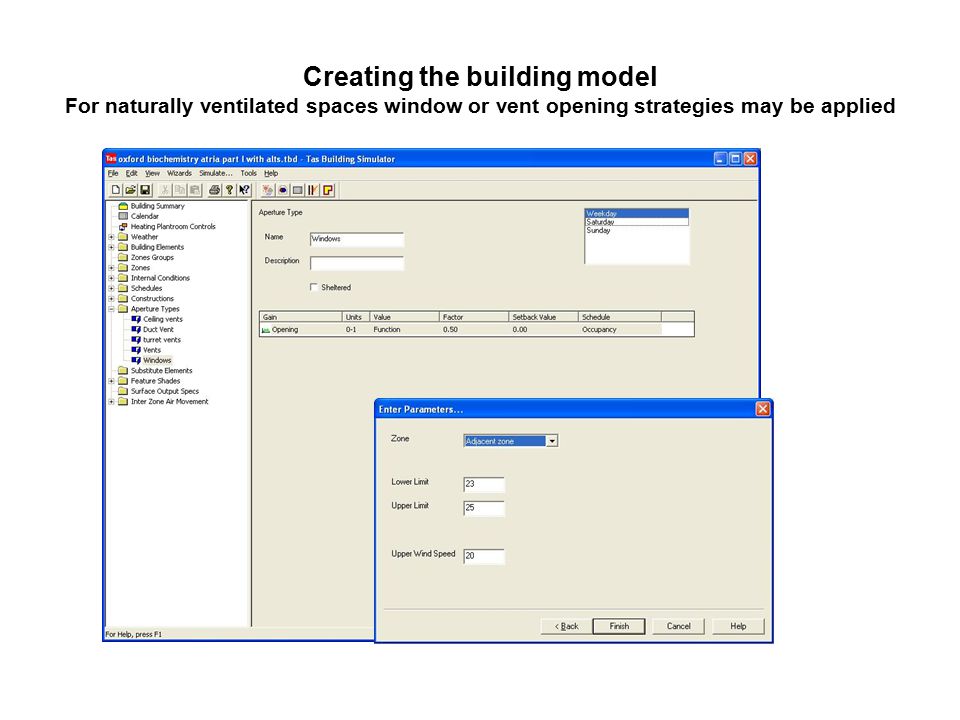

32 Creating the building model For naturally ventilated spaces window or vent opening strategies may be applied

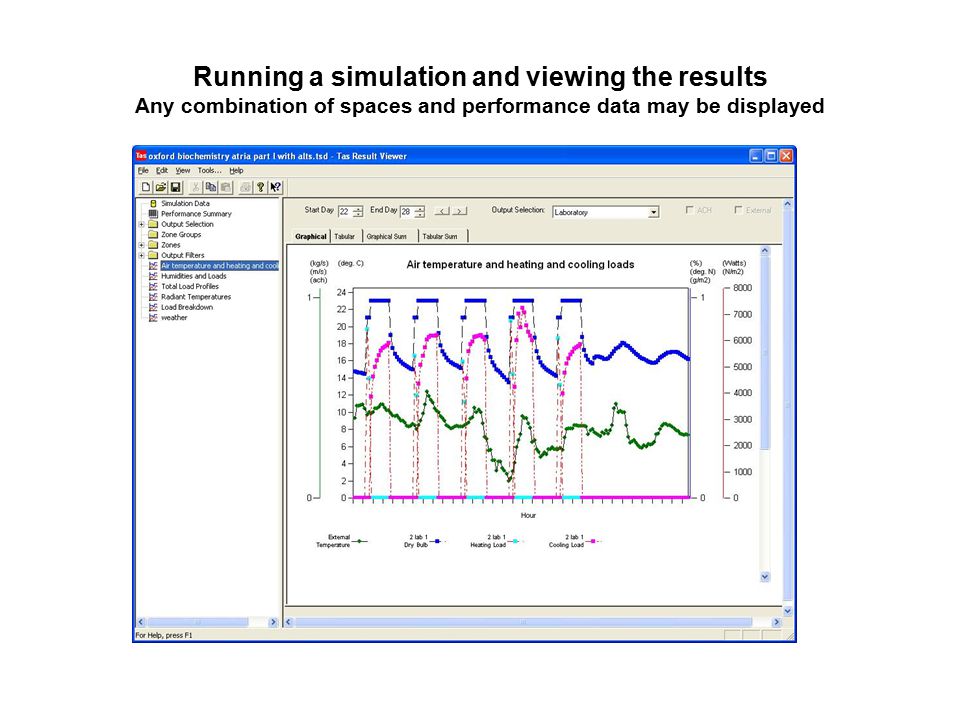

33 Running a simulation and viewing the results Any combination of spaces and performance data may be displayed

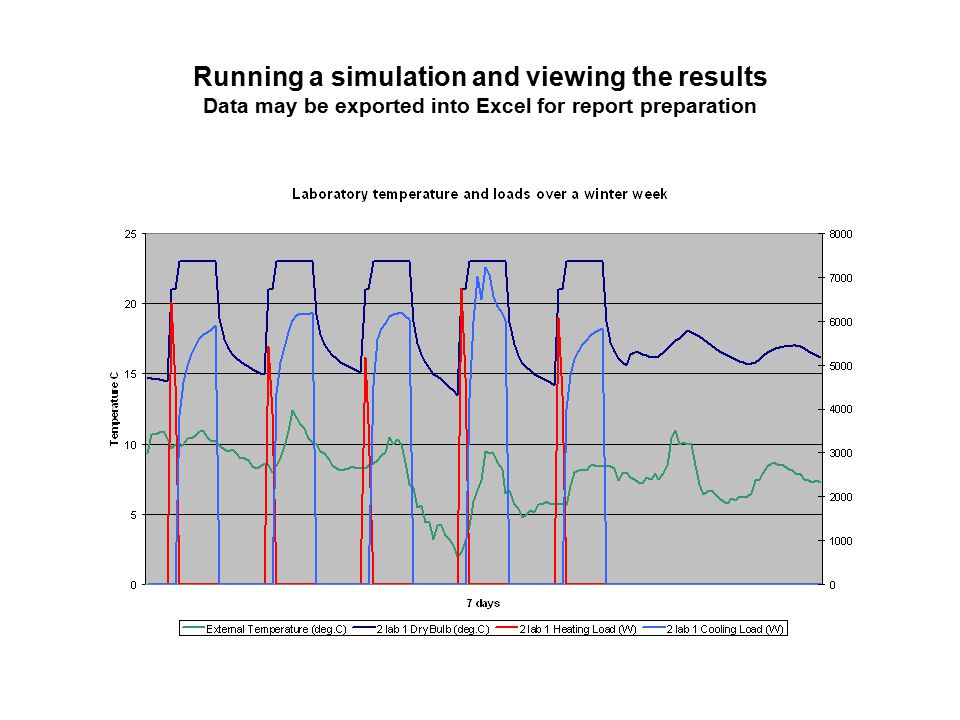

34 Running a simulation and viewing the results Data may be exported into Excel for report preparation

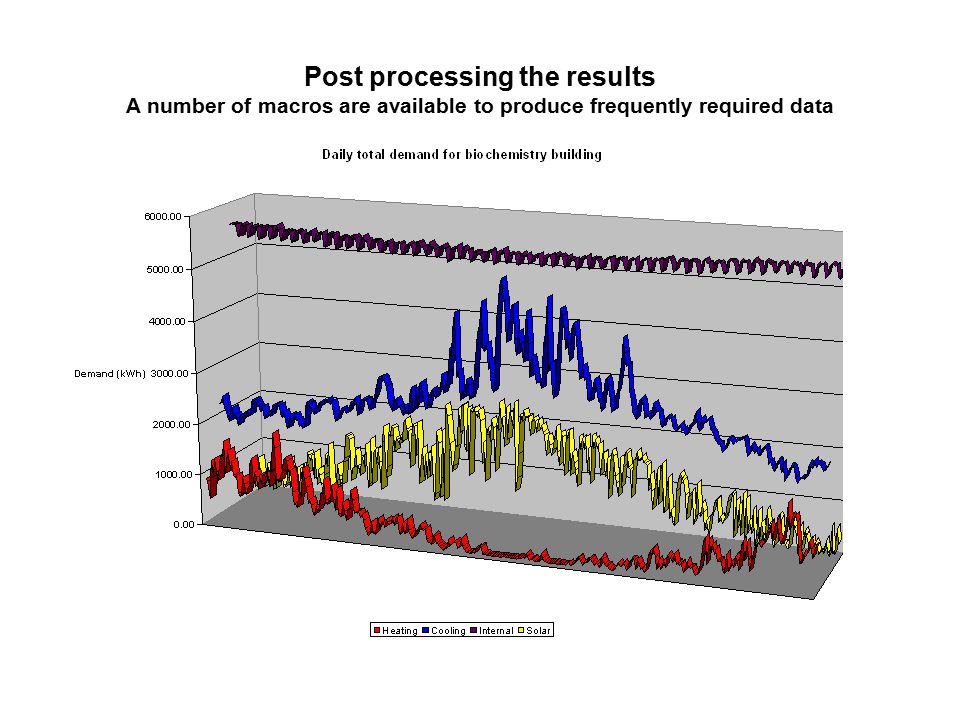

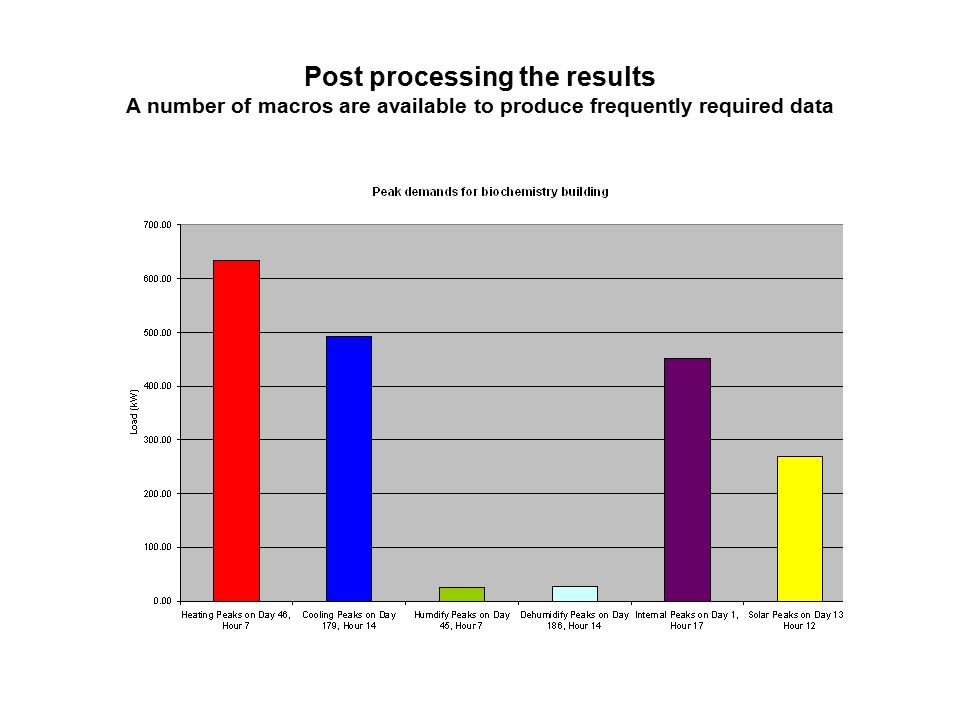

35 Post processing the results A number of macros are available to produce frequently required data

36

37

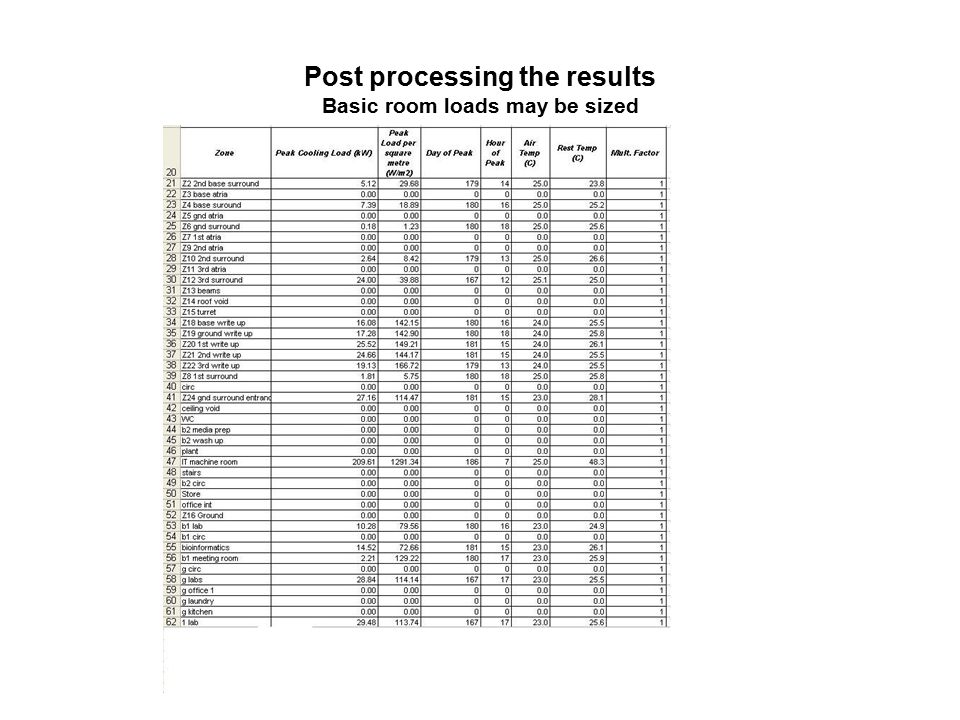

38 Post processing the results Basic room loads may be sized

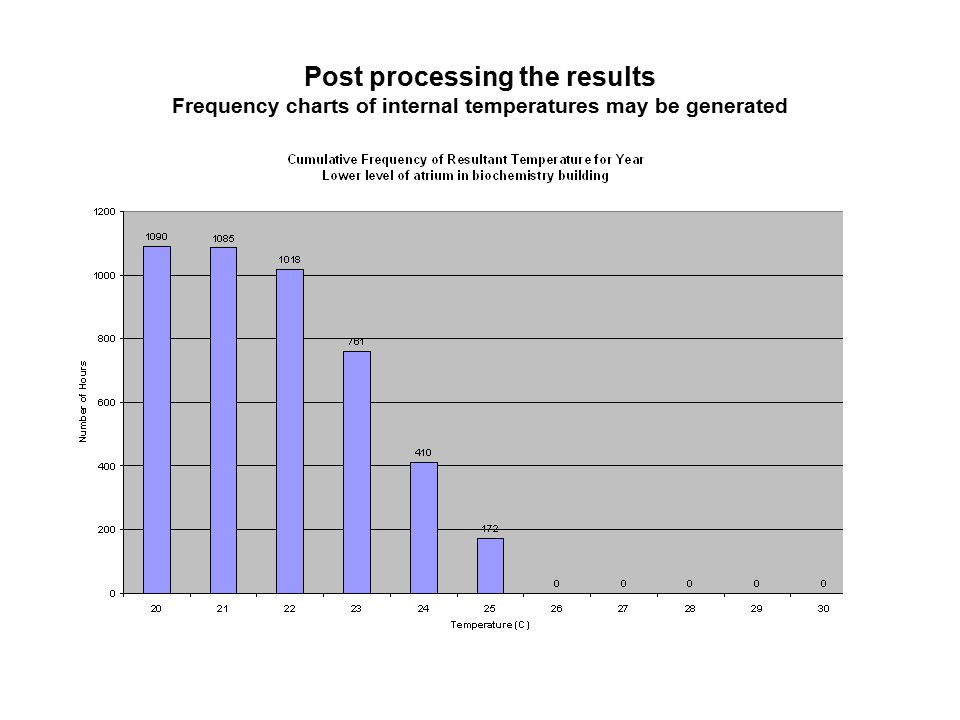

39 Post processing the results Frequency charts of internal temperatures may be generated

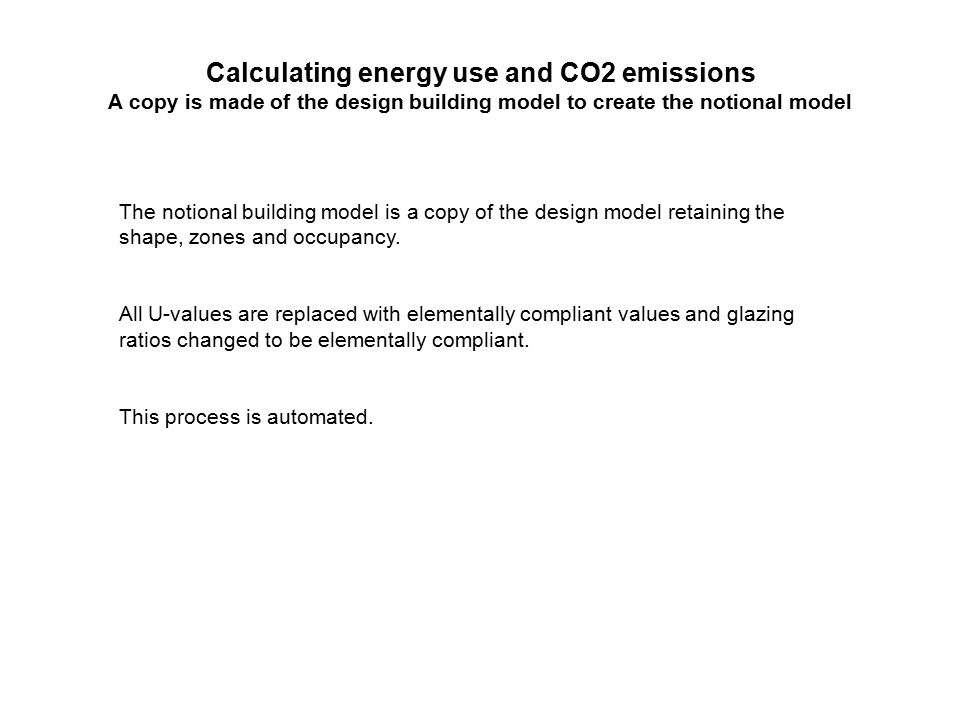

40 Calculating energy use and CO2 emissions A copy is made of the design building model to create the notional model The notional building model is a copy of the design model retaining the shape, zones and occupancy. All U-values are replaced with elementally compliant values and glazing ratios changed to be elementally compliant. This process is automated.

41 The notional system, that is used with the notional building, is specified in CIBSE TM32. It is a standard good practice fan coil system with gas boiler and air cooled chiller. The allocation of this notional system is automated.

42 Plant details may be added to the building model General plant details

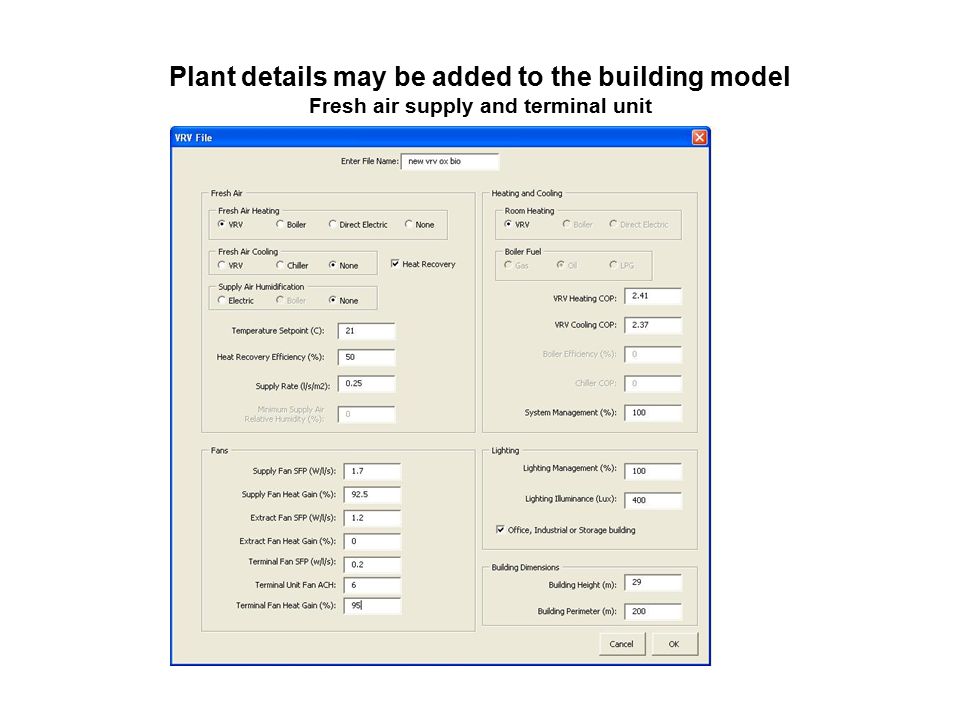

43 Plant details may be added to the building model Fresh air supply and terminal unit

44 Plant details may be added to the building model Building zones to be supplied by a particular system type are selected

45 Plant details may be added to the building model Plant room equipment specifications are added

46 The system is simulated using the hourly room demands Design energy consumption is shown against the notional standard

47 The system is simulated using the hourly room demands Design CO2 emissions is shown against the notional standard

48 The system is simulated using the hourly room demands Peak demand for all systems are calculated

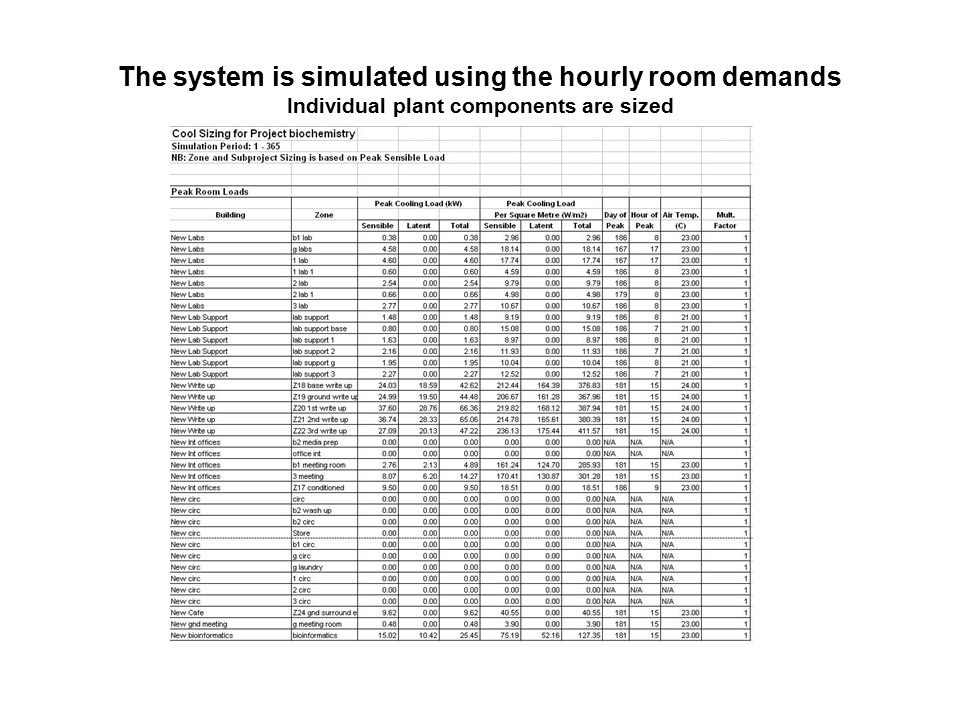

49 The system is simulated using the hourly room demands Individual plant components are sized

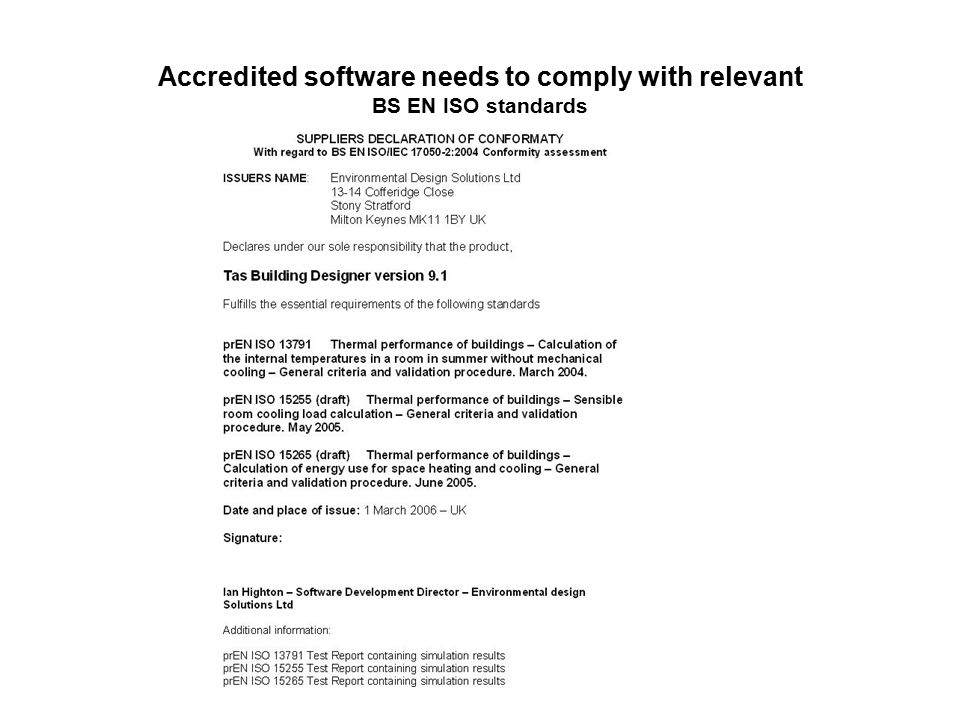

50 Accredited software needs to comply with relevant BS EN ISO standards

51 Accredited software needs to comply with relevant CIBSE TM 33 Tests
