1 USNAP Overview October 26, 2011

2

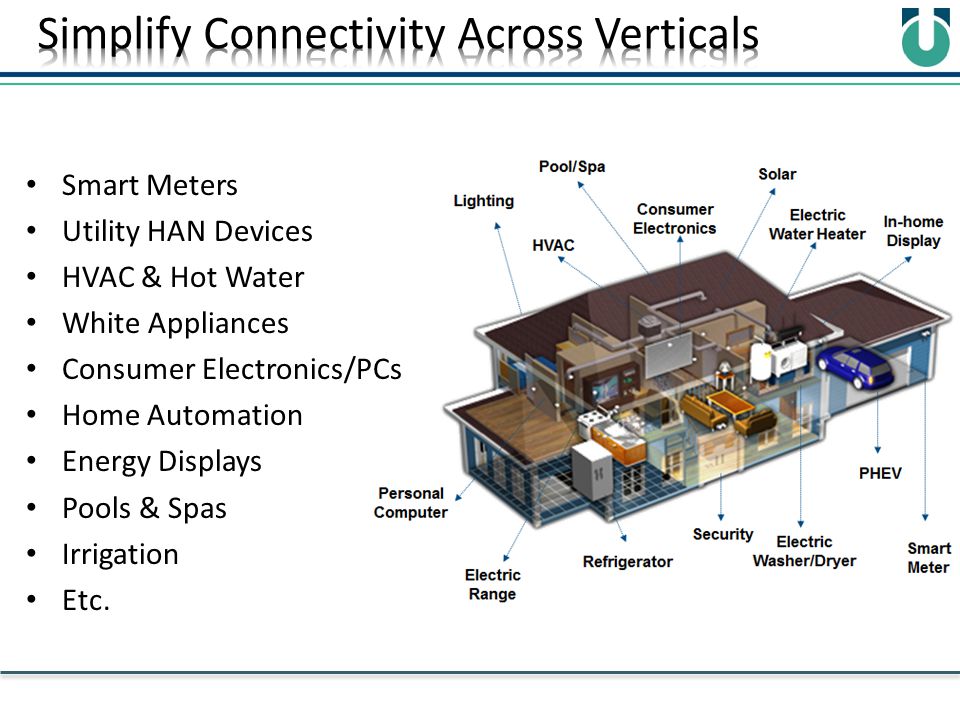

3 Smart Meters Utility HAN Devices HVAC & Hot Water White Appliances Consumer Electronics/PCs Home Automation Energy Displays Pools & Spas Irrigation Etc.

4 Empowering the consumer: Customer installable Works everywhere Works in anything Eliminates stranded assets Enables standards development process Still viable in 30 years 3

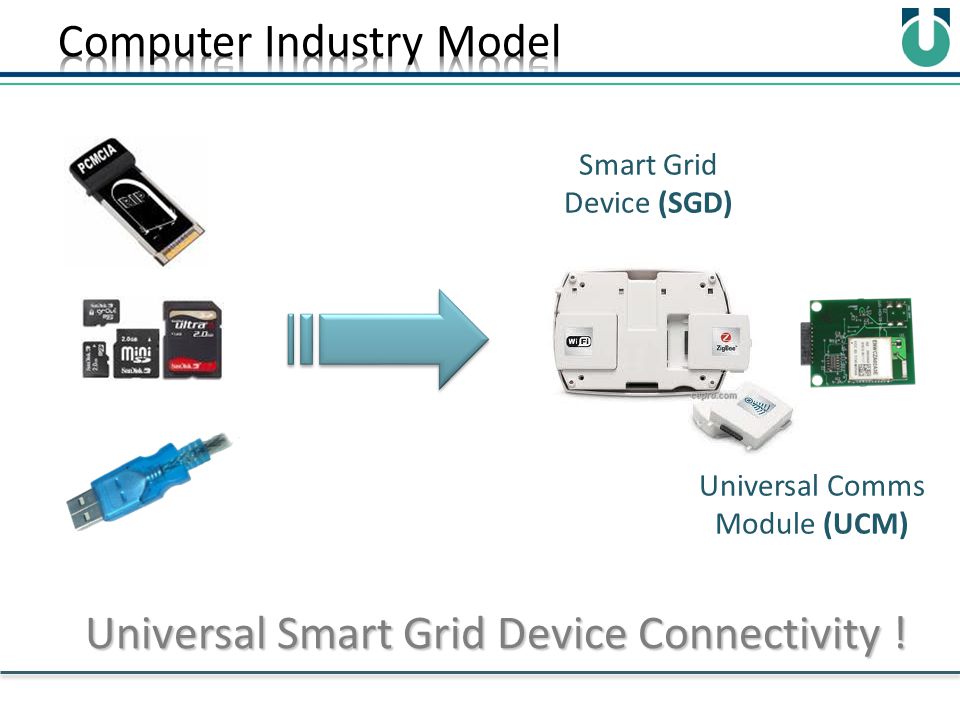

5 Universal Smart Grid Device Connectivity ! Universal Comms Module (UCM) Smart Grid Device (SGD)

6

7

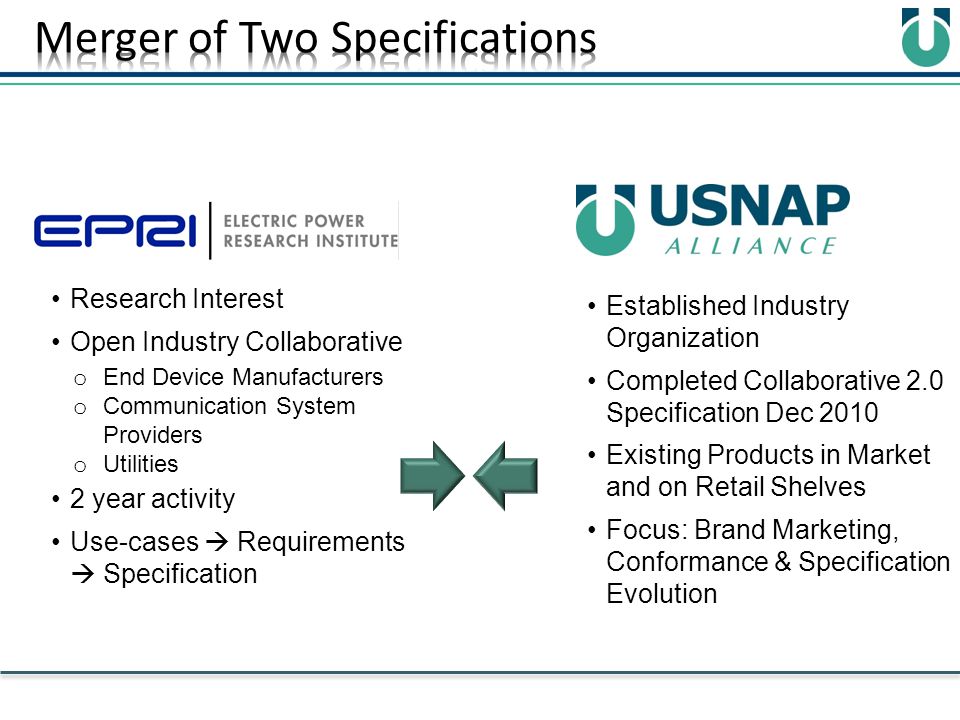

8 Research Interest Open Industry Collaborative o End Device Manufacturers o Communication System Providers o Utilities 2 year activity Use-cases  Requirements  Specification Established Industry Organization Completed Collaborative 2.0 Specification Dec 2010 Existing Products in Market and on Retail Shelves Focus: Brand Marketing, Conformance & Specification Evolution

9 Philosophy: “it just works” Enables connectivity and DR for broad range of consumer products Supports minimal set of basic DR commands Enables pass-through of more sophisticated protocols – SEP 2.0, OpenADR, ClimateTalk Supports current & future standards

10 Forming subcommittee within CEA R7 Home Networks Committee Open committee process 6 to 12 month initiative Results in ANSI standard USNAP is recognized by NIST as an Independent Conformance & Testing Authority (ITCA) Developing compliance and certification program 9

11 Non-profit mutual benefit 501(c)(6) Corp 40+ Members Member dues only – no license/royalty fees Focus: Brand Awareness Marketing Conformance Product certification & branding

12 Matt Dhillon Asst. Vice President Utility Sales Americas Energy & Utiliies Mahindra Satyam Cell:

13 Research: via California Energy Commission PIER USNAP Alliance Formed CEC reference design implemented by Radio Thermostat USNAP 1.0 Spec Released USNAP 2.0 Spec Released 1 st Retail Products Available USNAP & EPRI Merge Standards Development USNAP Compliance Program

14 A/C or D/C type Smart Grid Device (SGD) Universal Communication Module (UCM) App layer Link layer PHY layer RS485 (Line Voltage) SPI (Low Voltage) Any Communication System ( AMI, Cellular, FM, HAN, Internet LAN, Pager, … ) Any Communication System ( AMI, Cellular, FM, HAN, Internet LAN, Pager, … ) Protocol Pass-through or Direct Control SEP OpenADR ClimateTalk … e.g. Appliance HVAC Thermostat Solar... Socket Interface

15 14

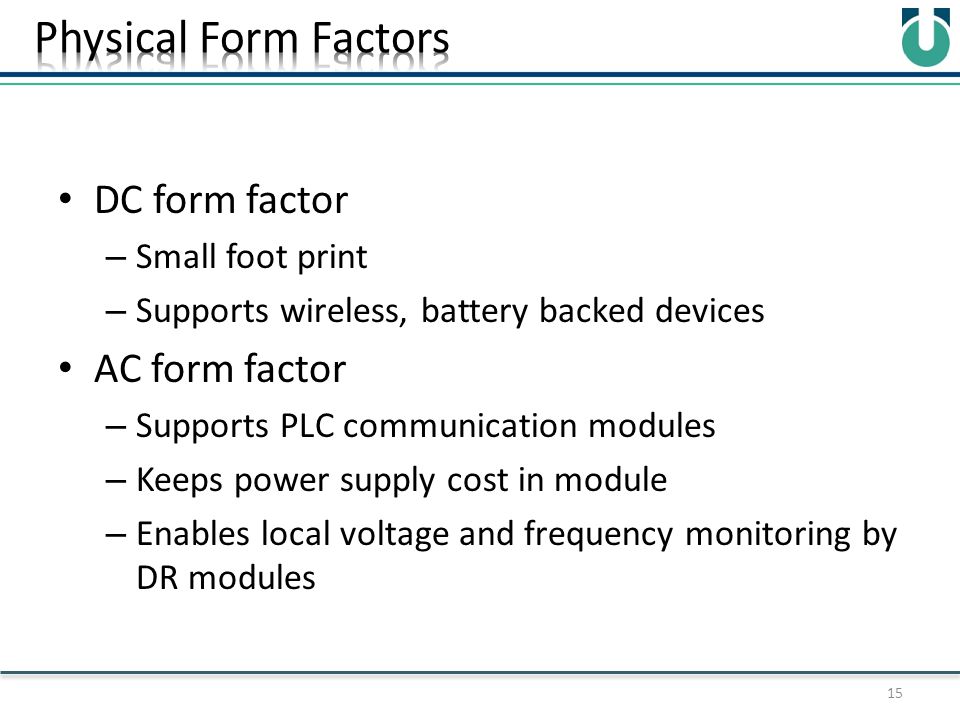

16 DC form factor – Small foot print – Supports wireless, battery backed devices AC form factor – Supports PLC communication modules – Keeps power supply cost in module – Enables local voltage and frequency monitoring by DR modules 15

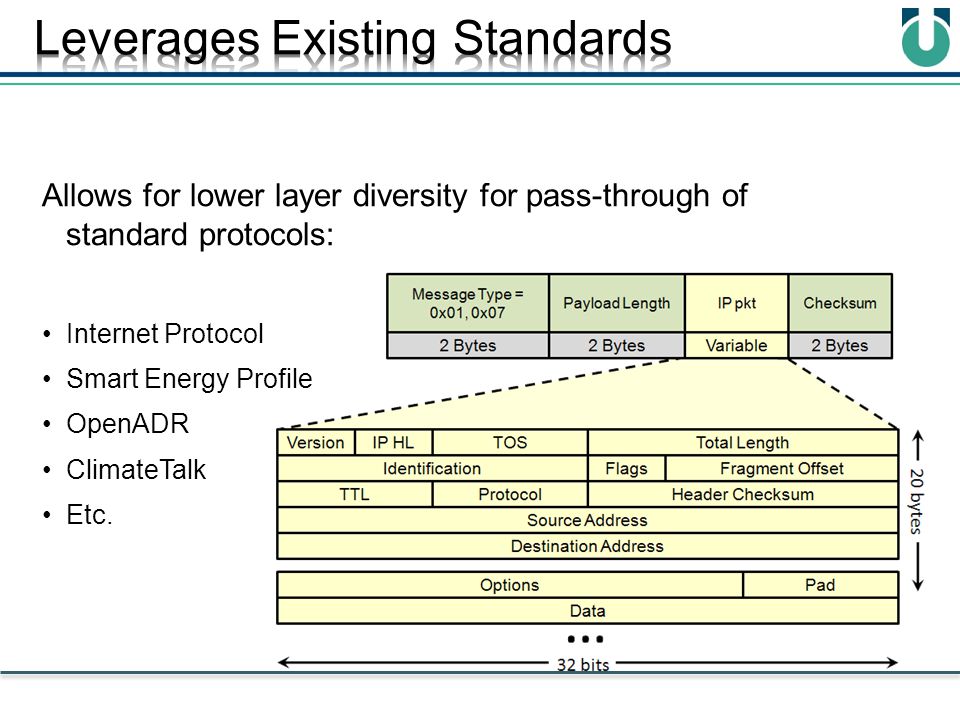

17 Allows for lower layer diversity for pass-through of standard protocols: Internet Protocol Smart Energy Profile OpenADR ClimateTalk Etc.

18 Clarifies demarcation point of Utility Program/Consumer HAN Reduces risk of stranded assets Limits legacy constraints from proprietary technologies Maximizes architectural & business model flexibility Simplifies HAN device / network interoperability Leverages existing consumer ecosystems/channels Reduces cost of acquisition for HAN Devices/Deployments Enables customer choice, Innovation & competition “…unknown unknowns – the ones we don't know we don't know”

19 Communicating Thermostat iPhone energy application Communications options – Wi-Fi Intwine Energy Remote Appliance Controller Controls 2 loads for HVAC, water heaters, pool pumps, and more Communication options – ZigBee and RDS Entek Systems Communicating Thermostat Wi-Fi portal with iPhone app Communication options –ZigBee, Wi-Fi, Z-Wave Radio Thermostat Company of America

20 WiFi Smart Plug 120/240 Volt Single Phase15 Amp Switched Receptacle Our Home Spaces In-Home Display Real time energy feedback Communication options – ZigBee, Wi-Fi, Z-Wave Aztech Associates Home Controller Wireless bridge with web interface Communication options – Ethernet, ZigBee, Wi-Fi, Z-Wave Bulogics
