1 1 M. Zarcone Istituto Nazionale per la Fisica della Materia and Dipartimento di Fisica e Tecnologie Relative, Viale delle Scienze, Palermo, Italy High harmonics generation in plasmas and in semiconductors

2 2 Have been observed harmonics up 295th order of a radiation. harmonics generation in atoms

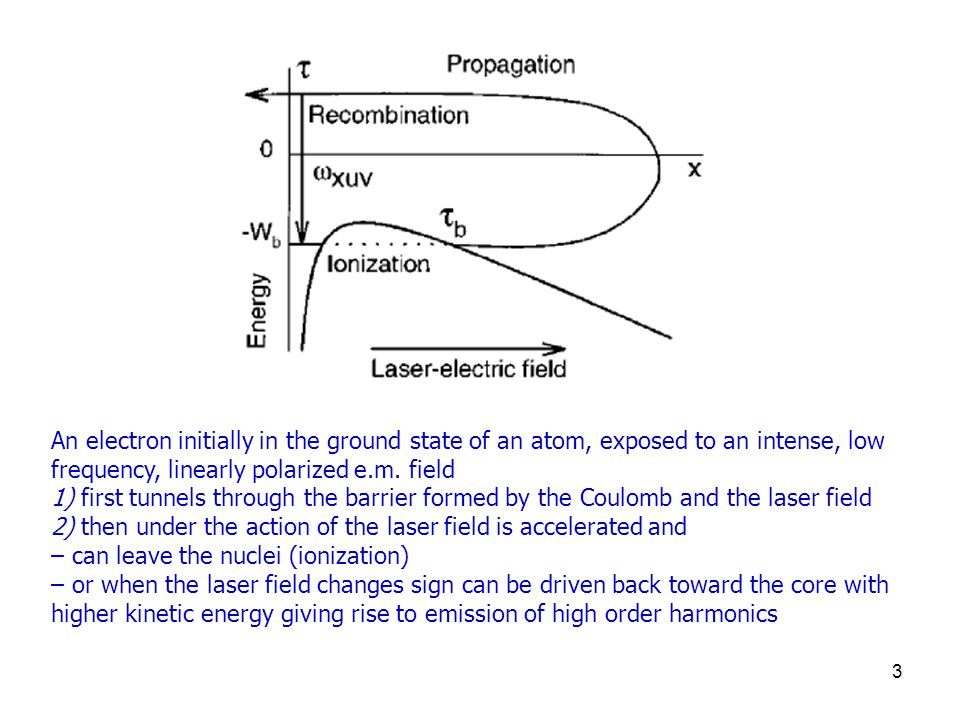

3 3 An electron initially in the ground state of an atom, exposed to an intense, low frequency, linearly polarized e.m. field 1) first tunnels through the barrier formed by the Coulomb and the laser field 2) then under the action of the laser field is accelerated and – can leave the nuclei (ionization) – or when the laser field changes sign can be driven back toward the core with higher kinetic energy giving rise to emission of high order harmonics

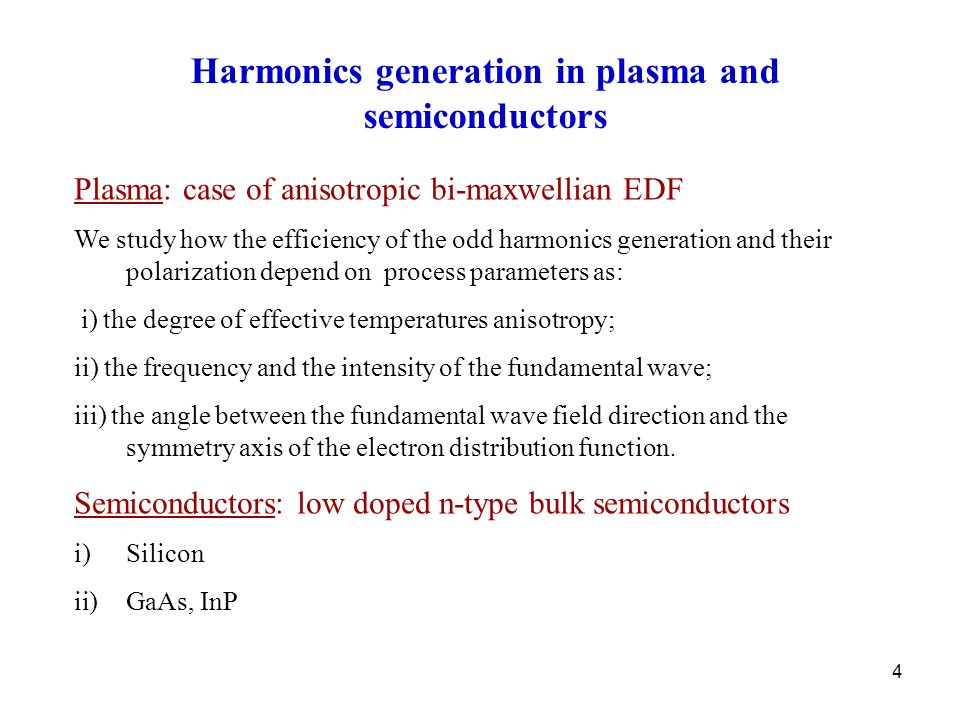

4 4 Harmonics generation in plasma and semiconductors Plasma: case of anisotropic bi-maxwellian EDF We study how the efficiency of the odd harmonics generation and their polarization depend on process parameters as: i) the degree of effective temperatures anisotropy; ii) the frequency and the intensity of the fundamental wave; iii) the angle between the fundamental wave field direction and the symmetry axis of the electron distribution function. Semiconductors: low doped n-type bulk semiconductors i)Silicon ii)GaAs, InP

5 5 Electron-Ion Collision Induced Harmonic Generation in a Plasma with Maxwellian Distribution The intensity of the harmonics (2n + 1) for 4 different initial values of the parameter v E /v T (0) = 40 (squares); 20 (void circles); 10 (black circles); 4 (triangles). G. Ferrante, S.A. Uryupin, M. Zarcone, J. Opt. Soc. Am, B14, 1716,(1997) the efficiency is lower than in gases no plateau no cut-off Similar behavior found for semiconductors ! D. Persano Adorno, M. Zarcone and G. Ferrante Phys. Stat. Sol. C 238, 3 (2003).

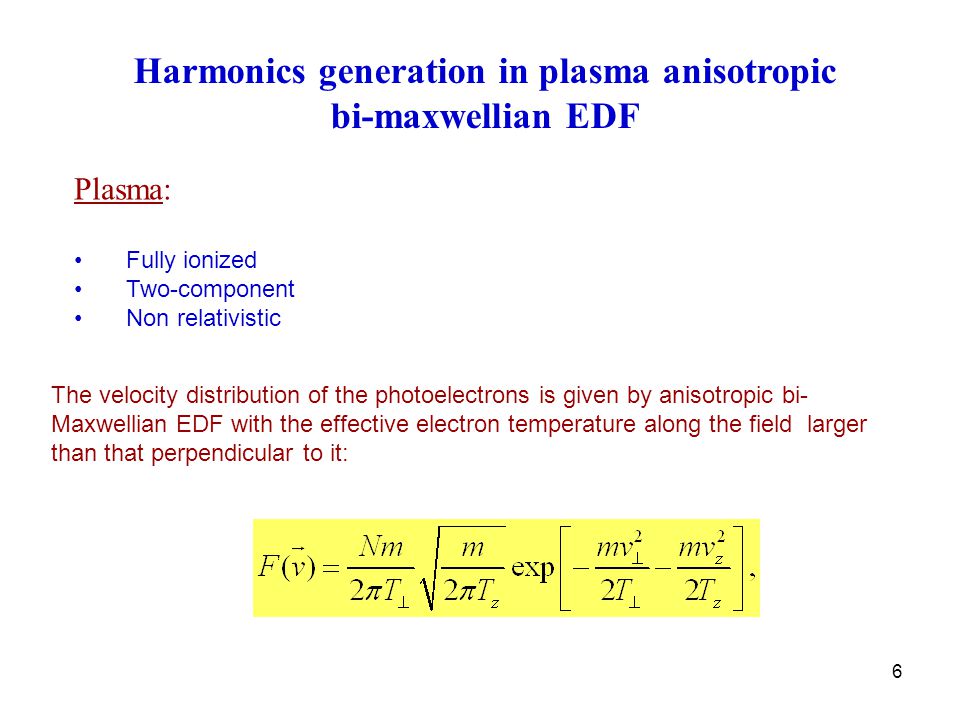

6 6 Harmonics generation in plasma anisotropic bi-maxwellian EDF Plasma: Fully ionized Two-component Non relativistic The velocity distribution of the photoelectrons is given by anisotropic bi- Maxwellian EDF with the effective electron temperature along the field larger than that perpendicular to it:

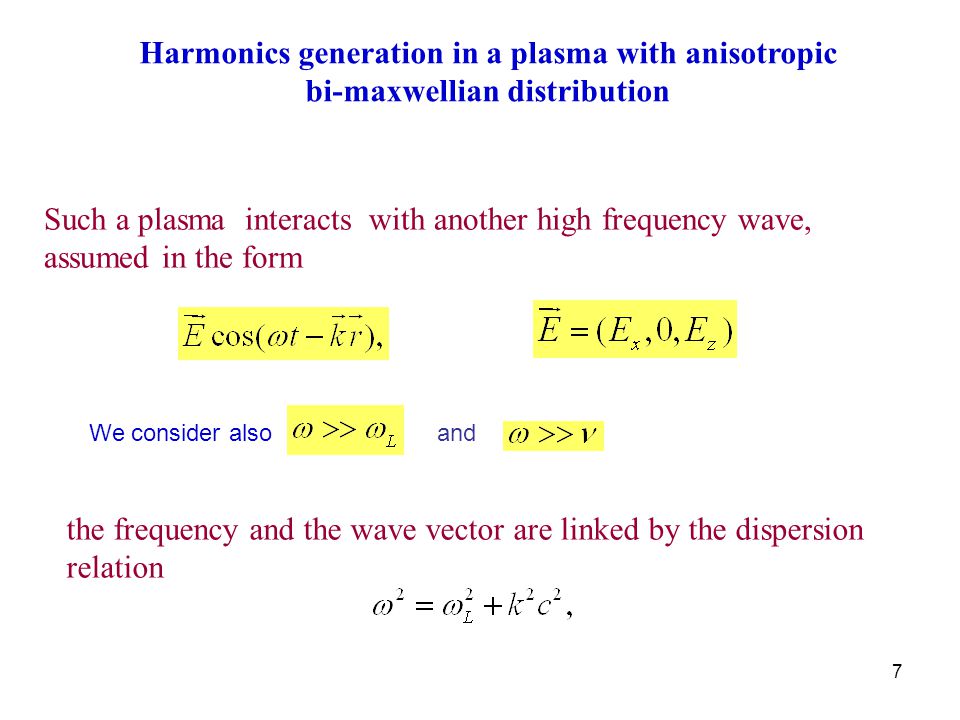

7 7 Such a plasma interacts with another high frequency wave, assumed in the form the frequency and the wave vector are linked by the dispersion relation Harmonics generation in a plasma with anisotropic bi-maxwellian distribution We consider alsoand

8 8 T z and T  are the electron effective temperatures along and perpendicularly to the EDF symmetry axis Harmonics generation in a plasma with anisotropic bi-maxwellian distribution

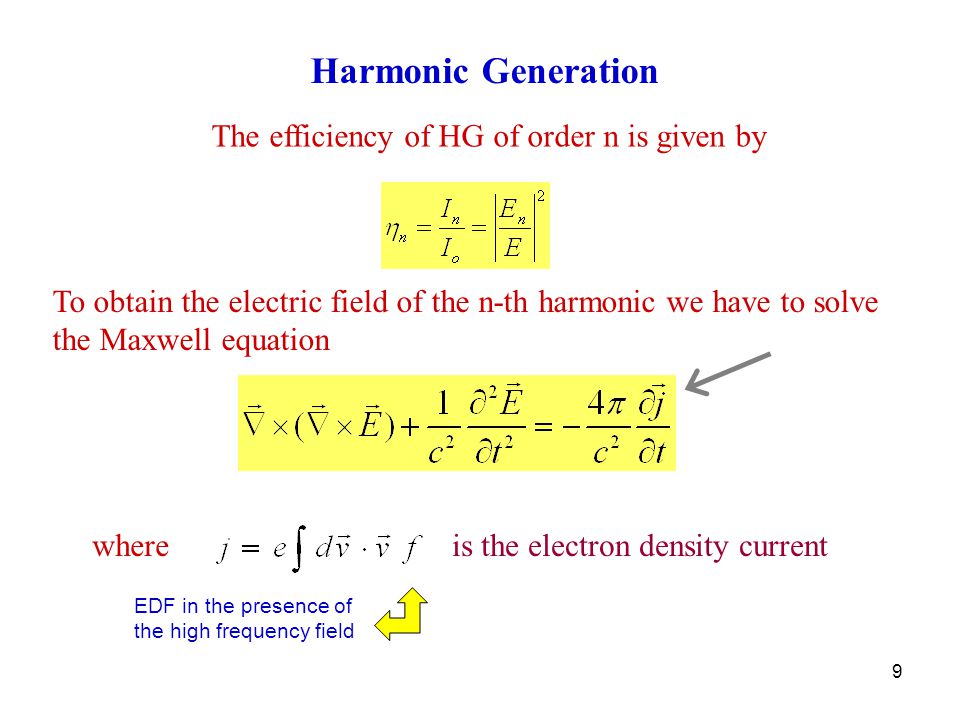

9 9 Harmonic Generation The efficiency of HG of order n is given by To obtain the electric field of the n-th harmonic we have to solve the Maxwell equation whereis the electron density current EDF in the presence of the high frequency field

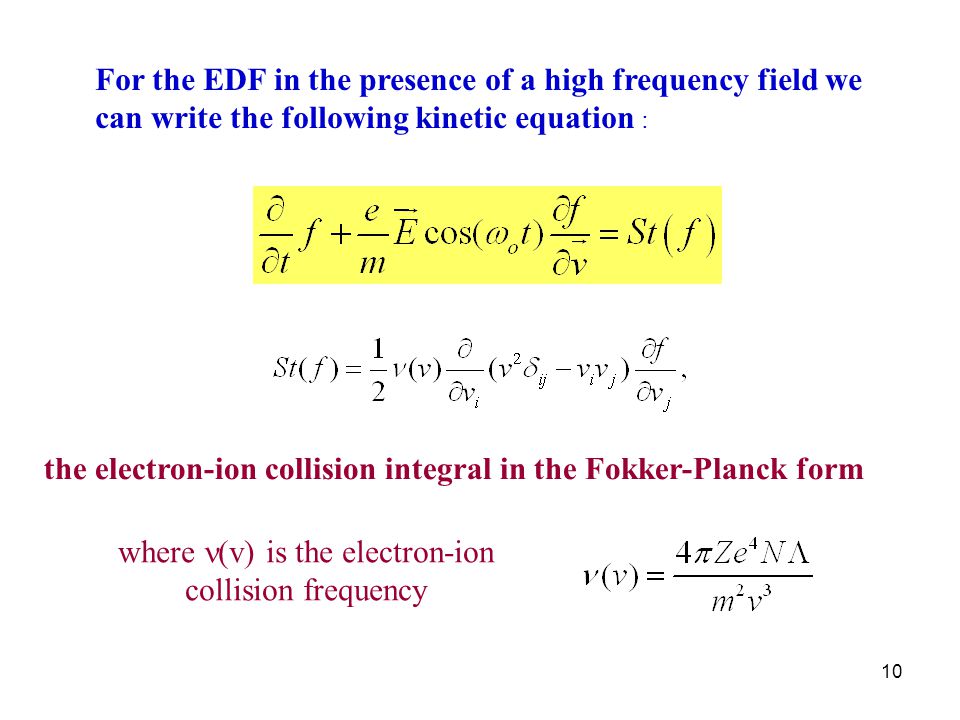

10 10 For the EDF in the presence of a high frequency field we can write the following kinetic equation : the electron-ion collision integral in the Fokker-Planck form where (v) is the electron-ion collision frequency

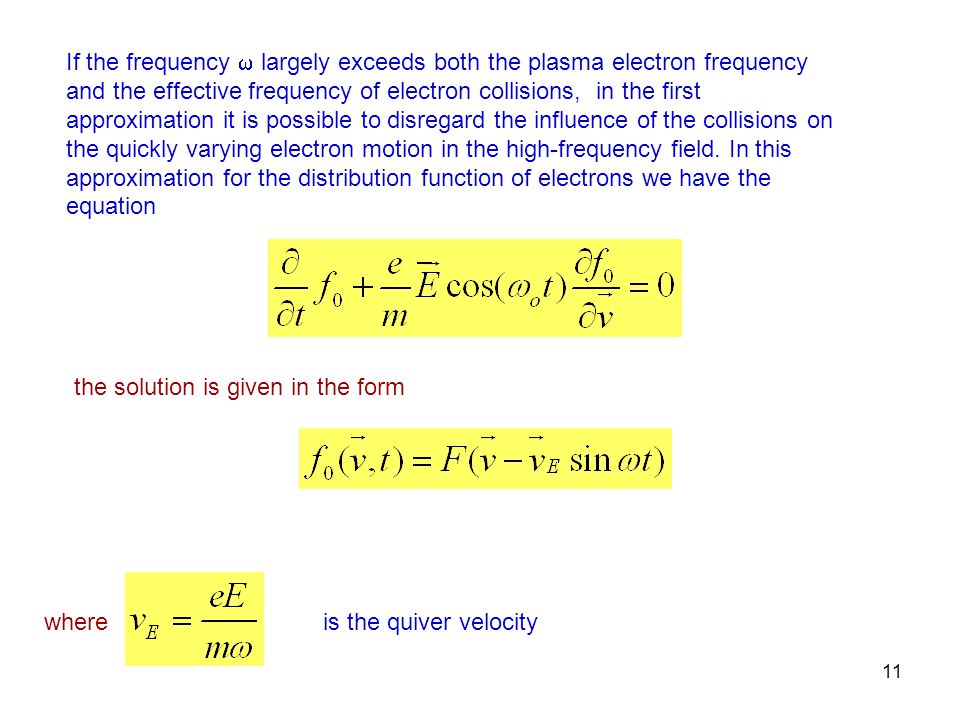

11 11 If the frequency  largely exceeds both the plasma electron frequency and the effective frequency of electron collisions, in the first approximation it is possible to disregard the influence of the collisions on the quickly varying electron motion in the high-frequency field. In this approximation for the distribution function of electrons we have the equation the solution is given in the form whereis the quiver velocity

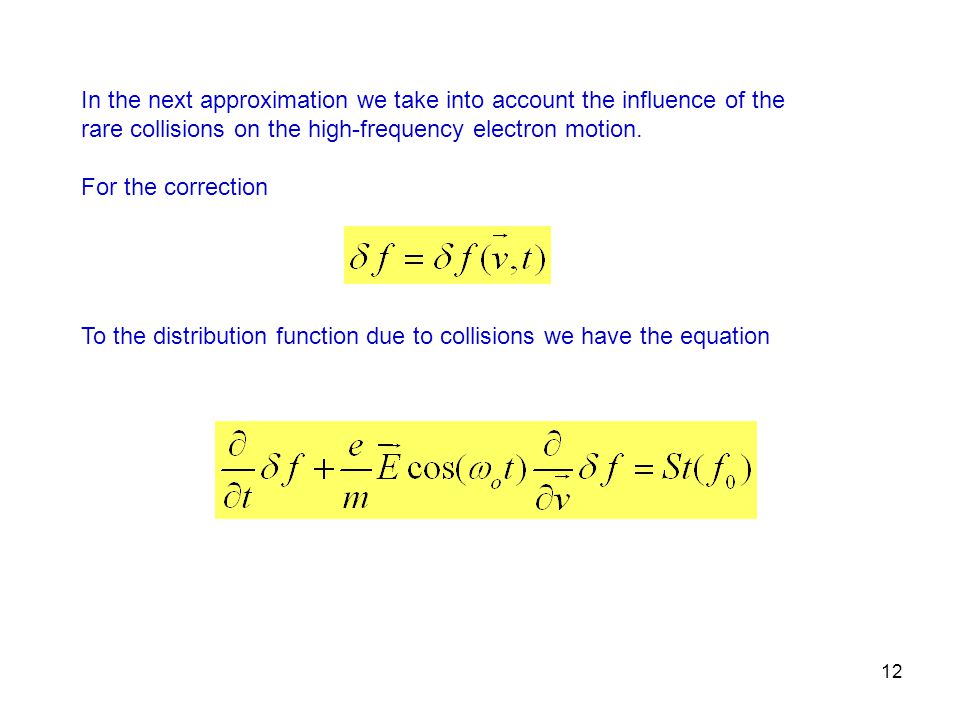

12 12 In the next approximation we take into account the influence of the rare collisions on the high-frequency electron motion. For the correction To the distribution function due to collisions we have the equation

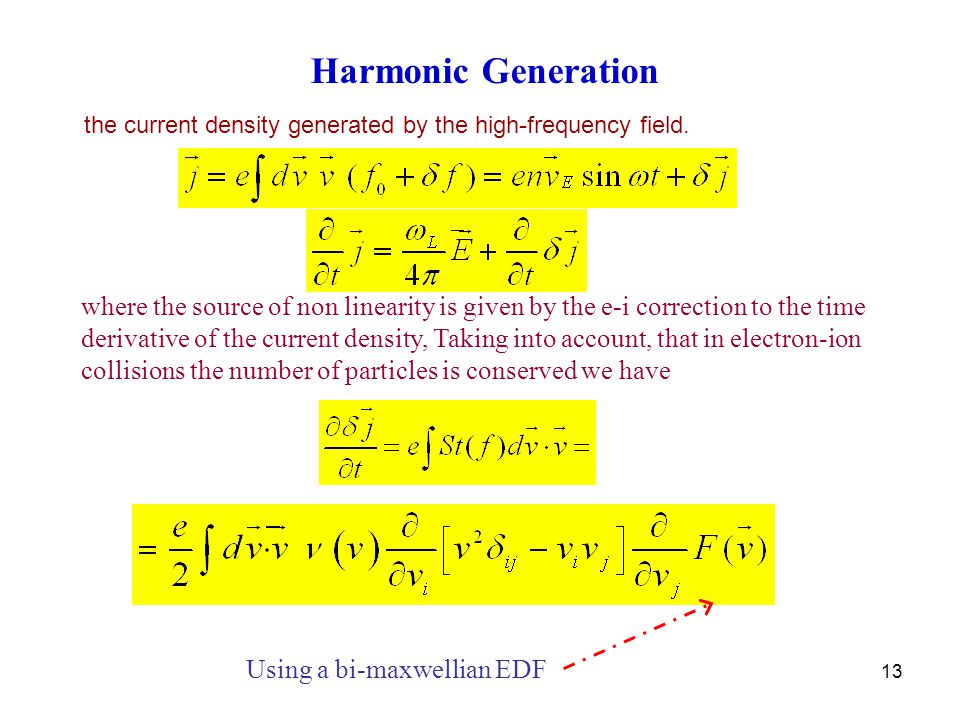

13 13 Harmonic Generation the current density generated by the high-frequency field. where the source of non linearity is given by the e-i correction to the time derivative of the current density, Taking into account, that in electron-ion collisions the number of particles is conserved we have Using a bi-maxwellian EDF

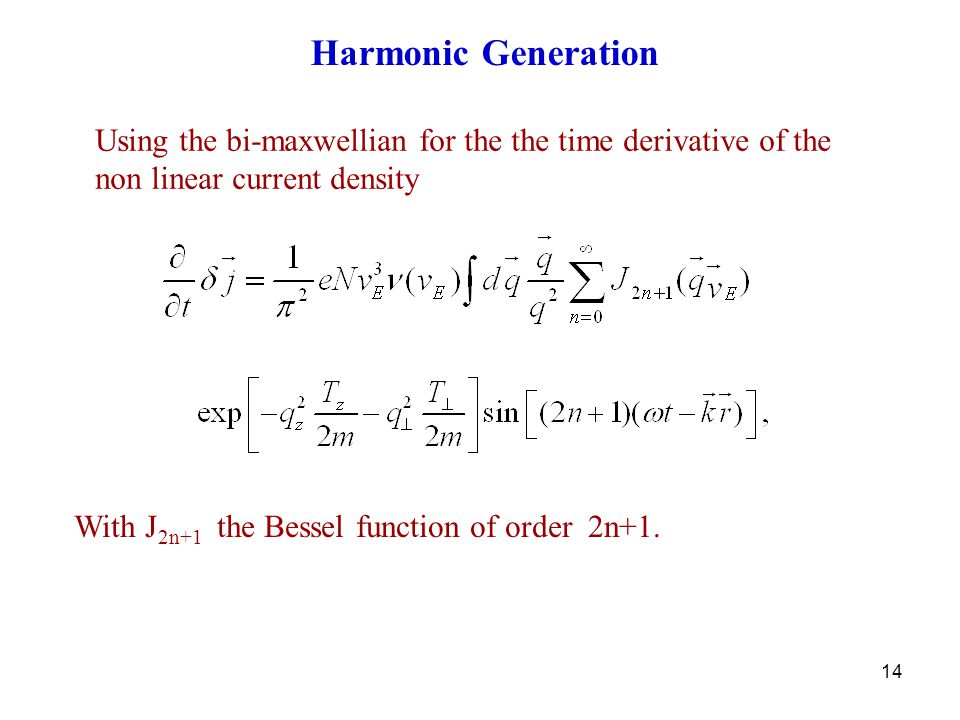

14 14 Harmonic Generation Using the bi-maxwellian for the the time derivative of the non linear current density With J 2n+1 the Bessel function of order 2n+1.

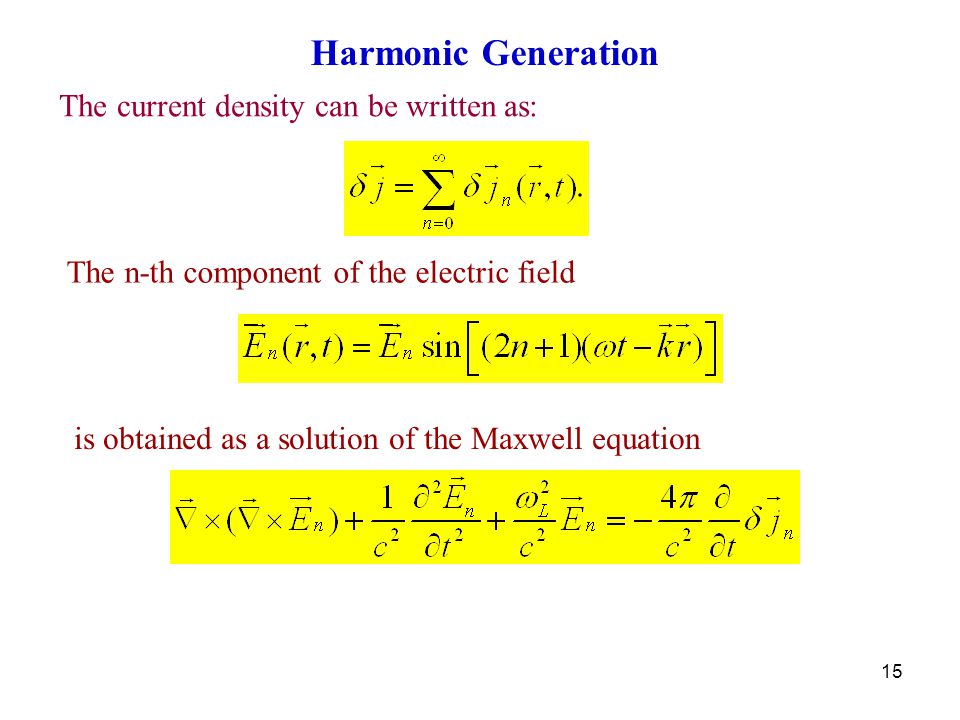

15 15 Harmonic Generation is obtained as a solution of the Maxwell equation The n-th component of the electric field The current density can be written as:

16 16 Harmonic Generation we obtain the electric field of the n-th harmonics resulting from nonlinear inverse bremsstrahlung as: the field of the harmonic E n, similarly to that of the fundamental field, has only two components and the efficiency of generation of the harmonic is characterized by the ratio with

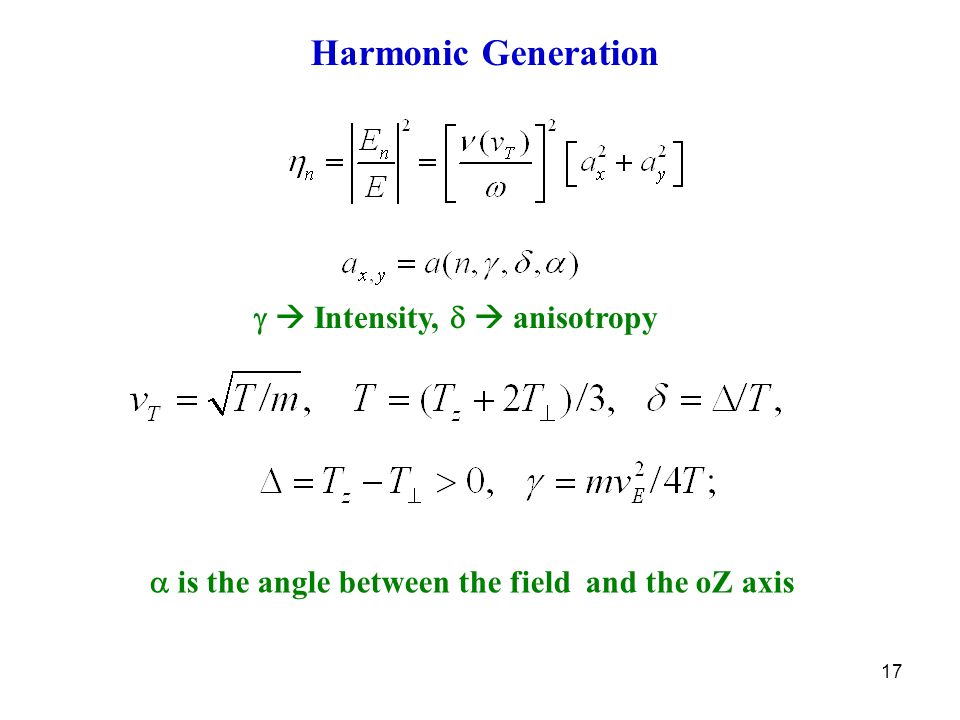

17 17 Harmonic Generation   Intensity,   anisotropy  is the angle between the field and the oZ axis

18 18 Harmonic Generation where I n is the modified Bessel function of n-order

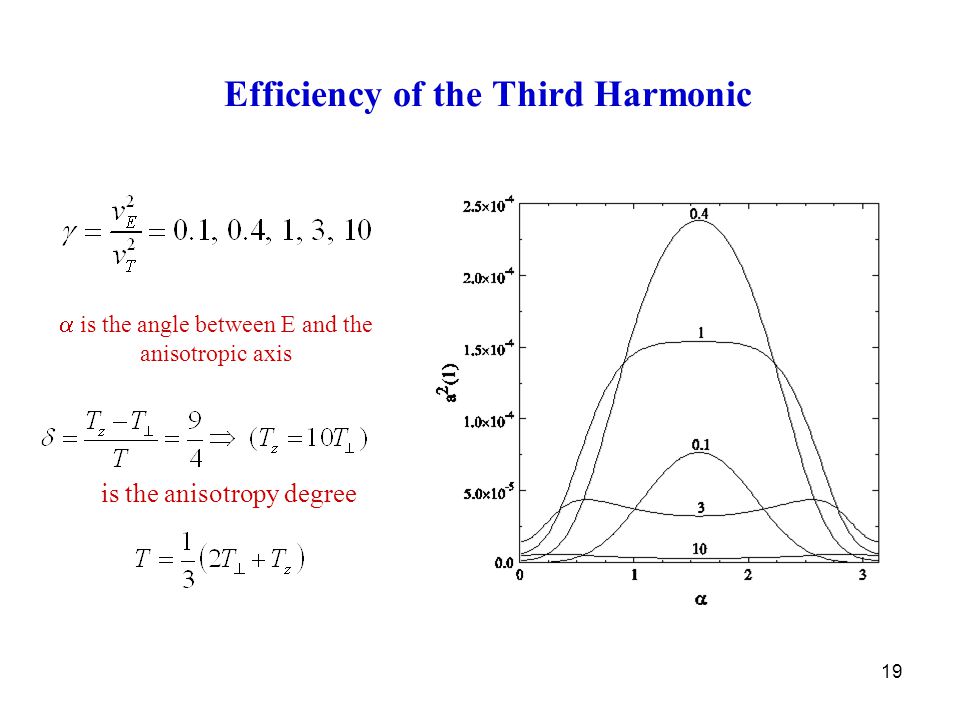

19 19 Efficiency of the Third Harmonic  is the angle between E and the anisotropic axis is the anisotropy degree

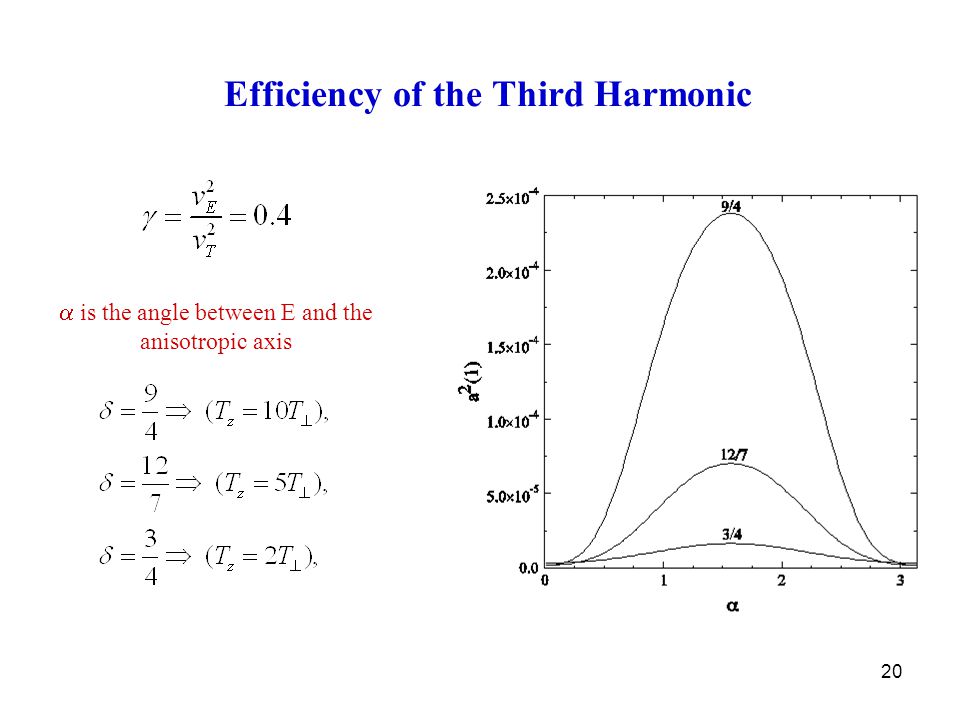

20 20 Efficiency of the Third Harmonic  is the angle between E and the anisotropic axis

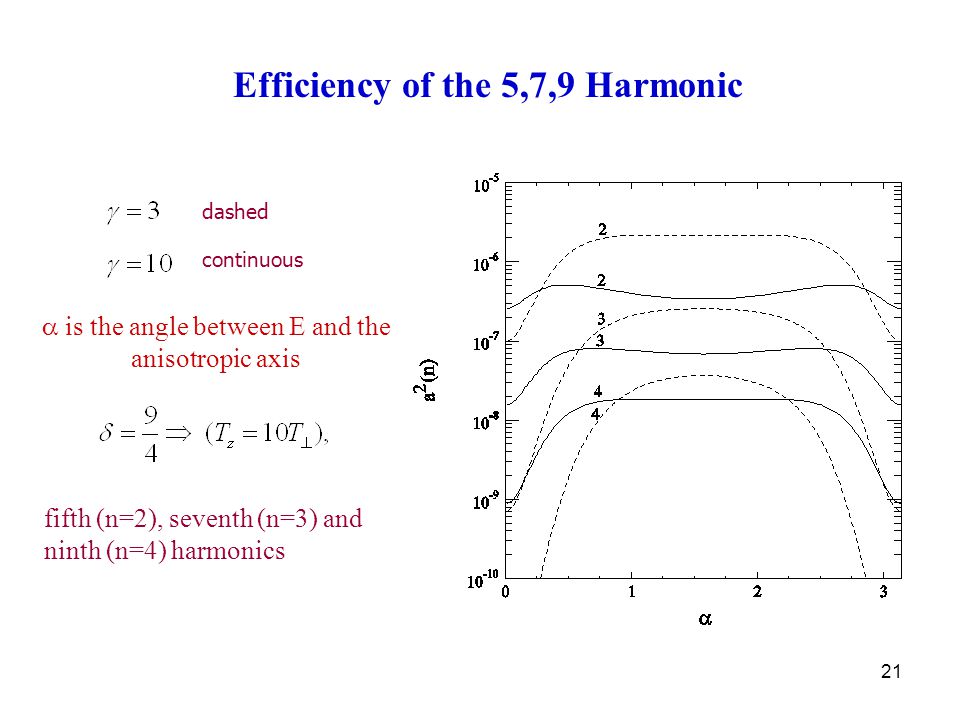

21 21 Efficiency of the 5,7,9 Harmonic  is the angle between E and the anisotropic axis dashed continuous fifth (n=2), seventh (n=3) and ninth (n=4) harmonics

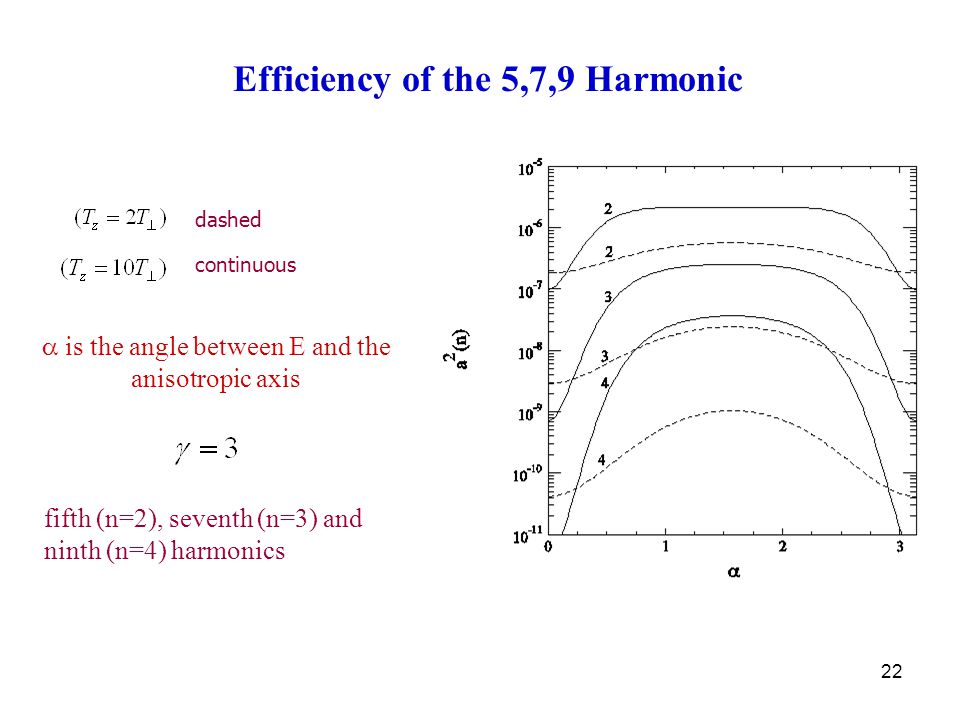

22 22 Efficiency of the 5,7,9 Harmonic  is the angle between E and the anisotropic axis dashed continuous fifth (n=2), seventh (n=3) and ninth (n=4) harmonics

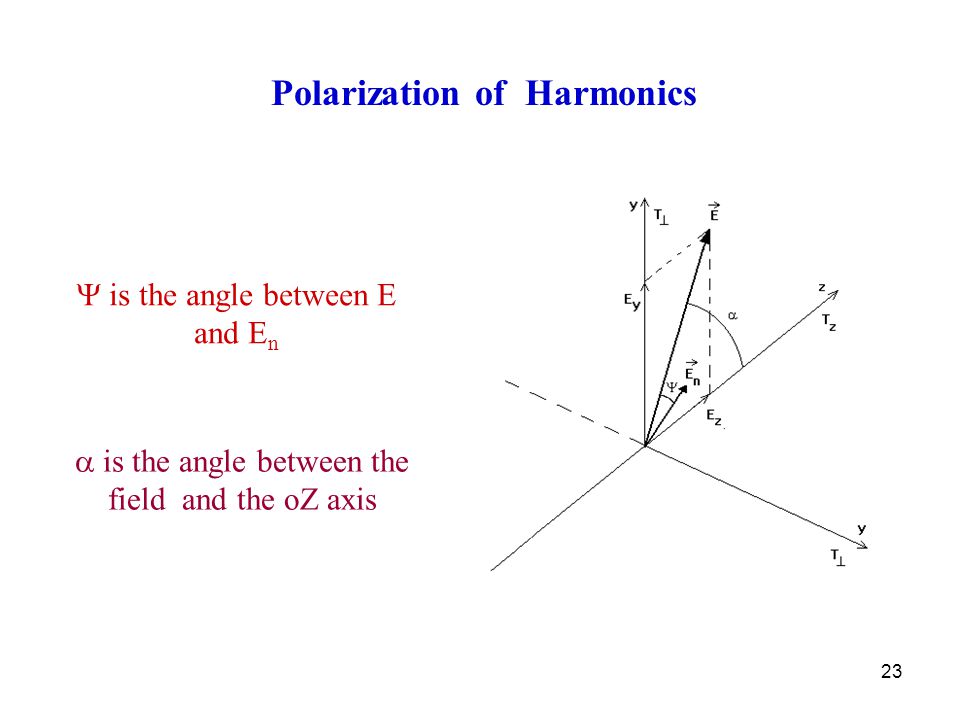

23 23  is the angle between E and E n Polarization of Harmonics  is the angle between the field and the oZ axis

24 24 Polarization of Harmonics Where the function G has the form: with

25 25  is the angle between E and the anisotropic axis is the anisotropy degree Polarization of the Third Harmonic

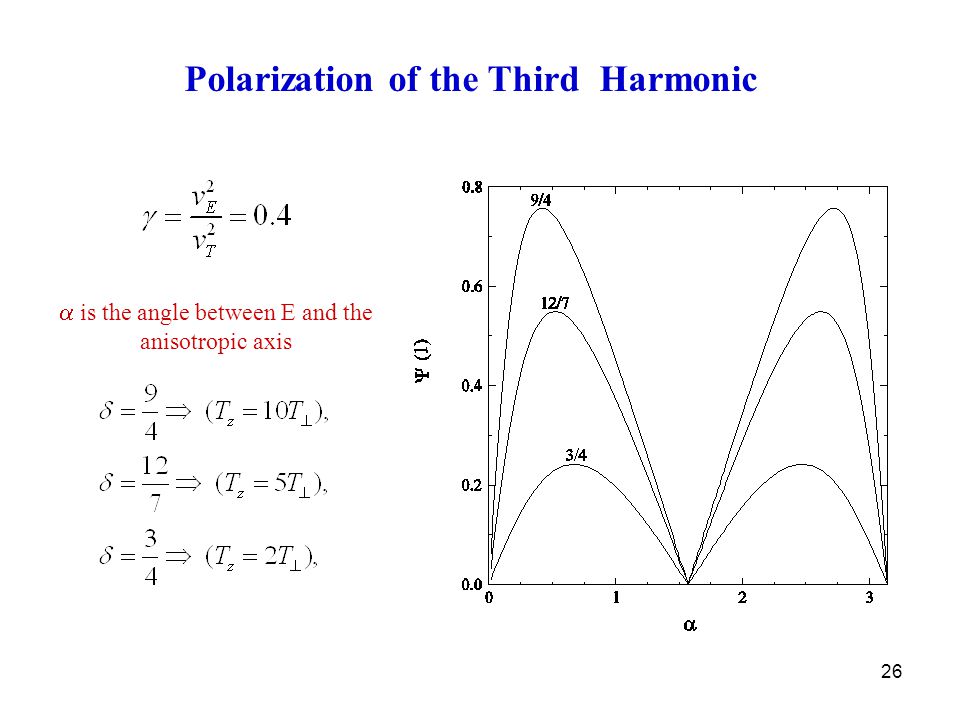

26 26  is the angle between E and the anisotropic axis Polarization of the Third Harmonic

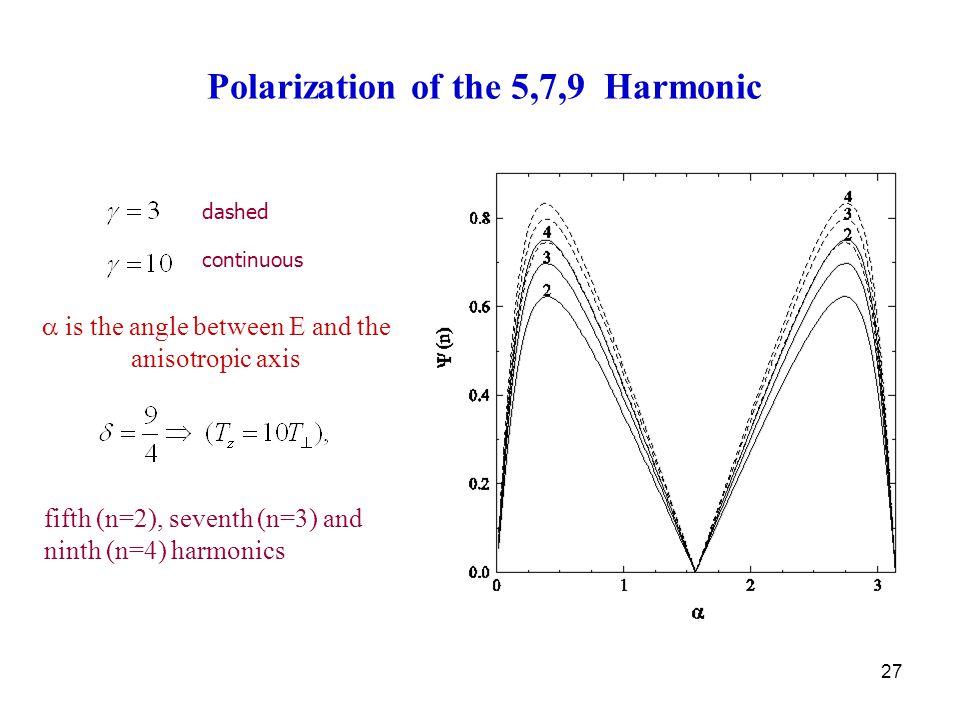

27 27  is the angle between E and the anisotropic axis dashed continuous fifth (n=2), seventh (n=3) and ninth (n=4) harmonics Polarization of the 5,7,9 Harmonic

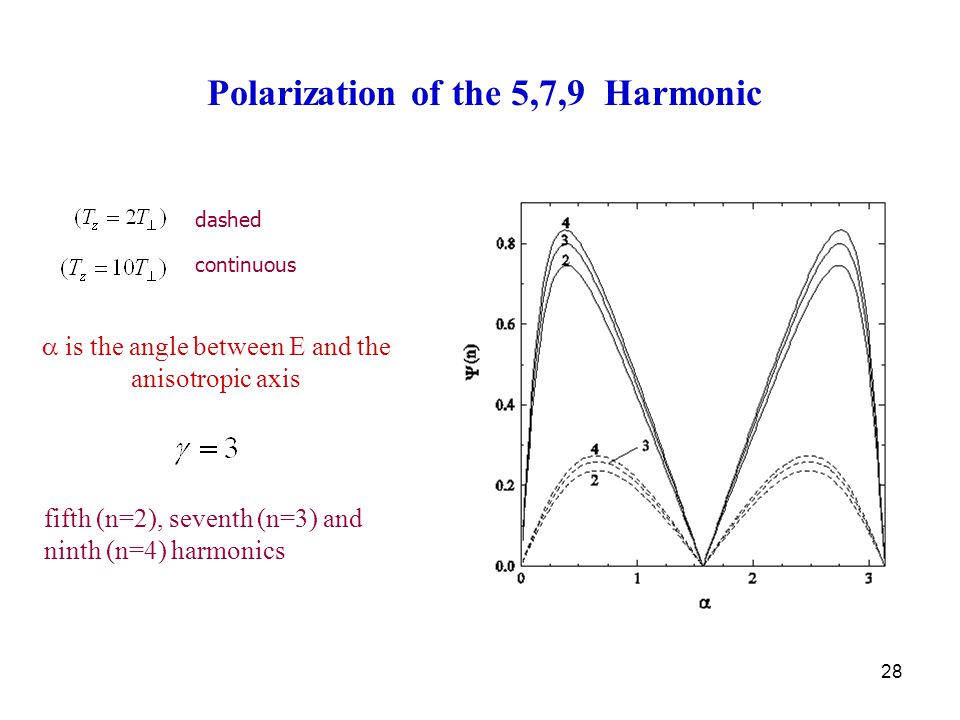

28 28  is the angle between E and the anisotropic axis dashed continuous fifth (n=2), seventh (n=3) and ninth (n=4) harmonics Polarization of the 5,7,9 Harmonic

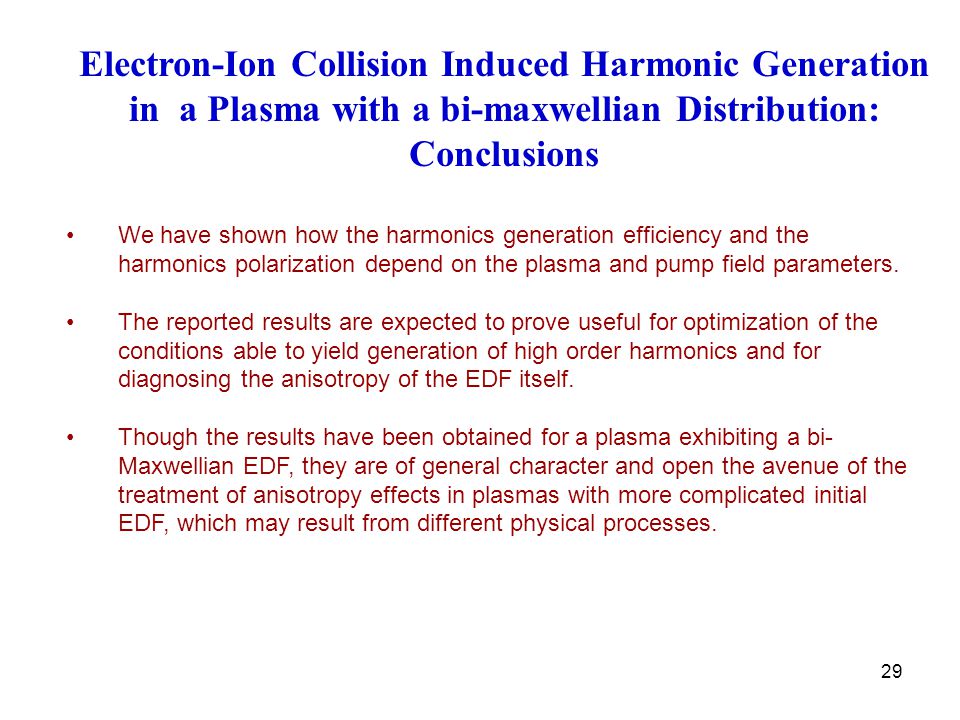

29 29 Electron-Ion Collision Induced Harmonic Generation in a Plasma with a bi-maxwellian Distribution: Conclusions We have shown how the harmonics generation efficiency and the harmonics polarization depend on the plasma and pump field parameters. The reported results are expected to prove useful for optimization of the conditions able to yield generation of high order harmonics and for diagnosing the anisotropy of the EDF itself. Though the results have been obtained for a plasma exhibiting a bi- Maxwellian EDF, they are of general character and open the avenue of the treatment of anisotropy effects in plasmas with more complicated initial EDF, which may result from different physical processes.

30 30 The investigation of non-linear processes involving bulk semiconductors interacting with intense F.I. radiation is of interest:  to explore the possibility to build a frequency converter of coherent radiation in the terahertz frequency domain  to understand the dynamics of the conducting electrons in semiconductors in the presence of an alternate field  to study the electric noise properties in semiconductor devices in the presence of an alternate field The F.I. frequencies are below the absorption threshold and the linear and non-linear transport properties of doped semiconductors are due only to the motion of free carriers in the presence of the electric field of the incident wave. Harmonics generation in bulk semiconductors

31 31 Low-doped semiconductors (Si, GaAs, InP), show an high efficiency in the generation of high harmonic in the presence of an intense a.c. electric field having frequency in the Far Infrared Region (F.I.). Several mechanisms contribute to the nonlinearity of the velocity-field relationship:  the nonparabolicity of the energy bands;  the electron transfer between energy valleys with different effective mass;  the inelastic character of some scattering mechanisms. High-order harmonic emission

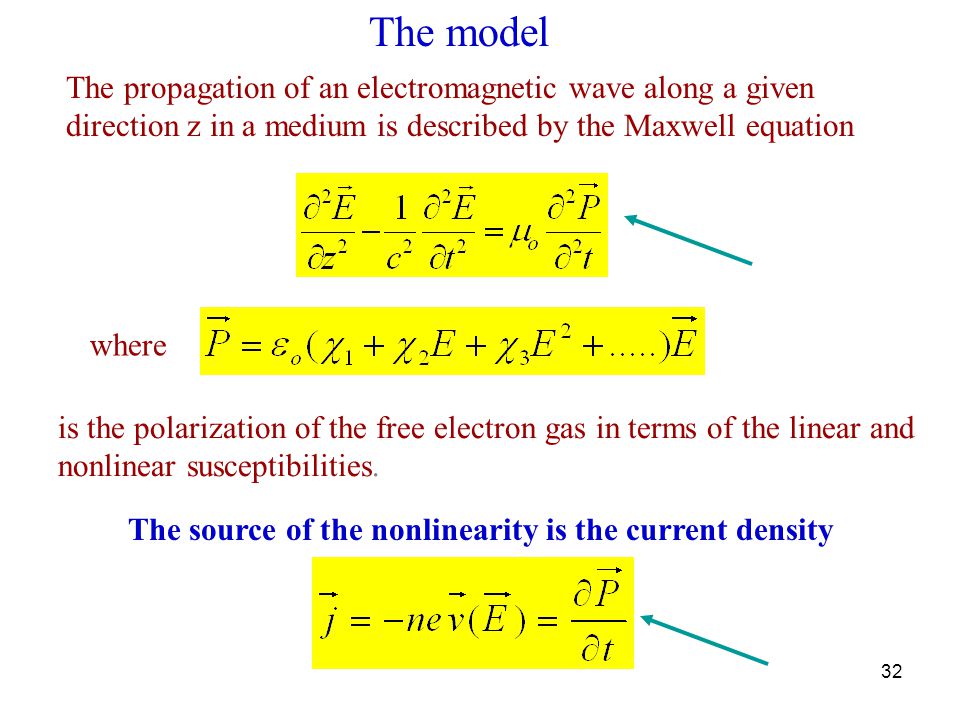

32 32 The propagation of an electromagnetic wave along a given direction z in a medium is described by the Maxwell equation is the polarization of the free electron gas in terms of the linear and nonlinear susceptibilities. where The source of the nonlinearity is the current density The model

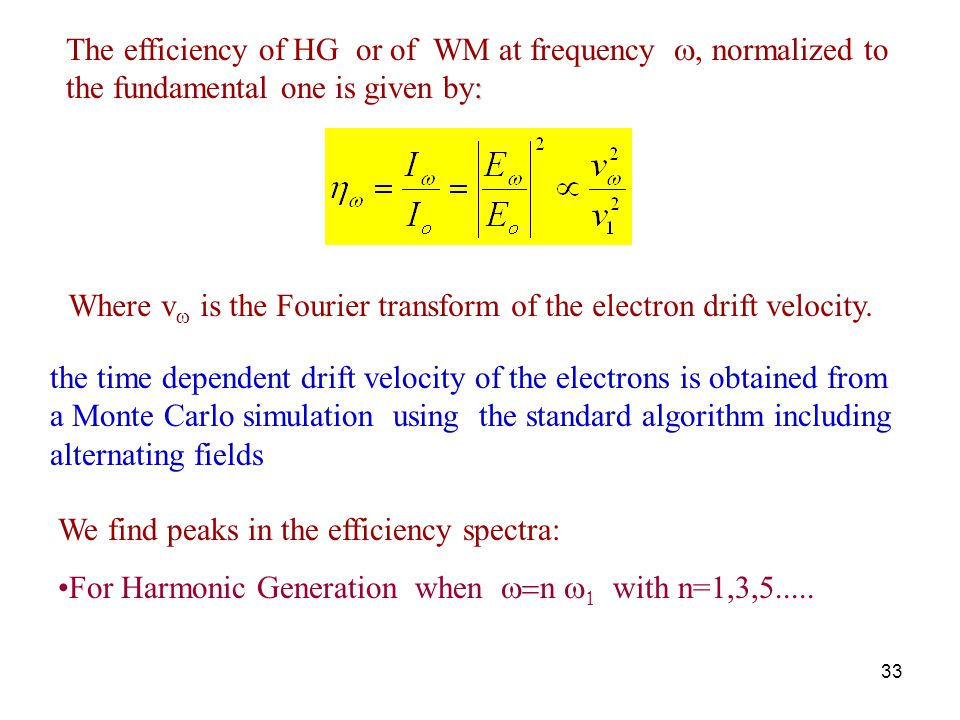

33 33 : The efficiency of HG or of WM at frequency , normalized to the fundamental one is given by: Where v  is the Fourier transform of the electron drift velocity. the time dependent drift velocity of the electrons is obtained from a Monte Carlo simulation using the standard algorithm including alternating fields We find peaks in the efficiency spectra: For Harmonic Generation when  n    with n=1,3,5.....

34 34 ENERGY BAND STRUCTURE

35 35 The band structure of Silicon shows two kinds of minima. The absolute minimum is represented by six equivalent ellipsoidal valleys (X valleys) along the directions at about 0.85 % of the Brillouin zone. The other minima are situated at the limit of the Brillouin zone along the directions (L valleys). In our simulation the conduction band of Si is represented by six equivalent X valleys. Since the energy gap between X and L valley is large (1.05eV), for the employed electric field and frequency, the electrons do not reach sufficient kinetic energies for these transitions. In our simulation the conduction bands of GaAs and InP are represented by the Gamma valley, by four equivalent L-valleys and by three equivalent X-valleys. The energy gap between X and L valley is (0.3eV for GaAs and 0.85eV for InP) and transition between non equivalent bands must be included

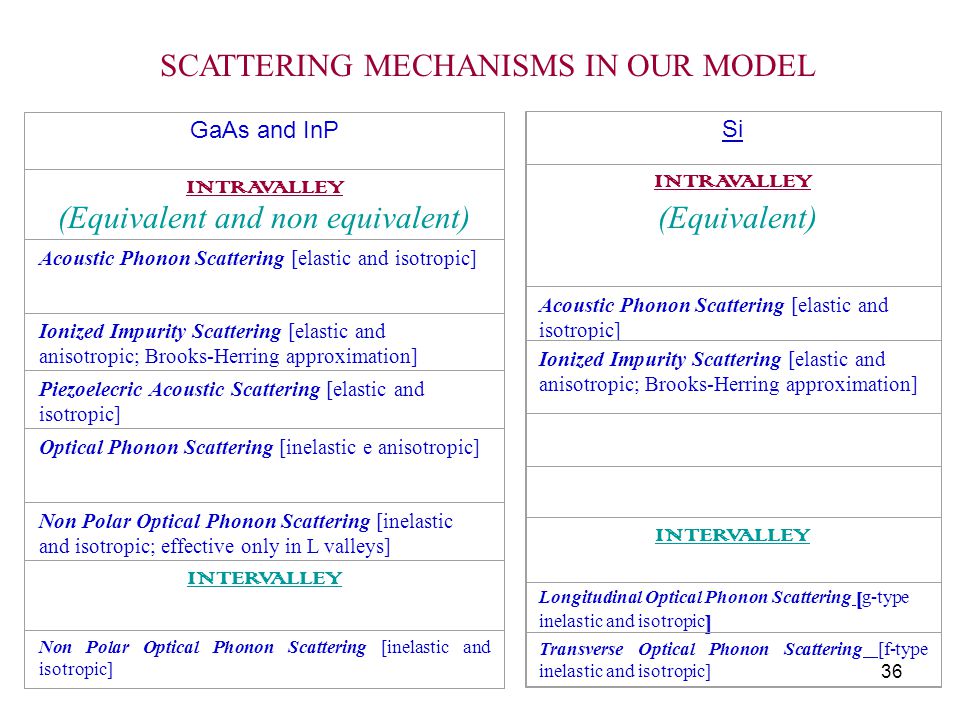

36 36 SCATTERING MECHANISMS IN OUR MODEL Si INTRAVALLEY Acoustic Phonon Scattering [elastic and isotropic] Ionized Impurity Scattering [elastic and anisotropic; Brooks-Herring approximation] INTERVALLEY Longitudinal Optical Phonon Scattering [ g-type inelastic and isotropic ] Transverse Optical Phonon Scattering [f-type inelastic and isotropic] GaAs and InP INTRAVALLEY Acoustic Phonon Scattering [elastic and isotropic] Ionized Impurity Scattering [elastic and anisotropic; Brooks-Herring approximation] Piezoelecric Acoustic Scattering [elastic and isotropic] Optical Phonon Scattering [inelastic e anisotropic] Non Polar Optical Phonon Scattering [inelastic and isotropic; effective only in L valleys] INTERVALLEY Non Polar Optical Phonon Scattering [inelastic and isotropic] (Equivalent)(Equivalent and non equivalent)

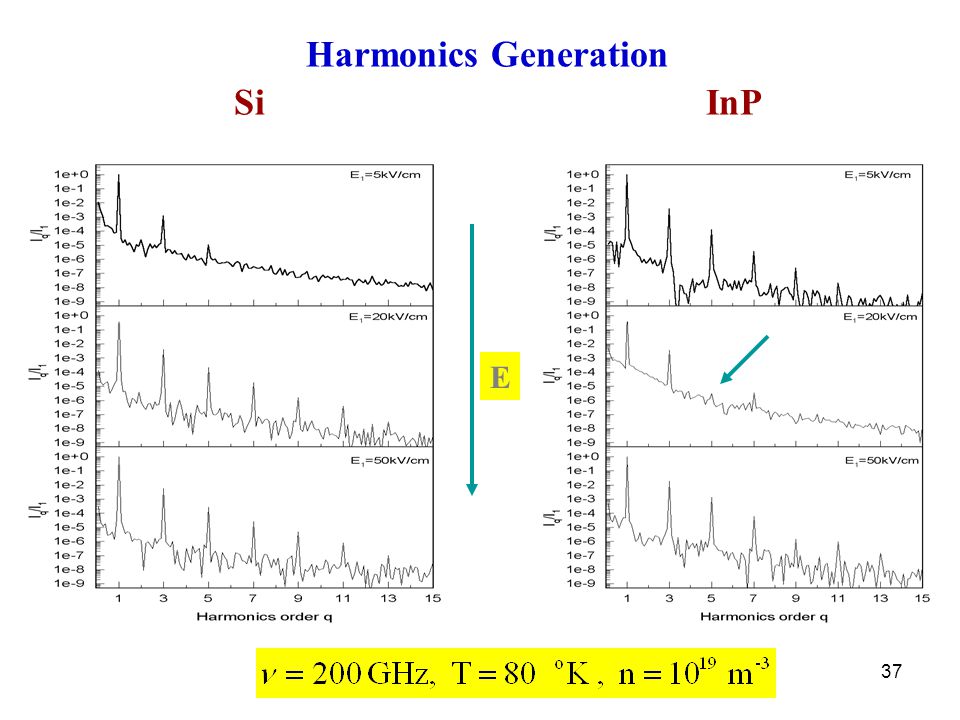

37 37 SiInP Harmonics Generation E

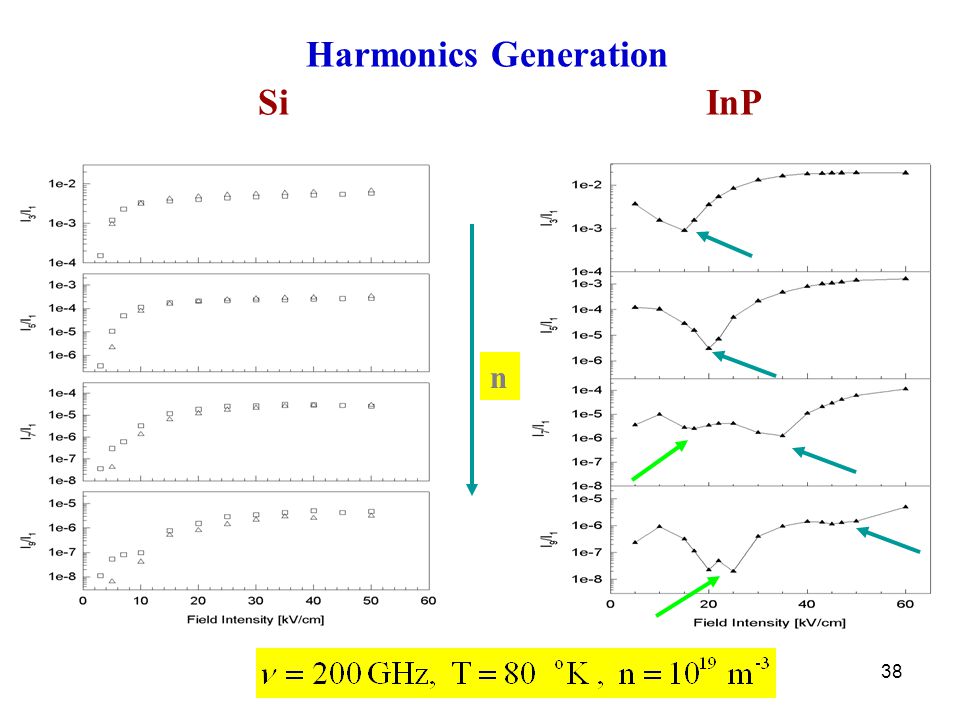

38 38 Harmonics Generation SiInP n

39 39 Harmonics Generation InP Minimum of the efficency is shifting to higher field intensity with the increasing of the field frequency ! n

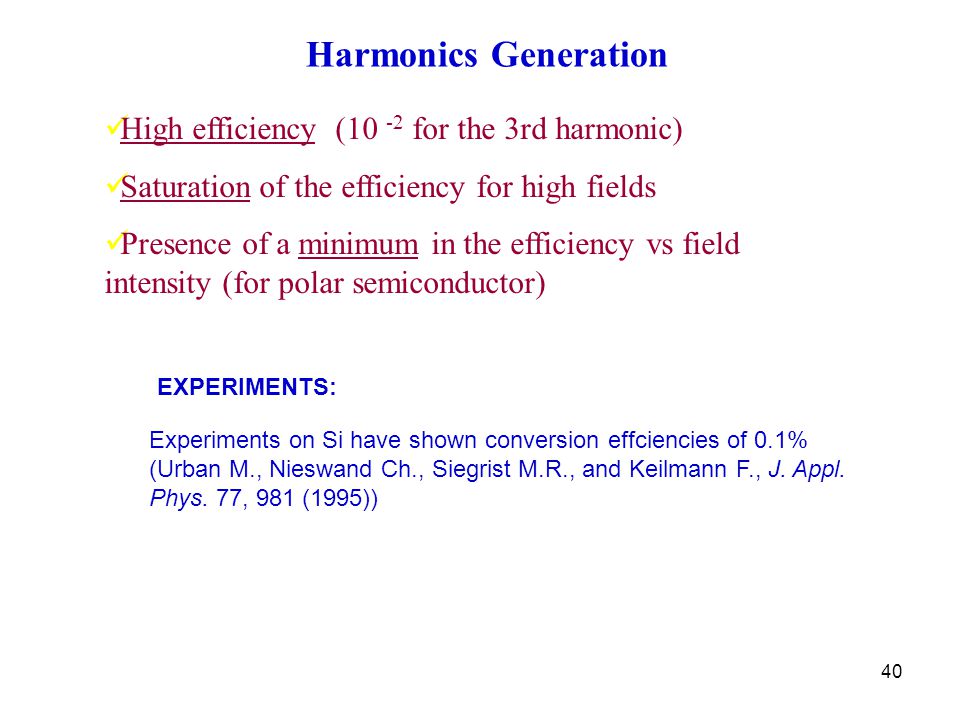

40 40 High efficiency (10 -2 for the 3rd harmonic) Saturation of the efficiency for high fields Presence of a minimum in the efficiency vs field intensity (for polar semiconductor) Harmonics Generation EXPERIMENTS: Experiments on Si have shown conversion effciencies of 0.1% (Urban M., Nieswand Ch., Siegrist M.R., and Keilmann F., J. Appl. Phys. 77, 981 (1995))

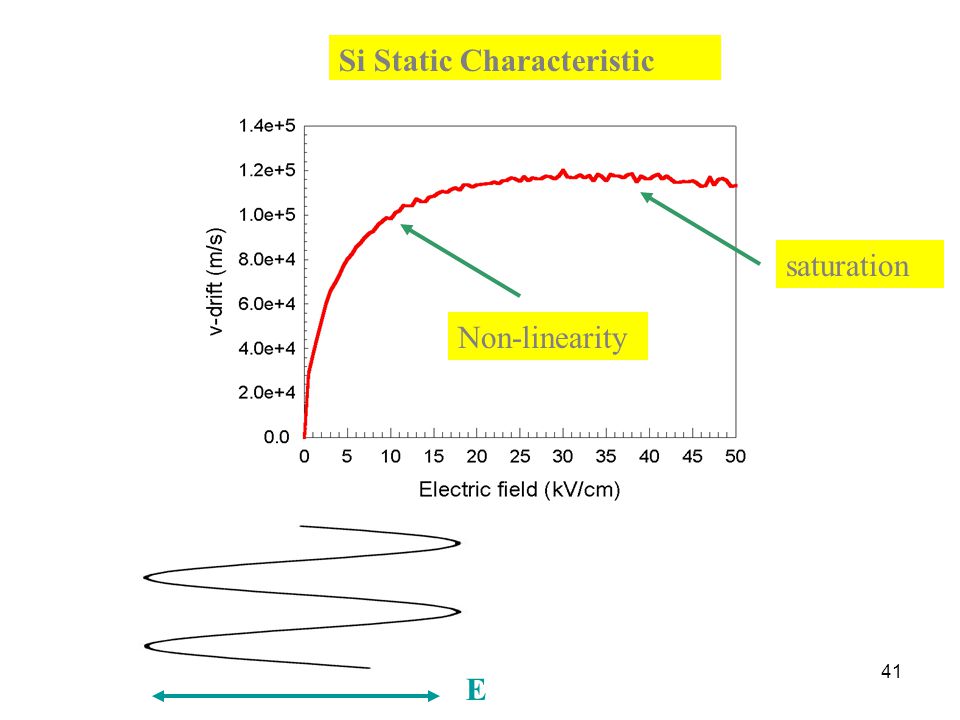

41 41 E Si Static Characteristic saturation Non-linearity

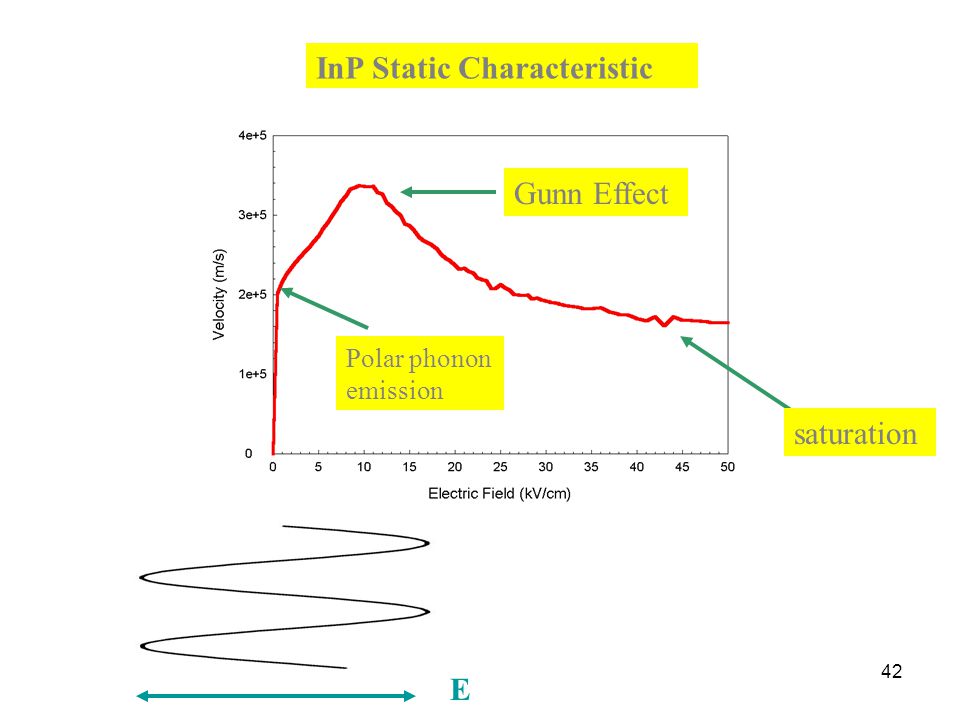

42 42 E InP Static Characteristic Gunn Effect saturation Polar phonon emission

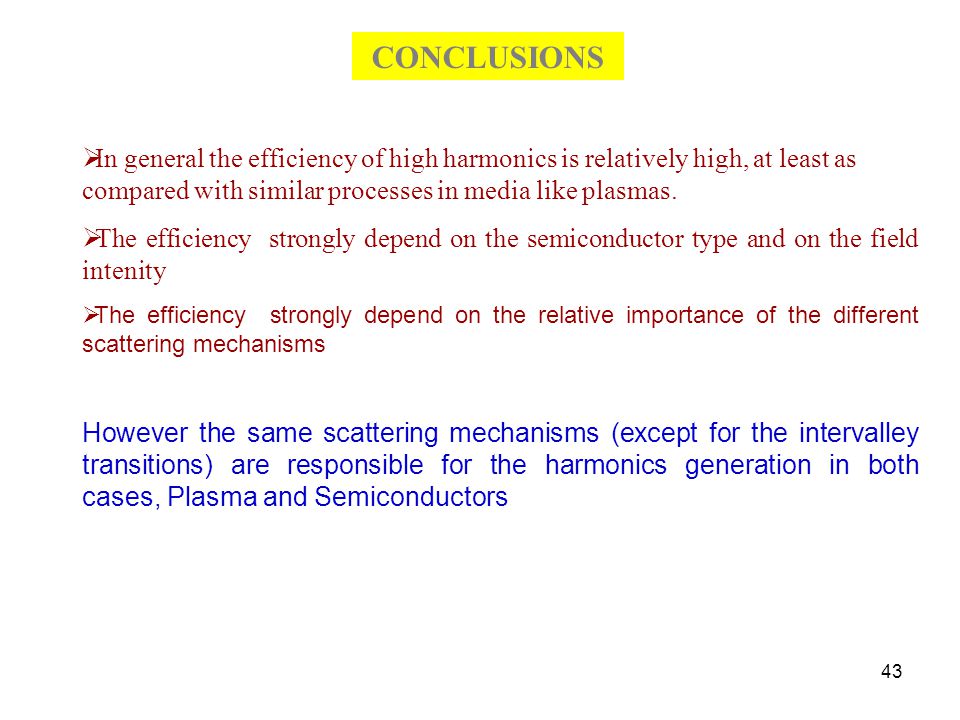

43 43  In general the efficiency of high harmonics is relatively high, at least as compared with similar processes in media like plasmas.  The efficiency strongly depend on the semiconductor type and on the field intenity  The efficiency strongly depend on the relative importance of the different scattering mechanisms However the same scattering mechanisms (except for the intervalley transitions) are responsible for the harmonics generation in both cases, Plasma and Semiconductors CONCLUSIONS

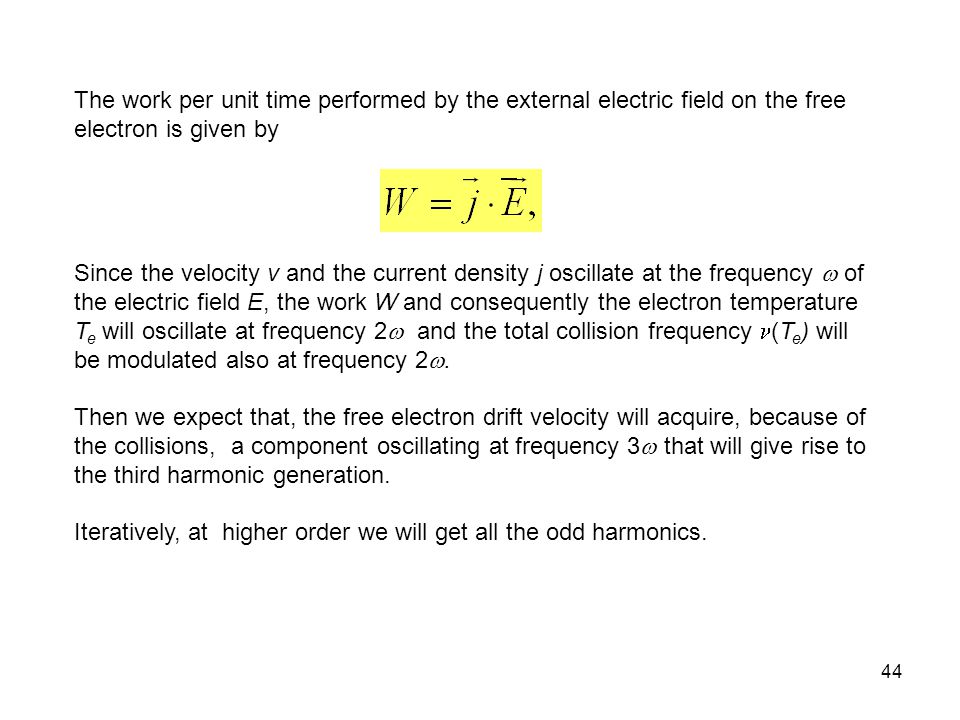

44 44 The work per unit time performed by the external electric field on the free electron is given by Since the velocity v and the current density j oscillate at the frequency  of the electric field E, the work W and consequently the electron temperature T e will oscillate at frequency 2  and the total collision frequency (T e ) will be modulated also at frequency 2 . Then we expect that, the free electron drift velocity will acquire, because of the collisions, a component oscillating at frequency 3  that will give rise to the third harmonic generation. Iteratively, at higher order we will get all the odd harmonics.
