1 Ocmix SF The reliable and hard working mixer that pays for itself through savings on cement

2 Who is Ocmer? Ocmer Impianti is an Italian family business located in Campogalliano, near Modena, northern ItalyOcmer Impianti is an Italian family business located in Campogalliano, near Modena, northern Italy Ocmer has been manufacturing concrete plants, mixers and related equipment for 30 yearsOcmer has been manufacturing concrete plants, mixers and related equipment for 30 years Ocmer’s equipment already has an international reputation but is not yet well known in North America Ocmer’s equipment already has an international reputation but is not yet well known in North America Scale-Tron is Ocmer’s North American distrtibutorScale-Tron is Ocmer’s North American distrtibutor

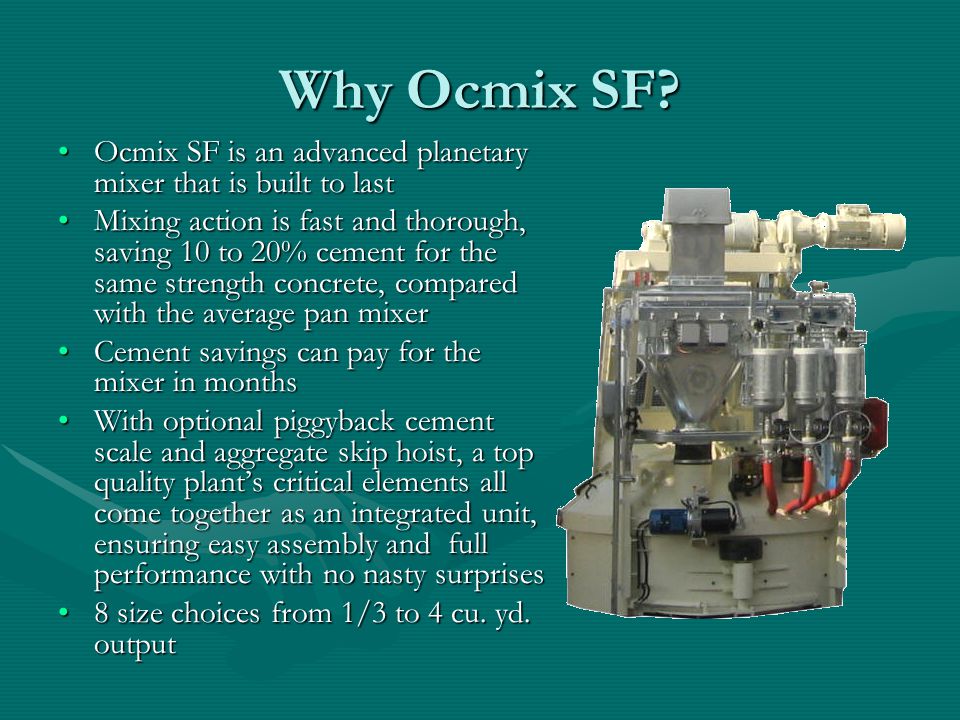

3 Why Ocmix SF? Ocmix SF is an advanced planetary mixer that is built to lastOcmix SF is an advanced planetary mixer that is built to last Mixing action is fast and thorough, saving 10 to 20% cement for the same strength concrete, compared with the average pan mixerMixing action is fast and thorough, saving 10 to 20% cement for the same strength concrete, compared with the average pan mixer Cement savings can pay for the mixer in monthsCement savings can pay for the mixer in months With optional piggyback cement scale and aggregate skip hoist, a top quality plant’s critical elements all come together as an integrated unit, ensuring easy assembly and full performance with no nasty surprisesWith optional piggyback cement scale and aggregate skip hoist, a top quality plant’s critical elements all come together as an integrated unit, ensuring easy assembly and full performance with no nasty surprises 8 size choices from 1/3 to 4 cu. yd. output8 size choices from 1/3 to 4 cu. yd. output

4 Body size is wider than most – compare dimensions. Depth of mix is lower, giving better homogeneity and faster time for complete mixing to be achieved, compared with models that are narrower and tallerBody size is wider than most – compare dimensions. Depth of mix is lower, giving better homogeneity and faster time for complete mixing to be achieved, compared with models that are narrower and taller Integrated skip hoists available on smaller modelsIntegrated skip hoists available on smaller models Body breaks apart at the discharge doors, allowing container shipment even for the largest sizesBody breaks apart at the discharge doors, allowing container shipment even for the largest sizes Installation is easier as wellInstallation is easier as well Water and admix inlets are standard, eliminating problems due to poor positioningWater and admix inlets are standard, eliminating problems due to poor positioning Shipping in 4-8 weeks, delivery in weeks to fit your tight schedulesShipping in 4-8 weeks, delivery in weeks to fit your tight schedules

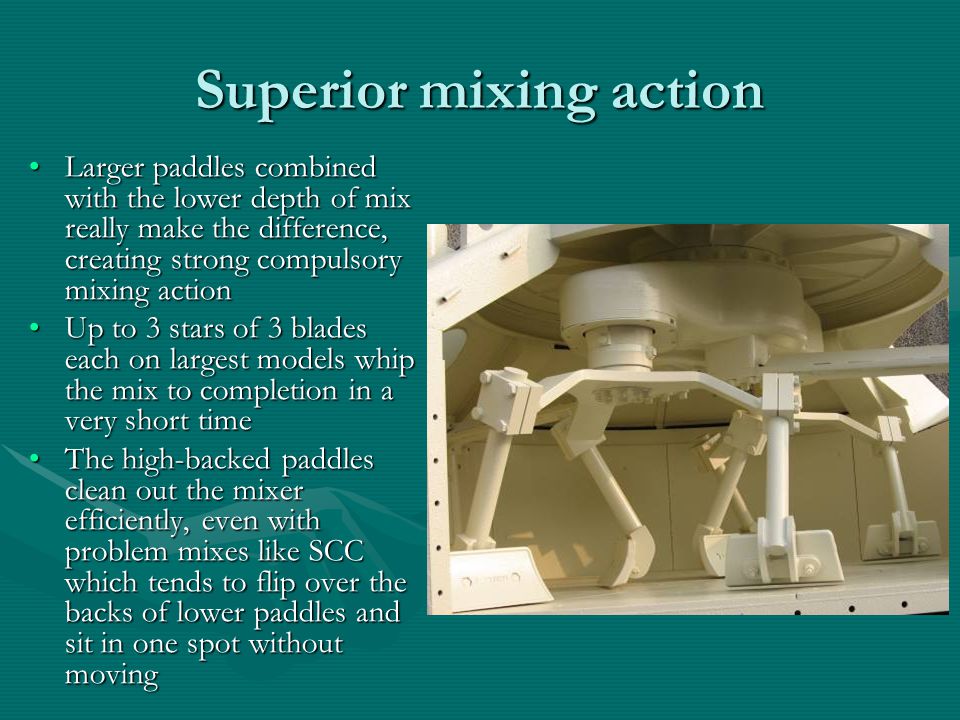

5 Superior mixing action Larger paddles combined with the lower depth of mix really make the difference, creating strong compulsory mixing actionLarger paddles combined with the lower depth of mix really make the difference, creating strong compulsory mixing action Up to 3 stars of 3 blades each on largest models whip the mix to completion in a very short timeUp to 3 stars of 3 blades each on largest models whip the mix to completion in a very short time The high-backed paddles clean out the mixer efficiently, even with problem mixes like SCC which tends to flip over the backs of lower paddles and sit in one spot without movingThe high-backed paddles clean out the mixer efficiently, even with problem mixes like SCC which tends to flip over the backs of lower paddles and sit in one spot without moving

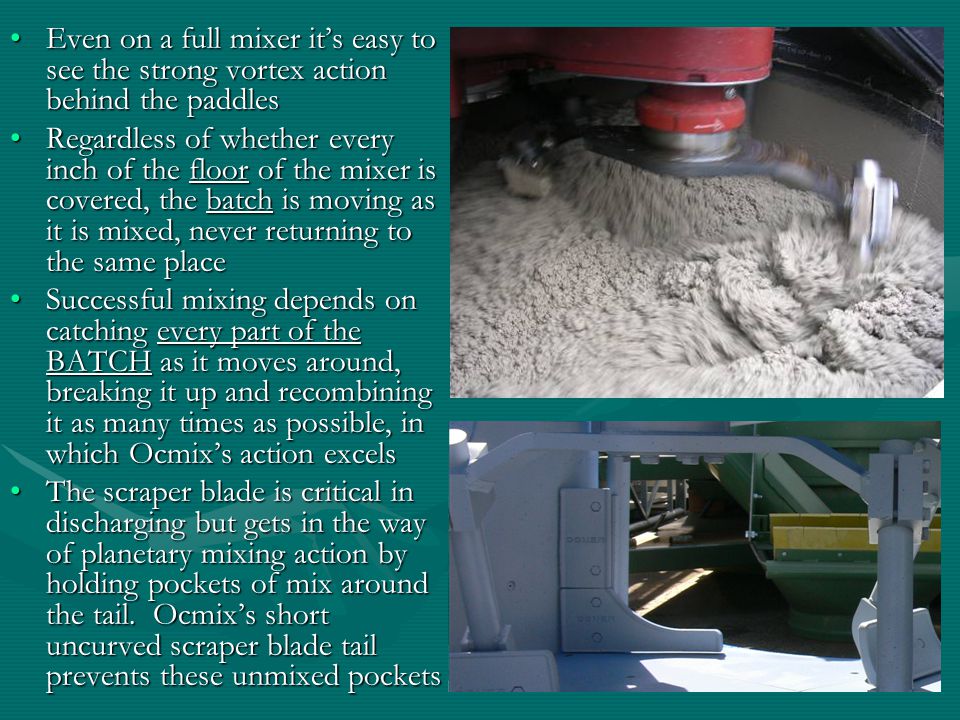

6 Even on a full mixer it’s easy to see the strong vortex action behind the paddlesEven on a full mixer it’s easy to see the strong vortex action behind the paddles Regardless of whether every inch of the floor of the mixer is covered, the batch is moving as it is mixed, never returning to the same placeRegardless of whether every inch of the floor of the mixer is covered, the batch is moving as it is mixed, never returning to the same place Successful mixing depends on catching every part of the BATCH as it moves around, breaking it up and recombining it as many times as possible, in which Ocmix’s action excelsSuccessful mixing depends on catching every part of the BATCH as it moves around, breaking it up and recombining it as many times as possible, in which Ocmix’s action excels The scraper blade is critical in discharging but gets in the way of planetary mixing action by holding pockets of mix around the tail. Ocmix’s short uncurved scraper blade tail prevents these unmixed pocketsThe scraper blade is critical in discharging but gets in the way of planetary mixing action by holding pockets of mix around the tail. Ocmix’s short uncurved scraper blade tail prevents these unmixed pockets

7 Strong power train Rather than two separate gearboxes for speed reduction and planetary stars, Ocmix SF has single unit doing bothRather than two separate gearboxes for speed reduction and planetary stars, Ocmix SF has single unit doing both Hydraulic clutch removes shock loads and allows repeated startup on full loadHydraulic clutch removes shock loads and allows repeated startup on full load Gears are all large; no small spur gears with few teeth that create a weak link and are susceptible to breakageGears are all large; no small spur gears with few teeth that create a weak link and are susceptible to breakage Small grease pump distributes grease to main points, eliminating the need for scheduled maintenance that tends to be forgotten – gives you peace of mindSmall grease pump distributes grease to main points, eliminating the need for scheduled maintenance that tends to be forgotten – gives you peace of mind Motor, gearbox and cover can be easily removed as a single unit for maintenanceMotor, gearbox and cover can be easily removed as a single unit for maintenance Discharge doors are hydraulic for positive non-jamming operationDischarge doors are hydraulic for positive non-jamming operation

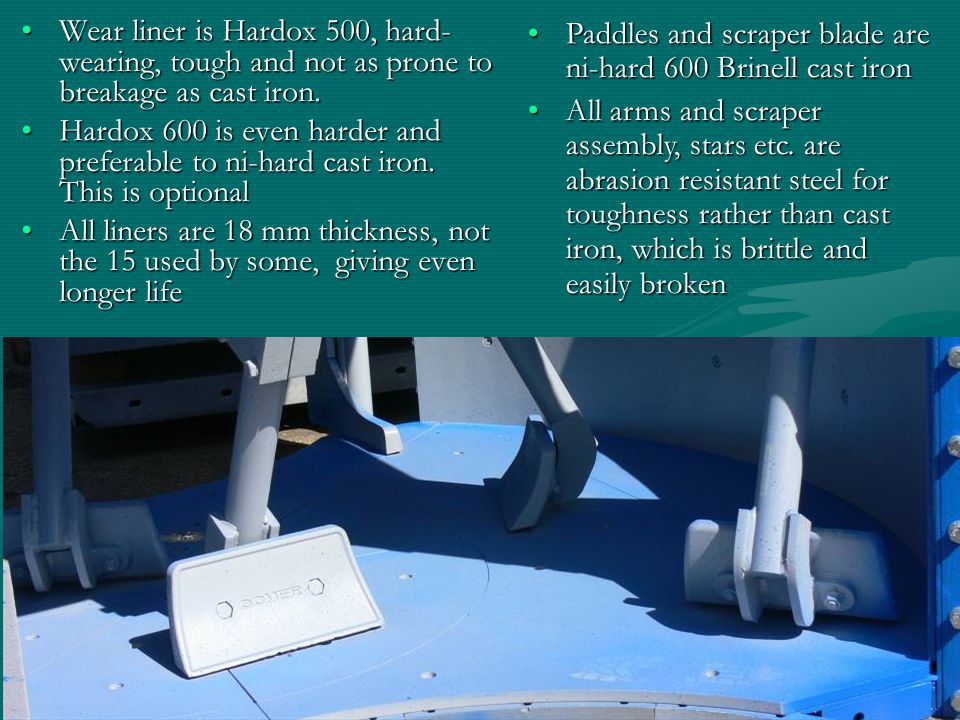

8 Wear liner is Hardox 500, hard- wearing, tough and not as prone to breakage as cast iron.Wear liner is Hardox 500, hard- wearing, tough and not as prone to breakage as cast iron. Hardox 600 is even harder and preferable to ni-hard cast iron. This is optionalHardox 600 is even harder and preferable to ni-hard cast iron. This is optional All liners are 18 mm thickness, not the 15 used by some, giving even longer lifeAll liners are 18 mm thickness, not the 15 used by some, giving even longer life Paddles and scraper blade are ni-hard 600Brinell cast ironPaddles and scraper blade are ni-hard 600 Brinell cast iron All arms and scraper assembly, stars etc. are abrasion resistant steel for toughness rather than cast iron, which is brittle and easily brokenAll arms and scraper assembly, stars etc. are abrasion resistant steel for toughness rather than cast iron, which is brittle and easily broken

9 Piggyback Add-on cement scale, water scale and weighed admix dispensers are optional, allowing you to drop these onto the mixer and have all the critical parts of the plant ready to go with confidenceAdd-on cement scale, water scale and weighed admix dispensers are optional, allowing you to drop these onto the mixer and have all the critical parts of the plant ready to go with confidence Quality and workmanship is obvious. Load cell mounting and vibrator mount are well designed, suitable for many years of reliable operationQuality and workmanship is obvious. Load cell mounting and vibrator mount are well designed, suitable for many years of reliable operation All construction is heavy gauge galvanized steel for many years of serviceAll construction is heavy gauge galvanized steel for many years of service

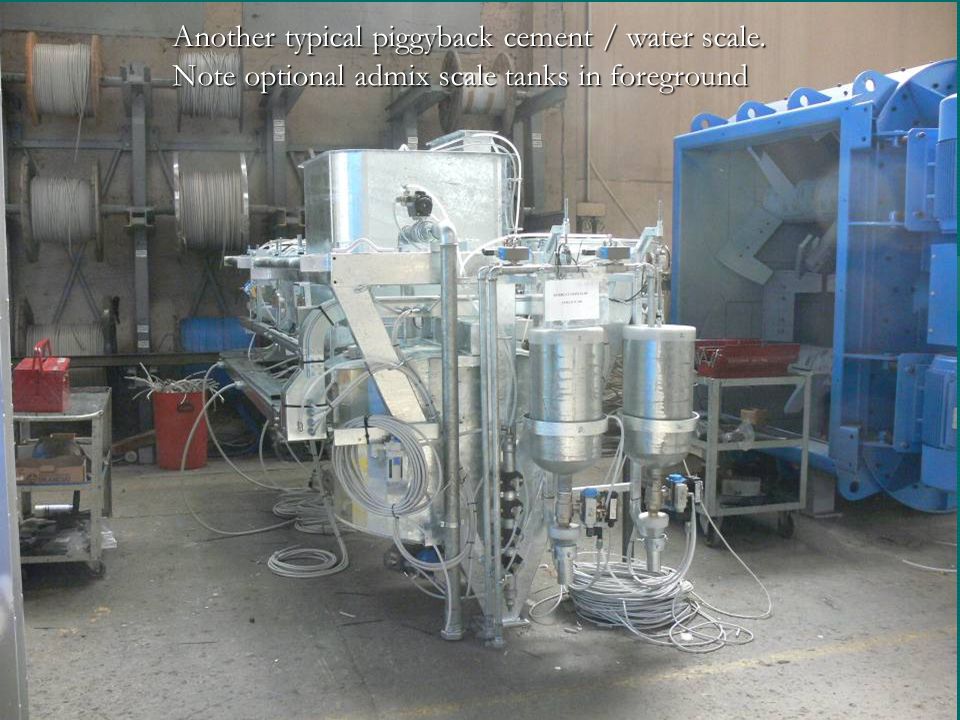

10 Another typical piggyback cement / water scale. Note optional admix scale tanks in foreground

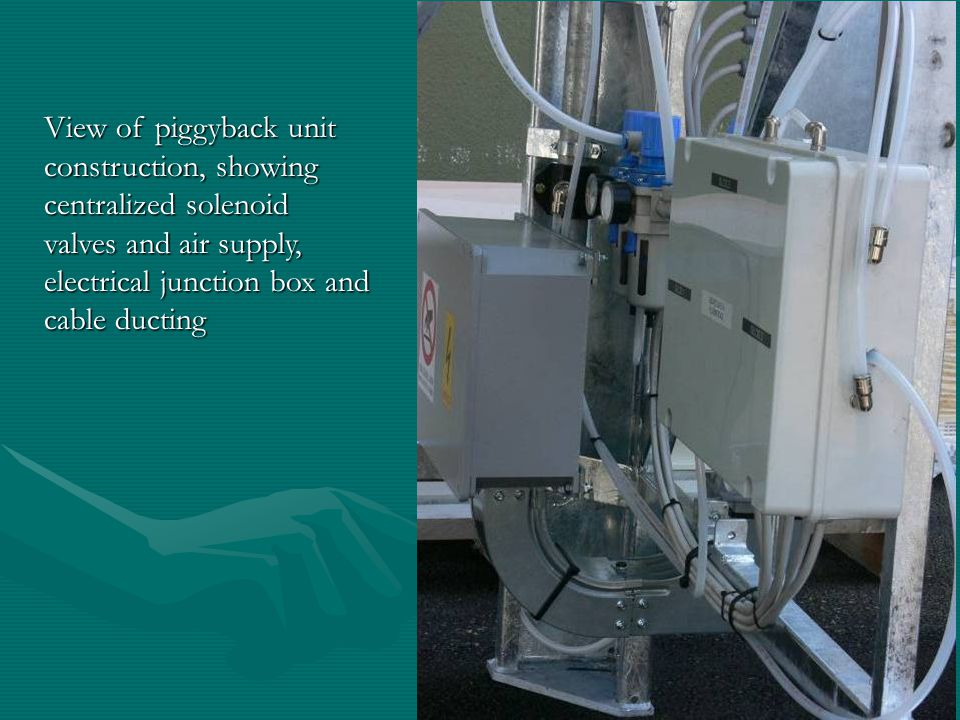

11 View of piggyback unit construction, showing centralized solenoid valves and air supply, electrical junction box and cable ducting

12 Two skip hoists ready to ship. Note rounded corners to minimize hangup, broad design that does not need extra height and double balanced cable for extra safety

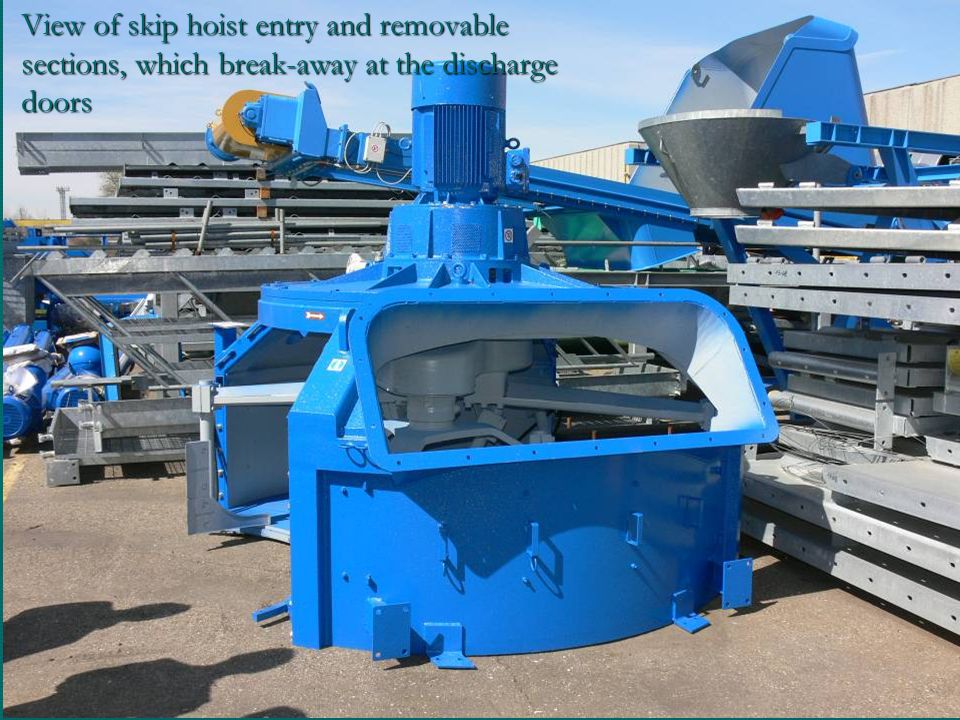

13 View of skip hoist entry and removable sections, which break-away at the discharge doors

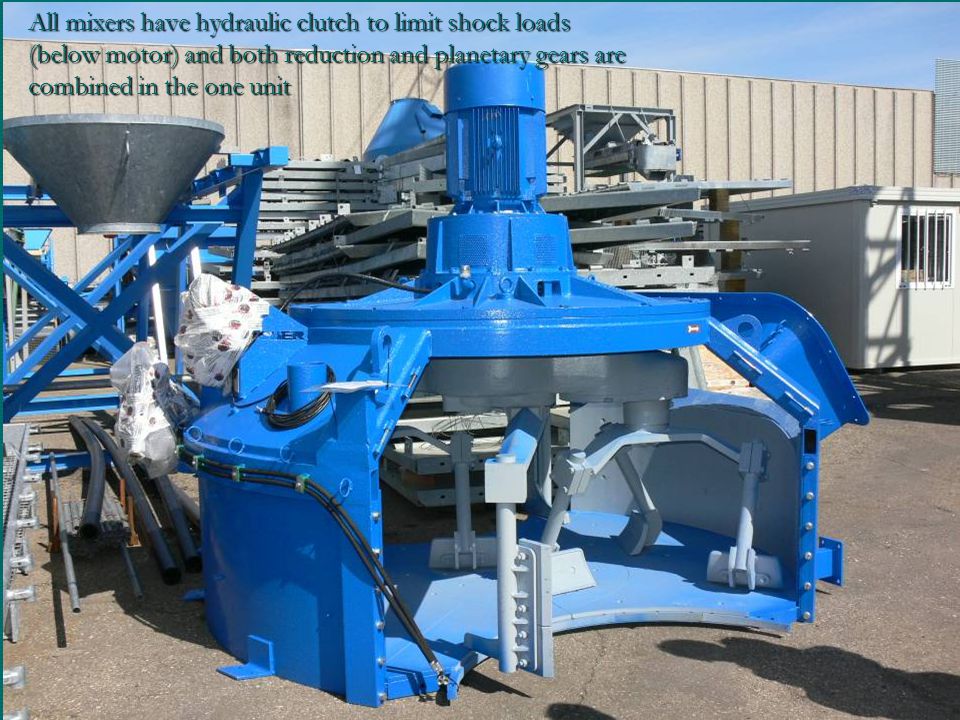

14 All mixers have hydraulic clutch to limit shock loads (below motor) and both reduction and planetary gears are combined in the one unit

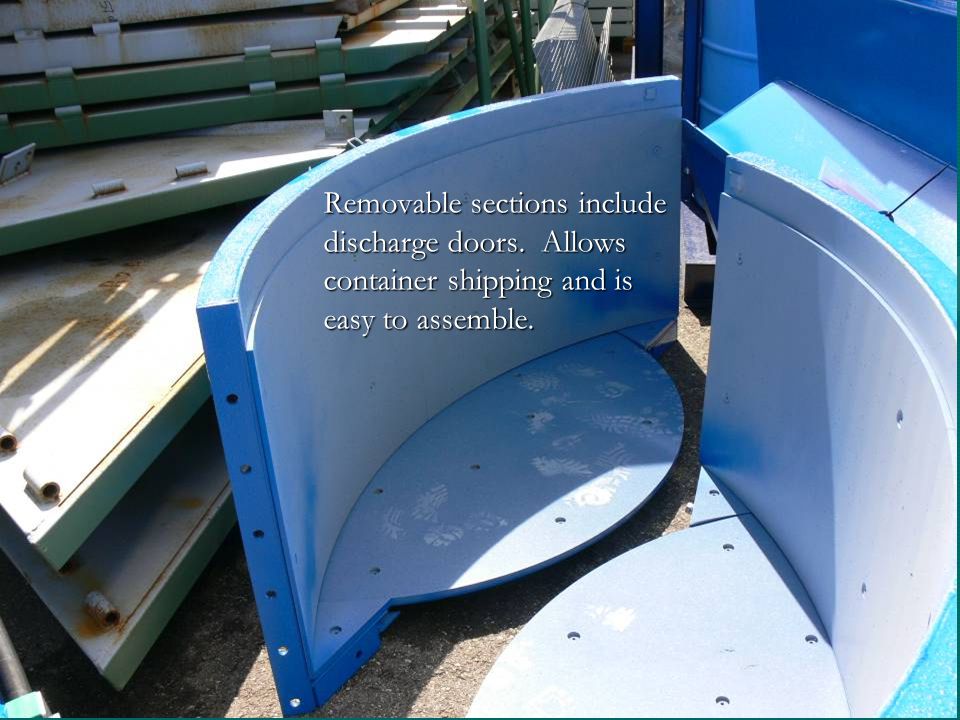

15 Removable sections include discharge doors. Allows container shipping and is easy to assemble.

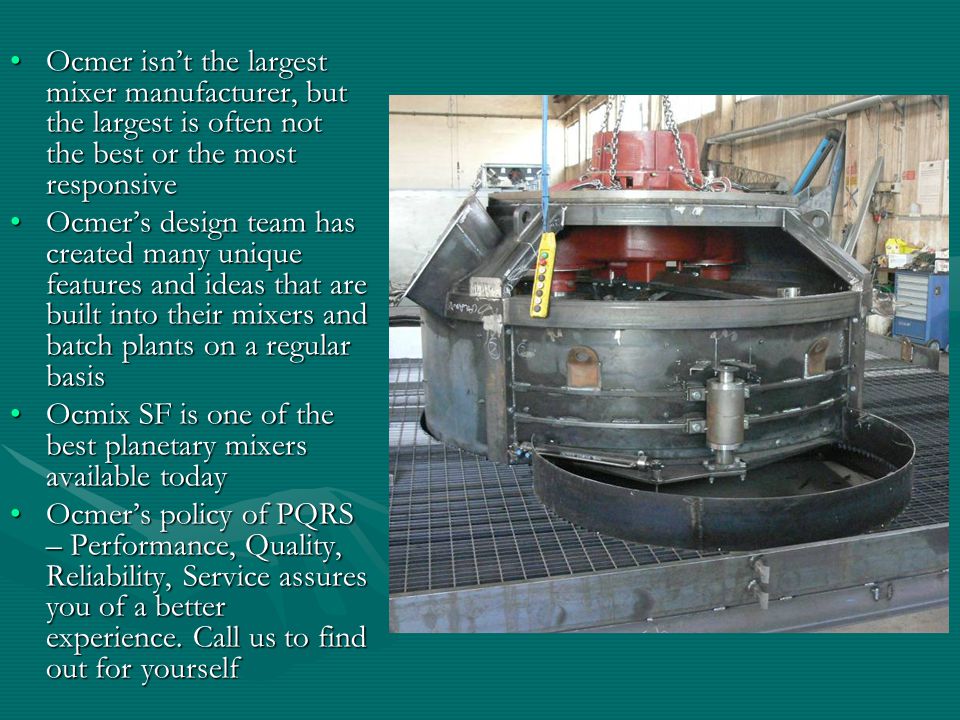

16 Ocmer isn’t the largest mixer manufacturer, but the largest is often not the best or the most responsiveOcmer isn’t the largest mixer manufacturer, but the largest is often not the best or the most responsive Ocmer’s design team has created many unique features and ideas that are built into their mixers and batch plants on a regular basisOcmer’s design team has created many unique features and ideas that are built into their mixers and batch plants on a regular basis Ocmix SF is one of the best planetary mixers available todayOcmix SF is one of the best planetary mixers available today Ocmer’s policy of PQRS – Performance, Quality, Reliability, Service assures you of a better experience. Call us to find out for yourselfOcmer’s policy of PQRS – Performance, Quality, Reliability, Service assures you of a better experience. Call us to find out for yourself
