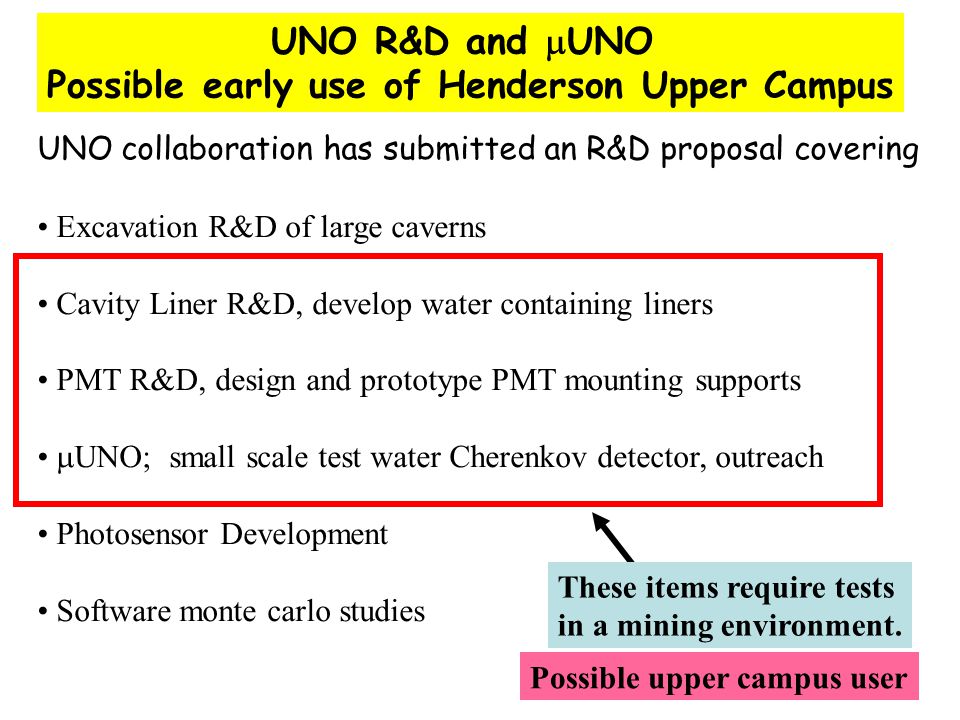

UNO R&D and UNO Possible early use of Henderson Upper Campus UNO collaboration has submitted an R&D proposal covering Excavation R&D of large caverns Cavity Liner R&D, develop water containing liners PMT R&D, design and prototype PMT mounting supports UNO; small scale test water Cherenkov detector, outreach Photosensor Development Software monte carlo studies These items require tests in a mining environment. Possible upper campus user

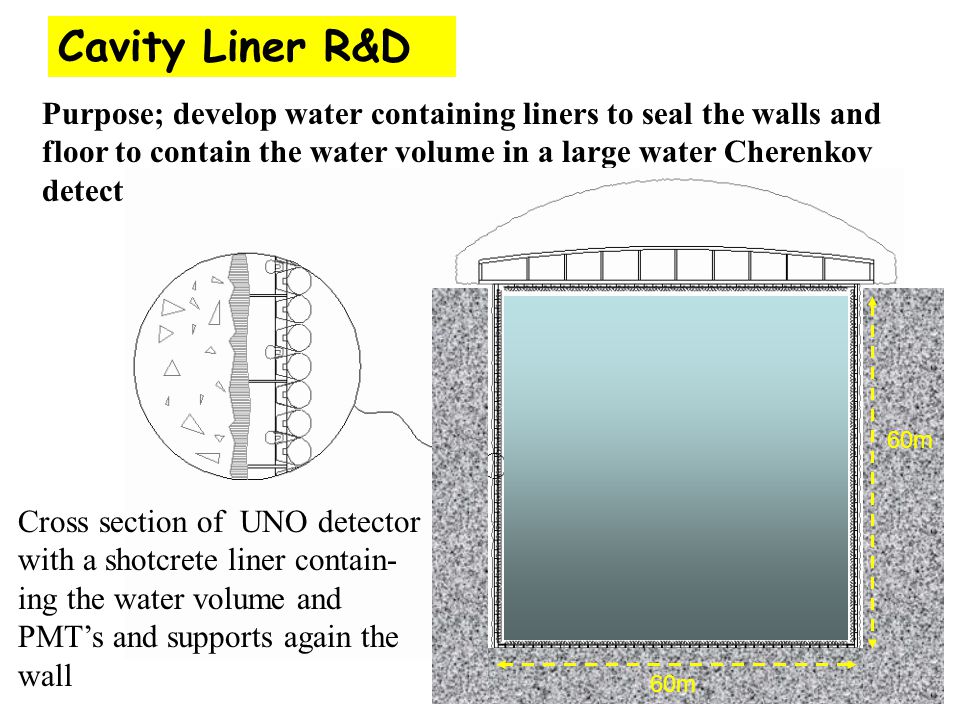

Cavity Liner R&D Purpose; develop water containing liners to seal the walls and floor to contain the water volume in a large water Cherenkov detector; Cross section of UNO detector with a shotcrete liner contain- ing the water volume and PMT’s and supports again the wall 60m
Schematic Diagram of Individual PMT housing PMT Mounting R&D Schematic Diagram of PMT mounting structure
The cavity liner tests require a liner to be installed in a cavern or “cistern” of very rough dimensions, 3x3x3m deep, and to be filled with water to check the containment. This has been proposed for the Henderson Mine. preliminary estimates of excavation, ~$45K. This allows the opportunity to set up a small PMT array to be readout. This forms a “ UNO” detector. Schematic drawing with a 4x4 PMT array on the cavity Floor. Cavity Liner Tests & UNO

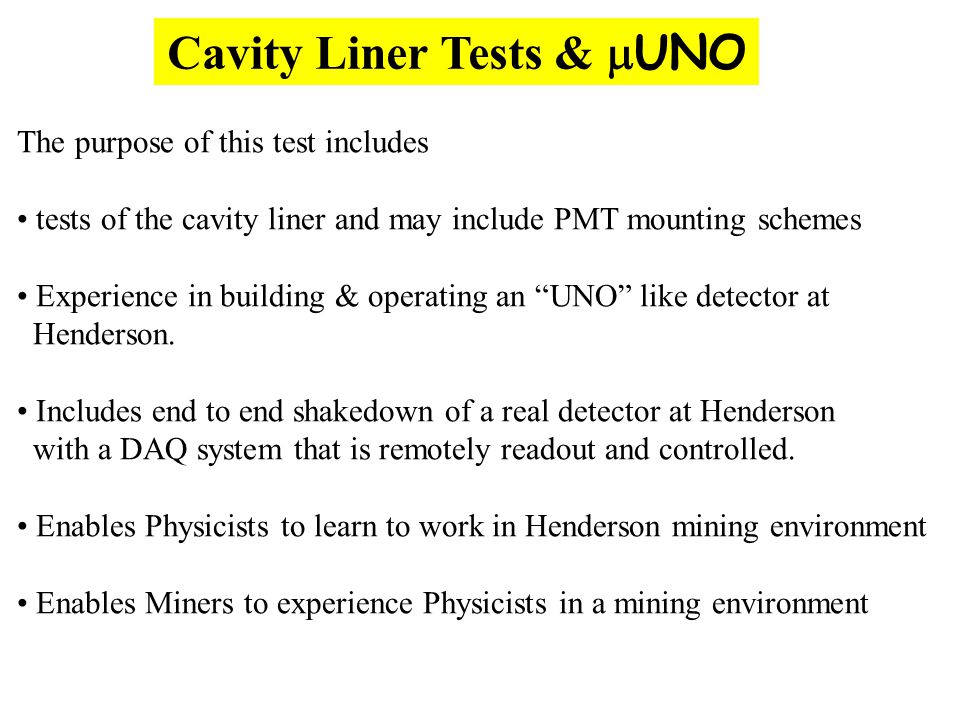

The purpose of this test includes tests of the cavity liner and may include PMT mounting schemes Experience in building & operating an “UNO” like detector at Henderson. Includes end to end shakedown of a real detector at Henderson with a DAQ system that is remotely readout and controlled. Enables Physicists to learn to work in Henderson mining environment Enables Miners to experience Physicists in a mining environment

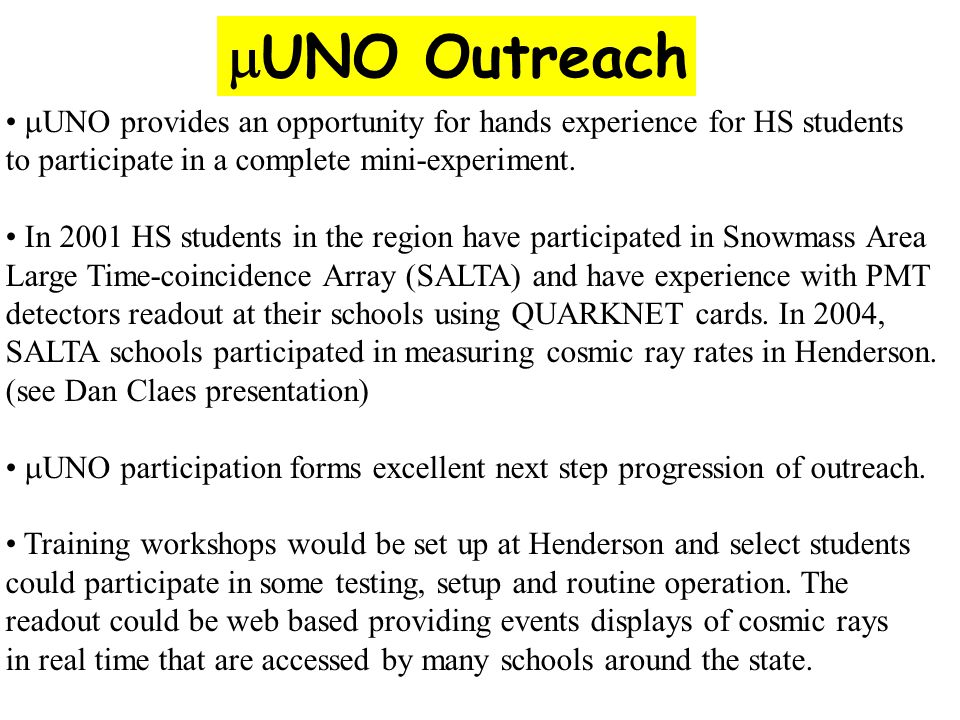

UNO Outreach UNO provides an opportunity for hands experience for HS students to participate in a complete mini-experiment. In 2001 HS students in the region have participated in Snowmass Area Large Time-coincidence Array (SALTA) and have experience with PMT detectors readout at their schools using QUARKNET cards. In 2004, SALTA schools participated in measuring cosmic ray rates in Henderson. (see Dan Claes presentation) UNO participation forms excellent next step progression of outreach. Training workshops would be set up at Henderson and select students could participate in some testing, setup and routine operation. The readout could be web based providing events displays of cosmic rays in real time that are accessed by many schools around the state.
Upper Campus Ideas UNO R&D proposal is a two year plan, with the 1 st year test cistern construction at the Colorado School of Mines and in the 2 nd year construction of two test cisterns at Henderson including building the UNO. Current plans are to use existing cavern space provided by Henderson. UNO R&D project could provide an excellent first use of the DUSEL/Henderson upper campus section if available.
