Posterior abdominal wall Sanjaya Adikari Department of Anatomy.

Similar presentations


Presentation on theme: "Posterior abdominal wall Sanjaya Adikari Department of Anatomy."— Presentation transcript:

1 Posterior abdominal wall Sanjaya Adikari Department of Anatomy

2 Objectives  Describe the arrangement of muscles and fascia in the posterior abdominal wall  Describe the structures found in the posterior abdominal wall  Describe the posterior abdominal viscera

3 Contents of abdominal cavity Contents removed

4 Posterior abdominal wall A musculoskeletal wall between the lower border of the rib cage and the pelvic brim Marks the posterior boundary of the abdominal cavity Anteriorly lie the retroperitoneal organs and the parietal peritoneum Posteriorly lie muscles, fascia and the lumbar spine

5 mesentery cavity Structures forming the posterior abdominal wall peritoneum Fat Fascia Muscles Bones Rib cage Pelvic brim

6 Peritoneum Organs Abdominal aorta IVC, Portal vein Lymphatics Nerves Retro-peritoneal structures

7 Paravertebral gutters lumbar lordosis Forward projection is enhanced by aorta and IVC Floor is formed by psoas and quadratus lumborum above and iliacus below the iliac crest Posterior part of the diaphragm also contributes

8 Psoas major and minor Fibrous arches Inguinal ligament L1

9 Psoas major muscle

10 Psoas major Originates from bodies of T12 to L5, intervertebral disks and the medial end of transverse processors Inserted into the lesser trochanter of the femur Part above the medial arcuate ligament lies in the thoracic cavity Flexes the hip and laterally flexes the lumbar spine Both muscles acting together flexes the trunk

11 Quadratus lumborum Iliolumbar ligament Anterior sacroiliac ligament

12 Quadratus lumborum Originates from transverse process of L5, iliolumbar ligament and iliac crest Inserted into the transverse processes of L4 to L1 and the 12th rib medial half

13 Iliacus

14 Originates from upper 2/3 of iliac fossa and anterior sacroiliac ligament thereby filling the illiac fossa Inserted into the lesser trochanter of the femur trough a common tendon with the psoas major Flexes the hip Psoas major muscle Iliacus Common attachment

15 Fascia of the posterior abdominal wall Psoas fascia Iliac fascia Lumbar part of the thoracolumbar fascia

16 Psoas fascia Thick fascial sheath surrounding the psoas muscle Arises as the muscle enters the abdominal cavity under the medial arcuate ligament Ends at the pelvic brim as the muscle leaves the abdomen inferior to the inguinal ligament (does not extend into the thigh)

17 Thoracolumbar fascia Extends from the back of sacrum to the neck Binds erector spinae to vertebral column and encloses the quadratus lumborum Very strong in the lumbar region Laterally it gives origin to internal oblique and transversus abdominis muscles Its lumbar part medially splits into three layers

18 Anterior layer Middle layer Posterior layer Posoas major muscle Quadratus lumborum Erector spinae Posoas fascia Internal oblique Transversus abdominis

19 L1 Inguinal ligament

20 Psoas abscess A focus of pus in the lumbar intervertebral disks can track down along the muscle and present as a lump in the groin Tuberculosis of the spine gives rise to a psoas abscess

21 Skeleton of the posterior abdominal wall include A.Ischium B.11 th rib C.12 th vertebra D.Sacrum E.Intervertebral disks Correct: B, C, D, E

22 Muscles of the posterior abdominal wall include A.Iliopsoas B.Erector spinae C.Quadratus lumborum D.Diaphragm E.Transversus abdominis Correct: A, C, D

23

24 Anterior layer of lumbar fascia Iliac fascia Psoas fascia Lateral arcuate ligament Medial arcuate ligament

25 Lateral arcuate ligament Medial arcuate ligament L1 Arcuate ligaments Median arcuate ligament Formed by tendinous fibres from medial edges of left and right crura of the diaphragm

26 Medial and Lateral arcuate ligaments Sympathetic chain Subcostal vessels and nerve Abdominal aorta Iliohypogastric nerve Ilioinguinal nerve

27

28 Organs in the posterior abdominal wall Duodenum 2 nd and 3 rd parts Pancreas Kidneys and ureters Suprarenal glands

29

30 Vessels Aorta and its branches Inferior vena cava and its tributaries Portal vein and its tributaries Lymphatics and lymph nodes

31 Branches of abdominal aorta Main branches are in three categories Single ventral arteries to gut and its derivatives –Coeliac trunk, superior and inferior mesenteric Paired arteries to other viscera –Suprarenal, renal, gonadal Paired arteries to body wall –Inferior phrenic, lumbar

32 L5 T12 Branches of abdominal aorta Coeliac trunk Superior mesenteric a. Inferior mesenteric a. Median sacral artery R. inferior phrenic art. R. 4 th lumbar art. R. suprarenal art. R. renal art. R. gonadal art.

33 Related structures Coeliac trunk Superior mesenteric a. Inferior mesenteric a. Splenic vein Body of pancreas L. renal vein Un. pro. pancreas 3 rd part duodenum Median sacral artery L5 T12 T.P.P

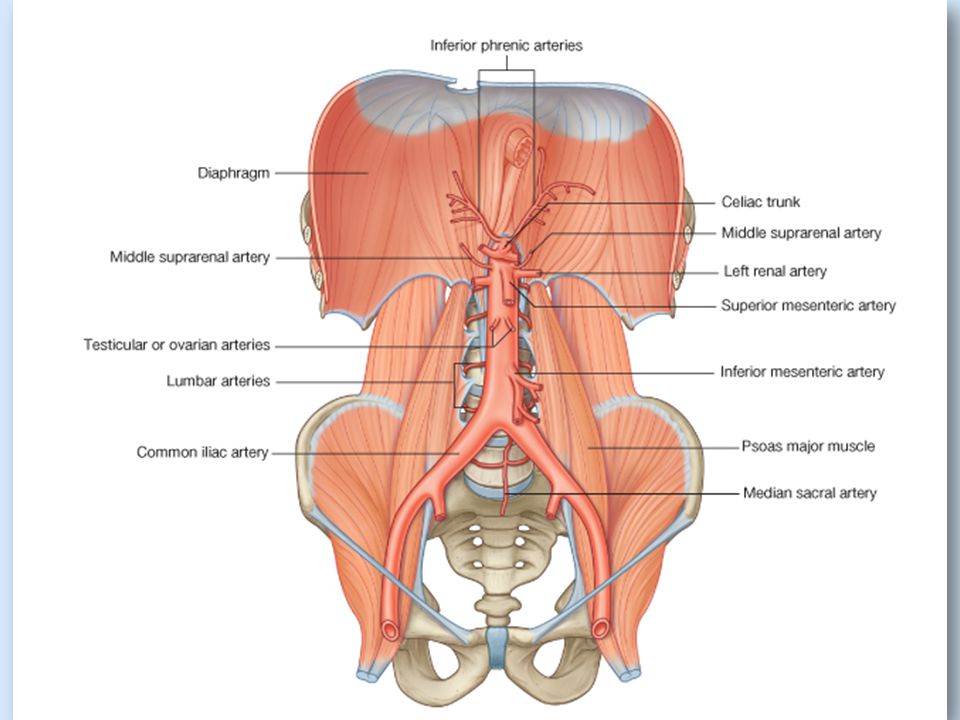

34

35 Lymph nodes Single ventral arteries Paired arteries to other viscera Paired arteries to body wall Pre-aortic nodes Para-aortic nodes Lymphatics follow arteries

36 Lymph nodes

37 Internal iliac nodes External iliac nodes Common iliac nodes Para-aortic nodes Pre-aortic nodes Cisterna chyli Thoracic duct

38 Lumbar plexus 1 st – 4 th lumbar spinal segments Embeded in the psoas Branches related laterally, medially or anteriorly to psoas

39 Branches of lumbar plexus & psoas muscle
