Dupuytren’s Disease Baron Guillaume Dupuytren, 1831

Similar presentations

Presentation on theme: "Dupuytren’s Disease Baron Guillaume Dupuytren, 1831"— Presentation transcript:


2 Dupuytren’s Disease Baron Guillaume Dupuytren, 1831
Described the condition of palmar fascial contraction

3 Epidemiology Prevalence – Age, sex, Race, Geographical distribution
Increasing Age Peaks between 40-60 Men > Women 7-15 times White Caucasians of North European descent Genetics unclear autosomal dominant, variable penetrance Associations Alcohol and liver disease Icelandic cohort study Smoking Manual work Diabetes Epilepsy

4 Strong Diathesis Strong family history Young patient
Bilateral disease with radial involvement Diffuse dermal involvement Lederhosen – soles of feet Peyronie’ s disease – penile Garrod’s knuckle pads – PIP joints Recurrence and extension

5 Palmar Fascia Anatomy Palmar Aponeurosis Hypothenar Aponeurosis
Digital Fascia

6 The Palmar Aponeurosis
Thick triangular fascial layer that covers the lumbrical and flexor tunnels between the thenar and hypothenar eminences Proximally – palmaris longus Distally – Longitudinal bands, called Pretendinous Bands Bifurcates distally to pass on either side of the tendons

7 Pretendinous Bands McGrouther – three different insertions for the pretendinous bands Superficial layer – terminates into the dermis distal to the MCP joint midway between the distal palmar and proximal digital creases Intermediate layer – passes deep to the natatory ligament and the neurovascular bundles, merges with the lateral digital sheath. Spiral bands of Gosset and may attach to the retrovascular band

8 Deep layer – passes vertically on either side FTS at the level of the A1 pulley and terminates in the vicinity of the extensor tendon

9 Pretendinous Bands

10 Palmar Aponeurosis - Vertical Fibers
Exist throughout Superficially they connect the PA to the dermis Deep fibers are three types Septa of Legueu and Juvara McGrouther’s Fibers Vertical septa between the lumbricals and flexor tendons

11 Septa of Legueu and Juvara – well developed fibrous structures arising from the deep surface of PA at the level of the MC head and neck Pass down to the palmar plate and fascia over the interossei Most developed distally where they blend with the deep transverse intermetacarpal ligament They have a sharp proximal border lying 1cm distal to the superficial palmar arch and approx. 1 cm in length

12 Eight septa, one on either side - four fibro osseous tunnels
Each tunnel has three compartments containing the common neurovascular bundles and the lumbricals The radial nv bundle of index and the ulnar nv bundle of little are not included

13 Palmar Aponeurosis – Transverse Fibers
Natatory Ligament (NL, Superficial transverse metacarpal ligament, STML) Transverse ligament of the palmar aponeurosis (TLPA) The TLPA differs from the deep transverse intermetacarpal ligament It is a distinct part of the palmar aponeurosis and gives origin to the vertical fibers of L&J

14 Hypothenar Aponeurosis
Covers the muscles of the hypothenar eminence Continuous with the ulnar border of the palmar aponeurosis Merges distally with the tendon of ADM and continues close to the lateral digital sheath Also attached to the palmar plate of the mcp joint, TLPA, ulnar saggital band while vertical fibers connect to the dermis

15 Thenar Aponeurosis Radial continuation of the palmar aponeurosis, much thinner Skin over thenar aponeurosis more mobile because there are a few vertical fibers connecting it to the dermis The distal transverse commissural ligament – NL The proximal transverse commissural ligament - TLPA

16 Digital Fascia The digital fascia holds the skin in position as the fingers or thumbs are moved Grayson’s ligament – midaxial, palmar Cleland’s ligament – thicker, midaxial, dorsal

17 Digital Fascia 3. Lateral Digital Sheet – superficial fascia lateral to the nv bundles – NL , Spiral band 4. Retrovascular band – deep to the nv bundles longitudinal fibers

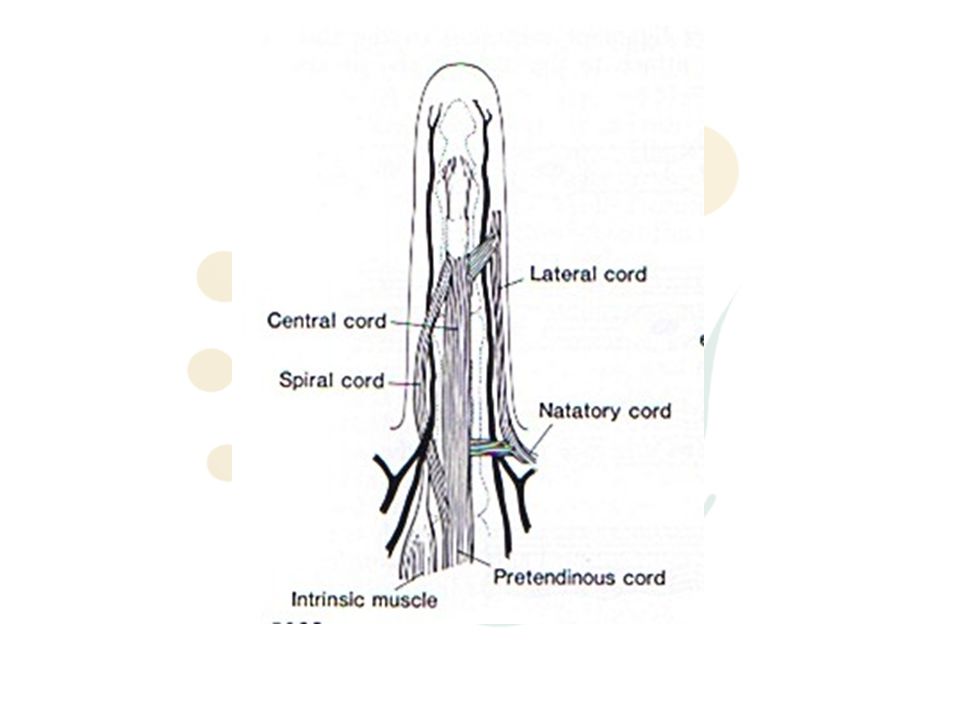

18 Pathologic Anatomy Normal fascial structures in the hand and digits are referred to as bands Diseased fascial structures in Dupuytren’s are referred to as cords Palm – Pretendinous cord resulting in MCPJ flexion Does not affect the nv bundles - Vertical cords can cause pain and triggering


20 Central cord ADM

21 Natatory & Central Cord

22 Spiral Band of Gosset Pretendinous band, its distal continuation, the lateral digital sheet and the Grayson’s ligament May involve the retrovascular band Gradual contraction of the spiral cord pulls the nv bundle towards the midline which may come to lie transverse to the long axis

23 Spiral Band of Gosset

24 Biology and Biochemistry
Fibroblast proliferation, collagen deposition LUCK, Three Stages Proliferative Stage – increased number of cells during nodule formation Involutional Stage – longitudinal bands of collagen fibers – less biologically active Residual Stage – biologically quiescent disappearance of cells, contracted cords densely packed tough inelastic fibrotic palmar fascia

25 Biology and Biochemistry
Biologically similar to wound repair Myofibroblasts – nodules Gelberman – myofibroblasts in nodules and fibroblasts with prominent microtubules in the fascia Murell – compared fibroblasts in both tissues and found them identical Just more abundant in Dupuytren's

26 Biology and Biochemistry
Increased levels of fibroblastic growth factors in the diseased fascia Macrophages – perivascular cuff early in disease Basic Fibroblastic growth factor (bFGF) bFGF – proliferation of myofibroblasts and endothelial cells which narrow the lumina of vs Platelet derived growth factor (PDGF) cellular signal for myofibroblast proliferation increase rate of type III collagen synthesis Transforming growth factor (TGF beta) stimulates growth of mesenchymal cells, fibroblasts increased deposition of extra cellular matrix

27 Pathogenesis Intrinsic theory- McFarlane 1974
Diseased cords are as a result of the pathologic changes in the normal fascia Cords arise from defined fascial precursors and progress along predictable routes determined by normal fascial anatomy Does not offer a rational explanation for the central cord commonly seen in Dupuytren’s

28 Pathogenesis Extrinsic Theory – Hueston 1985
The fibrotic process begins with nodules and progresses to cords Nodules arise de novo by metaplastic transformation of fibrofatty tissue and later spread as cords just superficial to the palmar aponeurosis Rational explanation for the presence of nodules, recurrence after fascial excision, lower recurrences after dermofasciectomy

29 Pathogenesis Synthesis Theory - Gosset’s 1985
Cords and nodules represent different forms rather than different stages of the disease process Cords arise from palmar fascia and nodules de novo Anatomic studies Strickland and Leibovic support the synthesis theory as the best reconciliation between the intrinsic and extrinsic

30 Murell’s Free Radical Hypothesis
Localized ischemia Free Radical generation Microvs narrow lumina thickened endothelial cells Endothelial xanthine oxidase derived free radicals Stimulate fibroblasts localized damage Pericyte damage collagen deposition further ischemia Increased Hypoxanthine concentration Xanthine oxidase activity 1990

31 Unifying Pathogenesis Andrew 1991

32 Clinical Presentation
Anatomical Distribution Skin Involvement Contracture Digital Allen’s Test Maturity General Condition

33 Anatomical Distribution
Normally Ulnar One or more digit Different stages of involvement

34 Skin Involvement

35 Nodules, Cords, Pits, Skin Shortening

36 Non Operative Management
External Fixation and Distraction Progressive lengthening of the digital nv bundle Easier access to the diseased cords after distraction in the fingers that are very contracted Only useful in end stages Long distraction time Complications – infection, stiffness, pain, CRPS type I Contractures recur quickly without fasciectomy

37 Non Operative Management
Collagenase – achieved full extension in 90% patients with a single injection and maintained 9 mths after treatment Radiotherapy, dimethyl sulfoxide, ultrasound, steroids, colchicine, alfa interferon None has shown any significant benefit

38 Operative Management Age General Health Motivation
Type of hand – Aesthetic , Workman’s H/O CRPS Type of involvement Deformity and progression

39 Surgical Management Formulation of a plan regarding the management of the skin, involved fascia, joints and extensor apparatus Management of Skin Incision Longitudinal Spiral cord – The nv bundle is pulled towards the centre and may lie transversely just under the skin

40 Skin Management

41 Skin Management Digital Skin Shortening can be corrected by
Release of skin corrugations by division of the vertical fibers running up to the dermis Multiple Z plasties Open palm technique Skin replacement

42 Surgical Management

43 Skin Replacement Skin shortage due to dermal contracture
Prophylactic firebreak to separate the ends of contracted fascia Recurrent disease Electively excised as Hueston’s dermofasciectomy Skin graft Flap

44 Skin Replacement

45 Skin Replacement

46 Skin Replacement Flaps Cross finger Seagull Dorsal transposition flaps
Dorsal Rotation Flaps Flag Flaps

47 Contracted Fascia Management
Fasciotomy Fasciotomy and grafting Extensive Dupuytren’s --- Firebreak Fasciectomy Segmental Complete Longitudinal fasciectomy Radical Palmar Fasciectomy Dermofasciectomy

48 Contracted Fascia

49 Contracted Fascia

50 Contracted PIP Joint Gentle passive manipulation
40% peri articular adhesions which require GPM Long standing contractures may produce joint changes requiring surgical release Volar plate – check rein ligaments Accessory collateral ligaments Flexor tendon sheath release between A2-A4 Vascular compromise Extensor apparatus – patients with 60 degree contracture, 80% will show central slip attenuation

51 Postoperative Rehabilitation
Very important Commenced after early inflammatory phase (3-5 days) ROM exercises, short periods, repetitive Splinting, initial static for 2 wks, MCPJ deg. Flexion, PIPJ straight, DIPJ free then PIP splint at night – 8-10 wks. Scar management

52 Complications 17-19 % 0verall Intra operative Nerve Injury
Digital circulation Skin flap Thinning , Button hole Post operative Haematoma Skin loss Infection Edema Wound Dehiscence

53 Complications Dupuytren’s Flare – Inflammatory reaction occurring 2-3 wks after the surgery More common in women 20 % Acute carpal tunnel syndrome Redness, pain, edema, stiffness Sympathetic blockade, oral steroids, carbamazapine Reflex Sympathetic Dystrophy – 5 x more common in women (5 %) Pain, edema, stiffness, vasomotor symptoms

54 Recurrence and Extension
Recurrence is the reappearance of disease in the area of previous surgery 26-80 % Extension is the appearance of new disease in an area not subjected to surgery Common causes of failure Failure to remove all the involved tissues Failure to correct PIP joint contractures at initial surgery

55 Recurrence Failure to recognize central slip attenuation at initial procedure 80 % of patients with a 60 deg flexion contracture at PIPJ Failure to recognize perivascular fibrosis leading to ischemia on full extension Poor cooperation with hand therapy After excision of fascia haematoma and scarring is inevitable Vigorous hand therapy limits the effect of scarring
