2
What do you mean? I Rule the World! Bulls eyeI’m on it! In-Mates and Ex-Cons S - words $100.00 $ 100.00 $ 100.00 $ 100.00 $ 100.00 $100.00 $200.00 $300.00 $400.00 $500.00

3
Terms: The diagram shows an example of this. What is a Secant? Back to you Alex

4
Terms: The Diagram shows an example of this. What is a Tangent? Back to you Alex

5
Terms: A radius of a circle is equal to half of this. What is a Diameter? Back to you Alex

6
Terms: The diagram show examples of these. What are Chords? Back to you Alex

7

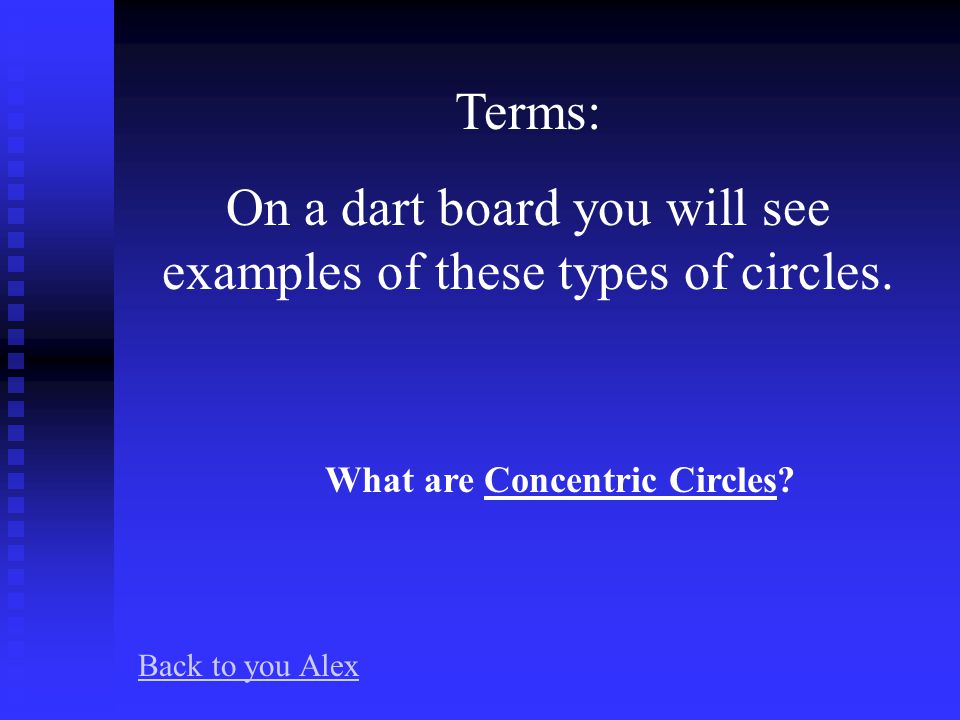

Terms: On a dart board you will see examples of these types of circles. What are Concentric Circles? Back to you Alex

8
Rules/Theorems: This is the type of angle formed by a tangent and a radius. What is a Right Angle? Back to you Alex

9

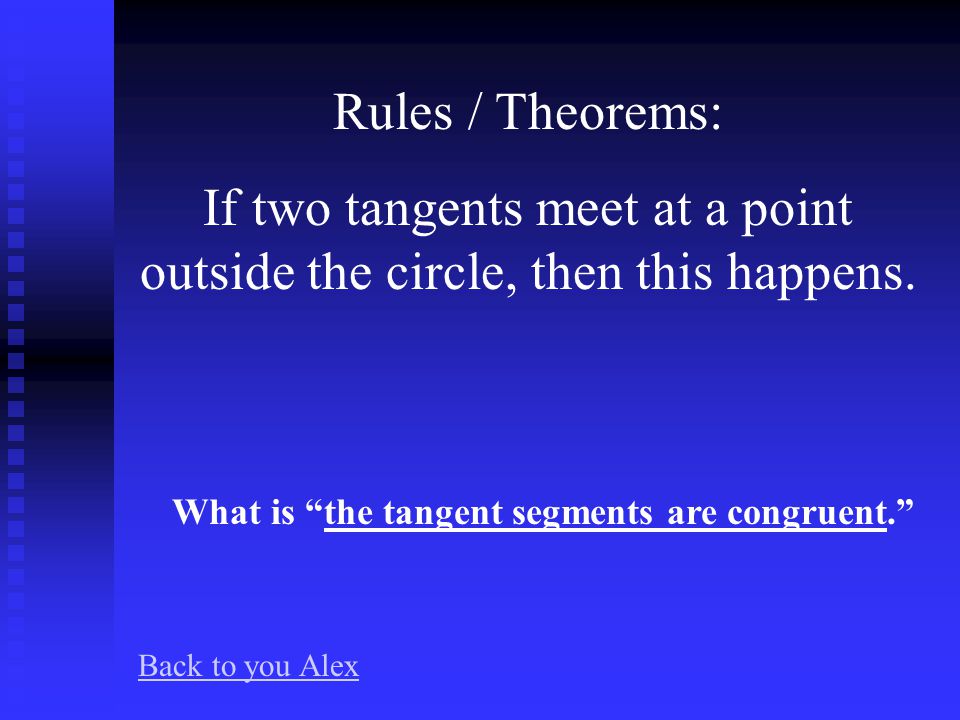

Rules / Theorems: If two tangents meet at a point outside the circle, then this happens. What is “the tangent segments are congruent.” Back to you Alex

10

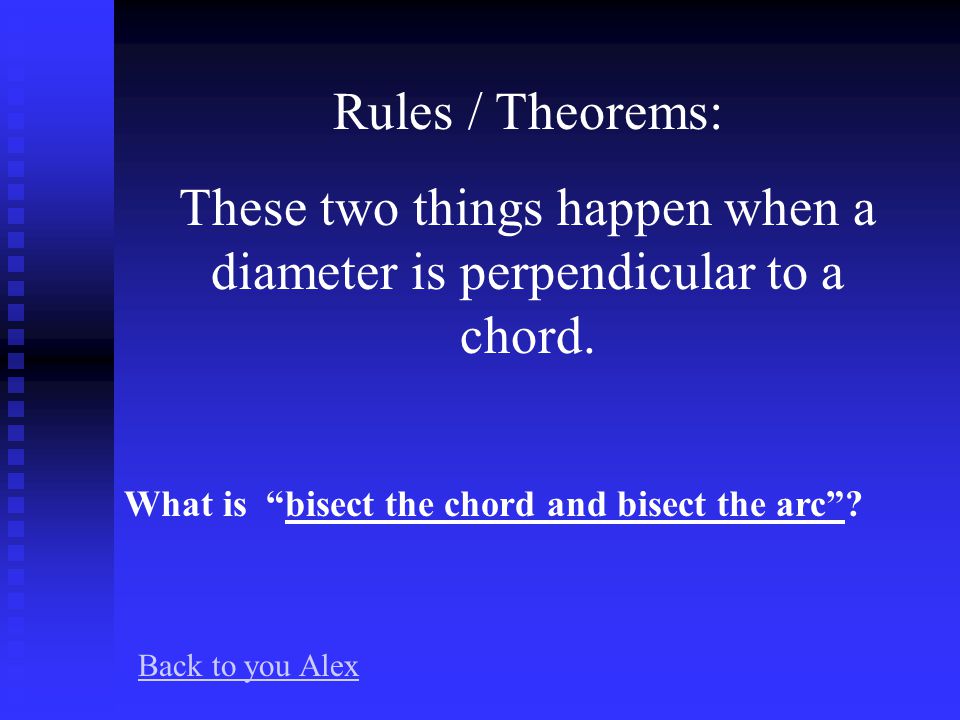

Rules / Theorems: These two things happen when a diameter is perpendicular to a chord. What is “bisect the chord and bisect the arc”? Back to you Alex

11
Rules / Theorems: This type of angle is equal to half of its intercepted arc. What is an Inscribed Angle? Back to you Alex

12
Rules / Theorems: This type of segment is the hypotenuse of any inscribed right triangle. What is the Diameter? Back to you Alex

13
Central Angles: This is “x” in circle P. What is 115 º ? Back to you Alex 245º x P

14
Central Angles: This is “x” in circle P. What is 71 º ? Back to you Alex 68º41º x P

15
Central Angles: This is “x” in the following Diagram. What is 15? Back to you Alex (6x)º (4x)º (7x)º

16
Central Angles: This is the measure of BC in circle P. What is 110º? Back to you Alex (2x -30)º xºxº B C A P

17
Central Angles: This is the measure of ABC in circle B. What is 144º? Back to you Alex (x)º (4x)º A B C D F

18
Inscribed Angles: This is the measure of AB in the following diagram. What is 114º? Back to you Alex 57º A B

19
Inscribed Angles: This is the measure of AB in the following Diagram. What is 78º? Back to you Alex 102º BC A

20
Inscribed Angles: This is “x” in the following diagram. What is 71º? Back to you Alex 79º 109º x

21
Inscribed Angles: This is “x” in the following diagram. What is 63º? Back to you Alex 63º x

22

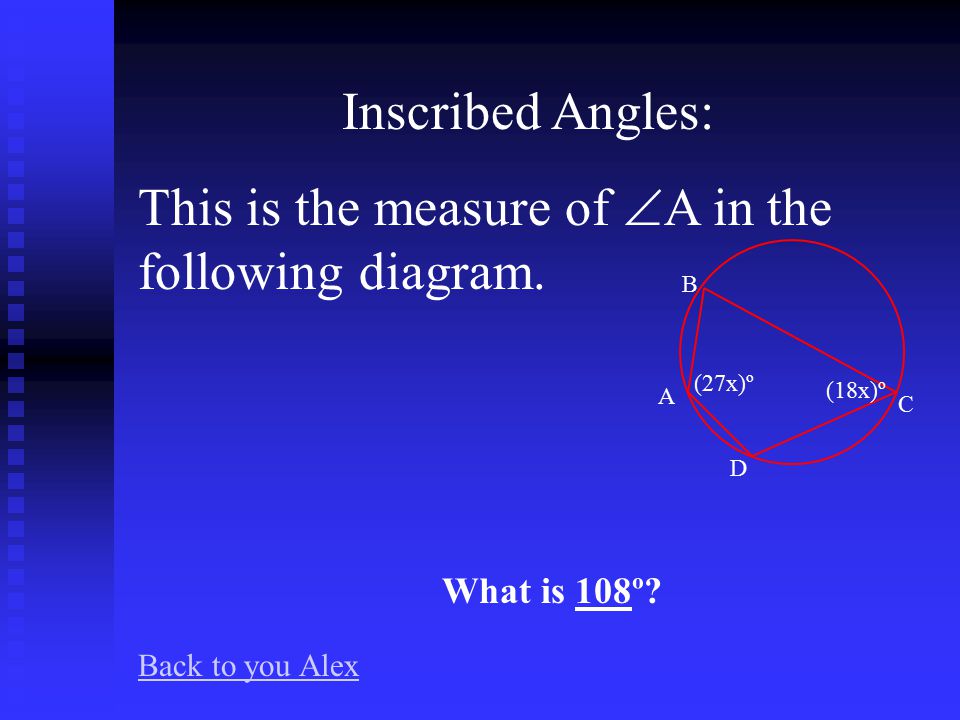

Inscribed Angles: This is the measure of A in the following diagram. What is 108º? Back to you Alex B A D C (18x)º (27x)º

23
Interior / Exterior Angles: This is the measure of 1 in the following diagram. What is 64º? Back to you Alex 81º 1 175º 57º

24

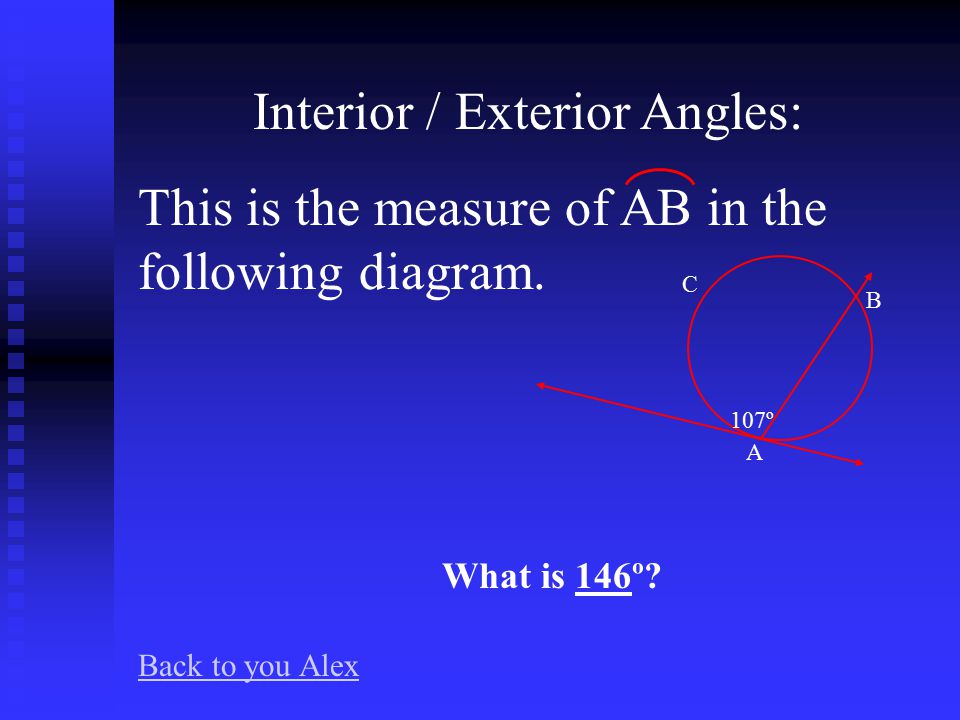

Interior / Exterior Angles: This is the measure of AB in the following diagram. What is 146º? Back to you Alex B A C 107º

25
Interior / Exterior Angles: This is the measure of 1 in the following diagram. What is 38º? Back to you Alex 66º 142º 1

26
Interior / Exterior Angles: This is the measure of AB in the following diagram. What is 74º? Back to you Alex A B C 47º 168º

27
Interior / Exterior Angles: This is “x” in the following diagram. What is 40? Back to you Alex ( x / 2 )º (x + 30)º(x + 70)º

28
Segments: This is “x” in the following diagram. What is 28? Back to you Alex 16 7 x 4

29
Segments: This is “x” in the following diagram. What is 12? Back to you Alex x 9 7

30

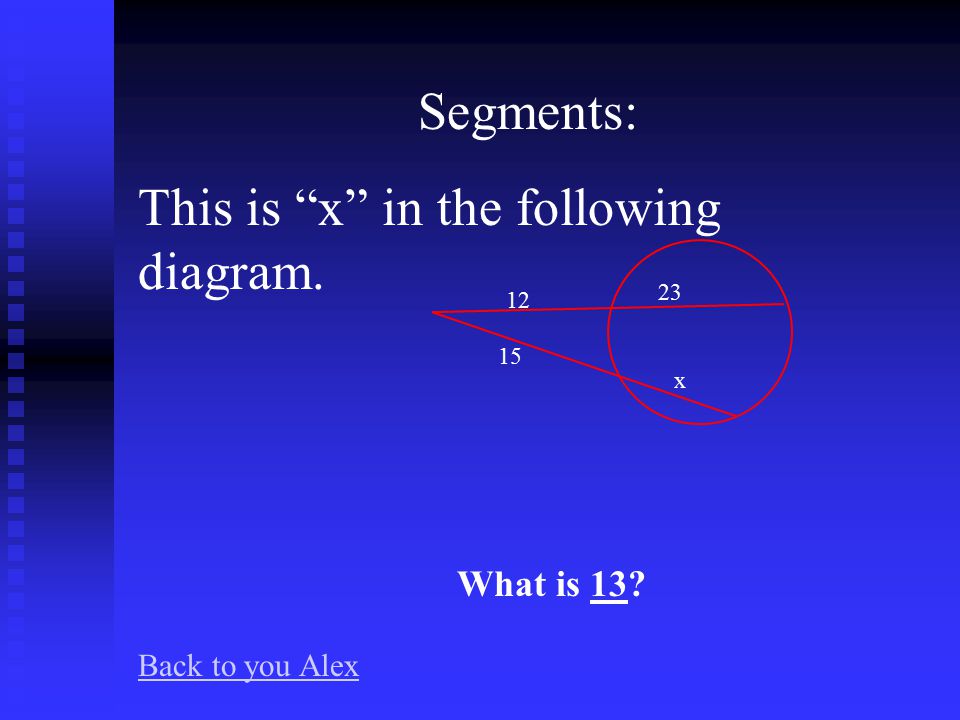

Segments: This is “x” in the following diagram. What is 13? Back to you Alex 12 23 x 15

31
Segments: This is “x” in the following diagram. What is 6? Back to you Alex x 2x 8 9

32
Segments: This is “y” in the following diagram. (hint: you may need to find “x” first) What is 10? Back to you Alex 20 x 30 8y
