1
C HORDS, S ECANTS, AND T ANGENTS 10.1 & 10.3

2

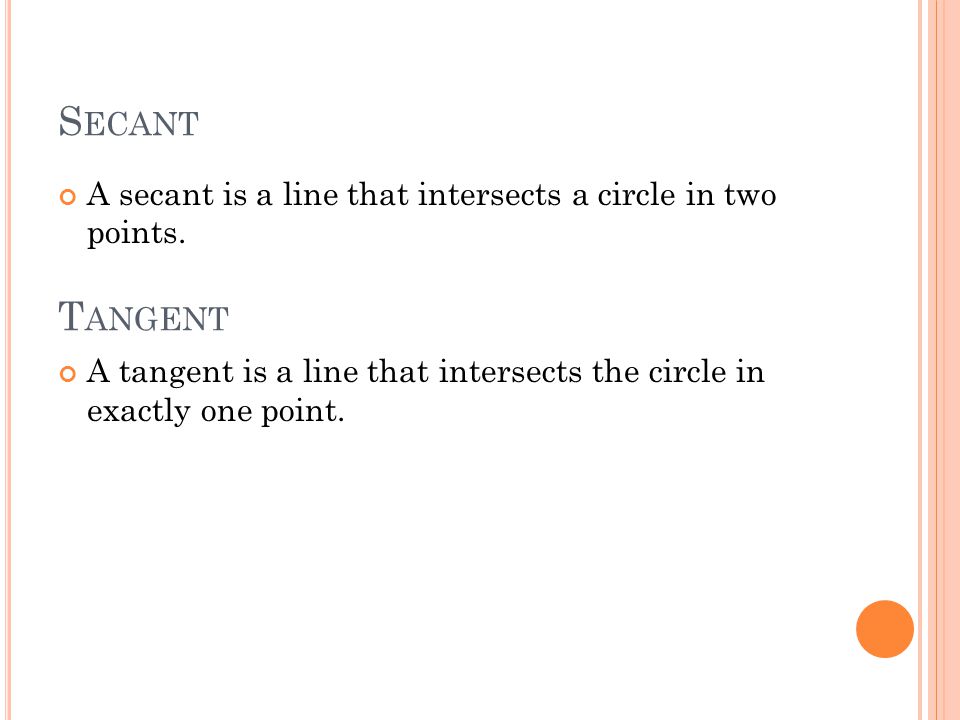

S ECANT A secant is a line that intersects a circle in two points. A tangent is a line that intersects the circle in exactly one point. T ANGENT

3
C HORDS, S ECANTS, AND T ANGENTS Secant Chord Tangent

4
C OMMON T ANGENTS A line, ray, or segment that is tangent to two coplanar circles is called a common tangent.

5

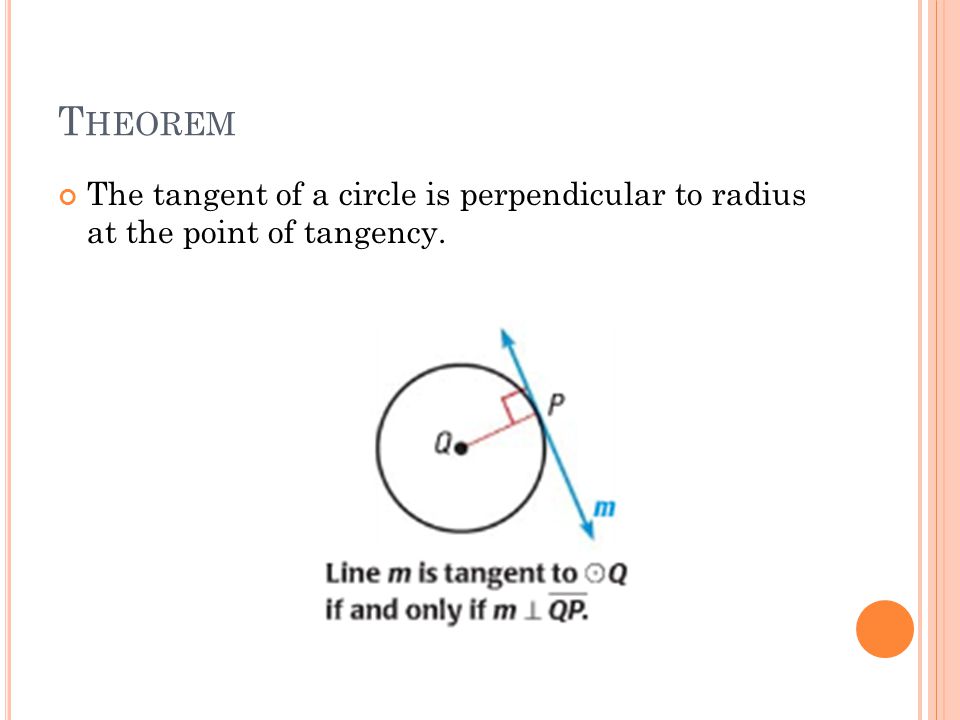

T HEOREM The tangent of a circle is perpendicular to radius at the point of tangency.

6
U SING T ANGENT L INES

7

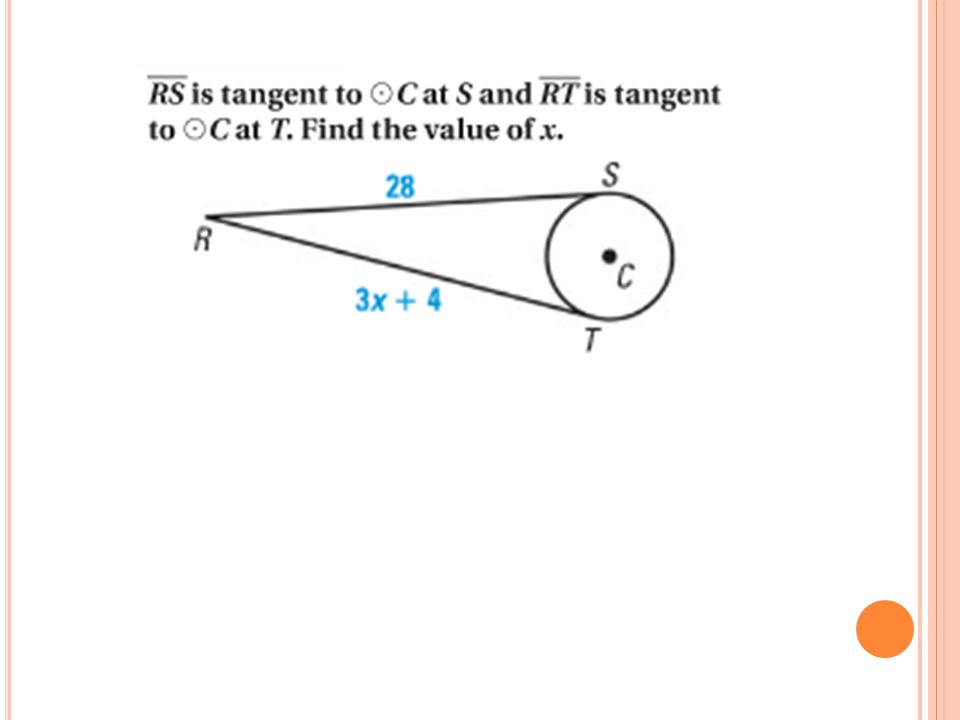

T HEOREM Tangent segments from a common external point are congruent.

9
T HEOREM In the same circle, or in congruent circles, two minor arcs are congruent if and only if their corresponding chords are congruent.

10

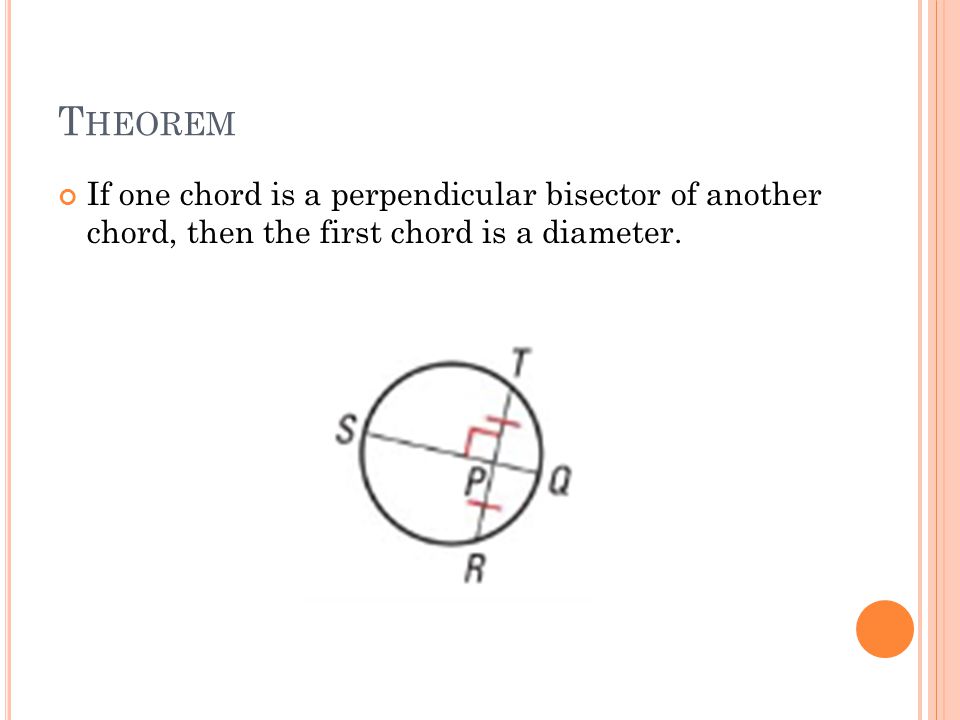

T HEOREM If one chord is a perpendicular bisector of another chord, then the first chord is a diameter.

11

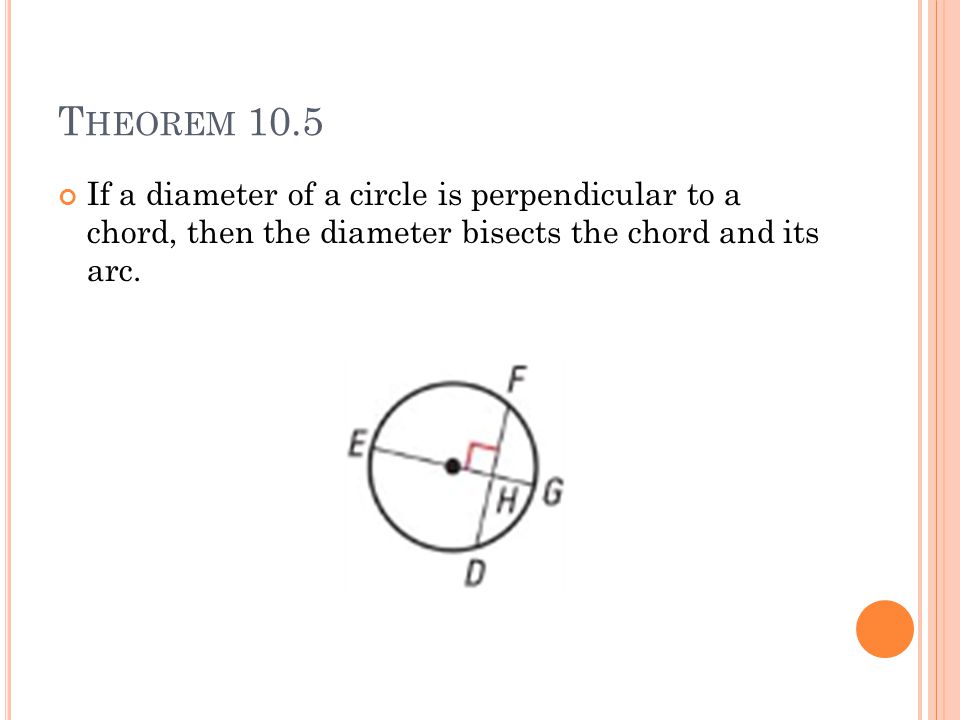

T HEOREM 10.5 If a diameter of a circle is perpendicular to a chord, then the diameter bisects the chord and its arc.

12
W HAT IS THE MEASURE OF A RC CD IN THE FIGURE BELOW ?

13

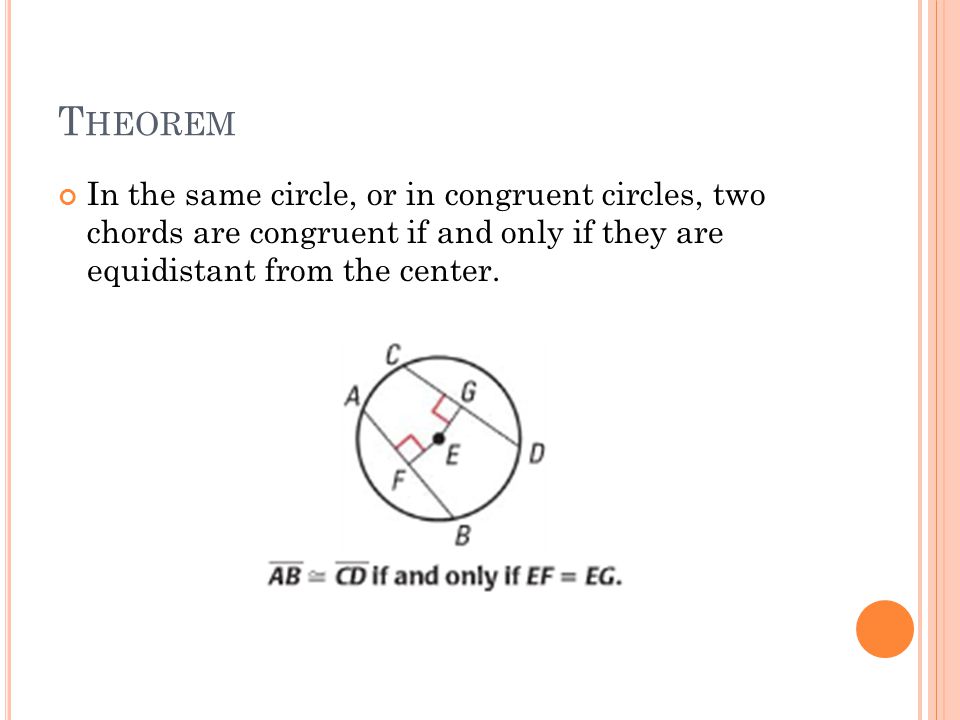

T HEOREM In the same circle, or in congruent circles, two chords are congruent if and only if they are equidistant from the center.

14
W HAT IS THE VALUE OF X FOR THE CIRCLE BELOW ?
