DIFFERENTIATION & INTEGRATION CHAPTER 4

2
Differentiation is the process of finding the derivative of a function. Derivative of INTRODUCTION TO DIFFERENTIATION

3

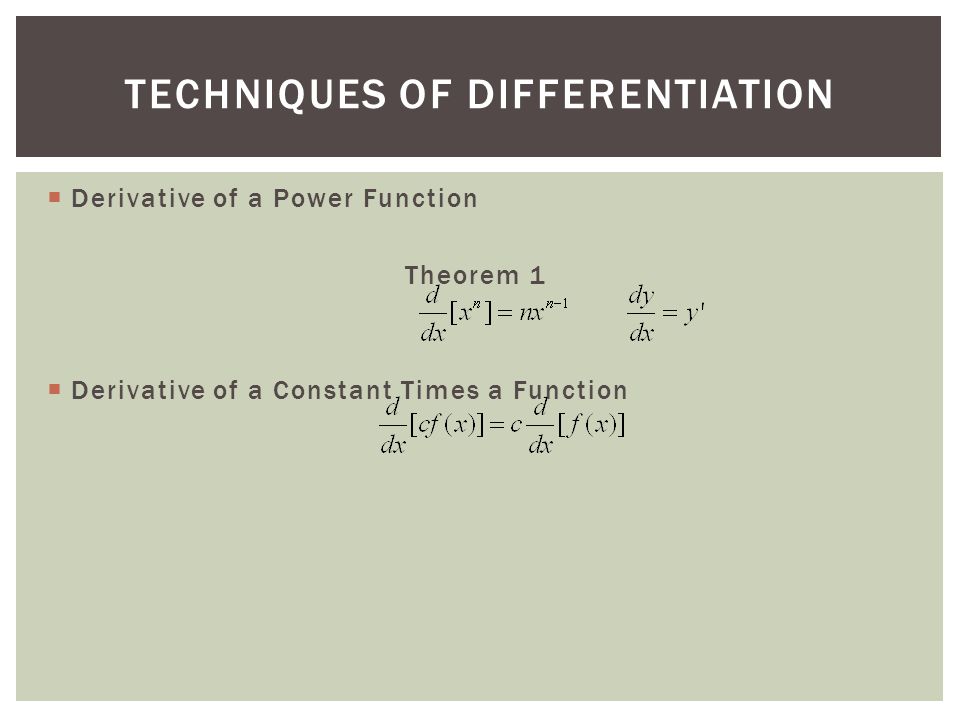

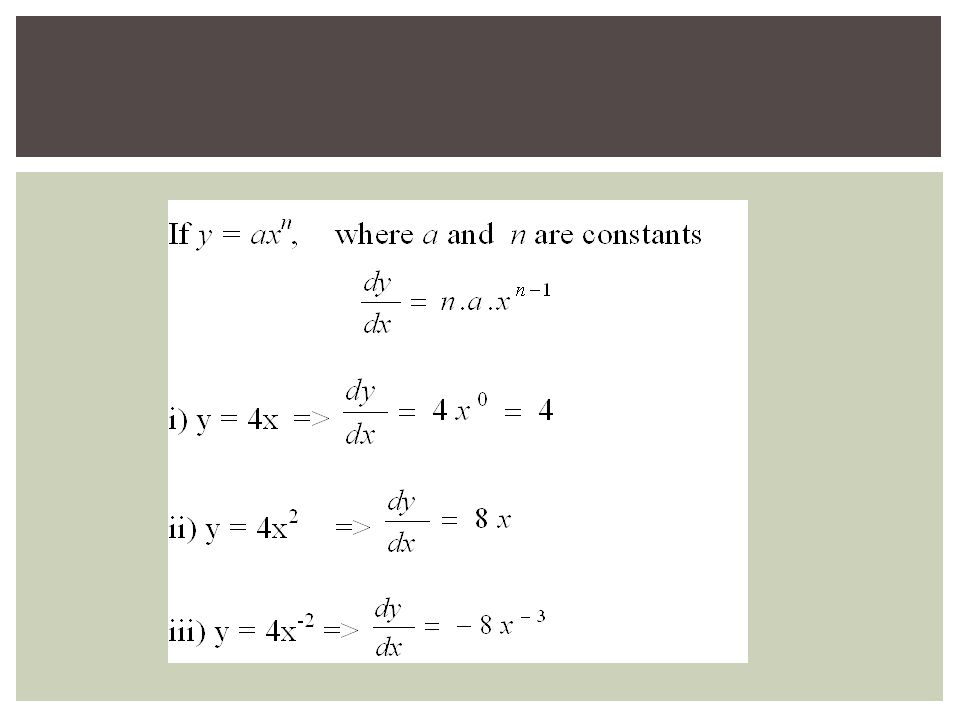

Derivative of a Power Function Theorem 1 Derivative of a Constant Times a Function TECHNIQUES OF DIFFERENTIATION

5

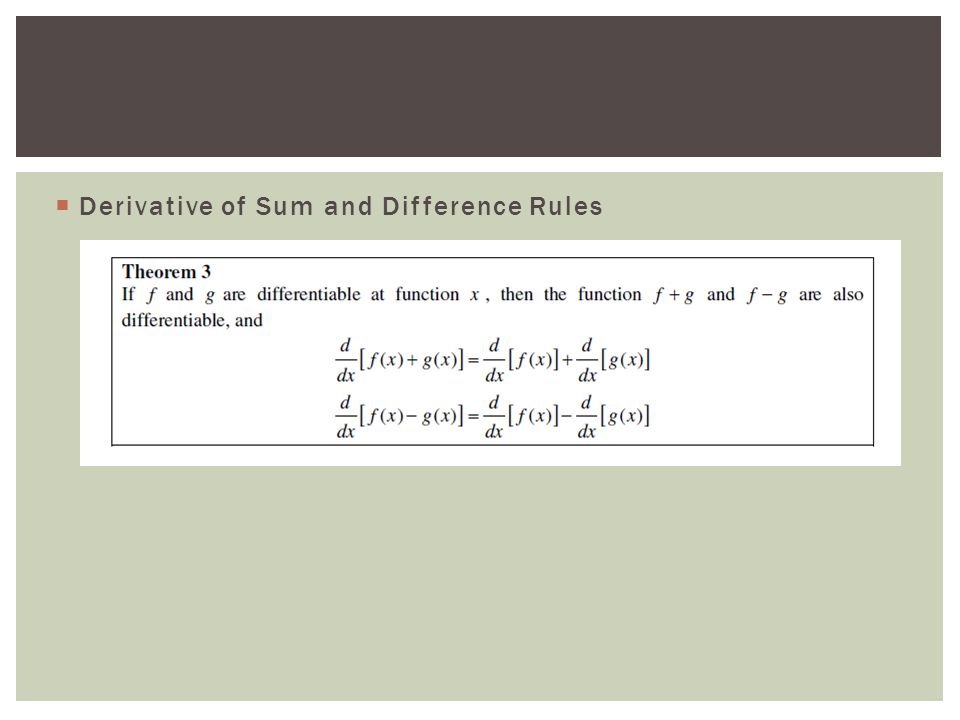

Derivative of Sum and Difference Rules

6

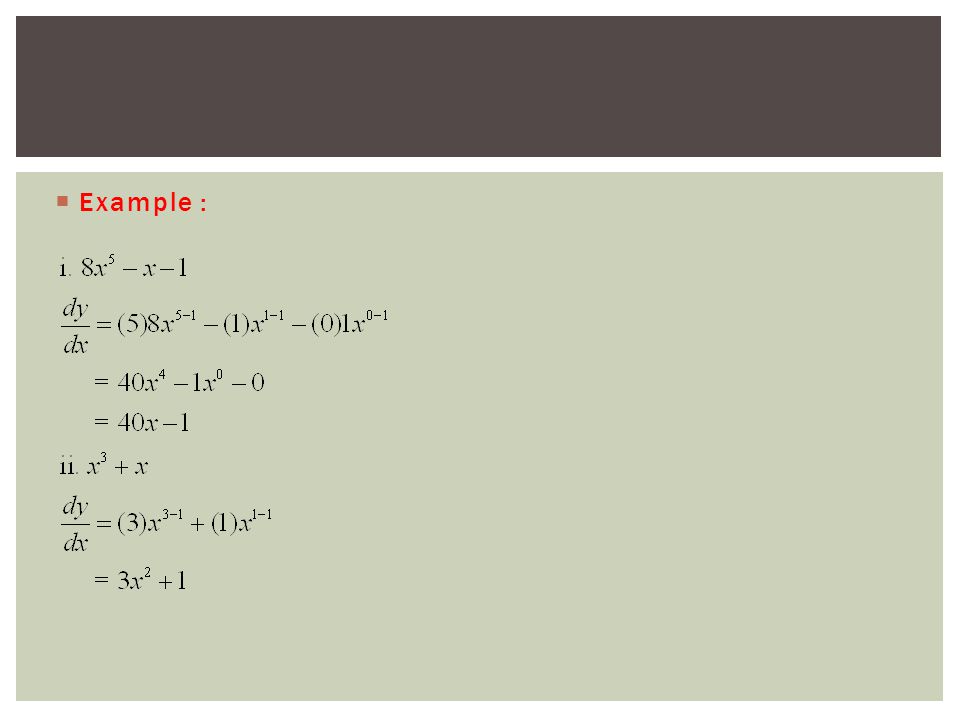

Example :

7
Derivative of a Product

8

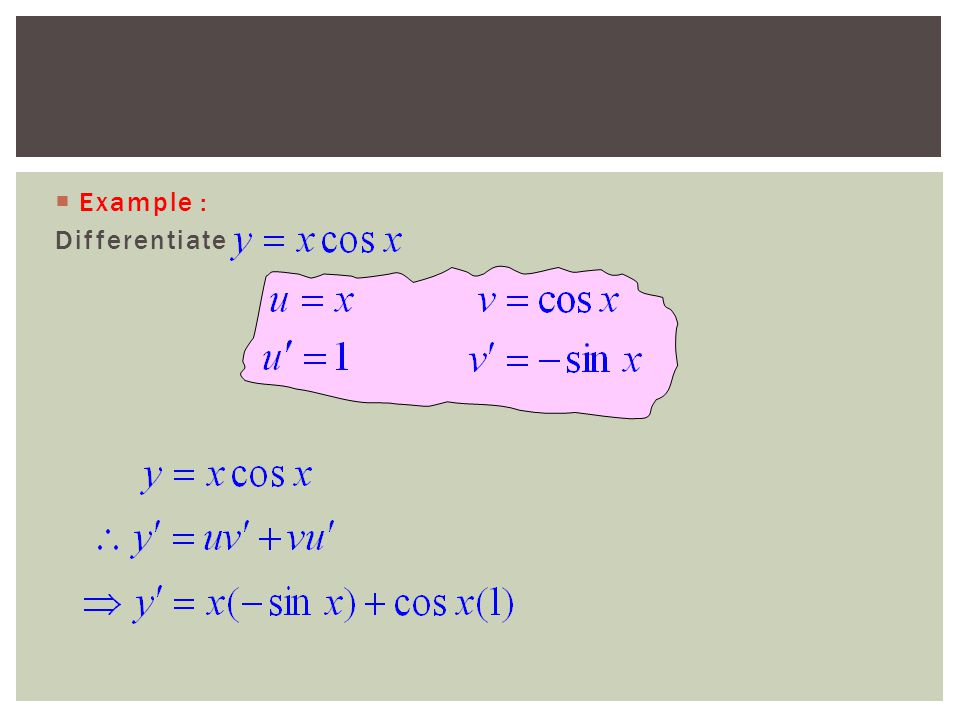

Example : Differentiate

9

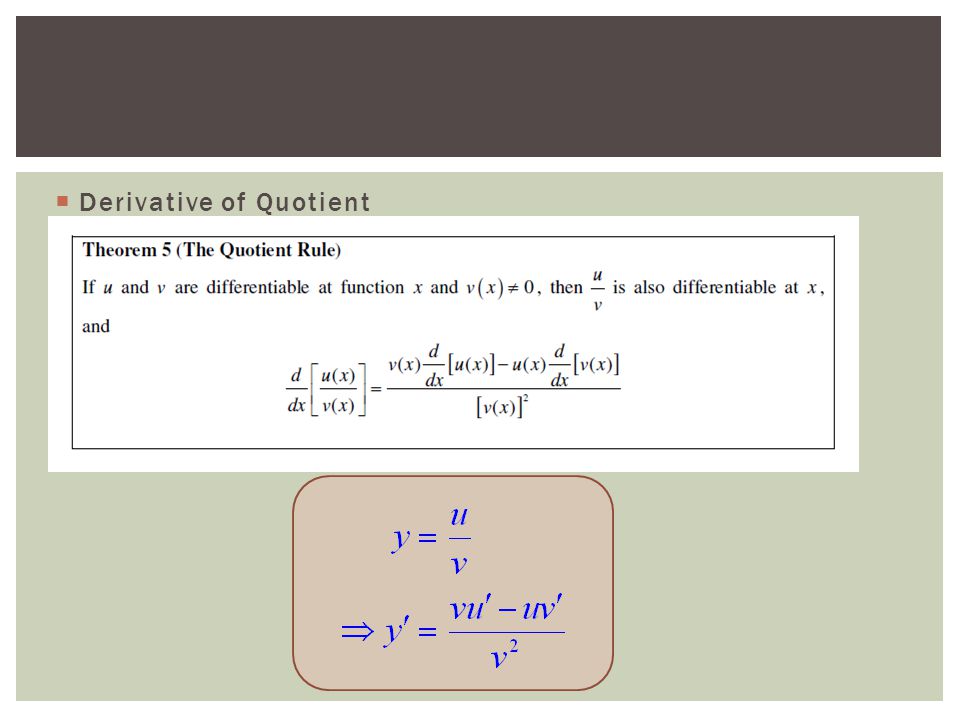

Derivative of Quotient

10
Example : Differentiate

11
EXERCISE 1

12
Derivative of Trigonometric Functions

13

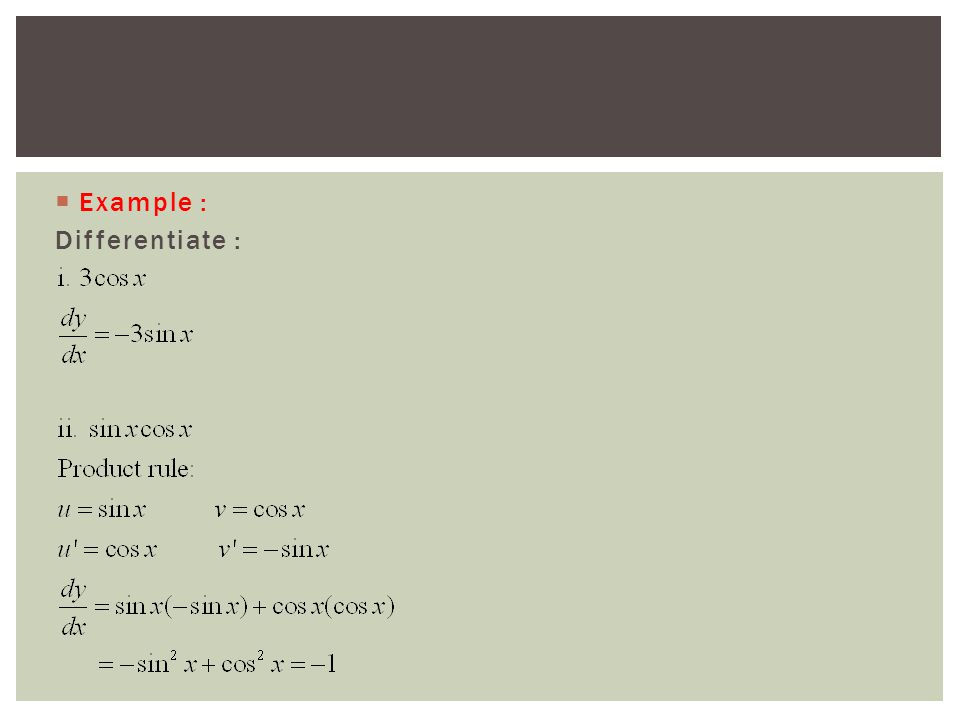

Example : Differentiate :

14
Derivative of Exponential and Logarithmic Functions

15
Example :

16
The Chain Rule Example :

17

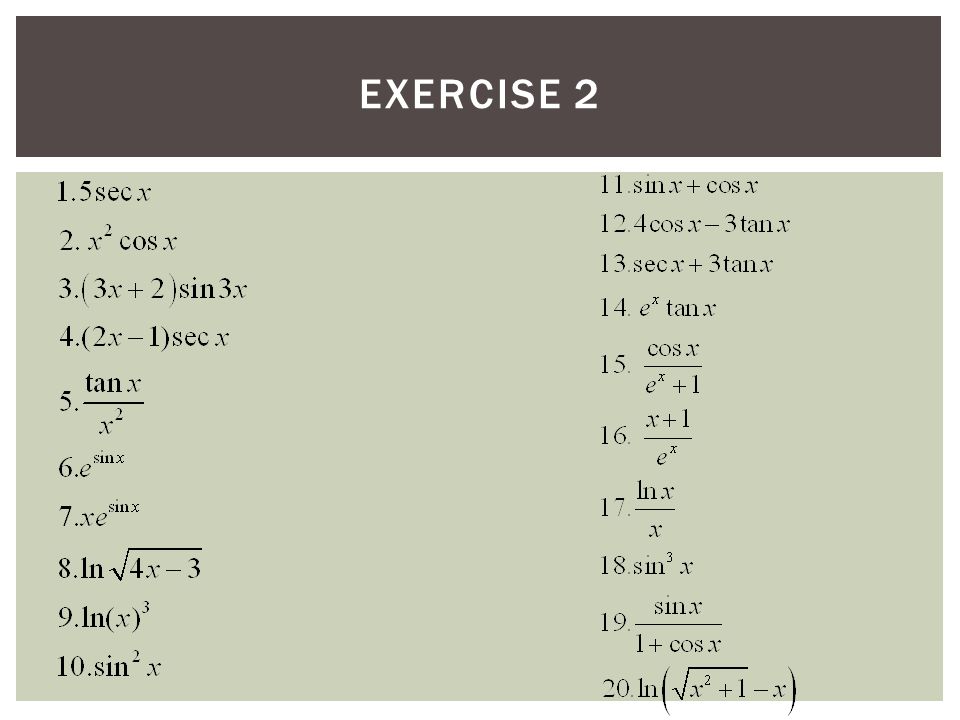

EXERCISE 2

18
Implicit Differentiation Implicit differentiation is the process of taking the derivative when y is defined implicitly or in y is a function of x. Example :

19
EXERCISE 3

20

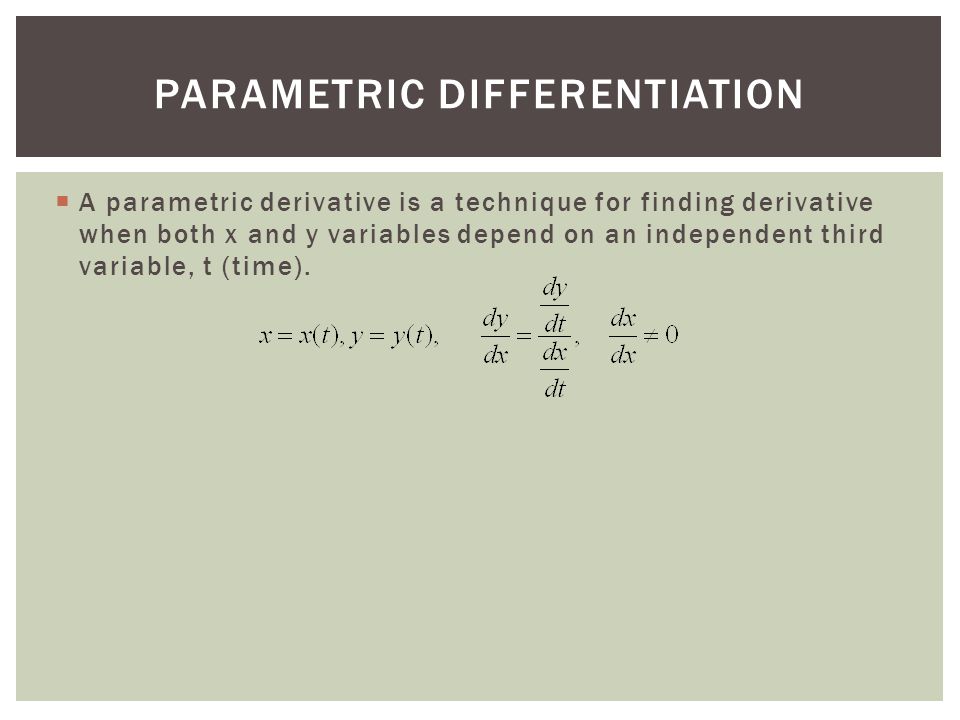

A parametric derivative is a technique for finding derivative when both x and y variables depend on an independent third variable, t (time). PARAMETRIC DIFFERENTIATION

21
Example : Solve for if:

22
Consider y =f(x) with point for function of a graph. Tangent line – straight line that touches y = f(x). Normal line – line that is perpendicular to tangent line. Slope of tangent line, Equation of the line tangent Equation of normal line TANGENT AND NORMAL LINE

23
Example : Given a curve equation at point (2,-1). a)Implicitly differentiate the equation.

24
b) Find the equation of the line tangent of the curve. Step 1 : Find the slope of tangent, m. Step 2 : Find the equation using

25
c) Find the equation of the normal line of the curve.

26
1.If, find the equation of the tangent line at (-1,4). 2.If, find the slope of the tangent line to the curve where. Find the equation of the line tangent to the curve where EXERCISE 4
