BROCADE ADX OPENSCRIPT March 2013 1 Derek Kang Solutions

Similar presentations


Presentation on theme: "BROCADE ADX OPENSCRIPT March 2013 1 Derek Kang Solutions"— Presentation transcript:

1 BROCADE ADX OPENSCRIPT March Derek Kang Solutions

2 Agenda OpenScript Architecture Quick Start Perl Basics OpenScript Examples Best Practices 2

3 OpenScript Architecture 3

4 What is OpenScript? Open-Standard (Perl) Based Application Delivery Programming Engine Predictable Scripting Engine with Performance Estimator Learn, Browse, Share Scripts through OpenScript Community 4

5 5 OpenScript Architecture Content Switching Engine OpenScript Engine TCP/UDP/IP Packet In Packet Out (event, context) (result) App Core Event Driven Model Script Attached to Virtual Port Resource Profile Per Script Limits the resource consumption of a script 1 MB memory foot print Watch-dog timer (200 ms) 100 KB data collection per event MP Compile Performance estimation Catching syntax errors

6 OpenScript Quick Start 6

7 Sorry. Get back later. use OS_SLB; use OS_HTTP_REQUEST; my $page; sub BEGIN { $page = "HTTP/ OK\r\nContent- Length:21\r\nConnection:close\r\nContent- Type: text/html; charset=UTF-8\r\n\r\n. Sorry.Get. back later.”; } sub HTTP_REQUEST { OS_SLB::forward (10); } sub SERVER_SELECTION_FAILURE { OS_SLB::reply($page); } server l7-dont-reset-on-vip-port-fail server real rs port 80 group-id server real rs port 80 group-id server virtual v port 80 bind 80 rs1 80 rs2 80 rs1rs2 OpenScript “sorry.pl”ADX SLB Config 7 script “sorry.pl”

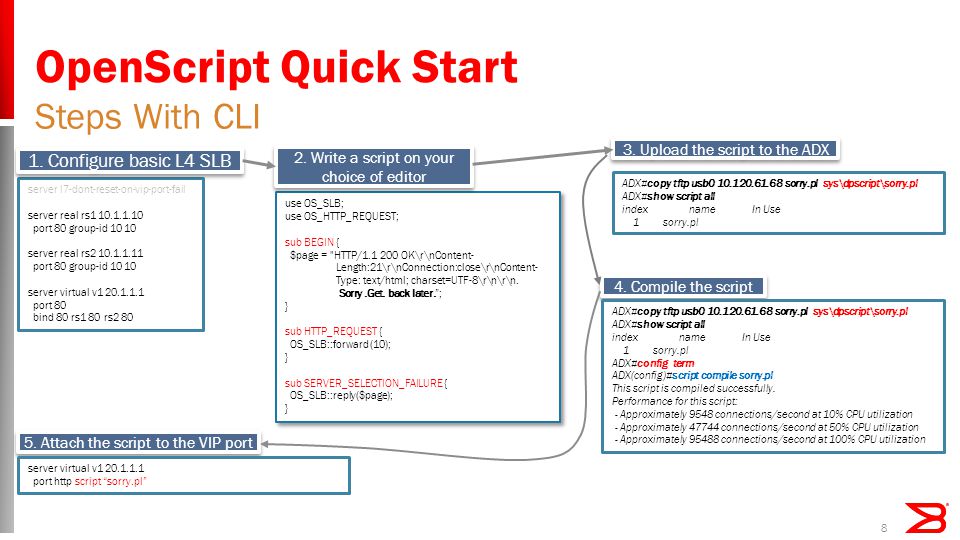

8 8 OpenScript Quick Start Steps With CLI use OS_SLB; use OS_HTTP_REQUEST; sub BEGIN { $page = "HTTP/ OK\r\nContent- Length:21\r\nConnection:close\r\nContent- Type: text/html; charset=UTF-8\r\n\r\n. Sorry.Get. back later.”; } sub HTTP_REQUEST { OS_SLB::forward (10); } sub SERVER_SELECTION_FAILURE { OS_SLB::reply($page); } use OS_SLB; use OS_HTTP_REQUEST; sub BEGIN { $page = "HTTP/ OK\r\nContent- Length:21\r\nConnection:close\r\nContent- Type: text/html; charset=UTF-8\r\n\r\n. Sorry.Get. back later.”; } sub HTTP_REQUEST { OS_SLB::forward (10); } sub SERVER_SELECTION_FAILURE { OS_SLB::reply($page); } server l7-dont-reset-on-vip-port-fail server real rs port 80 group-id server real rs port 80 group-id server virtual v port 80 bind 80 rs1 80 rs Configure basic L4 SLB 2. Write a script on your choice of editor 3. Upload the script to the ADX 4. Compile the script ADX#copy tftp usb sorry.pl sys\dpscript\sorry.pl ADX#show script all index name In Use 1 sorry.pl ADX#copy tftp usb sorry.pl sys\dpscript\sorry.pl ADX#show script all index name In Use 1 sorry.pl ADX#config term ADX(config)#script compile sorry.pl This script is compiled successfully. Performance for this script: - Approximately 9548 connections/second at 10% CPU utilization - Approximately connections/second at 50% CPU utilization - Approximately connections/second at 100% CPU utilization 5. Attach the script to the VIP port server virtual v port http script “sorry.pl”

9 9 OpenScript Quick Start Steps With Web GUI GUI Version Check

10 Perl Basics 10

11 11 Regex $string =~ m/pattern/ $string =~ s/pattern1/pattern2 my $string = “ab-abc-abcd”; $string =~ m/(.*)-/; print “$1\n”; my $string = “ab-abc-abcd”; $string =~ m/(.*)-/; print “$1\n”; ab-abc my $string = “ab-abc-abcd”; $string =~ m/(.*?)-/ print “$1\n”; my $string = “ab-abc-abcd”; $string =~ m/(.*?)-/ print “$1\n”; ab my $string = “ab-abc-abcd”; $string =~ s/ab/x/ print “$string”; my $string = “ab-abc-abcd”; $string =~ s/ab/x/ print “$string”; my $string = “ab-abc-abcd”; $string =~ s/ab/x/g print “$string”; my $string = “ab-abc-abcd”; $string =~ s/ab/x/g print “$string”; x-xc-xcd x-abc-abcd

12 Hash / List / Array 12 rs1 url1 20 = (“url1”, “url2”, “url3”); $value = $my_array [ 0 = ( [ “url1”, 10 ], [ “url2”, 20 ], [ “url3”, 30 ] ) $value = $my_two_dim_array [ 1 ] [ 1 ] $size = scalar ) %my_hash_table = ( 1030=>”rs1”, 1031=>”rs2” ) $value = $my_hash_table { 1030 }

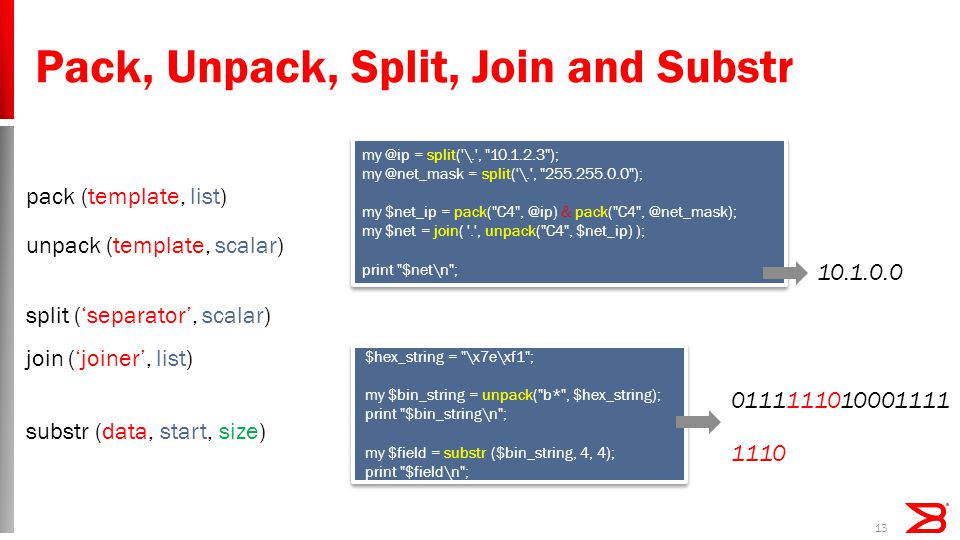

13 Pack, Unpack, Split, Join and Substr 13 unpack (template, scalar) $hex_string = "\x7e\xf1"; my $bin_string = unpack("b*", $hex_string); print "$bin_string\n"; my $field = substr ($bin_string, 4, 4); print "$field\n"; $hex_string = "\x7e\xf1"; my $bin_string = unpack("b*", $hex_string); print "$bin_string\n"; my $field = substr ($bin_string, 4, 4); print "$field\n"; substr (data, start, size) = split('\.', " "); = split('\.', " "); my $net_ip = & my $net = join( '.', unpack("C4", $net_ip) ); print "$net\n"; = split('\.', " "); = split('\.', " "); my $net_ip = & my $net = join( '.', unpack("C4", $net_ip) ); print "$net\n"; pack (template, list) split (‘separator’, scalar) join (‘joiner’, list)

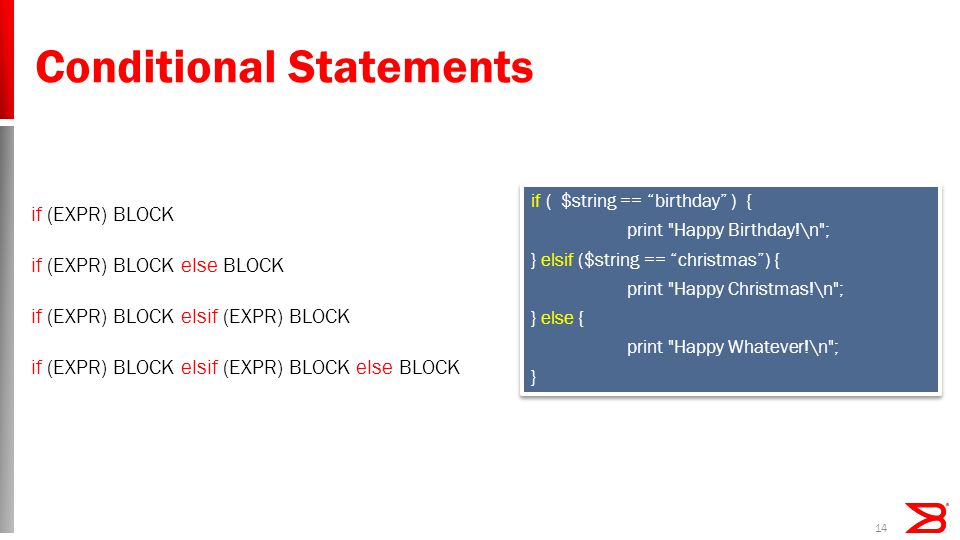

14 Conditional Statements if ( $string == “birthday” ) { print "Happy Birthday!\n"; } elsif ($string == “christmas”) { print "Happy Christmas!\n"; } else { print "Happy Whatever!\n"; } if ( $string == “birthday” ) { print "Happy Birthday!\n"; } elsif ($string == “christmas”) { print "Happy Christmas!\n"; } else { print "Happy Whatever!\n"; } 14 if (EXPR) BLOCK if (EXPR) BLOCK else BLOCK if (EXPR) BLOCK elsif (EXPR) BLOCK if (EXPR) BLOCK elsif (EXPR) BLOCK else BLOCK

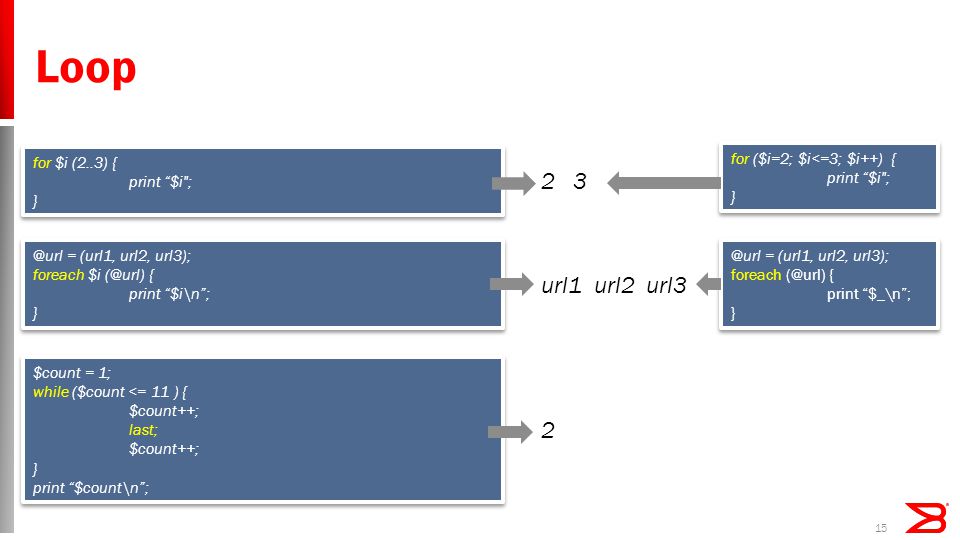

15 Loop for $i (2..3) { print “$i"; } url1 url2 = (url1, url2, url3); foreach $i { print “$i\n”; = (url1, url2, url3); foreach $i { print “$i\n”; } $count = 1; while ($count <= 11 ) { $count++; last; $count++; } print “$count\n”; $count = 1; while ($count <= 11 ) { $count++; last; $count++; } print “$count\n”; for ($i=2; $i<=3; $i++) { print “$i"; } = (url1, url2, url3); foreach { print “$_\n”; = (url1, url2, url3); foreach { print “$_\n”; }

16 OpenScript Examples 16

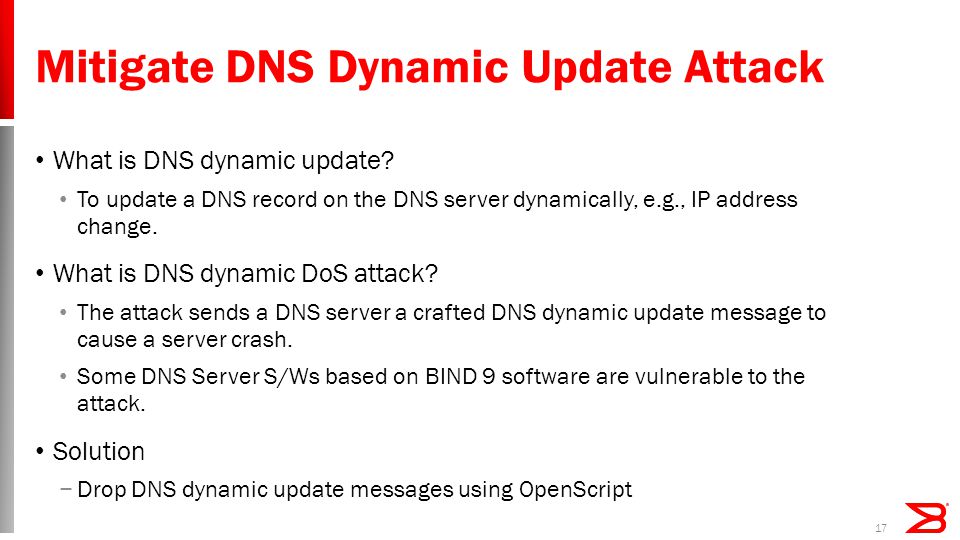

17 Mitigate DNS Dynamic Update Attack What is DNS dynamic update? To update a DNS record on the DNS server dynamically, e.g., IP address change. What is DNS dynamic DoS attack? The attack sends a DNS server a crafted DNS dynamic update message to cause a server crash. Some DNS Server S/Ws based on BIND 9 software are vulnerable to the attack. Solution −Drop DNS dynamic update messages using OpenScript 17

18 18 Drop DNS Dynamic Update (ADX CLI Config) (DNS Dynamic Update Message) use OS_UDP; use OS_SLB; sub UDP_CLIENT_DATA{ $payload = OS_UDP::payload; $mydata = unpack( "b*", $payload); $mystring = substr ($mydata, 17, 4); if ($mystring == "0101" ) { OS_SLB::drop; } else { OS_SLB::forward(10); } (dnsdos.pl) server real rs port 53 group-id ! server real rs port 53 group-id server virtual v port 53 port 53 script dnsdos.pl bind 53 rs1 53 rs

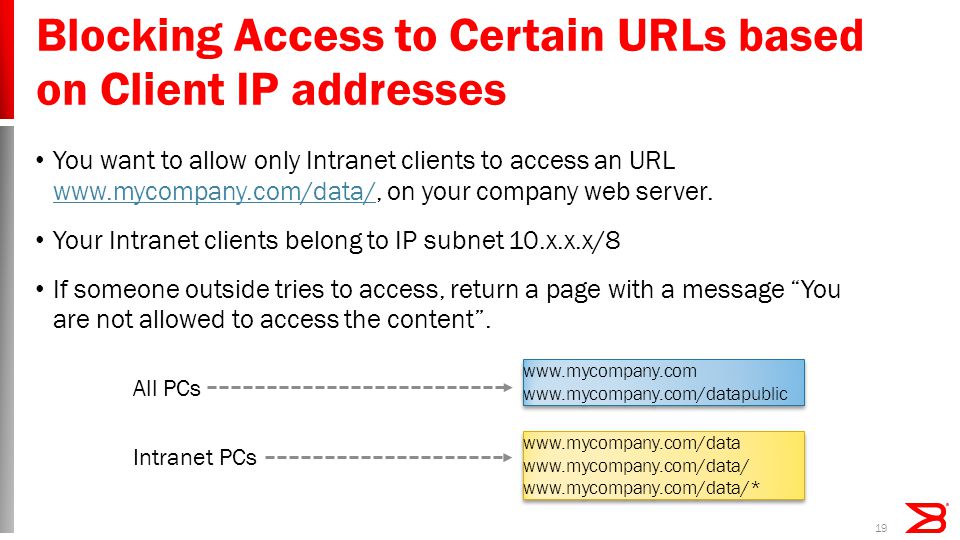

19 You want to allow only Intranet clients to access an URL on your company web server. Your Intranet clients belong to IP subnet 10.x.x.x/8 If someone outside tries to access, return a page with a message “You are not allowed to access the content”. 19 Blocking Access to Certain URLs based on Client IP addresses All PCs Intranet PCs

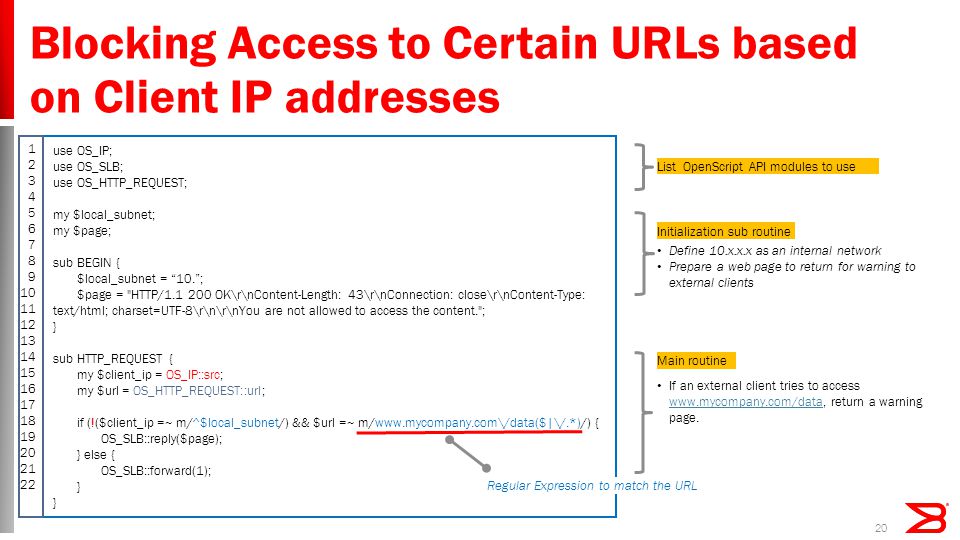

20 Blocking Access to Certain URLs based on Client IP addresses 20 use OS_IP; use OS_SLB; use OS_HTTP_REQUEST; my $local_subnet; my $page; sub BEGIN { $local_subnet = “10.”; $page = "HTTP/ OK\r\nContent-Length: 43\r\nConnection: close\r\nContent-Type: text/html; charset=UTF-8\r\n\r\nYou are not allowed to access the content."; } sub HTTP_REQUEST { my $client_ip = OS_IP::src; my $url = OS_HTTP_REQUEST::url; if (!($client_ip =~ m/^$local_subnet/) && $url =~ m/www.mycompany.com\/data($|\/.*)/) { OS_SLB::reply($page); } else { OS_SLB::forward(1); } If an external client tries to access return a warning page. List OpenScript API modules to use Initialization sub routine Define 10.x.x.x as an internal network Prepare a web page to return for warning to external clients Main routine Regular Expression to match the URL

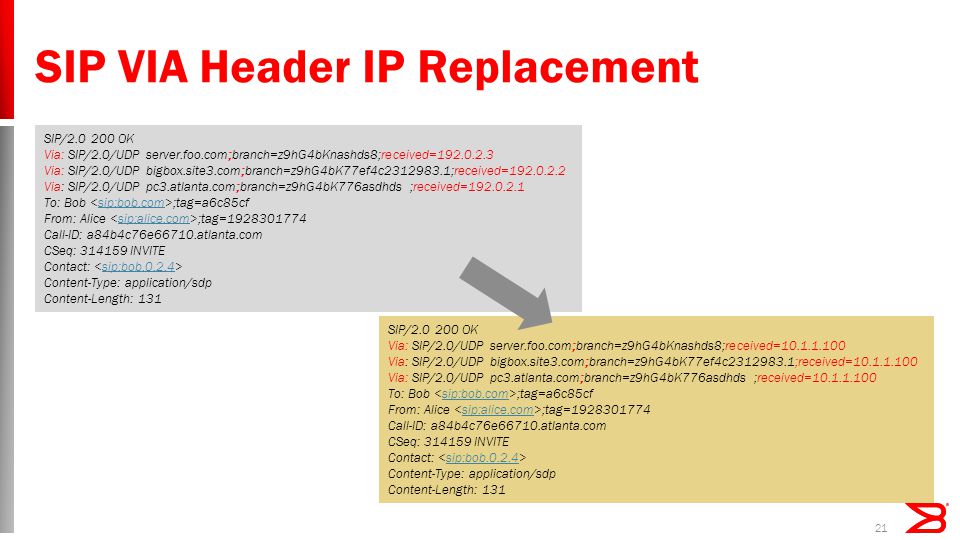

21 SIP VIA Header IP Replacement 21 SIP/ OK Via: SIP/2.0/UDP server.foo.com;branch=z9hG4bKnashds8;received= Via: SIP/2.0/UDP bigbox.site3.com;branch=z9hG4bK77ef4c ;received= Via: SIP/2.0/UDP pc3.atlanta.com;branch=z9hG4bK776asdhds ;received= To: Bob ;tag=a6c85cfsip:bob.com From: Alice ;tag= sip:alice.com Call-ID: a84b4c76e66710.atlanta.com CSeq: INVITE Contact: sip:bob Content-Type: application/sdp Content-Length: 131 SIP/ OK Via: SIP/2.0/UDP server.foo.com;branch=z9hG4bKnashds8;received= Via: SIP/2.0/UDP bigbox.site3.com;branch=z9hG4bK77ef4c ;received= Via: SIP/2.0/UDP pc3.atlanta.com;branch=z9hG4bK776asdhds ;received= To: Bob ;tag=a6c85cfsip:bob.com From: Alice ;tag= sip:alice.com Call-ID: a84b4c76e66710.atlanta.com CSeq: INVITE Contact: sip:bob Content-Type: application/sdp Content-Length: 131

22 SIP VIA Header IP Replacement 22 use OS_IP; use OS_UDP; my $vip; sub BEGIN { $vip = ; # VIP you want to put in the Via header } sub UDP_CLIENT_DATA{ my $client_ip = OS_IP::src; my $sip_msg = OS_UDP::payload; if ($sip_msg =~ s/ (.*?Via:) (.*?;) (.*?;) (received=) (\d{1,3}\. \d{1,3}\. \d{1,3}\. \d{1,3}) / $1 $2 $3 $4 $vip /xig) { OS_UDP::payload($sip_msg); } else { OS_SLB::log (“Warning : SIP client $client_ip : VIA header was not found”); }

23 OpenScript Best Practices 23

24 OpenScript Best Practices Readability Performance Trouble Shooting 24

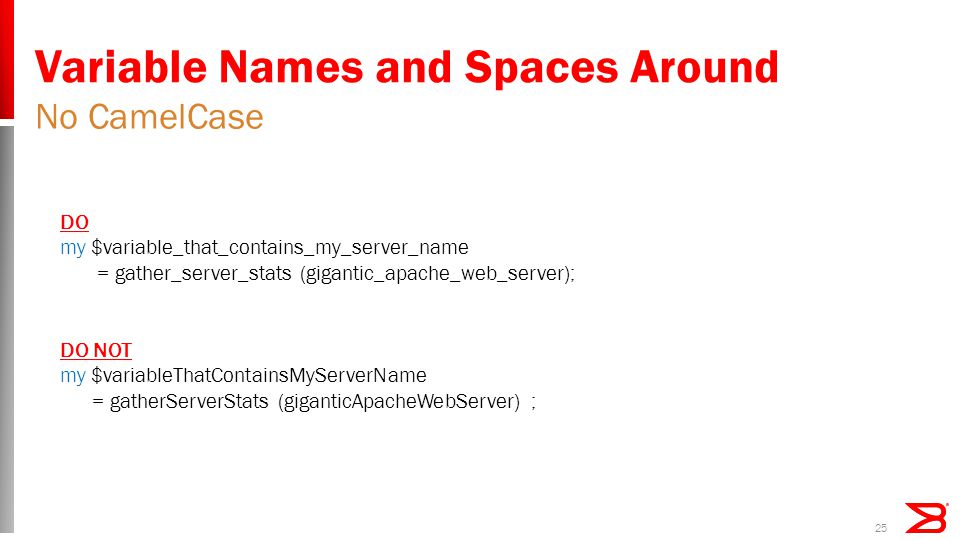

25 Variable Names and Spaces Around No CamelCase 25 DO my $variable_that_contains_my_server_name = gather_server_stats (gigantic_apache_web_server); DO NOT my $variableThatContainsMyServerName = gatherServerStats (giganticApacheWebServer) ;

26 Spaces Around Operators and After Commas 26 DO my %server_list = (1030=>”rs1”, 1031=>”rs2” ); DO NOT my %server_list=(1030=>”rs1”,1031=>”rs2” );

27 27 Regular Expression DO / ( [a-fA-F0-9] ) - [a-fA-F0-9]{4} - [a-fA-F0-9]{4} - [a-fA-F0-9]{4} - [a-fA-F0-9]{12} /x DO NOT /([a-fA-F0-9])-[a-fA-F0-9]{4}-[a-fA-F0-9]{4}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}/ Also, Don’t Overdo Regex

28 Compile with “Strict” 28 script compile strict Or include in the OpenScript code use strict; use Sub::StrictDecl; …………………………… ……………………………. * the strict option in the compilation CLI and Sub:StrictDecl require f or later. ADX(config)#script compile hello.pl This script is compiled successfully. Performance for this script: - Approximately 5200 connections/second at 10% CPU utilization - Approximately connections/second at 50% CPU utilization - Approximately connections/second at 100% CPU utilization ADX(config)#script compile hello.pl strict S_my_exit_jump being called Compile Errors found : Undeclared subroutine &OS_SLB::Forward at -e line 11. BEGIN not safe after errors--compilation aborted at -e line 17.

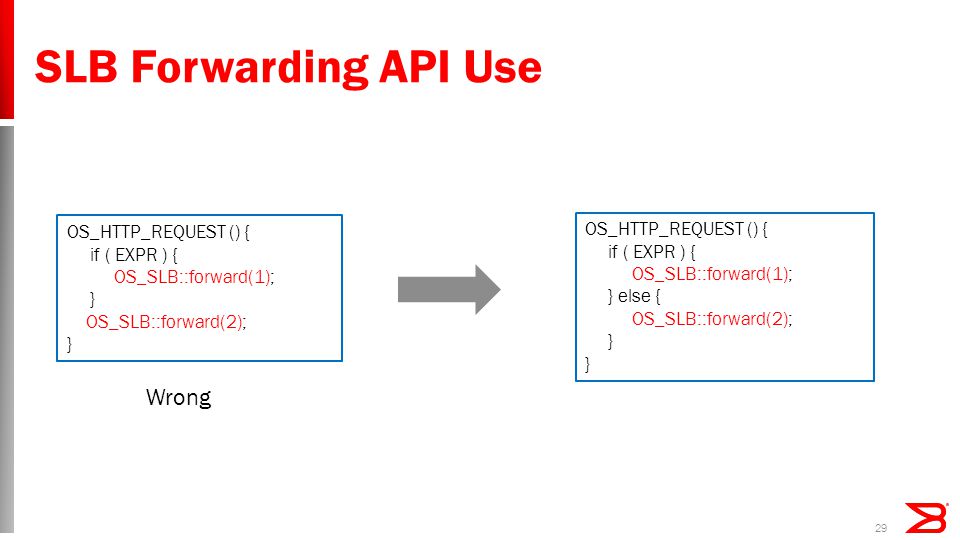

29 29 SLB Forwarding API Use OS_HTTP_REQUEST () { if ( EXPR ) { OS_SLB::forward(1); } OS_SLB::forward(2); } OS_HTTP_REQUEST () { if ( EXPR ) { OS_SLB::forward(1); } else { OS_SLB::forward(2); } Wrong

30 30 No Object Oriented Convention DO $url = OS_HTTP_REQUEST::url; DO NOT $req_obj = OS_HTTP_REQUEST::get; $url = $req_obj->url Not Supported, starting in e for increased performance by 30%

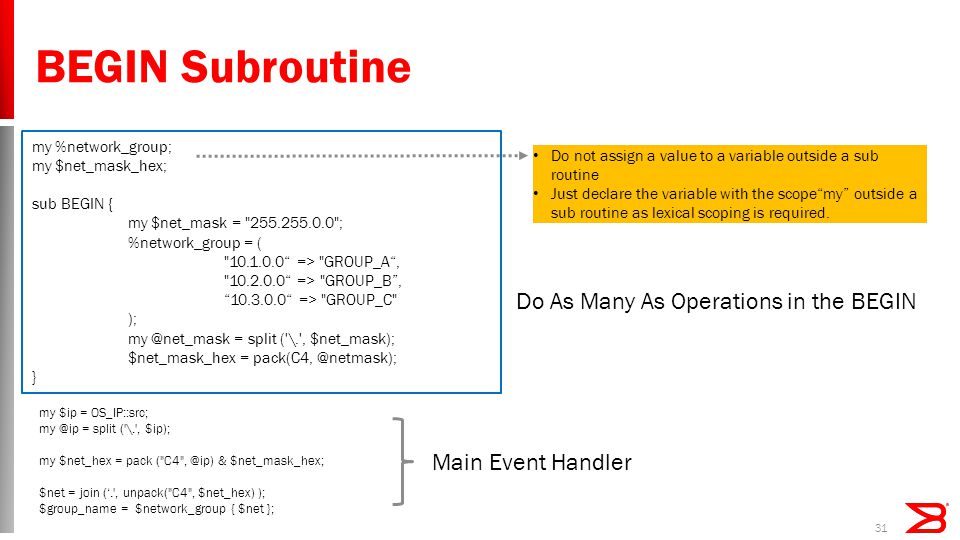

31 31 BEGIN Subroutine my %network_group; my $net_mask_hex; sub BEGIN { my $net_mask = " "; %network_group = ( " “ => "GROUP_A“, " “ => "GROUP_B”, “ “ => "GROUP_C" ); = split ('\.', $net_mask); $net_mask_hex = } my $ip = OS_IP::src; = split ('\.', $ip); my $net_hex = pack & $net_mask_hex; $net = join (‘.', unpack("C4", $net_hex) ); $group_name = $network_group { $net }; Do As Many As Operations in the BEGIN Main Event Handler Do not assign a value to a variable outside a sub routine Just declare the variable with the scope“my” outside a sub routine as lexical scoping is required.

32 32 Print Statement and Log script-profile production print-output none ! server virtual v port http port http script "hello.pl" script-profile "production” print: Do not use in production except for debugging purpose OS_SLB::log: Use to log unexpected and rare events in production environment

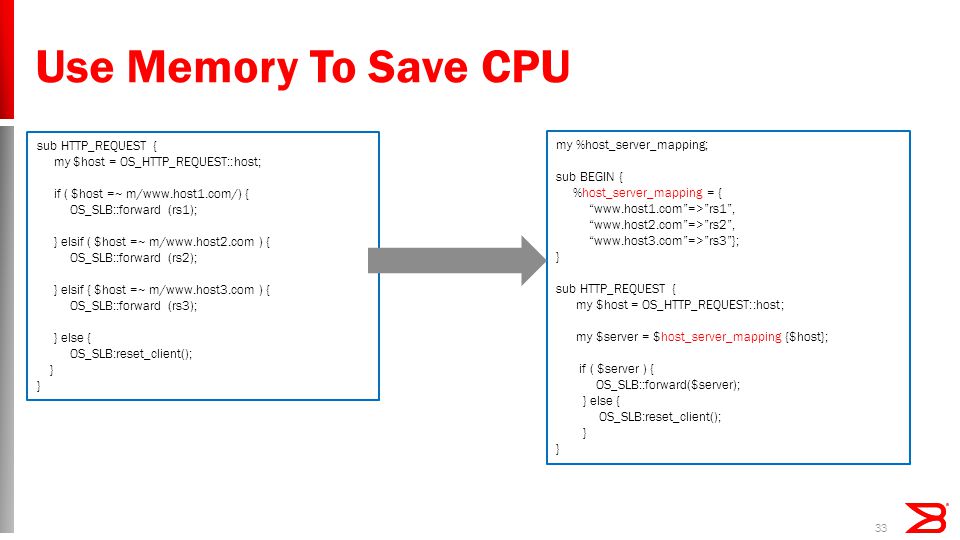

33 33 Use Memory To Save CPU sub HTTP_REQUEST { my $host = OS_HTTP_REQUEST::host; if ( $host =~ m/www.host1.com/) { OS_SLB::forward (rs1); } elsif ( $host =~ m/www.host2.com ) { OS_SLB::forward (rs2); } elsif { $host =~ m/www.host3.com ) { OS_SLB::forward (rs3); } else { OS_SLB:reset_client(); } my %host_server_mapping; sub BEGIN { %host_server_mapping = { “www.host1.com”=>”rs1”, “www.host2.com”=>”rs2”, “www.host3.com”=>”rs3”}; } sub HTTP_REQUEST { my $host = OS_HTTP_REQUEST::host; my $server = $host_server_mapping {$host}; if ( $server ) { OS_SLB::forward($server); } else { OS_SLB:reset_client(); }

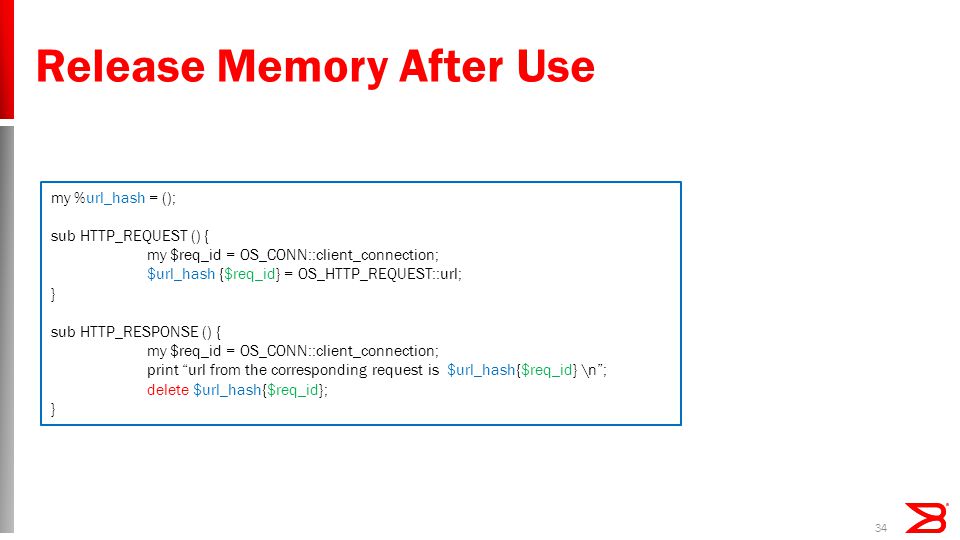

34 34 Release Memory After Use my %url_hash = (); sub HTTP_REQUEST () { my $req_id = OS_CONN::client_connection; $url_hash {$req_id} = OS_HTTP_REQUEST::url; } sub HTTP_RESPONSE () { my $req_id = OS_CONN::client_connection; print “url from the corresponding request is $url_hash{$req_id} \n”; delete $url_hash{$req_id}; }

35 Trouble Shooting Is my script attached to a VIP? Did the script modification take into effect? Do event counters increase? Does my script reset? Is there any typo in OpenScript APIs? Is the cause of a problem not identified? Where To Start 35 show script program show script detail script compile strict use “print” in the script url debug 3, debug filter, packet capture script update

36 Trouble Shooting Problem description show run show script program show script detail Gather 2~3 times after issuing “script update” to reset counters. url debug 3 packet trace from your client PC What To Gather To Escalate 36

37 37 Trouble Shooting Example My OpenScript code does not send a sorry page out though all servers are down. server real rs port 80 group-id server real rs port 80 group-id server virtual v port 80 script “sorry.pl” bind 80 rs1 80 rs2 80 use OS_SLB; use OS_HTTP_REQUEST; my $page; sub BEGIN { $page = "HTTP/ OK\r\nContent- Length:21\r\nConnection:close\r\nContent- Type: text/html; charset=UTF-8\r\n\r\n. Sorry.Get. back later.”; } sub HTTP_REQUEST { OS_SLB::forward (10); } sub SERVER_SELECTION_FAILURE { OS_SLB::reply($page); } ADX(config)#script compile sorry.pl strict This script is compiled successfully. Performance for this script: - Approximately 4100 connections/second at 10% CPU utilization - Approximately connections/second at 50% CPU utilization - Approximately connections/second at 100% CPU utilization ADX#show script sorry.pl detail v1 80 =============================================== Virtual Server: v1 Service-Port: http Script State: ACTIVE Last Updated: 00:59:21, GMT+00, Sun Mar Script Restart: 0 Total Connections: 0 Concurrent Connections: 0 Error Counters: exceed max rewrite entry: Hits Per Event: HTTP Request event: show run show script sorry.pl program ADX#show server bind Bind info Virtual server: test Status: enabled IP: http > rs1: , http (Failed) rs2: , http (Failed) server l7-dont-reset-on-vip-port-fail

38 THANK YOU 38
