1 Guide to Using Excel 2007 For Basic Statistical Applications To Accompany Business Statistics: A Decision Making Approach, 8th Ed. Chapter 16: Analyzing and Forecasting Time-Series Data By Groebner, Shannon, Fry, & Smith Prentice-Hall Publishing Company Copyright, 2011

2 Chapter 16 Excel Examples Trend Based Forecasting Trend Based Forecasting Trend Based Forecasting Trend Based Forecasting Taft Ice Cream Company Nonlinear Trend Nonlinear Trend Nonlinear Trend Nonlinear Trend Harrison Equipment Company Harrison Equipment Company Seasonal Adjustment Seasonal Adjustment Seasonal Adjustment Seasonal Adjustment Big Mountain Ski Resort Big Mountain Ski Resort Single Exponential Smoothing Single Exponential Smoothing Single Exponential Smoothing Single Exponential Smoothing Dawson Graphic Design Dawson Graphic Design More Examples

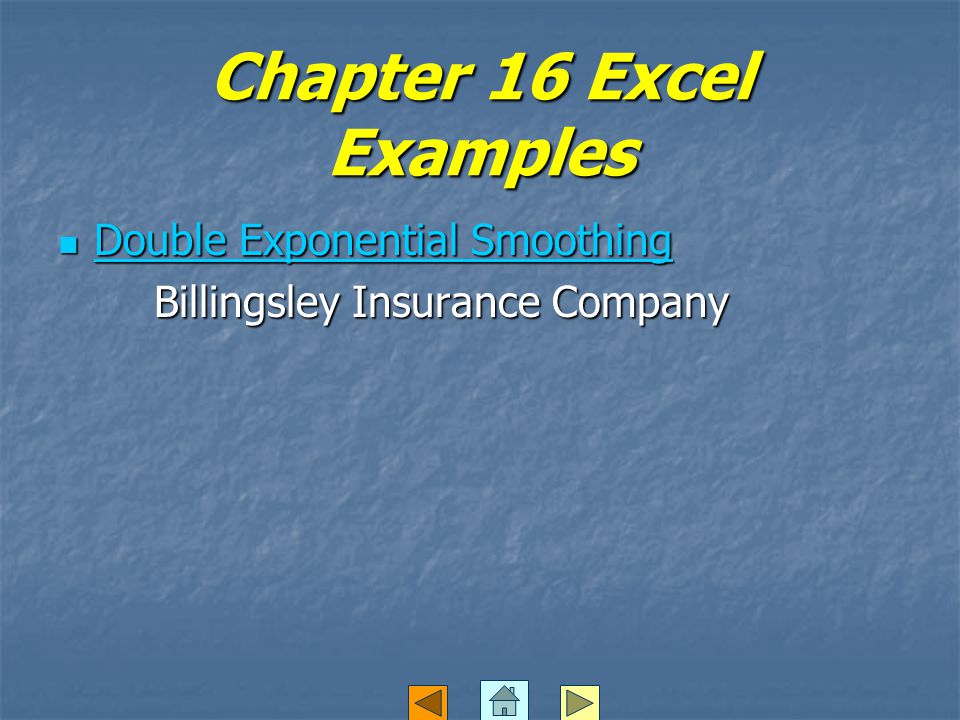

3 Chapter 16 Excel Examples Double Exponential Smoothing Double Exponential Smoothing Double Exponential Smoothing Double Exponential Smoothing Billingsley Insurance Company

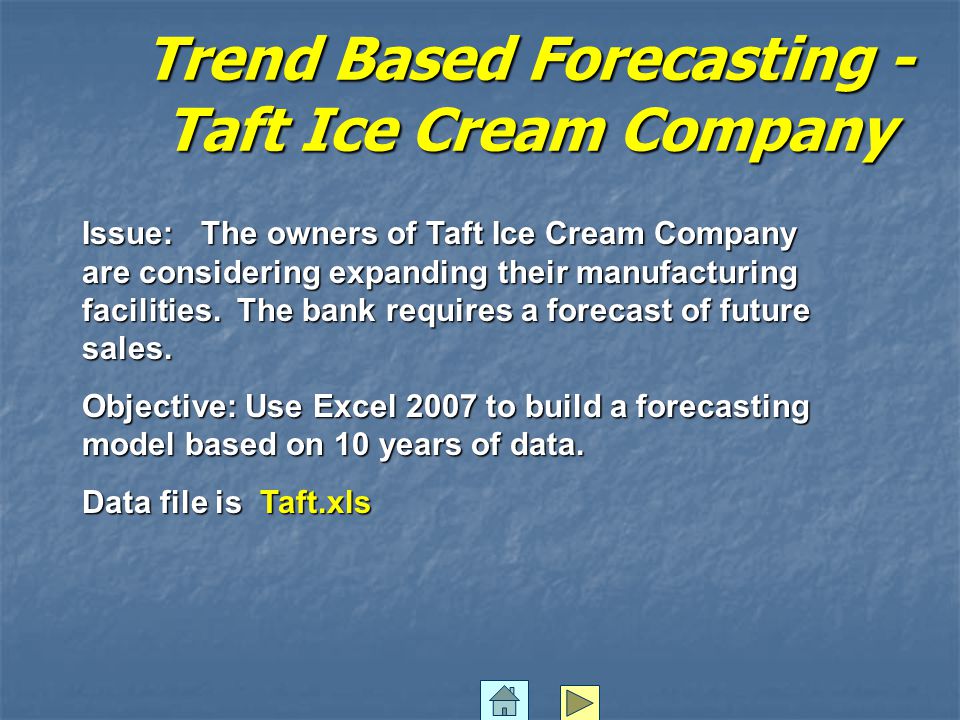

4 Trend Based Forecasting - Taft Ice Cream Company Issue: The owners of Taft Ice Cream Company are considering expanding their manufacturing facilities. The bank requires a forecast of future sales. Objective: Use Excel 2007 to build a forecasting model based on 10 years of data. Data file is Taft.xls

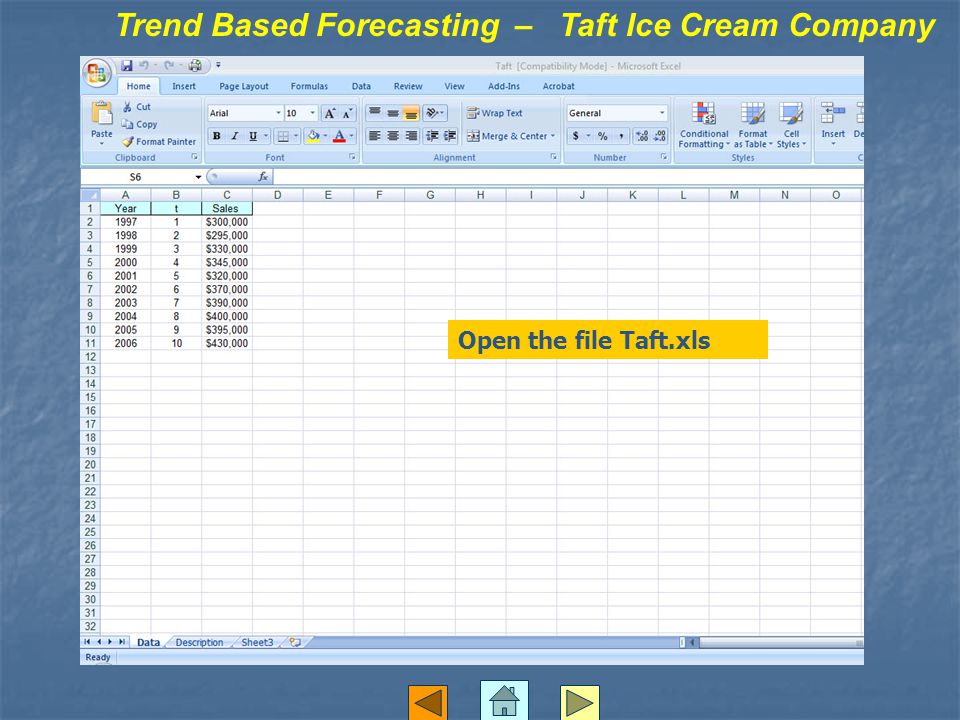

5 Trend Based Forecasting – Taft Ice Cream Company Open the file Taft.xls

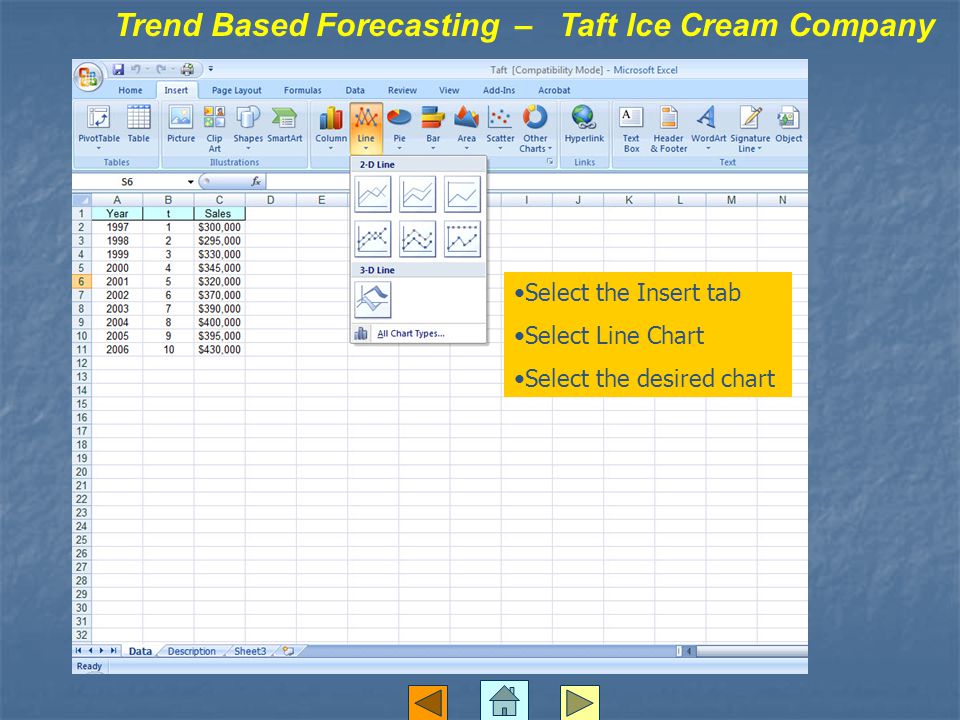

6 Trend Based Forecasting – Taft Ice Cream Company Select the Insert tab Select Line Chart Select the desired chart

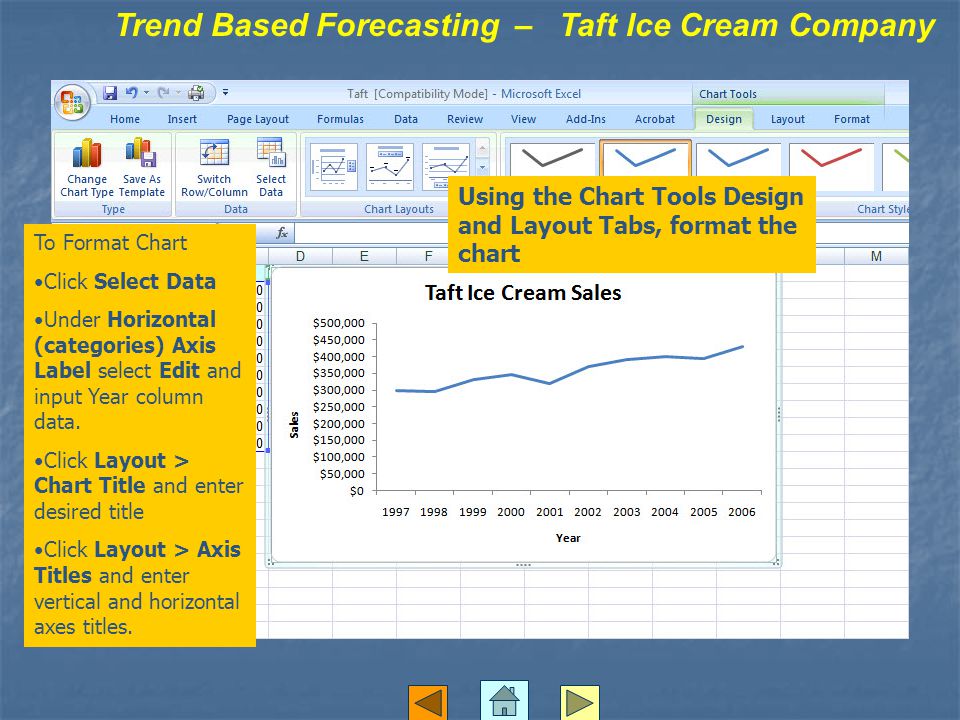

7 Trend Based Forecasting – Taft Ice Cream Company Using the Chart Tools Design and Layout Tabs, format the chart To Format Chart Click Select Data Under Horizontal (categories) Axis Label select Edit and input Year column data. Click Layout > Chart Title and enter desired title Click Layout > Axis Titles and enter vertical and horizontal axes titles.

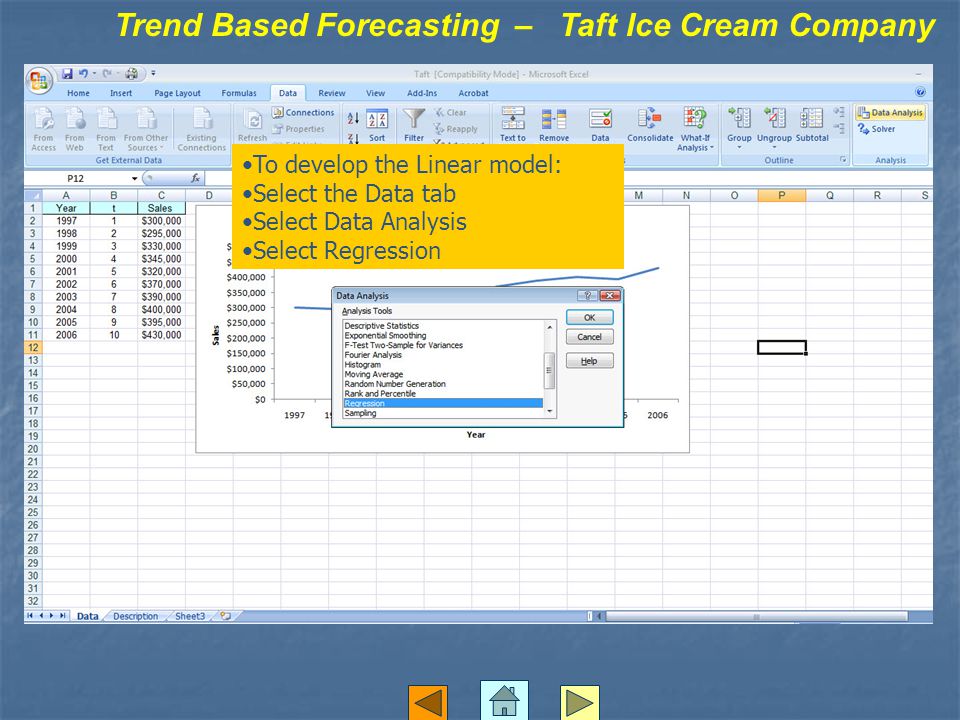

8 Trend Based Forecasting – Taft Ice Cream Company To develop the Linear model: Select the Data tab Select Data Analysis Select Regression

9 Trend Based Forecasting – Taft Ice Cream Company Use Sales for the Y range Use t (time) for the X range

10 Trend Based Forecasting – Taft Ice Cream Company Linear Trend Equation: Sales = (t)

11 Trend Based Forecasting – Taft Ice Cream Company Open file Taft.xls Select Sales data Click on Insert > Line Chart On the Chart Tools Design Tab, click Select Data Under Horizontal (categories) Axis Label select Edit and input Year column data. Click Layout > Chart Title and enter desired title Click Layout > Axis Titles and enter vertical and horizontal axes titles.

12 Trend Based Forecasting – Taft Ice Cream Company Select Line Plot Right Click and select Add Trendline Linear

13 Trend Based Forecasting – Taft Ice Cream Company Format the chart as desired Linear trend line: F t = 277, ,575.76(t)

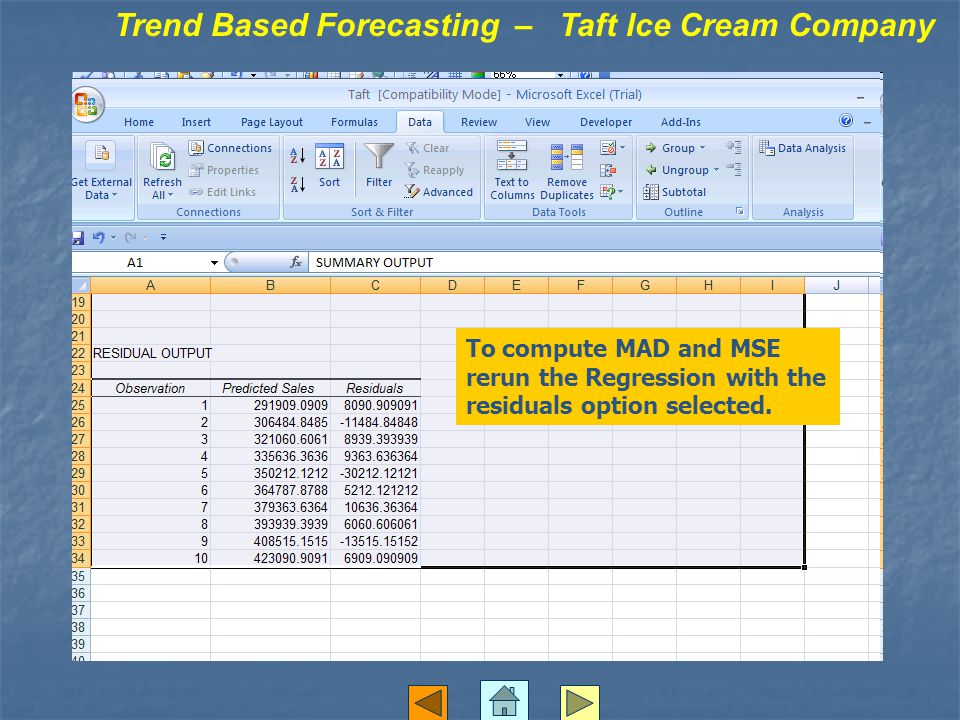

14 Trend Based Forecasting – Taft Ice Cream Company To compute MAD and MSE rerun the Regression with the residuals option selected.

15 Trend Based Forecasting – Taft Ice Cream Company 1.In Column D Compute the Square of the residual (=c25^2). Copy Down to D34. 2.In Column E compute the absolute value of the Residuals (=abs(c25)). Copy Down to E Sum Columns D and E

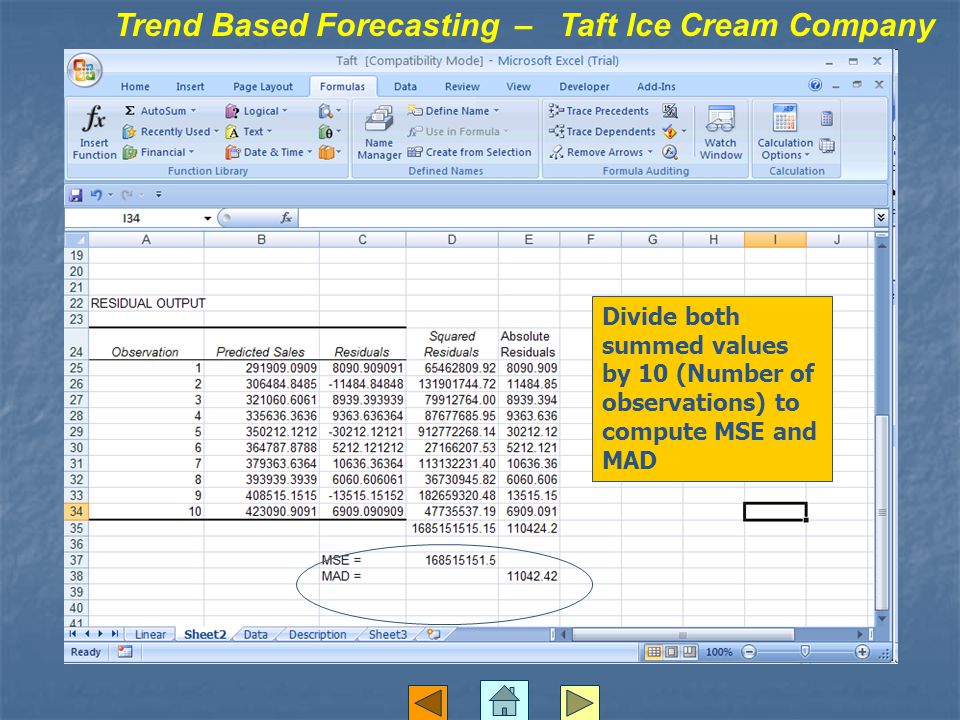

16 Trend Based Forecasting – Taft Ice Cream Company Divide both summed values by 10 (Number of observations) to compute MSE and MAD

17 Issue: Harrison Equipment is interested in forecasting future repair costs for a crawler tractor it leases to contractors. Objective: Use Excel 2007 to develop a nonlinear forecasting model. Data file is Harrison.xls Nonlinear Trend - Harrison Equipment Company Nonlinear Trend - Harrison Equipment Company

18 Nonlinear Trend – Harrison Equipment Company Open file: Harrison.xls Highlight the Repair cost (Column D) Select Insert Tab, Click Line Add x-axis labels and titles as explained previously.

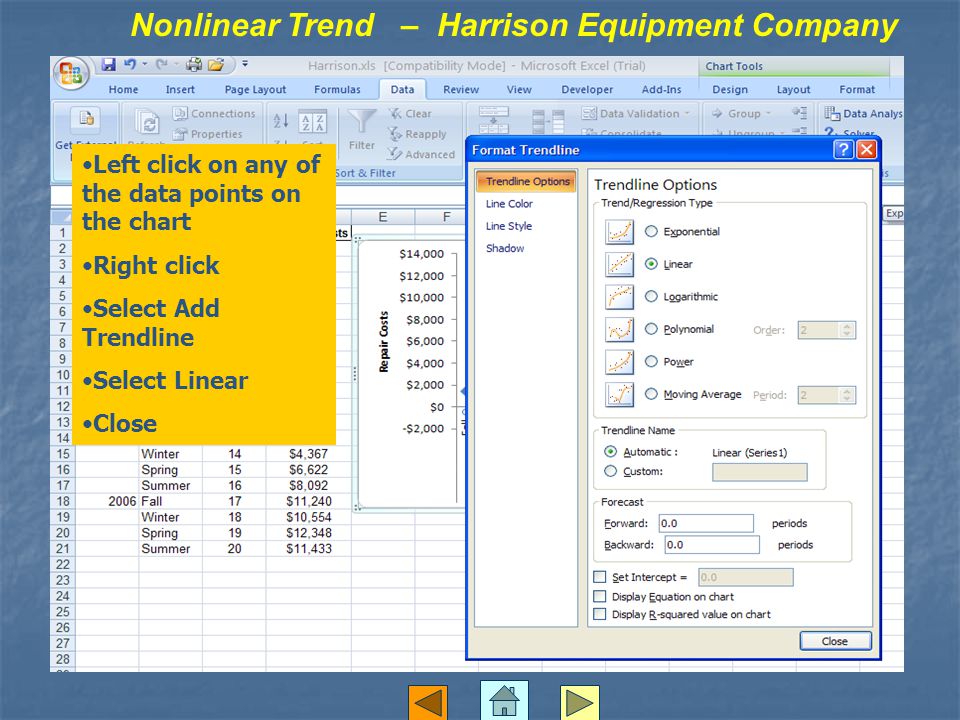

19 Nonlinear Trend – Harrison Equipment Company Left click on any of the data points on the chart Right click Select Add Trendline Select Linear Close

20 Nonlinear Trend – Harrison Equipment Company The Trendline is plotted against the data

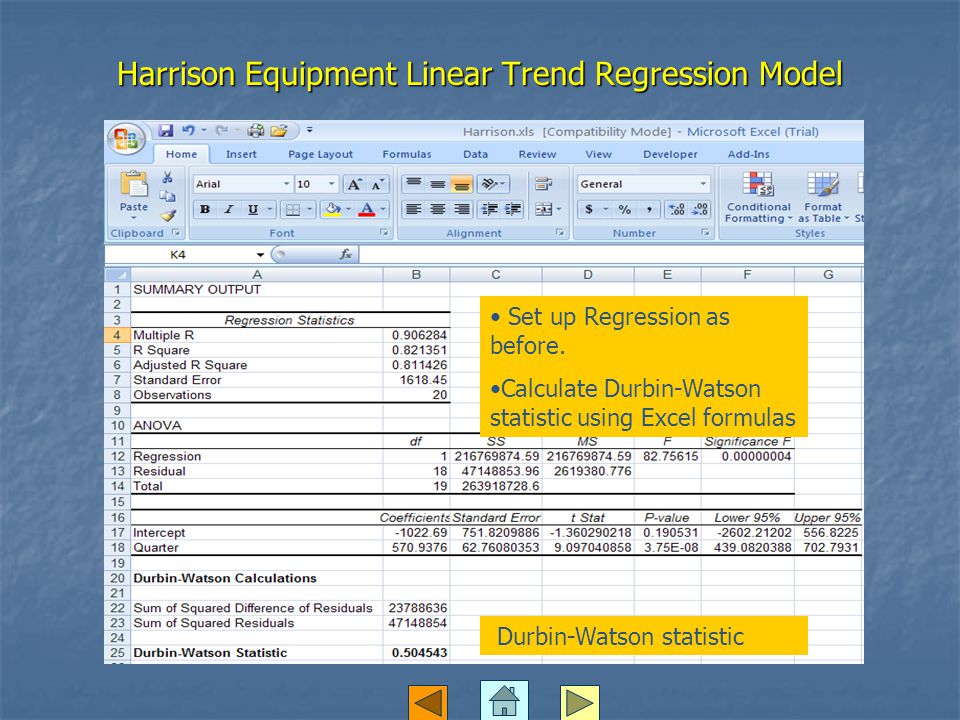

21 Harrison Equipment Linear Trend Regression Model Set up Regression as before. Calculate Durbin-Watson statistic using Excel formulas Durbin-Watson statistic

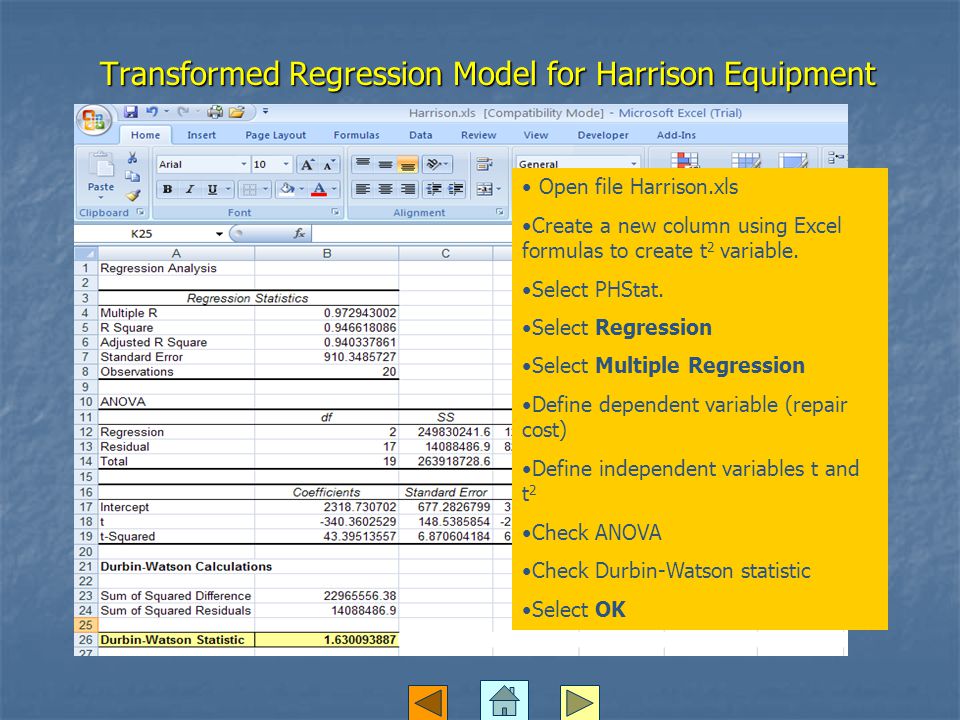

22 Transformed Regression Model for Harrison Equipment Open file Harrison.xls Create a new column using Excel formulas to create t 2 variable. Select PHStat. Select Regression Select Multiple Regression Define dependent variable (repair cost) Define independent variables t and t 2 Check ANOVA Check Durbin-Watson statistic Select OK

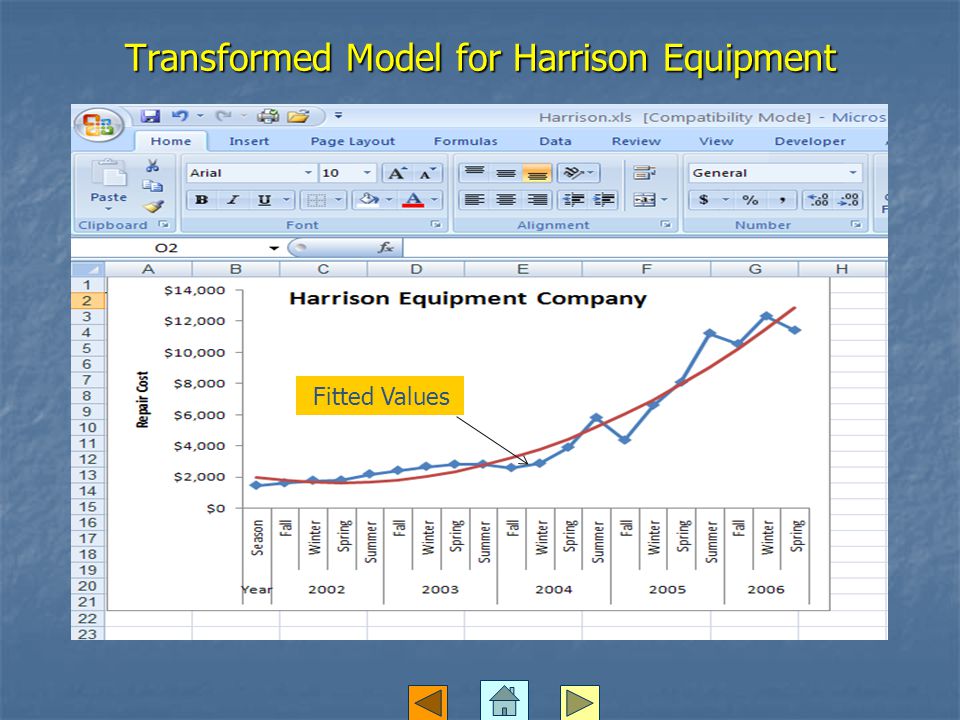

23 Transformed Model for Harrison Equipment Fitted Values

24 Seasonal Adjustment - Big Mountain Ski Resort Seasonal Adjustment - Big Mountain Ski Resort Issue: The resort wants to build a forecasting model from data that has a definite seasonal component. Objective: Use Excel 2007 to develop a forecasting model for seasonal data. Data file is Big Mountain.xls

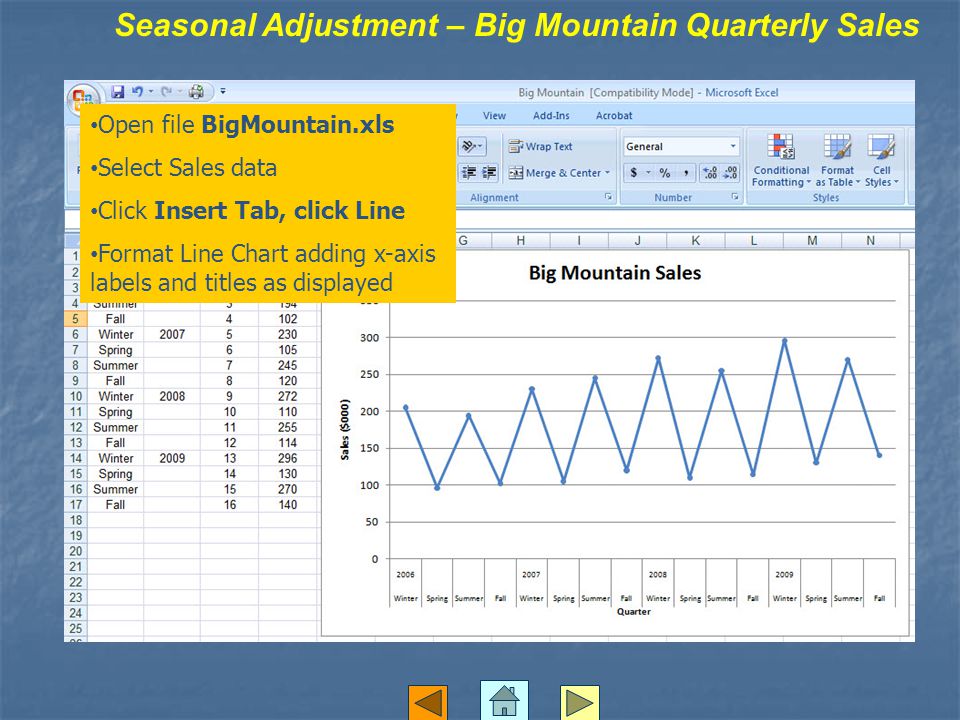

25 Seasonal Adjustment – Big Mountain Quarterly Sales Open file BigMountain.xls Select Sales data Click Insert Tab, click Line Format Line Chart adding x-axis labels and titles as displayed

26 Seasonal Adjustment – Big Mountain Ski Resort Compute Column E as the average of Cells D2,D3,D4,and D5 Copy and paste this formula down

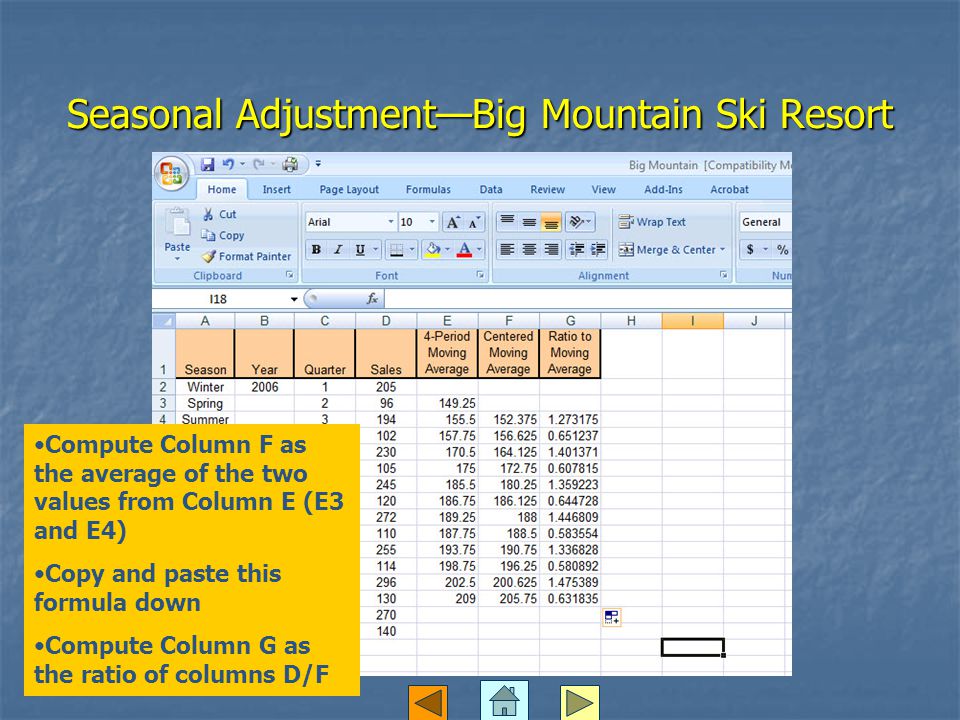

27 Seasonal Adjustment—Big Mountain Ski Resort Compute Column F as the average of the two values from Column E (E3 and E4) Copy and paste this formula down Compute Column G as the ratio of columns D/F

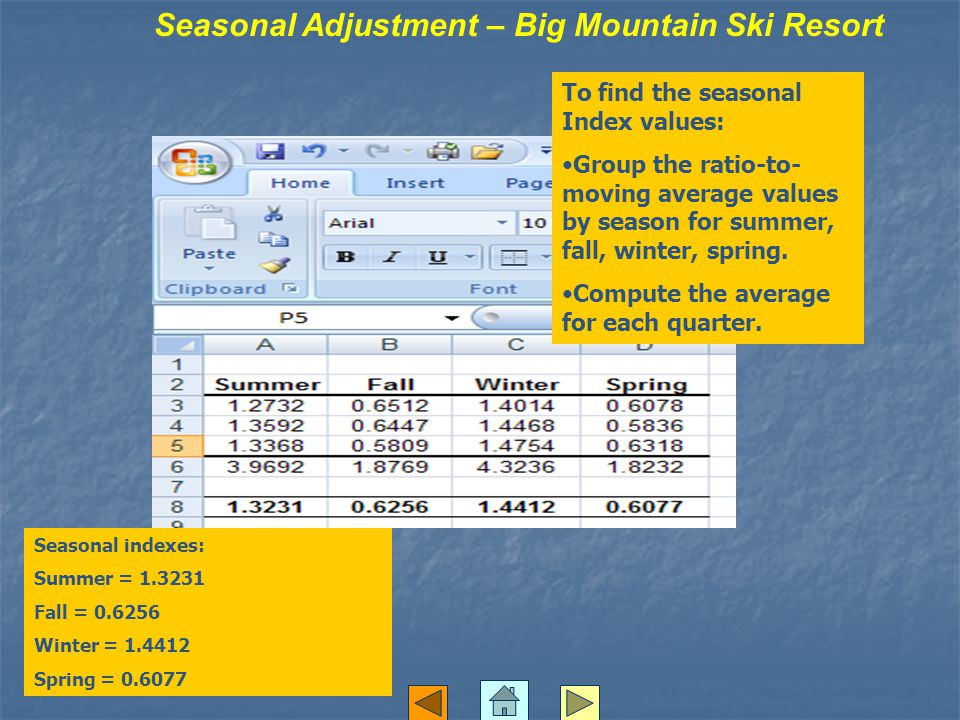

28 Seasonal Adjustment – Big Mountain Ski Resort To find the seasonal Index values: Group the ratio-to- moving average values by season for summer, fall, winter, spring. Compute the average for each quarter. Seasonal indexes: Summer = Fall = Winter = Spring =

29 Seasonal Adjustment – Big Mountain Ski Resort Deseasonalize sales by dividing each sales value by its corresponding seasonal index. Click the Insert Tab, Click Line and graph the deseasonalized sales values. Format Chart as displayed

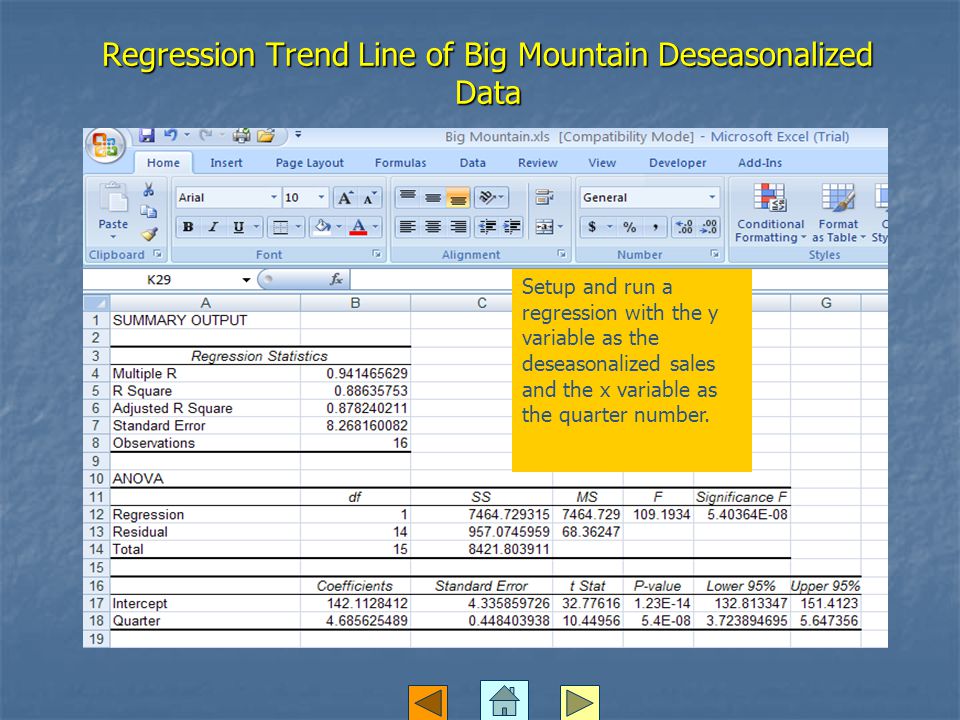

30 Regression Trend Line of Big Mountain Deseasonalized Data Setup and run a regression with the y variable as the deseasonalized sales and the x variable as the quarter number.

31 Big Mountain Regression Using Dummy Variables Open file Big Mountain.xls Create Dummy Variables for the Winter, Spring, and Summer Quarters Use Excel’s Regression tool to run model The y-variable is sales The x-variables are quarter, winter dummy, spring dummy, and summer dummy.

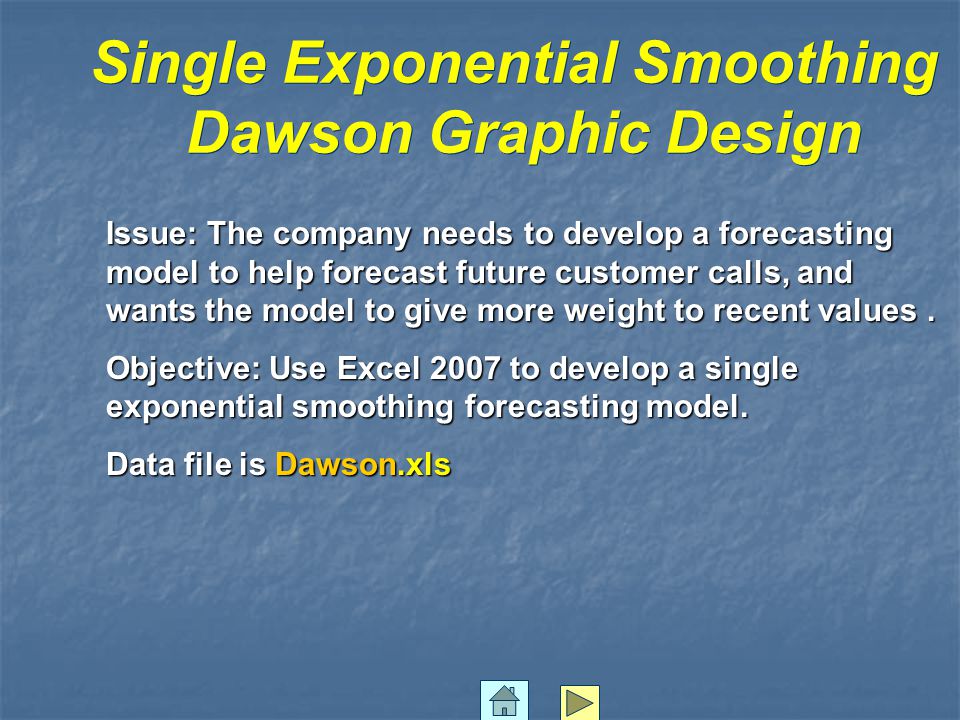

32 Single Exponential Smoothing Dawson Graphic Design Issue: The company needs to develop a forecasting model to help forecast future customer calls, and wants the model to give more weight to recent values. Objective: Use Excel 2007 to develop a single exponential smoothing forecasting model. Data file is Dawson.xls

33 Single Exponential Smoothing – Dawson Graphic Design Open the file Dawson.xls

34 Single Exponential Smoothing – Dawson Graphic Design Using Excel’s Insert tab, create a line chart. Format Chart as explained earlier.

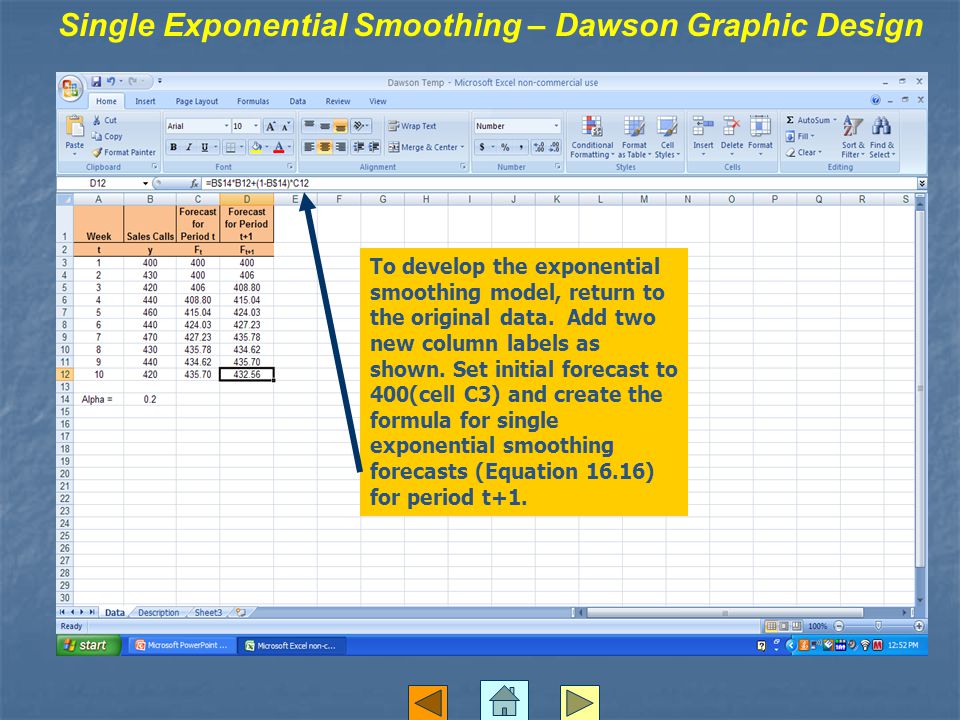

35 Single Exponential Smoothing – Dawson Graphic Design To develop the exponential smoothing model, return to the original data. Add two new column labels as shown. Set initial forecast to 400(cell C3) and create the formula for single exponential smoothing forecasts (Equation 16.16) for period t+1.

36 Single Exponential Smoothing – Dawson Graphic Design Single smoothed forecast Calculate forecast errors and absolute forecast errors using Excel formulas Sum the column of absolute forecast errors. Calculate the MAD using the average function Create line chart of actual and single smoothed forecast values

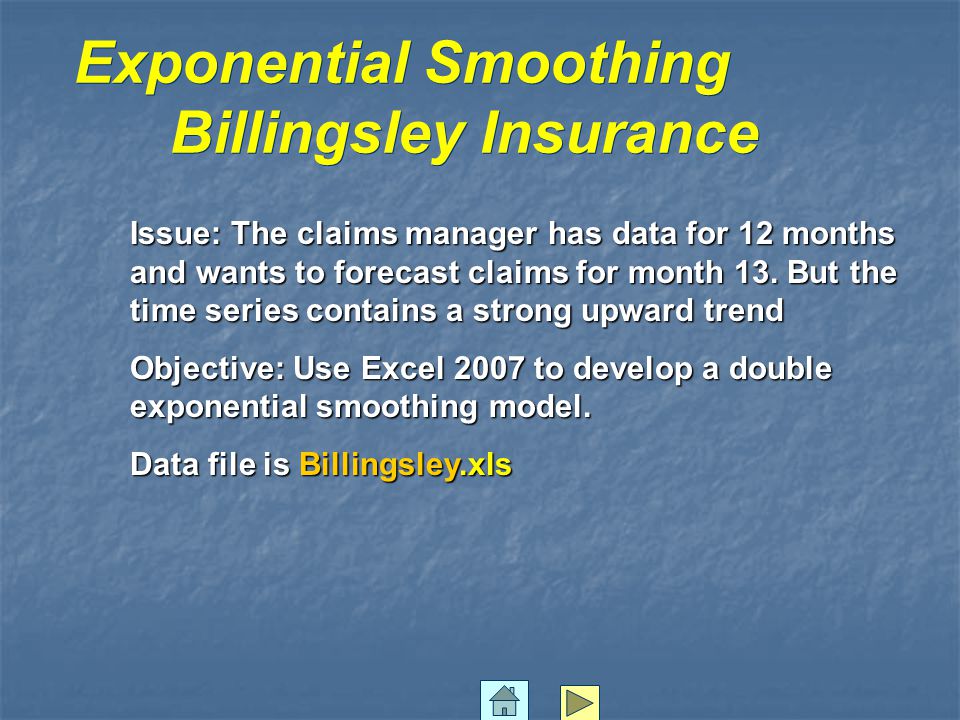

37 Issue: The claims manager has data for 12 months and wants to forecast claims for month 13. But the time series contains a strong upward trend Objective: Use Excel 2007 to develop a double exponential smoothing model. Data file is Billingsley.xls Exponential Smoothing Billingsley Insurance

38 Double Exponential Smoothing – Billingsley Insurance Open the file Billingsley.xls. Select Claims data Click on Insert Tab, Click Line, Select a style Format Chart as displayed.

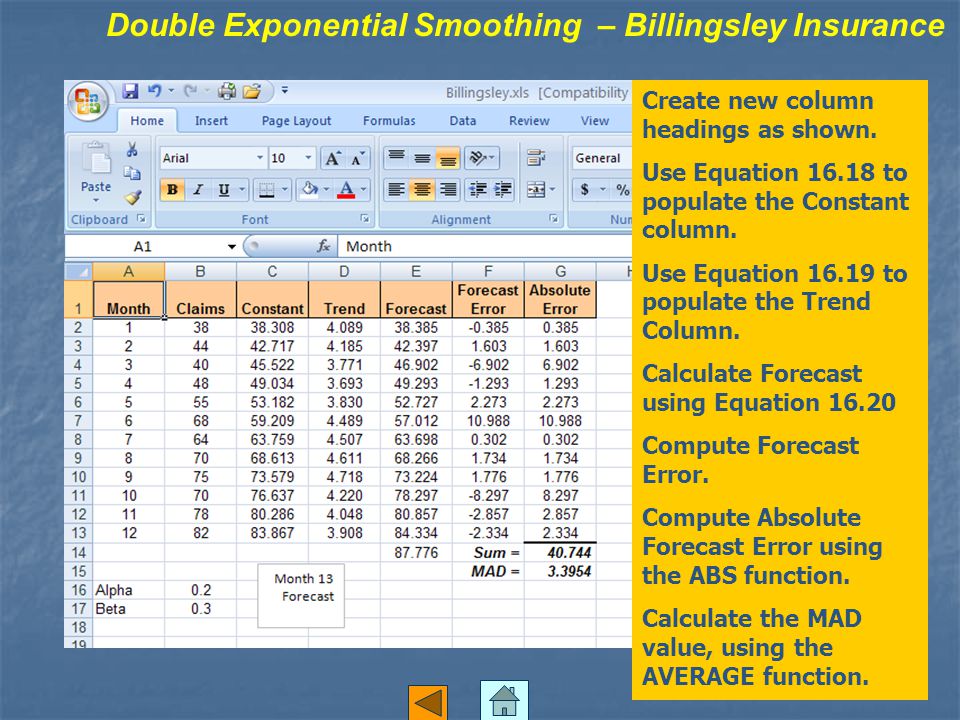

39 Double Exponential Smoothing – Billingsley Insurance Create new column headings as shown. Use Equation to populate the Constant column. Use Equation to populate the Trend Column. Calculate Forecast using Equation Compute Forecast Error. Compute Absolute Forecast Error using the ABS function. Calculate the MAD value, using the AVERAGE function.
